Vehicle Telematics System 360 Panoramic View Surveillance 8CH MDVR With Blind Spot Detection
- Category: >>>
- Supplier: Shenzhen Richmor Technology Development Co. Ltd.
Share on (1600929075499):
Product Overview
Description
Specification
item | Parameter | value | |
Operation system | Embedded Linux | Linux | |
CPU Speed | 1.2GHZ | 1.2GHZ | |
Nor Flash Capacity | 32MB NOR+128M NAND | 32MB NOR+128M NAND | |
Ram Capacity | 1G | 1G | |
Video and codec | Video Input | 8 channel AHD HD analog input, aviation connection, 1.0Vp-p, 75Ω | |
Compression mode | Video Output | 2channel composite video output，1.0Vp-p，5 Ω, VGA input (optional), 1 channel / 2 channel / 5/4 picture segmentation / 9/6 picture segmentation | |
Video input | Preview | Support single CH /2 CH /4 CH /5 CH /6 CH /8 CH /9 CH splicing preview, support manual/event trigger full-screen display function | |
Video output | Resolution | 1080P/720P/D1/HD1/CIF,can be optional, max support 8channel 1080P | |
Communicate mode | Image Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. | |
Audio Input | Kbps for record | CIF: 256Kbps ~ 800Kbps,multilevel image quality can be optional D1: 400Kbps ~ 1Mbps, multilevel image quality can be optional 720P:640Kbps-2Mbps, multilevel image quality can be optional 1080P:1024Kbps-4Mbps, multilevel image quality can be optional | |
Audio output | Recording Mode | Default automatic recording, support ACC Power on、Manual recording、 alarm recording and etc | |
Video Output | Analog output | 1ch preposition analog output | |
API/SDK integration | 1ch postposition analog output(aviation) | ||
Audio Input | Input channel | 8CH | |
Warranty | AGC Control | Automatic | |
Sampling frequency | 8/16K | ||
Sampling accuracy | 16 | ||
Audio output | Interface Type | 4-core 12M-4B aviation connection/4-core 3.5mm headphone connection | |
Output channel | 3channel | ||
Mute | support | ||
Position | GPS/BD | Supports dual mode positioning | |
Precision | ≤10m(95%) | ||
Starting time | Warm reboot≤5s, cold reboot≤45s | ||
Repeat positioning | 1s | ||
Driving Record | Driving Record | 15 days or ≥100,000 | |
Power | +12V output current | 12V@1A | |
+5V output current | 5V@1A | ||
Alarm input | 6CH IO alarm input, 2CH AD input, 2CH pulse speed input; with alarm linkage function | ||
Alarm output | 2CH switch output, linkage sound and light alarm, oil cut-off, etc. | ||
Storage | Hard disc | Support large capacity 2.5 inch hard drive (maximum 2T) | |
SD card | 2 large-capacity SD card recordings, maximum 128G each, backup video, compensate video data security | ||
System Selling Points:
1) MDVR + AI All-In-One. Monitoring and Enhance Driving Safety at the same time.
2) Strongly Support ADAS+DSM+BSD. Further support HOD, Passenger counter, 360 degree view, etc.
3) 8 channel full HD (1080P) video recording, H.265
Applications
Widely applied in bus, coach, truck, logistics etc.

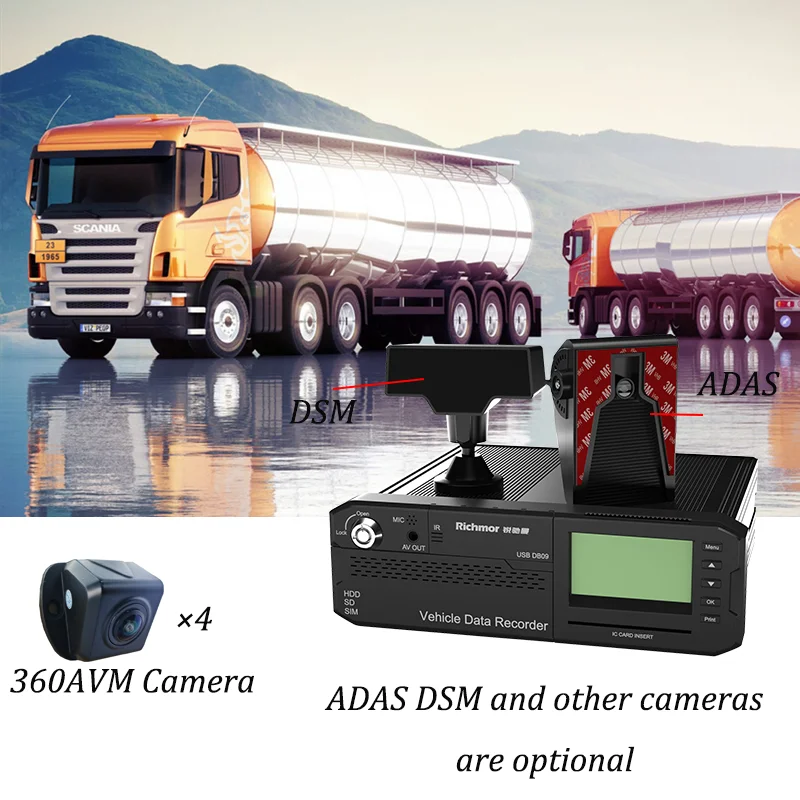

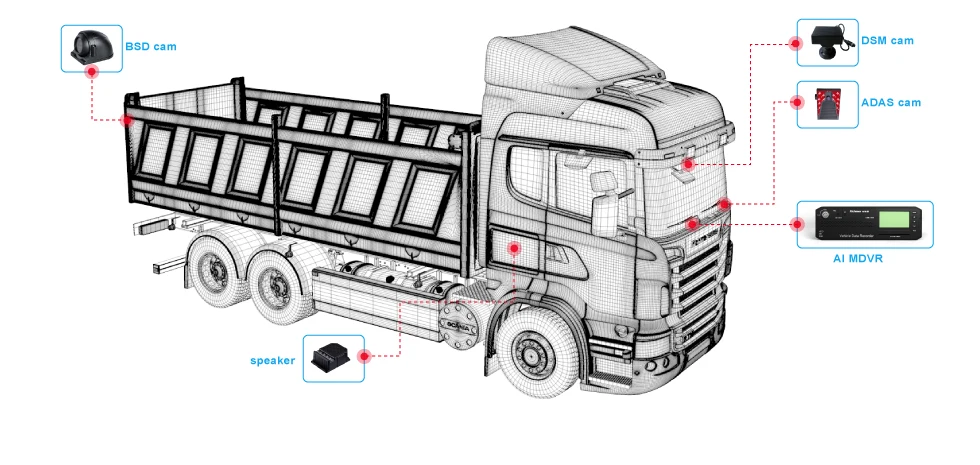

What does this system combine?
MDVR + ADAS cam + DSM cam + BSD cam + inner&outer Speaker.

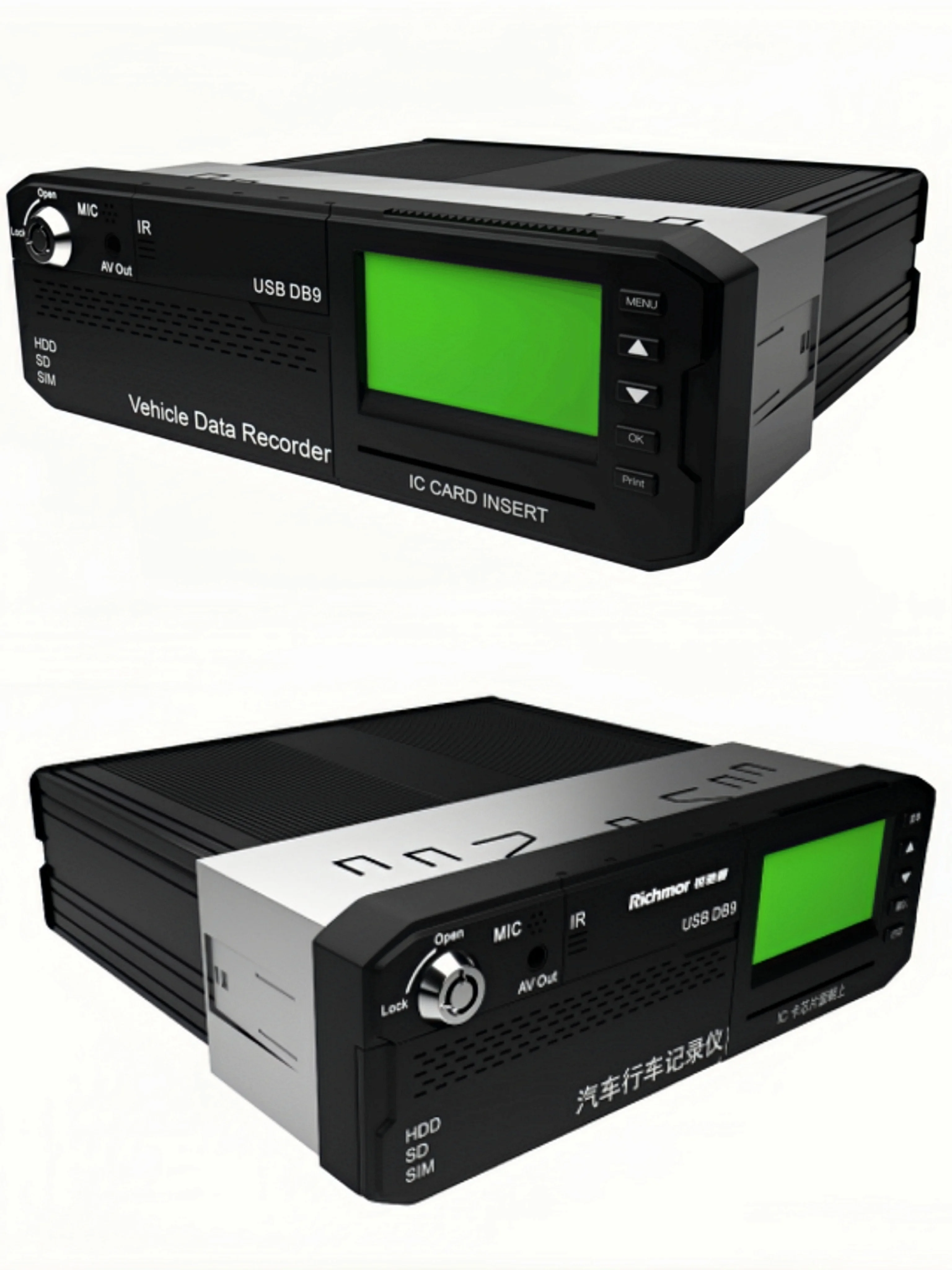

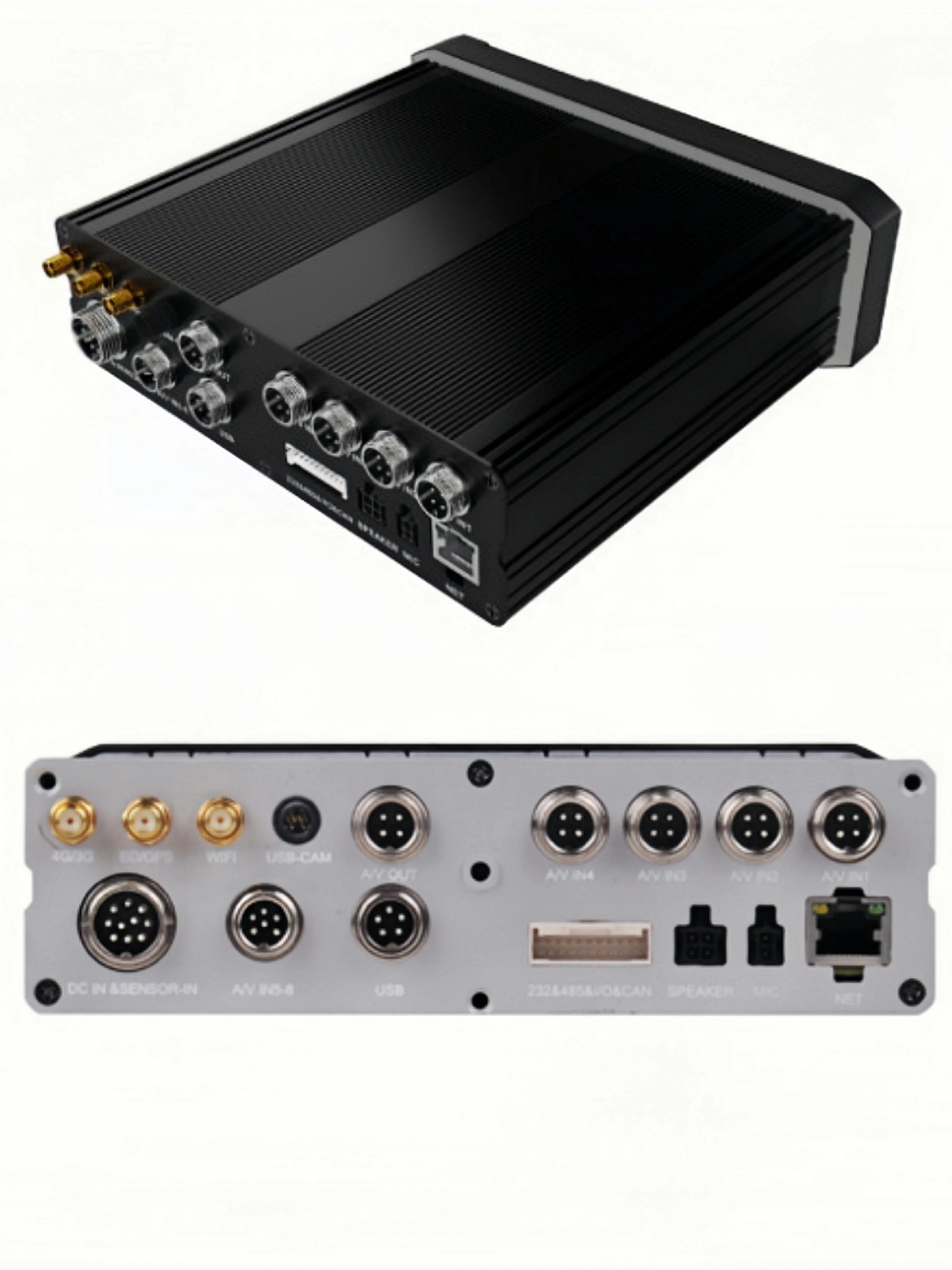

Product details perspective display
Front +Side+Back .
Front +Side+Back .

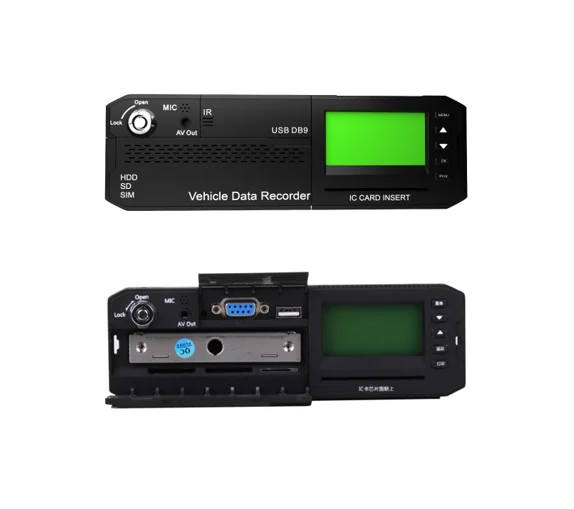

AI-Chipset MDVR
8CH Full HD + H.265 + GPS + 3G/4G + WIFI (optional).
8CH Full HD + H.265 + GPS + 3G/4G + WIFI (optional).
Algorithm is written inside the MDVR chipsets.
ADAS(Advanced Driving Assistance System)
System ADAS alerts accuracy is up to 99~ 100% high accuracy.
DSM(Driver Status Monitoring)
Behavior Detection: Eyes Closing/distraction/Smoking/Calling /Driving Absence supported.
Language: English/Russian/Spanish/Portuguese/customized .
Behavior Detection: Eyes Closing/distraction/Smoking/Calling /Driving Absence supported.
Language: English/Russian/Spanish/Portuguese/customized .
HOD (Hands Off Driving)
HOD is extending function from DSM. Give a complete of monitor of driver behaviour, fully improve driving safety.
BSD (Blind Area Detection)
3-level pre-warnings/Distinguish Moving Objectives Intelligentl
Installation Diagram
BSD camera supports installing on the left/right back/front side to adapt to different vehicles.
Supports dual BSD detection. Quick installation and easy parameter setup.
BSD camera supports installing on the left/right back/front side to adapt to different vehicles.
Supports dual BSD detection. Quick installation and easy parameter setup.
More AI function

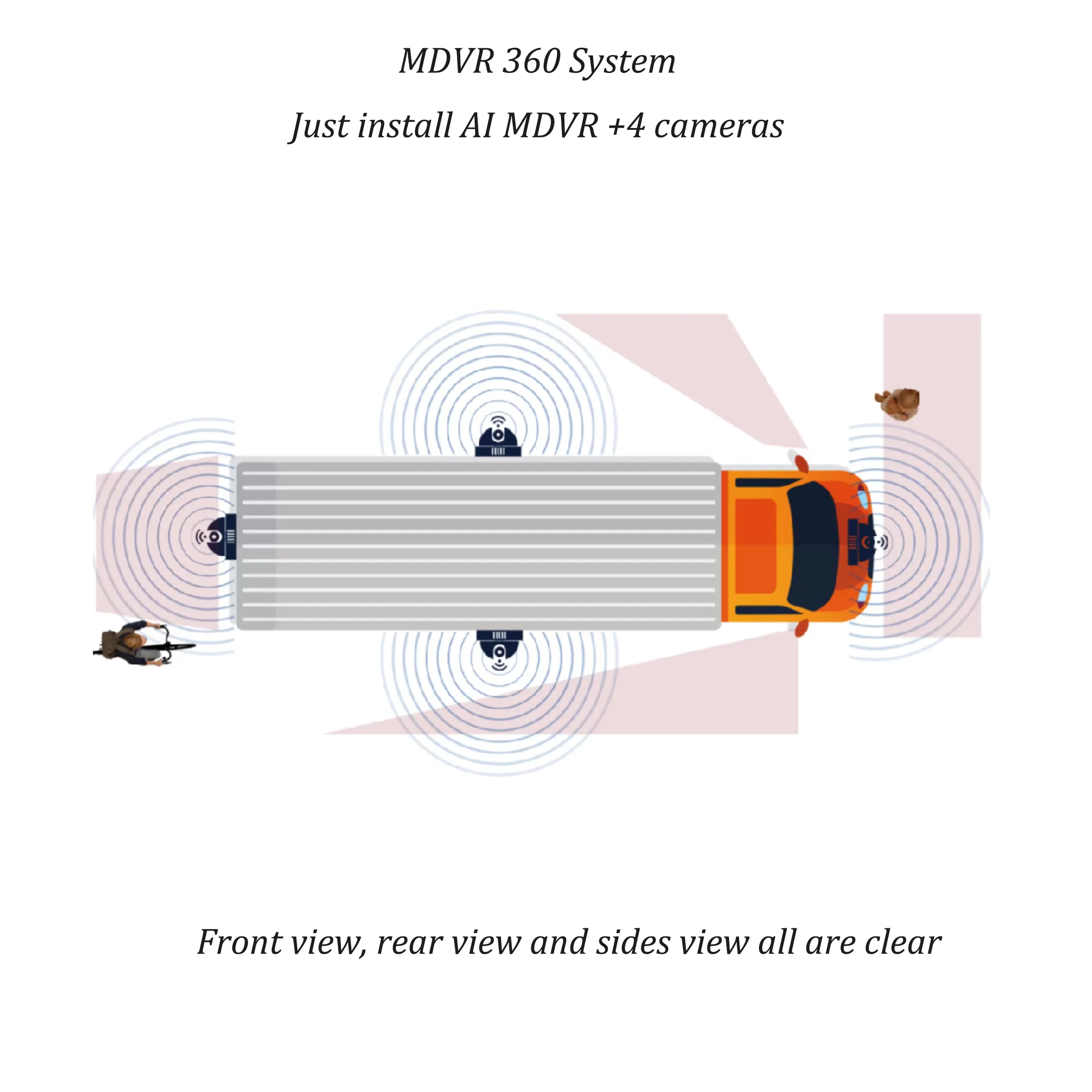

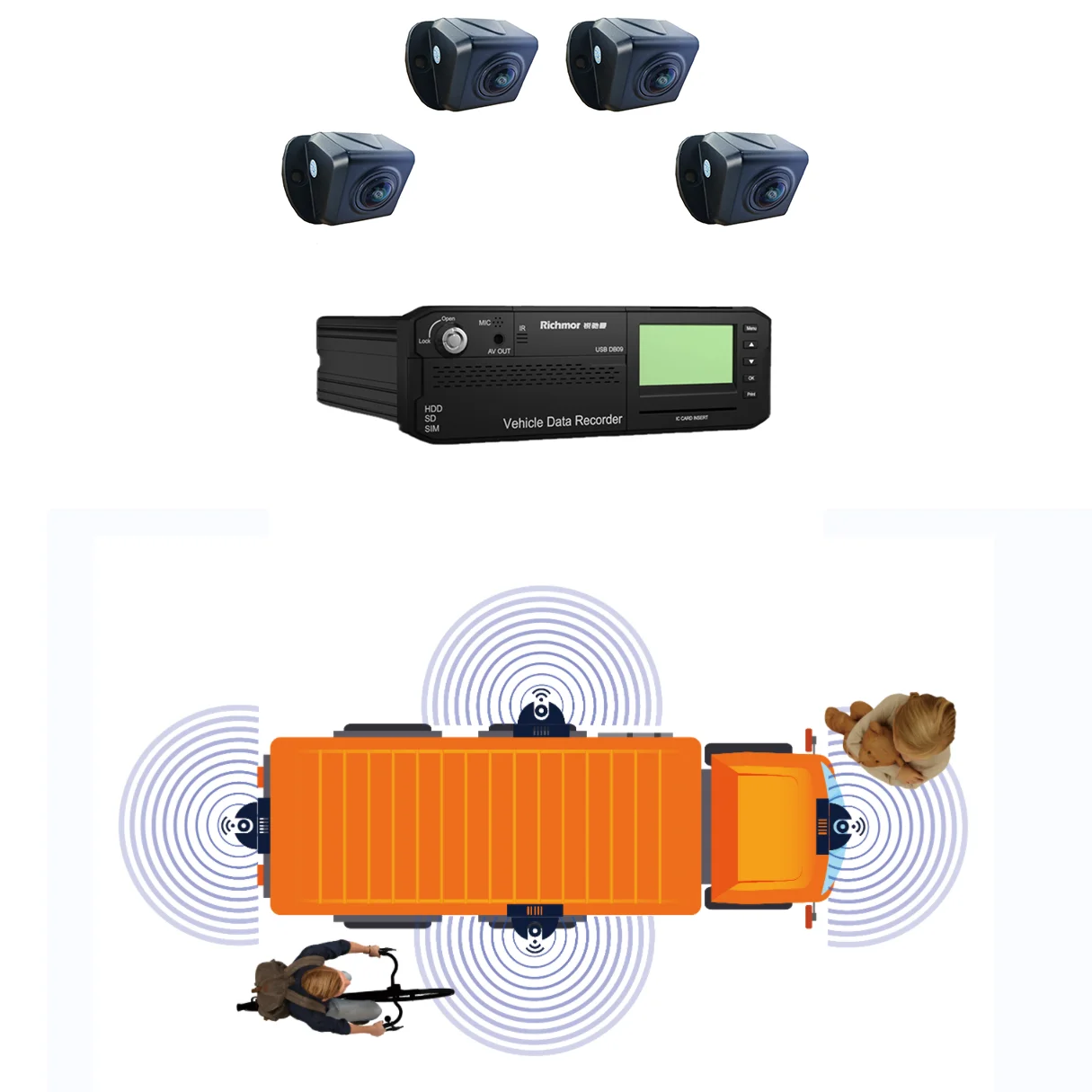

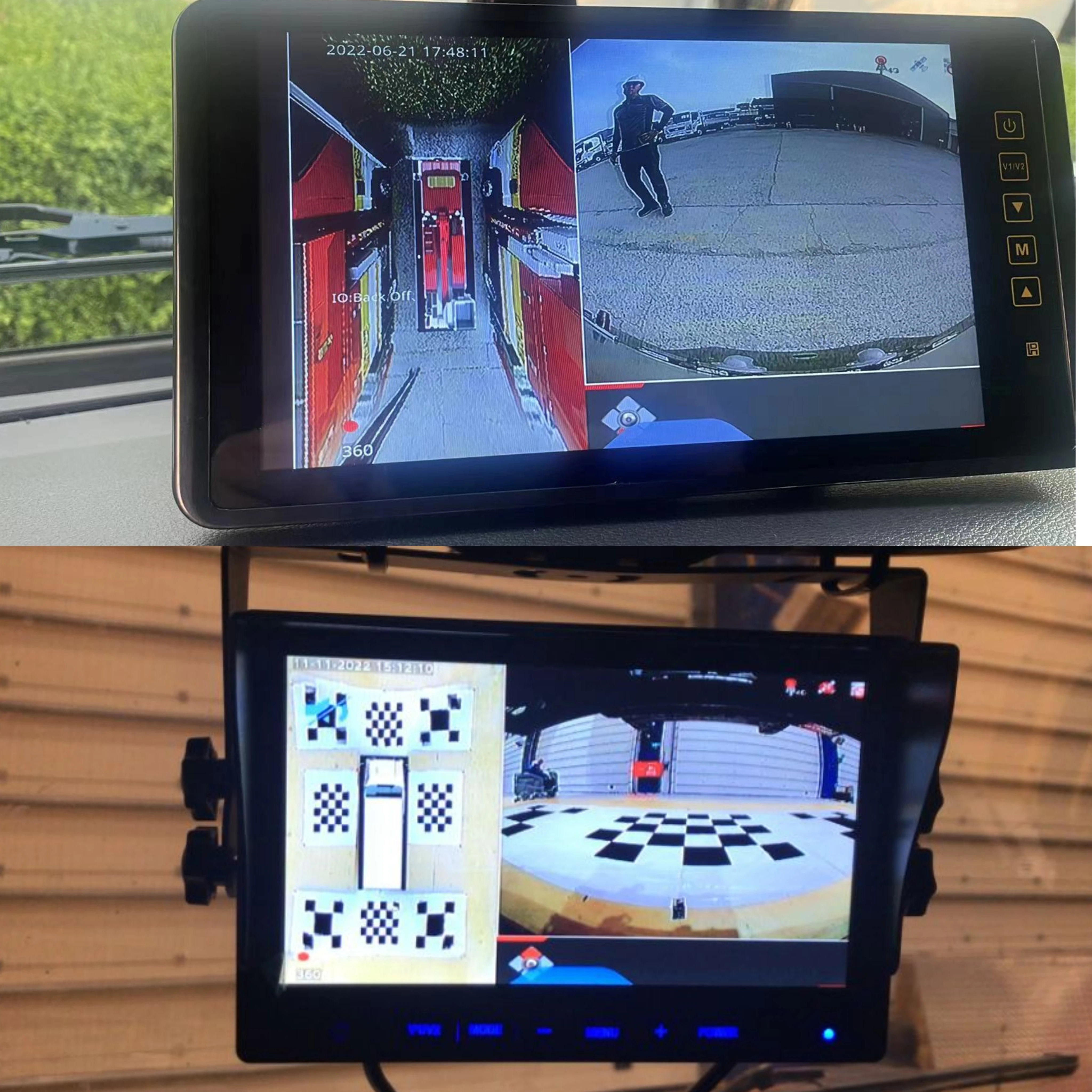

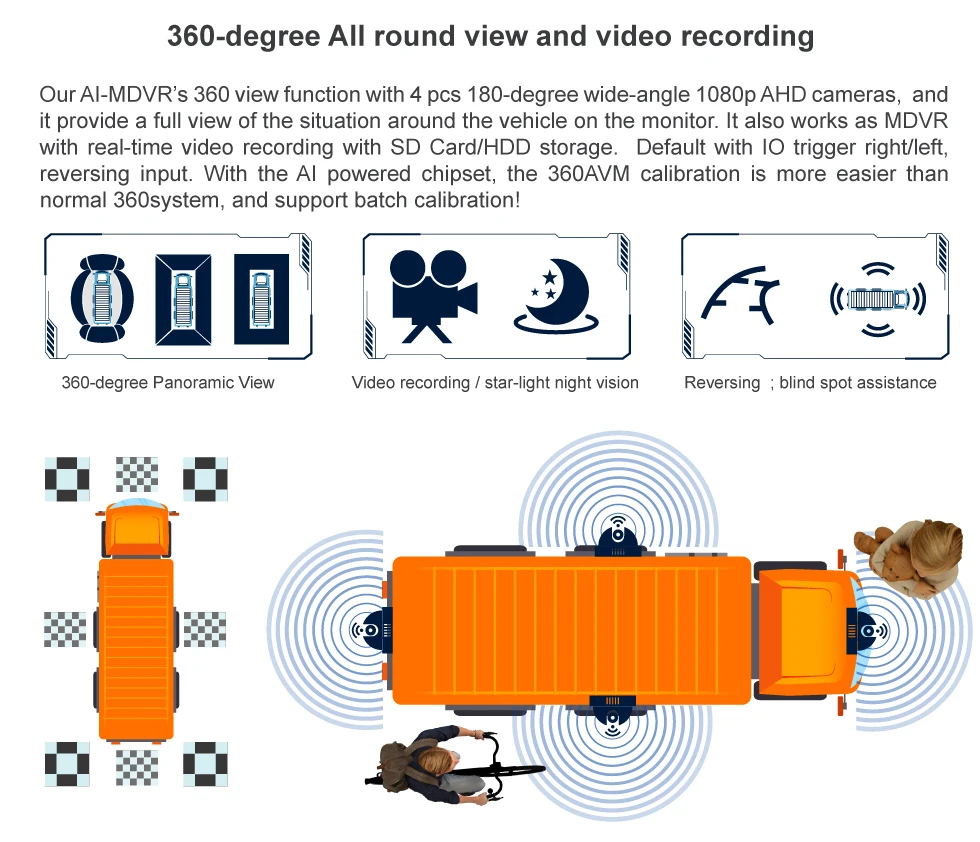

360-degree All round view and passenger counter.provide a full view of the statuation around the vehicle on the monitor.it also works as MDVR with real-time video recording with SD card /HDD storage.
360-degree All round view and passenger counter.provide a full view of the statuation around the vehicle on the monitor.it also works as MDVR with real-time video recording with SD card /HDD storage.
