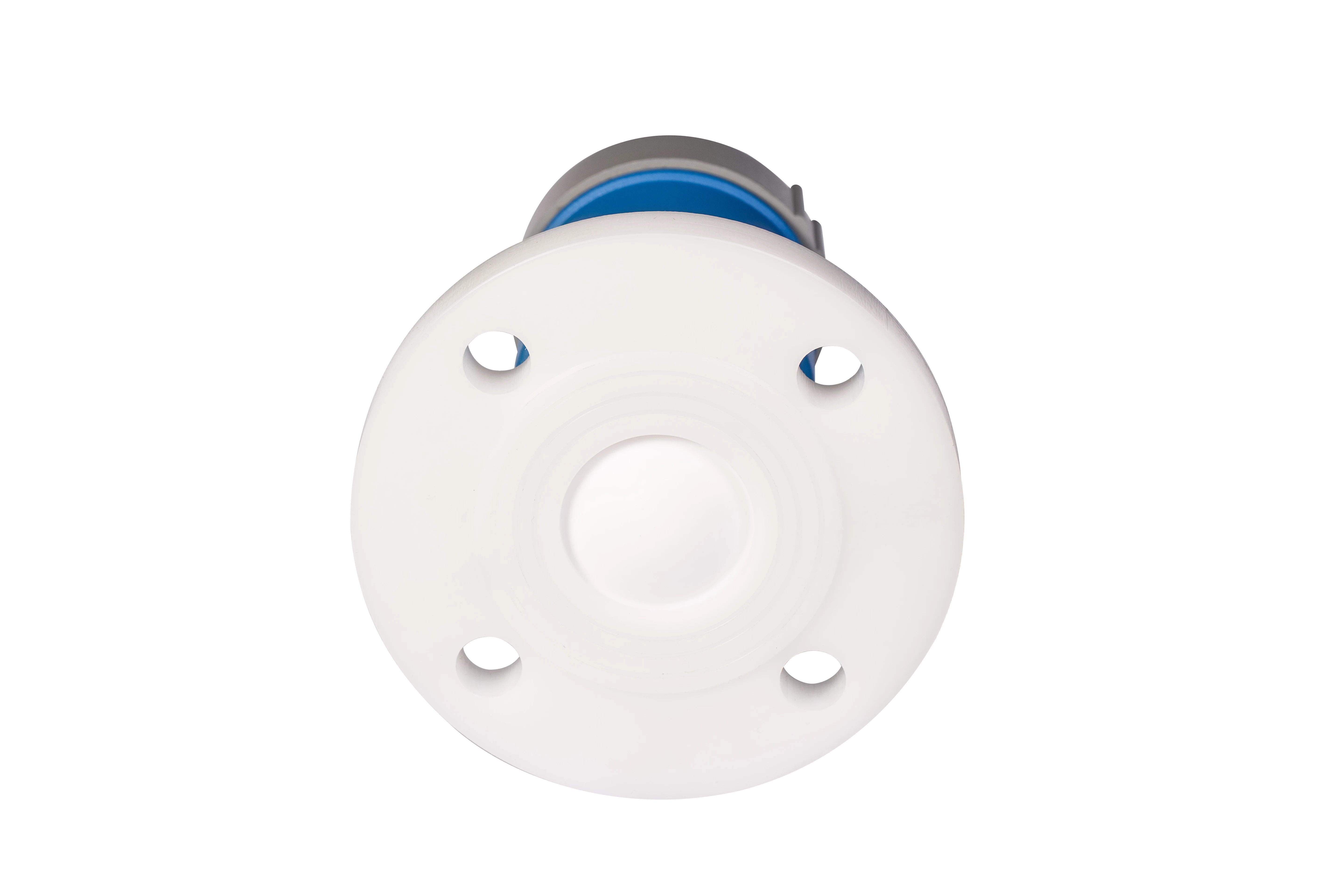

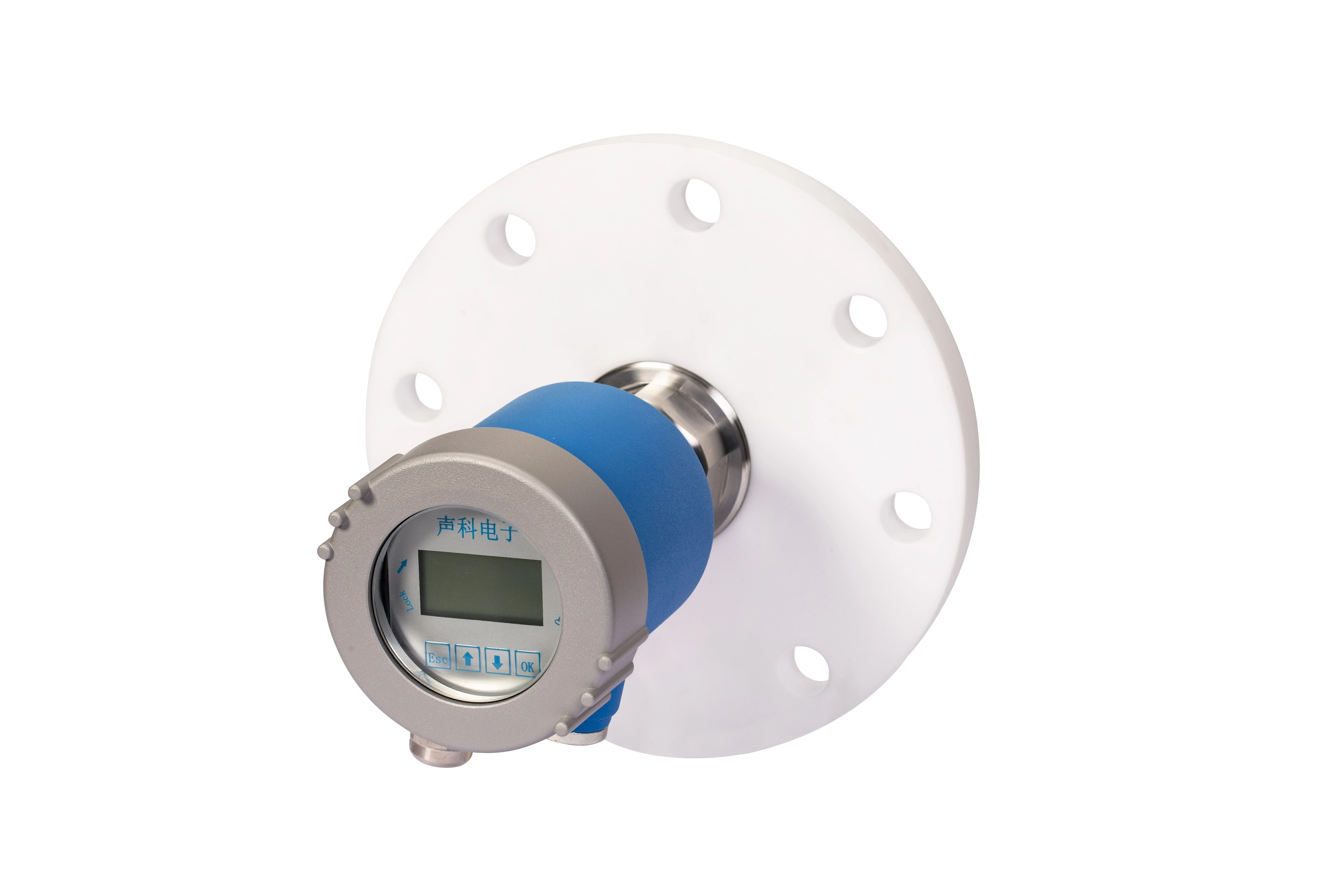

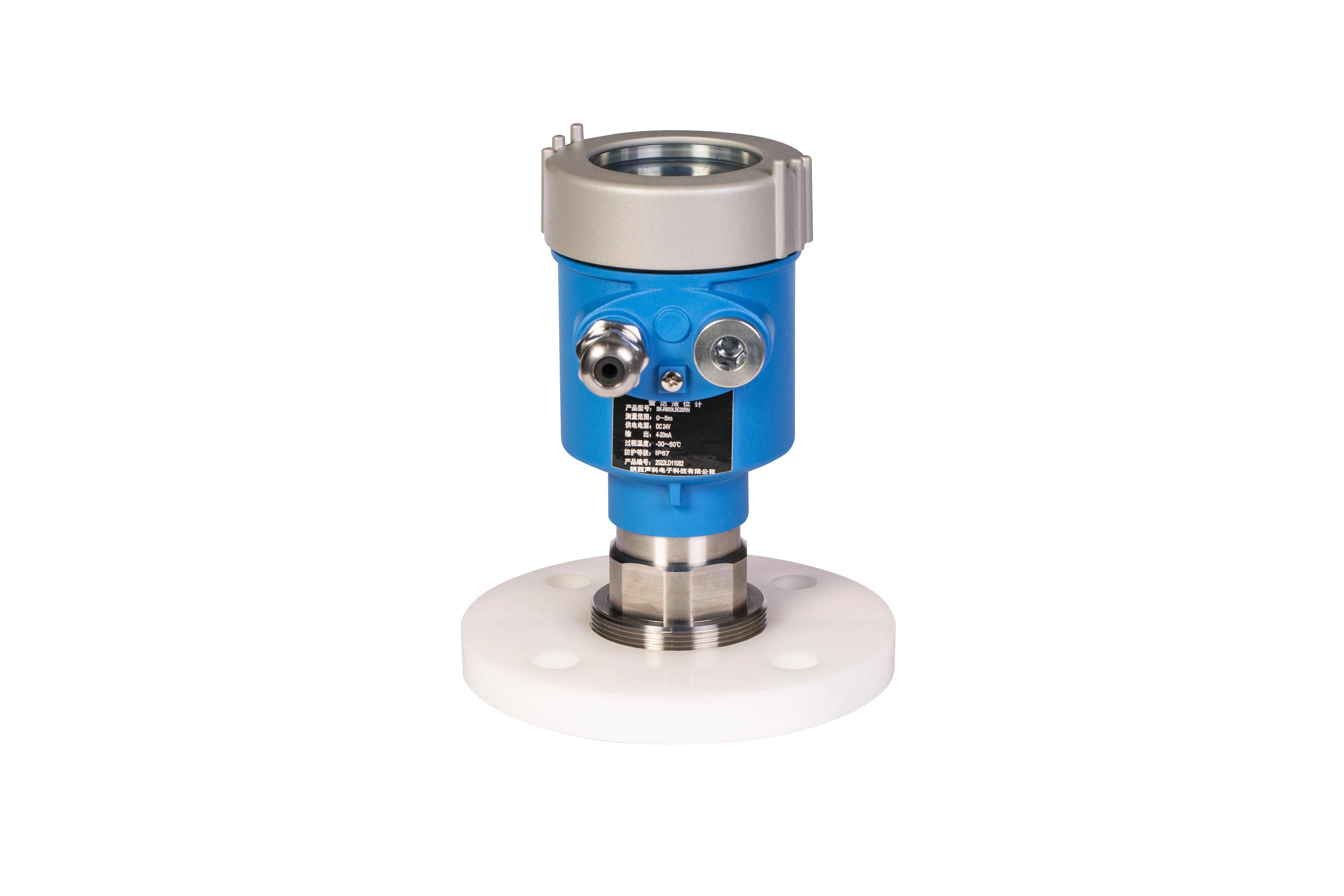

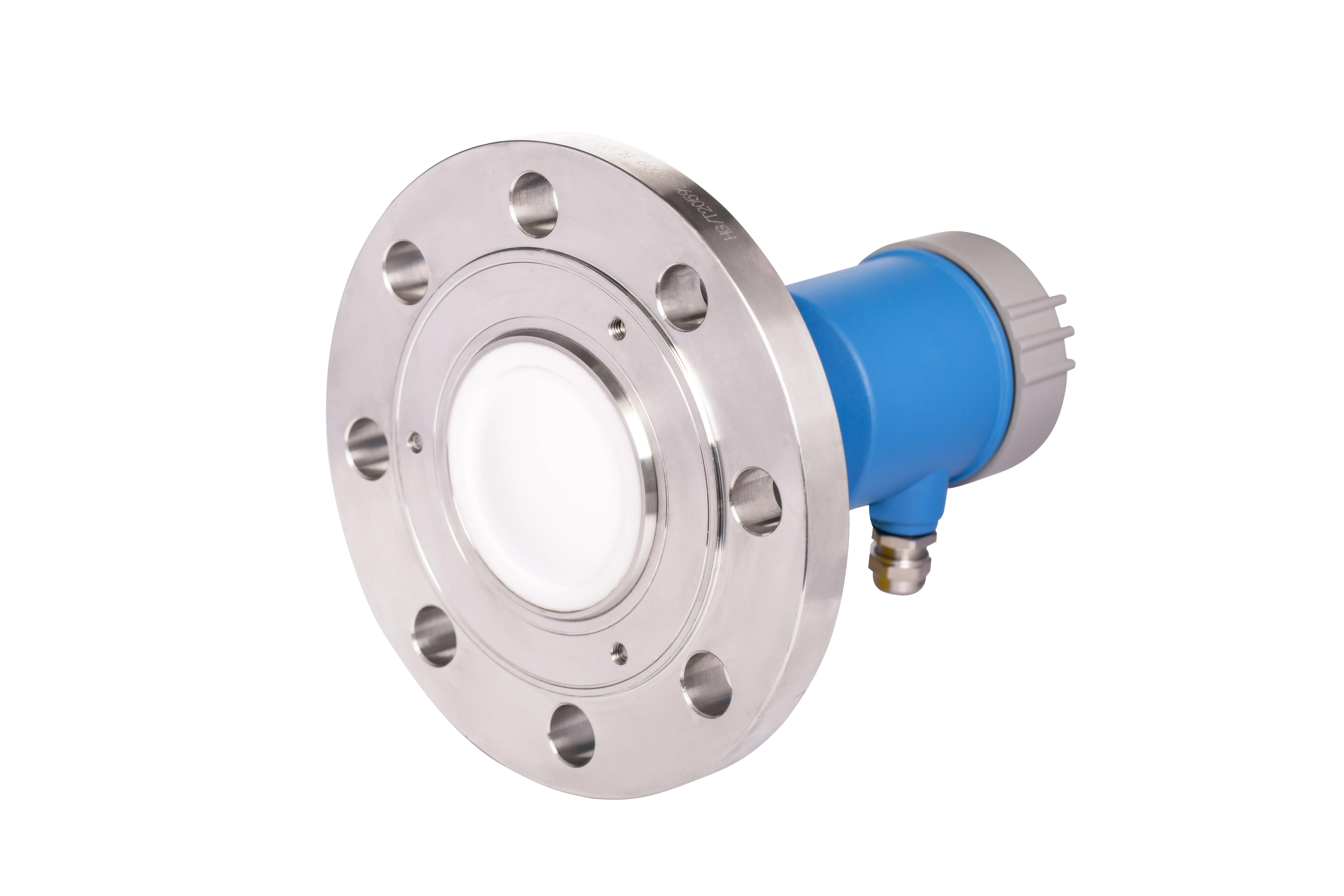

High frequency 77 81ghz 80ghz Radar Level Meter Radar Level Transmitter
- Category: >>>
- Supplier: Shaanxi Shengke Electronic Technology Co. Ltd.
Share on (1600929098266):
Product Overview
Description
Product Description
Specification
item | value |
Grade | Industrial |
Warranty | 1 years |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | SKE |
Model Number | SK-R800N |
Product | 80Ghz Radar Level Sensor |
Application | Liquid Measurement |
Frequency | 77GHz-81GHz |
Housing | Aluminum |
Antenna Material | PTFE/PFA |
Max Range | 10m/20m/30m |
Accuracy | ±2mm |

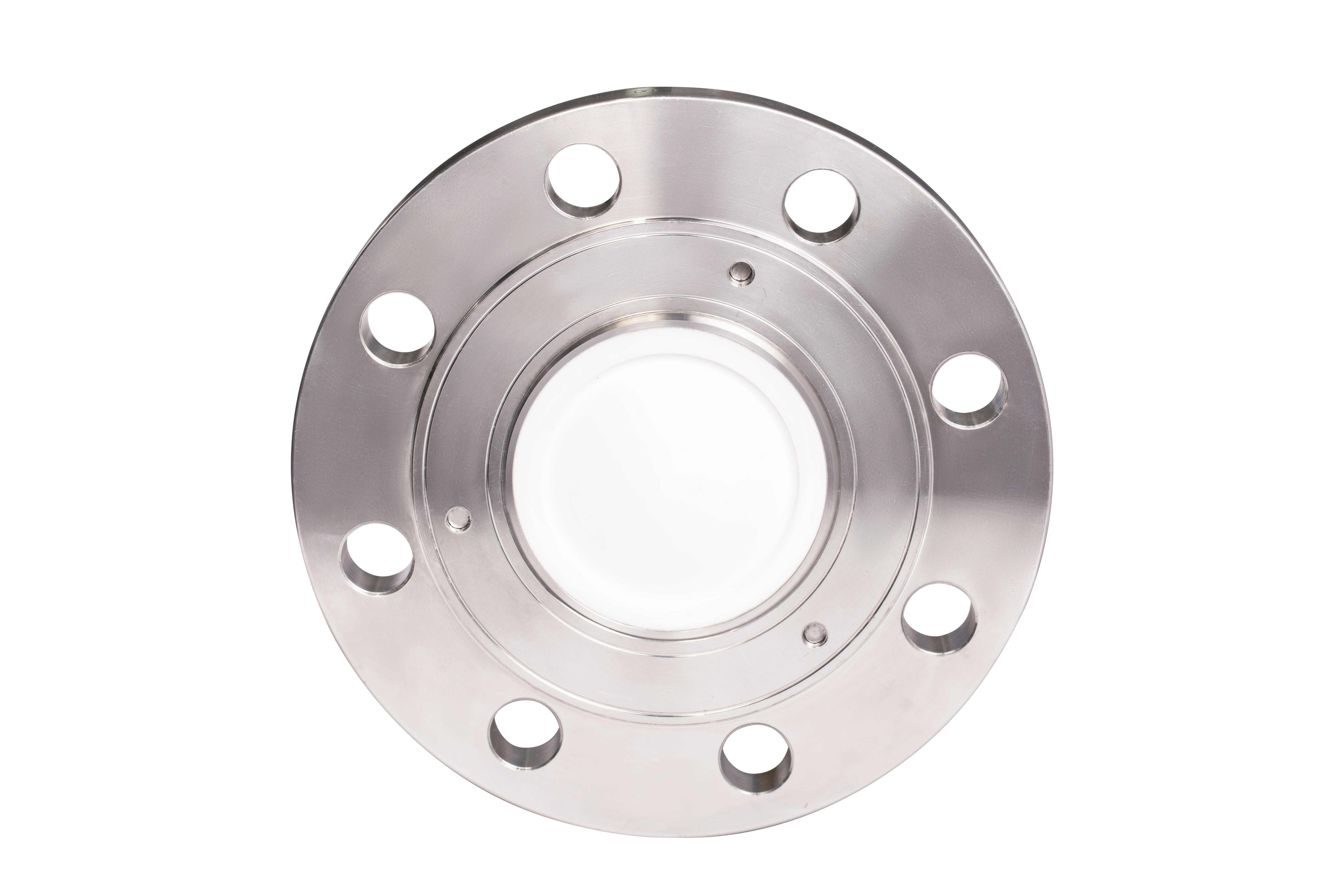

Process Connection | Threaded Connection G2/M68*2/Flange |
Electrical interface | M20*1.5/(1/2NPT) |
Explosion-groof Grade | ExdiaIICT6Gb |
Display | LCD |
Communication | RS485/Modbus/Hart |
Process Temperature | -40℃~80℃ |
Signal Output | 4-20mA |
Process Pressure | -1~16bar |

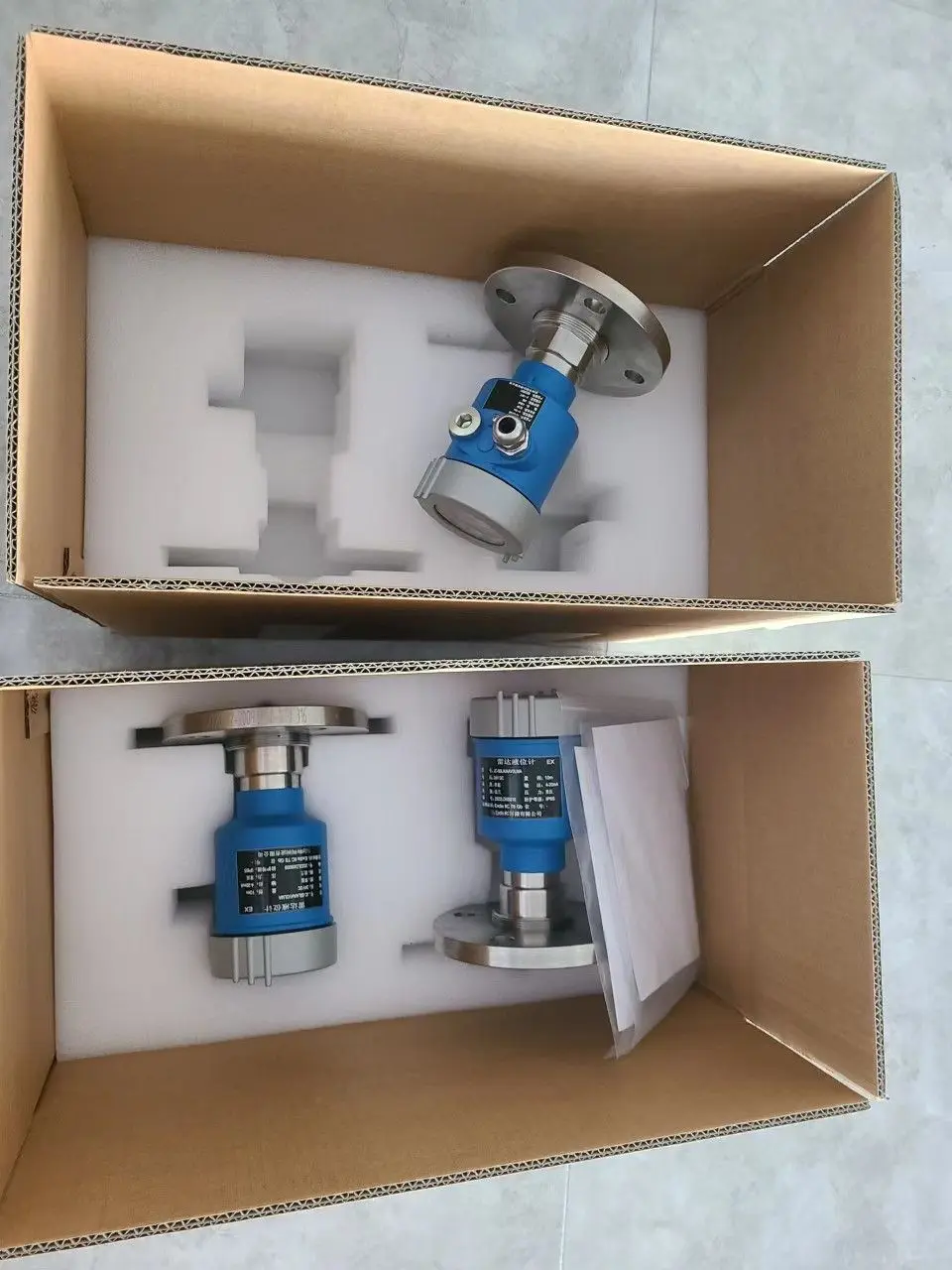

Packing & Delivery
Box
Company Profile
Shaanxi SK electronic technology company is a high-tech enterprises, Located in Xi 'an high-tech industrial development zone.SK rely on xi 'an universities of science and technology resources, committed to liquid level gauge's research and development for petroleum, chemical industry, pharmacy, electricity, metallurgy, military industry, storage Etc.
SK Company dives in the study of Sonar technology, actively explore the technology and apply it to the industry automation control field. Three new products have been widely used in kinds of market, the two-wire external liquid level indicator, the four-wire external liquid level indicator and external liquid level switch. All these three products' capability has reached the international standard. Especially the two-wire external liquid level gauge is the first type in the world.
We based on the customers requirement, provide the high quality product and service, aim to improve customer satisfactory and create the most value for our customer. In line with the concept of integrity, specialty and efficient, human concerted, self-independent innovation, Dedicated to be the influential high tech enterprise in the industry automation control field in China.
SK Company dives in the study of Sonar technology, actively explore the technology and apply it to the industry automation control field. Three new products have been widely used in kinds of market, the two-wire external liquid level indicator, the four-wire external liquid level indicator and external liquid level switch. All these three products' capability has reached the international standard. Especially the two-wire external liquid level gauge is the first type in the world.
We based on the customers requirement, provide the high quality product and service, aim to improve customer satisfactory and create the most value for our customer. In line with the concept of integrity, specialty and efficient, human concerted, self-independent innovation, Dedicated to be the influential high tech enterprise in the industry automation control field in China.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2013,sell to Eastern Europe(30.00%),North America(20.00%),Mid East(10.00%),Western Europe(10.00%),South America(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
radar level sensor,80G radar sensor,radar level transmitter,tank level sensor,water level sensor
4. why should you buy from us not from other suppliers?
SK Company dives in the study of Sonar technology, actively explore the technology and apply it to the industry automation control field. Three new products have been widely used in kinds of market, the two-wire external liquid level indicator, the four-wi
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shaanxi, China, start from 2013,sell to Eastern Europe(30.00%),North America(20.00%),Mid East(10.00%),Western Europe(10.00%),South America(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
radar level sensor,80G radar sensor,radar level transmitter,tank level sensor,water level sensor
4. why should you buy from us not from other suppliers?
SK Company dives in the study of Sonar technology, actively explore the technology and apply it to the industry automation control field. Three new products have been widely used in kinds of market, the two-wire external liquid level indicator, the four-wi
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Benefits
Frequency Modulation Continuous Wave（FMCW）, Strong Adaptability.
FMCW technology.Suitable for measuring liquids and bulk solids level.High penetration for high steam and high dust applications.
High Precision
Beam angle 3°.Measurement accuracy up to 1mm.
Easy to Set Up and Debug
Simple commissioning, saves time, no need to fill or empty tanks.Simple setting , only need to set two parameters to realize the
measurement.Multi-language support (including Chinese), echo display, easy for maintenance personnel to analyze and debug.
measurement.Multi-language support (including Chinese), echo display, easy for maintenance personnel to analyze and debug.
Support a Variety of Output Signals
The measurement is not affected by changes in the medium, nor by process conditions such as temperature, pressure, dust, etc.
Support 4～20mA、HART、Modbus , etc.
Support 4～20mA、HART、Modbus , etc.
Not Affected by Environment
Not affected by temperature, pressure, dust and other process conditions.Suitable for the level measurement of water, wastewater
treatment, chemical, food, oil and other highly corrosive and toxic media.
treatment, chemical, food, oil and other highly corrosive and toxic media.
Principle
Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The
continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a
certain frequency difference with the transmitted signal. The distance information between the target and the radar can be
obtained by measuring the frequency difference.
Radar level meter, as a new industrial level measuring instrument, has the characteristics of high-temperature resistance,
high-pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust, and other effects.
continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a
certain frequency difference with the transmitted signal. The distance information between the target and the radar can be
obtained by measuring the frequency difference.
Radar level meter, as a new industrial level measuring instrument, has the characteristics of high-temperature resistance,
high-pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust, and other effects.
Application area

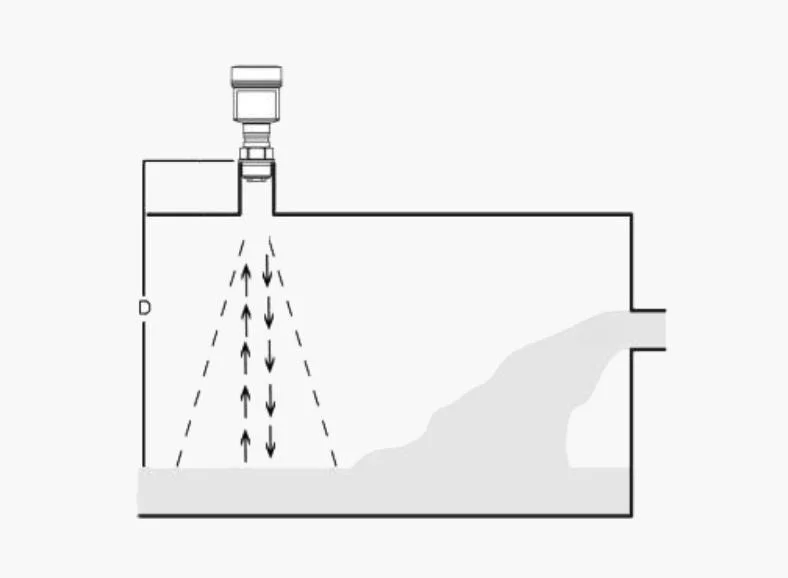

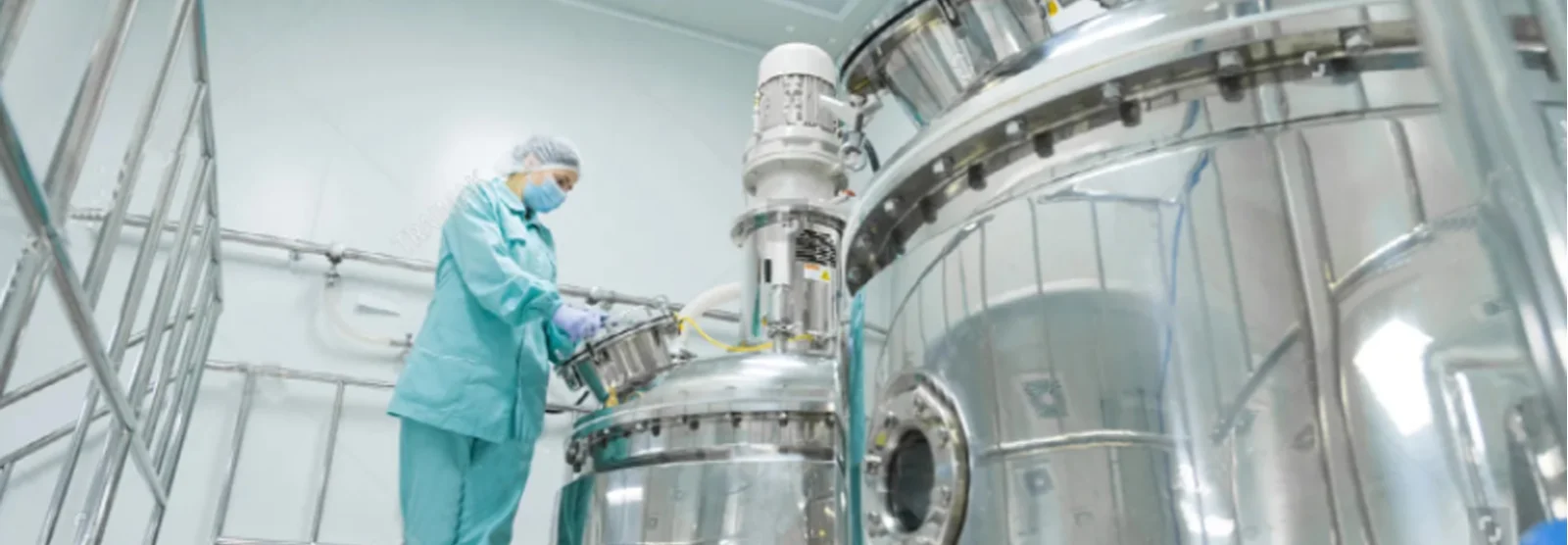

For tanks
Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level
of the liquid (such as transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring
can be measured.
of the liquid (such as transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring
can be measured.
For medium
Various solids and liquids with a dielectric constant greater than 2
Ambient humidity
(0%-90%)RH
Ambient Temperature
-40℃-80℃
Explosion-proof
ExdiaIICT6Gb
Protection Level
IP67
Technical parameters
Communication method | Two-wire system |
Accuracy | ±2 mm |
Power supply | DC 24V ( 22V~30V ) |
Electrical connector | M20×1.5（F）/1/2NPT |
Signal output | 4～20mA/HART/Modbus |
Ambient humidity | （0%～95%）RH |
Display | 128×64 LCD |
Threaded connection | G2/M68x2 |
Size | Diameterϕ96mm×Height221mm |
Explosion-proof mark | ExdiaⅡCT6 GB |

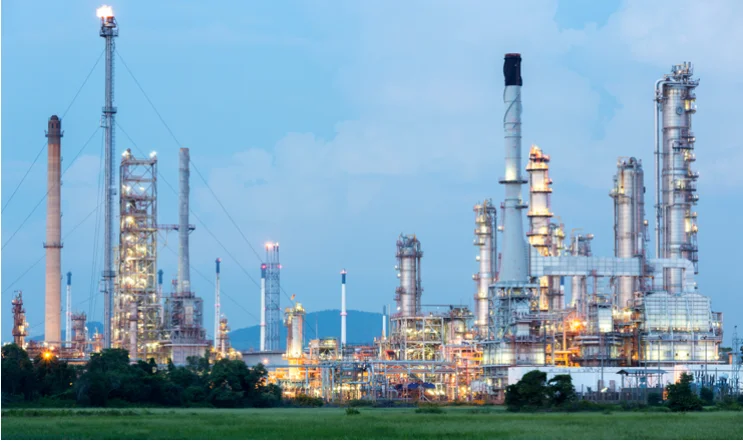

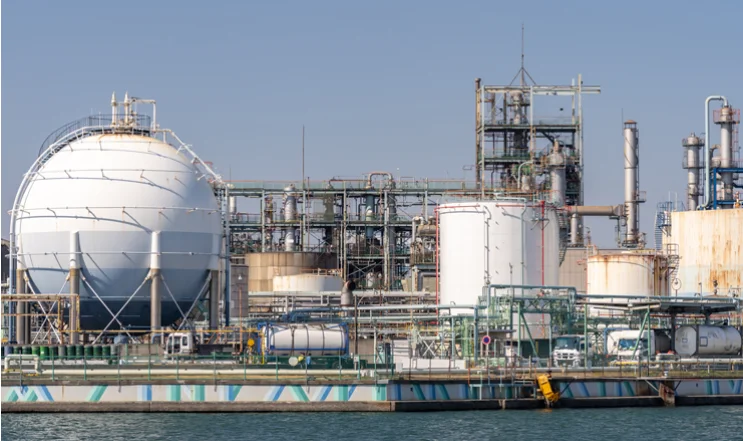

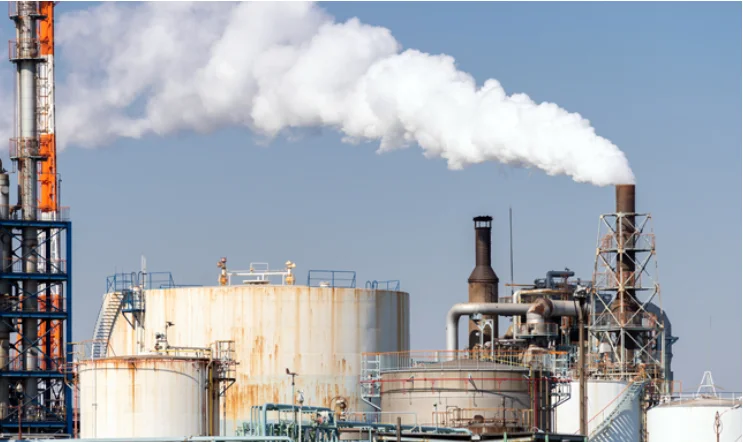

Industry
Chlorine storage tank
Level and point level measurement in storage tanks for chlorine
Storage and buffer tanks
Level and point level measurement in small storage and buffer containers

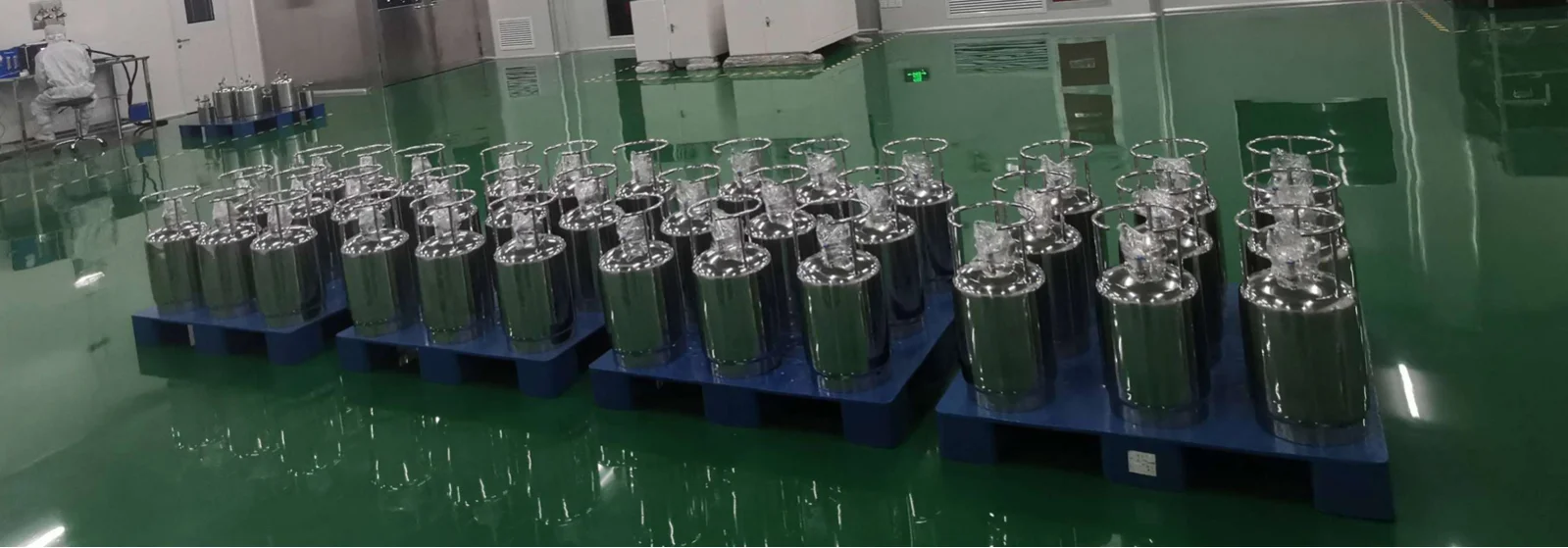

Mo source storage tank
MO sources belong to high-purity metal-organic compounds and are the supporting source materials for the modern compound
semiconductor industry.
semiconductor industry.
Liquid waste buffer tank
Level and point level measurement in buffer tanks for liquid waste

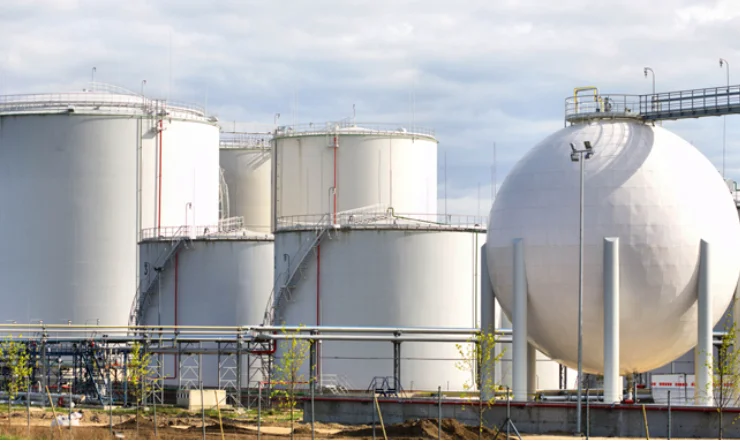

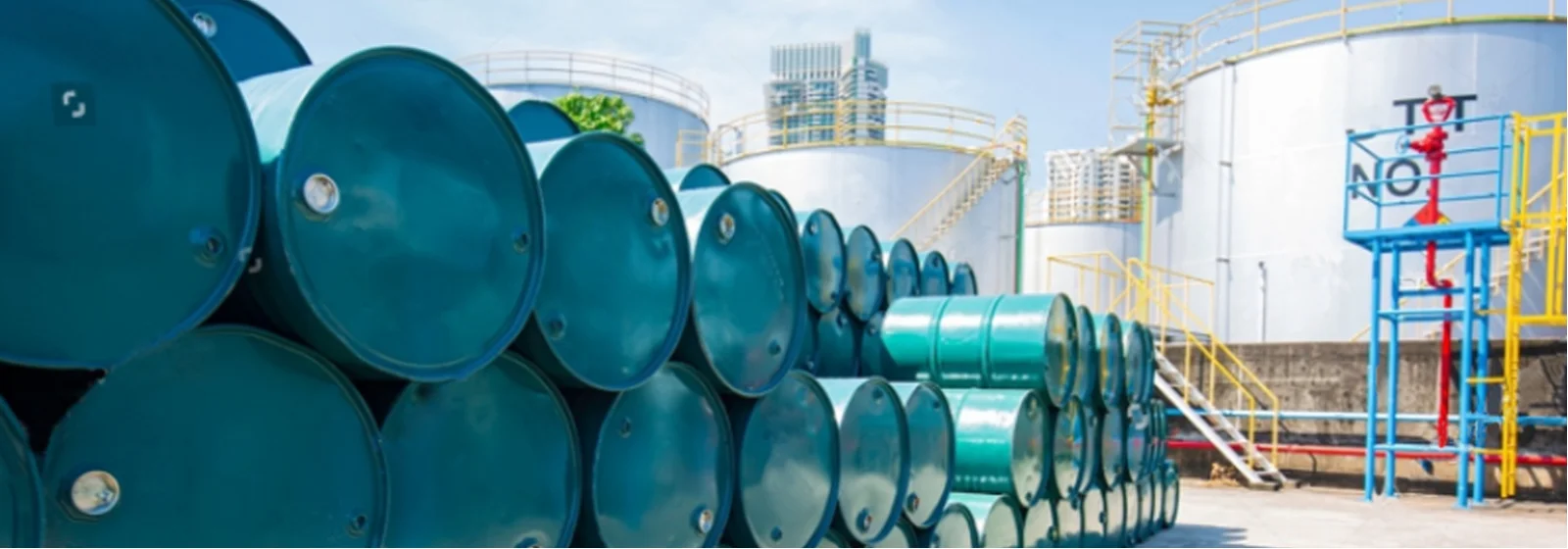

Storage Tanks for Liquids
Level and point level measurement in storage tanks for liquids

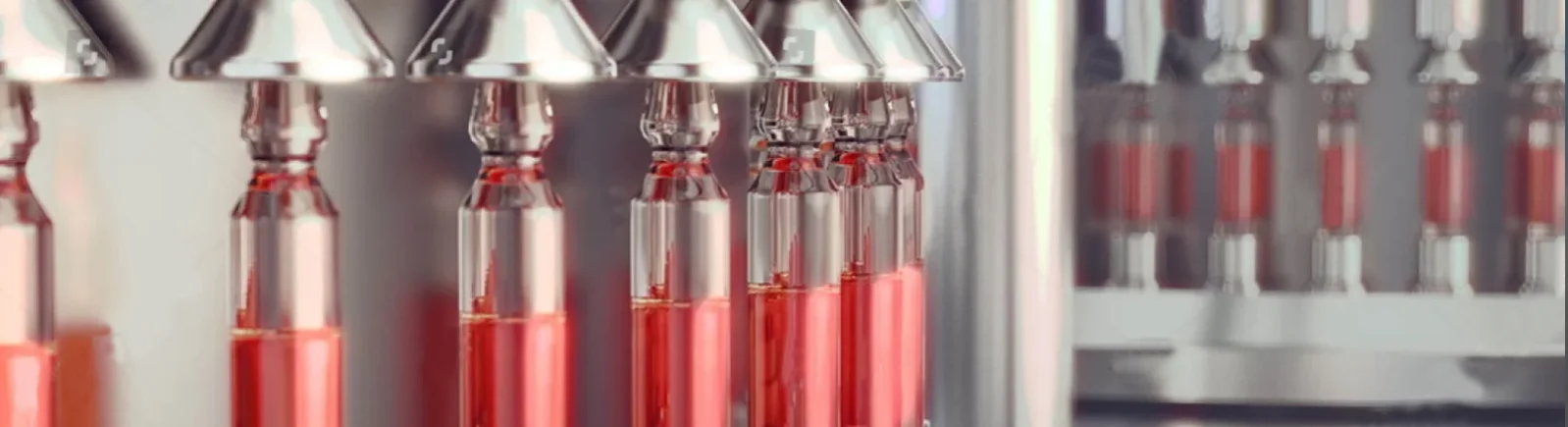

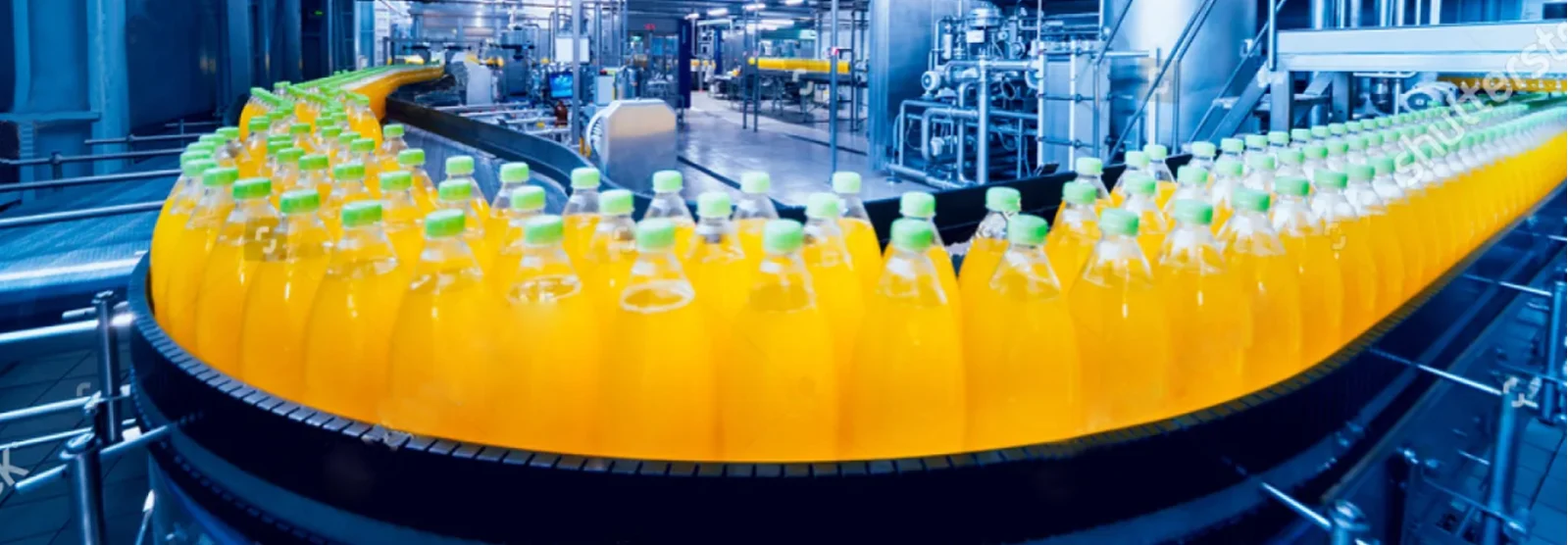

Storage tanks for pure water, milk, juice
Level measurement in edible liquid tanks such as purified water

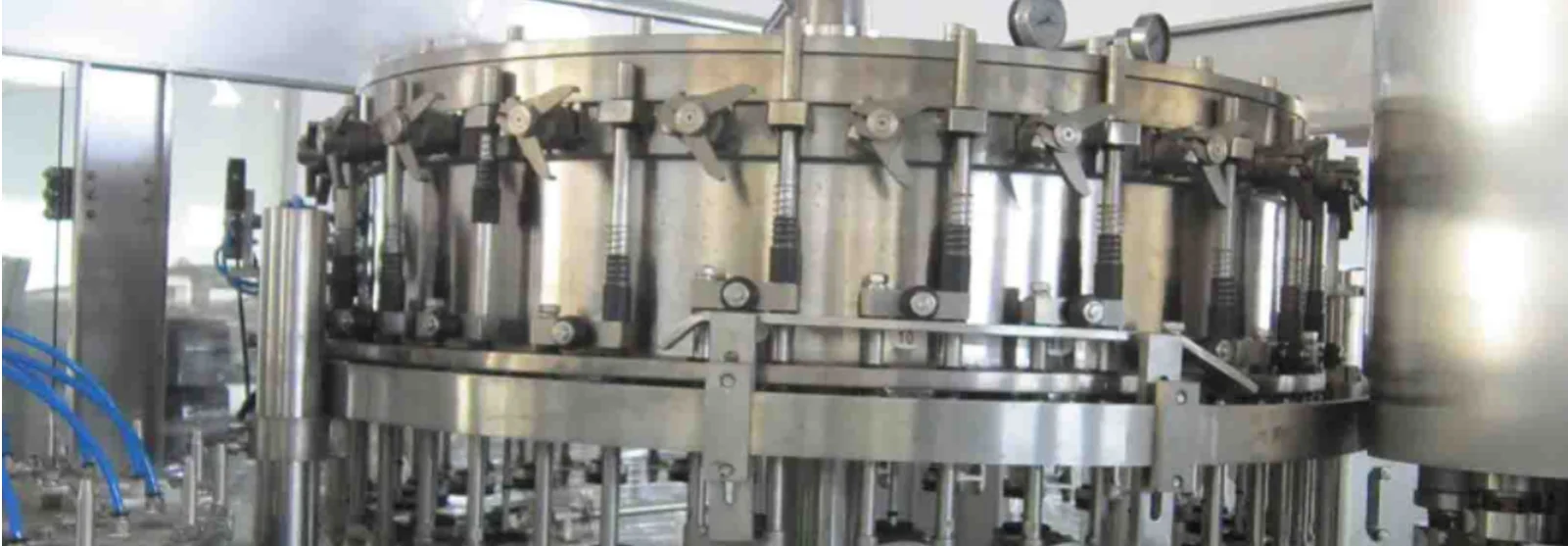

Storage tank for beer bottling
Level measurement in storage containers for beer filling
