New model of brushless servo motor bldc motor driver with two motors for agv and robots
- Category: >>>
- Supplier: Hangzhou Mindong Technology Co. Ltd.
Share on (1600929099139):
Product Overview
Description
Product Overview

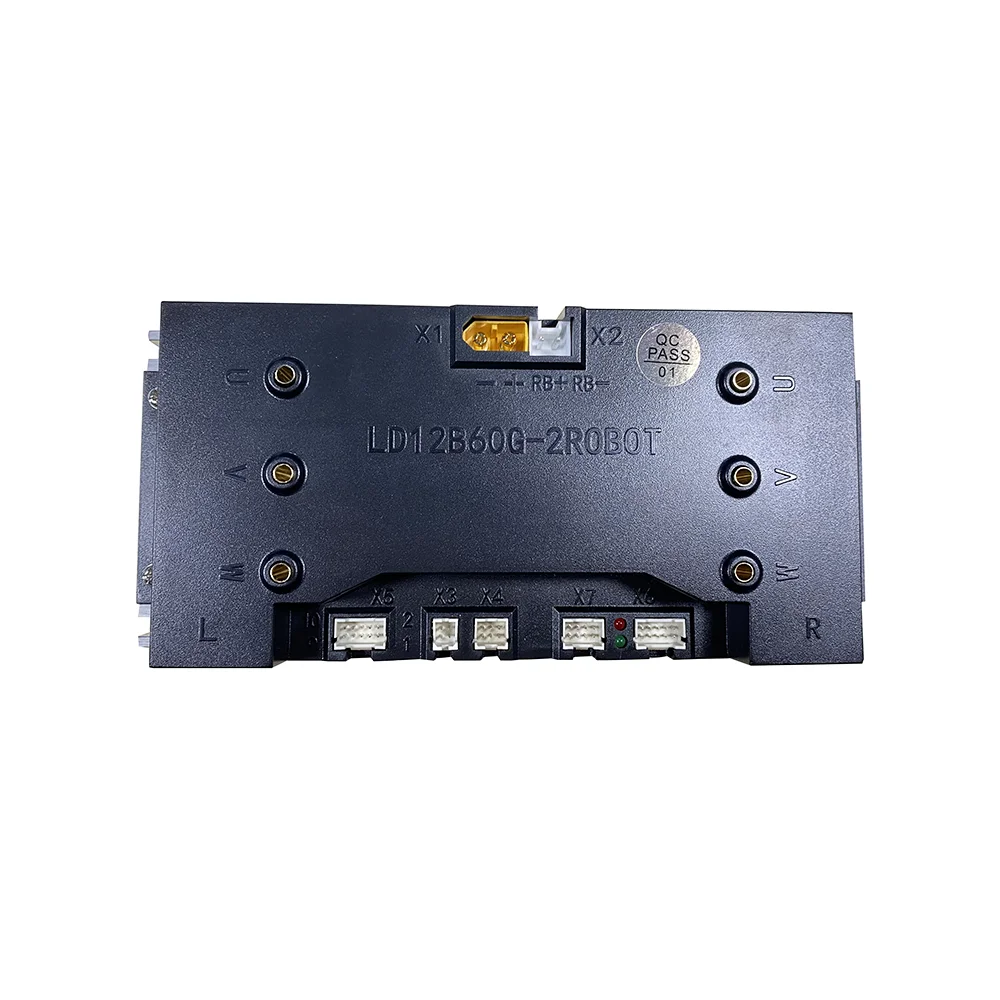

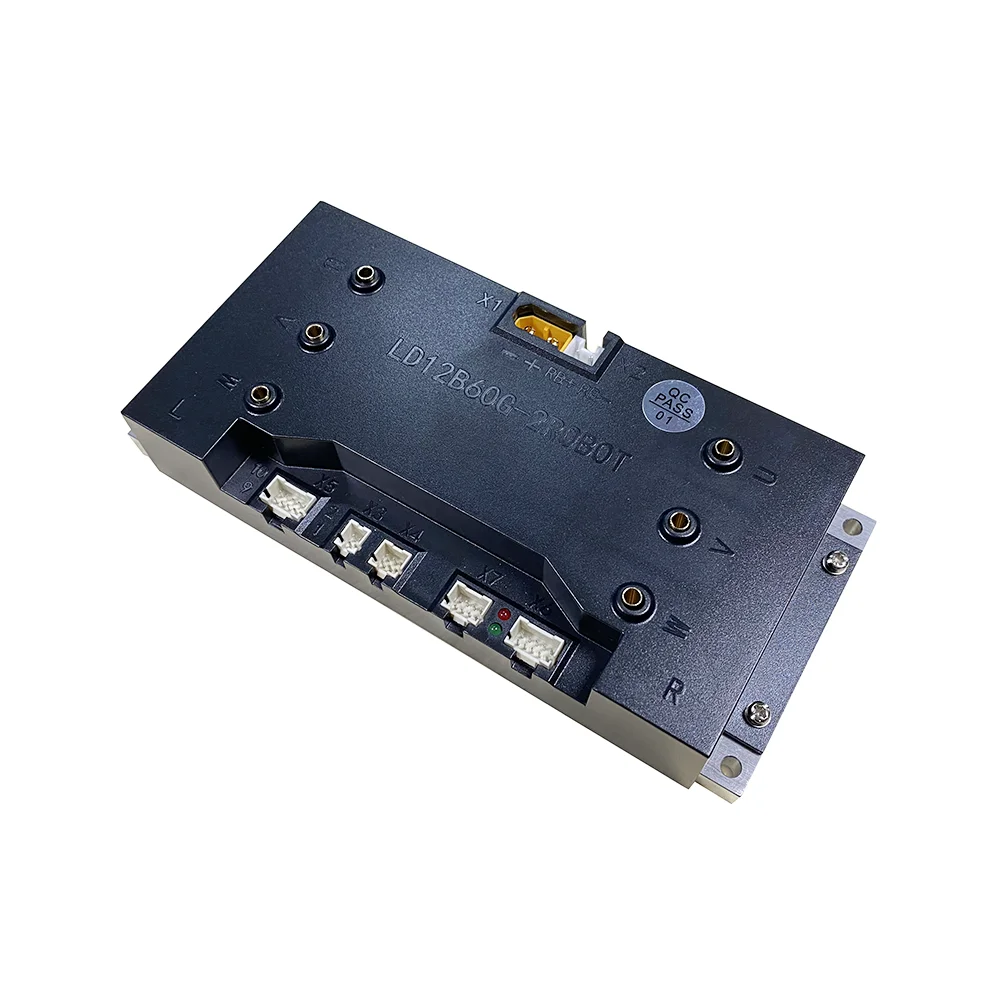

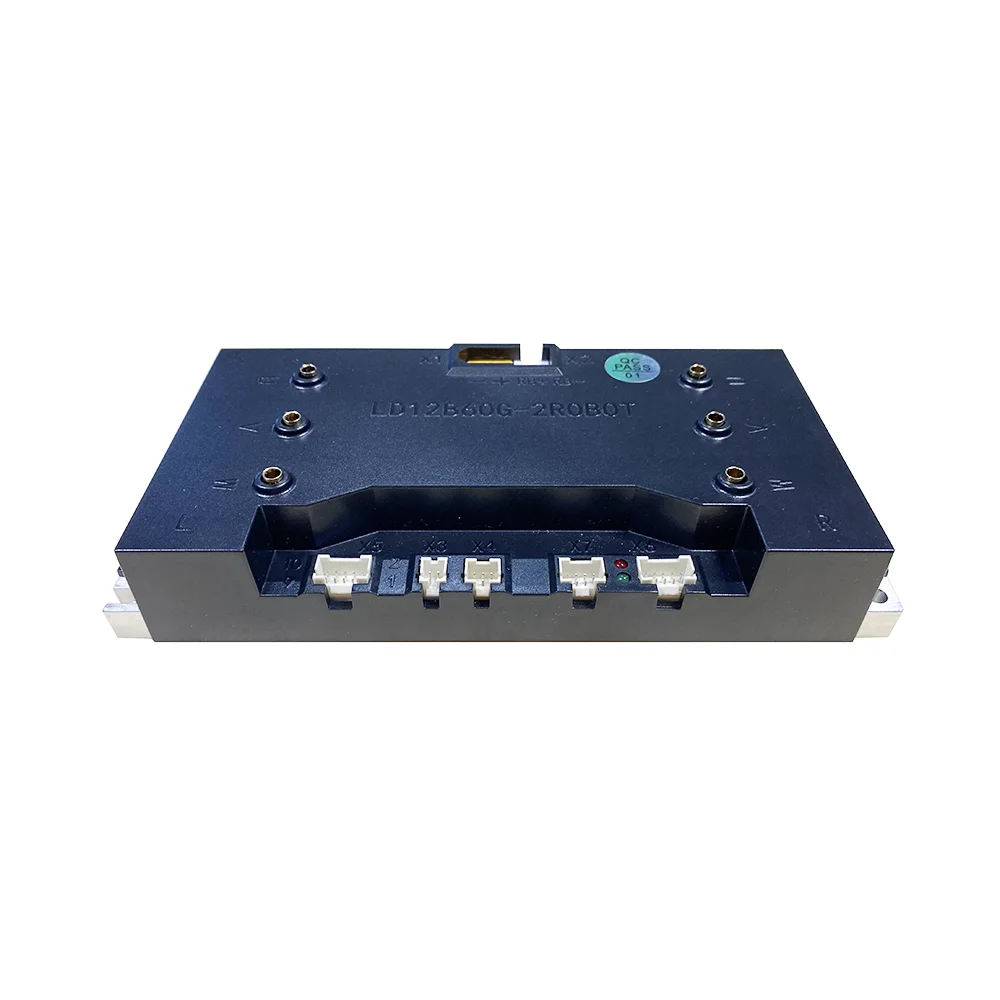

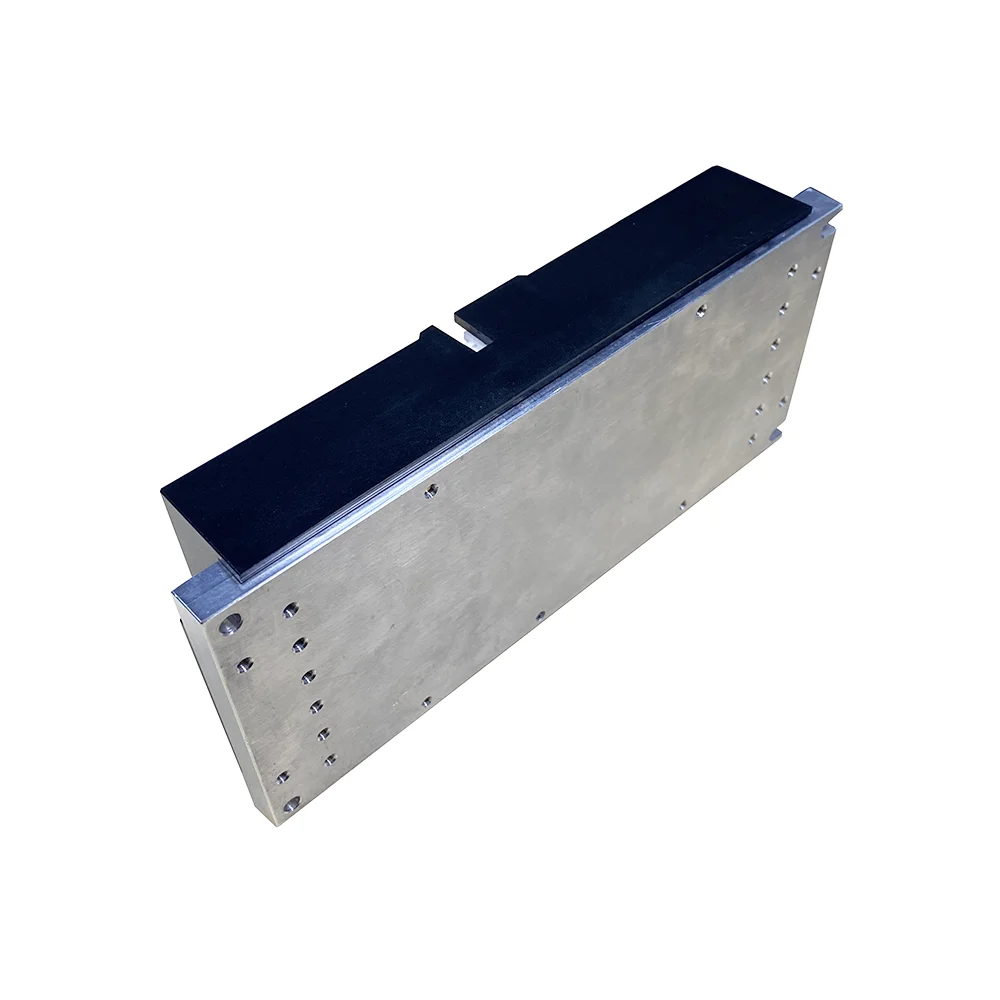

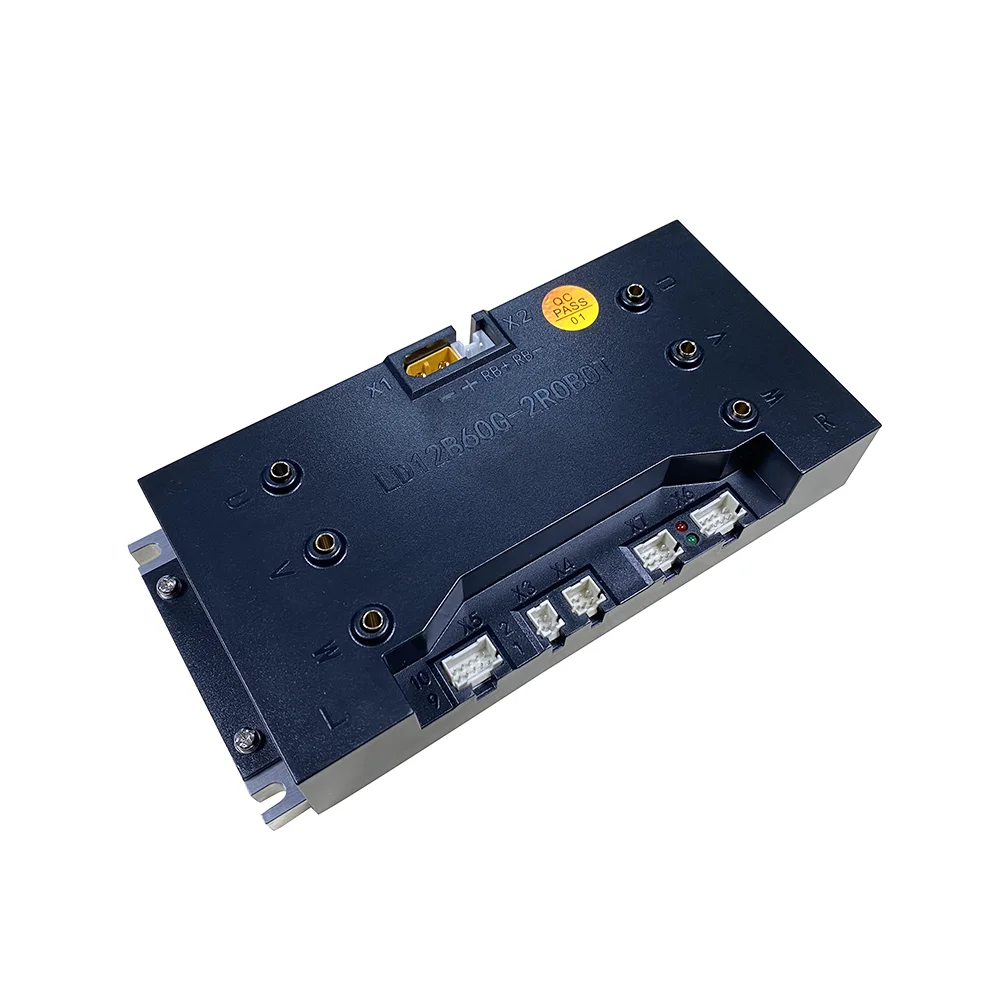

Dual Channel Motor Driver LD12B60G-2ROBOT
The LDS series DC servo motor driver combines cutting-edge motor control and modern, precise sensing technology to produce a high-performance DC motor driver. High current products ranging from 5A to 200A with input voltages ranging from 12v to 96v are also available. Mobile carts, service robots, wearable exoskeleton robots, and other goods all make extensive use of this product.
Product specifications
Model | LDS12B60G-2ROBOT |
Rated Current | 12Arms±1% |
Maximum Current | 26Arms±1% |
Maximum Overload Time | 30S |
Overload Recovery Time | 90S (without external heat dissipation) |
Limit Power Supply Range | 16VDC～60VDC |
Temperature Rise | Rated current operation 30min≤40K |
Drive Frequency | 16KHz±0.1KHz |
Rated insulation withstand voltage | Input and output DC 1000V leakage current to the enclosure less than 3mA. |
Insulation resistance of the whole machine | ≥1M at 40° temperature and 95% humidity (no dew on the board) |
Mean time between failures (MTBF) | ≥5000 hours |
Power control mode | Vector control |
Protection level | Bare board, no protection class |
Cooling method | Natural cooling |

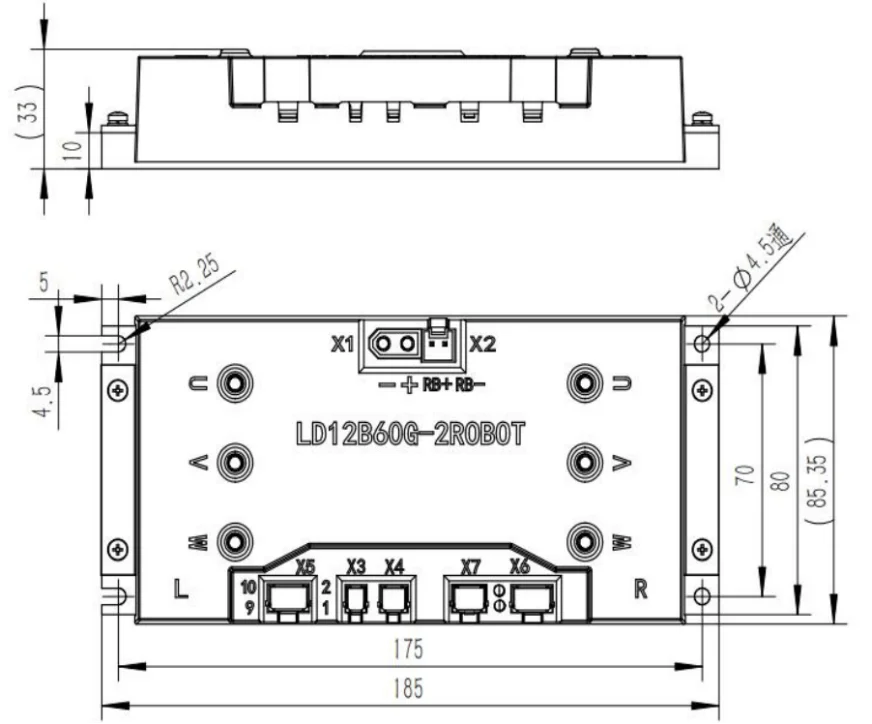

Dimensions
Product Advantages
PID Regulation
Technology
It can perfectly control the smooth forward and reverse rotation, commutation and braking of the motor,
Real-time Control of
Output Current
Prevent overcurrent, precisely control motor speed and rotation position,
Motor Response Time
It is short and the recoil force is small.
Structure
Company Profile
Certifications
FAQ
Q1: Transport/Shipment Time
A1: The shipment is 3~7 days by express, 3~4 days by air, 15~35 days by sea. Feel free to let us know your delivery destination for learning the exact transport time.
Q2: After-sale service
A2: For assured quality all products, we check all products’ quantity twice. The first time is end of production, the second time is before packing into cartons. If any negligence or accident about our goods, after received goods within 10 days, please don’t worry to contact us at any time. We will reply you in 24 hours and let you choose solutions to meet your satisfactory.
Q3: Our advantage
A3: Free cameraman special for you: Supply high quality photos for you after ordered. Save tax: We can make C/O, Form E, Form-F and so on. They can help you save 10~30$ custom tax. Reduce freight rate: We compress beds, integration space and talk with express. Just for saving freight rate for customer. Usually, by the way, it can save about 20%~35% shipping cost. And we are trying to improve all the time. We have a professional technical team: We can provide a full range of pre-sale consulting and after-sale technical guidance.
