KITECH 20 110MM HDPE PP Plastic Pipe Extrusion Production Line
- Category: >>>
- Supplier: Jiangsu Acemech Machinery Co. Ltd.
Share on (1600929125237):
Product Overview
Description
Product Overview

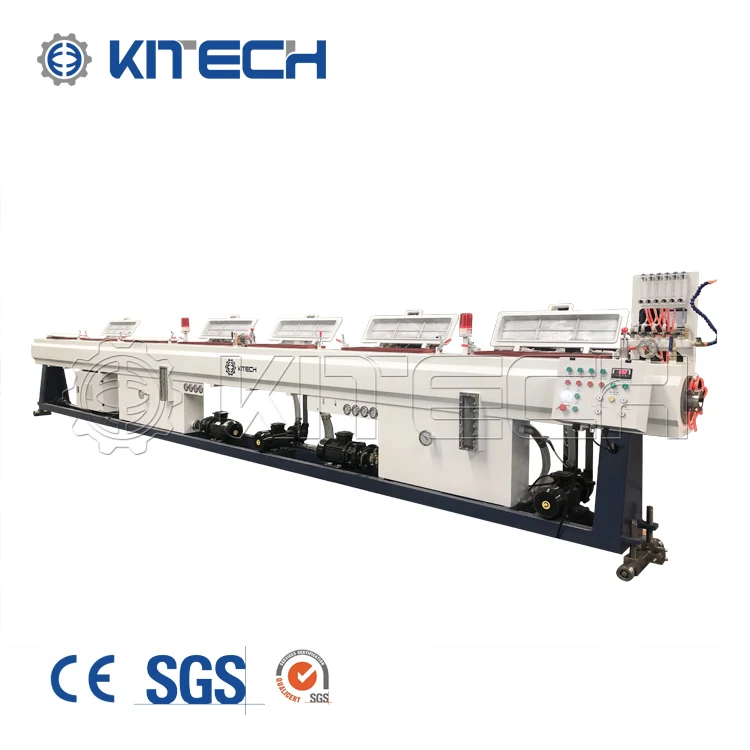

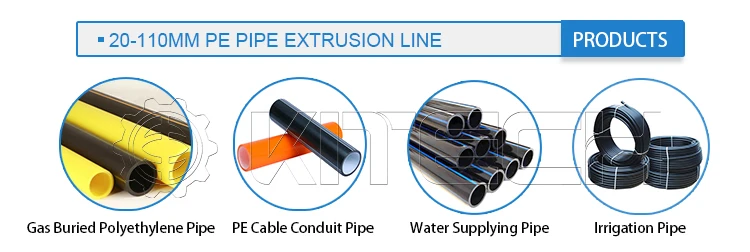

20-110MM PE Pipe Extrusion machine is mainly used for producing agricultural irrigation pipes, drainage pipes, gas pipes, water supplying pipes , cable conduit pipes etc. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator
can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Process Flow:

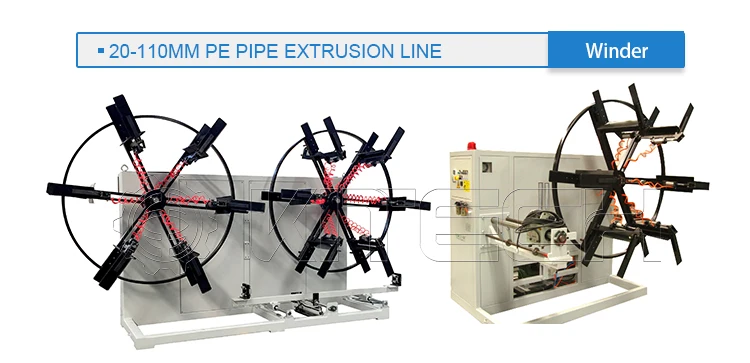

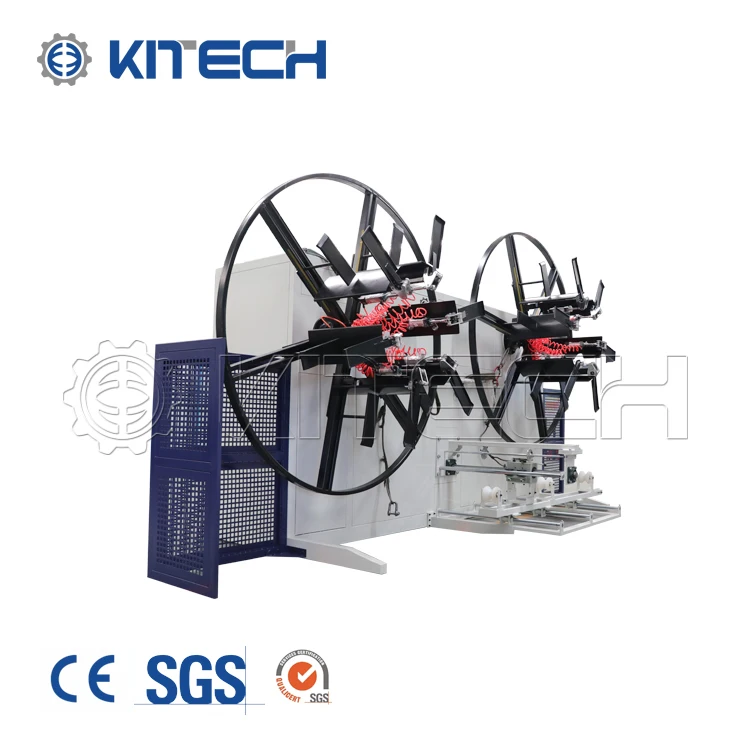

Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single screw extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter → Double/Single disc Winding/ Stacker → Final Product Inspecting &Packing
can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Process Flow:
Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single screw extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter → Double/Single disc Winding/ Stacker → Final Product Inspecting &Packing
Detail Specification
Feeder | • To feed material into extruder |

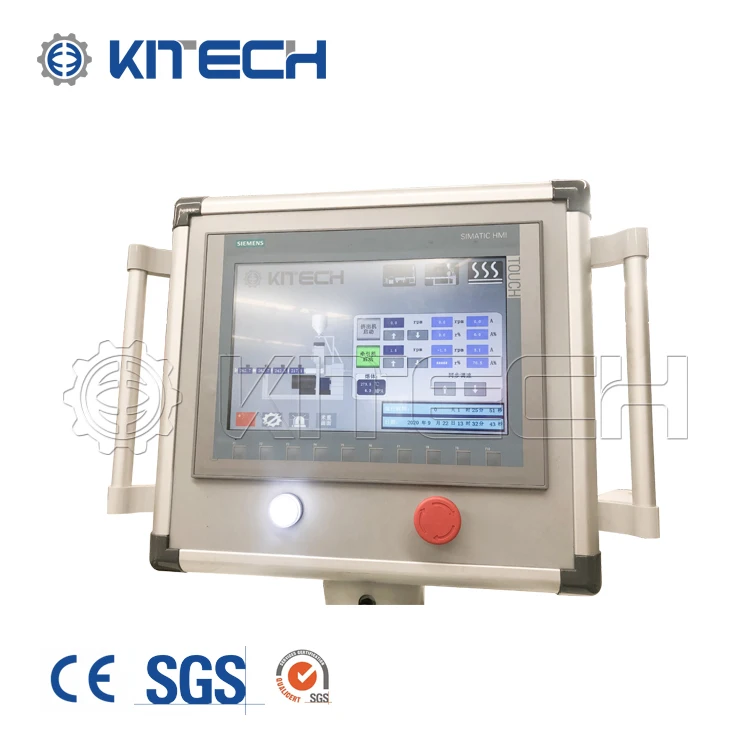

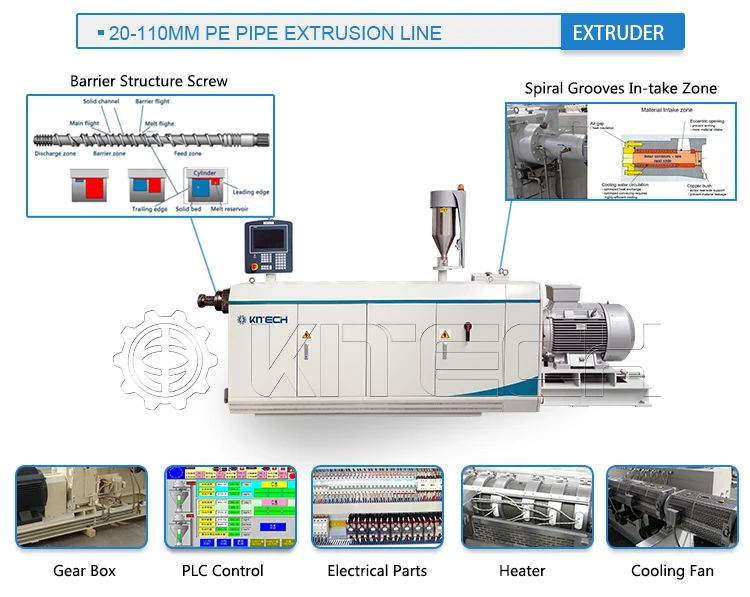

Extruder | • World famous brand electrical component such as Siemens, Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |

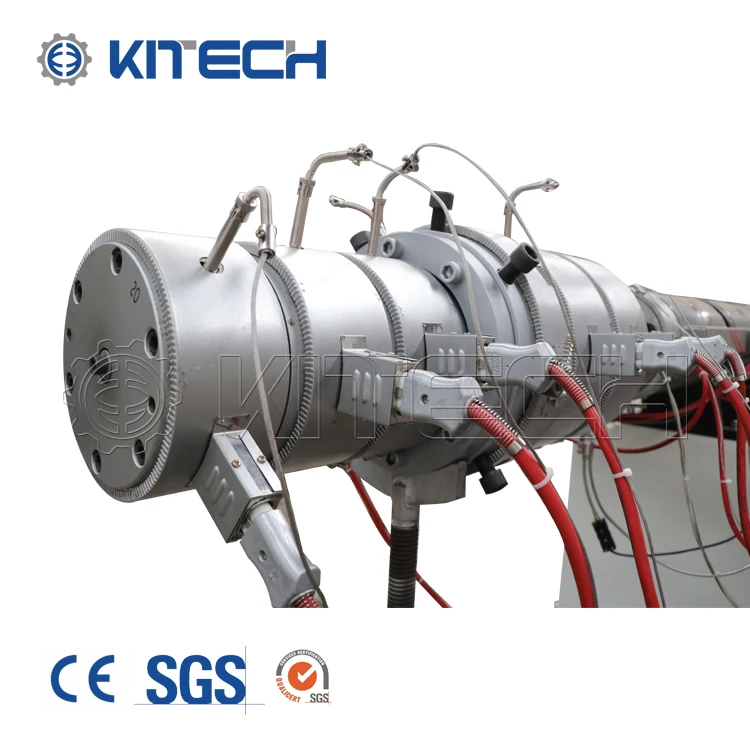

Die head | • 40Cr material • Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PE/PP, co-extrusion, multi-layers co-extrusion etc |

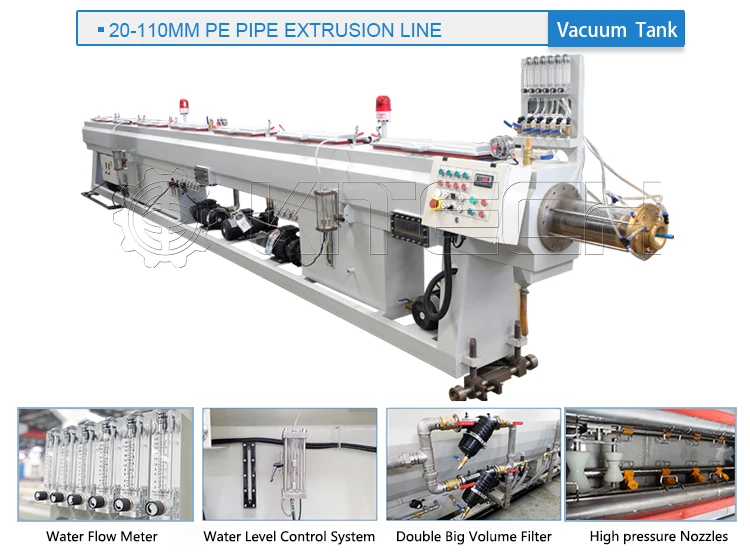

Vacuum calibration tank | • Include full set of vacuum and water pump • length from 6m-9m |

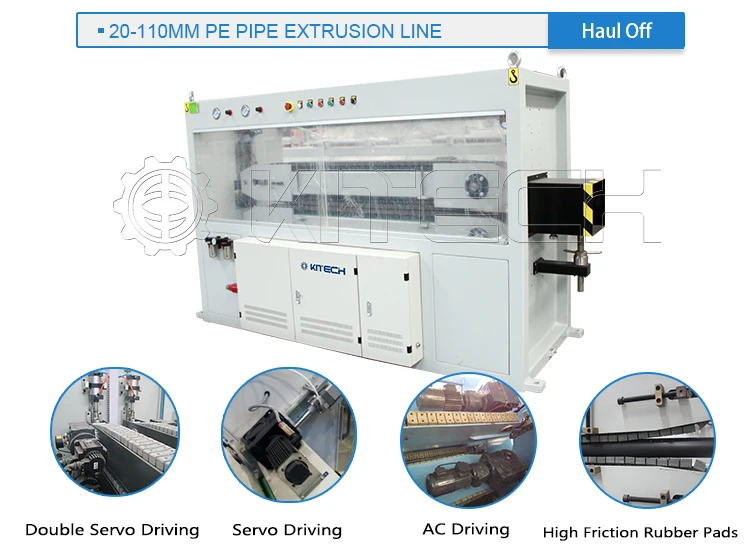

Haul off | • Upper and lower caterpillar is driven separately by the frequency inverter • Fast change type pads |
Cutter | • Tracking cutter or Non-dust cutter, Blade rotates around pipe and cut off pipe with smooth surface. • Synchronous control |
Stacker | •Stainless steel 304 as touching material •Discharge driving by air cylinder |
Model:SJ65/33
L/D: 33:1
Capacity:220kgs/h
Motor power:55KW
Output/Energy: 4.2kg/kW
L/D: 38:1
Capacity:380kgs/h
Motor power:90kW
Output/Energy: 4.2kg/kW
L/D: 33:1
Capacity:220kgs/h
Motor power:55KW
Output/Energy: 4.2kg/kW
Or
Model:HSJ60/38L/D: 38:1
Capacity:380kgs/h
Motor power:90kW
Output/Energy: 4.2kg/kW

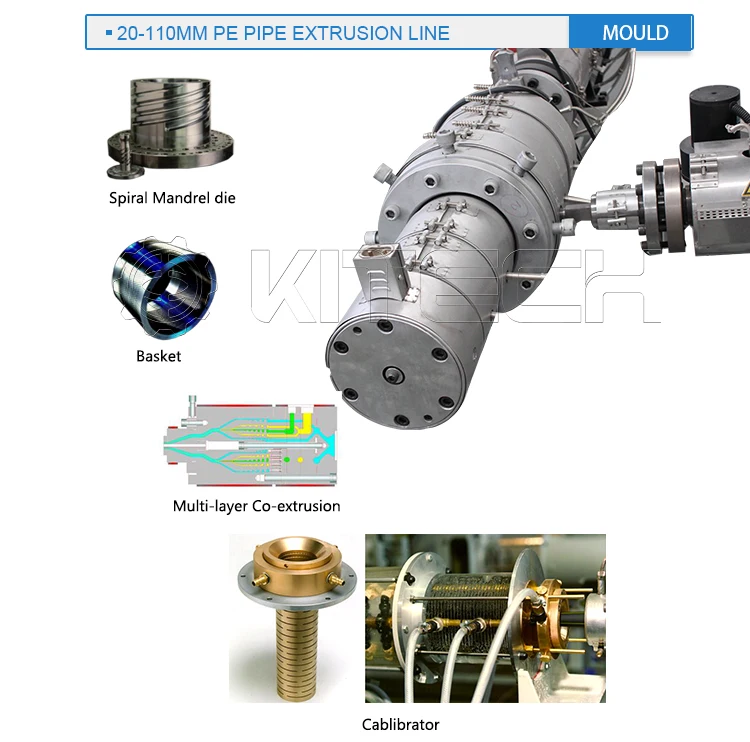

Materials: 40Cr Steel
Structure: Spiral or Basket
Single cavity or double cavity design
Single layer or co-extrusion multi-layers design
Structure: Spiral or Basket
Single cavity or double cavity design
Single layer or co-extrusion multi-layers design
Tank materials: 4mm 304 S. S.Materials
Water temperature and level controlling technology;
High pressure and stable water jet.
Pressure protection design
Water temperature and level controlling technology;
High pressure and stable water jet.
Pressure protection design
Haul-Off : Frequency Motor/servo motor driving
High friction fact and anti-wear out silicon rubber Pads
Metering counter
High friction fact and anti-wear out silicon rubber Pads
Metering counter

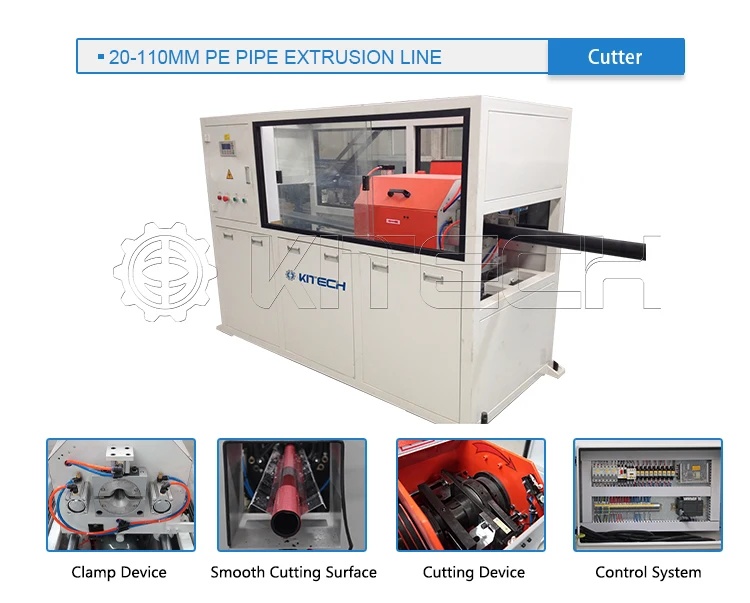

Cutter: Universal or Cast Aluminium fixture unit
High Quality Alloy Blades
Smooth Cutting surface;
Servo motor Sync hronization control
High Quality Alloy Blades
Smooth Cutting surface;
Servo motor Sync hronization control
Application
Technology Data
Model | O.D.(MM) | Extruder | Max. output(kg/h) | Max haul-off speed (m/min) | Motor Power(kw) |
PE110 | 20-110 | SJ65/33 | 220 | 15 | 55AC |
HPE110 | 20-110 | SJ60/38 | 380 | 25 | 90AC |
