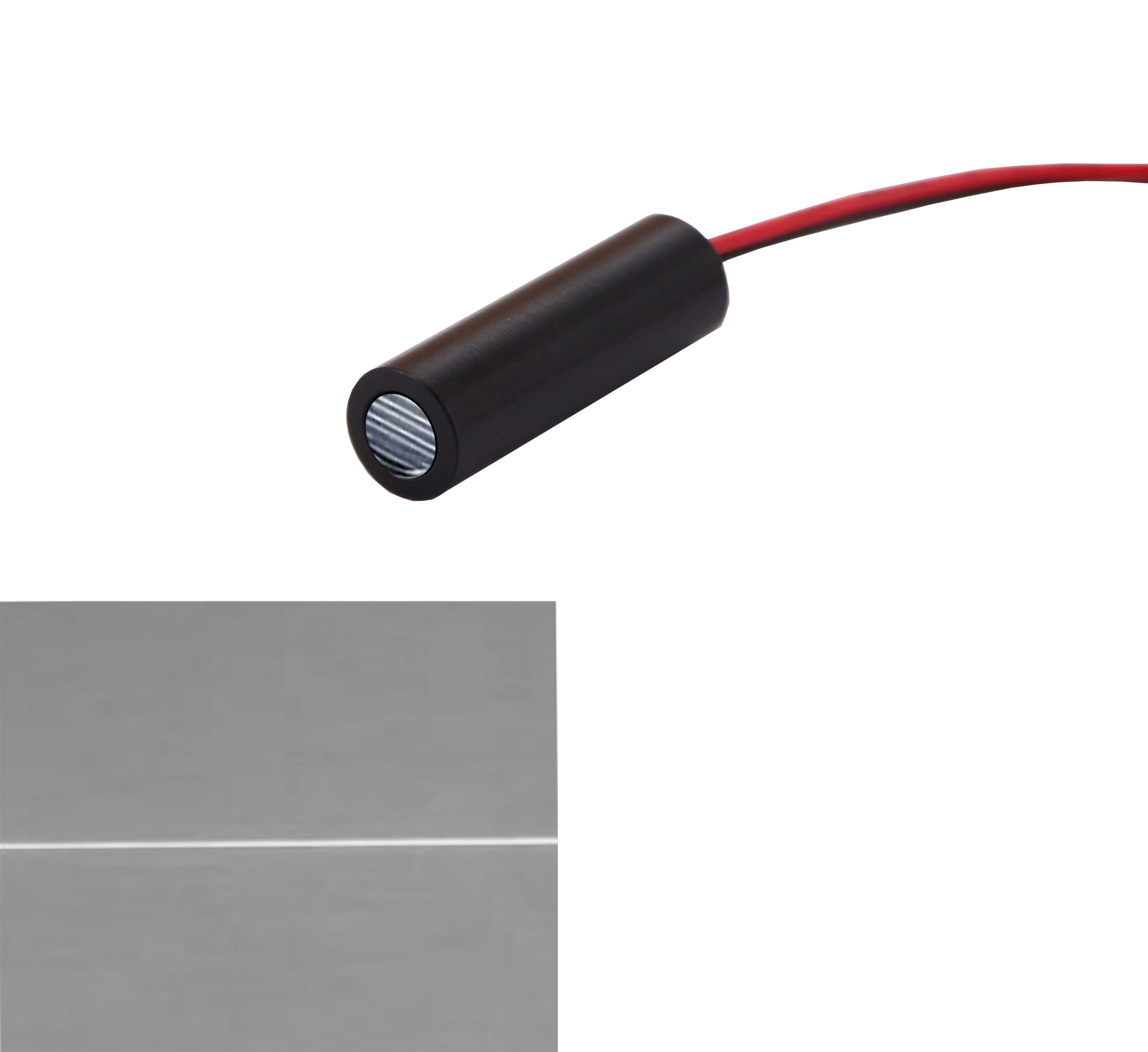

Diameter10mm 635nm 650nm 532nm 520nm 780nm 808nm 850nm 980nm450nm405nm laser module Laser sensor Laser obstacle avoidance module
- Category: >>>
- Supplier: ZHUHAI EMC ELECTRONIC TECHNOLOGY CO. LTD
Share on (1600929168141):
Product Overview
Description
technical parameter
| Product parameters: | currently allocated | Settable scheme | |
| 1 | model: | EGC52030P3-D10 | Two kinds of light optional |
| 2 | Overall dimensions: | 10x30mm | According to customization requirements |
| 3 | texture of material: | aluminum | Copper, aluminum, steel, PC.ABS, etc |
| 4 | surface treatment: | Anodic treatment | According to customization requirements |
| 5 | service life: | >8000H | - |
| 6 | Output wavelength: | 520 | 400nm-980nm optional |
| 7 | output power: | 30mw | 10-1000mw |
| 9 | Light point life distance: | 10m | According to customization requirements |
| 10 | Optical lens: | Glass | Acrylic and glass optional |
| 13 | drive circuit: | APC constant power circuit | ACC.APC.TTL can be customized |
| 14 | working voltage: | 3V | 3V-24V customizable |
| 15 | Maximum operating current: | <100ma | Current is proportional to light power |
| 17 | wireway: | UL1571 26# | Different wires and terminal wires can be customized |
| 18 | working temperature: | -10℃-+50℃ | Depending on laser diode |
| 19 | Storage temperature: | -30℃-+80℃ | Depending on laser diode |
Note: All customized products will incur certain expenses. Please consult customer service for details
