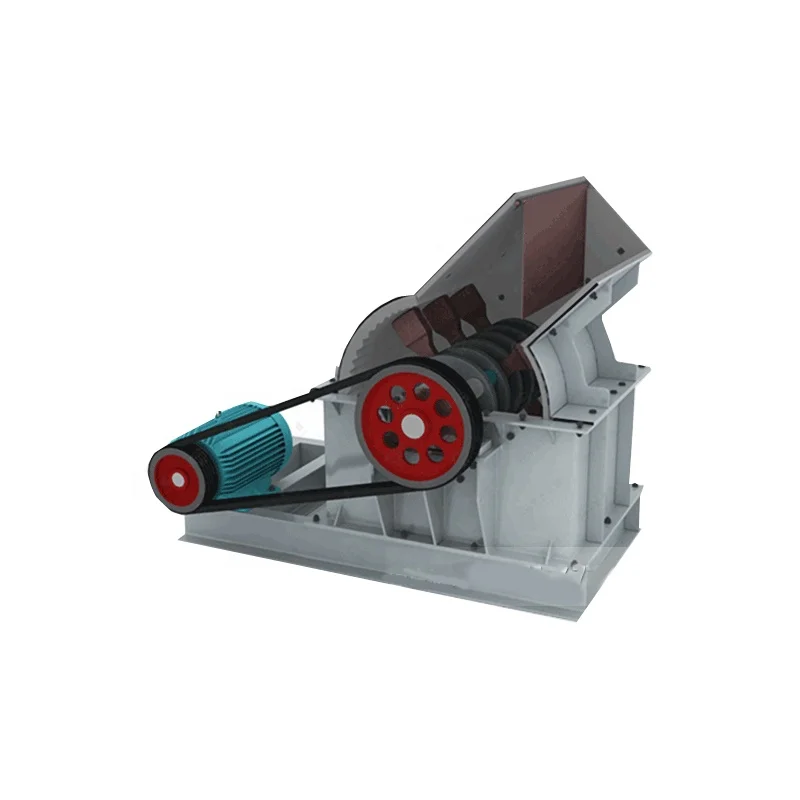

Diesel Engine Limestone Coal Hammer Crusher Salt Rock Stone Crusher

Share on (1600929250089):


Price:$980.00 - $1,000.00

Quantity:


Product Overview

Description

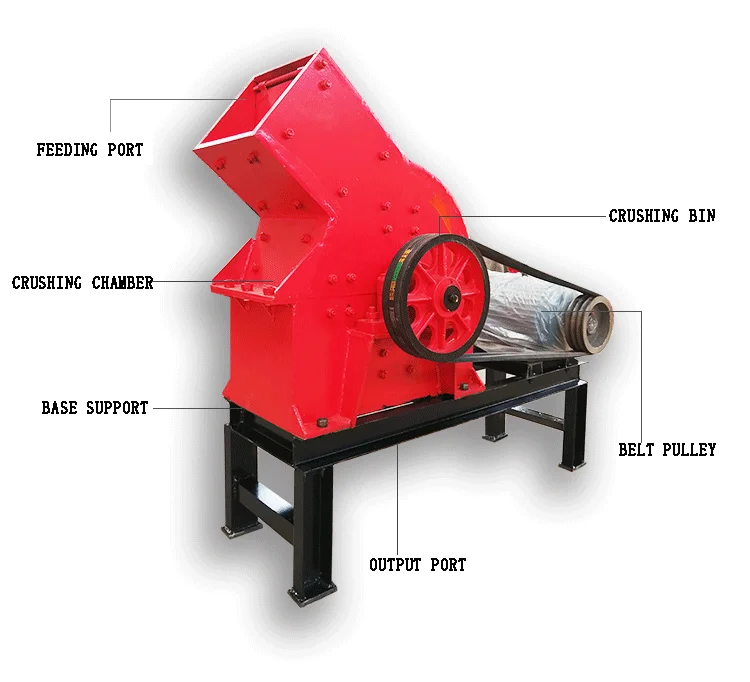

Hammer crusher


Description of Factory Price Portable Mini Used Hammer Crusher Stone Crusher Machine

Factory Price Portable Mini Used Hammer Crusher Stone Crusher Machine by high speed and material impact hammer and broken material, it has the advantages of simple structure, high crushing ratio, high production efficiency need to be broken and other characteristics, can be used for dry and wet broken in two forms, suitable for mining, cement, coal, metallurgy, building materials, roads, fuel and other departments of moderate hardness and brittleness material medium crushing.





Model
Feed Size(mm)
Output size(mm)
Capacity(t/h)
Power(kw)
Weight(t)
PC400*300
≦100
≦10
5-10
11
0.8
PC600*400
≦120
≦15
10-25
18.5
1.5
PC800*600
≦120
≦15
20-35
45
3.1
PC800*800
≦120
≦15
35-50
55
5.2
PC1000*800
≦200
≦15
40-60
115
7.9
PC1000*1000
≦300
≦15
50-80
132
9.65
PC1000*1400
≦350
≦19
80-200
280
14.6


Main Features of Factory Price Portable Mini Used Hammer Crusher Stone Crusher Machine

1. Large feeding granularity

2. Easy installation and maintenance

3. Developed structure

4. Stable and reliable performance

5. High crushing ratio

6. Long service life

7. Low consumption of spare parts

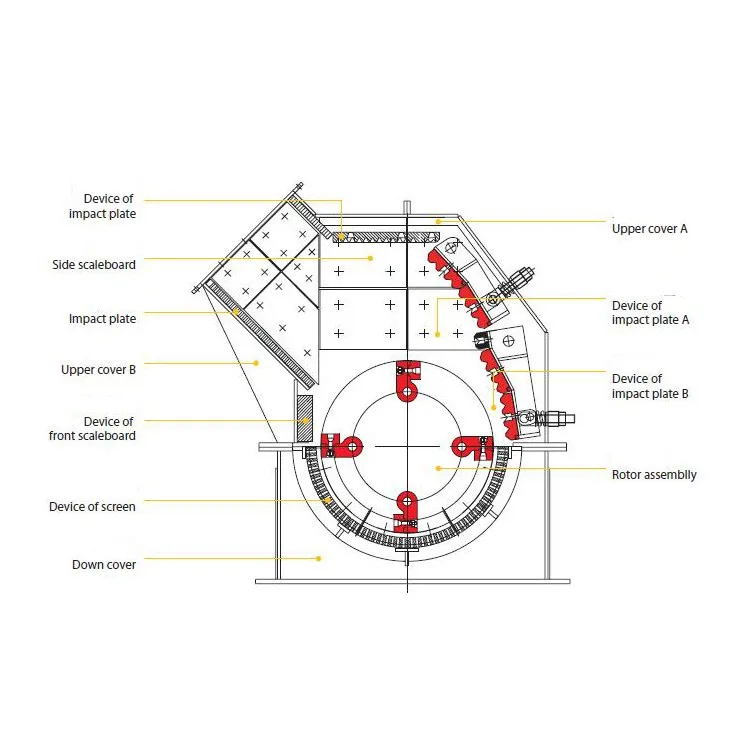

Working principle of Factory Price Portable Mini Used Hammer Crusher Stone Crusher Machine

The rotor disc under the driving of the motor, to drive the hammer in high speed motion, when the material into the crushing chamber, the bulk materials piled up in the machine in the middle of the special central bar, after crushing size larger than required materials with new material along the tangential direction of hammer hit back plate broken again, so that the rough, broken a the last step, to meet the requirements of the material by the grate plate are qualified after unloading the whole.

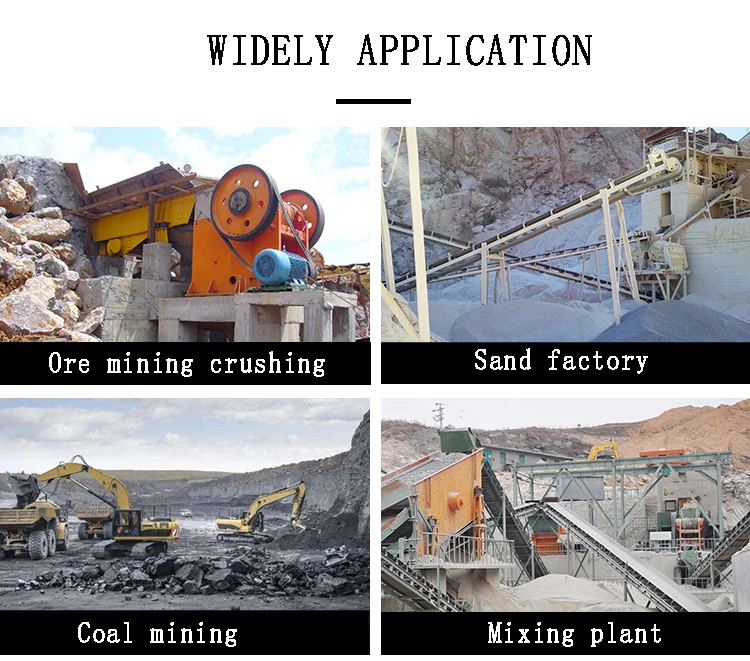

Factory Price Portable Mini Used Hammer Crusher Stone Crusher Machine is widely used in the work of mine, building material, road, railway, irrigation, chemical industry, ect. It is especially used to crush limestone and medium hard materials which compression strength are less than 200Mpa.




Final Product

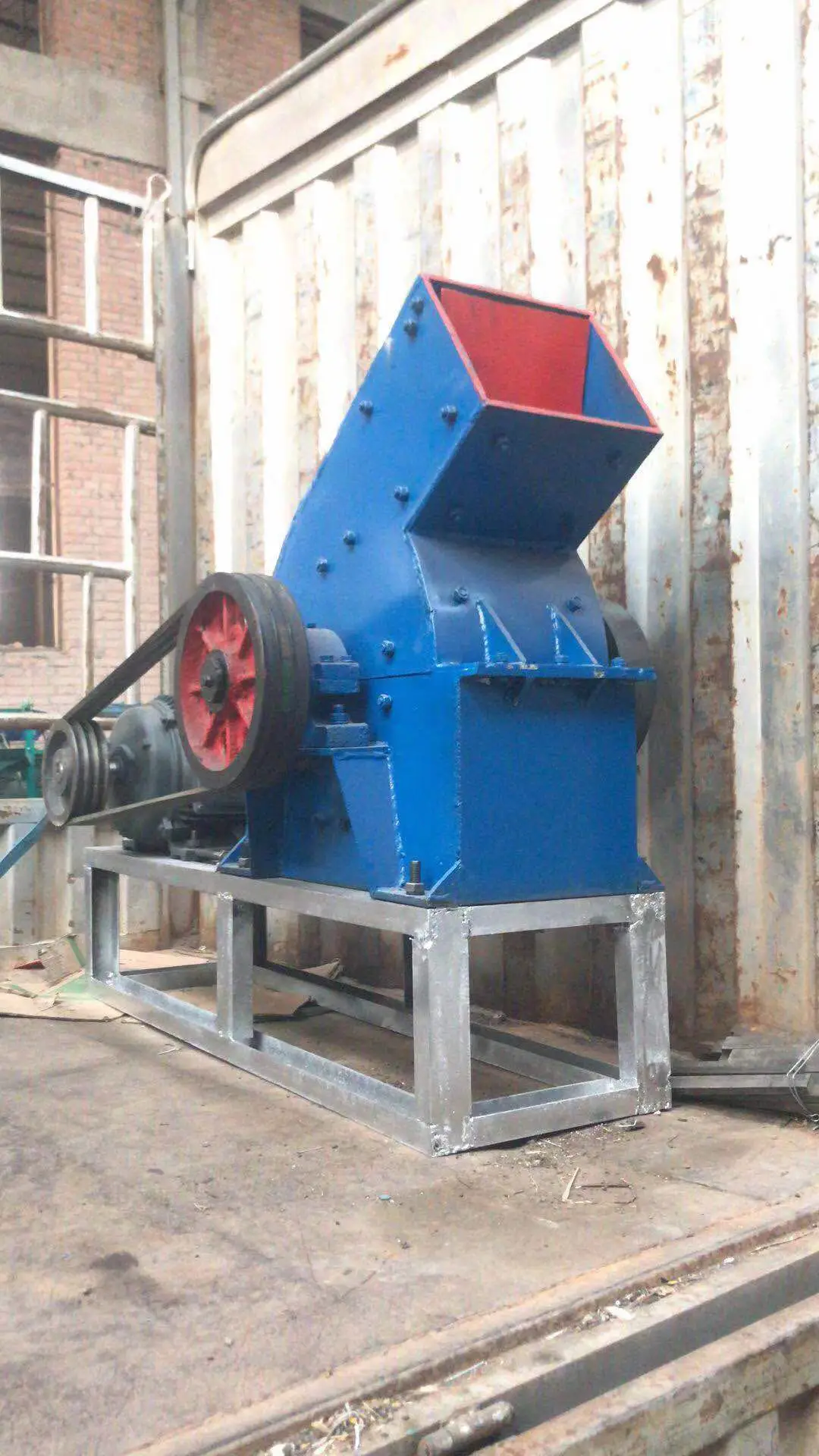

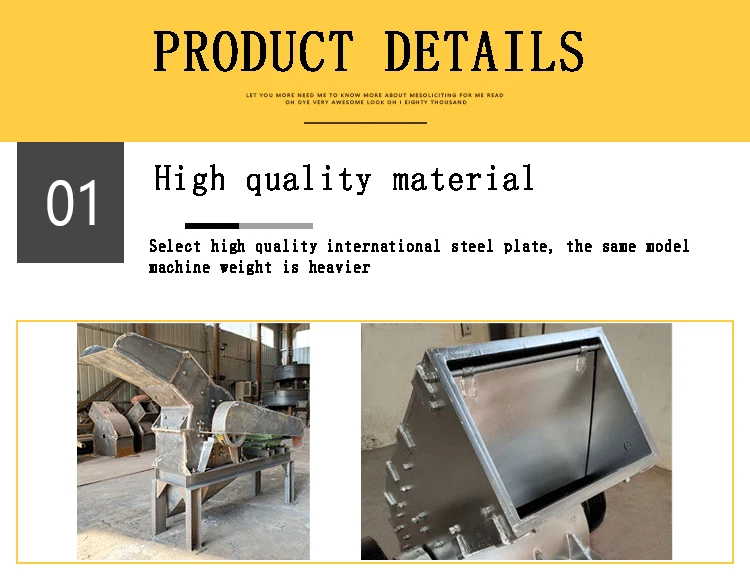

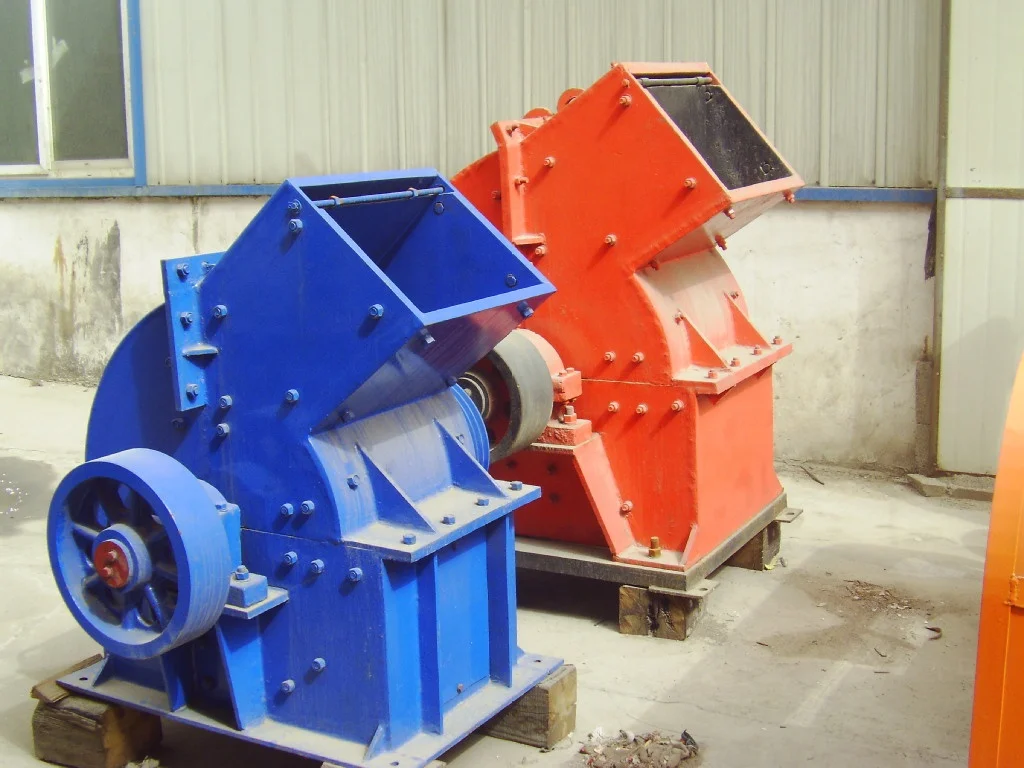

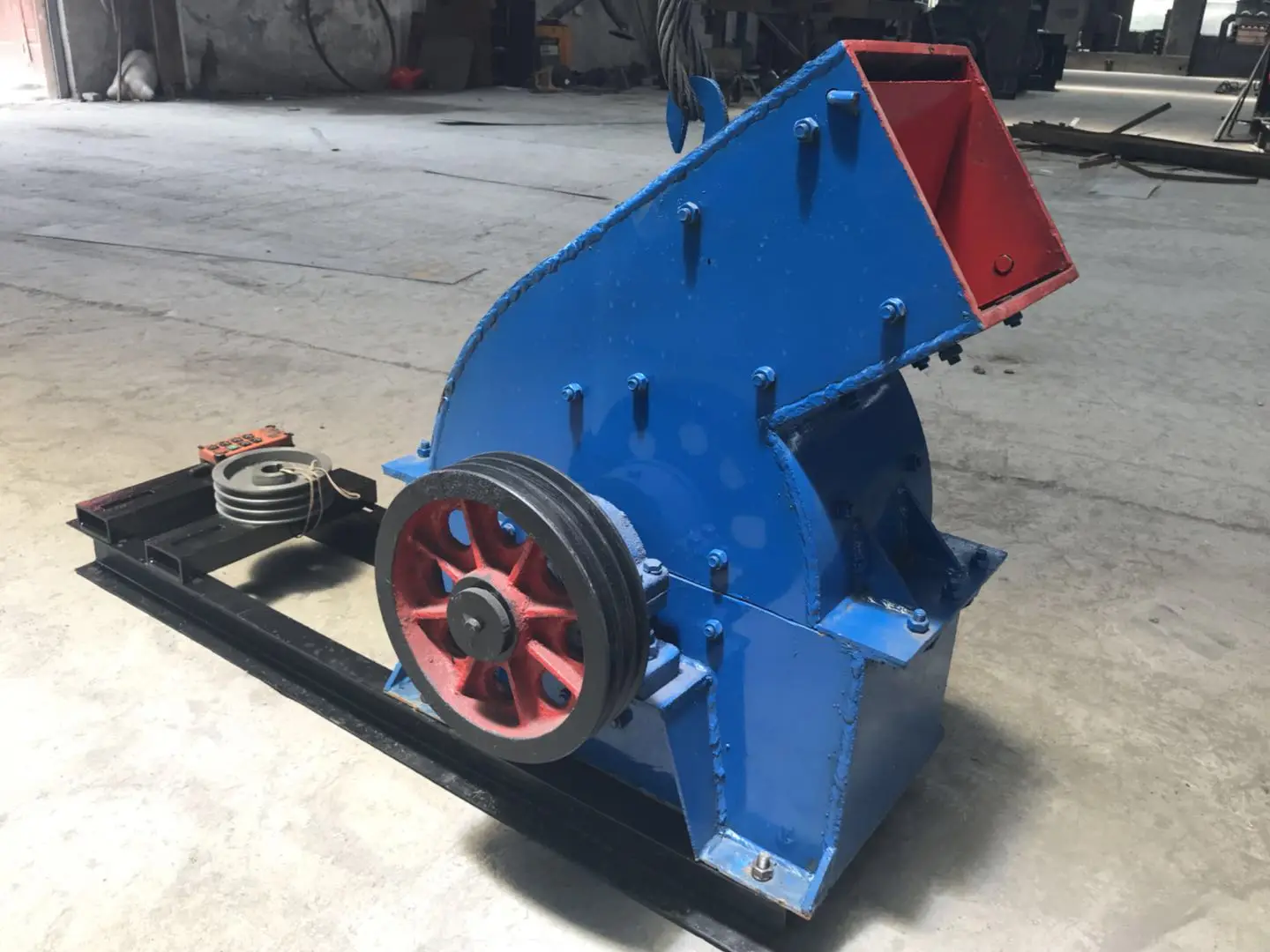

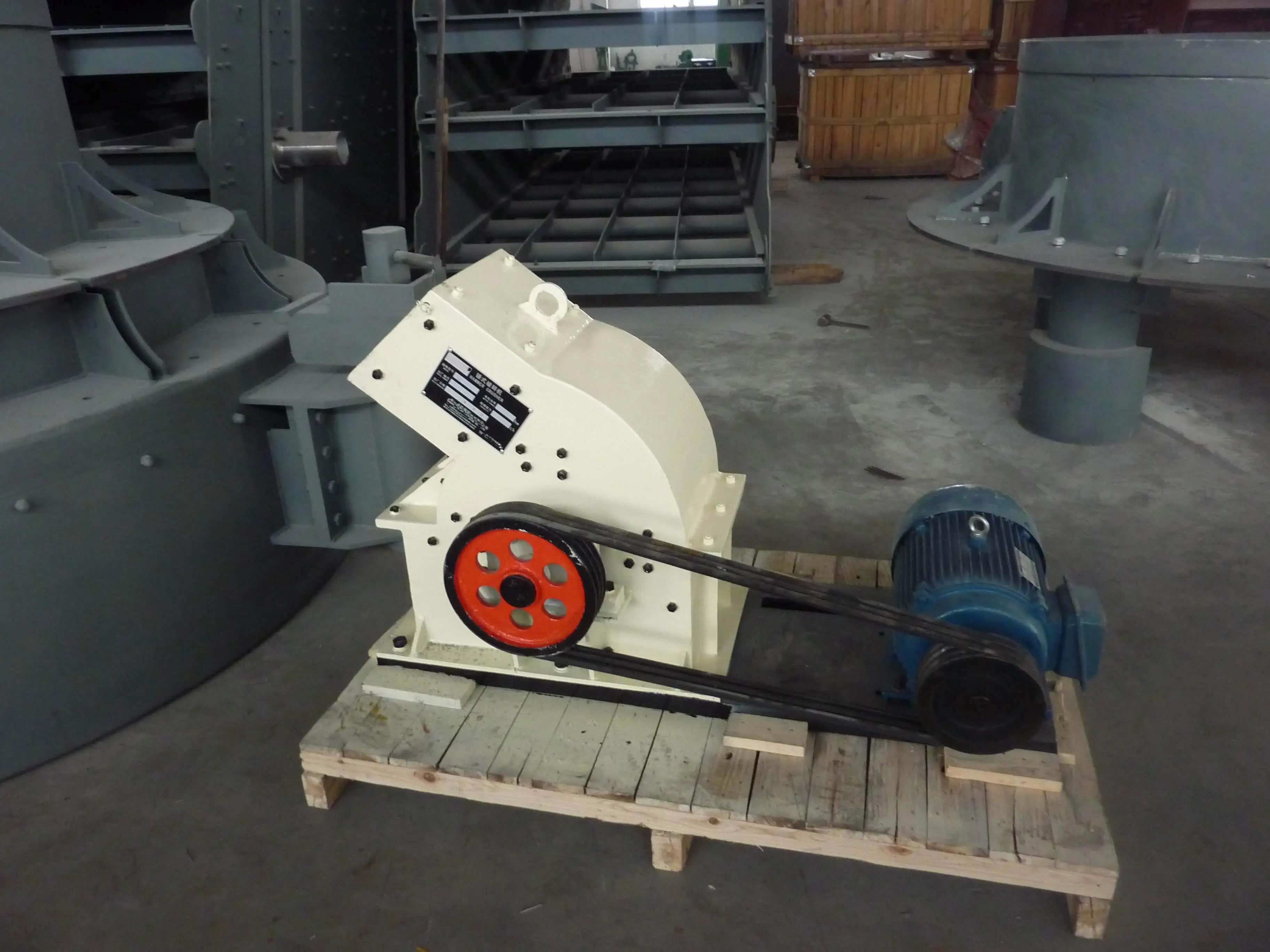

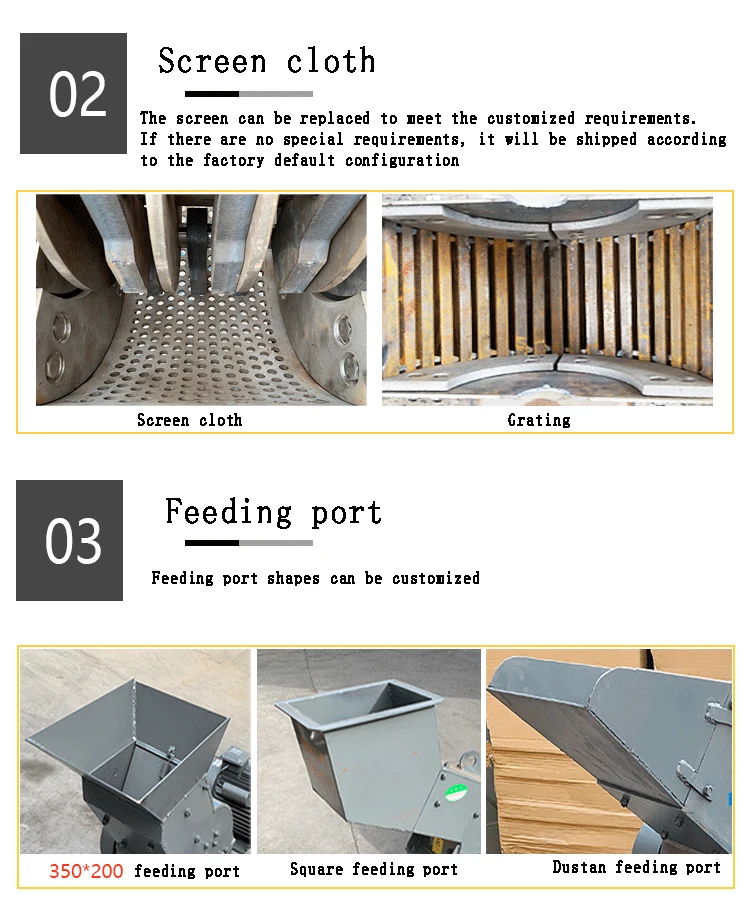

Detailed Image








Packing & Delivery




Inner package of Hammer Crusher Stone Crusher :Plastic packing

Outer package of Hammer Crusher Stone Crusher :wooden case

Delivery of Hammer Crusher Stone Crusher :Within 20 days after the order



Our Company


Henan Mingxin Machinery Co., Ltd is a company that integrates science, industry and trade. The company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water purification equipment, wire and cable. Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have always regarded the technology as the motive force, the market as the orientation to make the products first-class.

Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.





Our Service


Pre-Sales:
Act as a good adviser and assistant of clients,enable them to get rich and competitive from the returns of their investment.
1.Select suitable equipment model.
2.Design and manufacture products according to clients special requirements.
3.Train technical personnel for clients.
4.Professional suggestion for customer.

Service During The Sales:
Respect clients,devote ourselves to improving the total value of clients.
1.Take photos(including raw material,semi-products,final products and loading products).
2.Pre-check and accept products ahead of delivery.
3.Prepare all clearance documents,so that the customer clearance smoothly.

After-sales service:
Provide considerate service to minimize clients worries.
1.Provide civil engineering drawings of the equipment.
2.Free training(including installation, maintaince) to every customer.
3.Install and debug the equipment,ensure the dryer running smoothly.
4.Examine the equipment regularly.
5.Take initiative to eliminate the troubles rapidly at site.
