Heli check Chemical Indicator Dental Autoclave Vacuum Sterilizer Batch Control PCD Helix Test Strip
- Category: >>>
- Supplier: Hefei Sucare Medical Instrument Co. Ltd.
Share on (1600929275778):
Product Overview
Description
PRODUCTS CATEGORIES
Product Description
Batch Control Helix Test Kit
Introduction:

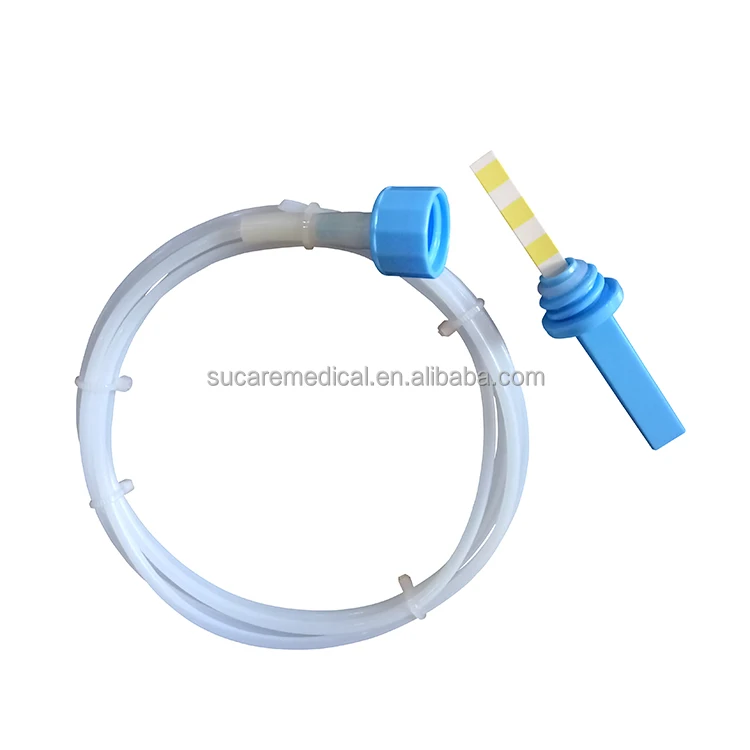

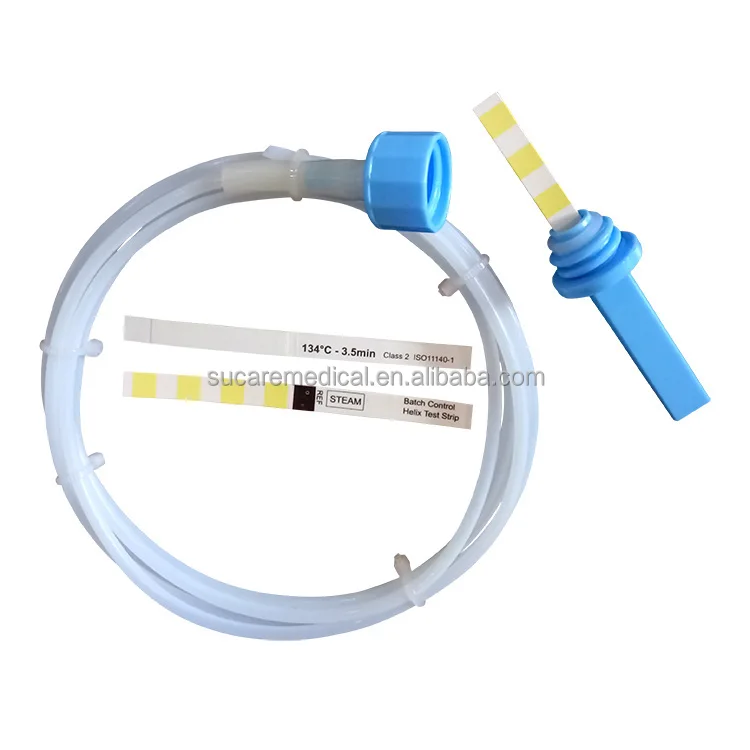

Helix Test Kit is a reusable device made of a polymer tube, a plastic container with an internal cavity and one-time test strips
for each test cycle. Helix PCD Test is used as a daily test for pre-vacuum hospital sterilizers and for bench top steam
sterilizers Class B for steam penetration and inert gases in the test cycle: 134°C - 3.5 min, 121°C - 15 min.
The Helix PCD test is an excellent test to detect even the smallest amounts of inert gases and steam penetration capabilities.
The EN 867 Part 5 is describing a Helix PCD based steam penetration test as an alternative for the Bowie & Dick Test for bench top steam sterilizers Class B the EN 285 is specifying the Helix PCD test for hospital steam sterilizers when it is mainly used to sterilize hollow loads.
Helix PCD test is not replacing routine monitoring of sterilization cycles. This should be done by lot control sets
and/or with in pack integrators.
There are different types of indicator according to the sterilization process selected: Steam, Ethylene Oxide and
Hydrogen Peroxide.
If the all bars change to the final color, the result is successful, so the sterilizer is working correctly.
If one bar is different to the final color, it shows a bad sterilizing agent penetration, therefore an equipment malfunction.
Feature:
Helix Test Kit is a reusable device made of a polymer tube, a plastic container with an internal cavity and one-time test strips
for each test cycle. Helix PCD Test is used as a daily test for pre-vacuum hospital sterilizers and for bench top steam
sterilizers Class B for steam penetration and inert gases in the test cycle: 134°C - 3.5 min, 121°C - 15 min.
The Helix PCD test is an excellent test to detect even the smallest amounts of inert gases and steam penetration capabilities.
The EN 867 Part 5 is describing a Helix PCD based steam penetration test as an alternative for the Bowie & Dick Test for bench top steam sterilizers Class B the EN 285 is specifying the Helix PCD test for hospital steam sterilizers when it is mainly used to sterilize hollow loads.
Helix PCD test is not replacing routine monitoring of sterilization cycles. This should be done by lot control sets
and/or with in pack integrators.
There are different types of indicator according to the sterilization process selected: Steam, Ethylene Oxide and
Hydrogen Peroxide.
If the all bars change to the final color, the result is successful, so the sterilizer is working correctly.
If one bar is different to the final color, it shows a bad sterilizing agent penetration, therefore an equipment malfunction.
Feature:
- Water-based and non-toxic chemical indicator
- It is easy to read and interpret
- With the self-adhesive feature it can be used as a permanent record for traceability purposes
- Compatible with ISO 11140-1
- The device is reusable, support up to 200 test cycles
- After Steam Sterilization process yellow color changes to black color
- After EO Sterilization process pink color changes to brown color
- After H2O2 Sterilization process red color changes to yellow color
- It is easy to read and interpret
- With the self-adhesive feature it can be used as a permanent record for traceability purposes
- Compatible with ISO 11140-1
- The device is reusable, support up to 200 test cycles
- After Steam Sterilization process yellow color changes to black color
- After EO Sterilization process pink color changes to brown color
- After H2O2 Sterilization process red color changes to yellow color
Helix Test Kit
Content:

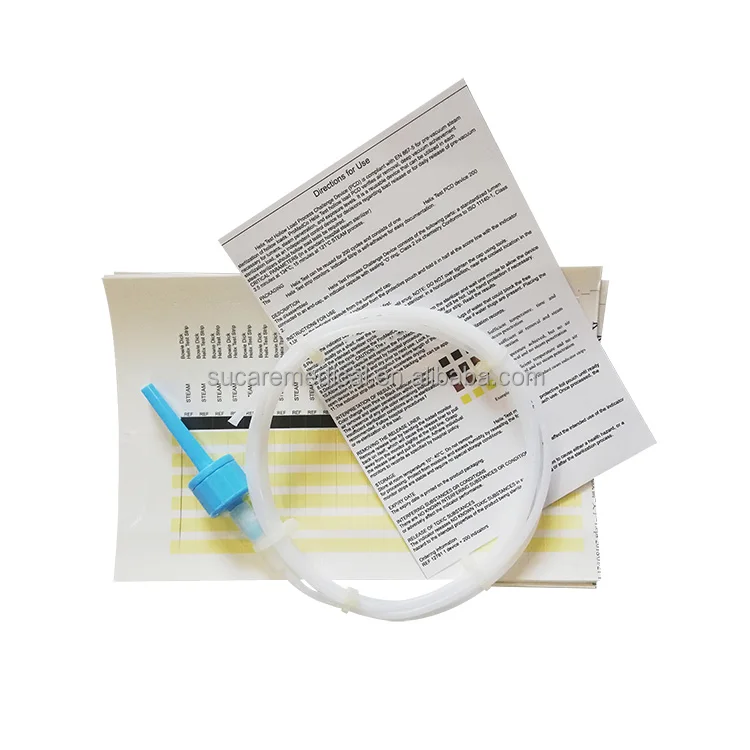

1 unit Plastic PCD Device200 units Test Strips
1 unit Direction For Use
Working Temp. & Time
121°C - 15min, 134°C - 3.5min
Sterilization Method & Color Change
Steam - Yellow to Black
Package: 1 kit/bag
Specification
Product Name | Size | Color Change | Package |

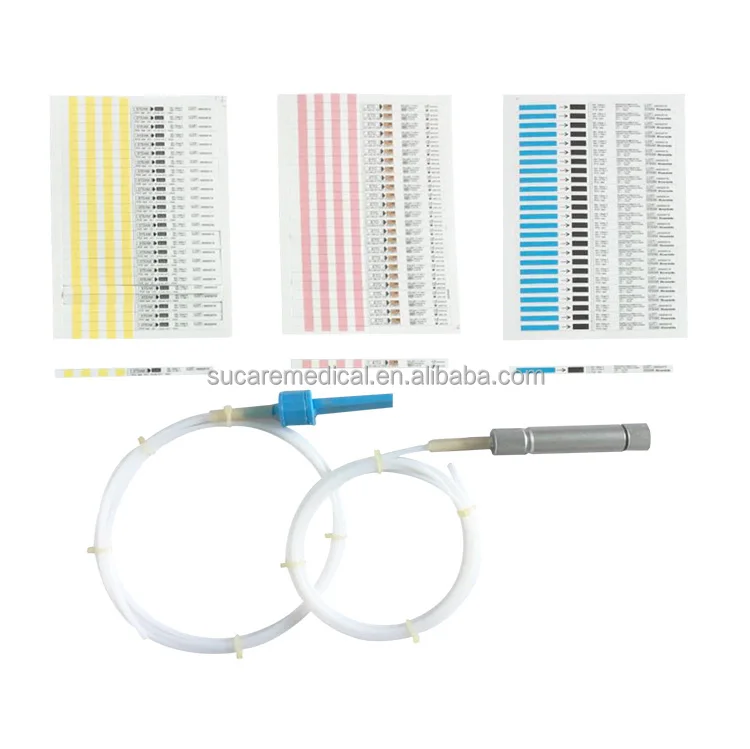

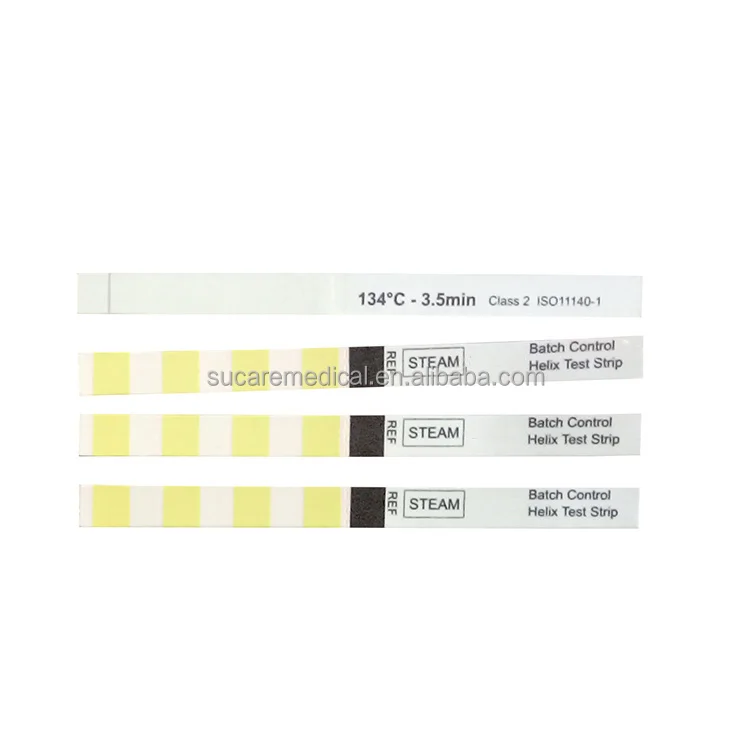

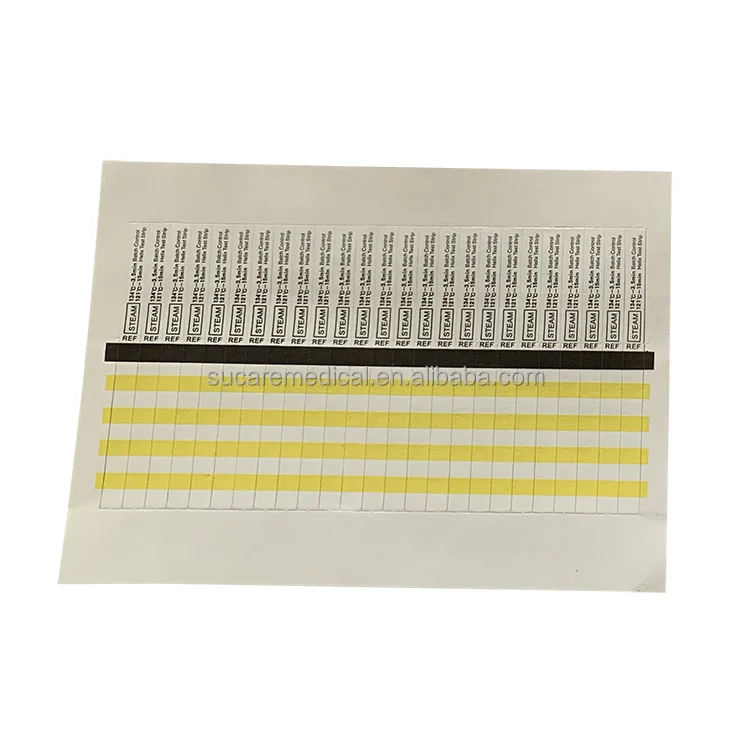

Helix Test Strip | 73*5mm | - Steam: Yellow to Black - EO: Pink to Brown - H2O2: Red to Yellow | 25 strips/sheet, 20 sheets/bag |
Helix Test Device | Plastic Hollow - 1.5m hose | / | 1pc/bag |

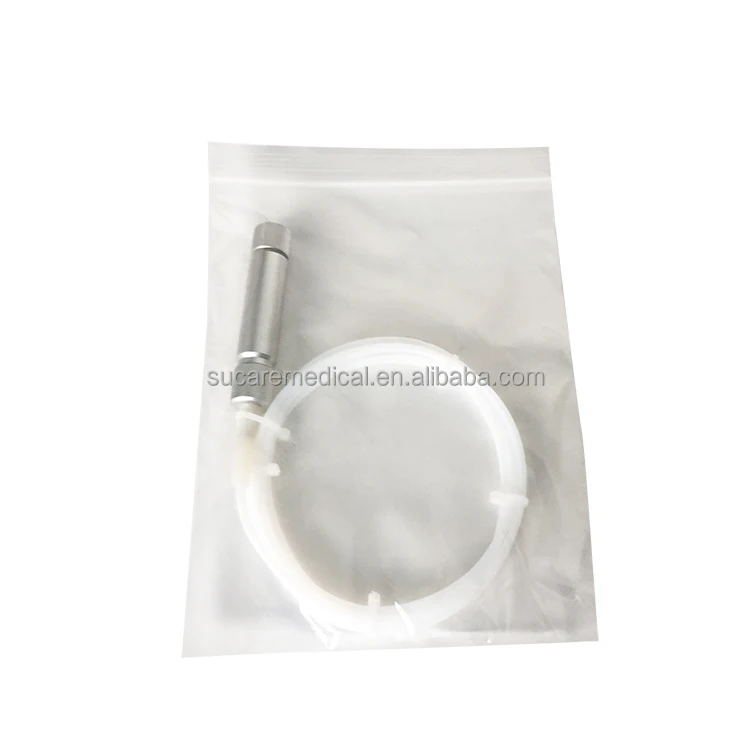

Aluminum Alloy Hollow - 1.5m hose | / | 1pc/bag |
Details Images

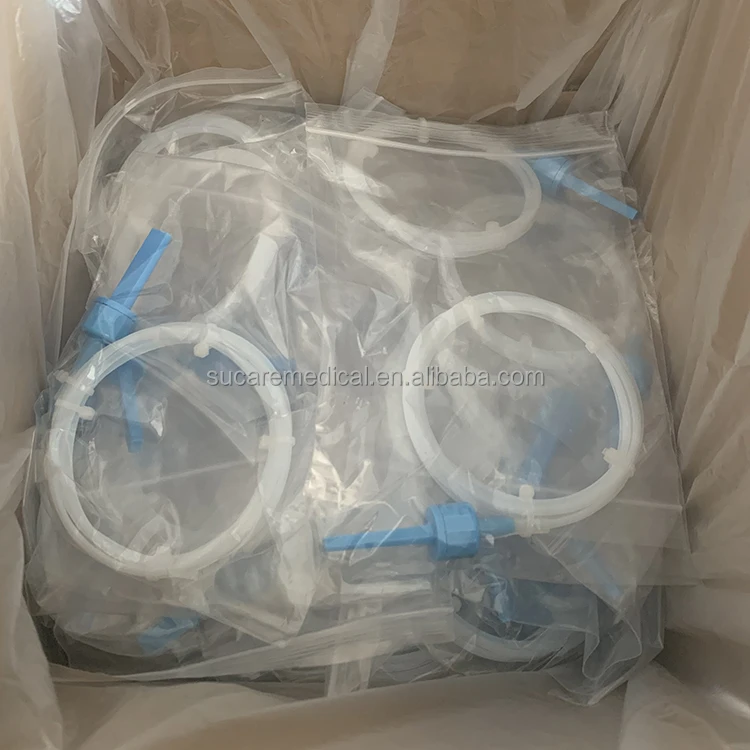

Packing & Delivery
Helix Test Strip: 25 strips/sheet, 20 sheets/bag

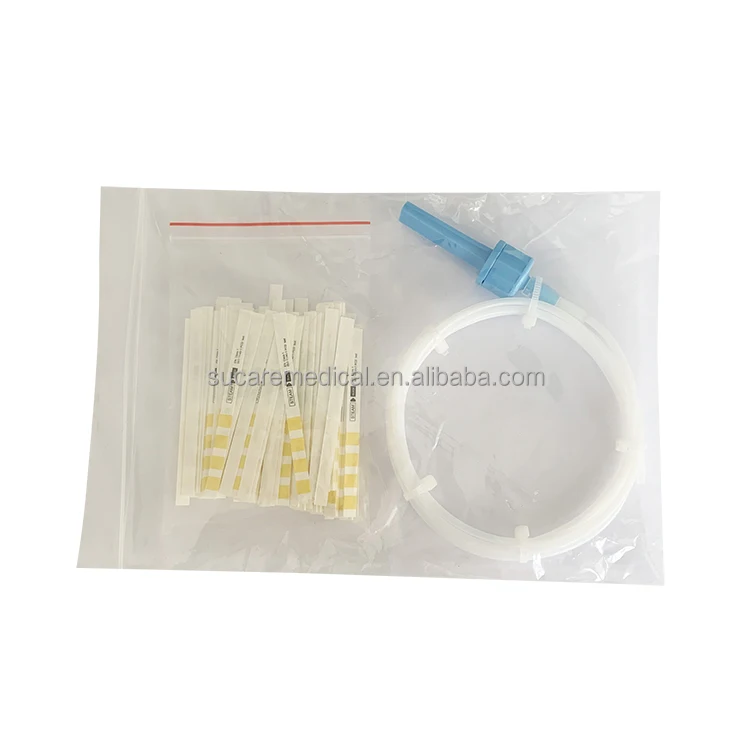

Helix Test Kit: 1 device+1 DFU+200 strips/bag
Recommend Products
FAQ
1. What are your main products?
2. Can I get a sample?
A: Sterilization Package, Chemical Indicators, Dental Consumables and Surgical Drape Packs.
2. Can I get a sample?
A: Yes, we can send samples before formal order, please tell us the specification, quantity and your address.
Sample cost and shipping cost are negotiable.
3. How is the delivery time for samples and mass production?
3. How is the delivery time for samples and mass production?
A: Generally, 1-3 days for stock samples, 5-10 days for customized samples.
Mass production can be delivered in 10-35 days, depends on the quantity and OEM requirement.
4. Can you print our brand or LOGO on the products and packages?
A: Yes. We can print your Logo on both the products and the packages, the cost and minimum quantity will be checked by your specific requirements.
5. How to guarantee the quality of your products?
4. Can you print our brand or LOGO on the products and packages?
A: Yes. We can print your Logo on both the products and the packages, the cost and minimum quantity will be checked by your specific requirements.
5. How to guarantee the quality of your products?
A: 1) We use true material as we agreed, keep same material as samples, never cheat on material and workmanship.
2) Strict inspection during production and before shipment.
