Hot selling BT151S 500R TO 252 SCR
- Category: >>>
- Supplier: Yangzhou Positioning Tech. Co. Ltd.
Share on (1600929313341):
Product Overview
Description
YZPST Group
Power Electronic Components Manufacturer
33 years' experience 500+ employees
300,000+ successful cases from 160 countries & regions.
AEO UL ISO9001 REACH ROHS
Product Description
P/N:YZPST-BT151S SCRS

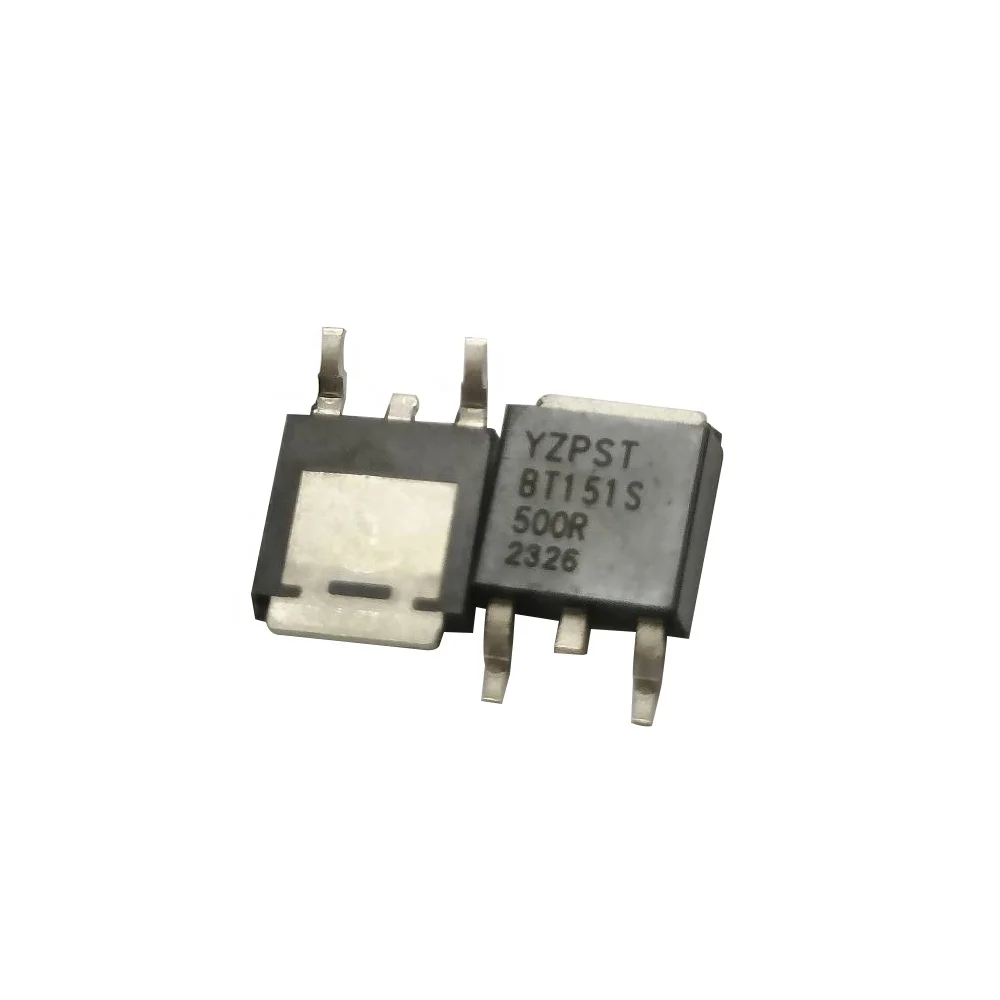

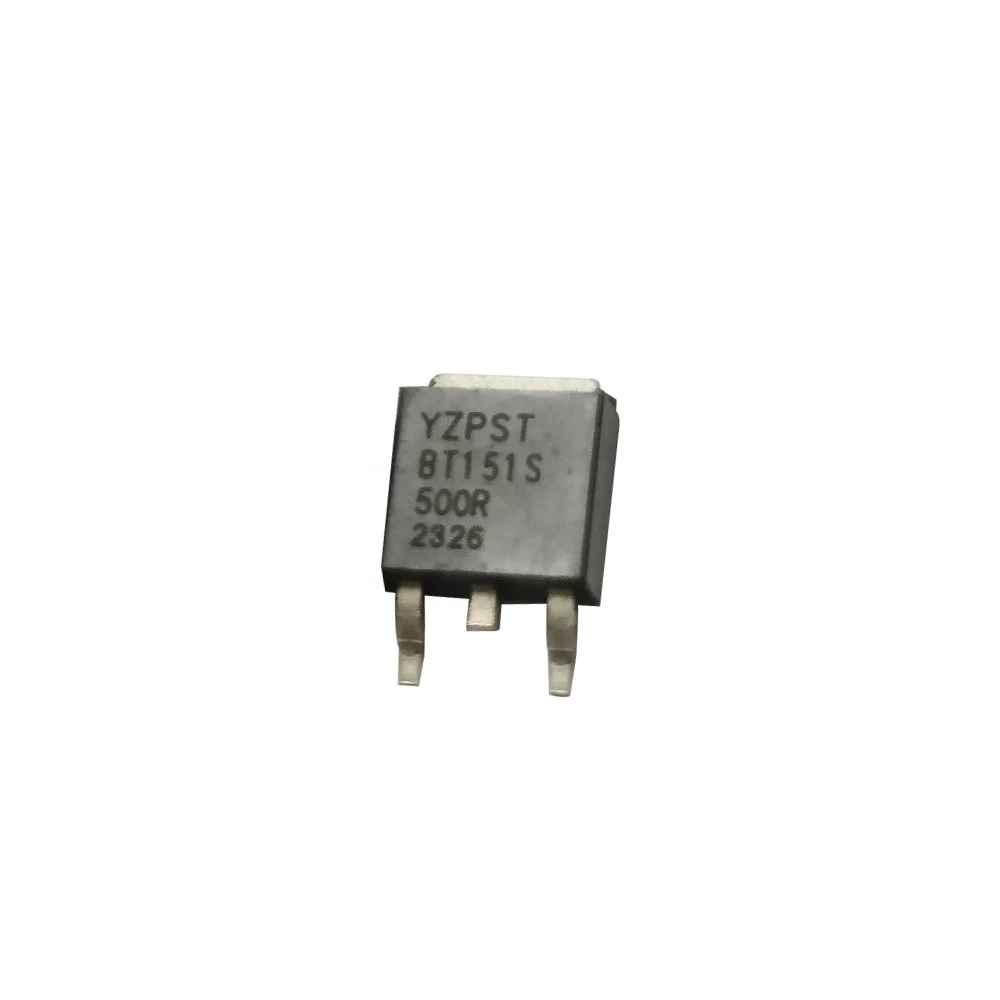

Hot selling BT151S-500R TO-252 SCR
Package

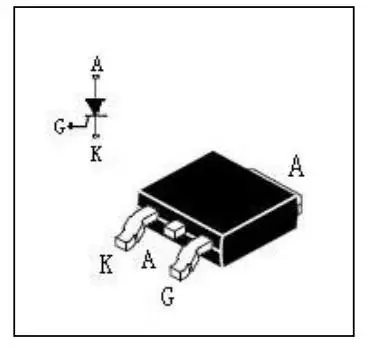

TO-252-2L
Main Feature (Tj= 25℃)
Symbol | Value | Unit |
IT(AV) | 7.5 | A |
VDRM / VRRM | ≥ 600 | V |
IGT
| 3to 6 | mA |
Absolute ratings (Limiting Values)
Symbol | Parameter | Value | Unit |
IT (RMS) | RMS on-state current (180 °conduction angle) | 12 | A |
IT(AV) | AV on-state current (180 °conduction angle) | 7.5 | A |
ITSM | Non repetitive surge peak on-state Current (tp= 10ms) | 100 | A |
I2t | (tp= 10ms) | 50 | A2S |
IGM | Peak gate current(tp=20us) | 2 | A |
PGM | Peak gate power | 5 | W |
PG(AV) | Average gate power | 0.5 | W |
Tstg Tj | Storage temperature Operating junction temperature | -40--+150 -40--+125 | ℃ |
Thermai Resistances
Symbol | Parameter | Value | Unit |
Rth (j-mb) | Junction to case | 2.0 | K/W |
Rth (j-a) | Junction to ambient | 75 | K/W |
Electrical characteristics (Tj=25℃ unless otherwise stated)
| Symbol | Test Conditions | Value | Unit | |||
| Min | Type | Max | ||||
| IGT | VD=6V, RL= 100Ω | 3 | 5 | 6 | uA | |
| VGT | VD= 12V, RL= 100Ω | ----- | 0.7 | 0.8 | V | |
| VGD | VD=VDRM, RL=3.3KΩ Tj=110℃ | 0.2 | ----- | ----- | V | |
| IH | IT= 100mA Gate Open | ----- | 10 | mA | ||
| IL | IG= 1.2IGT | 20 | mA | |||
| dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | 50 | 125 | v/μs | ||
| ----- | ||||||
| VTM | IT= 16A,tp=380μs | ----- | ----- | 1.6 | V | |
| IDRM | VD=VDRM | 10 | μA | |||
| 500 | μA | |||||
| VR=VRRM | Tj=25℃ | ----- | ----- | 10 | μA | |
| IRRM | Tj=125℃ | ----- | ----- | 500 | μA | |

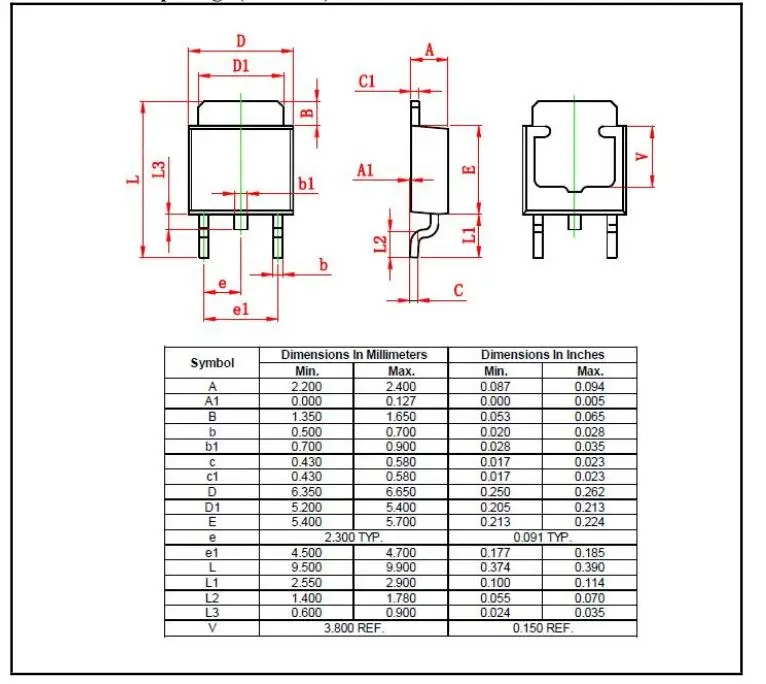

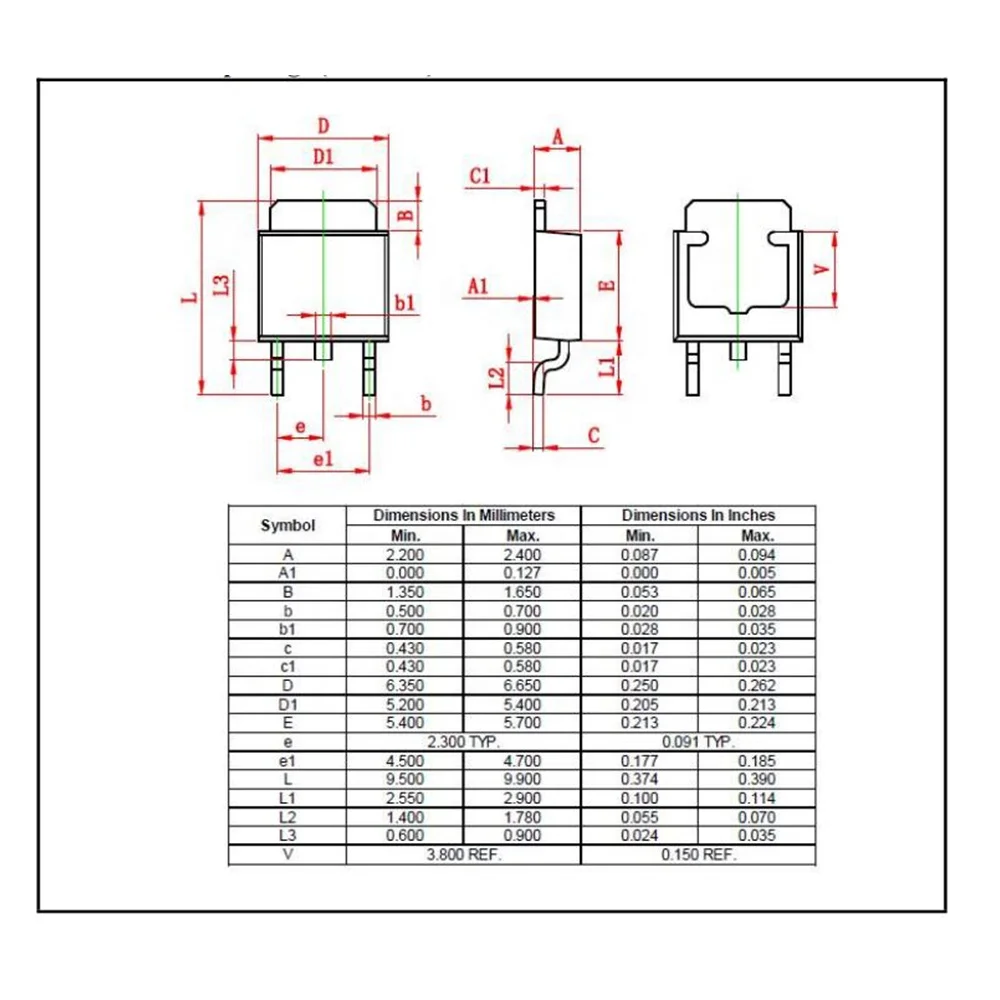

Measure of package
