superb 1200C vacuum muffle furnace for vacuum brazing

Product Overview

Description

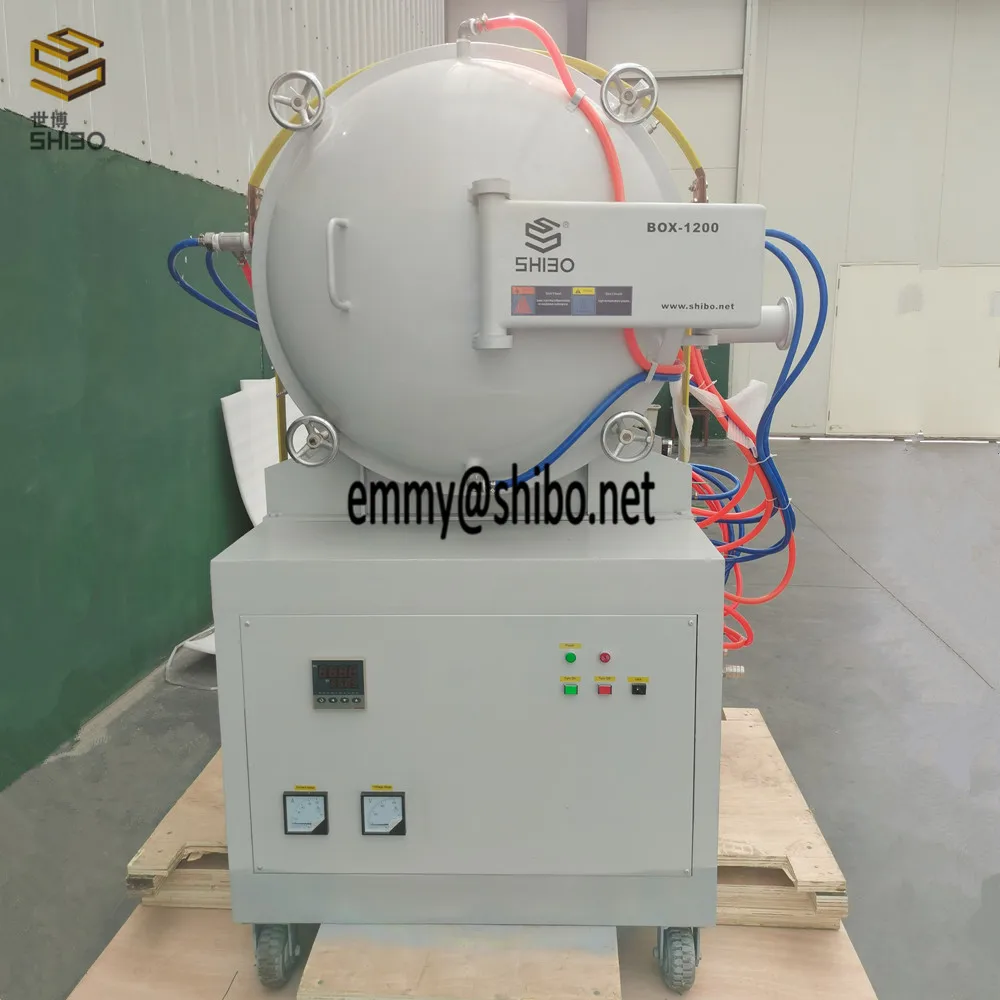

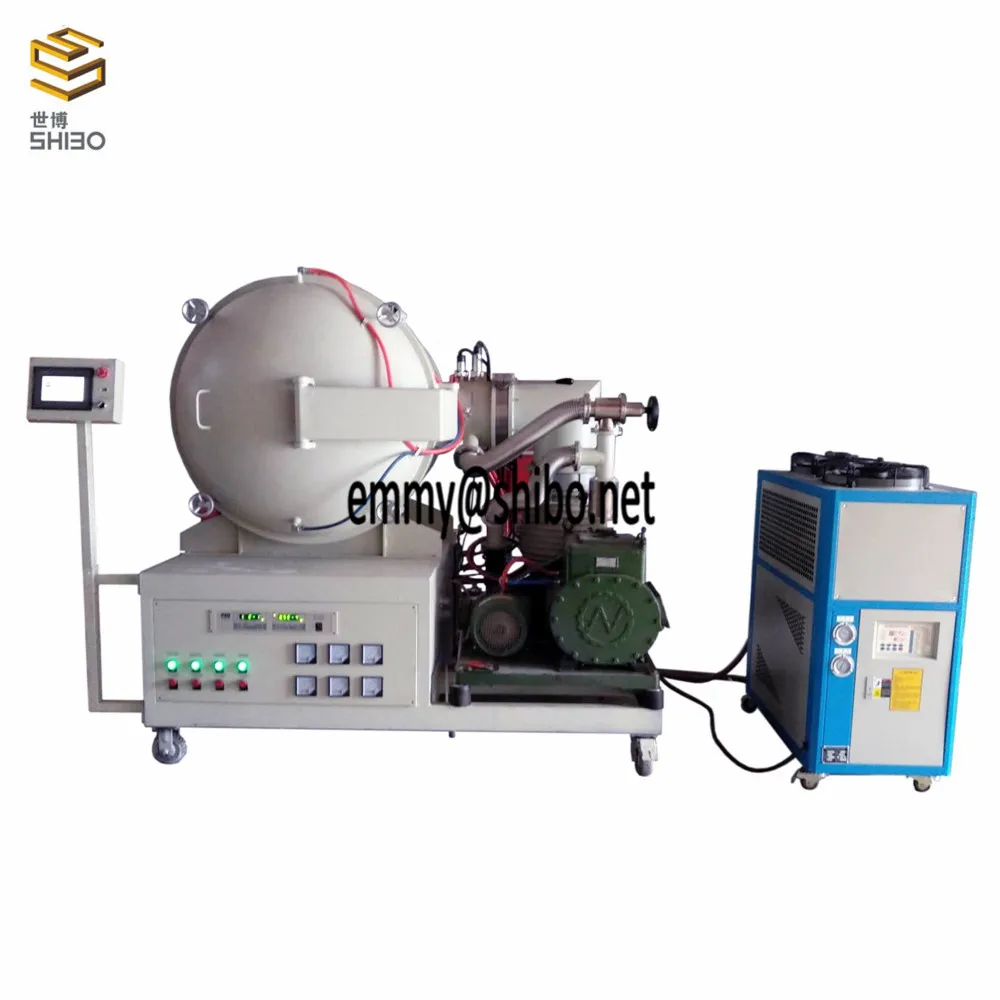

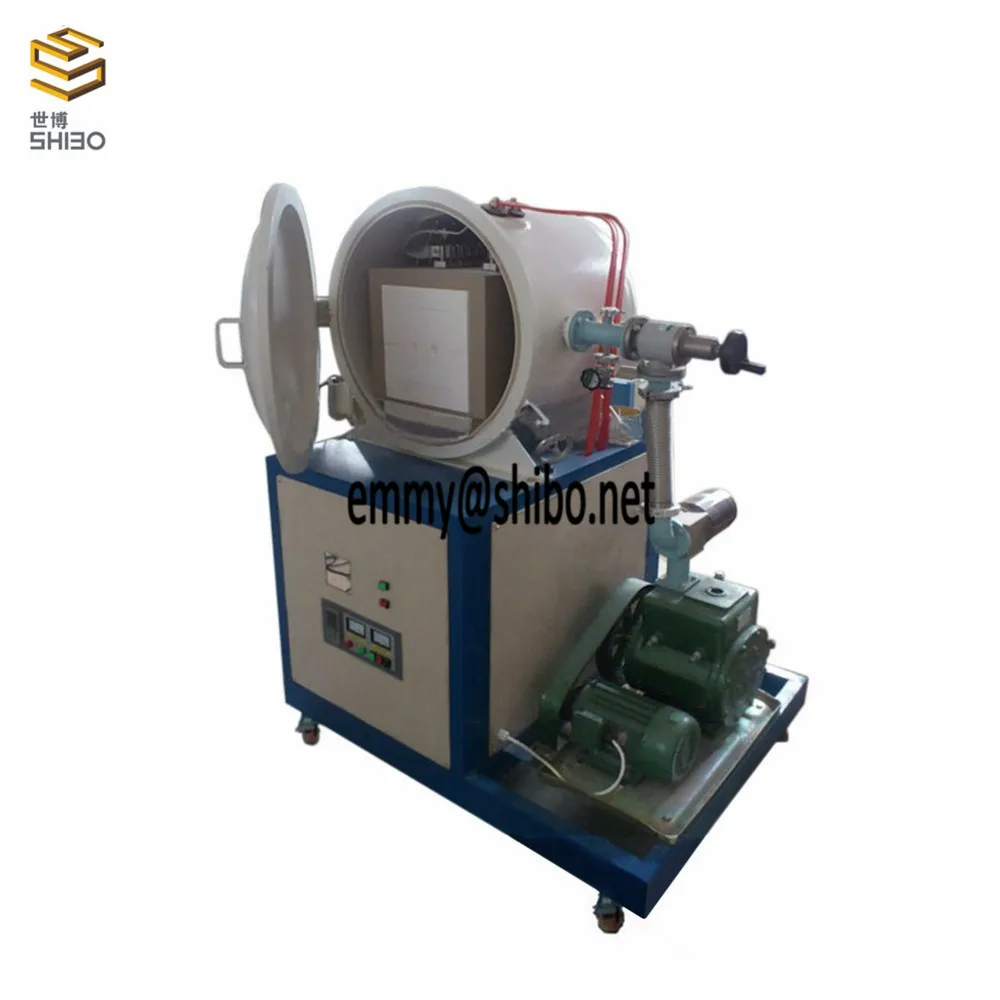

superb 1200C vacuum muffle furnace for vacuum brazing





Model Specification

Name	BOX-1200V Vacuum Furnace
Max. usage temperature	1200℃
Rated working temperature	≤1100℃
Heating element	Resistance wire
Max. heating rate	20℃/min
Temperature departure	±1℃
Thermocouple	K type
Voltage	AC 110V/220V/380V, 50/60Hz, or your requirements
Temperature control	30 segments programmable and PID automatic control





Furnace chamber size

	(Depth * Width * Height)
I	200x120x80 mm	8”x5”x3”
II	160x150x150 mm	6”x6”x6”
II	200x200x200 mm	8”x8”x8”
IV	300x200x200 mm	12”x8”x8”
V	300x250x250 mm	12”x10”x10”
VI	300x300x300 mm	12”x12”x12”
VII	400x300x300 mm	16”x12”x12”
VIII	400x400x400 mm	16”x16”x16”
IX	500x500x500 mm	20”x20”x20”
Other chamber size can be customized according to your request.






Furnace & Heating Element & Accessories







Our Main Products
1) Molybdenum products: plates, rods/electrode, crucible, tube, boat,wire, fasteners, various molybdenum workpieces, etc.
2) Lab furnace: Box type muffle furnaces, tube vacuum furnace, atmosphere furnace, vacuum furnace and relevant accessories.
3) MoSi2 heating elements and SiC heating elements.
4) Tungsten products: plate, rod, crucible, tube, wire, fasteners, etc.
5) Titanium products: plate, bars, tube
6) Basalt fiber products: roving, chopped yarn, reinforced coposite (BFRP).
7) Alumina tubes, alumina crucible and ceramic fibre board
8) Other related products.





Payment Methods: T/T advance, L/C, or Western Union.



Packaging & Shipping

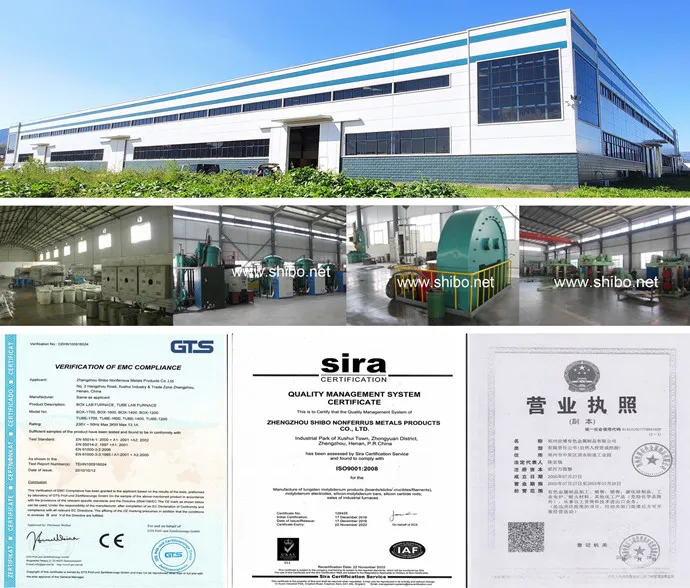

About us
