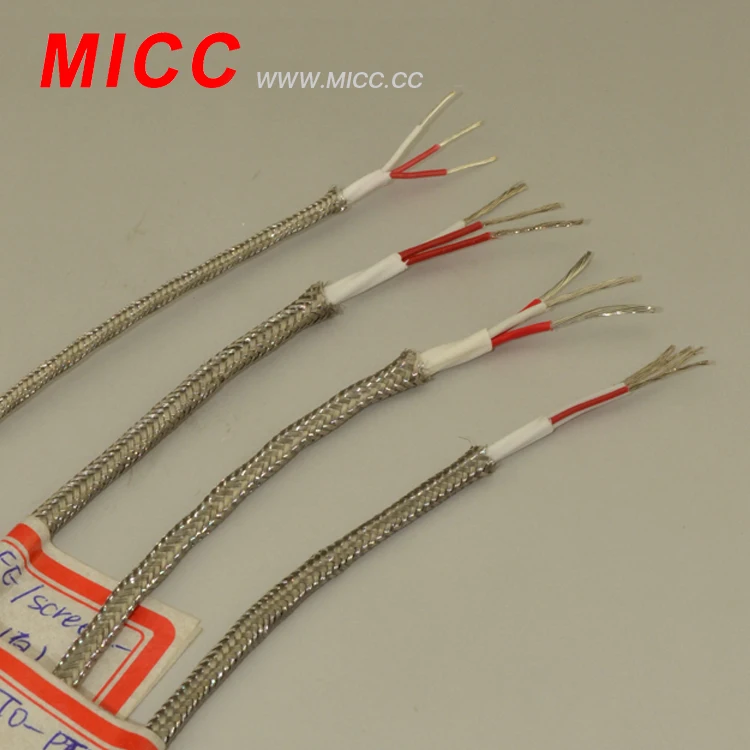

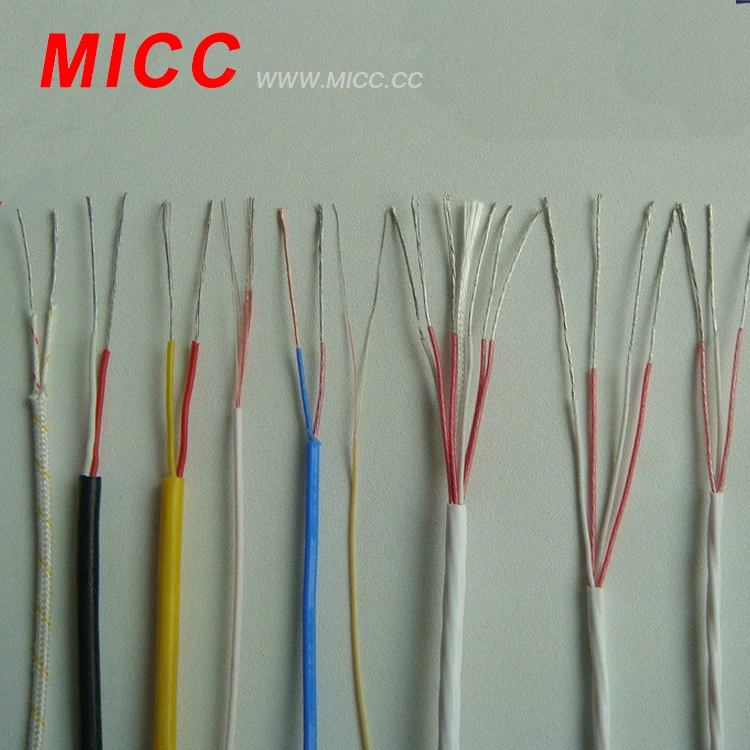

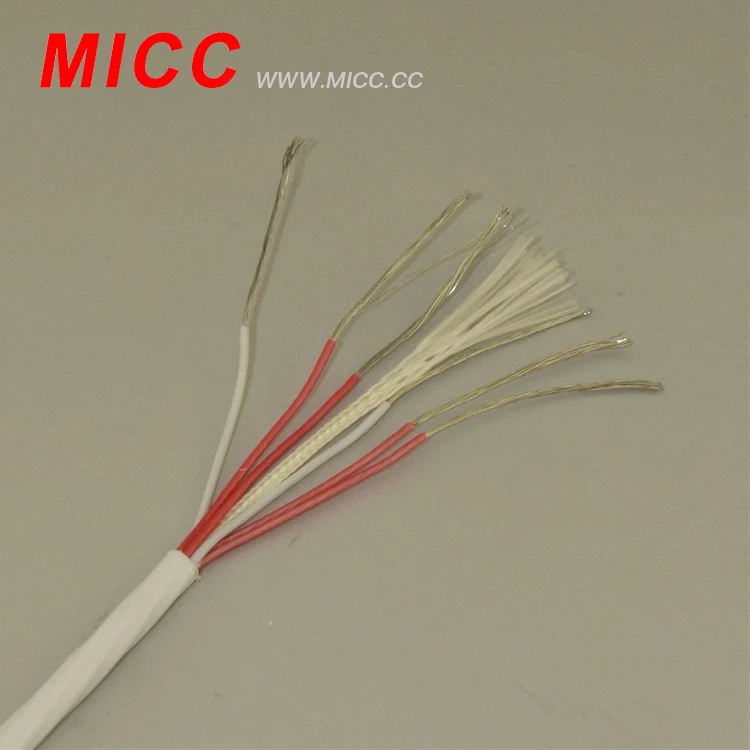

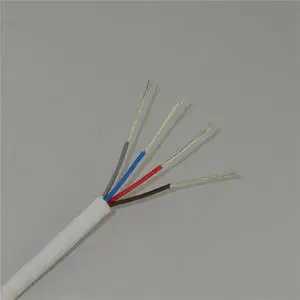

MICC 4 cores red and 2 cores white PT100 TEF/TEF 6*7/0.2 Flexible heat resistant insulation for electrical wire
- Category: >>>
- Supplier: Micc Tech. Limited
Share on (1600929340099):
Product Overview
Description
4 cores red and 2 cores white PT100-TEF/TEF-6*7/0.2 Flexible heat resistant insulation for electrical wire heat resistant insulation for electrical wire
Description:
1. SUBJECT
This specification covers the requirements for TEF insulated, TEF sheathed
RTD extension cable, 6*24AWG, stranded wire.
2. TECHNICAL FEATURES
A. Conductors:
Stranded RTD extension wire
| Conductors Size(AWG) | NO.of Strands &Gauge |
| 24 | 7/0.2mm |
B. Insulation:
Extruded TEF ( 200℃)
| Nominal Insulation Thickness | 0.16mm±0.2 |
| Color code | 4 cores red and 2 cores white |

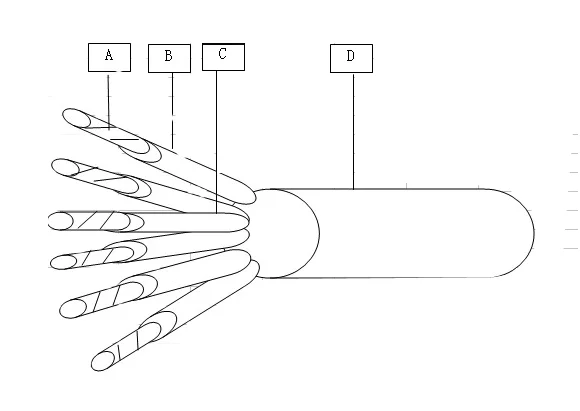

C. Assembly:
Six conductors (cores) twisted construction.
D. Overall Jacket
Extruded TEF ( 200℃)
| Nominal Sheath Thickness | 0.38mm±0.2 |
| Color code | White |
3, DIMENSIONS AND TOLERANCES
| Dimensions/tolerances(mm) | Ø3.65±0.25 |

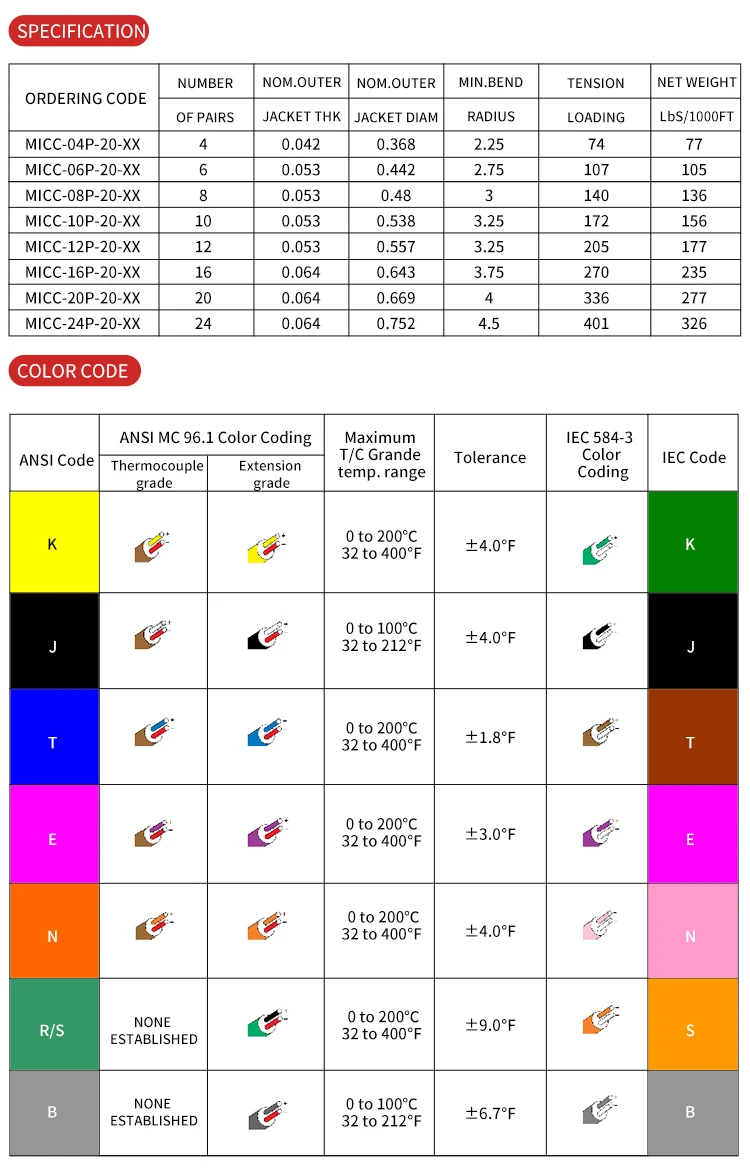

Color code table
JIS, DIN and others are also available.
