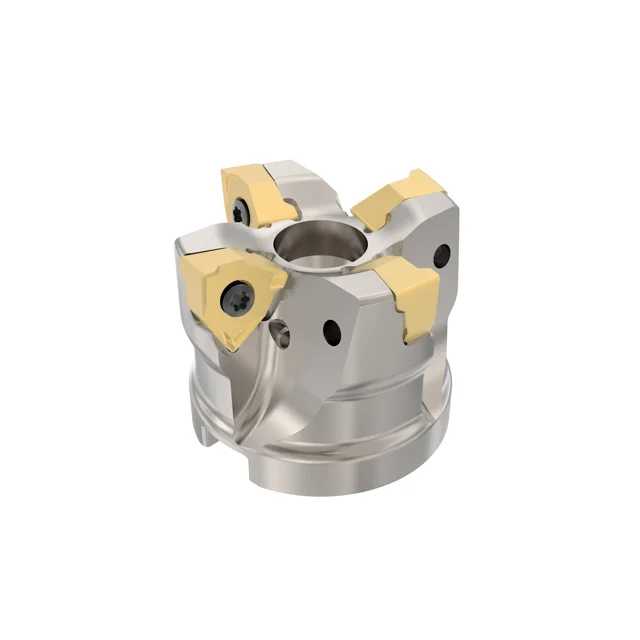

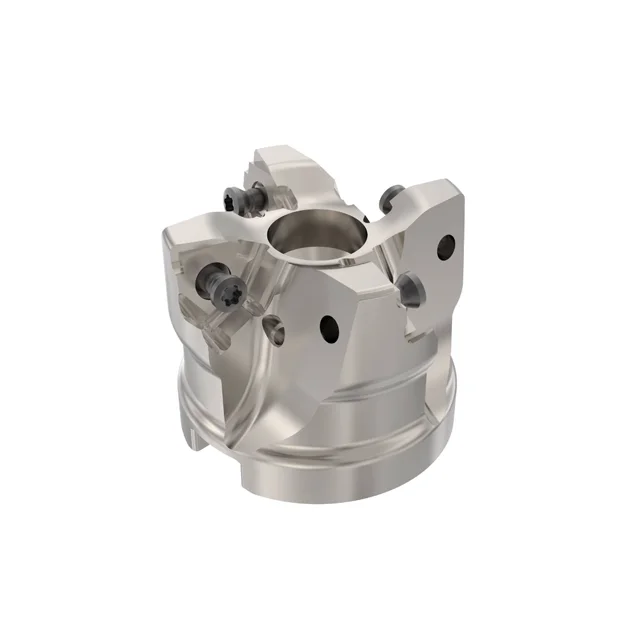

R220.96 0050 08 4A, высокоточные фрезы
- Category: >>>
- Supplier: Shanghai Thinkfon Trading Co. Ltd.
Share on (1600929340386):
Product Overview
Description
Seco is one of the world’s largest providers of comprehensive metal cutting solutions for milling, stationary tools, holemaking
and tooling systems. For over 80 years, we have been more than just a cutting tool provider. We develop and supply the
technologies, processes and supports that manufacturers depend on to maximize productivity and profitability.
and tooling systems. For over 80 years, we have been more than just a cutting tool provider. We develop and supply the
technologies, processes and supports that manufacturers depend on to maximize productivity and profitability.
Seco’s broad variety of indexable milling cutters covers an enormous application area. Including copy mills, disc mills, face
mills, helical mills, square shoulder mills and more, this range of options allows manufacturers to achieve the balance of
productivity, performance and cost effectiveness required by their specific applications.
mills, helical mills, square shoulder mills and more, this range of options allows manufacturers to achieve the balance of
productivity, performance and cost effectiveness required by their specific applications.
Application area
The Turbo family takes square shoulder milling to the max. Suitable for most roughing, semi-finishing and finishing operations,
these highly versatile cutters offer long tool life and high precision via optimized properties that reduce heat generation and
cutting forces.

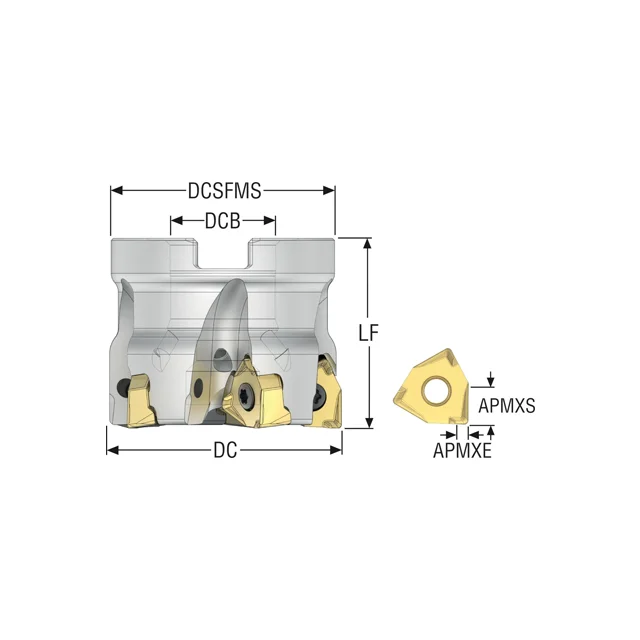

Name | Description | Value |
APMXE | Depth of cut maximum in feed direction end | 3.0 mm |
APMXS | Depth of cut maximum in feed direction side | 7.5 mm |
Barcode | Product barcode | 23180026000107 |
C | Depth of key way | 6.3 mm |
CPDF | Cutting pitch differential | 1 |
CPDN | Cutting pitch density | Normal |
CSP | Coolant supply property | 1 |
DC | Cutting diameter | 50.000 mm |
DCB | Connection bore diameter | 22.00 mm |
DCSFMS | Contact surface diameter machine side | 47.0 mm |
GAMF | Rake angle radial | -13.2 deg |
GAMO | Rake angle orthogonal | -13.2 deg |
GAMP | Rake angle axial | -6.9 deg |
ItemNumber | Item Number | 2623180 |
KAPRE | Tool cutting edge angle in feed direction end | 90.0 deg |
KAPRS | Tool cutting edge angle in feed direction side | 90.0 deg |
KWW | Keyway width | 10.4 mm |
LF | Functional length | 40.00 mm |
RMPX | Ramping angle maximum | 0.0 deg |
RPMX | Rotational speed maximum | 10600 rpm |
Shanktype | Shanktype | Arbor |
Weight | Net weight | 0.344 kg |
ZEFP | Peripheral effective cutting edge count | 4 |
R220.69-0032-06-8AN
R217.96-1820.0-04-3A
R217.69-0816.RE-06-4AN
R220.94-0032-08-5A
R217.94-1616.3-08-2A
R217.69-2020.3-06-4AN
QC12-SCLCL-06JET
JS754030F1C.0Z4-HXT
JS565040F2C.0Z5C-NXT
Q1. What is your minimum order quantity?
One set
Q2. How long is your preparation time?
This product is in stock and will be shipped in one day
Q3. how can we proceed the order?
first of all, please let us know your request or application. In addition, we offer according to your
requirements or our suggestions.
Q2. How long is your preparation time?
This product is in stock and will be shipped in one day
Q3. how can we proceed the order?
first of all, please let us know your request or application. In addition, we offer according to your
requirements or our suggestions.
