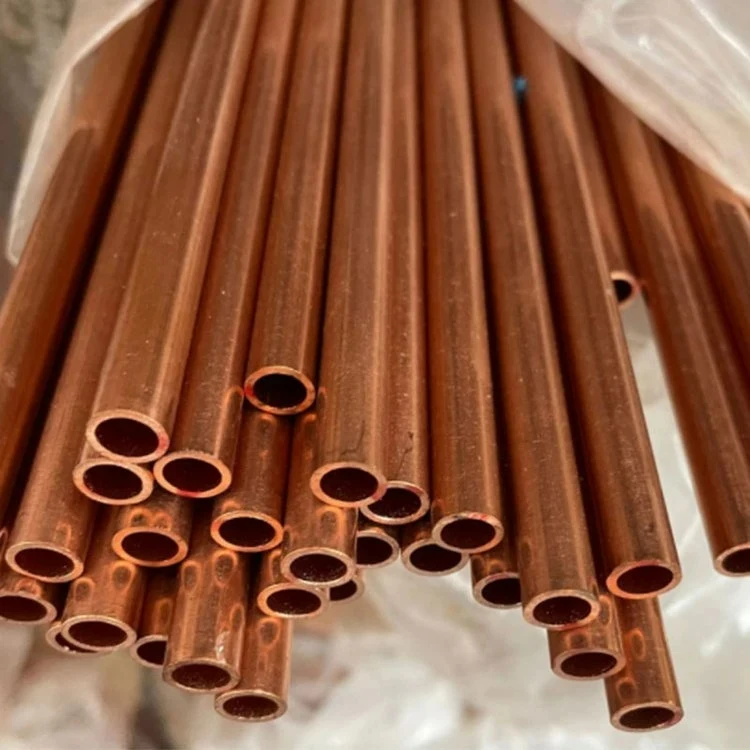

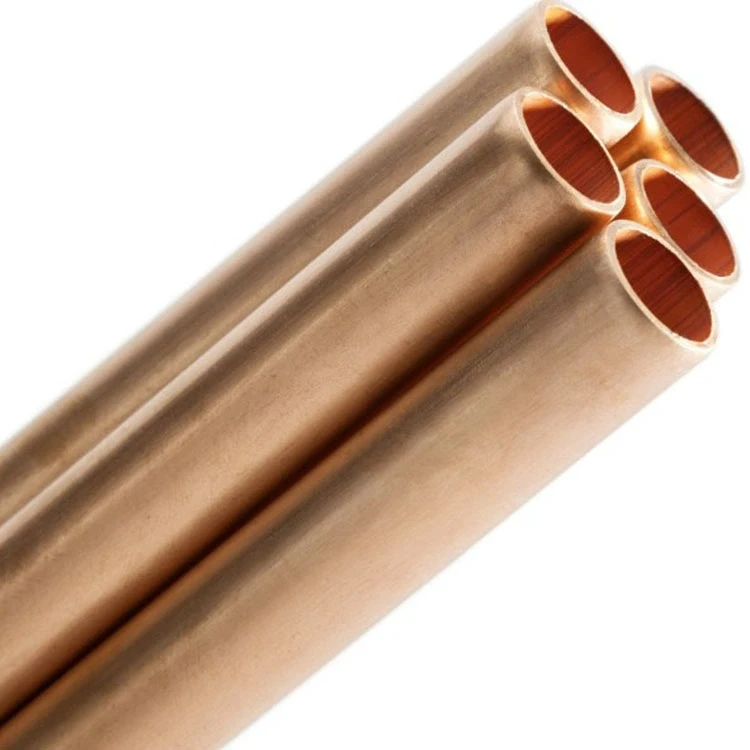

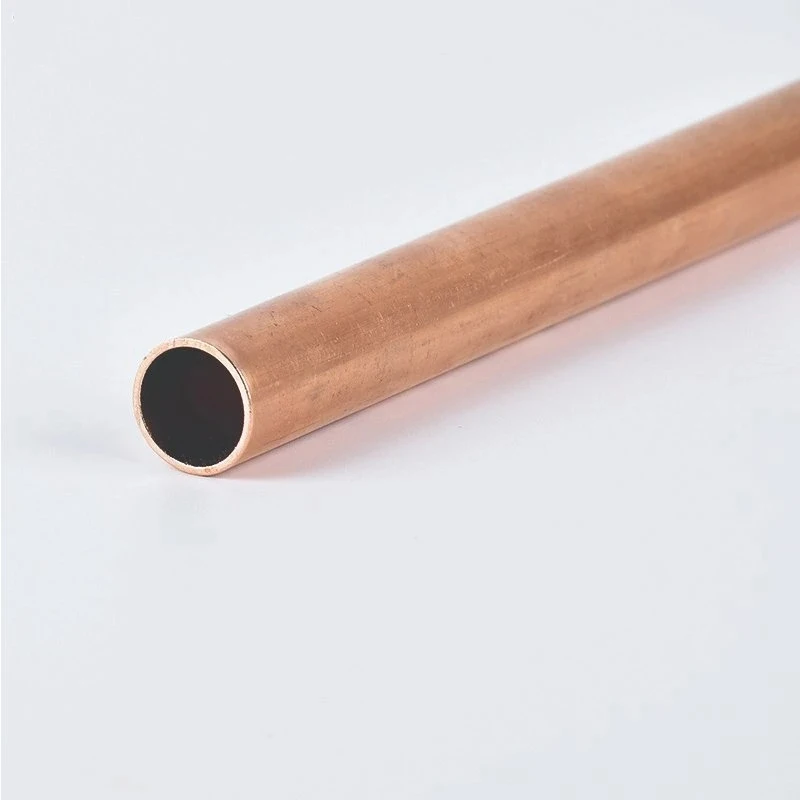

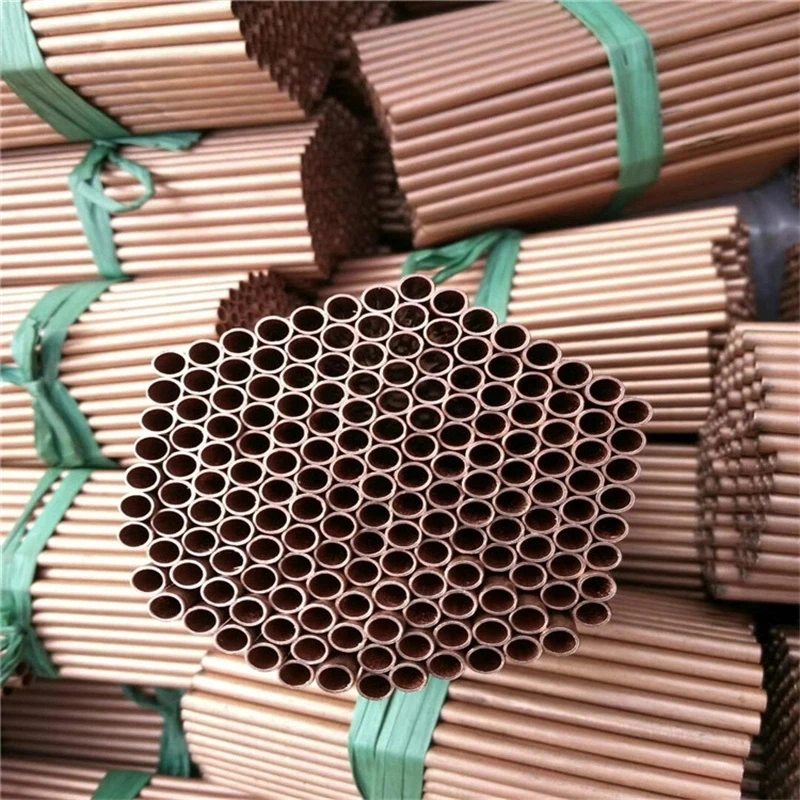

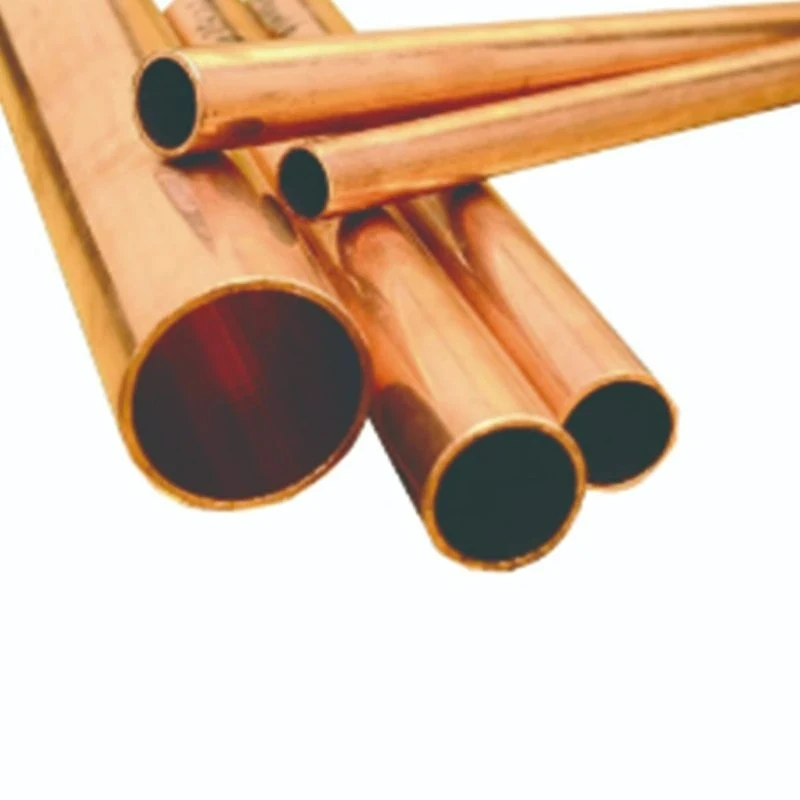

C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe
C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe
C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe
C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe
C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe
C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe
C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe

C10100 C11000 Bronze Amcaremed Air Conditioner 99.9% Pure Copper Tube Copper Pipe

Share on (1600929385167):


Price:$7,600.00 - $8,000.00

Quantity:


Product Overview

Description





Product Information


Type
straight copper tubing,pancake coil copper tubing,capillary copper tubing
Standard
GB/T17791-2007,GB/T1527-2006, GB/T18033-2007, YS/T450-2002
ASTM B280,ASTM B68,ASTM B75,ASTM B88
EN12735,AS1571,JIS H3300,etc.
Material
ASTM :
Copper (C10200,C11000,C10100,C10200,C12000,)C11600,
Brass(C21000,C22000,C23000,C24000,C26000,C27000,C27200,C27400,C2800,C31400,C33000,C35600,C37100,C36000,C35300,C37100,C37700,C37710,C37000,C68700,C41100,C44300,C46200.C46400,C26130,C65600,)
Pipe shape
Round, square, rectangular
Pipe specification
Round
Wall thickness:0.2mm-120mm
OD:2mm-910mm
Round
Wall thickness:0.2mm-120mm
OD:2mm-910mm
Pipe length
Single Random, Double Random & Required Length
Surface treatment
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.



copper Alloy
Chemical Composition
Temper
Mechanical Property
Copper
%
Phosphorus
%
Tensile Strength
MPa
Elongation
%
Hardness
HV
Cu-DHP
≥ 99.90
0.015-0.040
R220
≥ 220
≥ 40
40-70
Cu-DHP
≥ 99.90
0.015-0.040
R250
≥ 250
≥ 30
75-100
Cu-DHP
≥ 99.90
0.015-0.040
R290
≥ 290
≥ 3
≥ 100


Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube


Copper Alloy
Temper
Cleanness
Standard
Cu-DHP
R220
≤ 38mg/m²
EN 12735-1
Cu-DHP
R2250
≤ 38mg/m²
EN 12735-1
Cu-DHP
R290
≤ 38mg/m²
EN 12735-1






Copper pipe, a type of non-ferrous metal pipe, is a seamless pipe that is pressed and drawn. Copper pipe has the characteristics of good electrical conductivity and thermal conductivity. It is the main material for electrical and heat-dissipating accessories of electronic products. It has become the first choice for modern contractors to install water pipes, heating and cooling pipes in all residential commercial buildings. The copper pipe has strong corrosion resistance, is not easy to oxidize, and is not easy to chemically react with some liquid substances.




Packing and Shipping




Company Introduction




Shandong Chengjian Iron And Steel Co., Ltd. is located in Liaocheng City, Shandong Province, China. It has a domestic stock ofmore than 4,000 tons of wear-resistant steel plates throughout the year. Its business scope includes wear-resistant steel plates/weather-resistant steel plates/high-strength carbon steel plates, marine steel plates And coil,I carbon seamless steel pipe, stainless steel plate and coil, stainless steel seamless welded pipe, round bar, profile, etc. The contractor has established several joint-venture steel production lines with some well-known steel companies: 21 stainless steel production lines;20 carbon steel production lines; two copper and aluminum production lines. The total inventory of carbon steel and stainless steel is more than 5,000 tons. The company is based on honesty, adheres to the principle of serious, rigorous and steady development, and continues to grow stronger. The products are trusted by users.




FAQ


Q1:What are your company's main products ?
A1: Our main products are stainless steel/carbon/copper/galvanized plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies

Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?
A5: Small samples in store and can provide the samples for free.Customized samples will take about 5-7days.
