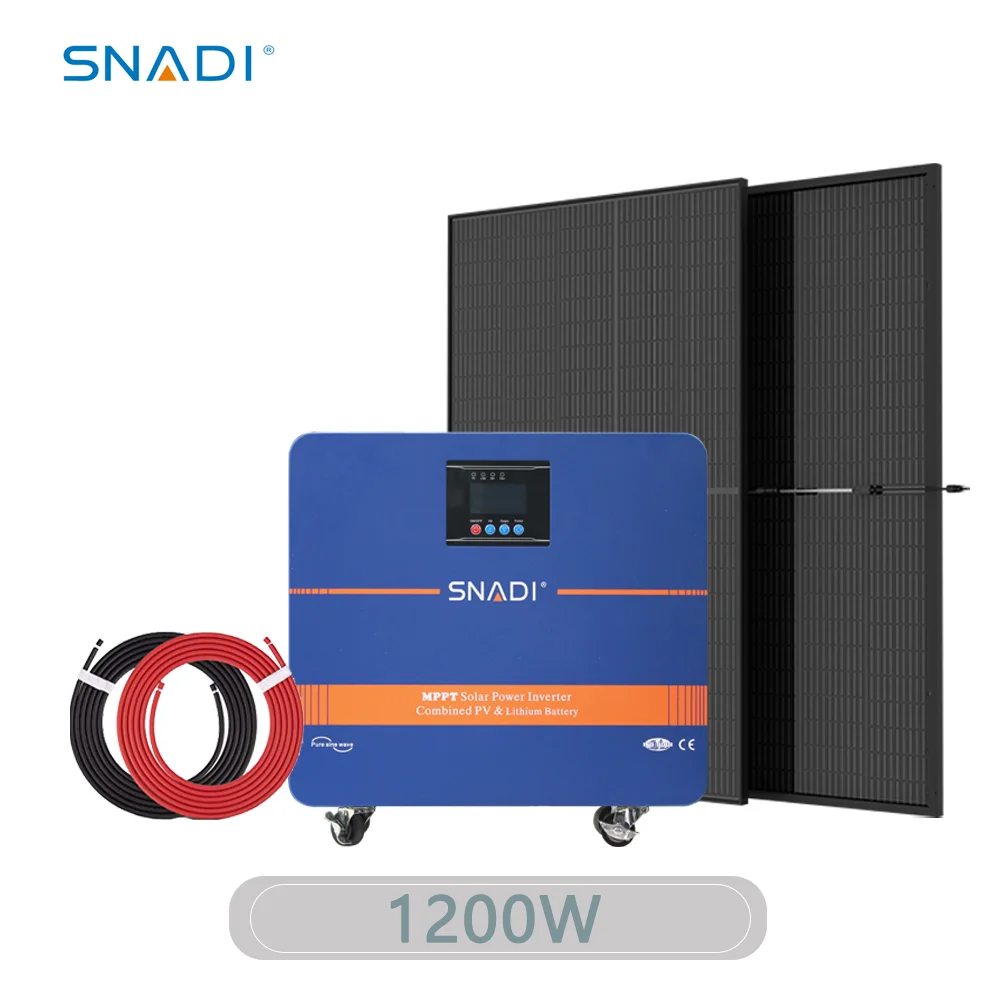

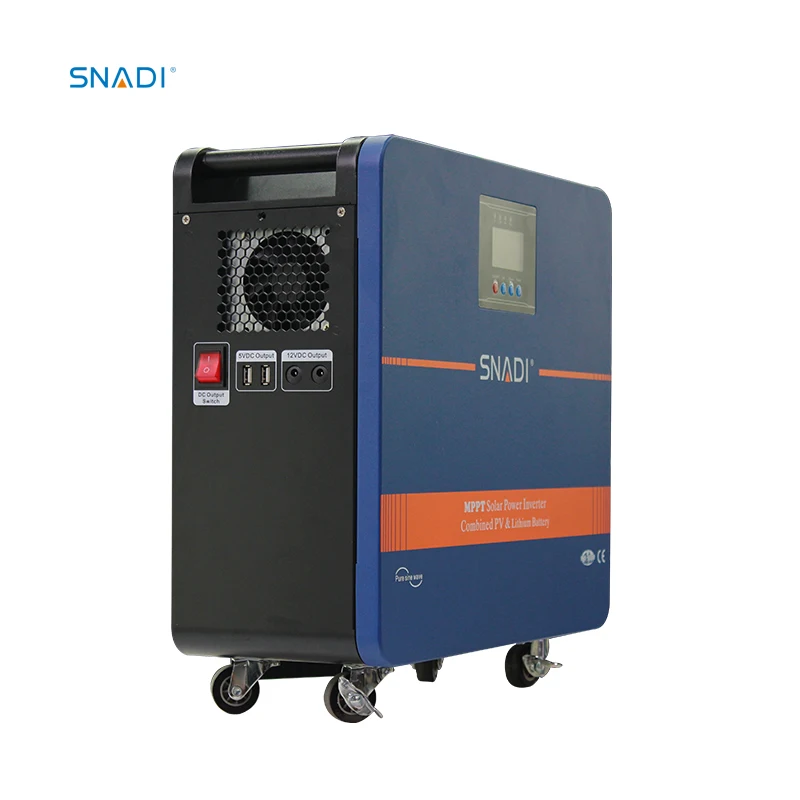

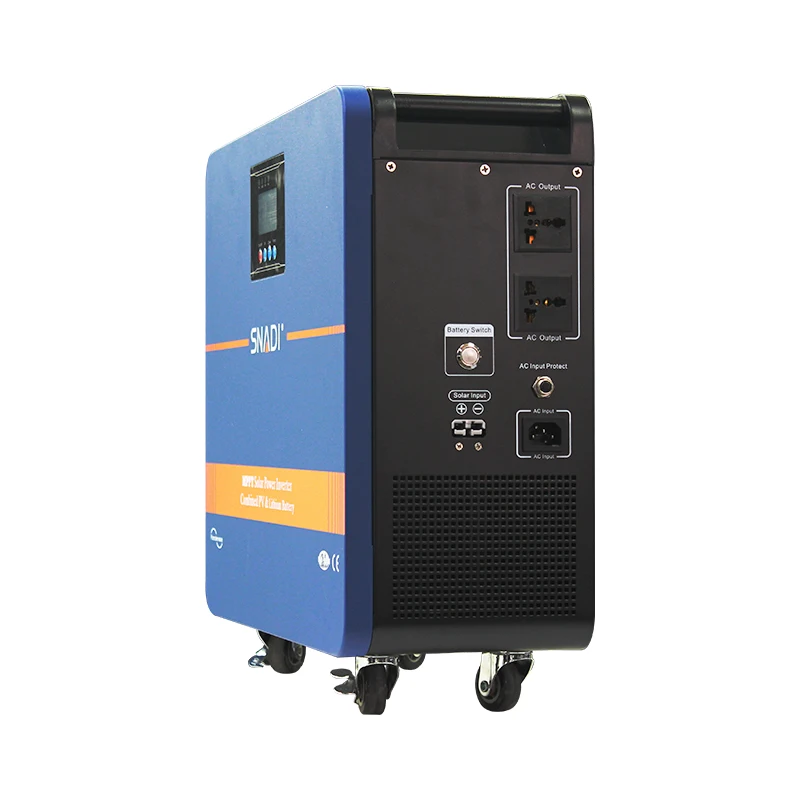

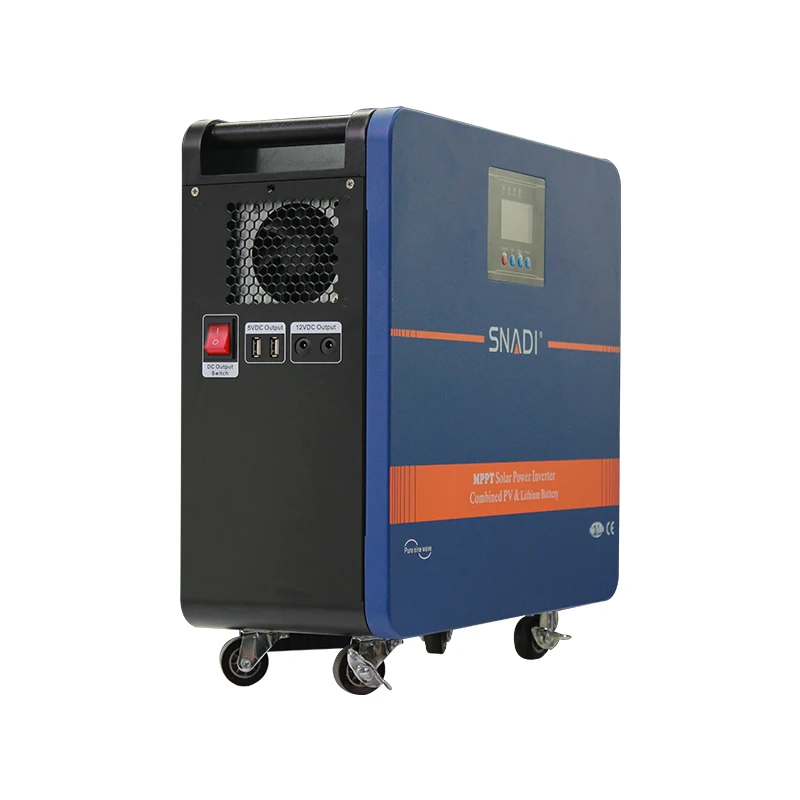

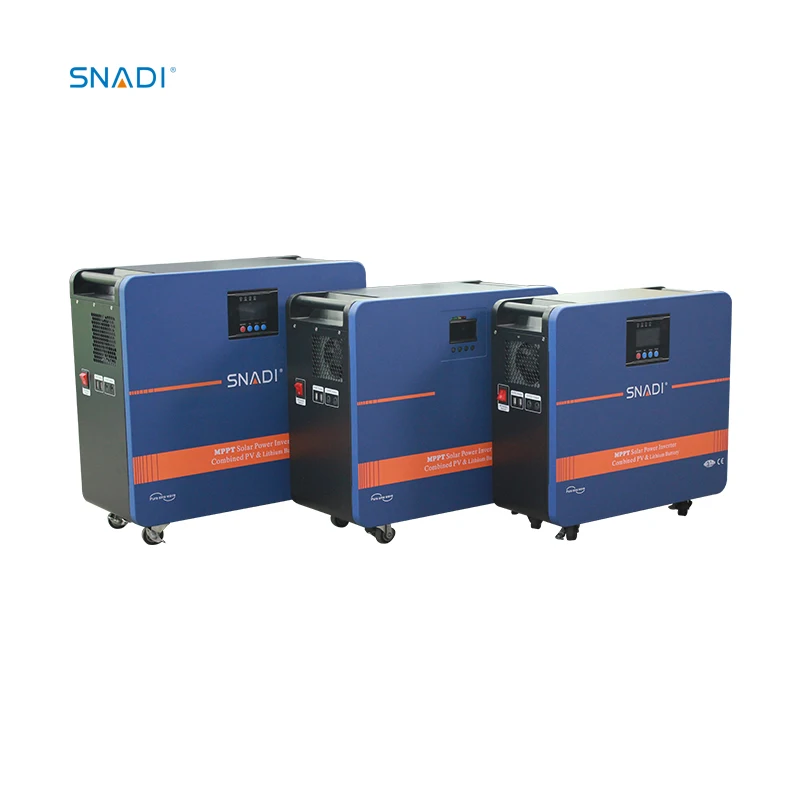

SNADI Off Grid 1200W All in One Solar Generator with Lithium Battery Solar Inverter Energy Storage System
- Category: >>>
- Supplier: Foshan SNAT Energy Electrical Technology Co. Ltd.
Share on (1600929397239):
Product Overview
Description
Model :AL- | AL-S600 | AL-S1200 | AL-S2200 | ||||
Inverter | Battery voltage | 12.8V | 25.6V | 25.6V | |||
In built battery specification | 50AH/12.8V | 50AH/25.6V | 100AH/25.6V | ||||
Rate power | 600W | 1200W | 2200W | ||||
Output voltage | 110/220VAC | ||||||
Output frequency | 50/60Hz | ||||||
Output waveform | Pure sine wave | ||||||
Input voltage range | 72-138/145-275VAC | 85-138/170-275VAC | |||||
Input frequency | 45-65Hz | ||||||
MPPT charge | Maximum photovoltaic voltage | ≤100V | ≤100V | ||||
PV input range current | 18-100V | 35-100V | |||||
Rated charge current | MPPT 30A | MPPT 30A | |||||
Maximum power | 420Wp | 840Wp | |||||
Voltage of floating charge | 14.2V | 28.4V | |||||
MPPT efficiency | ≥97% | ||||||
DC output | Voltage of high voltage protection | 16V | 32V | ||||
Voltage of high voltage recovery | 14.5V | 29V | |||||
Voltage of low voltage recovery | 13V | 26V | |||||
Voltage of low voltage protection | 11.2V | 22.4V | |||||
5VDC USB output port | 2 units/MAX 2A | ||||||
12VDC output port | 2DC ports/MAX 2A | ||||||
Heat dissipation/cooling | Temperature control by intelligent exhaust fan | ||||||
Ambient temperature for operation | -20 +-50°C | ||||||
Ambient temperature for storage | -25 +-55°C | ||||||
Operation/storage conditions | 0-90%( no condensation) | ||||||
External dimensions (mm) | 460*182*397 | 485*202*406 | 500*229*464 | ||||
Packing dimension(mm) | 527*267*470 | 552*277*477 | 570*310*535 | ||||
FAQ
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 15 days after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
