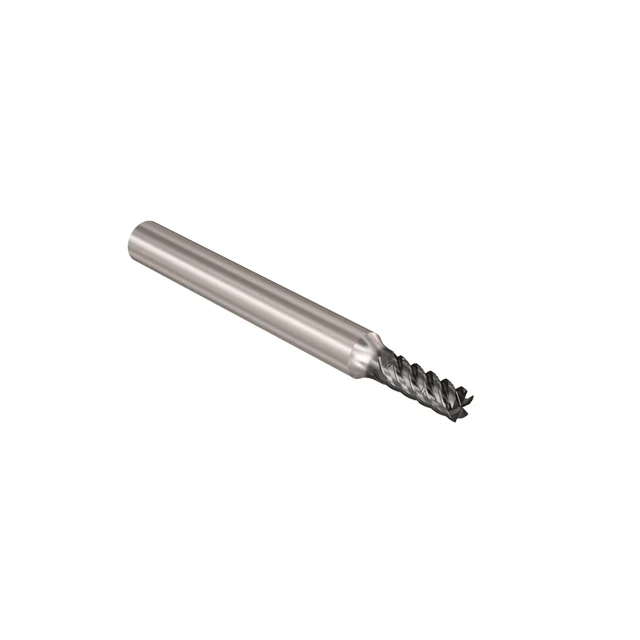

SECO JS565040F2C.0Z5C NXT milling cutters high performance solid carbide end mills hot seller milling cutters
- Category: >>>
- Supplier: Shanghai Thinkfon Trading Co. Ltd.
Share on (1600929417552):
Product Overview
Description
Seco is one of the world’s largest providers of comprehensive metal cutting solutions for milling, stationary tools, holemaking
and tooling systems. For over 80 years, we have been more than just a cutting tool provider. We develop and supply the
technologies, processes and supports that manufacturers depend on to maximize productivity and profitability.
and tooling systems. For over 80 years, we have been more than just a cutting tool provider. We develop and supply the
technologies, processes and supports that manufacturers depend on to maximize productivity and profitability.

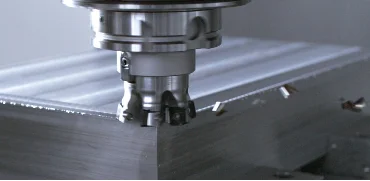

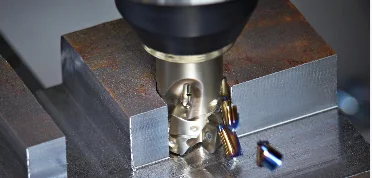

Seco’s broad variety of indexable milling cutters covers an enormous application area. Including copy mills, disc mills, face
mills, helical mills, square shoulder mills and more, this range of options allows manufacturers to achieve the balance of
productivity, performance and cost effectiveness required by their specific applications.
mills, helical mills, square shoulder mills and more, this range of options allows manufacturers to achieve the balance of
productivity, performance and cost effectiveness required by their specific applications.
Application area
Seco provides a range of dedicated solid carbide tools specifically engineered for advanced roughing strategies. Optimized cutting
lengths, multi flutes and chipsplitter geometries offer maximized performance with modern toolpath cycles where controlled arc of
contact is a key prerequisite.

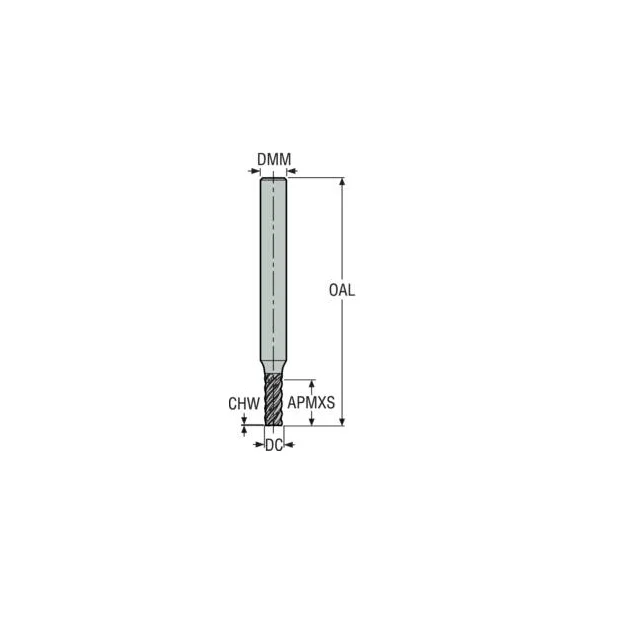

Name | Description | Value |
APMXS | Depth of cut maximum in feed direction side | 10.0 mm |
Barcode | Product barcode | 67378030000105 |
CCC | Center cutting capability | 0 |
CGT | Cutting geometry type | JS565 |
CHW | Corner chamfer width | 0.050 mm |
Cmax | Helical interpolation hole diameter maximum | 7.9 mm |
Cmin | Helical interpolation hole diameter minimum | 5.2 mm |
COATING | Cutting item coating | NXT |
DC | Cutting diameter | 4.000 mm |
DMM | Shank diameter | 6.00 mm |
DN | Neck diameter | 4.00 mm |
FCEDC | Face cutting edge count | 5 |
FHA | Flute Helix Angle | 48.0 deg |
ICC | Internal coolant channel | No |
ItemNumber | Item Number | 3067378 |
KCH | Corner chamfer angle | 45.0 deg |
LN | Neck length | 13.2 mm |
OAL | Overall length | 57.0 mm |
PCEDC | Pheripheral cutting edge count | 5 |
PSIR | Tool lead angle | 0.0 deg |
Shanktype | Shanktype | Cylindrical |
TCDMM | Shank diameter tolerance class | h5 |
Weight | Net weight | 0.019 kg |
R220.69-0032-06-8AN
R217.96-1820.0-04-3A
R217.69-0816.RE-06-4AN
R220.94-0032-08-5A
R217.94-1616.3-08-2A
R217.69-2020.3-06-4AN
QC12-SCLCL-06JET
JS754030F1C.0Z4-HXT
R220.96-0050-08-4A
Q1. What is your minimum order quantity?
One set
Q2. How long is your preparation time?
This product is in stock and will be shipped in one day
Q3. how can we proceed the order?
first of all, please let us know your request or application. In addition, we offer according to your
requirements or our suggestions.
Q2. How long is your preparation time?
This product is in stock and will be shipped in one day
Q3. how can we proceed the order?
first of all, please let us know your request or application. In addition, we offer according to your
requirements or our suggestions.
