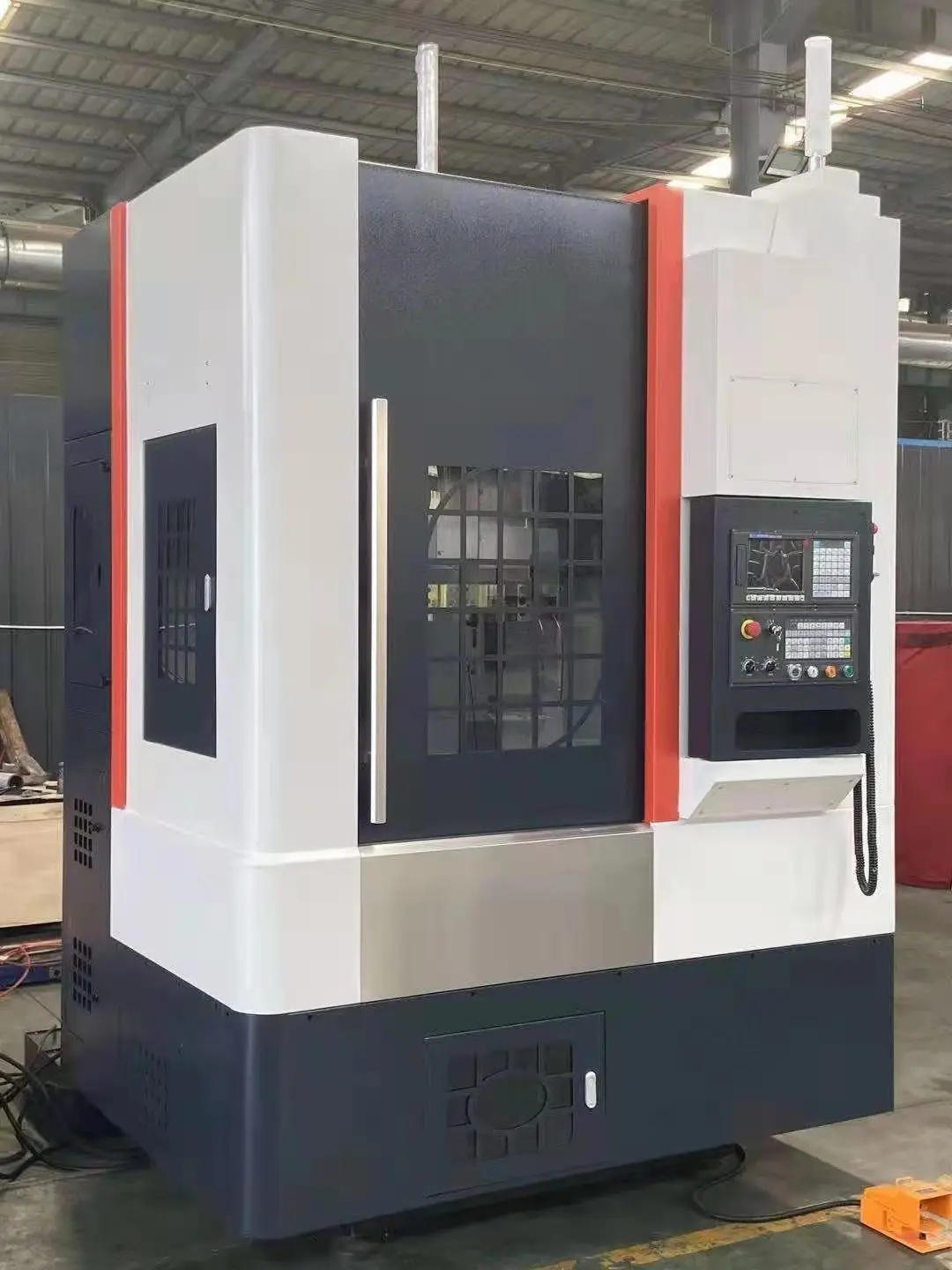

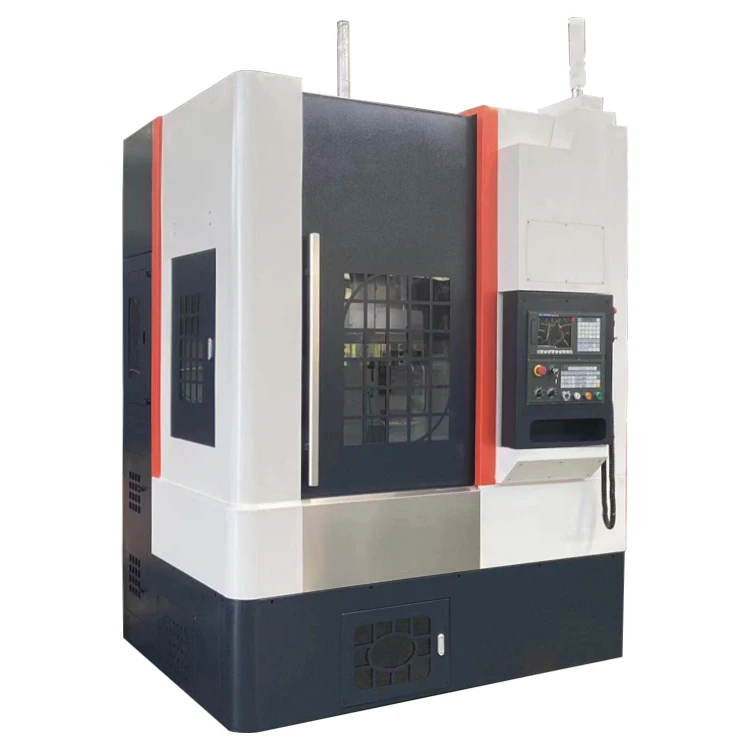

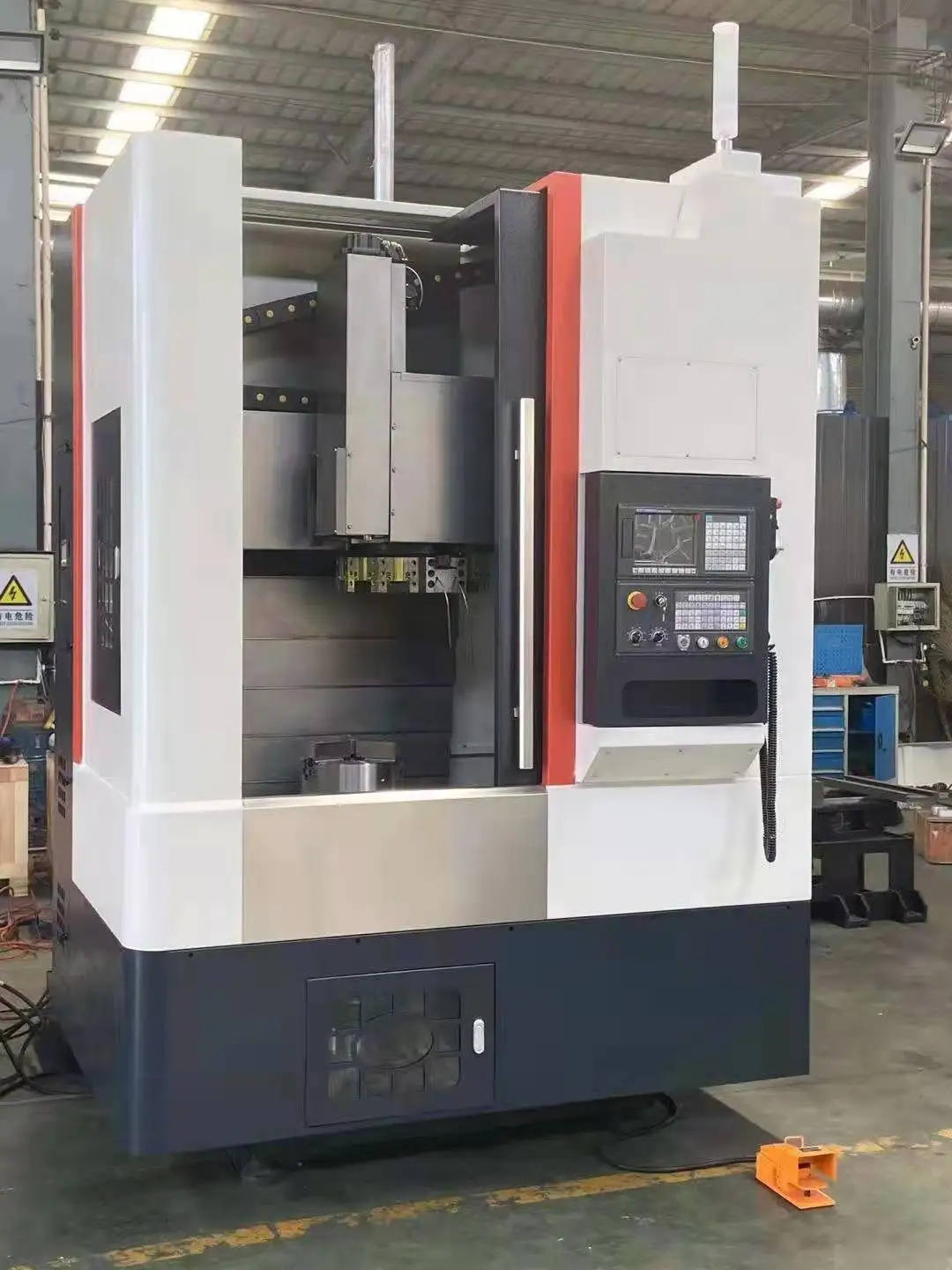

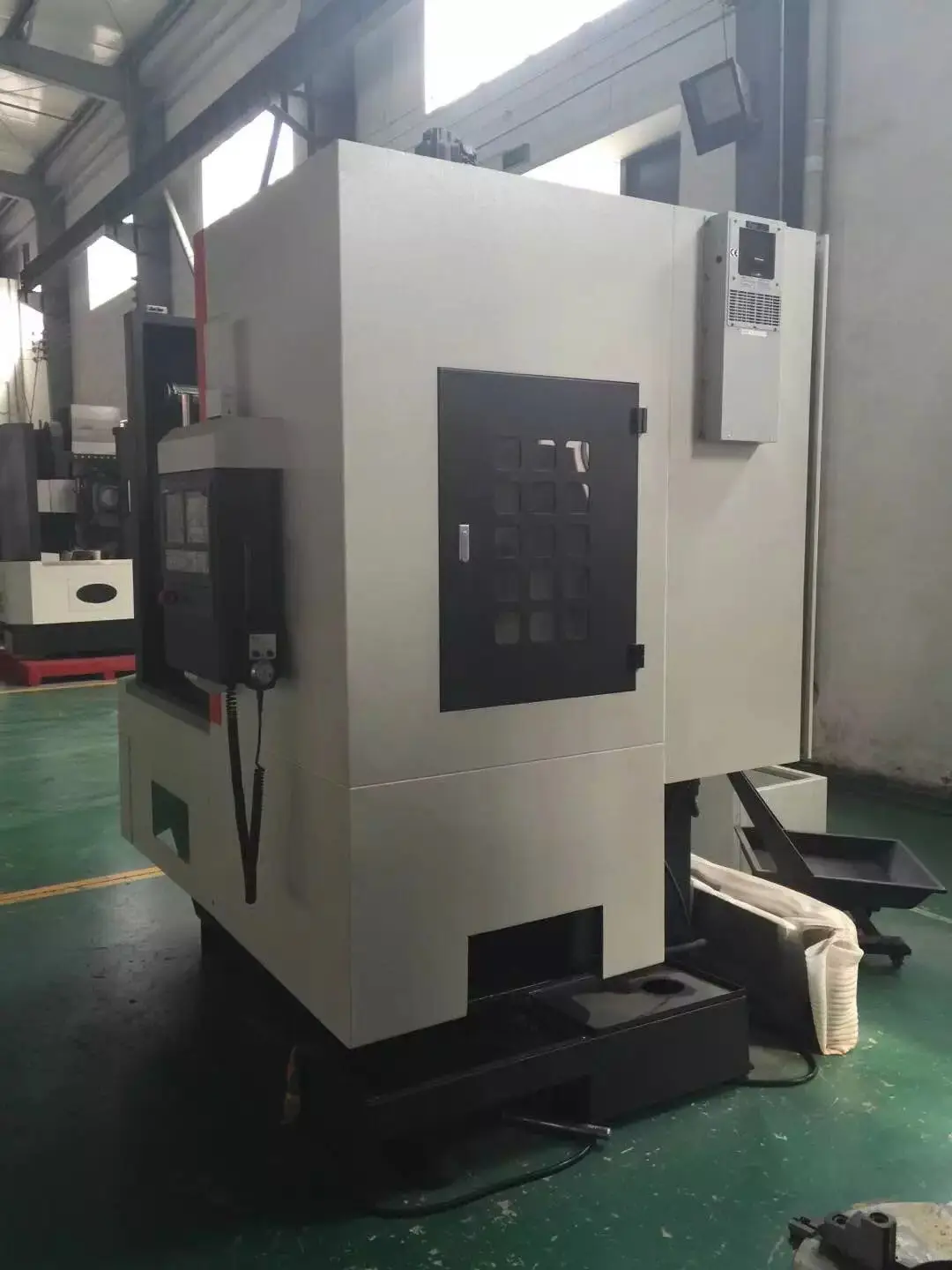

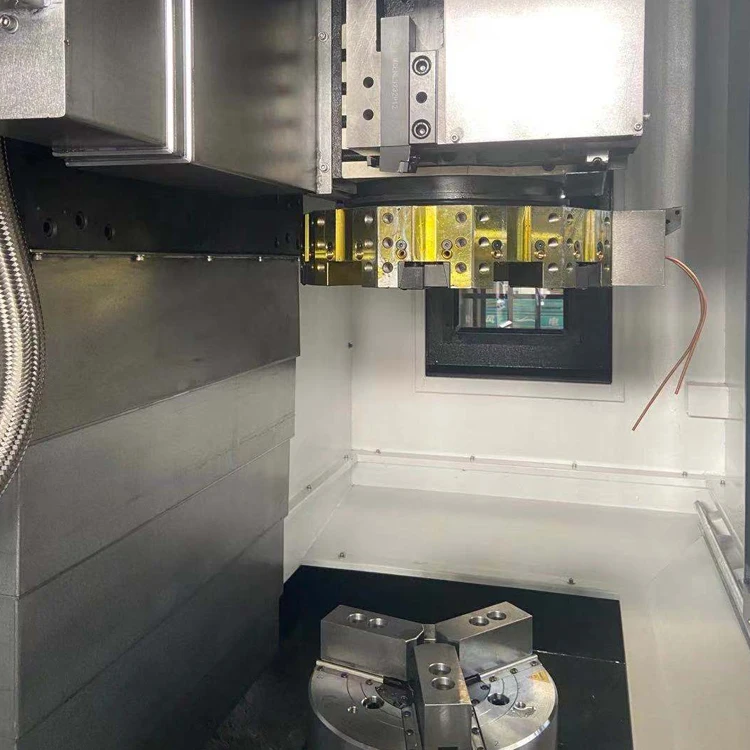

2023 Yancheng Heavy Duty CK5165 Spindle Speed 50 2000 Rpm ck6150 cnc lathe vertical lathe
- Category: >>>
- Supplier: Yancheng Dafeng Ruihua Machinery Manufacturing Co. Ltd.
Share on (1600929469887):
Product Overview
Description
Serial number | Item | Technical parameter | |||||||
1 | Maximum turning diameter of workpiece | 650mm | |||||||
2 | Turning diameter | 600 | |||||||
3 | Spindle unit | A2-6 | |||||||

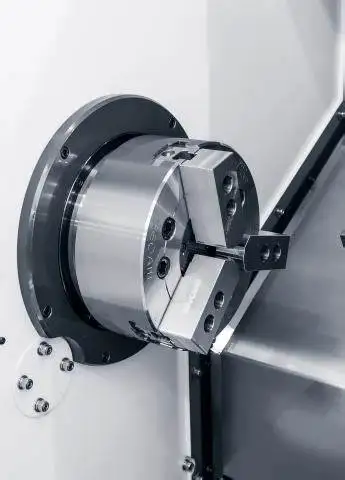

4 | Diameter of hydraulic chuck | 10吋 | |||||||
5 | Spindle speed | 50-2500rpm | |||||||
6 | Cutting feed rate | 0.1-2000mm/min | |||||||
7 | Vertical movement distance of tool post | 500mm | |||||||
8 | Horizontal movement distance of tool post | 450mm | |||||||
9 | CNC system | GSK980TC3 | |||||||
10 | X axis speed | 16000mm/min | |||||||
11 | Z axis speed | 16000mm/min | |||||||

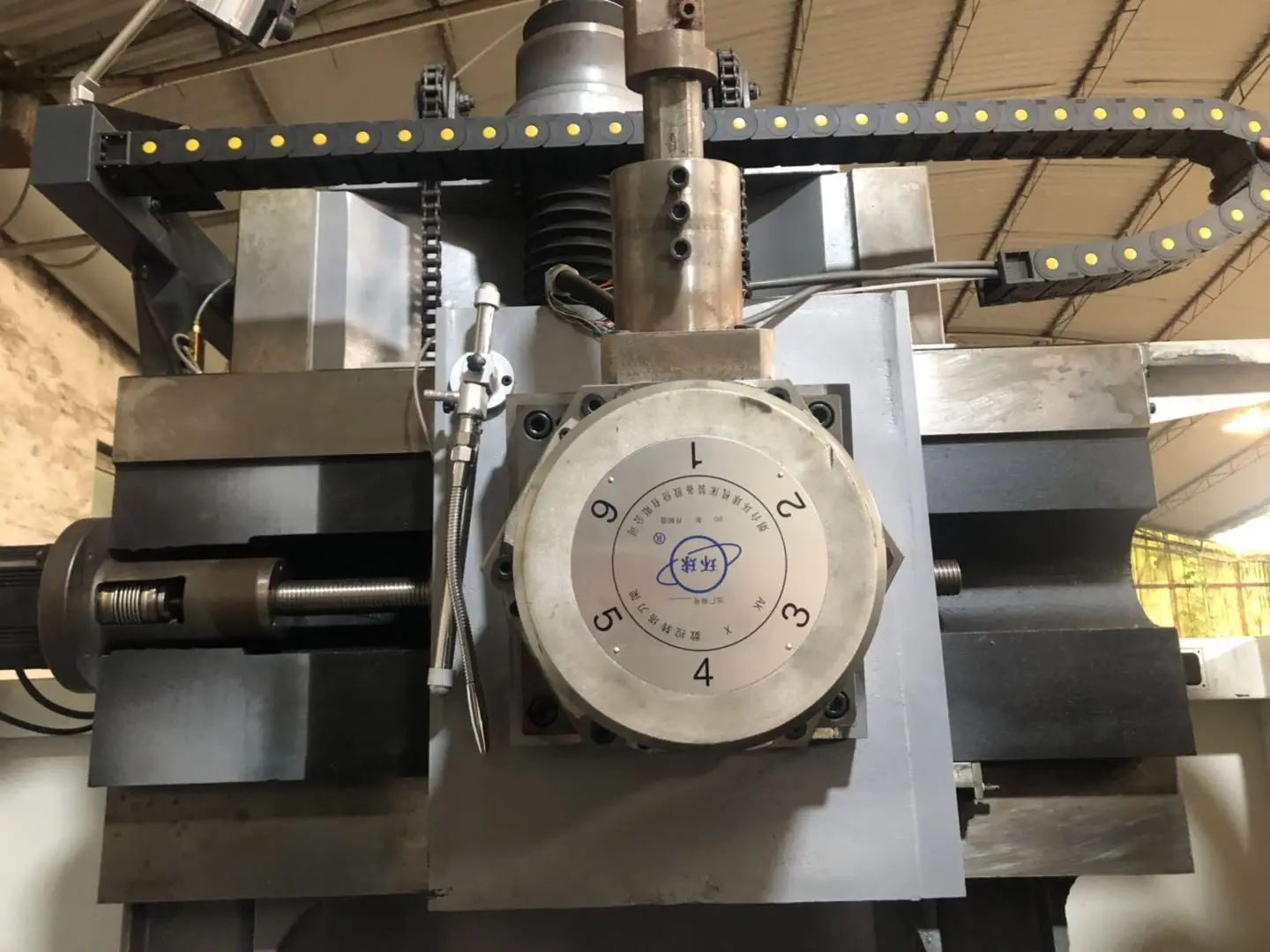

12 | Tool holder form | Servo/hydraulic turret 100-8T | |||||||
13 | Main motor power | 11Kw | |||||||
14 | Machine weight | ≈4000kg | |||||||
名称 | 产地 | 品牌 | 备注 | ||||||
数控系统及各轴驱动电机 | 广州 | 广州数控 | GSK980TC3 | ||||||
主轴 | 安阳 | 尚工 | A2-6-2500rpm | ||||||
直线导轨 | 台湾 | 上银／银泰 | 45mm（滚柱） | ||||||
伺服刀塔 | 台湾 | 丞鑫 | 100-8T | ||||||

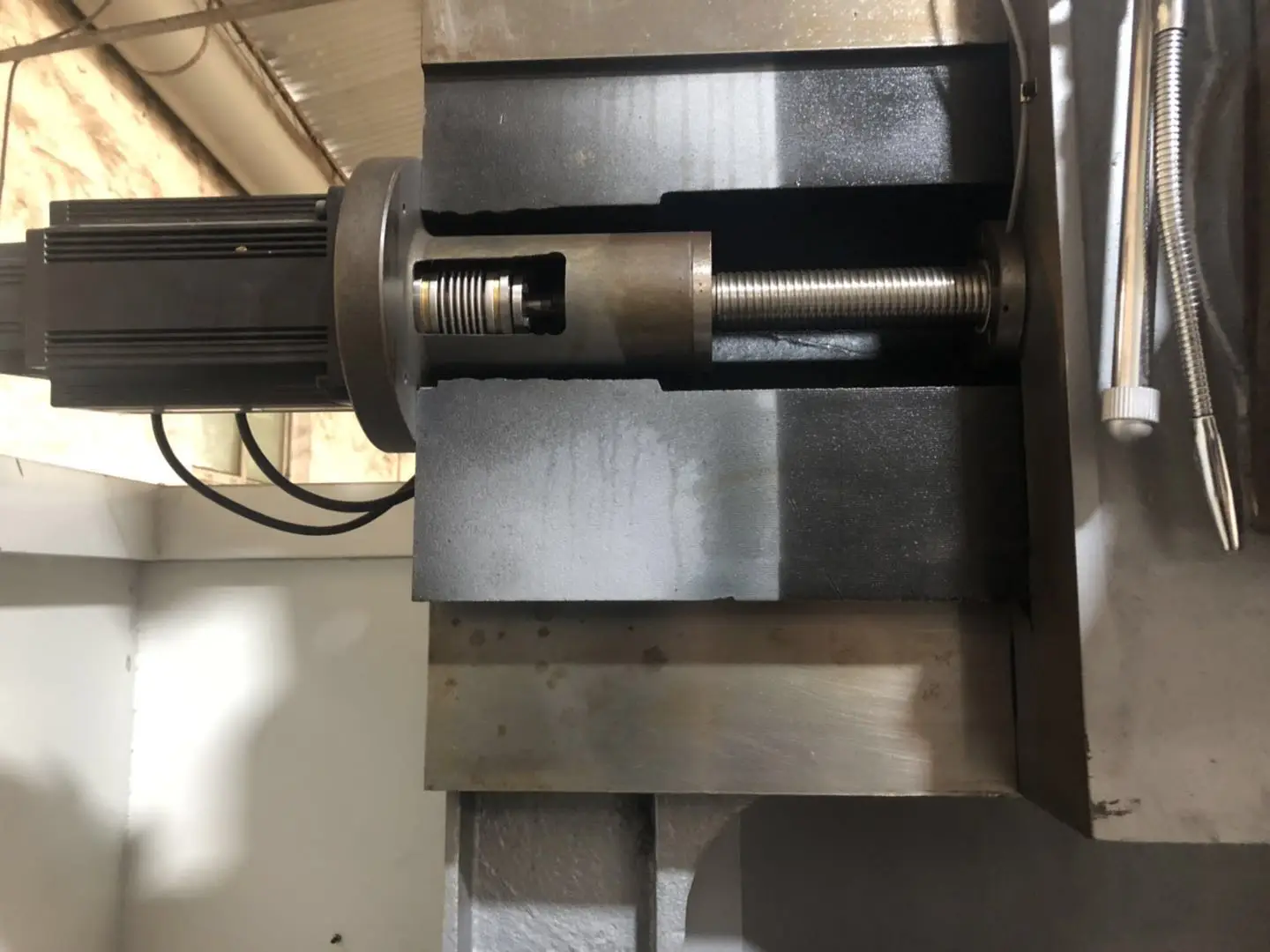

两轴滚珠螺杆 | 江苏 | 启尖 | 双螺母预压 | ||||||
两轴角接触球轴承 | 德国 | IBC | 2562 | ||||||
两轴联轴器 | 国产 | 无锡科瑞特 | 弹性联轴器 | ||||||
集中式自动润滑系统 | 国产 | 鼎燊 | 2232X | ||||||
液压卡盘/回转油缸 | 台湾 | 佳贺 | 10吋 | ||||||
冷却装置 | 常州 | 诺克 | 1HP | ||||||
照明系统 | 深圳 | 欧恩 | LED | ||||||
Z轴平衡系统 | 无锡 | 华金 | 7L-650 | ||||||
机床防护罩 | 国产 | 捷麦斯 | 全防护 | ||||||
各轴伸缩护罩 | 国产 | 常顺 | 不锈钢防护罩 | ||||||
vertical lathe
Main Products
Ruihua provide several kinds of grinding manchine.We have Surface grinder accessories,CNC vertical lathe,Automatic surface grinding machine,Turret milling machine,Precision surface grinding machine,Hydraulic surface grinding machine,Manual surface grinder, Digital display surface grinding machine and so on.
Why Choose Us

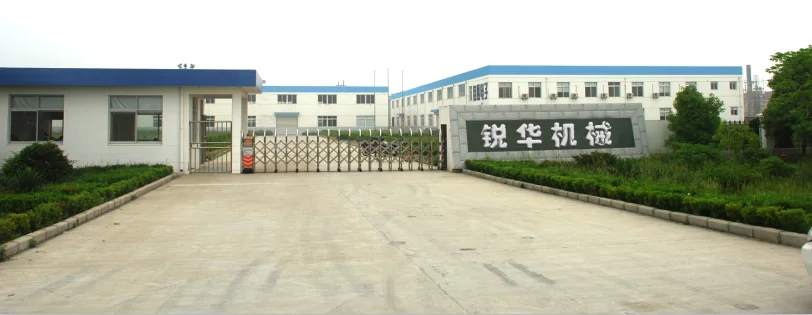

ABOUT US
Sharing the concept of "the creation, the innovation, and sharing co-prosperity", RuiHua pursuits the target of
"first- class enterprise, first-class products, first-class service, first- class efficiency" , making efforts to create greater
value for the customers. Yancheng Dafeng RuiHua Machinery Manufacturing Co.,ltd is a high-tech enterprises, engaged in surface grinding manchine
researching and development, production, sales and service. Covering an area of 10000 square meters.RuiHua has been focused on surface grinding manchine for 17 years. Our customers are very satisfied with the products.Most of the products are exported to Middle East,Middle Asia,and the European.We are one of the best suppliers on ALIBABA.COM.We have the bestproducts,and we take custom orders.
"first- class enterprise, first-class products, first-class service, first- class efficiency" , making efforts to create greater
value for the customers. Yancheng Dafeng RuiHua Machinery Manufacturing Co.,ltd is a high-tech enterprises, engaged in surface grinding manchine
researching and development, production, sales and service. Covering an area of 10000 square meters.RuiHua has been focused on surface grinding manchine for 17 years. Our customers are very satisfied with the products.Most of the products are exported to Middle East,Middle Asia,and the European.We are one of the best suppliers on ALIBABA.COM.We have the bestproducts,and we take custom orders.
Q: Are you trading company or manufacturer ?
A: We are factory.
A: We are factory.
Q: This is the first time I use this kind of machine, is it easyto operate?
A: There is English manual that show you how to use machine. If you still have any question,please contact us by
e-mail/trademanager online service.
A: There is English manual that show you how to use machine. If you still have any question,please contact us by
e-mail/trademanager online service.
Q: How to install?
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
Q: How to ensure the safety?
A:Here have the overload and over heat protection, it ensure working people safety.
A:Here have the overload and over heat protection, it ensure working people safety.
Q:How to contact your company?
A:If you have any other questions,please feel free to contact me.
