Product Overview
Description
Product Description

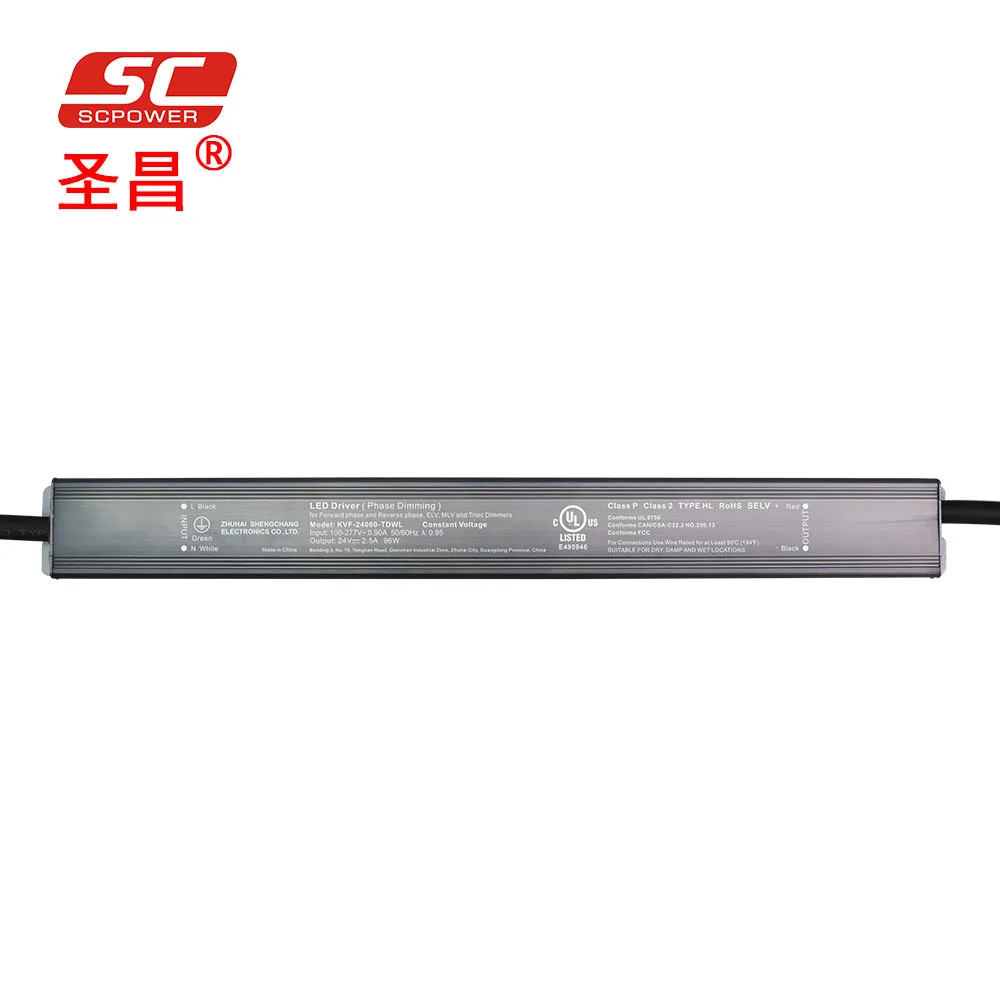

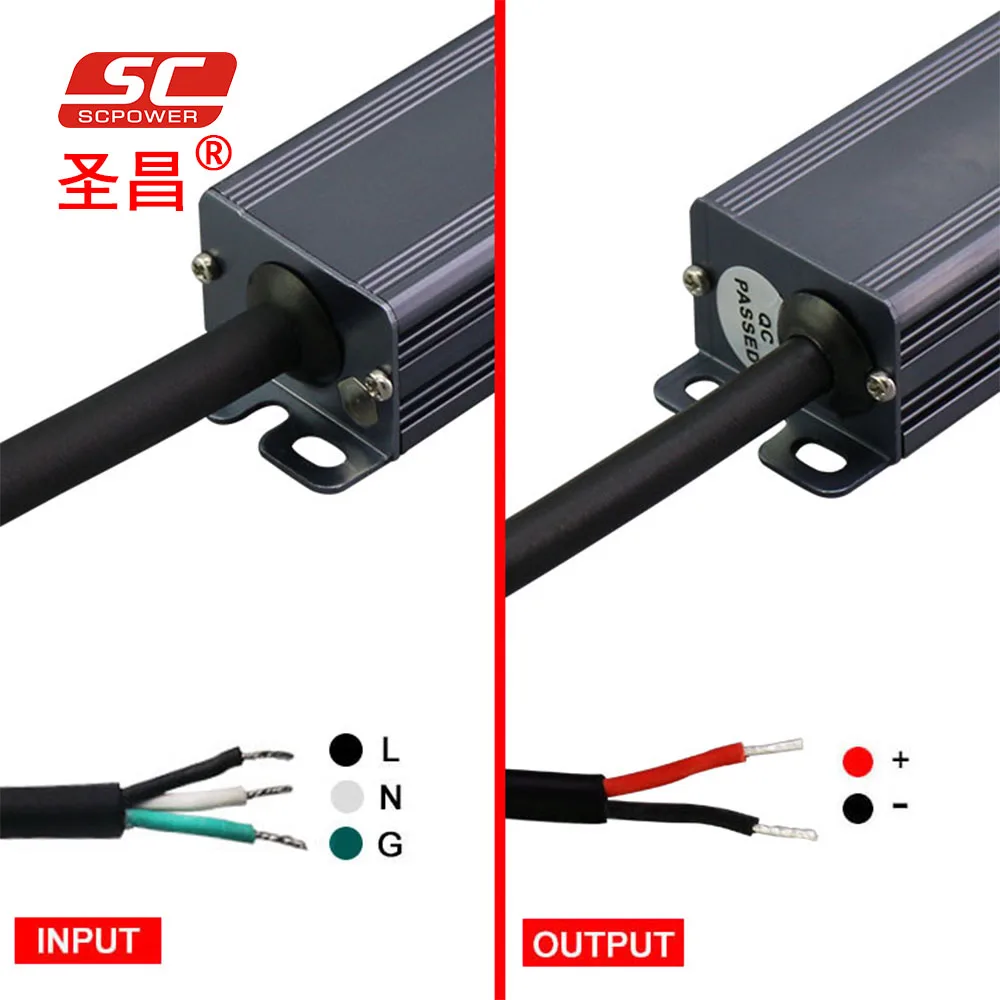

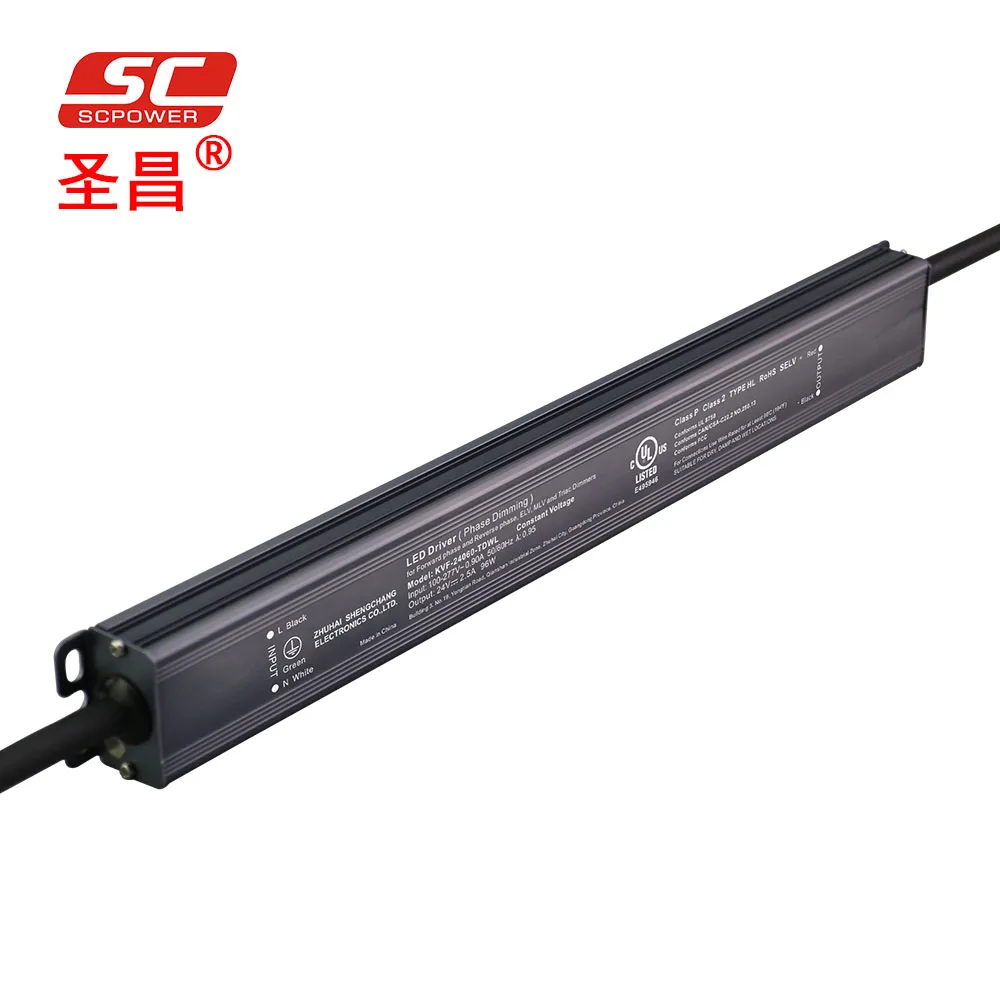

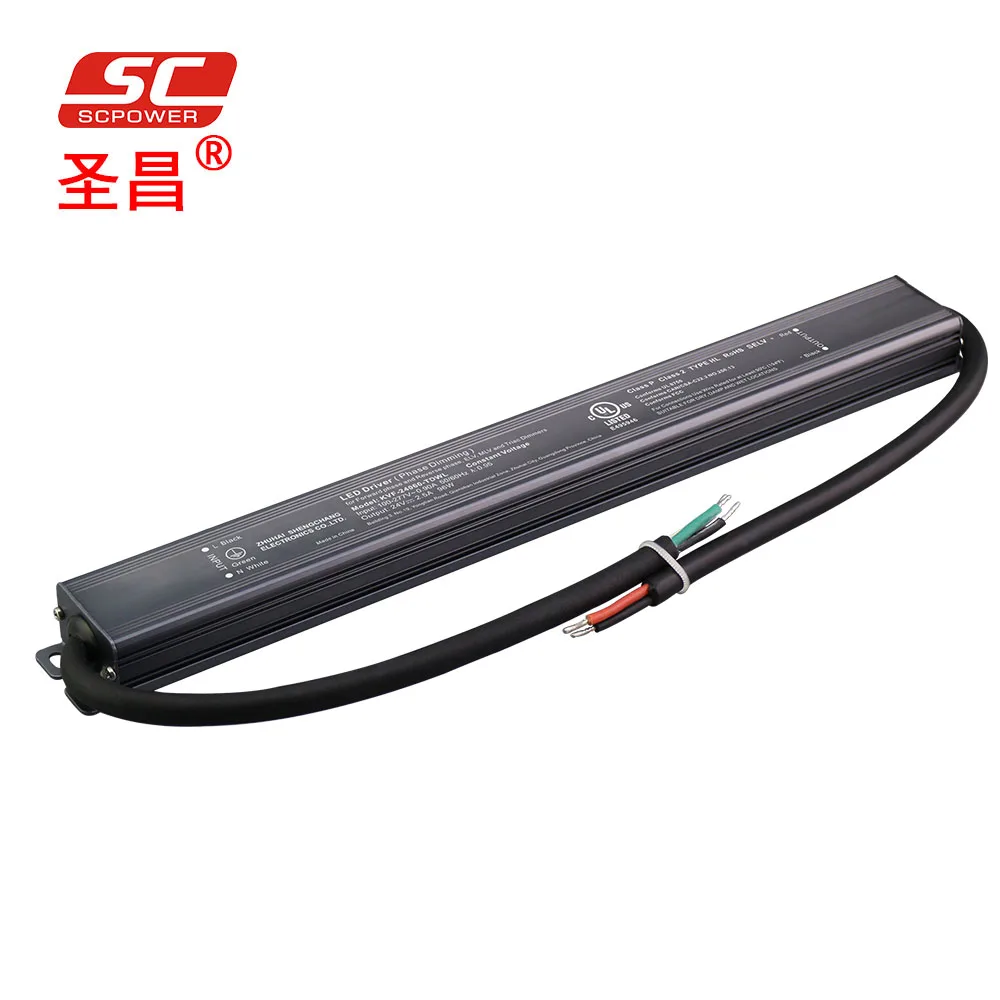

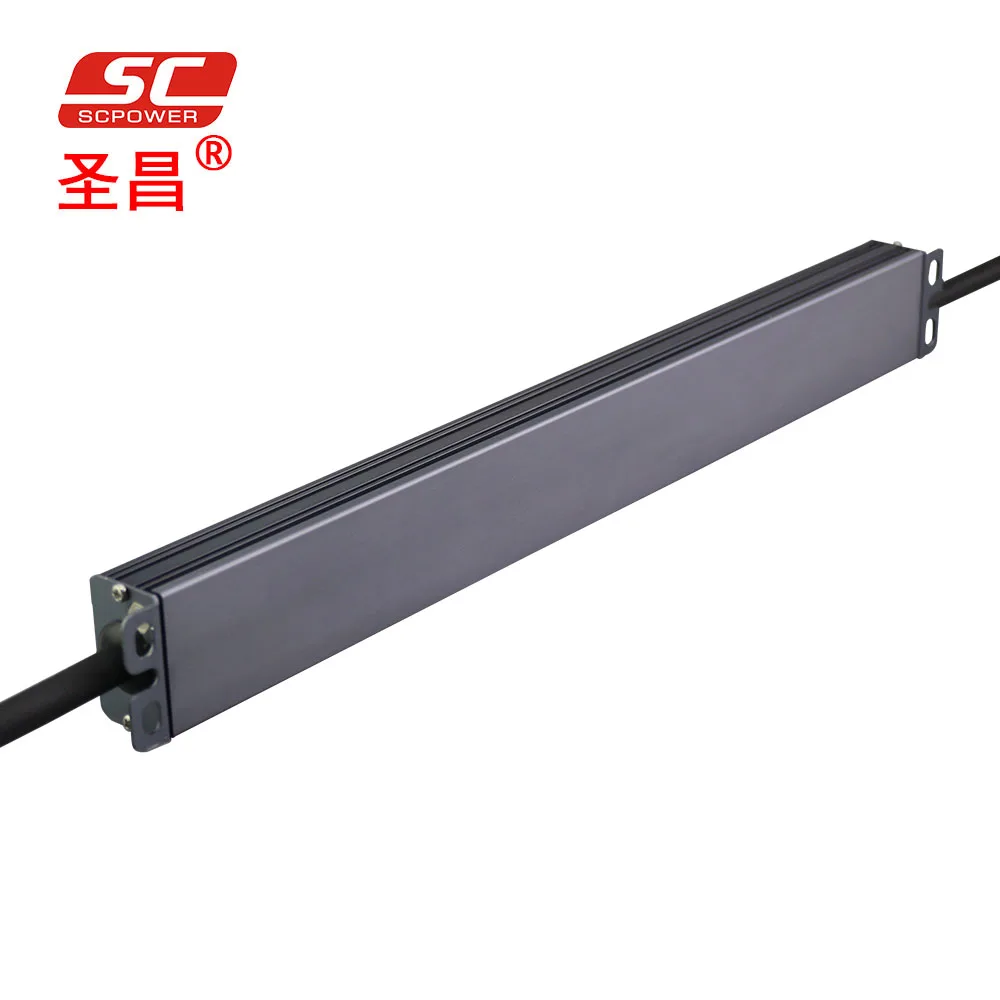

ultra slim power supply triac led driver outdoor ip66 led driver 12v 60w cabinet slim
Feature
·Output constant voltage
·UL, cUL listed, Class P, Type HL
·Universal AC input: 110-277VAC
.Power Factor: up to 0.99
·High efficiency : up to 86%
·Dimming range: 0-100%
·Load: 10-100%
·Protection:short circuit/over loading/ Over temperature
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Flicker-free
·Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
Specification
Model | KVF-12060-TDWL | KVF-24060-TDWL | |
Certificates | FCC UL cUL | FCC UL cUL | |
Output | DC Voltage | 12V | 24V |
Rated Current | 5A | 2.5A | |
Rated Power | 60W | ||
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input | Voltage Range | 100-277VAC | |
Frequency Range | 47-63Hz | ||
LED Drivers
Constant Voltage | Constant Current | Certification |
Triac / Phase-cut ELV MLV Dimmable | Triac / Phase-cut Dimming | ISO9001:2015 UL,cUL,ETL,cETL,FCC, ENEC,TUV,CB,CE, SAA,RoSH,CCC, DALI-1,DALI-2 certificated |
Triac & 0-10V 1-10V Dimmable | Triac & 0-10V 1-10V Dimming | |
0-10V 1-10V Dimmable | 0-10V 1-10V Dimming | |
DALI 1 Push Dimmable | DALI 1 Push Dimming | |
DALI 2 Push Dimmable | DALI 2 Push Dimming | |
DMX512 Dimmable | DMX512 Dimming | |
BLE Wireless Dimmable | BLE WirelessDimming | |
ZigBee Wireless Dimmable | ZigBee Wireless Dimming | |
WiFi Wireless Dimmable | WiFi Wireless Dimming | |
Non Dimmable | Non Dimming |
Single Output Led Driver,Waterproof Led Driver,Constant Current Led Driver,Multiple Output Led Driver,Aluminum Led Driver,Dimmable Led Driver,Dc Output Led Driver, Constant Voltage Led Driver,Ip20 Led Driver,Dual Output Led Driver,Dali Led Driver,Non-isolated Led Driver,Switching Power Supply Led Driver,housing,junction box,linear,AC to DC,Multi current output,5 years warranty,High power factor,PWM output,Flicker-free
We are 13 years experience manufacturer in dimmable LED Power Supply since 2009!
Our main products including with Triac phase ELV MLV dimmable ,0/1-10V dimmable ,DALI&PUSH-DIM 2 in 1 dimmable ,DMX dimmable ,and wireless BLE ,zigbee wifi dimmable driver
Dimming ,CCT (TW) ,RGB ,RGBW ,RGBCW
from 5W to 600W C.V. 12VDC 24VDC 36VDC 48VDC ;3W to 200W C.C.
5 years warranty
Dimming range 0-100%
No noise , Flicker free
High frequency exemption level, High PF (PF>0.95)
Aluminum shell & plastic shell for output and indoor use (IP66 Waterproof ,IP20)
Slim ,linear led driver
All-round protection-Short circuit,over load, over-temperature
Sample Available,
Spot goods (warehouse area of 2,800 square meters total)
Click on Contact Us or write to.
top 1 Constant Voltage Aluminum IP20 IP66 Dali Switching Power Supply Dc Output Single Output Multiple Output Waterproof Constant Current dimmable led driver
Company Information
Certifications
Trade Shows
Buyer Feedback
Related Products
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
