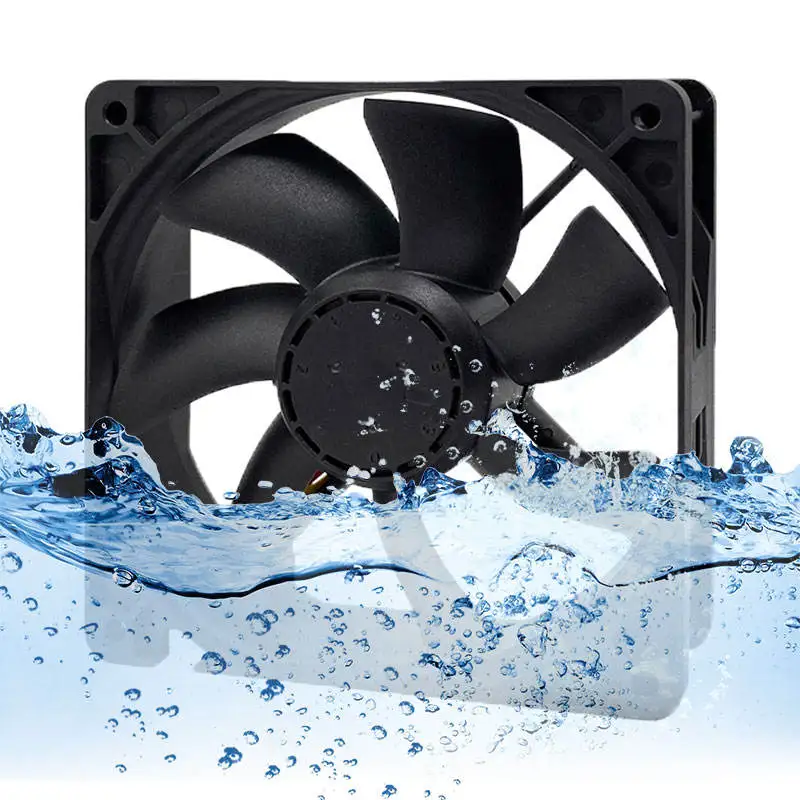

12V DC Brushless Foxconn fans Customized PWM Control Fan 80x80x25mm cooling fans
- Category: >>>
- Supplier: Dongguan Gelize Electronics Co. Ltd.
Share on (1600929539826):
Product Overview
Description
Specification
Product name | 12V DC Brushless Foxconn fans Customized PWM Control Fan 80x80x25mm cooling fans |
We are a manufacturer of Foxconn industrial fans， also one of their main suppliers with guaranteed quality. If you have any needs, you can inquire about cooperation. Any fan size and speed can be customized. Certificate:Enterprise certificate: ISO9001:2008, ISO14001:2004, IATF16949:2016 Product certification: UL/CUL, CE, RoHS, SGS Customer identification: Panasonic, Mitsubishi, SONY GP，circular seal bearing system | |
Rated Voltage | 12.0 VDC |
Operation Voltage | 10.8~13.2 VDC |
Start Vol tage | 7.0 VDC |
Consuming Current | 0.33A (0.49 Max.) |
Consuming Power | 3.96 W (5.88 Max.) |
Rated Speed | 15500 RPM (Ref. ) |

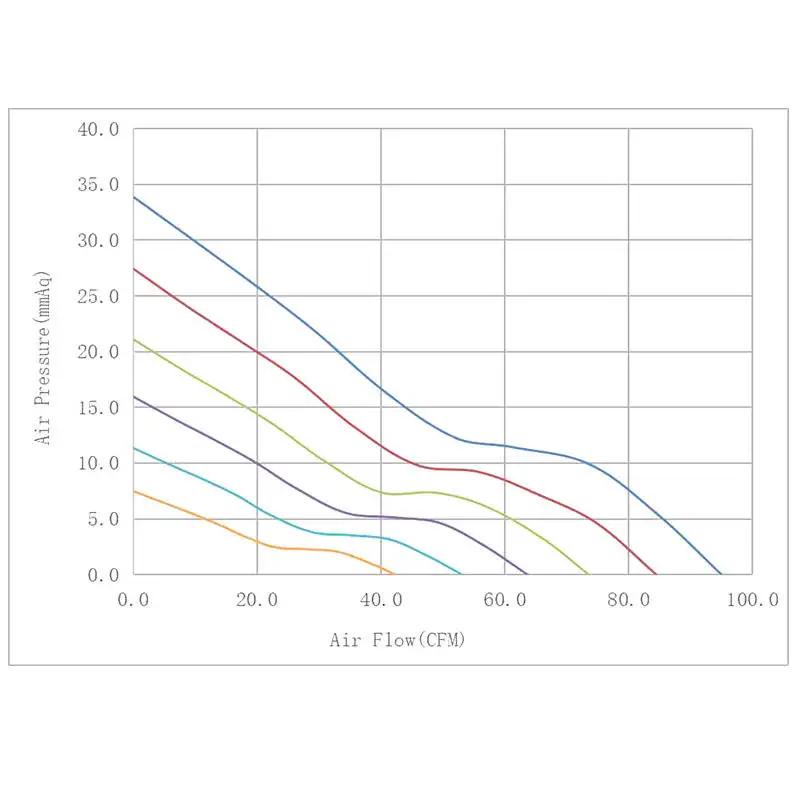

Maximum Air Flow | 0.62 M3/min (0.56min) 22.00 CFM (19.80min. ) |
Maximum Static Pressure . | 39.37 mmH20 (31 .89min.) 1.55 inH20 (1.25min. ) |
Acoustic Noise | 50.1 dB(A) (54.1max. ) |
Life Expec tance . | 70000 hours at 40°C |
Insulation Strength | 10 M min. at 500 VDC |
Dielectric Strength | 5 mA max. at 500 VAC 60 Hz and 1 minute |
Insulation Level | UL Class A |
Product Description
Company Profile
FAQ
Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Alice Lian to get more information.
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Alice Lian to get more information.
