ANT smart BMS board 3 4S 120A peak 300A Lithium battery PCB protection lifepo4 li ion batteries software protection board
- Category: >>>
- Supplier: Shenzhen Passional Import And Export Co. Ltd.
Share on (1600929547668):
Product Overview
Description
Product Description
ANT smart BMS board 3-4S 120A peak 300A Lithium battery PCB protection lifepo4 li-ion batteries software protection board
This is a all-in-one BMS ,it's major function are as follow: Unit Voltage Detection, Temperature Detection, High Voltage Detection, Battery Balance, CAN/TTL/485 Communication, Bluetooth(Mobile APP), Sleep and wake-up, Off-Delay, Residual power assessment,MOS control etc.
Why we need the BMS board for the battery ????
Battery protection board, as the name implies, lithium battery protection board is mainly an integrated circuit board that protects rechargeable (usually lithium batteries).
determined by its own characteristics. Because the material of the lithium battery itself determines that it cannot be
overcharged, over-discharged, over-current, short-circuited, and ultra-high temperature charging and discharging,
The three basic functions of the lithium battery protection board are
short-circuit protection, Overcharge protection and over-discharge protection.
short-circuit protection, Overcharge protection and over-discharge protection.
Everyone can understand the significance of the BMS board to the lithium battery..
Product Paramenters
Function | Details | Remark |
Built-in blue tooth | Support Android and iPhone | Check parameters and set BMS parameters via connecting blue tooth |
Series can be detected | 3-4series lithium battery | Connect to Bluetooth to set parameter. |
support cell | Li-ion (NCM), lithium iron phosphate | Connect Bluetooth to set the cell type with one key (the protection voltage of the Unit will be changed adaptively) |
power supply mode | Battery pack self-powered, 20-80V DC input | Automatically enter the low power mode |
unit voltage detection | The error in the whole working range is less than 10mV Typical error is less than 5mV | distinguishability 1mV |
UNIT voltage offline detection | Support | |
balance | Maximum of 100mA passive balance | You can set parameters to meet the conditions and then manual balance |
temperature detection | -40 ~ 125 ℃ | BMS has built-in balance /MOS/2 channels and can be connected to 2 external channels |
pack voltage detection | Detection range 0-100V <0.5% FSR (full scale range) | |
current detection | shunt -150~300A，error<0.5%FSR | |
SOC estimation accuracy | error< 8% | |
AH total capacity | The cumulative value is half of the charging and discharging value | |
short circuit protection | default off | can be set |
error recording | upport | Connect to Bluetooth to view system logs and upload to the platform |
working power consumption | < 10mA | |
standby power consumption | < 5mA | Automatically wake up when the charge and discharge are detected |
working temperature | -40 ~ 85 ℃ | |
-40 ~ 85 ℃ | -40 ~ 95 ℃ | |
working humidity | 5% ~ 95% | |
level of protection | P30 | |
weight | < 400g | |
CAN/RS485/TTL/GPS | one port support bootloader （ need customize） | CAN/485/TTL are incompatible |
System Topology
Function
Basic Function
1. Blue tooth function
Check parameters such as setting various cell types, battery series connection number , battery capacity, displaying protection information and error recording via Application.
2. Unit voltage acquisition
A maximum of 4 battery strings can be used for real-time voltage sampling. The total voltage is greater than 8V (Support ternary lithium 3-4 series, support lithium iron phosphate 3-4 series,)
3. Temperature acquisition
Sampling the surface temperature of cell, ambient temperature, MOS tube temperature and equalization circuit temperature .
4. The SOC calculating
Calculate the remaining battery capacity and check the health status information to get the working status of the battery pack more intuitively.
5. MOS Actuate
Actuate through MOS tube, turn on/off power circuit.
6. Total voltage detection
You can check whether the precharge is completed and check the total battery voltage.
7. Current detection
Real-time current detection, short circuit protection, sleep wake up and other functions.
8. Battery balance
Effective battery maintenance through Passive resistors consume balanced energy，Improve consistency，The parameters can be set to achieve active equilibrium after meeting the conditions。The equalization current can be set a maximum with 100mA
Check parameters such as setting various cell types, battery series connection number , battery capacity, displaying protection information and error recording via Application.
2. Unit voltage acquisition
A maximum of 4 battery strings can be used for real-time voltage sampling. The total voltage is greater than 8V (Support ternary lithium 3-4 series, support lithium iron phosphate 3-4 series,)
3. Temperature acquisition
Sampling the surface temperature of cell, ambient temperature, MOS tube temperature and equalization circuit temperature .
4. The SOC calculating
Calculate the remaining battery capacity and check the health status information to get the working status of the battery pack more intuitively.
5. MOS Actuate
Actuate through MOS tube, turn on/off power circuit.
6. Total voltage detection
You can check whether the precharge is completed and check the total battery voltage.
7. Current detection
Real-time current detection, short circuit protection, sleep wake up and other functions.
8. Battery balance
Effective battery maintenance through Passive resistors consume balanced energy，Improve consistency，The parameters can be set to achieve active equilibrium after meeting the conditions。The equalization current can be set a maximum with 100mA
Customization Function
1. CAN Communication
JN1939 protocol, CAN2.0A/B communication,Used to communicate with vehicle controller/motor controller/ instrument/ charger and other external devices
2. RS485 communication
Supports RS485 communication,2500v isolation,The baud rate standard is 19200, protocol can be customized. 485 or TTL Only one option can be selected.
3. TTL communication
Supports TTL communication,2500v isolation,The baud rate standard is 19200, protocol can be customized. External power supply is required to provide isolated power supply . 485 or TTL Only one option can be selected.
4. GPRS port
GPS and Bluetooth are compatible.
JN1939 protocol, CAN2.0A/B communication,Used to communicate with vehicle controller/motor controller/ instrument/ charger and other external devices
2. RS485 communication
Supports RS485 communication,2500v isolation,The baud rate standard is 19200, protocol can be customized. 485 or TTL Only one option can be selected.
3. TTL communication
Supports TTL communication,2500v isolation,The baud rate standard is 19200, protocol can be customized. External power supply is required to provide isolated power supply . 485 or TTL Only one option can be selected.
4. GPRS port
GPS and Bluetooth are compatible.
External GPRS module can be connected to the server to realize remote control. Balance

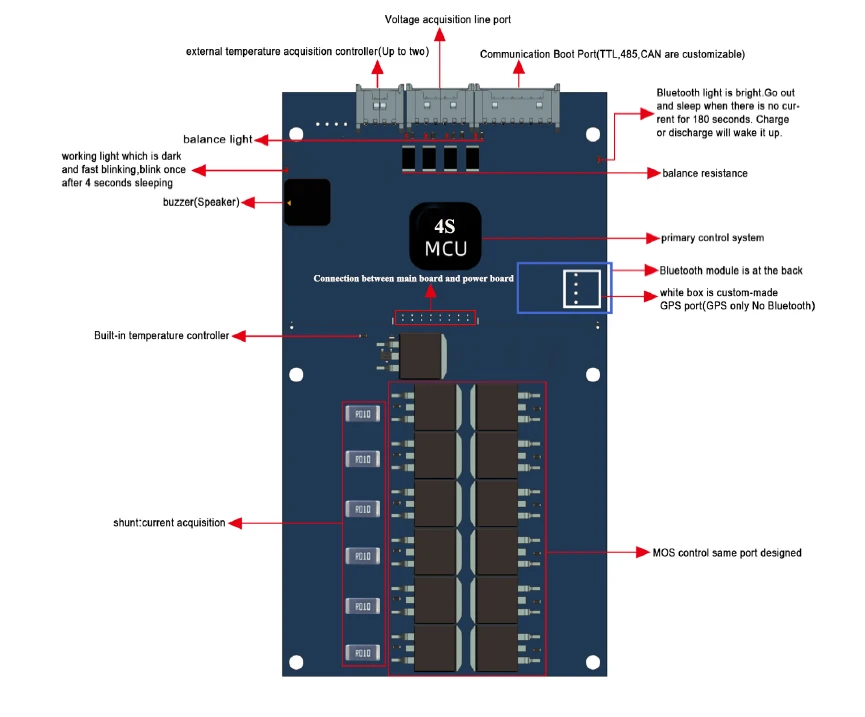

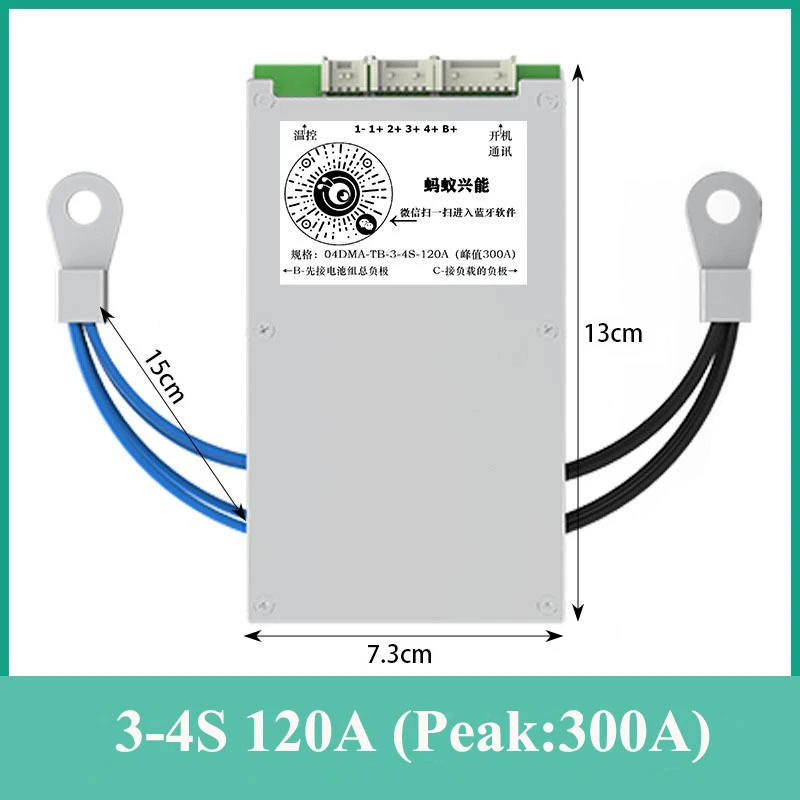

Port Definition

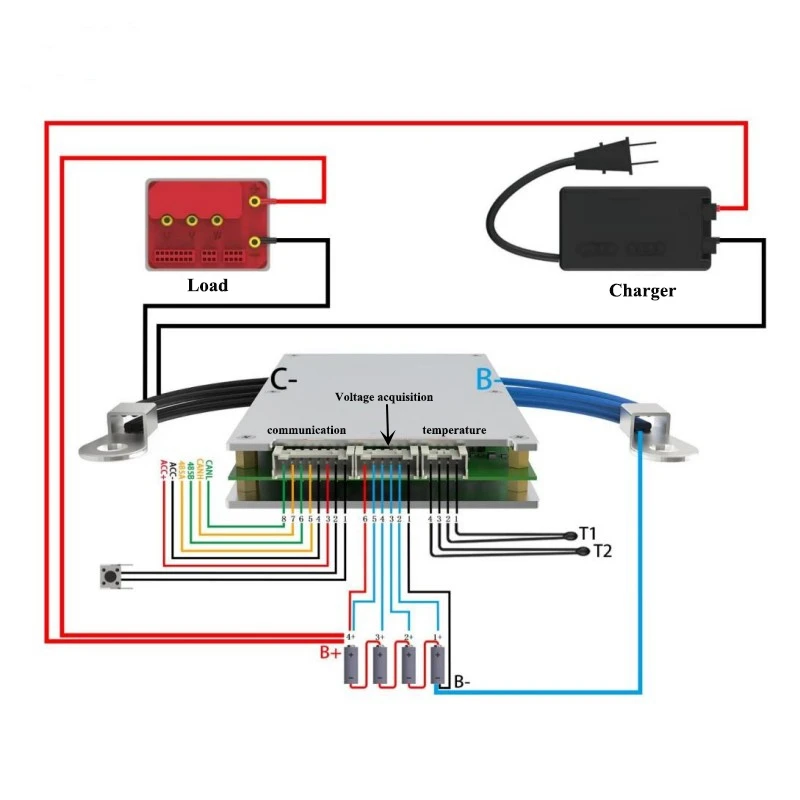

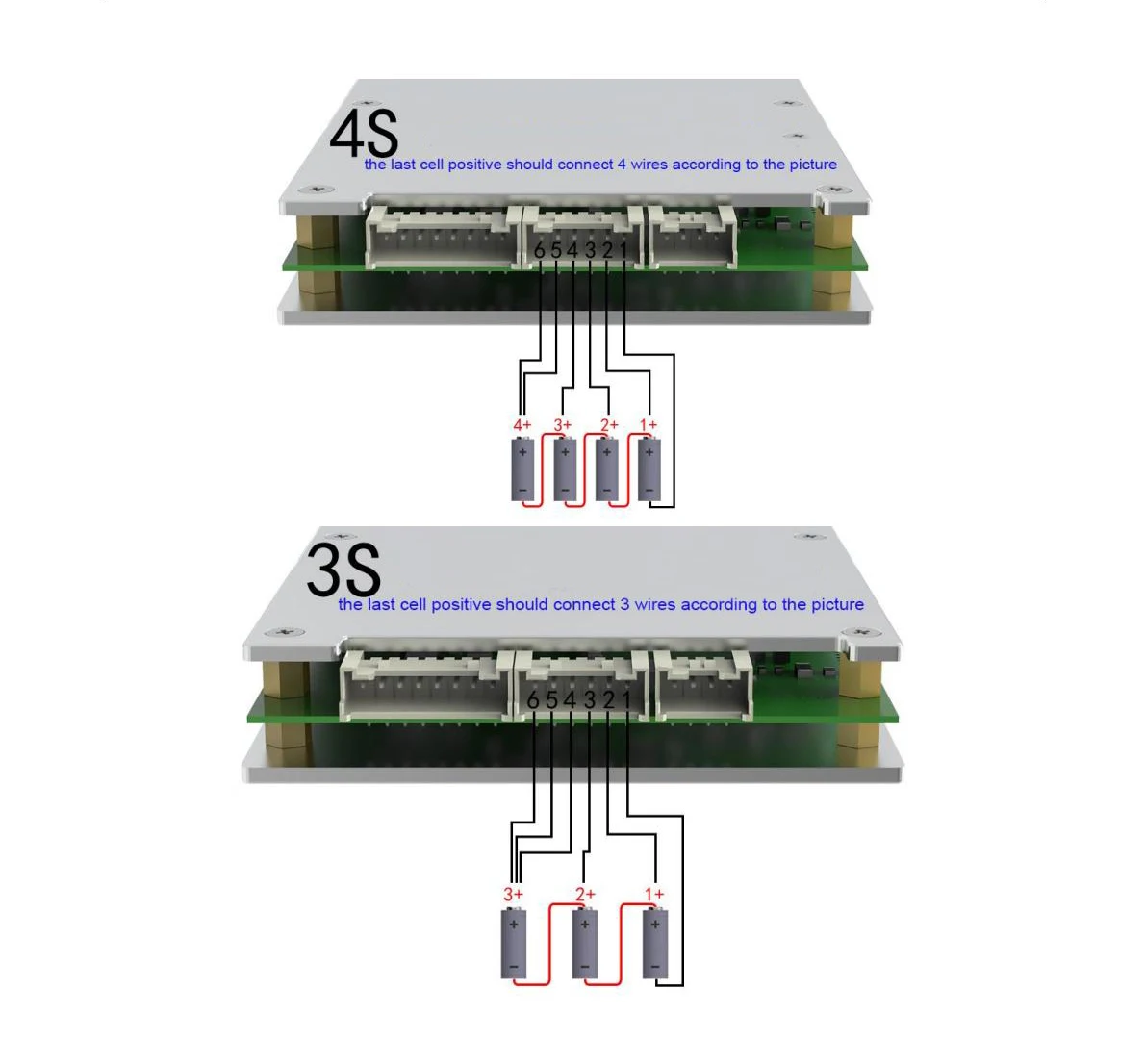

Wiring Diagram

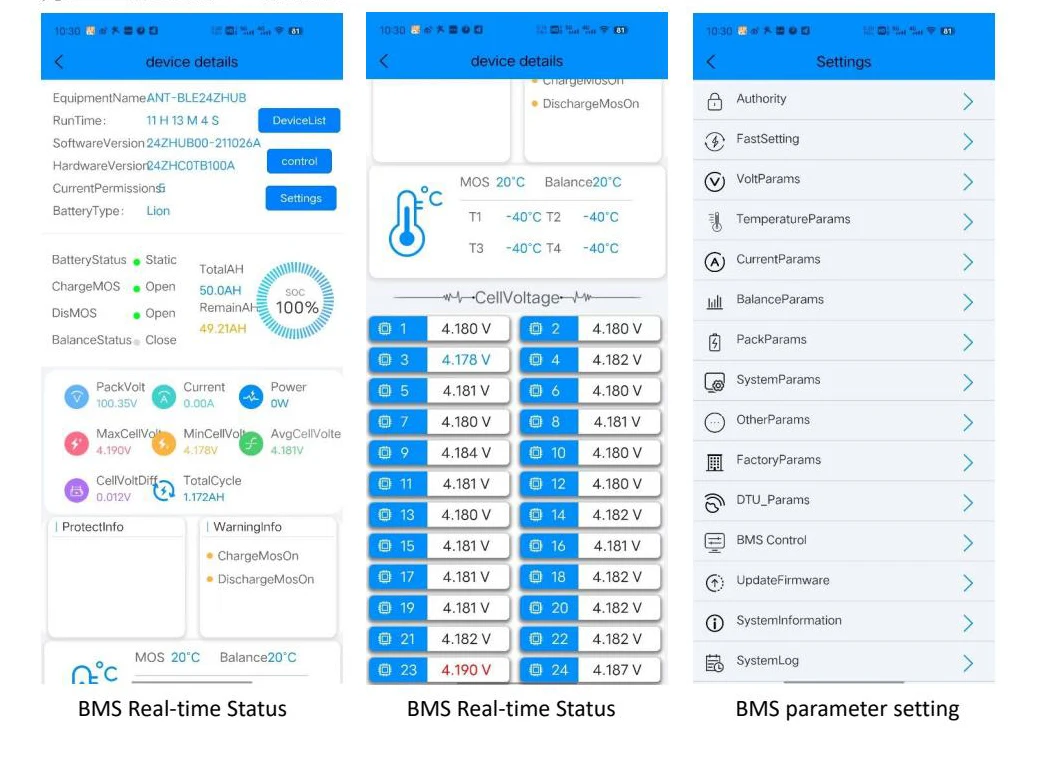

Bluetooth app Interface
Related Products
Company Introduction
Our Services & Strength
We offers We provide customers with one-stop procurement services
Here you can find all the main accessories related to lithium batteries
Save time and energy for customers
Here you can find all the main accessories related to lithium batteries
Save time and energy for customers
FAQ
1.Do you have current sample in stock?
A: Most regular one we have.usually we will ship out in 3 days after you paid
2. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, specially function and etc.we suggest to check delivery time case
by case.
3.OEM&ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.
4.What is your MOQ?
A: 1pc is OK. small order also welcome
10. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no
discharge, no discharge while the battery has voltage.
11.Why choose Passional?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years-experience for manufacturing lithium battery.
A: Most regular one we have.usually we will ship out in 3 days after you paid
2. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, specially function and etc.we suggest to check delivery time case
by case.
3.OEM&ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.
4.What is your MOQ?
A: 1pc is OK. small order also welcome
5.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same
point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
6.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life PO4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning.well
7.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on
continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery
capacity.
8. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
9. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same
point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
6.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life PO4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning.well
7.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on
continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery
capacity.
8. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
9. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
10. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no
discharge, no discharge while the battery has voltage.
11.Why choose Passional?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years-experience for manufacturing lithium battery.
