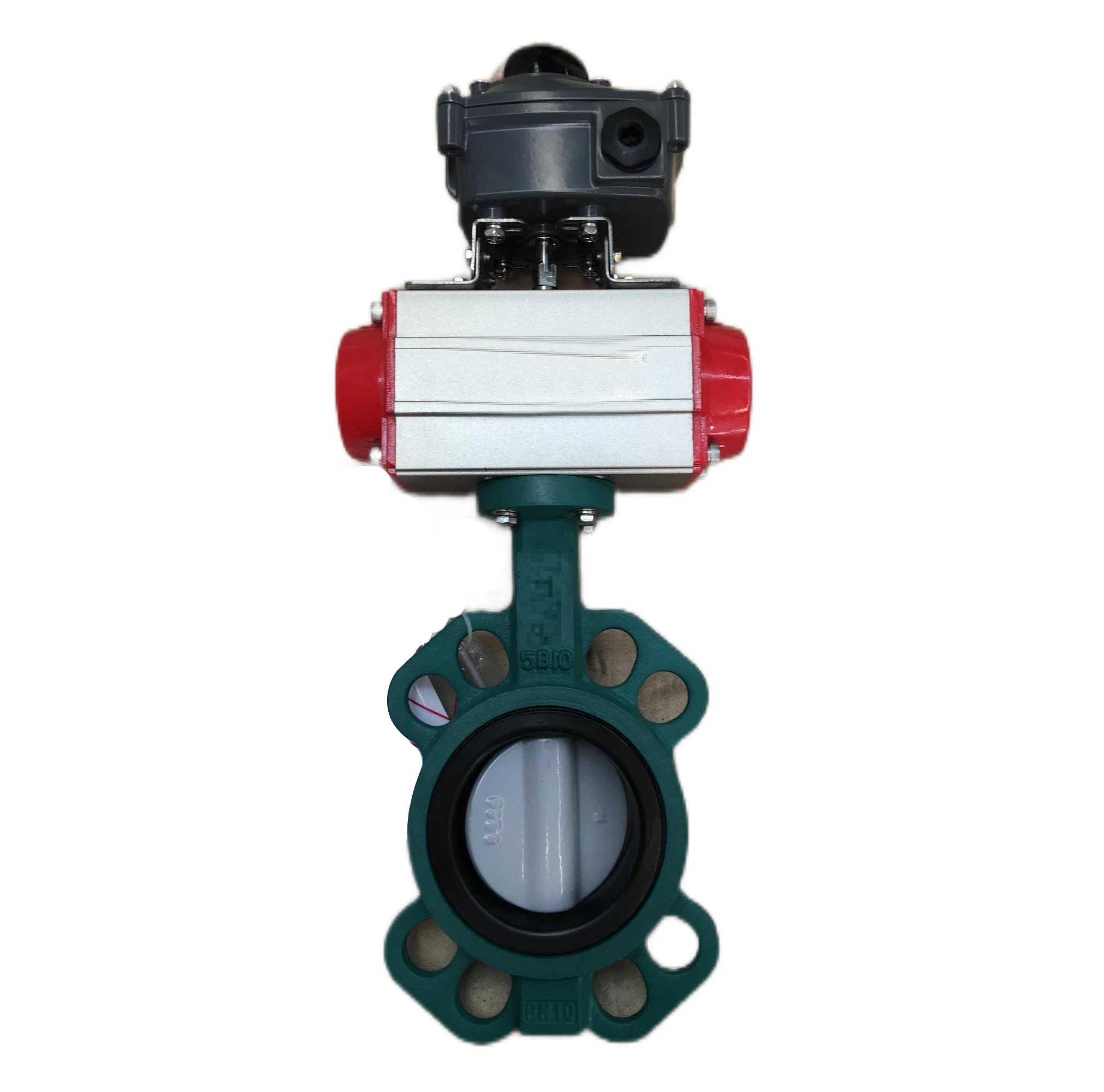

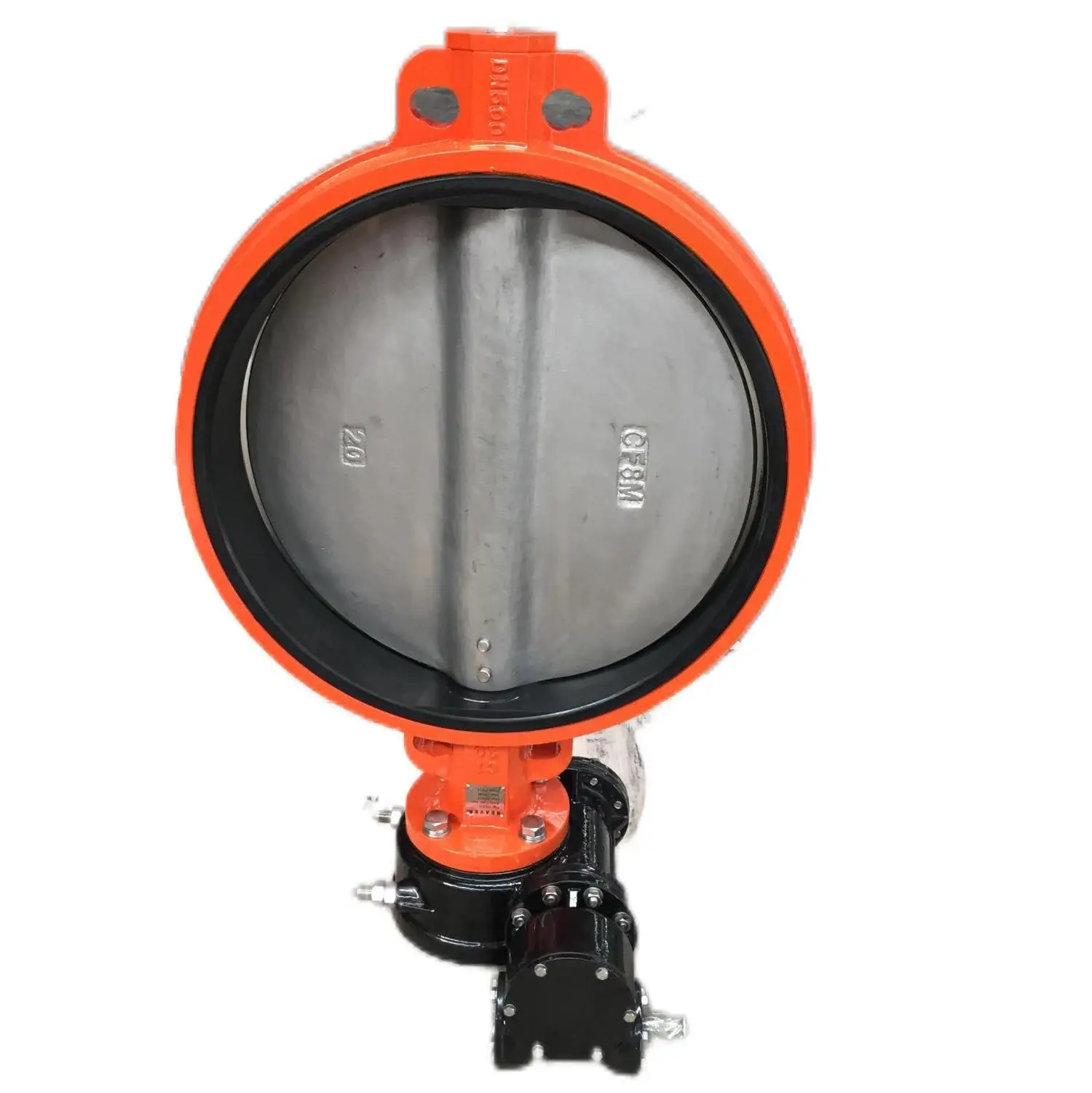

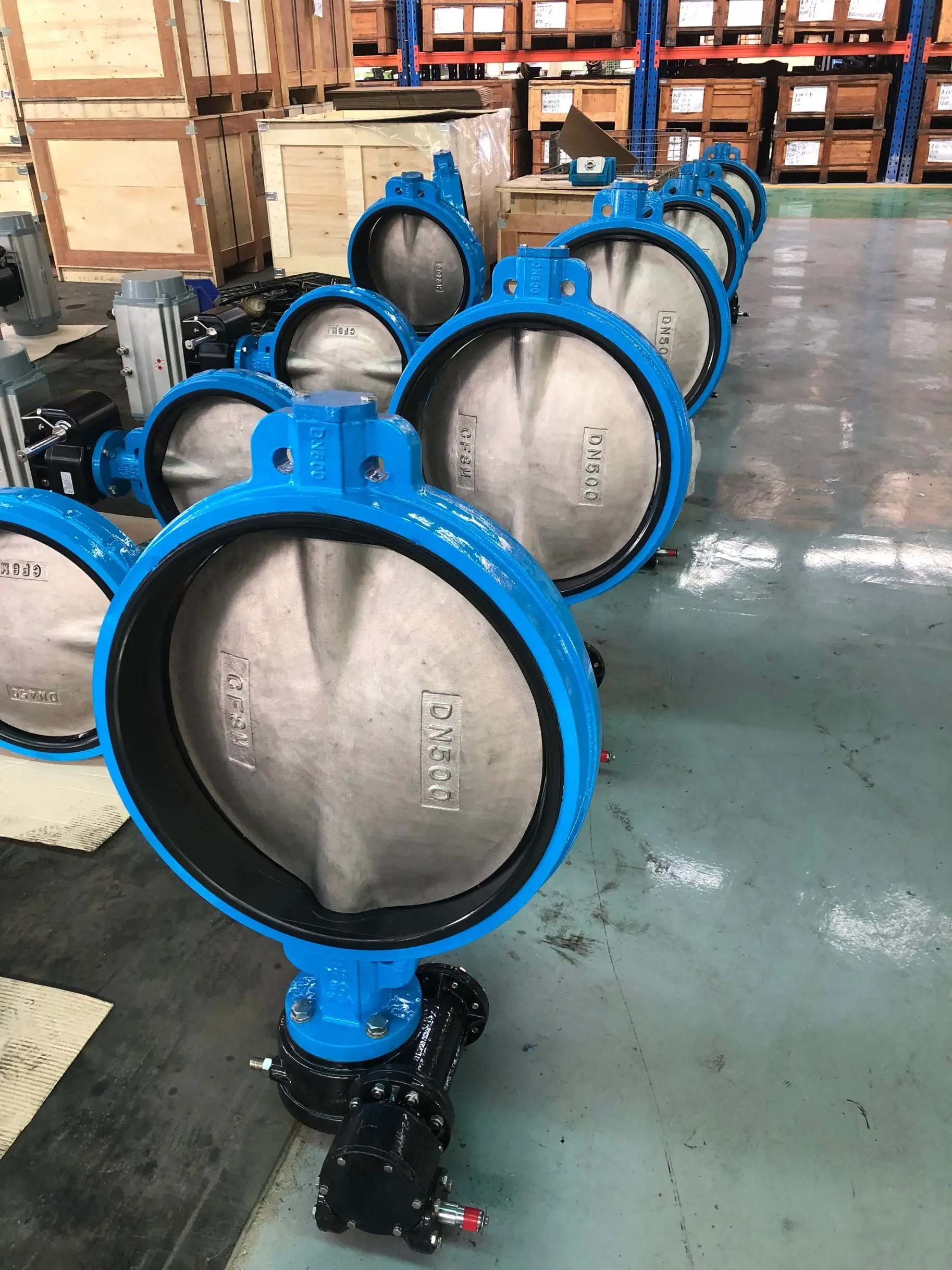

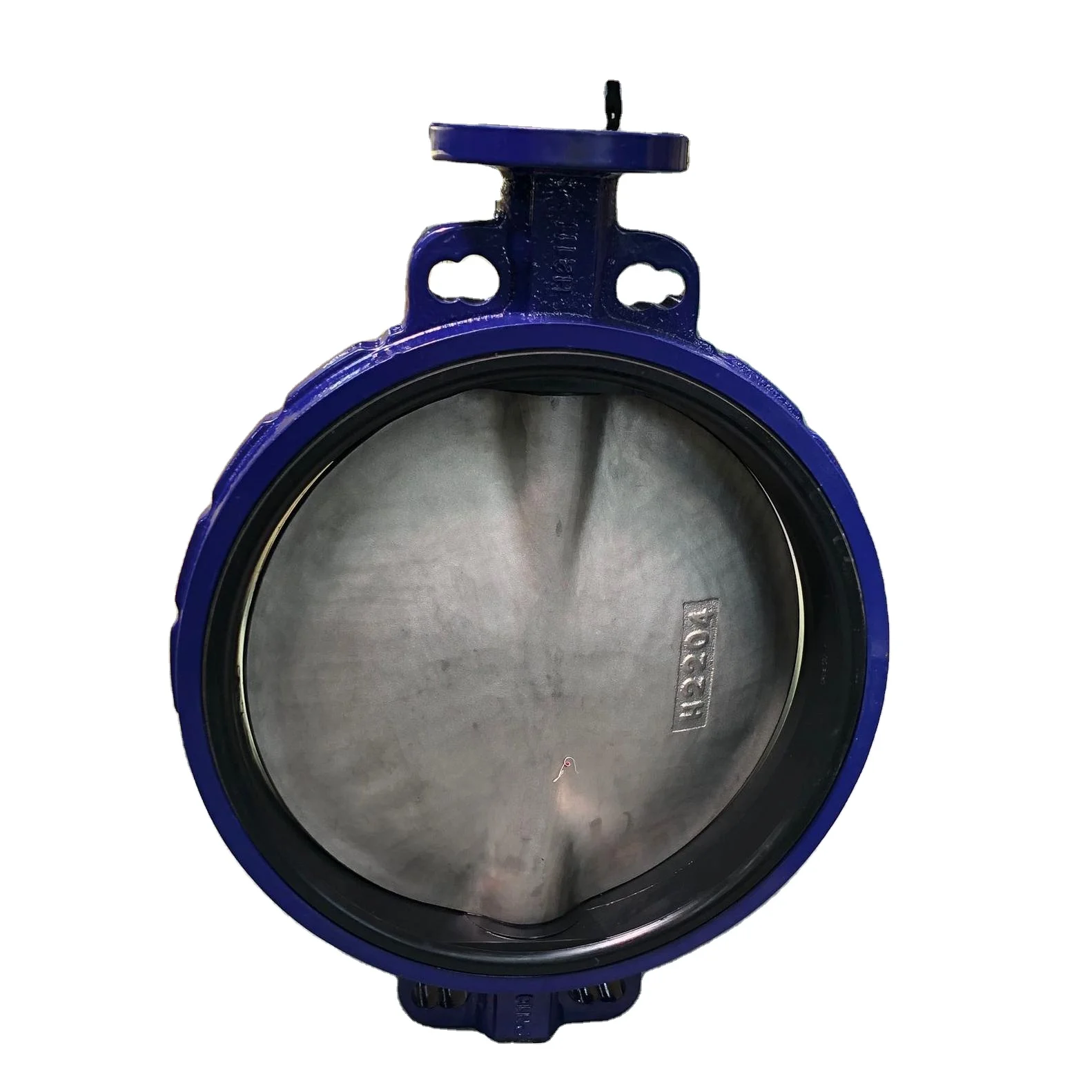

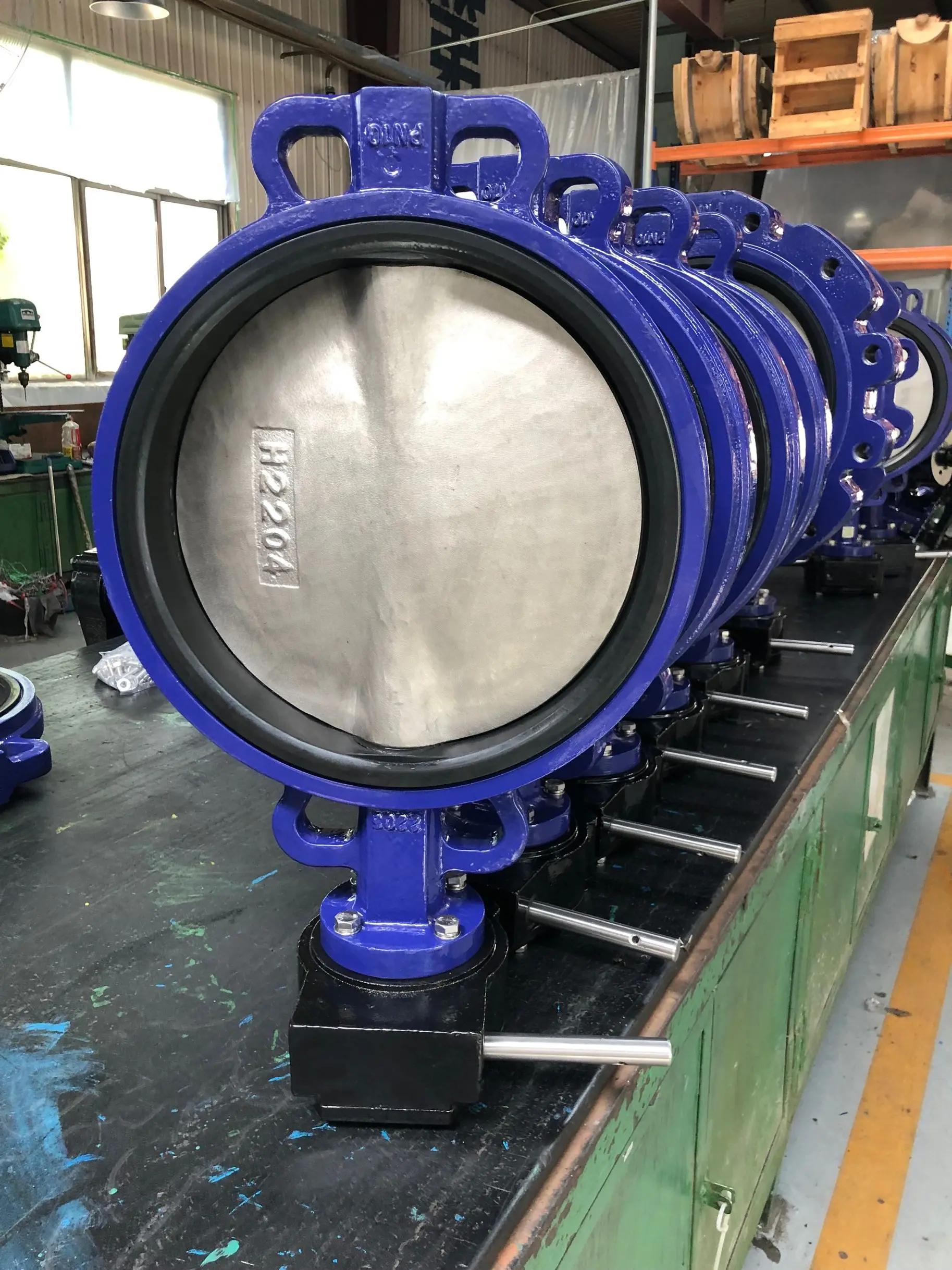

KEFA WCB PN16 DN65mm 2.5in EPDM lever manual pneumatic electric motorized hydraulic actuator sanitary wafer butterfly valve
- Category: >>>
- Supplier: Tianjin Kefa Valve Co. Ltd.
Share on (1600929605486):
Product Overview
Description
PRODUCT SPECIFICATIONS
NO. | PART NAME | MATERIAL |
1 | Body | CI/DI/WCB/Stainless steel/C594/C598 |
2 | Seat | EPDM/NBR/VITON/Silicon/CR |
3 | Disc | DI/CF8/CF8/Aluminum Bronze/Duplex SS |
4 | Taper Pin | SS416/SS316 |
5 | Shaft | SS316/SS420/SS431/Monel K500/Duplex SS |
6 | "O" Ring | EPDM/NBR/VITON |
7 | Bearing | PTFE/Bronze |
8 | Operator | Lever/Gearbox/Electric/Pneumatic |
Details Images
BODY
The valve body adopts integral die forgings, with high strength and no defects;Smooth surface spraying.
DISC
The surface of the valve plate is sprayed smooth;Various valve plate materials.
SEAT
Strong sealing performance of valve seat;There are three types of valve seats available for customers to choose from: soft valve seats (replaceable), hard valve seats, and rubber lined valve seats.
NECK
The valve neck can accept any casting requirements from customers.Can be lengthened and made into square or round necks.
UNTHREADED HOLE
The internal coating of the light hole is complete.
THREADED HOLE
Smooth grinding of threaded holes.
Products Description
1. Longer service life withvulcanized liner.
2. Simple, compact structure,quick 90 degree on-off operation.
3. Strong wash and brushresistance, and can fit to bad working condition.
4. Centerline structure, lowtorque of open and close.
5. Disc has two-way bearing,perfect seal, without leakage under the pressure test.
6. Equipment used in regulating orcutting off medium in pipeline. Applicable for connection in the end of pipe.
2. Simple, compact structure,quick 90 degree on-off operation.
3. Strong wash and brushresistance, and can fit to bad working condition.
4. Centerline structure, lowtorque of open and close.
5. Disc has two-way bearing,perfect seal, without leakage under the pressure test.
6. Equipment used in regulating orcutting off medium in pipeline. Applicable for connection in the end of pipe.
SALES AND SERVICE NETWORK
Company Profile
With over 50 years of experience in rubber and valve industry, TIANJIN KEFAVALVE earmed a worldwide reputation for its products long-life service.
TIANJIN KEFA VALVE owis modernized workshops, including rubber vulcanizing,machining, sand blasting, coating,assembling, air & hydraulic testing facilities andoffice buildings.

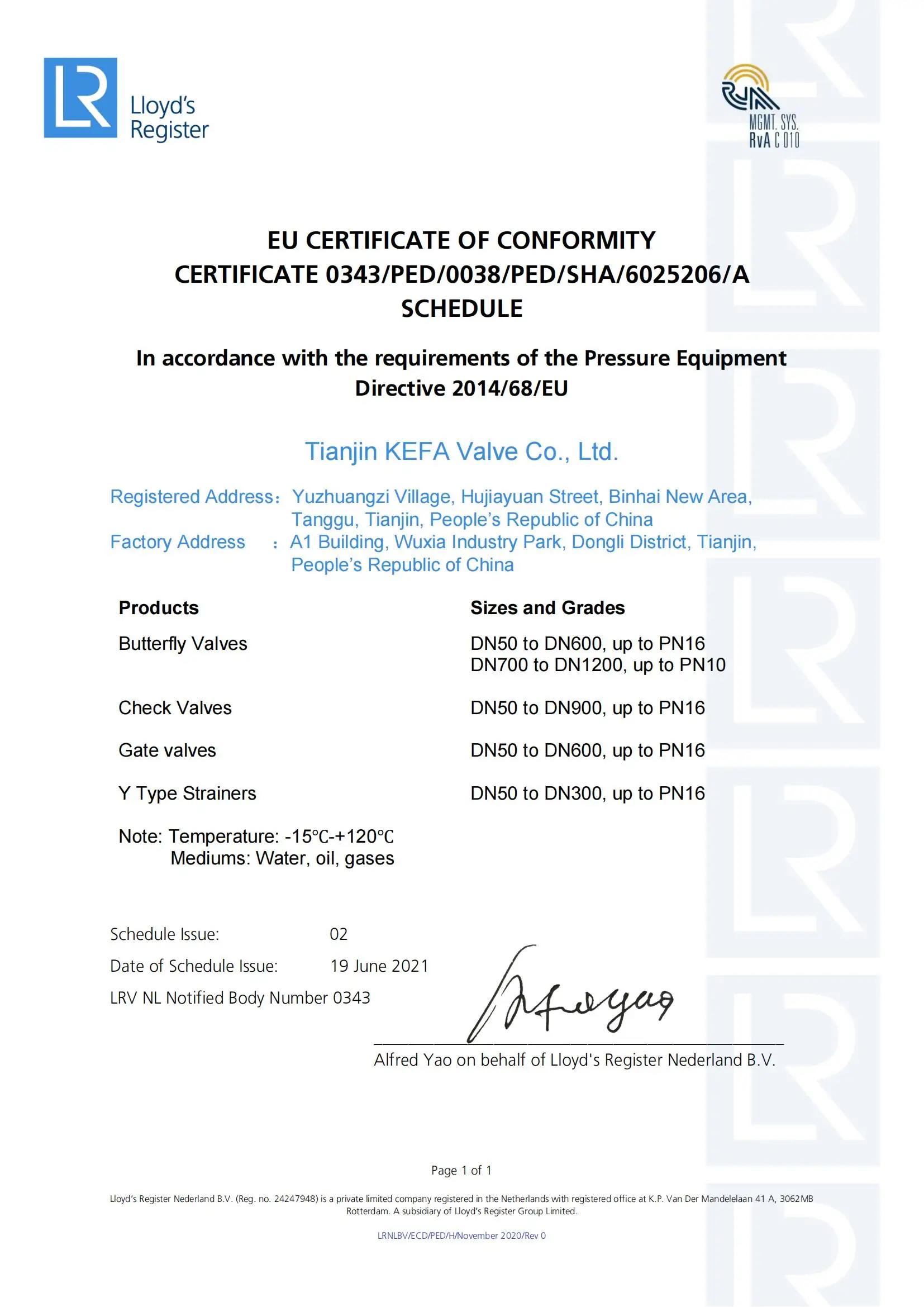

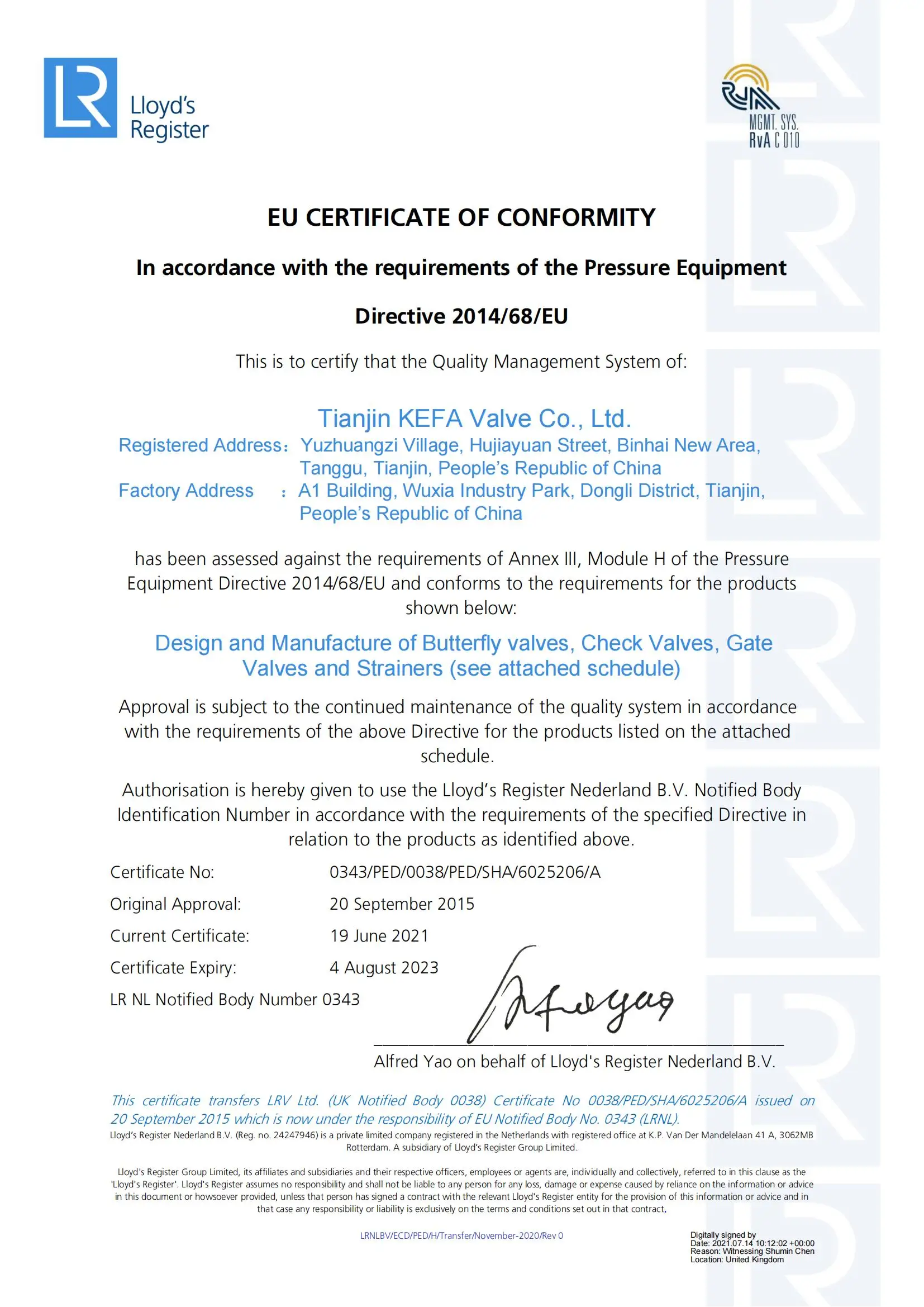

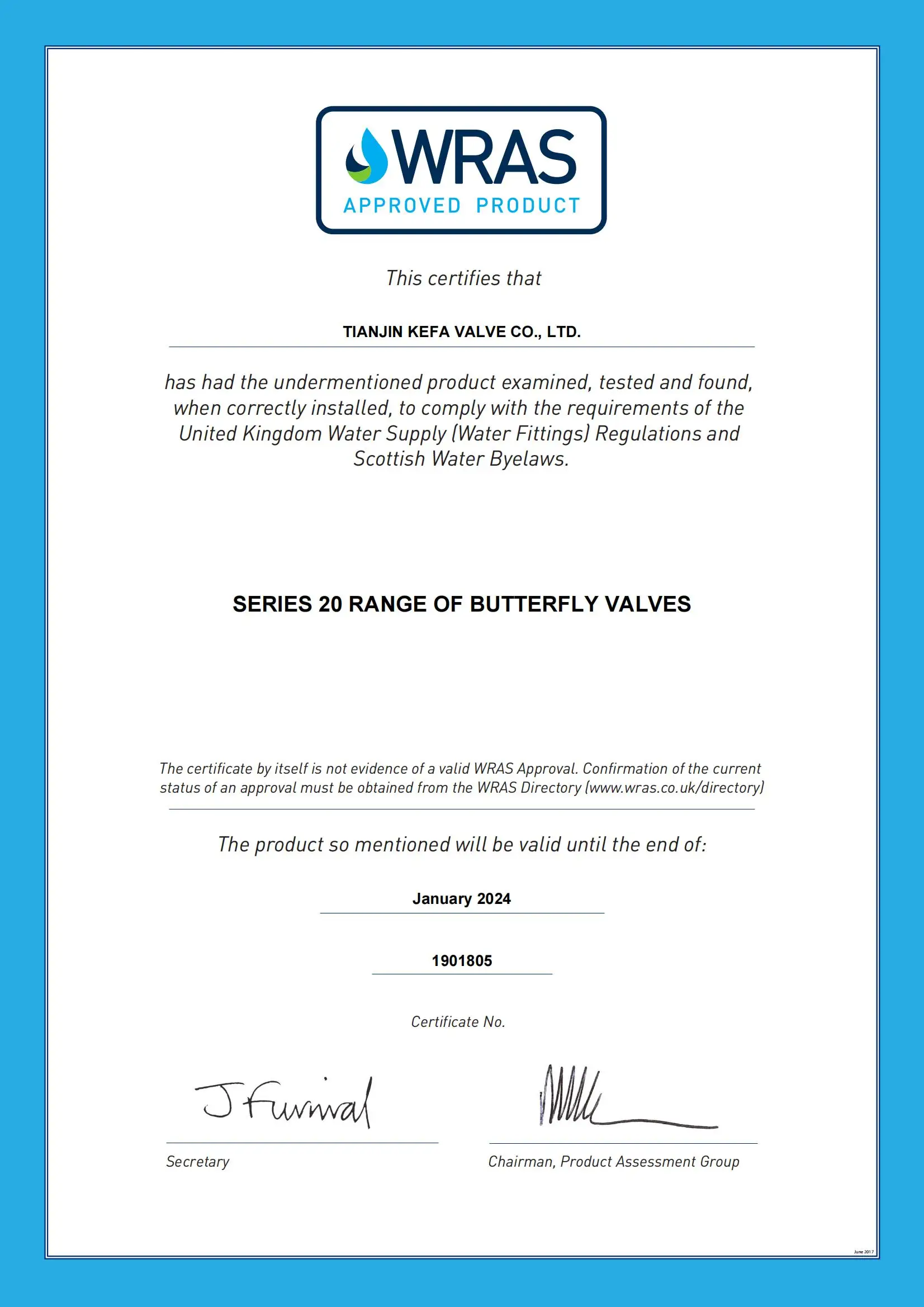

With the support of experienced production staff, technicians,QC engineers andsales teams, TIANJIN KEFA VALVE has successfully obtained ISO9001:2015Quality Management System Certification, European Union Pressure EquipmentDirective 97/23/EC certification (CE Certificate) and WRAS/WRc-NSF Certificationboth for butterfly valve and EPDM rubber.

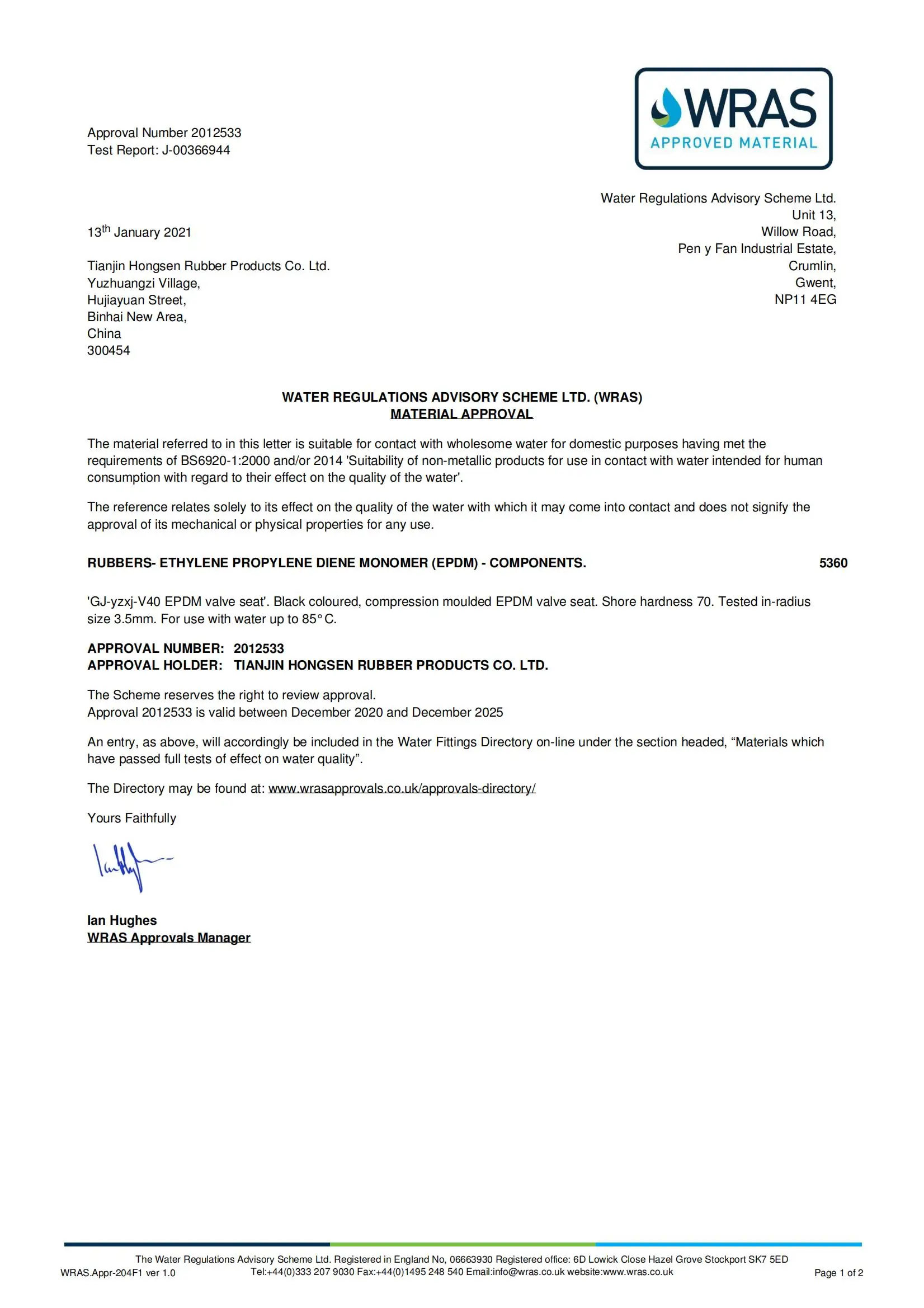

Certifications
