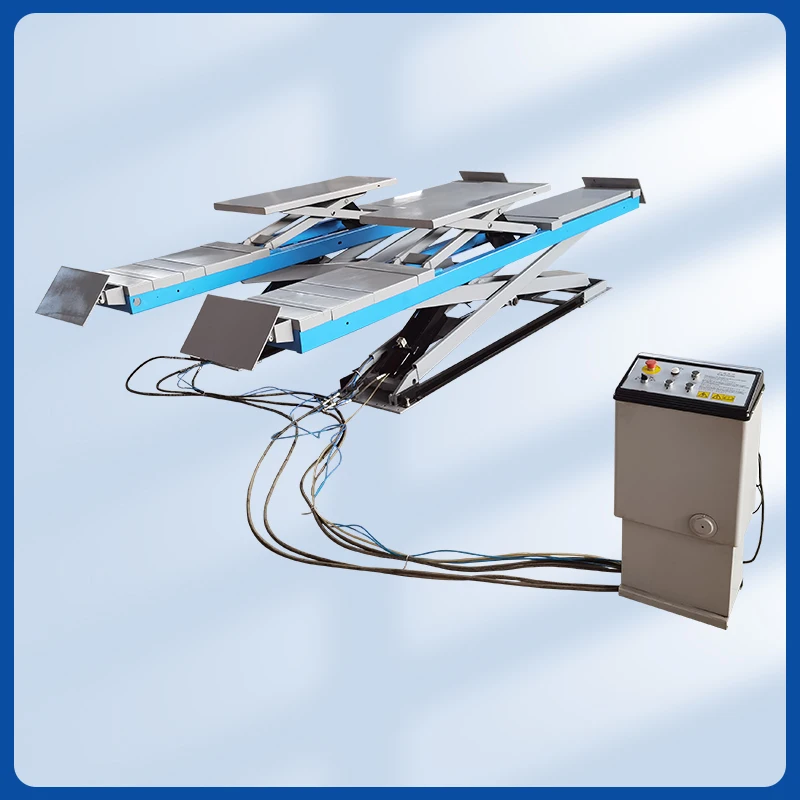

Large scissor lift car maintenance equipment car lift, suitable for your garage workshop
- Category: >>>
- Supplier: Cangzhou Jiangcheng Machinery Co. Ltd.
Share on (1600929617583):
Product Overview
Description
Reasons for choosing us
Focus on automotive maintenance tools
Years of industry experience
Product analysis
Focus on automotive maintenance tools
Years of industry experience
product drawing
Focus on automotive maintenance tools
Years of industry experience

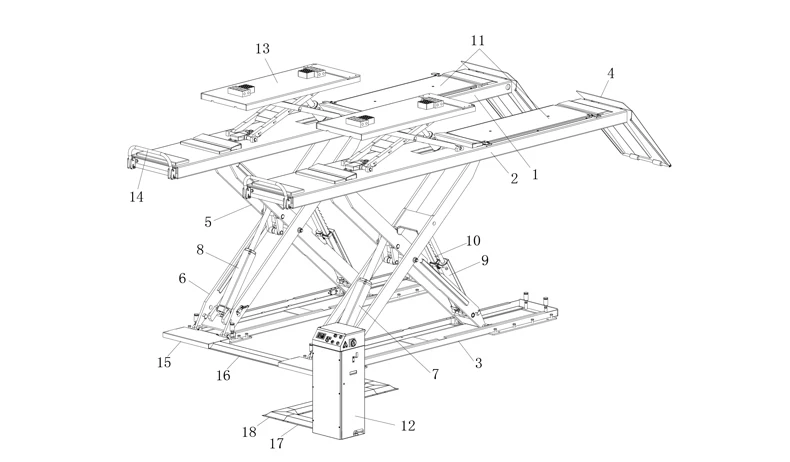

Structure drawing of lift machine
There are also two approach Bridges (4) at the upper end of the lift platform for the convenience of cars.
The shear lifting platform is 4400mm long. The scissor lifting structure of each platform consists of two arms, the inner arm (5) and the outer arm
Arm (6), and the main hydraulic cylinder (7), auxiliary hydraulic cylinder (8), booster hydraulic cylinder (9), safety lock (10) and sideslip on the platform
(11).
The lifting machine is controlled by the electric control box (12).

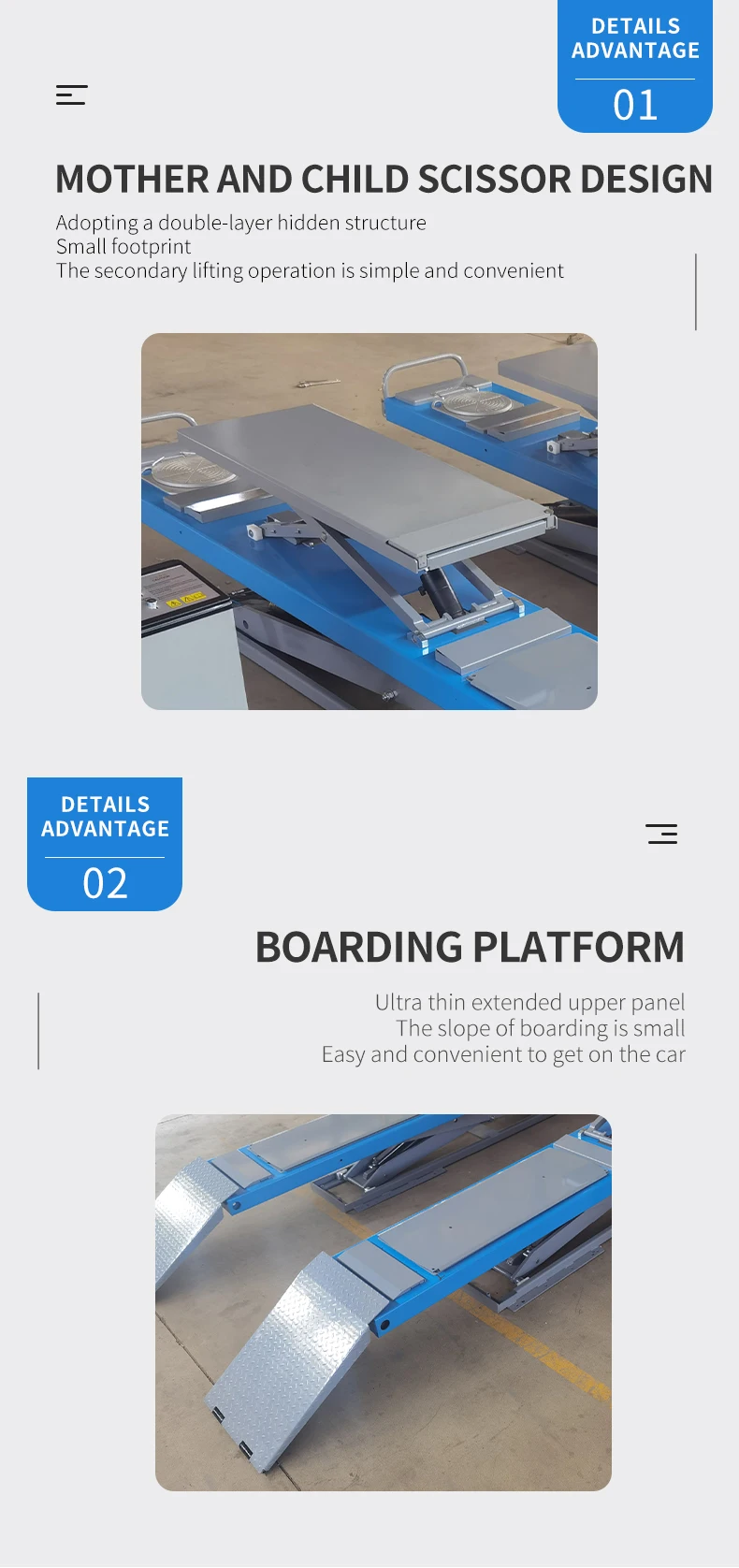

The lift is also equipped with a secondary lifting platform [sub platform] (13).
In addition, there are two stop rods (14), two tubing covers (15), two 1000mm long trapezoidal tubing covers (16) and two 500mm
Long trapezoidal tubing cover plate (17) and 2 right Angle trapezoidal tubing cover plate (18).
The shear lifting platform is 4400mm long. The scissor lifting structure of each platform consists of two arms, the inner arm (5) and the outer arm
Arm (6), and the main hydraulic cylinder (7), auxiliary hydraulic cylinder (8), booster hydraulic cylinder (9), safety lock (10) and sideslip on the platform
(11).
The lifting machine is controlled by the electric control box (12).
The lift is also equipped with a secondary lifting platform [sub platform] (13).
In addition, there are two stop rods (14), two tubing covers (15), two 1000mm long trapezoidal tubing covers (16) and two 500mm
Long trapezoidal tubing cover plate (17) and 2 right Angle trapezoidal tubing cover plate (18).

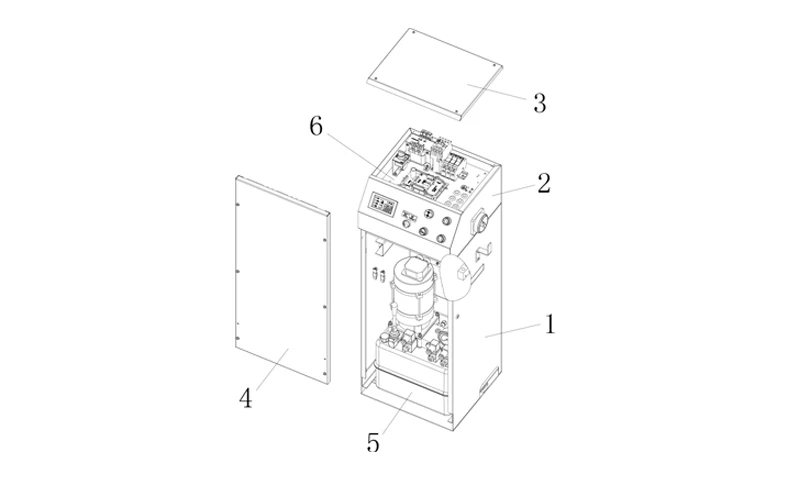

control unit
The hydraulic pump station drives the main hydraulic cylinder and the booster hydraulic cylinder to make the platform rise and fall (even with electric control) through the flat
Platform weight and load realization.
The hydraulic system is equipped with a maximum pressure valve to prevent exceeding the maximum set pressure.
The lift up and down is operated by buttons on the console.
Even when the down button is pressed, the lift stops 450mm above the ground. Make sure there are no dangerous persons or objects around the lift
When the body is safe, press the down button again to make it fall to the ground, then the buzzer will sound.
Platform weight and load realization.
The hydraulic system is equipped with a maximum pressure valve to prevent exceeding the maximum set pressure.
The lift up and down is operated by buttons on the console.
Even when the down button is pressed, the lift stops 450mm above the ground. Make sure there are no dangerous persons or objects around the lift
When the body is safe, press the down button again to make it fall to the ground, then the buzzer will sound.
Product parameters
Focus on automotive maintenance tools
Years of industry experience

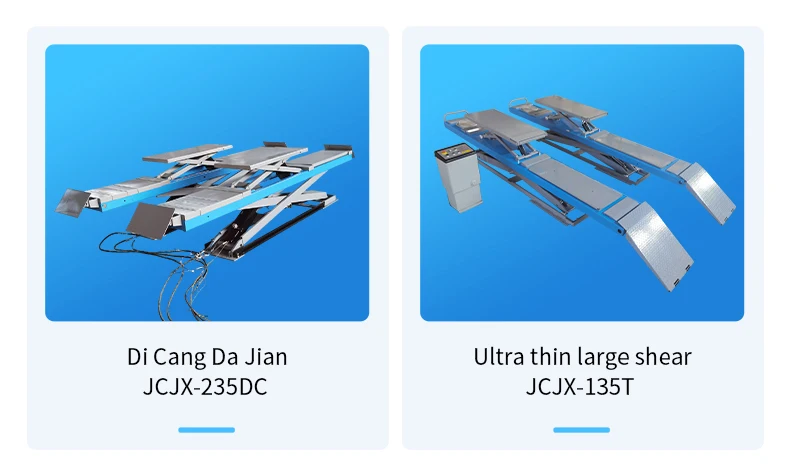

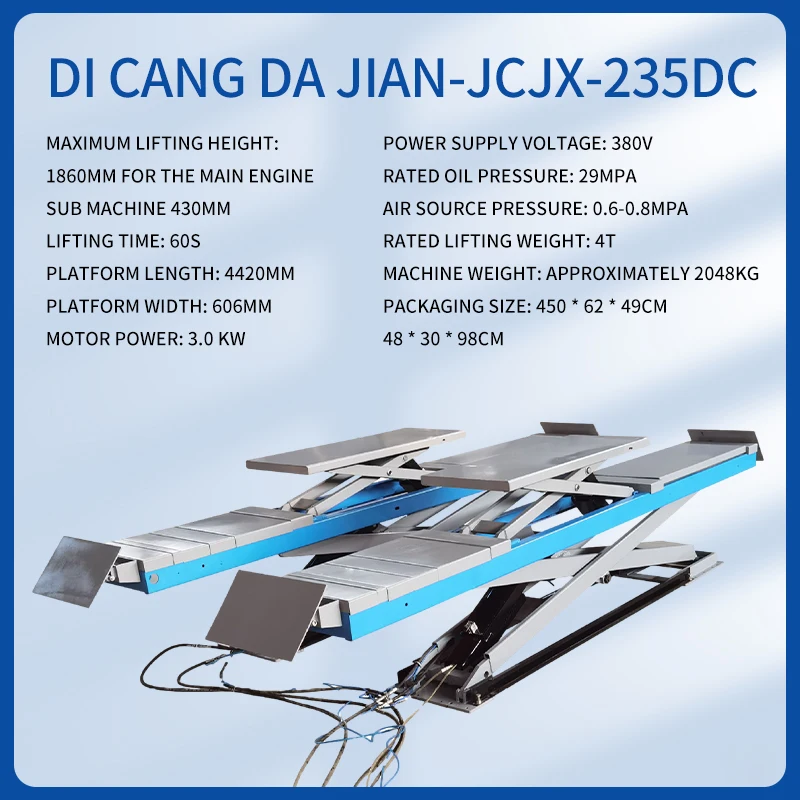

Di Cang Da Jian-JCJX-235DC
Maximum lifting height:
1860mm for the main engine
Sub machine 430mm
Lifting time: 60s
Platform length: 4420mm
Platform width: 606mm
Motor power: 3.0 kW
1860mm for the main engine
Sub machine 430mm
Lifting time: 60s
Platform length: 4420mm
Platform width: 606mm
Motor power: 3.0 kW
Power supply voltage: 380V
Rated oil pressure: 29MPa
Air source pressure: 0.6-0.8Mpa
Rated lifting weight: 4T
Machine weight: approximately 2048kg
Packaging size: 450 * 62 * 49CM
48 * 30 * 98CM
Rated oil pressure: 29MPa
Air source pressure: 0.6-0.8Mpa
Rated lifting weight: 4T
Machine weight: approximately 2048kg
Packaging size: 450 * 62 * 49CM
48 * 30 * 98CM

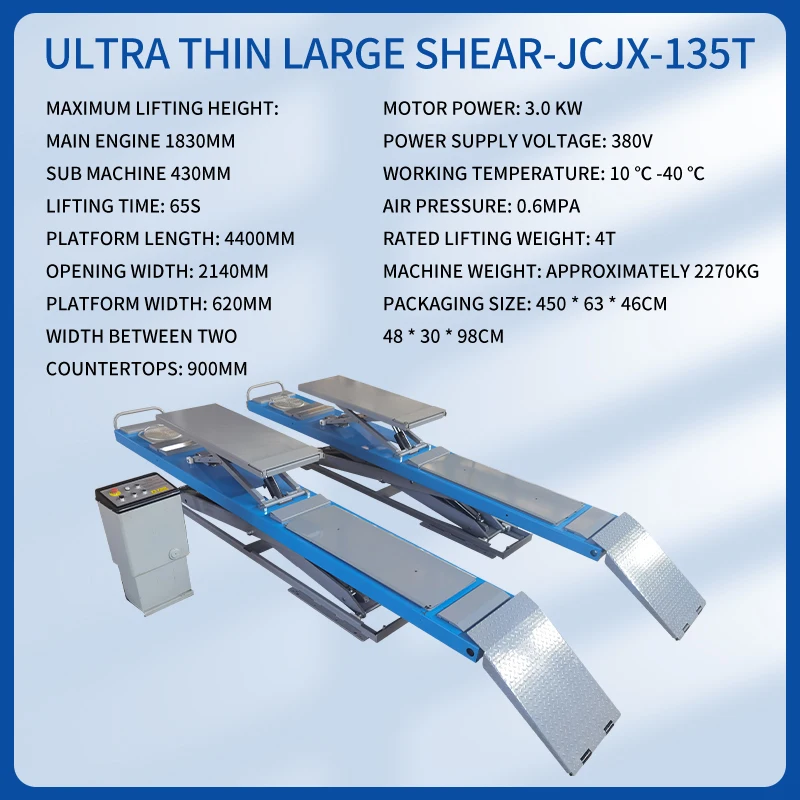

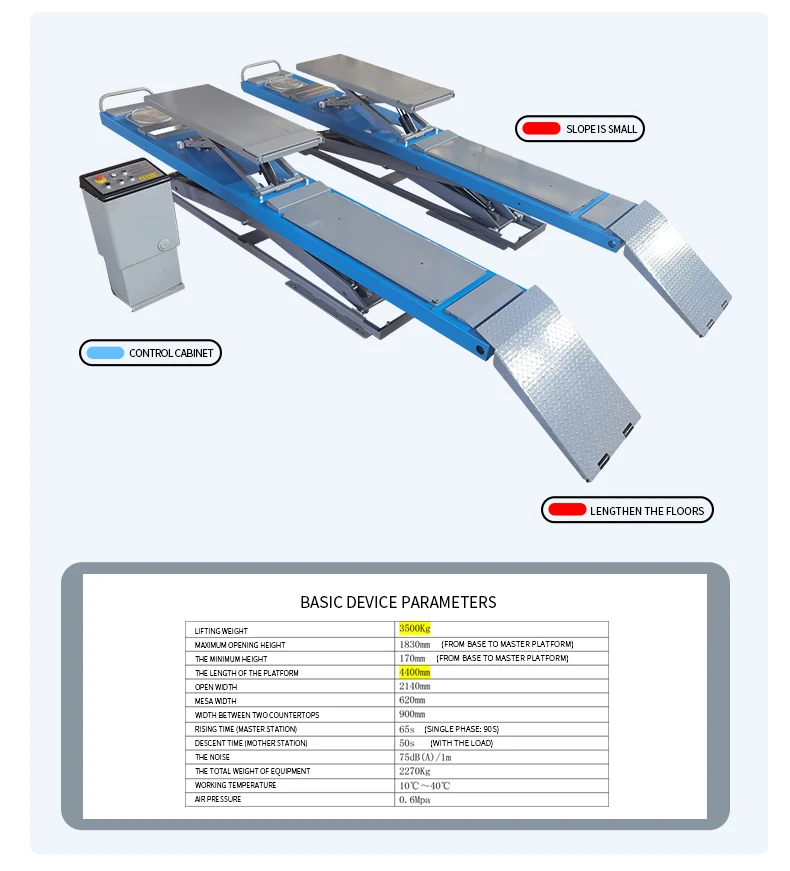

Ultra thin large shear-JCJX-135T
Maximum lifting height:
main engine 1830mm
Sub machine 430mm
Lifting time: 65s
Platform length: 4400mm
Opening width: 2140mm
Platform width: 620mm
Width between two
countertops: 900mm
main engine 1830mm
Sub machine 430mm
Lifting time: 65s
Platform length: 4400mm
Opening width: 2140mm
Platform width: 620mm
Width between two
countertops: 900mm
Motor power: 3.0 kW
Power supply voltage: 380V
Working temperature: 10 ℃ -40 ℃
Air pressure: 0.6Mpa
Rated lifting weight: 4T
Machine weight: approximately 2270kg
Packaging size: 450 * 63 * 46CM
48 * 30 * 98CM
Power supply voltage: 380V
Working temperature: 10 ℃ -40 ℃
Air pressure: 0.6Mpa
Rated lifting weight: 4T
Machine weight: approximately 2270kg
Packaging size: 450 * 63 * 46CM
48 * 30 * 98CM
Product Details
Focus on automotive maintenance tools
Years of industry experience

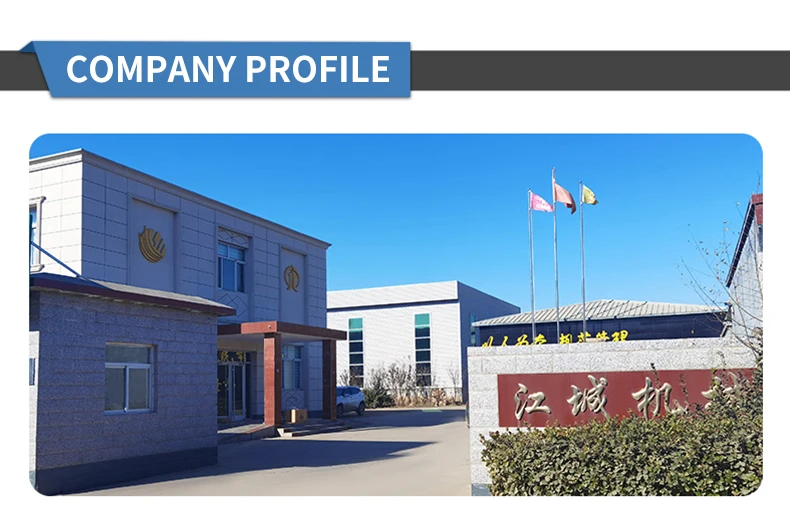

Our factory was founded in 1994 and renamed Cangzhou Jiangcheng Machinery Co., Ltd. from Xianxian Jiangcheng Machinery Factory in 2005. It has been 26 years since then. The original intention of establishing a company is to operate with integrity, serve with dedication, continuously improve, and achieve mutual benefit and win-win results.
The company is located in Fantun Industrial Zone, Xian County, Hebei Province, covering an area of approximately 10000 square meters. The company has departments such as a technical department, sales center, production center, human resources department, administrative department, and logistics department.
After more than 20 years of development, the company has a large-scale product line in the industry and has developed a series of automotive protection products.
The company is located in Fantun Industrial Zone, Xian County, Hebei Province, covering an area of approximately 10000 square meters. The company has departments such as a technical department, sales center, production center, human resources department, administrative department, and logistics department.
After more than 20 years of development, the company has a large-scale product line in the industry and has developed a series of automotive protection products.
About Pricing
Due to the significant fluctuations in raw material prices in the industry where our company's products belong, as well as the diverse specifications, models, and types of products, it is difficult to set current prices for them. Therefore, all prices listed in our store are for reference only. If you need to place an order, please make sure to contact customers by phone or Wangwang to avoid any inconvenience.
About Logistics
Due to the fact that most of our company's products are large items, we basically rely on our long-term cooperation to ship logistics to various regions, rather than express delivery (sample delivery). So it is difficult to determine the price and delivery time. Before shipping, we will help to contact the logistics and inform the customer of the specific receiving matters.
Freight issue
The postage varies depending on the goods and destination. Freight can be paid on delivery. (Accidental damage may occur during transportation)
Freight issue
When receiving the goods, please ask the customer to confirm the quantity of the product. If there are any discrepancies with the order requirements, please contact us immediately. If we find that the goods are missing after more than ten days of receiving the goods, we apologize for any inconvenience caused by logistics.
About evaluation
If you are satisfied with our product, please give us a review, and we will continue to work hard to serve our customers.
