Industrial Type B USB to 4 Port RS485 Converter with 3KV isolation and 6KV lightning protection
- Category: >>>
- Supplier: Hangzhou Fctel Technology Co. Ltd.
Share on (1600929634332):
Product Overview
Description
Product Description

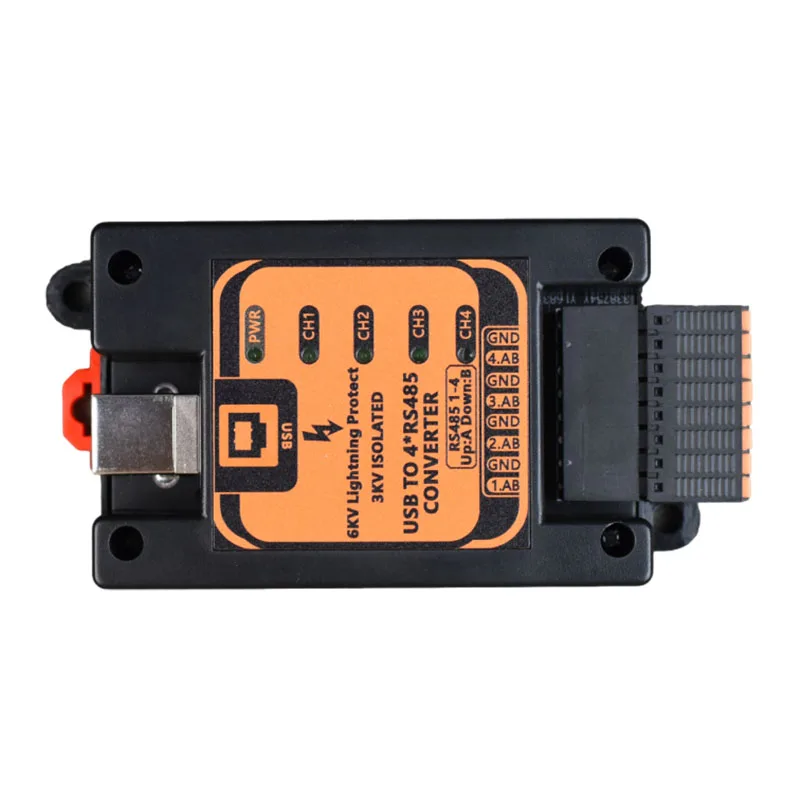

The basic function of this device is USB to 4-channel 3KV isolation/6KV lightning protection RS485. The device is powered by a USB port, eliminating the need for an external power source. It incorporates a unique zero-delay automatic transmit-receive conversion technology, making it plug-and-play compatible with all software. It features transmit-receive enable control and enters a high-impedance state when in idle mode without data transmission. It supports multi-point communication.
Distinguishing itself from other similar low-cost products available in the market, this product offers the following:
● Industrial-grade operating temperature range (-40℃ to +85℃).
● 3KV isolation (Connect to AC~380V without burning USB port)/ 6KV lightning strikes protection (10/700us current wave, internal resistance of 40Ω) for the serial port.
● RS485 highest speed support up to 2Mbits.
● USB built-in TVS protection (±15kV-air and ±8kV-contact).
Distinguishing itself from other similar low-cost products available in the market, this product offers the following:
● Industrial-grade operating temperature range (-40℃ to +85℃).
● 3KV isolation (Connect to AC~380V without burning USB port)/ 6KV lightning strikes protection (10/700us current wave, internal resistance of 40Ω) for the serial port.
● RS485 highest speed support up to 2Mbits.
● USB built-in TVS protection (±15kV-air and ±8kV-contact).
Specification
Product Model | FC-2007 |
Function Description | USB to 4-port RS485 Converter with Lightning Protection and Isolation |
Port Description | 1 USB 2.0 interface; 4 RS485 interfaces |
Power Supply | Passive, USB powered, power consumption < 1W |
Dimensions | 97mm (length) x 54mm (width) x 32mm (height) 35mm DIN rail mounting, wall-mounting |
Weight | 0.076 Kg/pcs |
Features
● The device features a full-speed USB device interface that is compatible with USB v2.0.
● It simulates a standard serial port, allowing for the upgrade of existing peripheral devices or the addition of additional serial ports via USB.
● The device is fully compatible with serial port applications on Windows operating systems, requiring no modifications.
● Its hardware includes fully integrated transmit-receive buffers. Each serial port is equipped with a 10Mbps high-speed isolation chip, supporting communication baud rates ranging from 1200bps to 2Mbps.

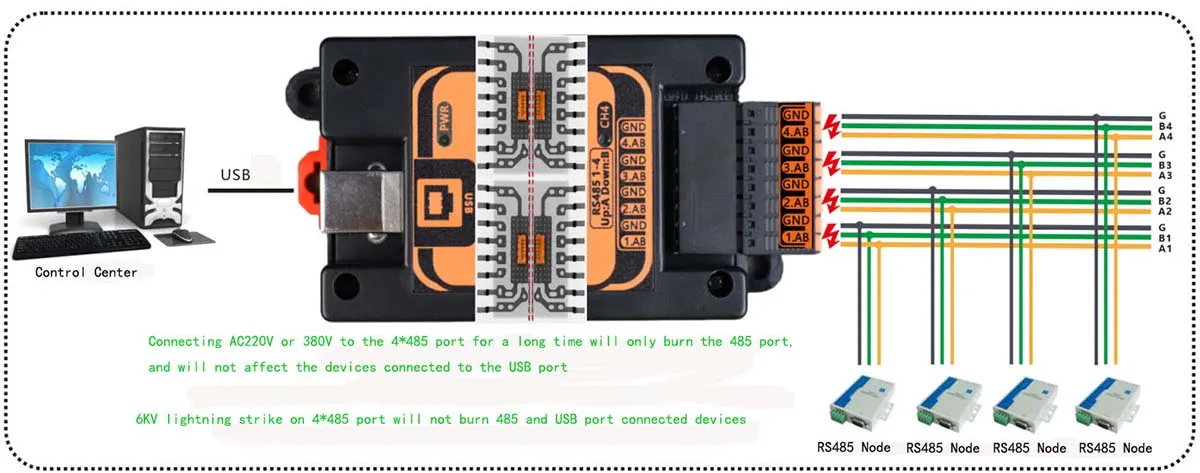

● The 4-port RS485 serial ports and USB interface have 3KV isolation. When exposed to long-term high voltage of AC220V or AC380V, the RS485 interface alone is affected, while the USB port and connected devices remain unaffected.
● It is compatible with operating systems such as Win98/2K/XP and WIN10/WIN11 32/64-bit systems.
● For communication, the device utilizes shielded twisted pairs with a minimum cross-sectional area of 0.5mm copper wire. It can achieve a maximum communication distance of 3000 meters (4800bps), 2000 meters (9600bps), and 1000 meters (115.2Kbps).
● The minimum number of networked sites supported is 128, while the maximum number of networked sites depends on the RS485 input impedance of each site.
● The device has 5 LED indicators, including a power indicator and dual-color indicators for data transmission and reception on the 4 serial ports, allowing for easy status monitoring.
● It features a Type B USB port and operates on USB power, with a working current of less than 30mA. The USB interface is protected against electrostatic discharge, capable of ±15kV (air) and ±8kV (contact), and it also provides EFT protection of up to 40A (5/50ns) and lightning protection of up to 5A (8/20us).
● The RS485 interface is equipped with three-level lightning protection, meeting the GB/T17626.5 (IEC61000-4-5) standard. It can withstand a short-circuit current wave of 10/700μs and an open-circuit peak output voltage of 6KV, with an internal resistance of 40Ω.
● Working from -40°C to +85°C.
● It has passed the 100% burn-in test.
● It simulates a standard serial port, allowing for the upgrade of existing peripheral devices or the addition of additional serial ports via USB.
● The device is fully compatible with serial port applications on Windows operating systems, requiring no modifications.
● Its hardware includes fully integrated transmit-receive buffers. Each serial port is equipped with a 10Mbps high-speed isolation chip, supporting communication baud rates ranging from 1200bps to 2Mbps.
● The 4-port RS485 serial ports and USB interface have 3KV isolation. When exposed to long-term high voltage of AC220V or AC380V, the RS485 interface alone is affected, while the USB port and connected devices remain unaffected.
● It is compatible with operating systems such as Win98/2K/XP and WIN10/WIN11 32/64-bit systems.
● For communication, the device utilizes shielded twisted pairs with a minimum cross-sectional area of 0.5mm copper wire. It can achieve a maximum communication distance of 3000 meters (4800bps), 2000 meters (9600bps), and 1000 meters (115.2Kbps).
● The minimum number of networked sites supported is 128, while the maximum number of networked sites depends on the RS485 input impedance of each site.
● The device has 5 LED indicators, including a power indicator and dual-color indicators for data transmission and reception on the 4 serial ports, allowing for easy status monitoring.
● It features a Type B USB port and operates on USB power, with a working current of less than 30mA. The USB interface is protected against electrostatic discharge, capable of ±15kV (air) and ±8kV (contact), and it also provides EFT protection of up to 40A (5/50ns) and lightning protection of up to 5A (8/20us).
● The RS485 interface is equipped with three-level lightning protection, meeting the GB/T17626.5 (IEC61000-4-5) standard. It can withstand a short-circuit current wave of 10/700μs and an open-circuit peak output voltage of 6KV, with an internal resistance of 40Ω.
● Working from -40°C to +85°C.
● It has passed the 100% burn-in test.
Parameters
● Serial Interface
Standard:
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Port Interface:
RS-485: A+, B-, GND

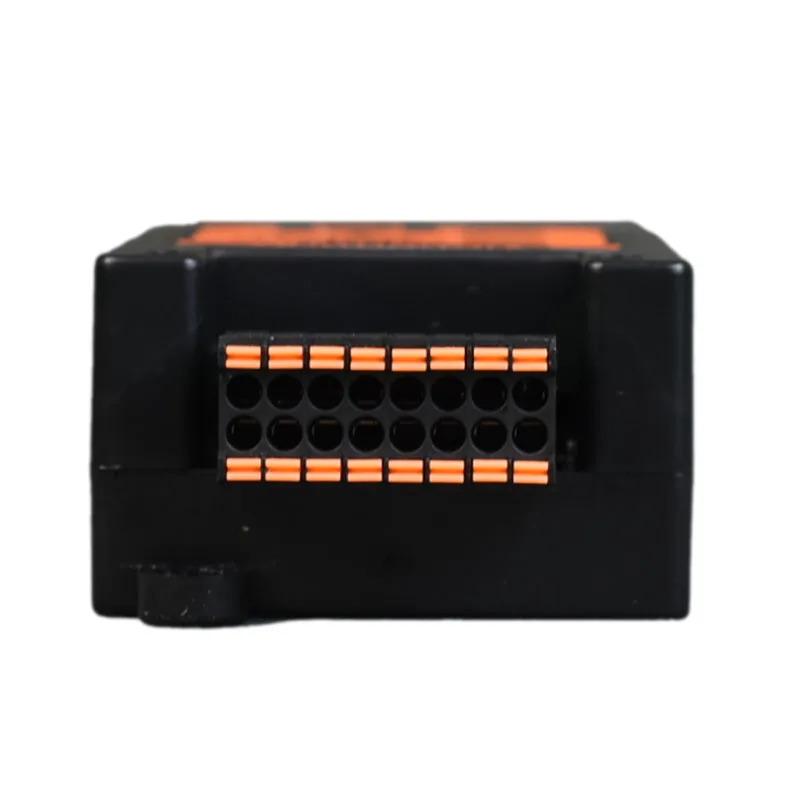

Physical Interface: 2*8 3.5mm pitch screwless terminals
● USB 2.0 Interface
Standard: USB 2.0
Full-speed: Full-speed (500Kbps – 12Mbps)

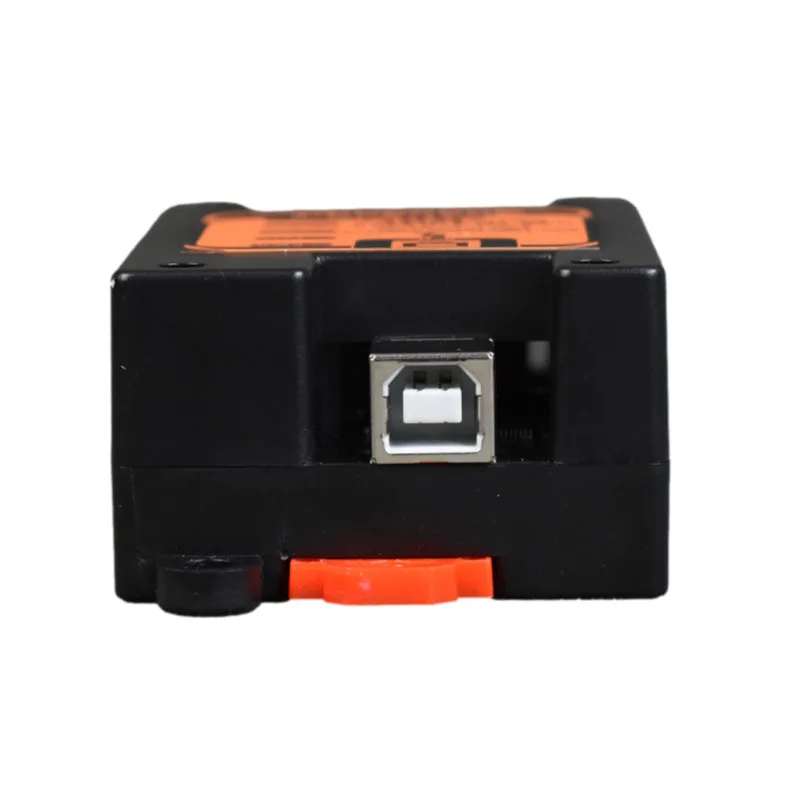

Physical Interface: USB Type B female connector
● Environmental Index
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Operating Humidity: 0% to 95% (non-condensing)
MTBF: > 100,000 hours
Standard:
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Port Interface:
RS-485: A+, B-, GND
Physical Interface: 2*8 3.5mm pitch screwless terminals
● USB 2.0 Interface
Standard: USB 2.0
Full-speed: Full-speed (500Kbps – 12Mbps)
Physical Interface: USB Type B female connector
● Environmental Index
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Operating Humidity: 0% to 95% (non-condensing)
MTBF: > 100,000 hours
