Motor power 315 kW reliable customized mobile crushing machinery HP 400 cone crusher
- Category: >>>
- Supplier: Shenyang Five Sigma lmp/Exp Trading Co. Ltd
Share on (1600929637591):
Product Overview
Description
Product Overview
Our HP 400 Cone Crusher
Regarding our cone crusher, please be advised the follows:
1. Advanced fixed axis structure design;
2. Combination of large stroke and high speed for higher output;
3. The advanced hydraulic system can reach the rapid adjustment, cavity cleaning and over-iron protection;
4. Multiple cavity types and flexible application;
5.Motor power 315 kW;
6.Maximum output up to 1200TPH.
FEATURES AT A GLANCE
More
Principle: Based on the material layer and cone crushing principle
Features:
1. With advanced fixed axis structure designed;
2. Higher output by combination of large stroke and high speed;
3. The advanced hydraulic system can guarantee the rapid adjustment, cavity cleaning and over-iron protection, etc;
4. Multiple cavity types and flexible application are assured;
5. Maximum output up to 1200TPH.
cone crusher

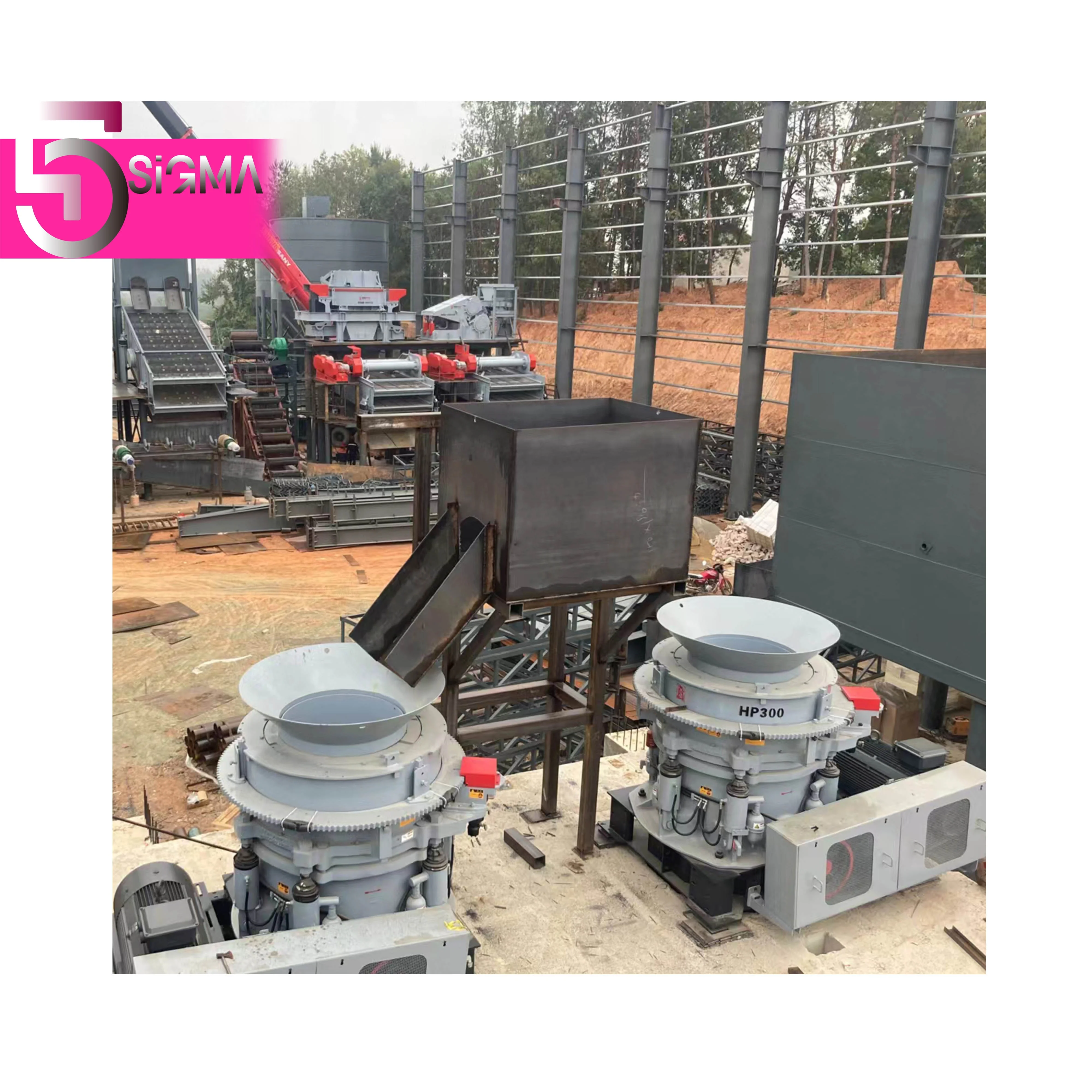

Cone crusher in the factory

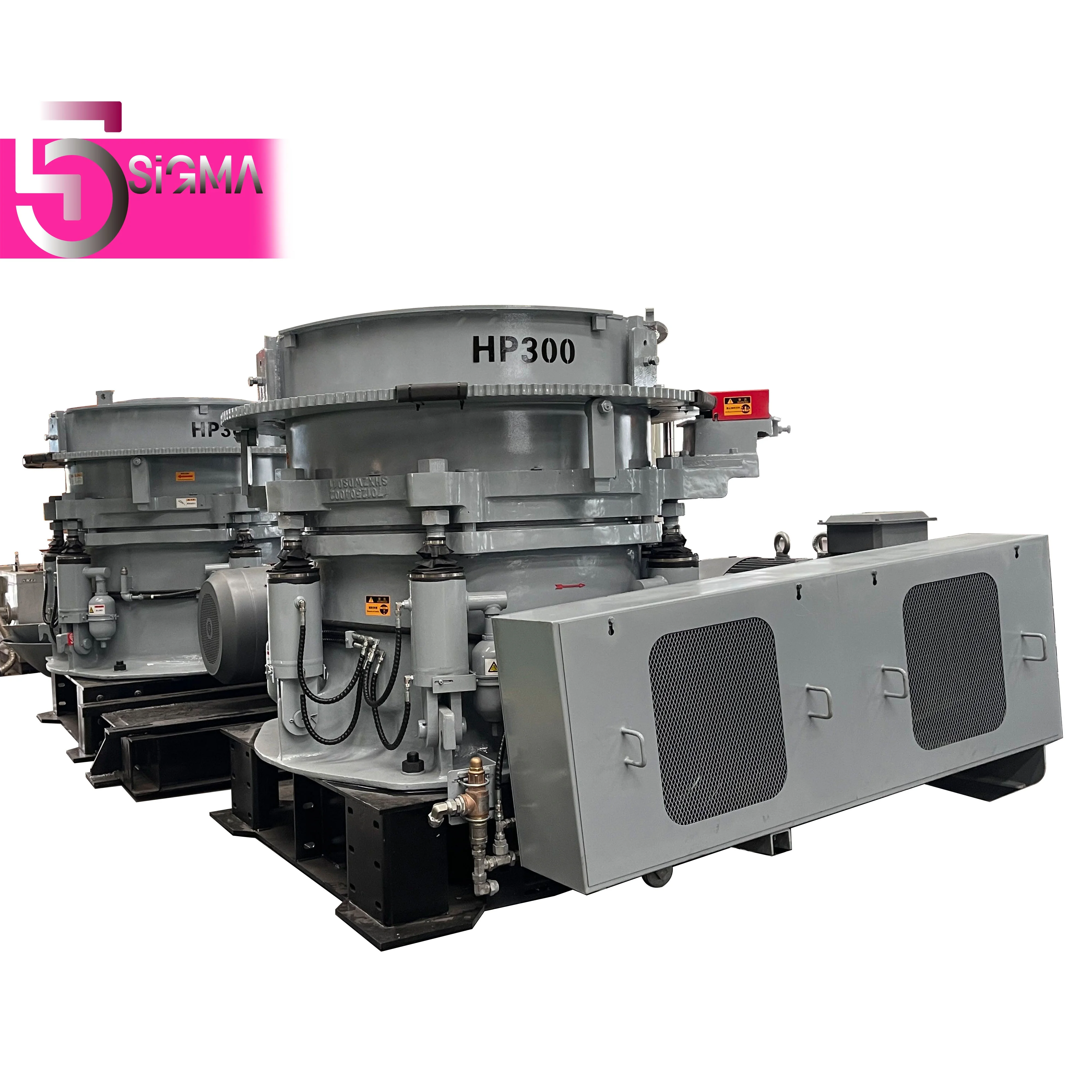

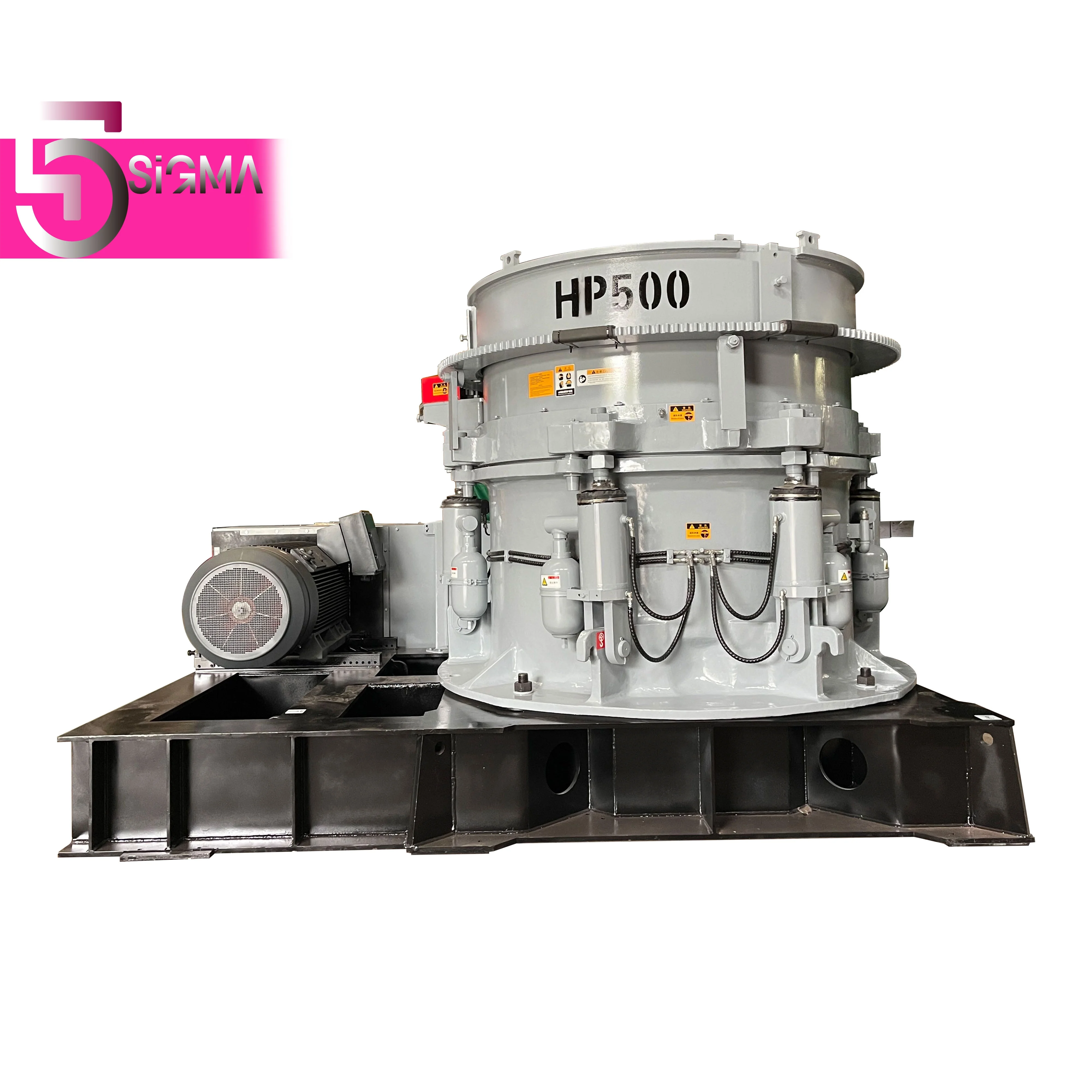

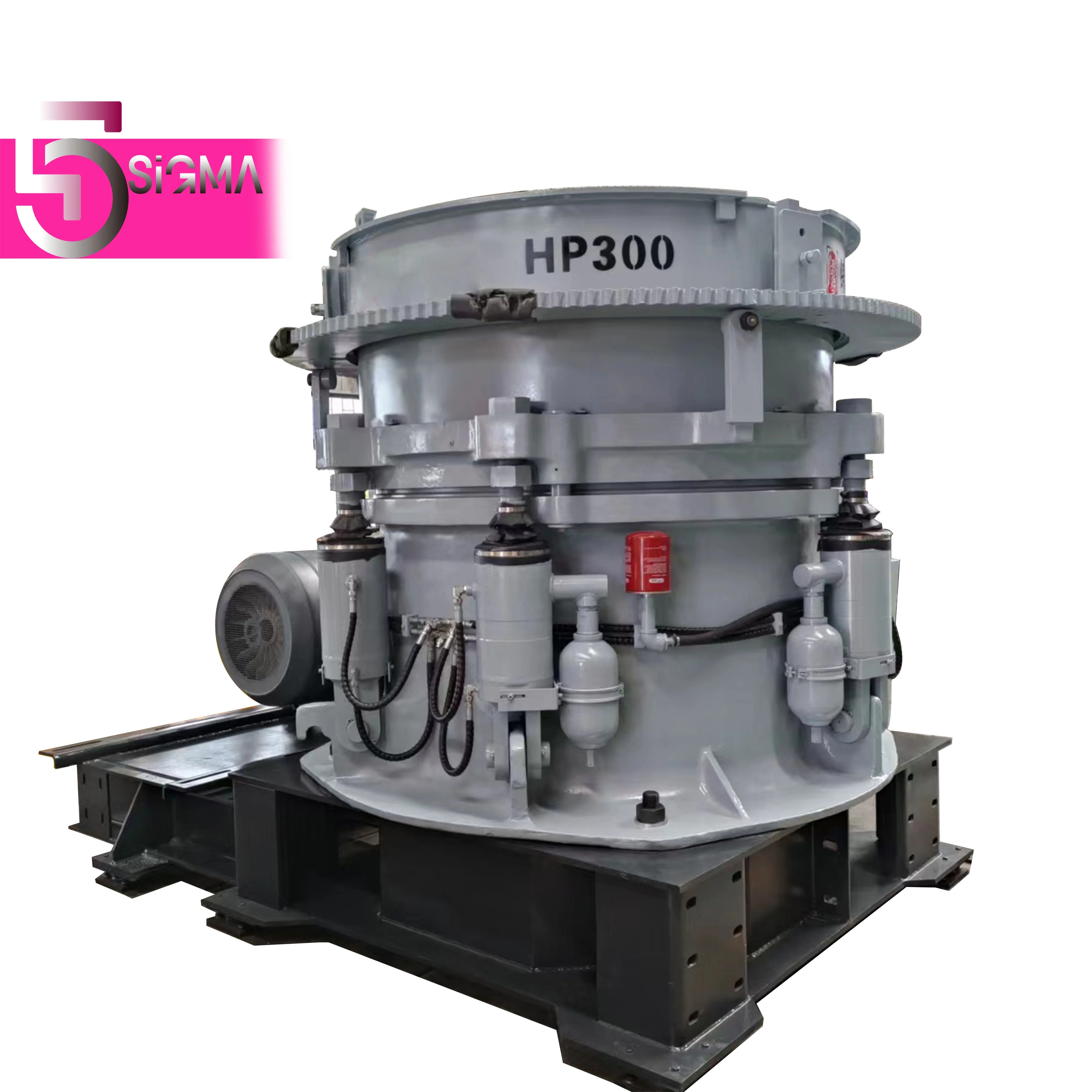

A ready-made cone crusher
WEIGHT AND MOTOR POWER OF CONE CRUSHER | ||||||||
MODEL | WEIGHT (kg) | POWER (kW) | LEAD TIME (DAYS) | |||||
HP 200 | 10400 | 160 | 65 | |||||
HP 300 | 15810 | 250 | 65 | |||||
HP 400 | 23000 | 315 | 65 | |||||
HP 500 | 33150 | 400 | 65 | |||||
HP 800 | 64100 | 630 | 95 | |||||
PRODUCT SPECIFICATIONS
SALES AND SERVICE NETWORK
Successful Project
FAQ
A1：The end user should operate the cone crusher and the entire production system as per the specification properly.
Q2: How will the end user operate the cone crusher properly in the power plant?
A2: Please pay attention to the quality control throughout the whole production, inspection and actual operation in the production site. For example, the tolerance range of dimentions during machining and milling should be stricly followed to guarantee the operation of the cone crusher within a certain limit..
Q3: What is the first step of the operation principle?
A3: Prepare stable material layers and feed them into the crushing area.
Q4: Why will you guarantee the hydrawlic system?
A4: When we guarantee our hydrawlic system, the advanced and rapid adjustment, cavity cleaning and perferrate protection can all be achieved.
