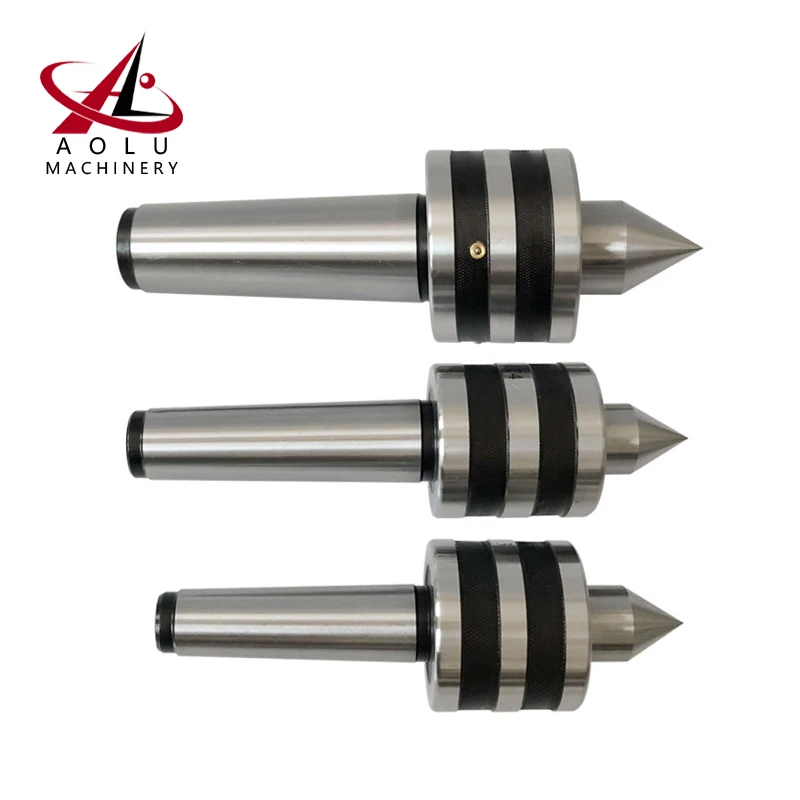

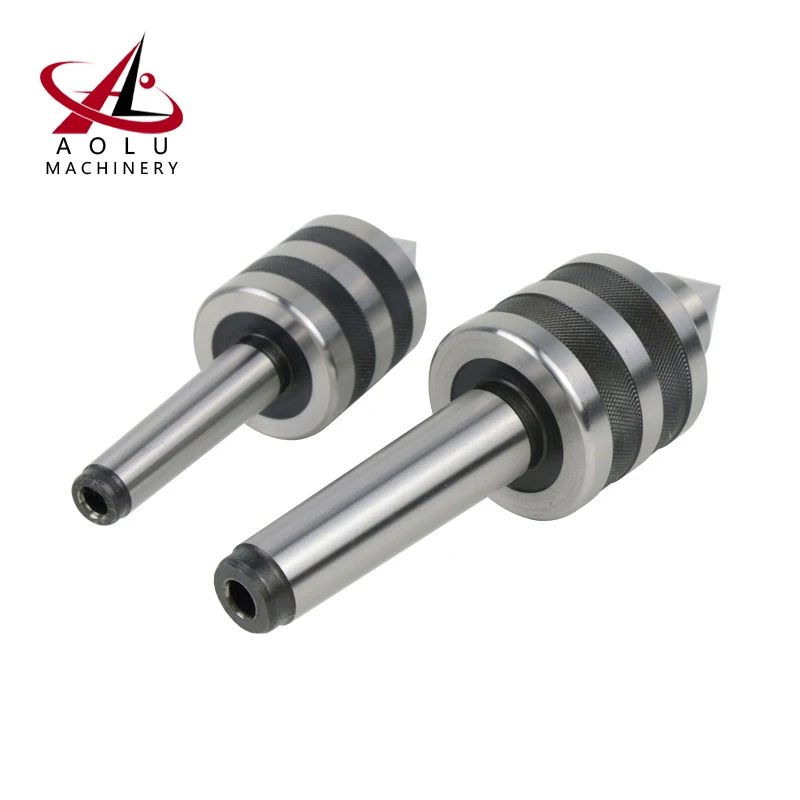

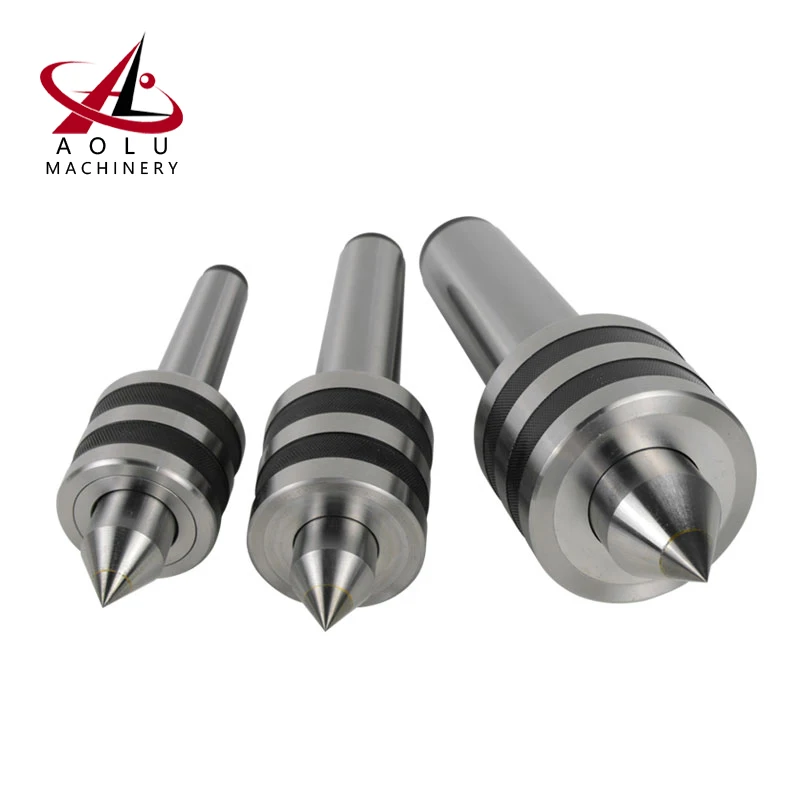

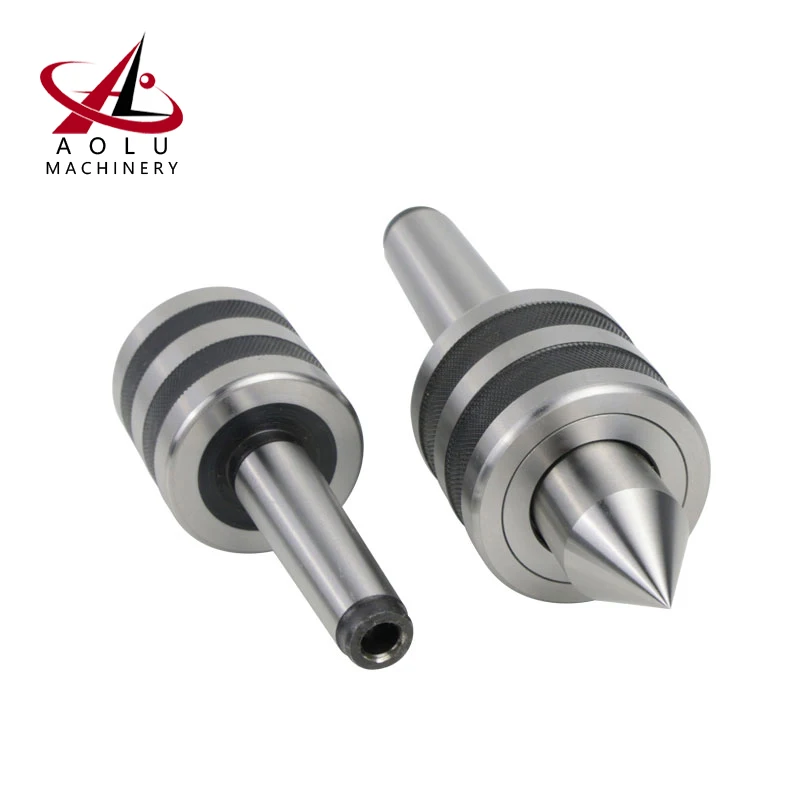

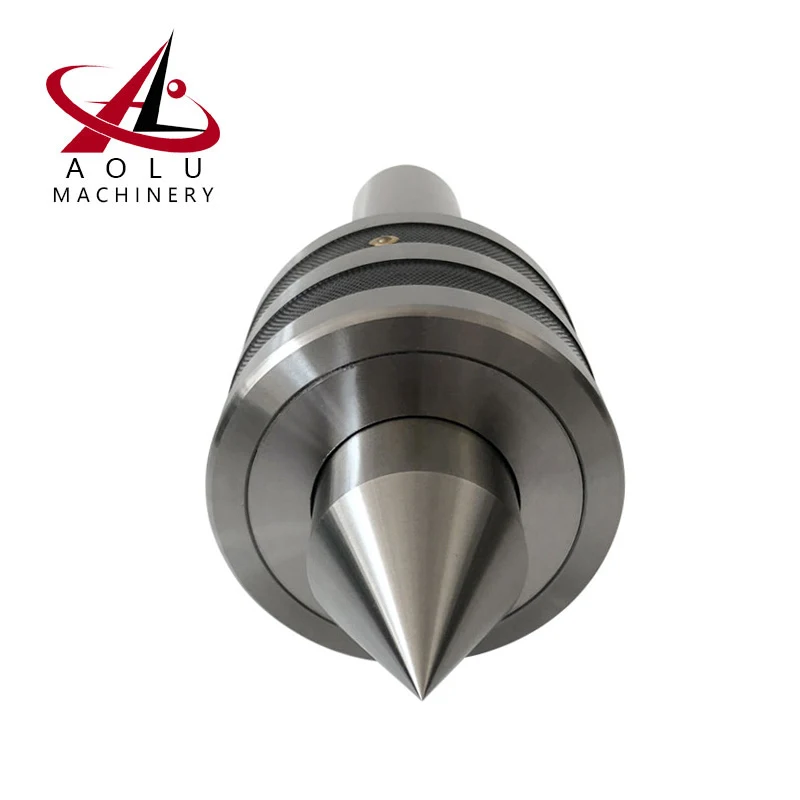

Высокоскоростной токарный станок MT4 средней грузоподъемности
- Category: >>>
- Supplier: Shandong Aolu Machinery Co. Ltd.
Share on (1600929659459):
Product Overview
Description
Specification

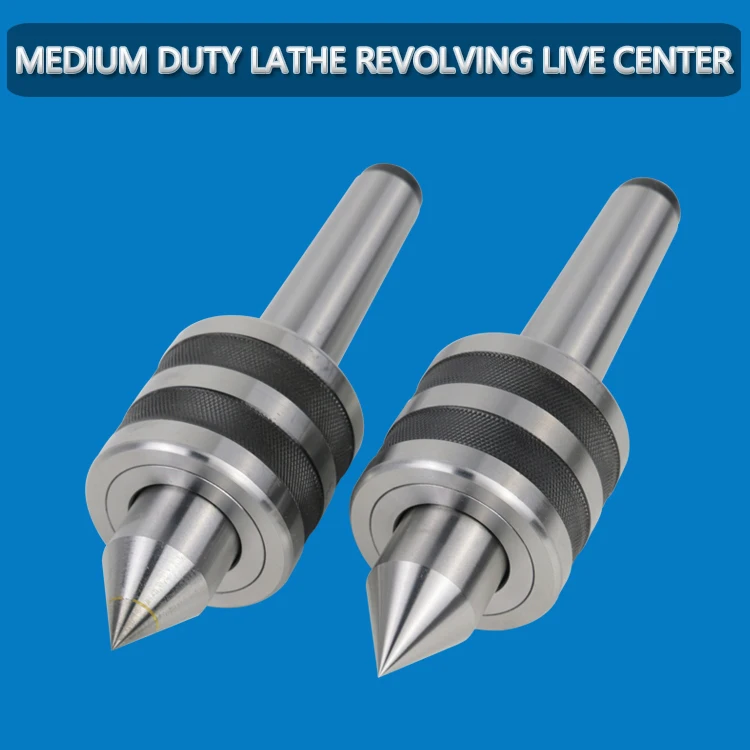

Product name | Medium Duty Lathe Revolving Live Center |
Model | MT1/MT2/MT3/MT4/MT5/MT6-60° |
Brand | ZHENGDING |

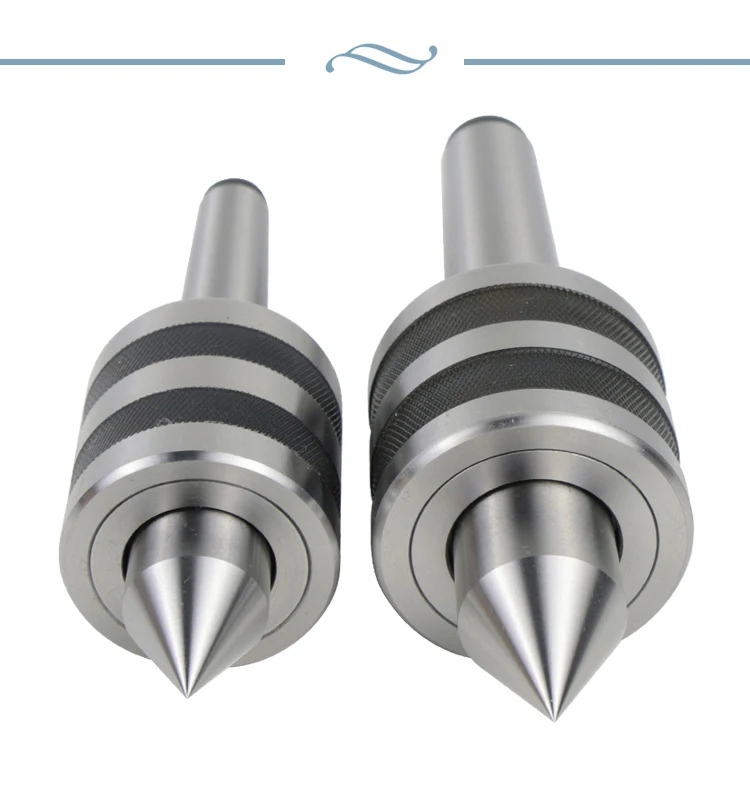

Made of premium steel material, the live center is of
strong hardness, high precision and long durability.
It is applicable to special lathe in the medium speed
of the medium load processing.The top adopts deep groove ball bearing and thrust ball bearing combination
strong hardness, high precision and long durability.
It is applicable to special lathe in the medium speed
of the medium load processing.The top adopts deep groove ball bearing and thrust ball bearing combination
The front end has a dustproof seal to prevent cutting
fluid and dust from entering the bearing.
fluid and dust from entering the bearing.

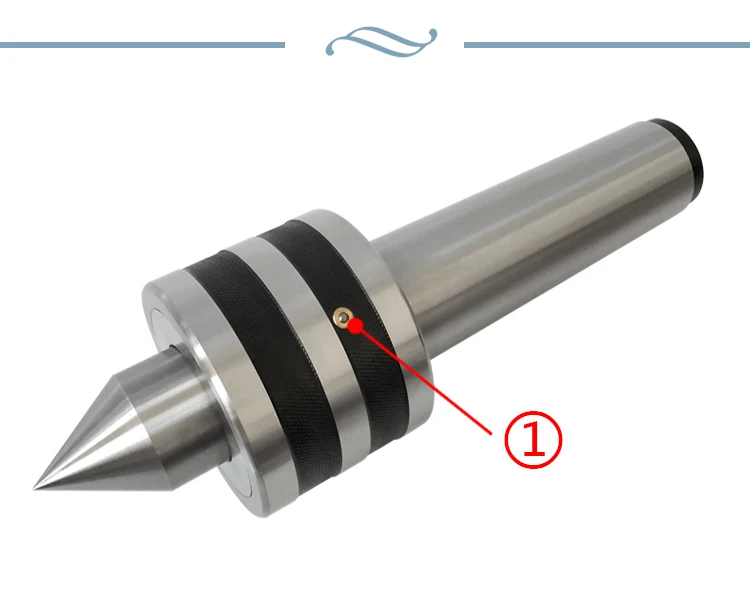

Oil hole

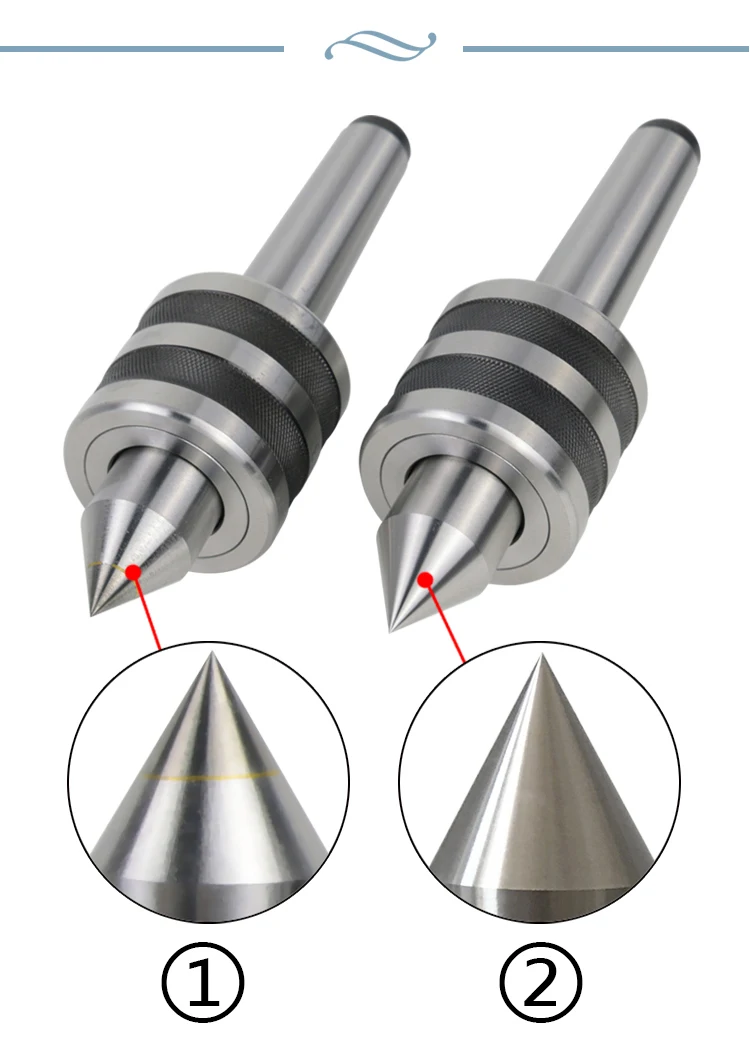

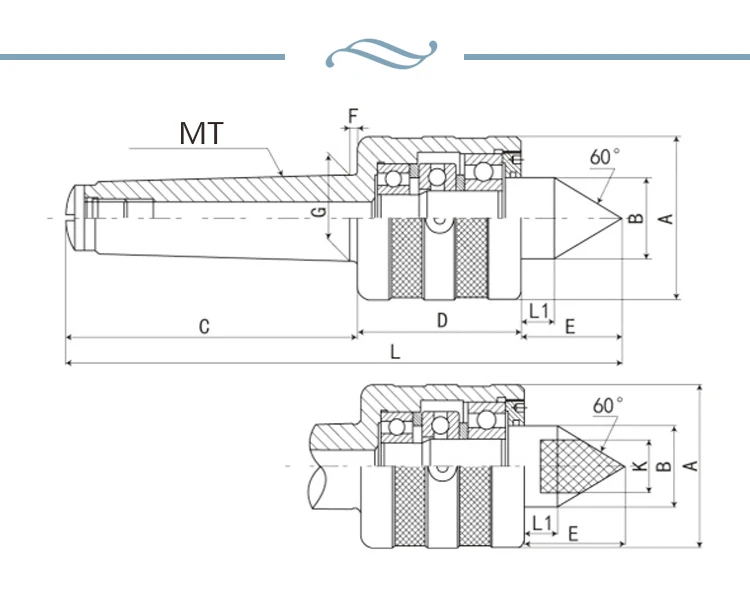

①alloy head ②without alloy head
Size | L | L1 | A | B | C | D | E | F | G |
MT1-60° | 127 | 9 | 34 | 19 | 57 | 44 | 26 | 5 | 12.065 |
MT1-F108-60° | 127 | 9 | 34 | 19 | 57 | 44 | 26 | 5 | 12.065 |
MT2-60° | 154 | 10 | 45 | 22 | 69 | 56 | 29 | 5 | 17.78 |
MT2-F108-60° | 154 | 10 | 45 | 22 | 69 | 56 | 29 | 5 | 17.78 |
MT3-60° | 185 | 16 | 52 | 27 | 86 | 60 | 39 | 5 | 23.825 |
MT3-F112-60° | 185 | 16 | 52 | 27 | 86 | 60 | 39 | 5 | 23.825 |
MT4-60° | 222 | 18 | 60 | 31 | 109 | 68 | 45 | 6 | 31.267 |
MT4-F115-60° | 222 | 18 | 60 | 31 | 109 | 68 | 45 | 6 | 31.267 |
MT5-60° | 266 | 20 | 77 | 35 | 136 | 80 | 50 | 6 | 44.399 |
MT5-F118-60° | 266 | 20 | 77 | 35 | 136 | 80 | 50 | 6 | 44.399 |
MT6-60° | 378 | 25 | 125 | 57 | 190 | 113 | 75 | 8 | 63.348 |
MT6-F124-60° | 378 | 25 | 125 | 57 | 190 | 113 | 75 | 8 | 63.348 |
