Product Overview
Description

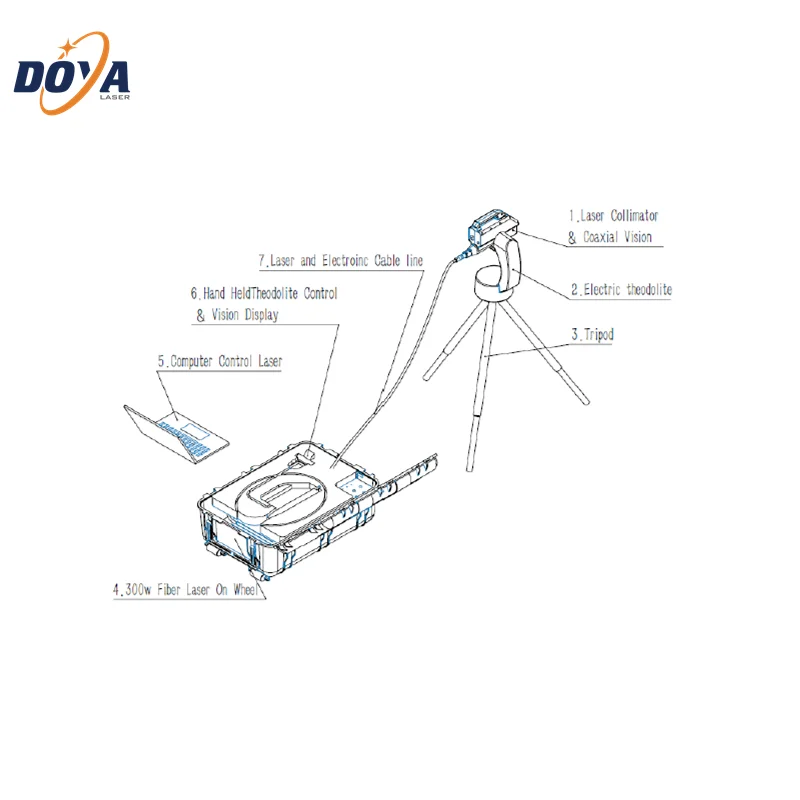

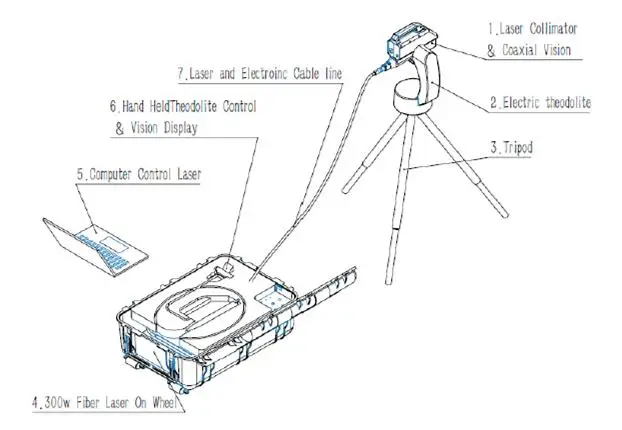

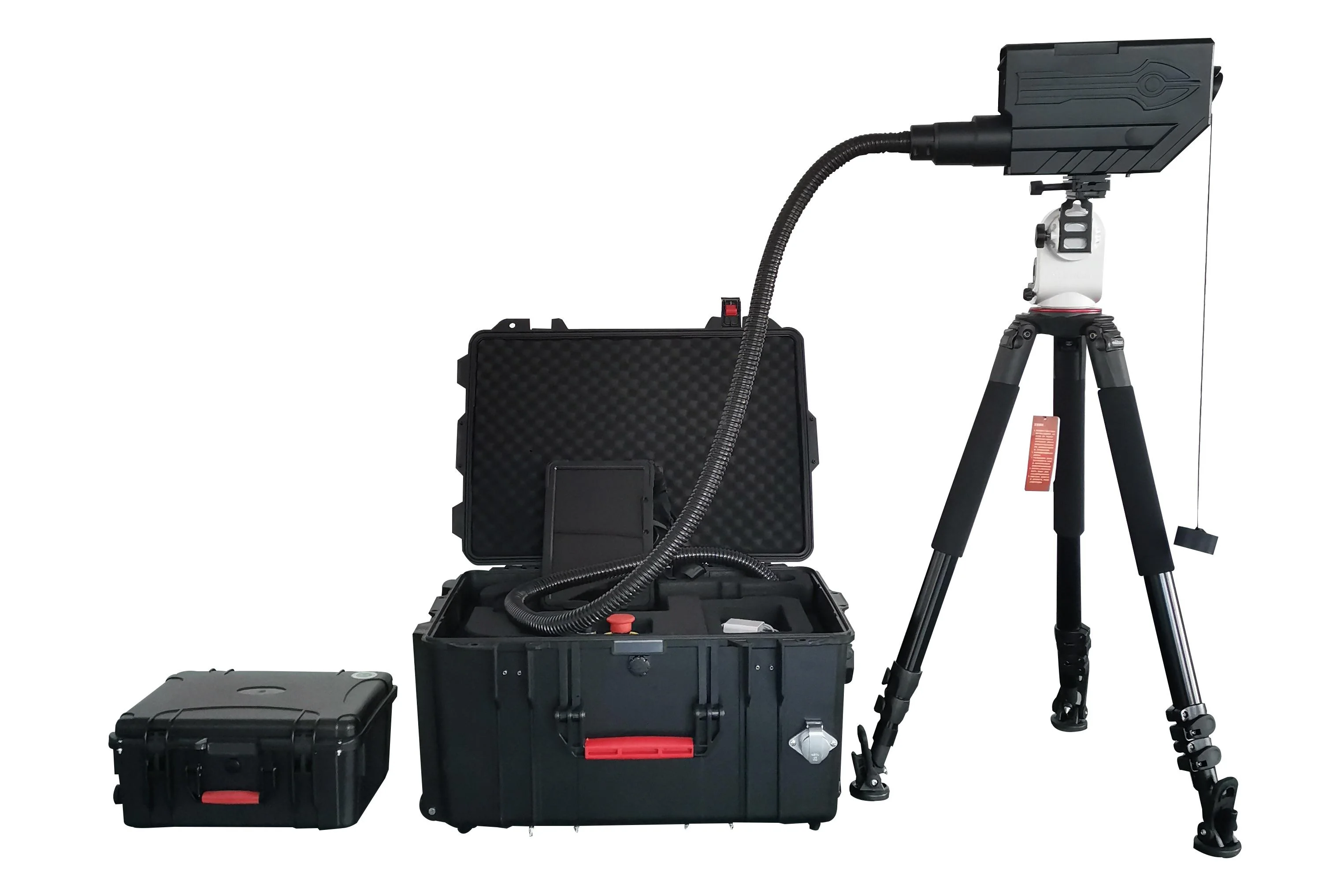

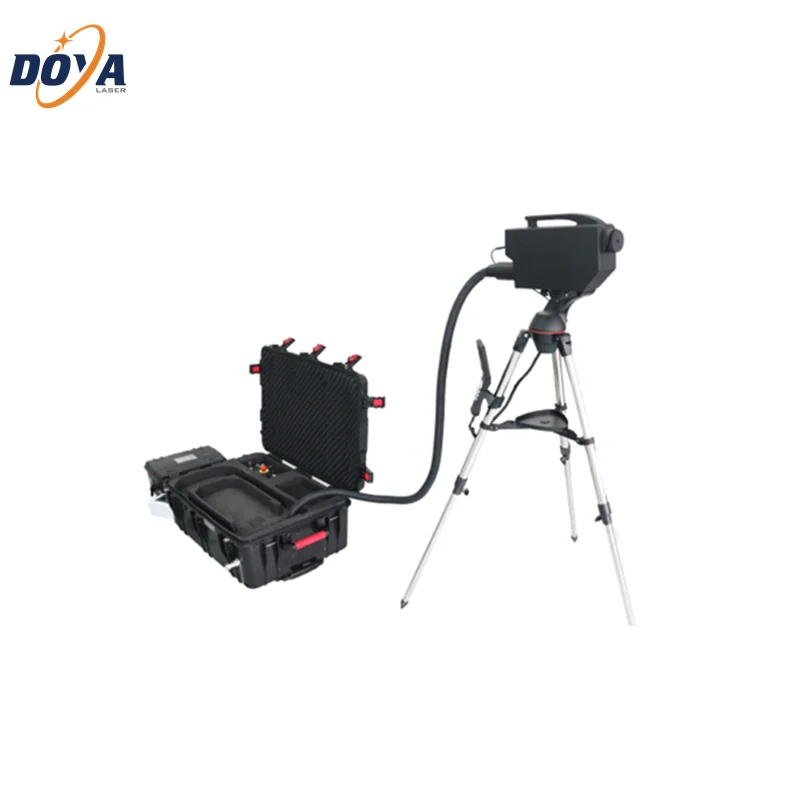

Smart Laser Obstacle Remover Device
1. This product collimates the light emitted by the fiber laser and can work effectively over a long distance.
2. Supporting mobile power supply operation, portable trolley case design, convenient for outdoor work.
3. Adopting visual coaxial or green light-assisted aiming methods and equipped with high-precision electric pantilts to quickly aim at the target.
4. Independently designed operating system, which can be customized for customers and has diversified operating
function.
function.
5. Equipped with high-power lenses, it can emit light stably for a long time.
6. Ultra-large-aperture lens can be customized according to customer requirements to achieve longer distance and
smaller spot.
Laser power: 300W 500W 1000Wsmaller spot.

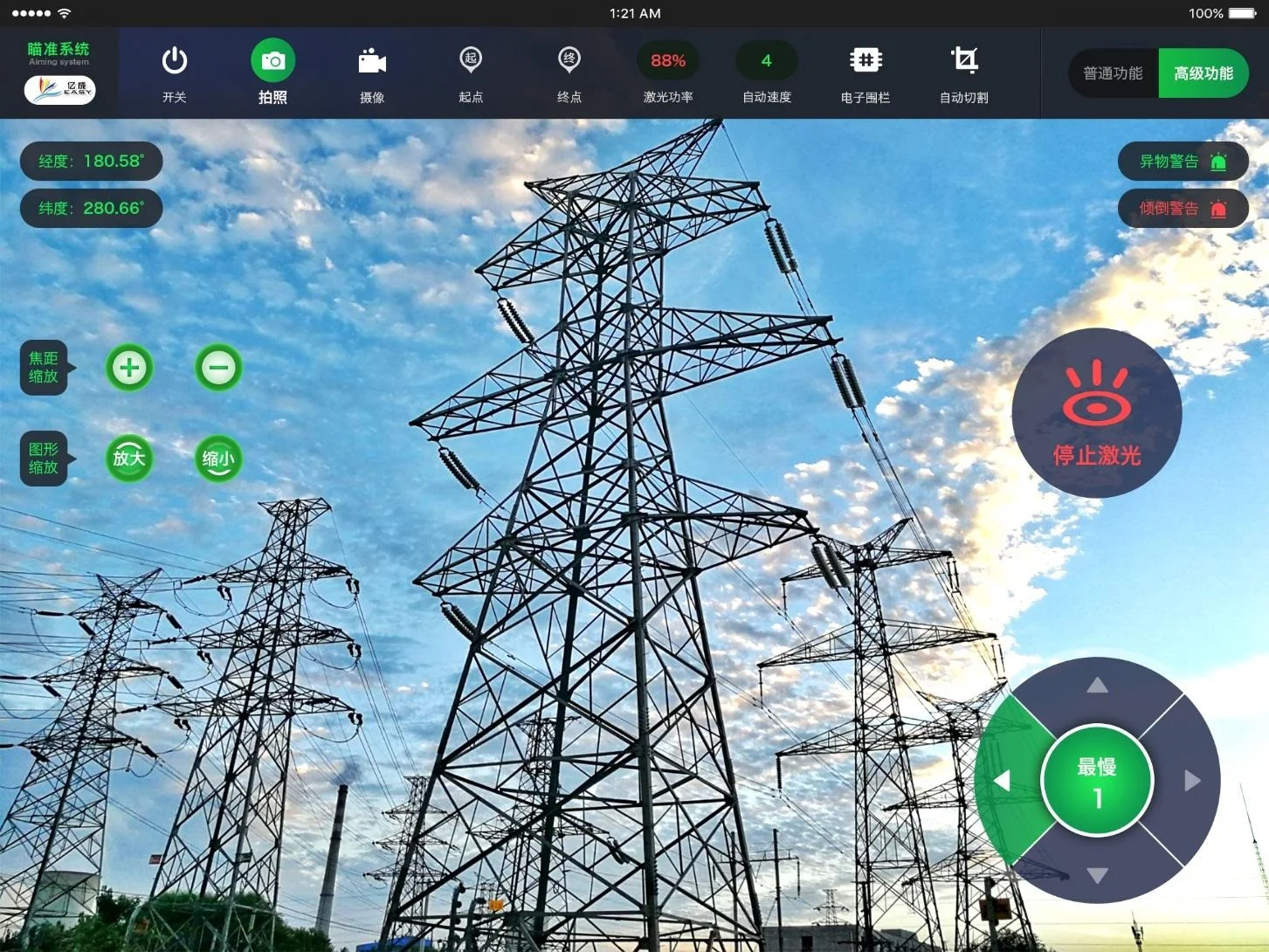

Basic software functions
1. With automatic cutting function: editable cutting path and cutting speed, intelligent operation to remove foreign matter.
2. With electronic fence function: editable electronic fence area, when the laser moves into the fence, it can automatically turn off the light.
3. Equipped with crosshair calibration function: the position of the crosshair can be quickly adjusted for convenient and precise operation.
4. With continuous power setting function: 10 levels of laser output power are optional, precise control of light output.
5. It has the function of setting the speed gear of the pan/tilt: 9 speeds of the pan/tilt can be adjusted for precise aiming.
6. It has the function of video recording and taking pictures: it can monitor the operation process and realize visual security.
7. With dumping protection function: when the device is dumped, it will automatically turn off the light.
8. With foreign object intrusion alarm function: when there are dangerous objects such as people within 10 meters in front of the device, it can automatically turn off the light.
5. It has the function of setting the speed gear of the pan/tilt: 9 speeds of the pan/tilt can be adjusted for precise aiming.
6. It has the function of video recording and taking pictures: it can monitor the operation process and realize visual security.
7. With dumping protection function: when the device is dumped, it will automatically turn off the light.
8. With foreign object intrusion alarm function: when there are dangerous objects such as people within 10 meters in front of the device, it can automatically turn off the light.
Advanced software features (optional)
1. With remote control function: operators need to be authorized by remote personnel to carry out operations.
2. With laser ranging function: it can accurately display the distance between the device and the target on the operation panel.
3. With laser automatic zoom function: the laser spot size at different distances can be automatically adjusted according to different distance values.
Product Number | 300W laser foreign body removal machine | 500W laser foreign body removal machine | 1000W laser foreign body removal machine |
Output Power | 0-360W continuously adjustable | 0-510W continuously adjustable | 0-1020W continuously adjustable |
Equipment Size | Outside: 613*460*320mm | Outside: 613*460*320mm | Outside: 815*5400*315mm |
Main chassis equipment weight | ≤ 33KG | ≤ 35KG | ≤ 50KG |
Protection class | IP65 | IP65 | IP65 |
Power requirements | DC24V 1500W | DC24V 1500W | DC48V 4000W |
Aiming method | Coaxial vision with built-in crosshair | Coaxial vision with built-in crosshair | Coaxial vision with built-in crosshair |
Camera resolution | 2K | 2K | 2K |
Camera magnification | 30x optical zoom + 10x digital zoom | 30x optical zoom + 10x digital zoom | 36x optical zoom + 10x digital zoom |
Working distance | 1-350 meters | 1-500 meters | 1-600 meters |
Security measures | Remote authorization + human body sensing + fingerprint unlocking + AI face recognition | Remote authorization + human body sensing + fingerprint unlocking + AI face recognition | Remote authorization + human body sensing + fingerprint unlocking + AI face recognition |

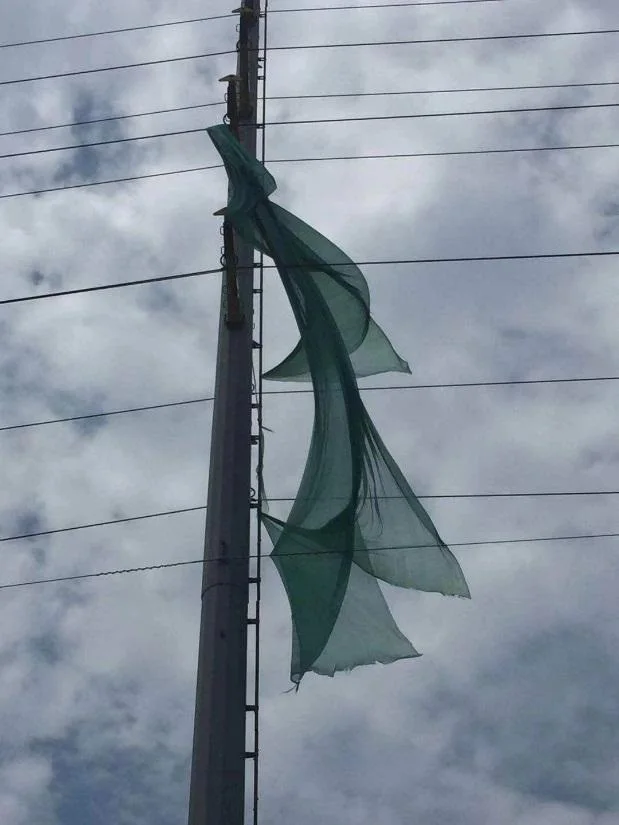

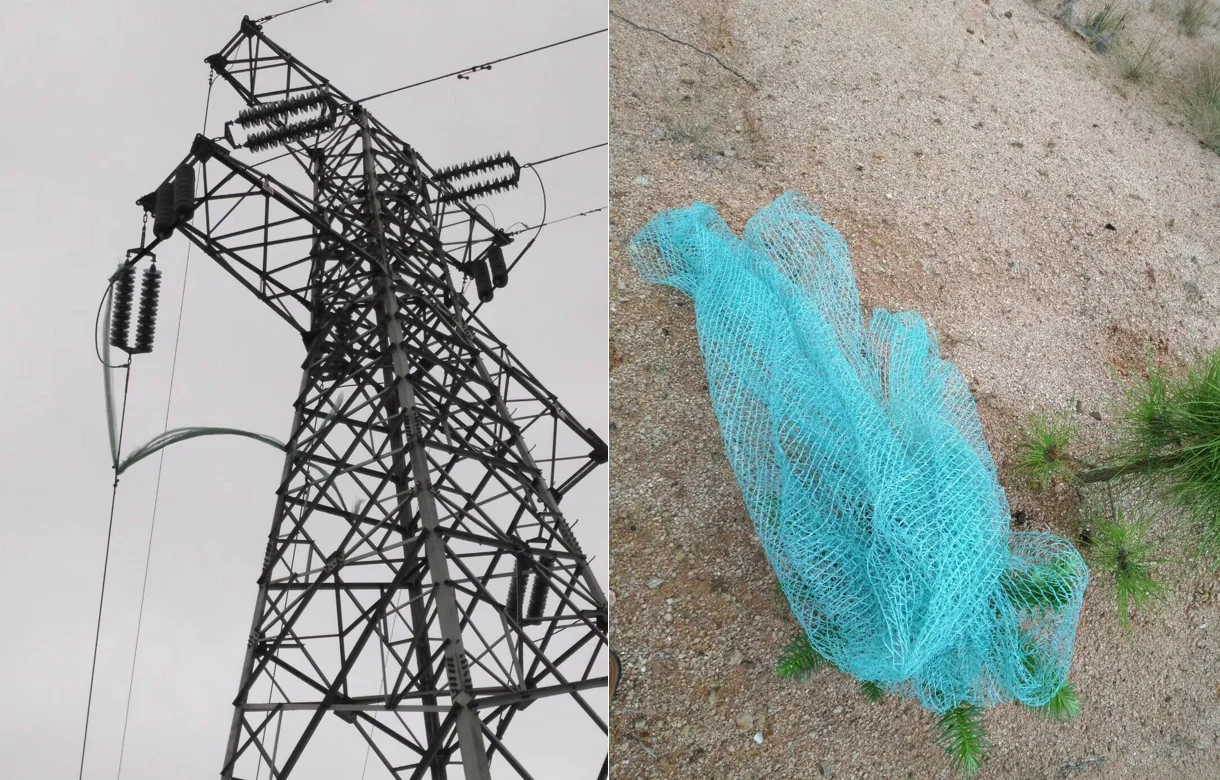

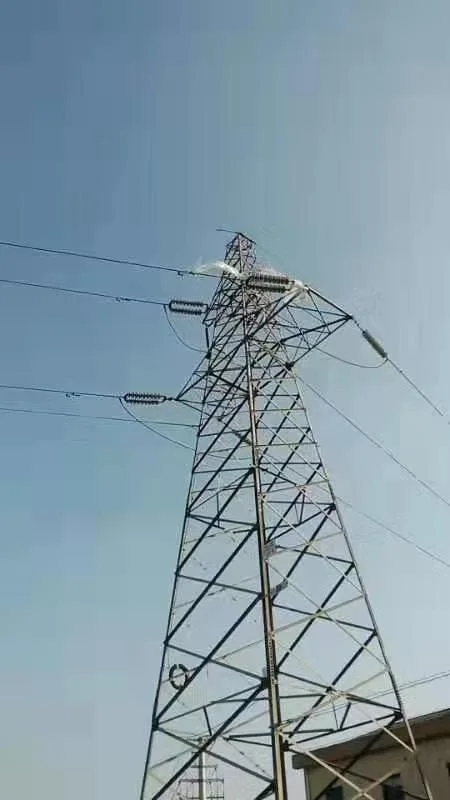

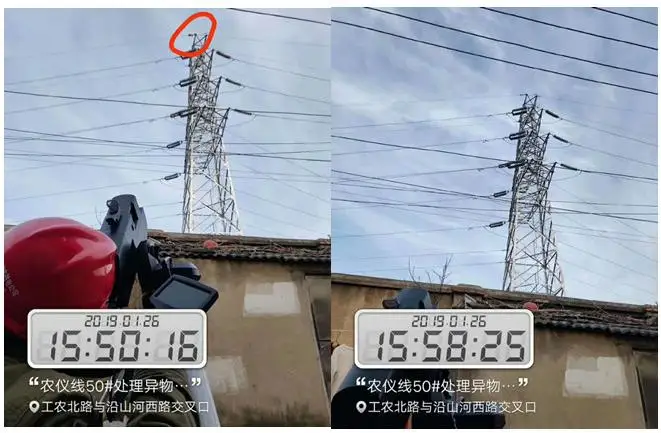

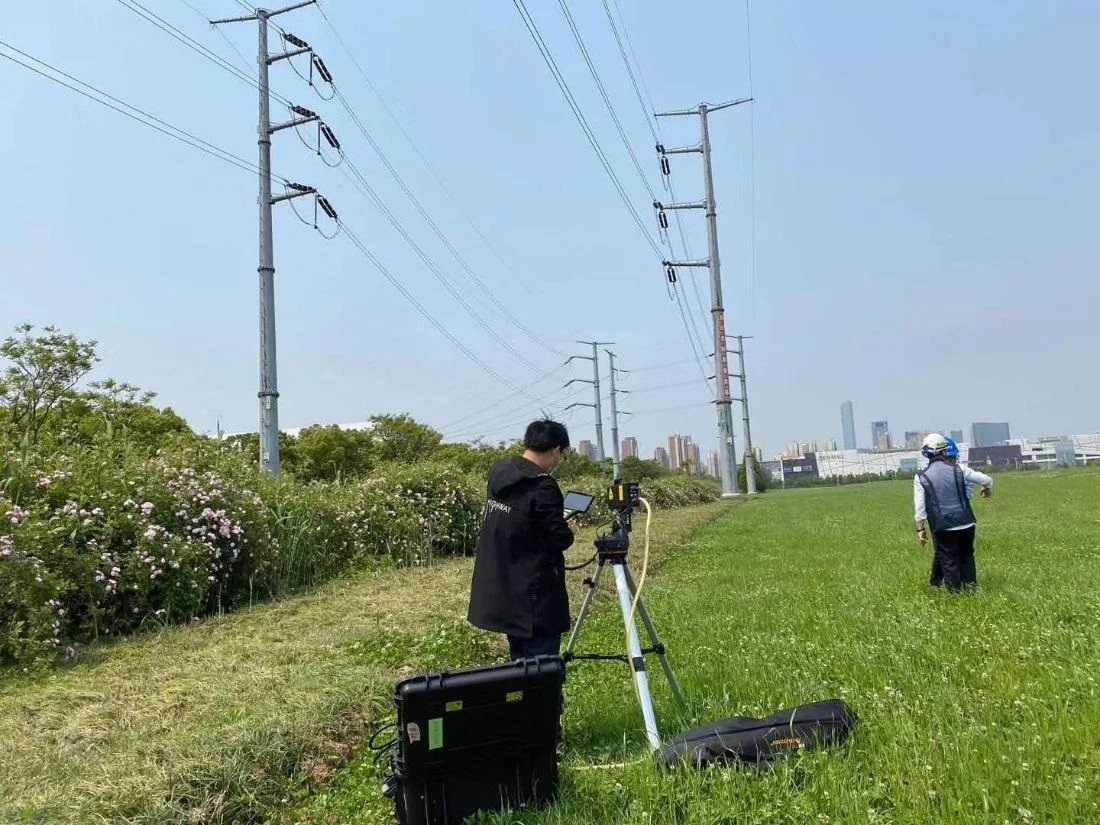

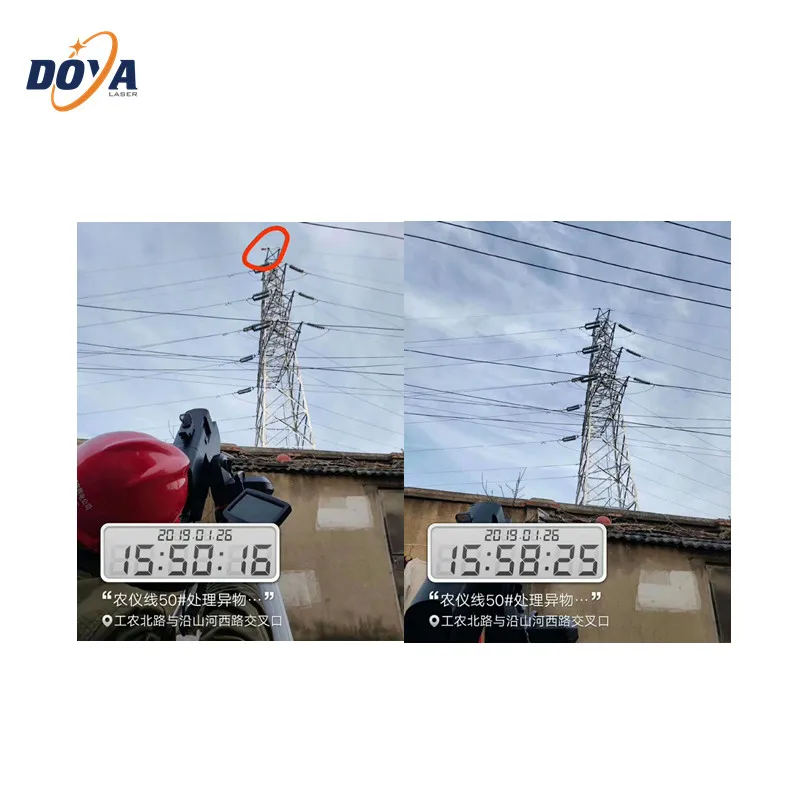

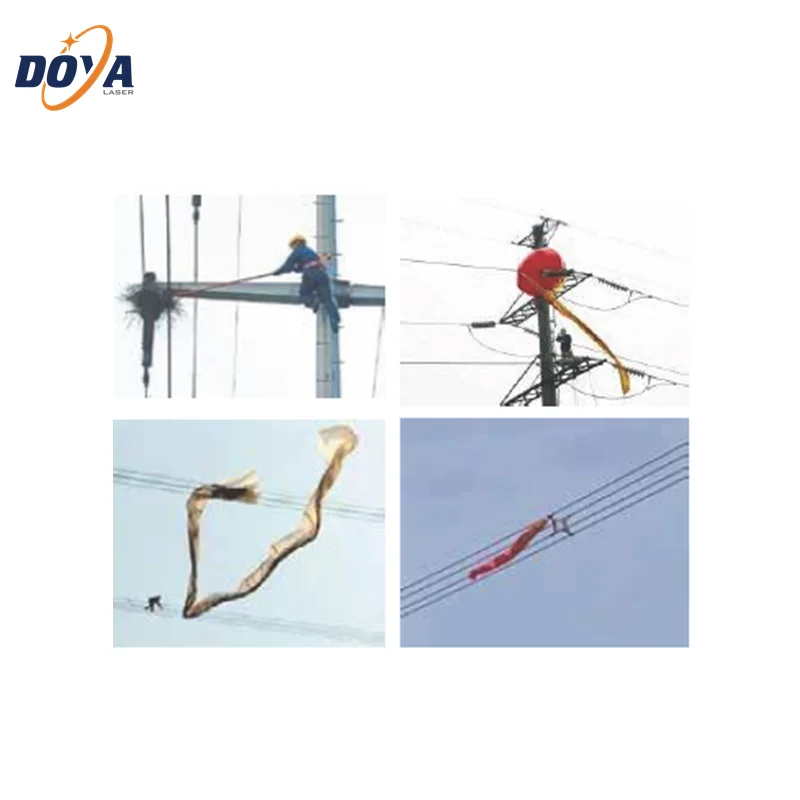

1. Removal of non-metallic obstacles such as kites, balloons, advertising cloth, bird nests, trees, etc on the high-voltage line of the power grid.
2. Railway line maintenance, for the removal of some foreign objects.
3. Defensive security, EOD, police anti-terrorism, anti-drone and other operations.
4. Emerging applications such as laser deicing and remote charging.
After-sales service & Customer visiting:
1.Two years for laser source, one year for other spare parts free and longtime maintenance;
2.Plenty of technical support online is available;
3.Quick Back-up PartsAvailable&Technical Assistance;
4."Training Video","Instruction Book",and"Operation Manual"will be offered;

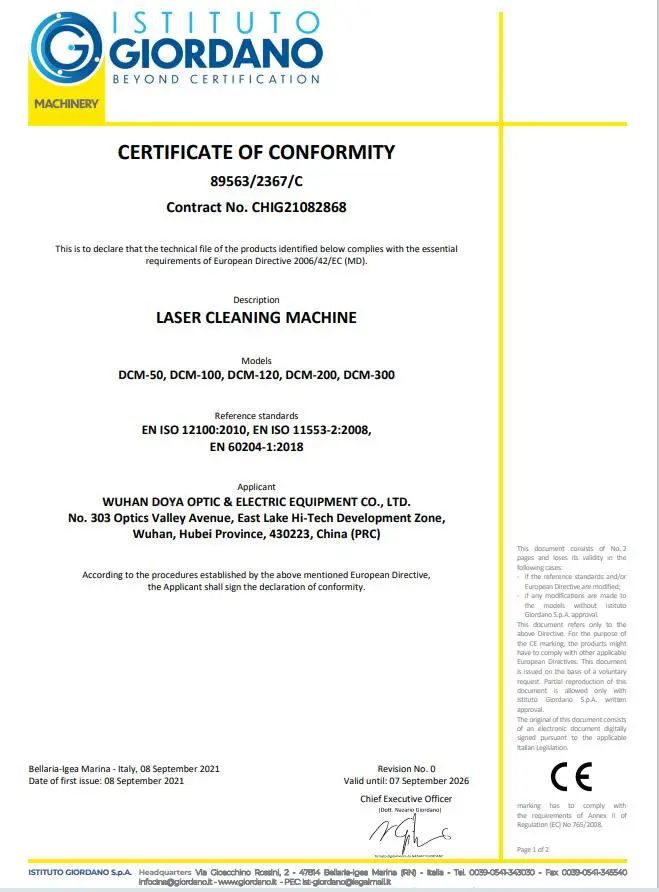

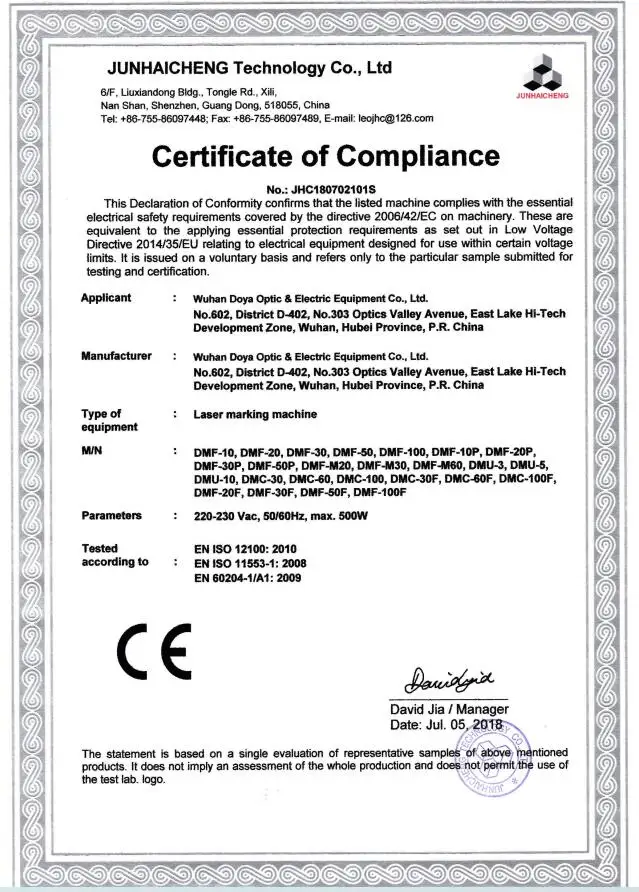

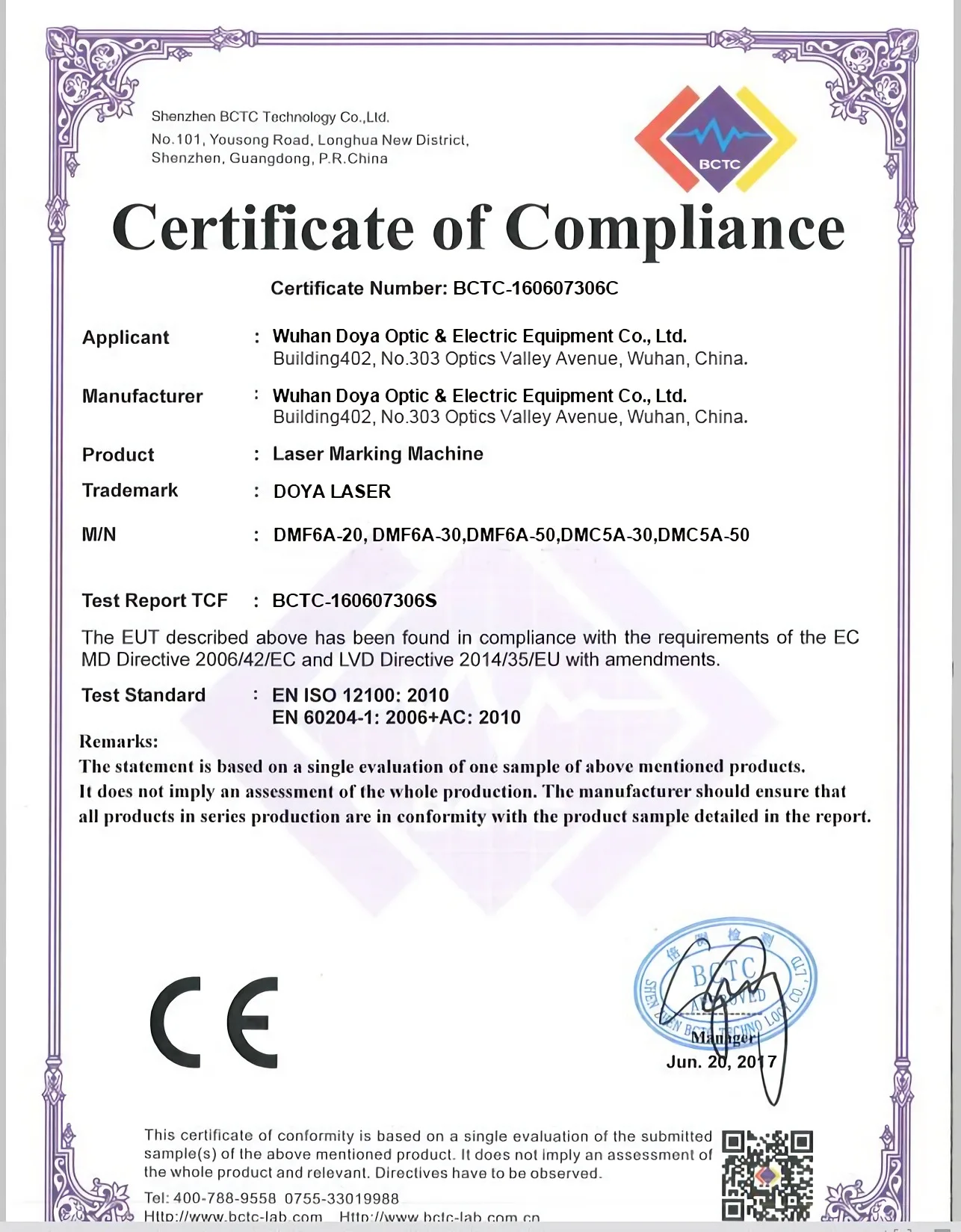

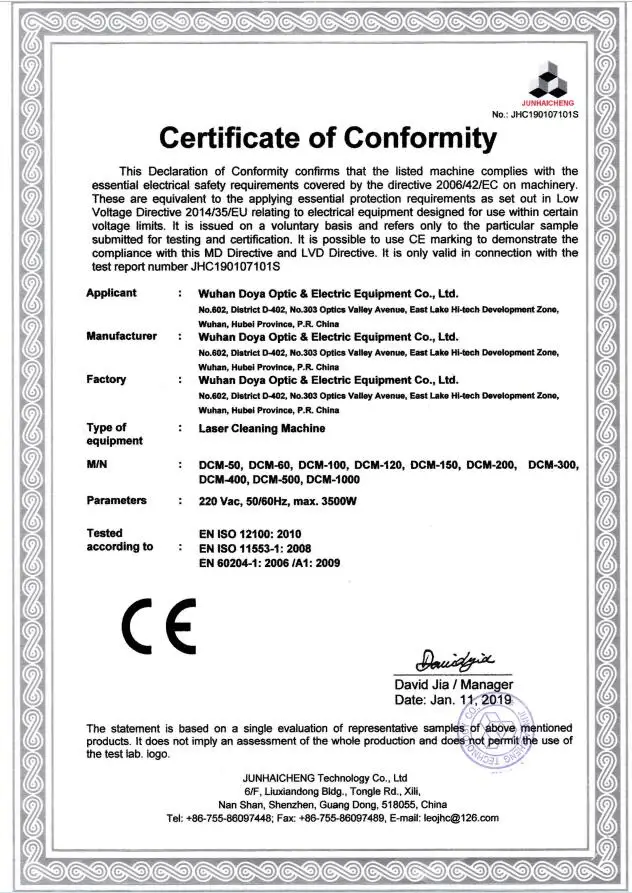

All machines, passed the European Union CE authentication and American Certification.
According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of the products during transportation.
