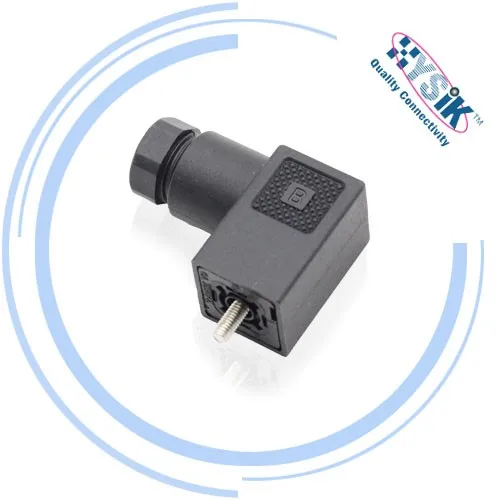

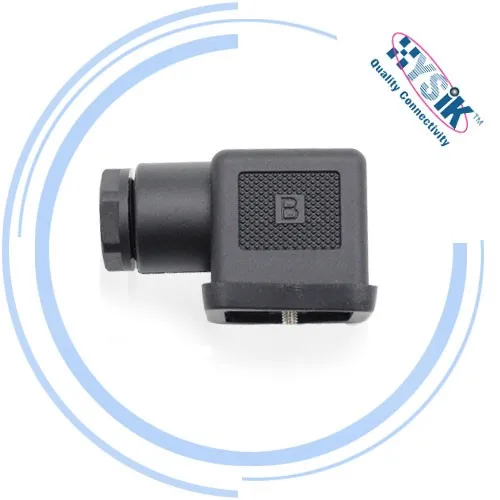

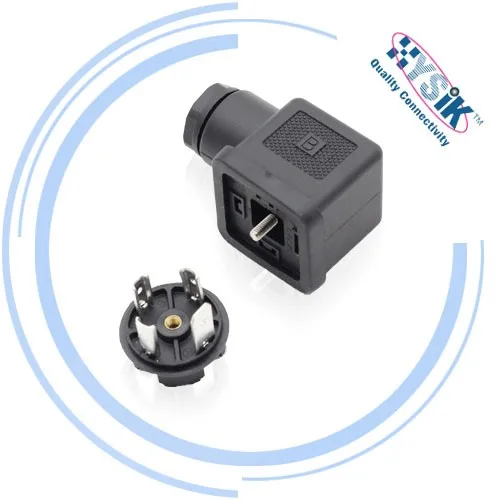

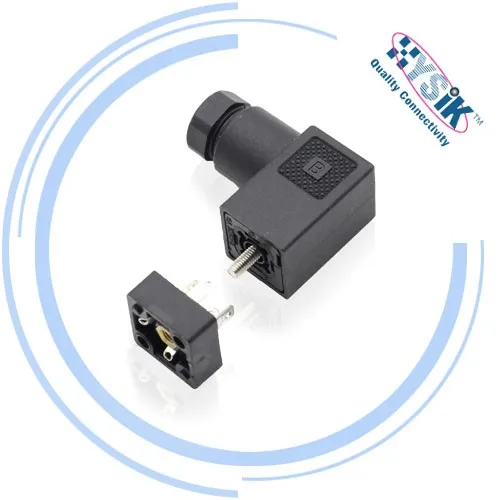

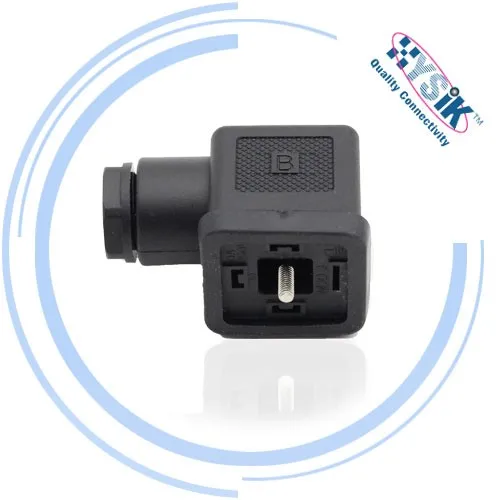

DIN 43650 Form A solenoid connectors 2 PE 3 PE for PG9 gland for cable 6 8mm connector
- Category: >>>
- Supplier: Shenzhen Hysik Electronics Co. Ltd.
Share on (1600929706182):
Product Overview
Description
Product Description
ProfiBus field wireable sensor connectors for electromagnetic actuators and sensors,
Poles: 2+PE,3+PE
Connector Nut:stainless steel
Connector Gender: Male, Female Working Current/Voltage:24VDC-4A or 220V AC-4A
Standard:EN175301-803
Waterproof Rating:IP67, IP68,IP69K
Poles: 2+PE,3+PE
Connector Nut:stainless steel
Connector Gender: Male, Female Working Current/Voltage:24VDC-4A or 220V AC-4A
Standard:EN175301-803
Waterproof Rating:IP67, IP68,IP69K
Specification

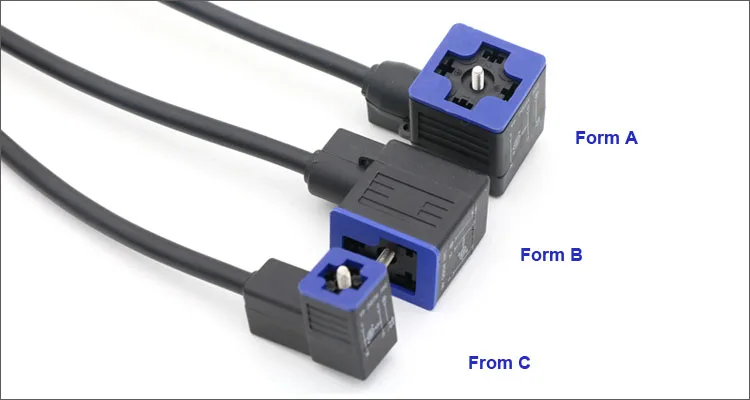

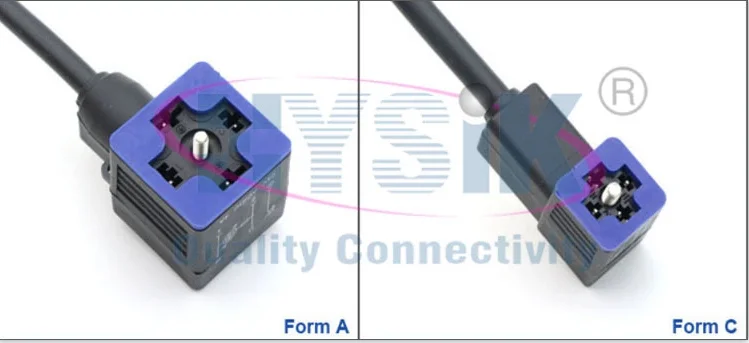

DIN 43650 FORM A - FORM B - FORM C - SOLENOID VALVE CONNECTORS

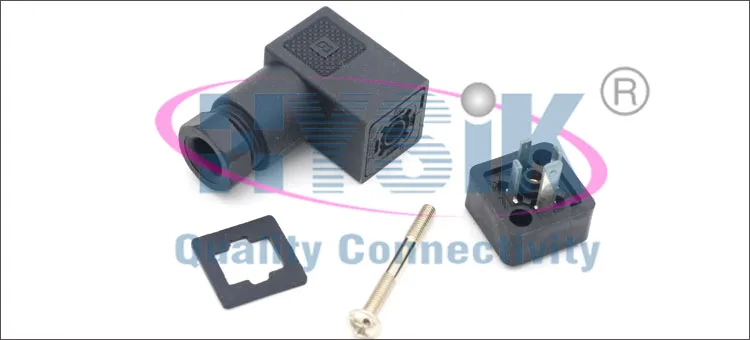

Din43650 form A male 2 3 poles+ground panel mount connector,solder termination and incudes center retaining nut,incudes M3x10mm
screw and M3 x 5mm screw
DIN 43650 connectors are a series of connectors which are used with solenoid valves. The Din 43650 connectors are normally used in
Din43650 form A male 2 3 poles+ground panel mount connector,solder termination and incudes center retaining nut,incudes M3x10mm
screw and M3 x 5mm screw
DIN 43650 connectors are a series of connectors which are used with solenoid valves. The Din 43650 connectors are normally used in
hydraulics and pneumatics. Other applications are pressure sensors and switches, optical, limit and proximity switches.
Solenoid valve connectors are manufactured in the standard varieties as well as they can be cutomized to customer specifications.
Valve Electrical Data:
Rated current: 8A / 10A
Rated voltag: 24V / 250V
Contact resistance: ≤4mΩ
Insulation resistance: ≥100MΩ

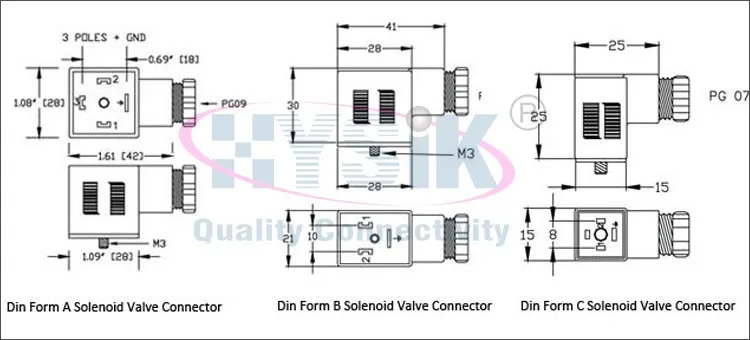

Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm /10mm/11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Waterproof: O-ring FKM
Protection:IP68/IP69K
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils
Led indication with different color(Yellow/Gray/Red...),Cable be customized.
Solenoid valve connectors are manufactured in the standard varieties as well as they can be cutomized to customer specifications.
Valve Electrical Data:
Rated current: 8A / 10A
Rated voltag: 24V / 250V
Contact resistance: ≤4mΩ
Insulation resistance: ≥100MΩ
Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm /10mm/11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Waterproof: O-ring FKM
Protection:IP68/IP69K
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils
Led indication with different color(Yellow/Gray/Red...),Cable be customized.
Primary Type | Valve |
Product Header | A-Style Valve Connector |
Special Features | LED |
Type | Cable Socket |
Operating Temperature | 105 degree |
Contact Configuration | 3+Gnd |

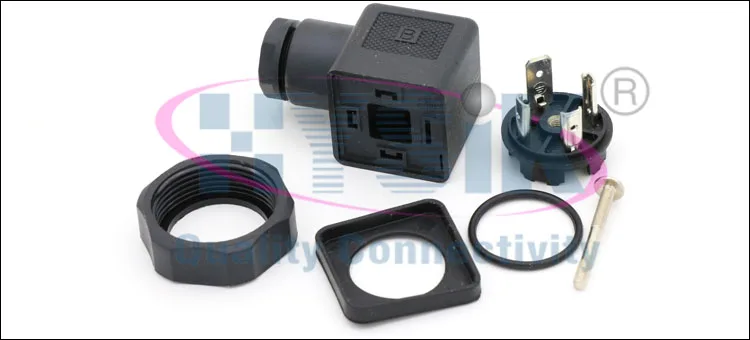

Details Images
Packing & Delivery
Packing:5pcs packing in a sealing bag then put in a inner box,or according to Customer's Request.
Delivery:We can not ship out on weekend or China's Holiday.
Shipping:5-7days after received the payment.
Payment Methods:
1:T/T , PAYPAL , L/C , Western Union
2:Trade Assurance on Alibaba.com
Delivery:We can not ship out on weekend or China's Holiday.
Shipping:5-7days after received the payment.
Payment Methods:
1:T/T , PAYPAL , L/C , Western Union
2:Trade Assurance on Alibaba.com

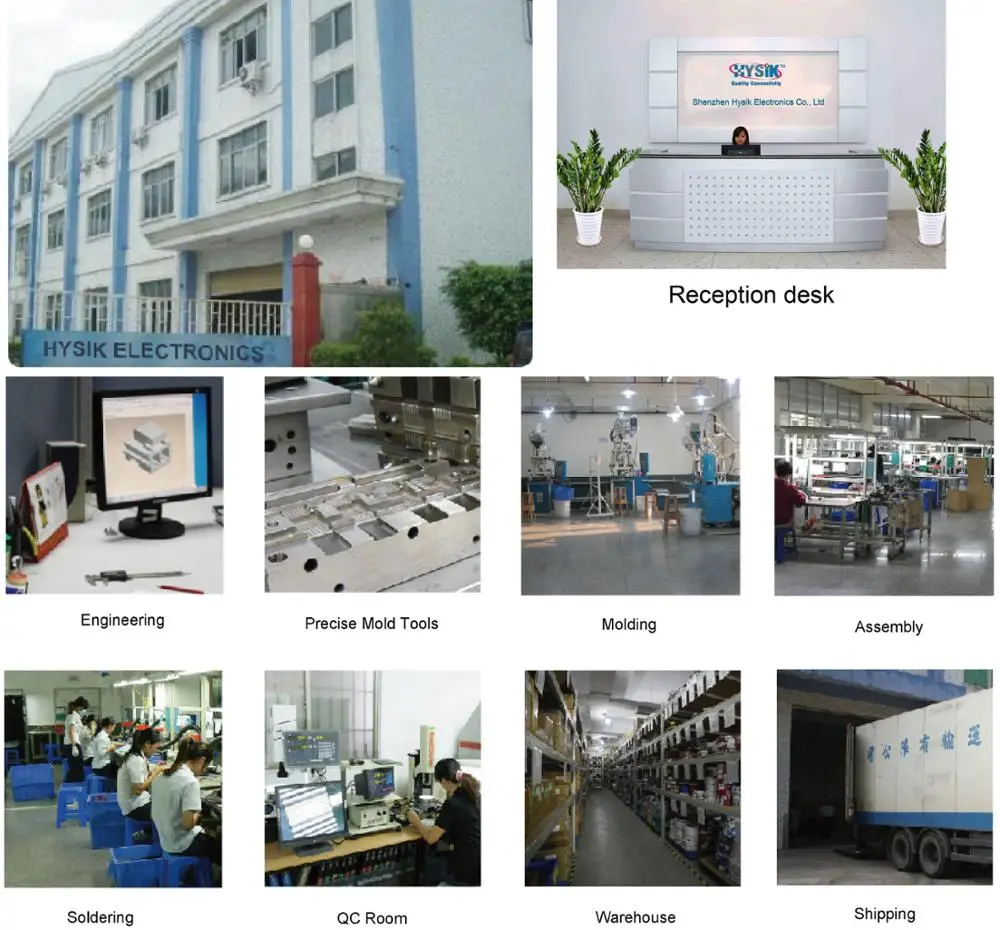

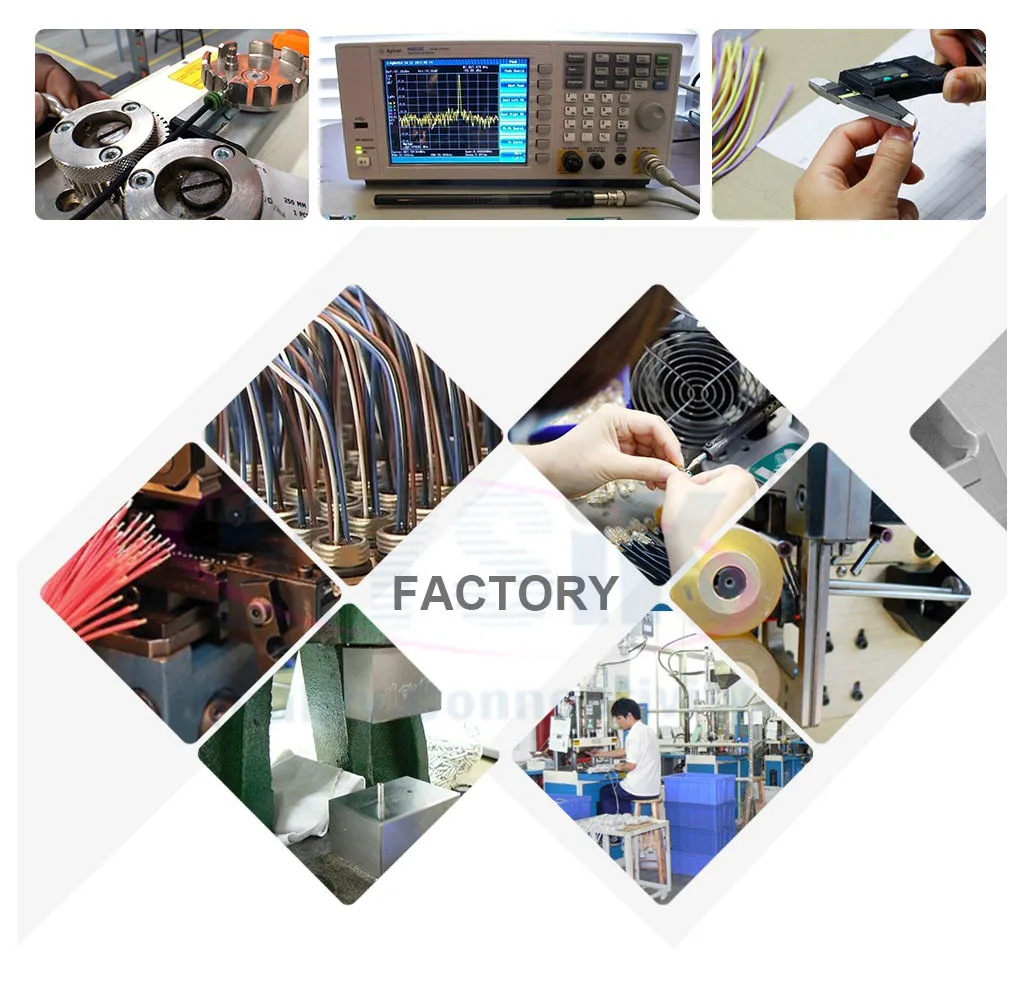

Company Profile
