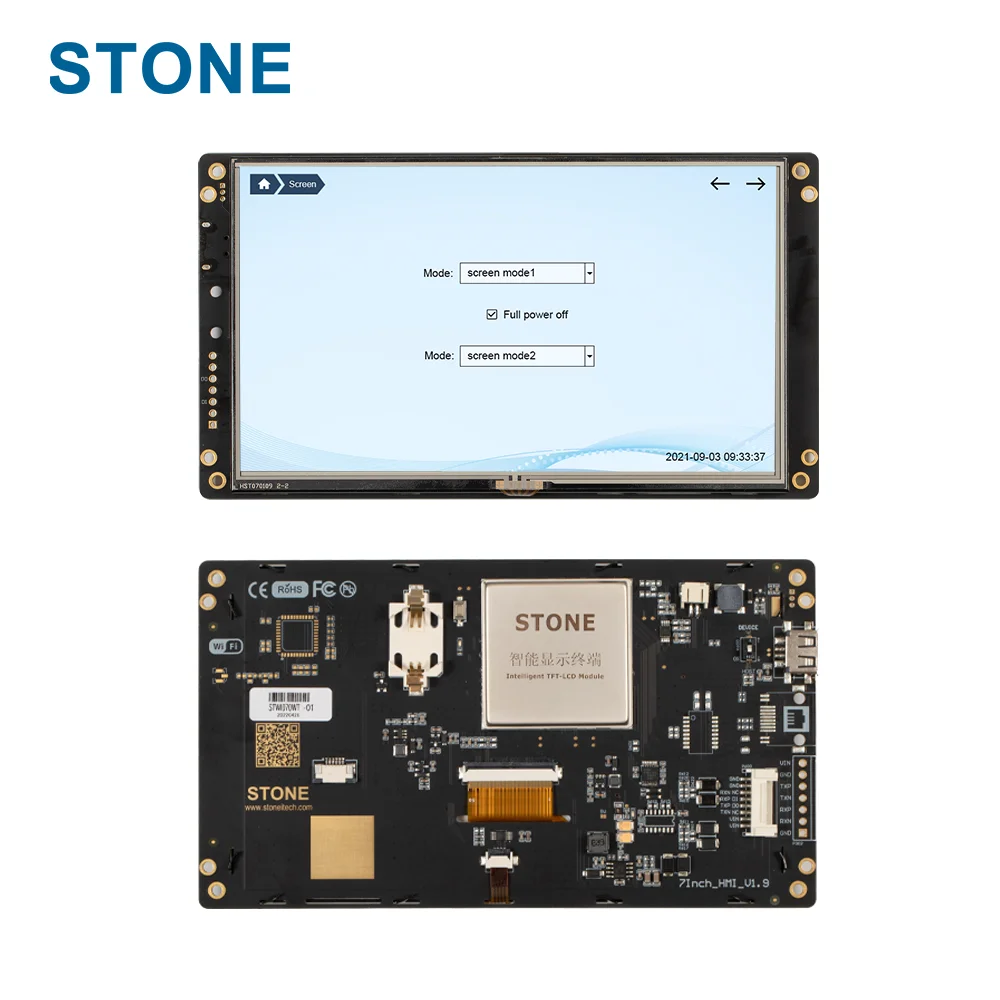

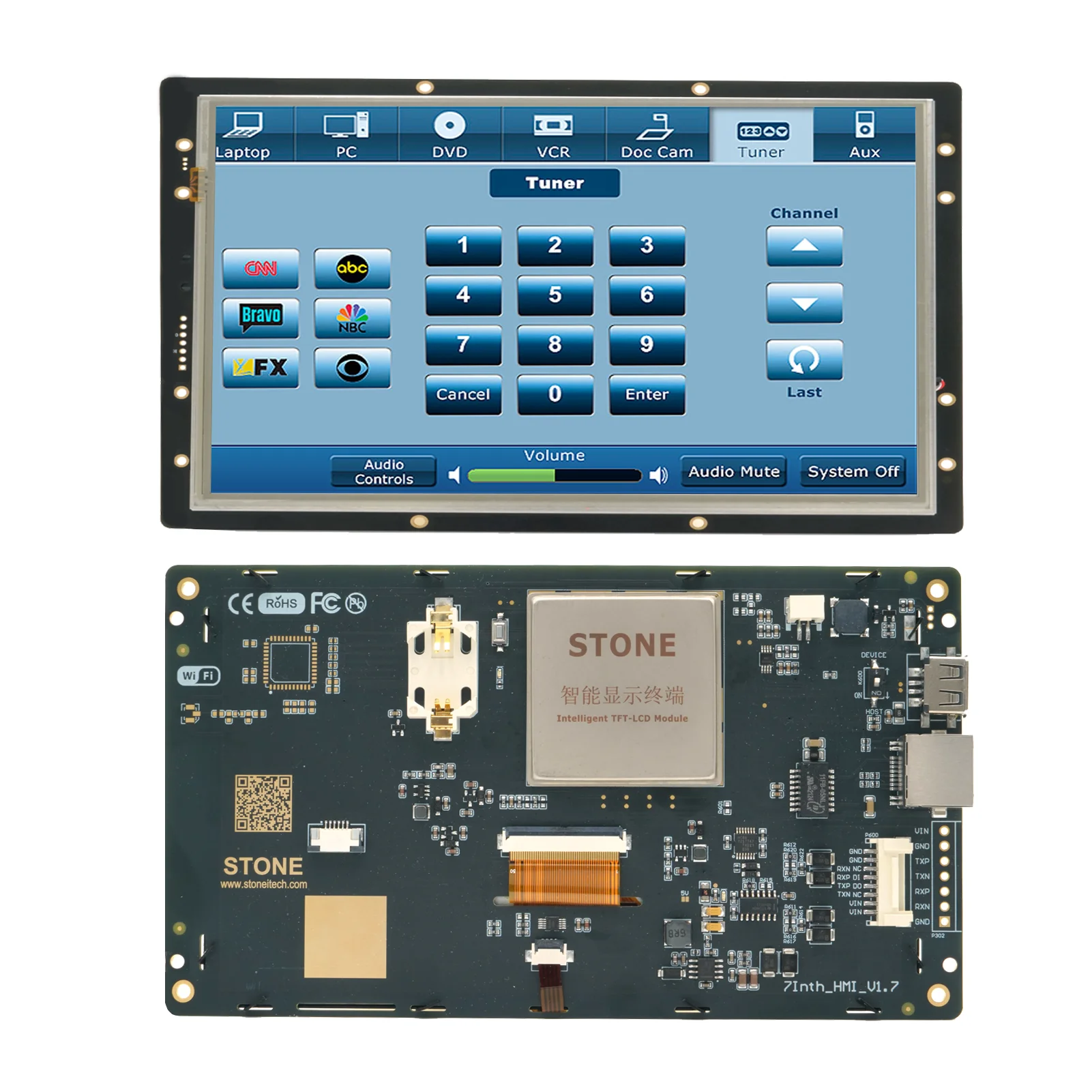

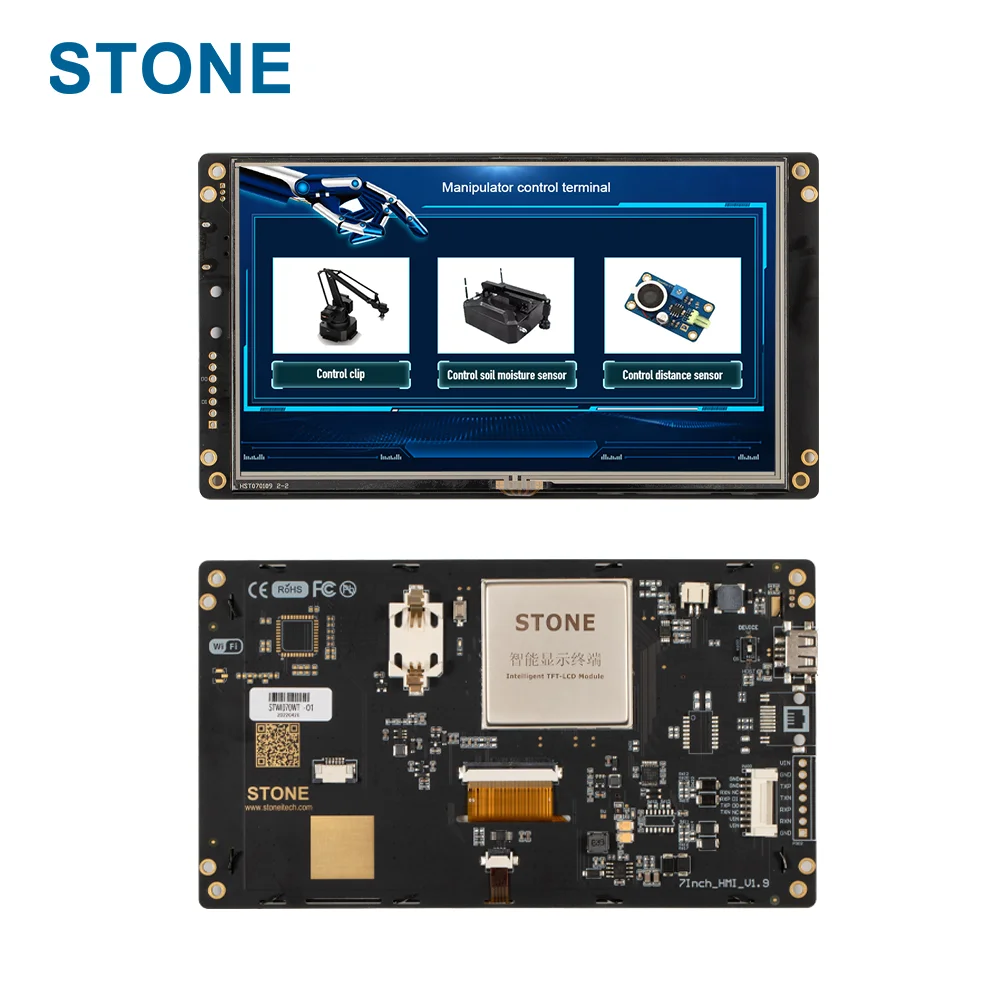

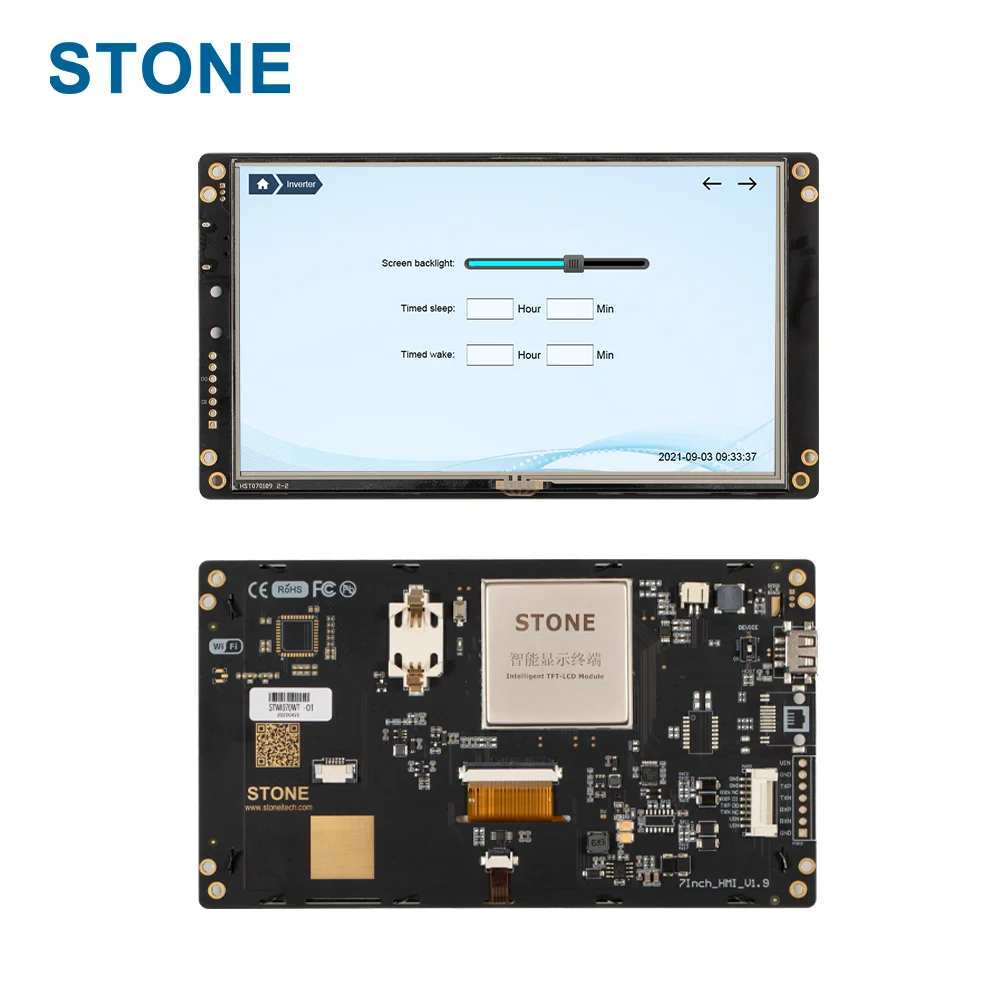

STONE 7 inch hmi touch panel tft lcd display module with GUI design software and high resolution of 800*480
- Category: >>>
- Supplier: Beijing Stone Technology Co. Ltd.
Share on (1600929742874):
Product Overview
Description
Hardware
Cortex A8 1Ghz CPU | 256 MB Flash｜ Touch screen
Cortex A8 1Ghz CPU | 256 MB Flash｜ Touch screen
Interface
Uart｜RS232｜RS422｜RS485｜TTL｜Lan｜WIFI | USB
Documents
Vector font｜Image｜Video｜Audio
Characteristics

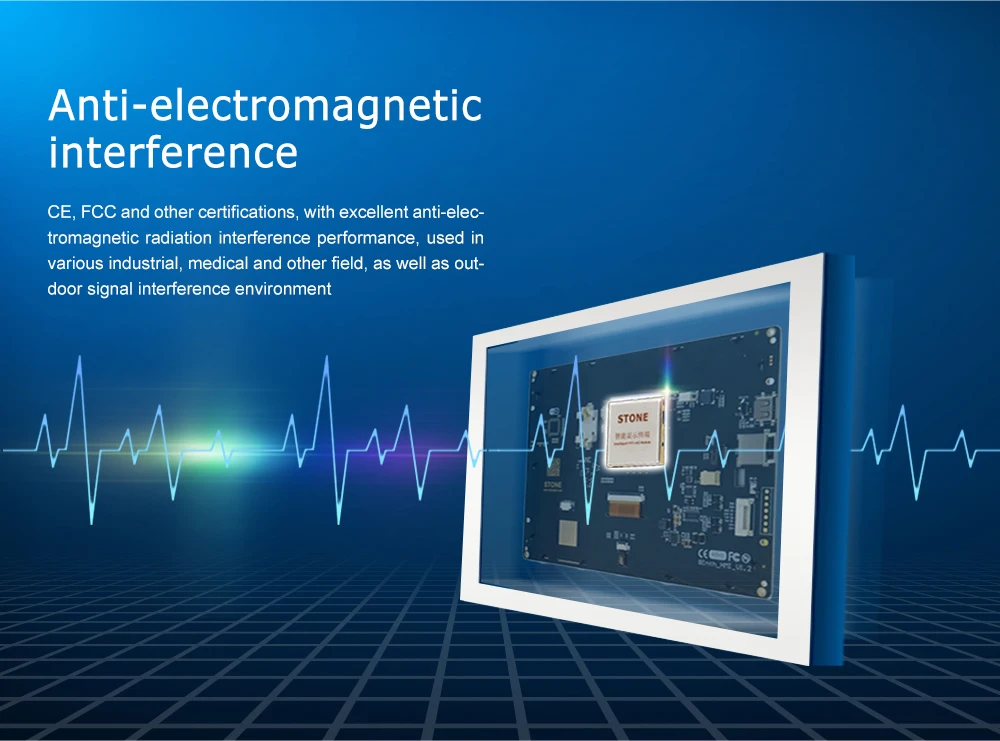

Tem : -30°C to 80 °C｜Anti-electromagnetic interference｜Medical grade
Uart｜RS232｜RS422｜RS485｜TTL｜Lan｜WIFI | USB
Documents
Vector font｜Image｜Video｜Audio
Characteristics
Tem : -30°C to 80 °C｜Anti-electromagnetic interference｜Medical grade
Physical Parameter | |
Size | 7 inch |
Resolution | 800×RGB×480 |
Pixel Spacing | 0.0642(W) × 0.1790(H) mm |
Color | 262,144 colors (18 bit) |
Viewing Area | 154.08(W) × 85.92(H) mm |
Display Dimension | 186.4mmx105.5mm |
Net Weight | 300g |
Display Parameters | |
Backlight Type | LED |
Brightness | 300cd/m2 |
Backlight life | 300,000 hours |
Viewing Angle | 70°/70°/50°/70°(L/R/U/D) |
TFT Panel | A Class Industry Panel |
Touch Screen | 4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen |

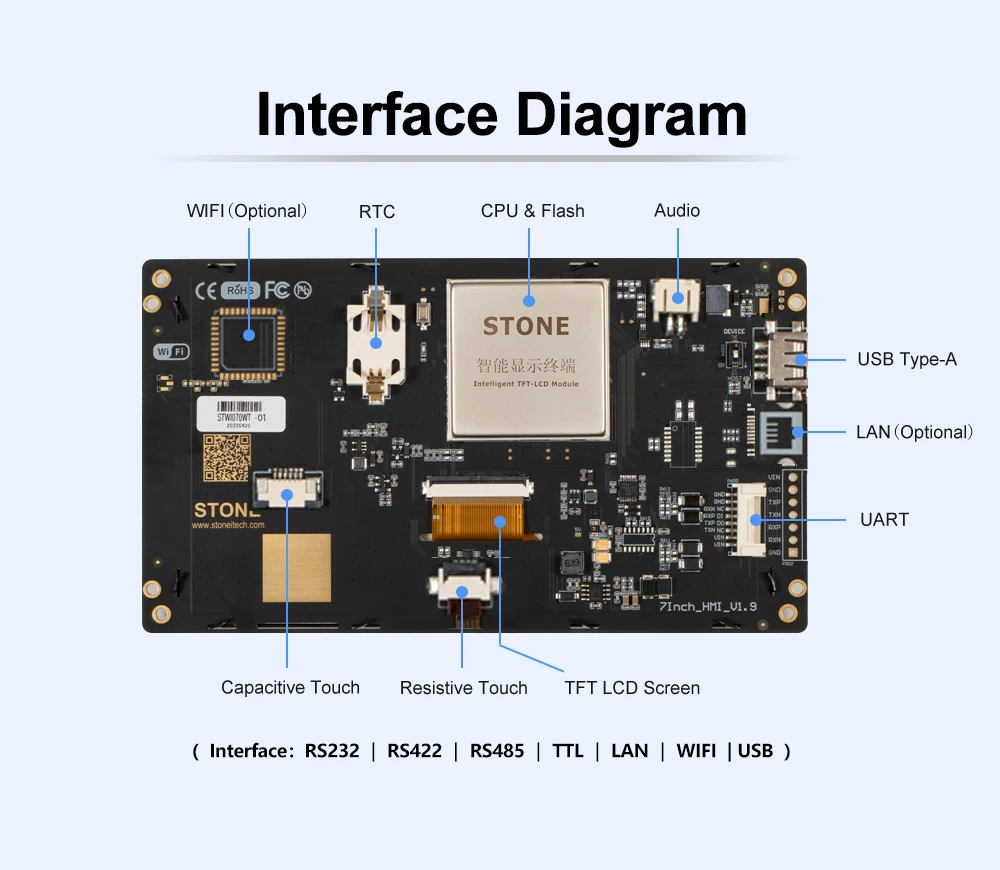

Interface | |
Serial Interface | RS232 / RS422 / RS485 / TTL level |
Ethernet interface | 10M/100M (Optional) |
Wireless interface | WIFI (Optional) |
Project file downloading | USB2.0 port or U storage Disk |
Support Device | |
UART Port | RS232 / RS422 / RS485 / TTL |
Network Port | Ethernet Port / WIFI |
Flash Memory | Standard 256MB, Extend 1GB or 2GB |
Buzzer | Support |
RTC | Support |
USB port | Support |
U Storage Disk Interface | Support |
Touch Screen | 4 Wire Resistance / Capacitive |
Vector Font | Standard TTF Format |
Image | Support PNG/JPG/BMP/SVG/GIF Format |
AI - Series Product | ||||||||||||||
Size (inch) | Model | Resolution | Voltage(V) | Network | Interface | Brightness | Power (W) | |||||||
3.5'' | 320*240 (4:3) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 300cd/m² | 0.8 | ||||||||
4.3'' | 480*272 (16:9) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 500cd/m² | 1.0 | ||||||||
5'' | 800*480(16:9) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 350cd/m² | 1.3 | ||||||||
5.6'' | 640*480 (4:3) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 280cd/m² | 2.2 | ||||||||
7'' | 800*480 (16:9) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 300cd/m² | 2.6 | ||||||||
8'' | 800*600 (4:3) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 400cd/m² | 2.8 | ||||||||
10.1'' | 1024*600 (16:9) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 350cd/m² | 3.0 | ||||||||
10.4'' | 800*600 (4:3) | DC 5.0-28 | Ethernet/Wi-Fi/BT | RS232/RS422/RS485/TTL | 300cd/m² | 3.0 | ||||||||
