Product Overview
Description
Product Description
Apperance
Simple pretty,
Exquisite Craftsmanship
Printhead
DX7/DX5/I3200/XP600/TX800 Printhead 2-4 units optional
Application
Advertising Industry,
Furniture Industry

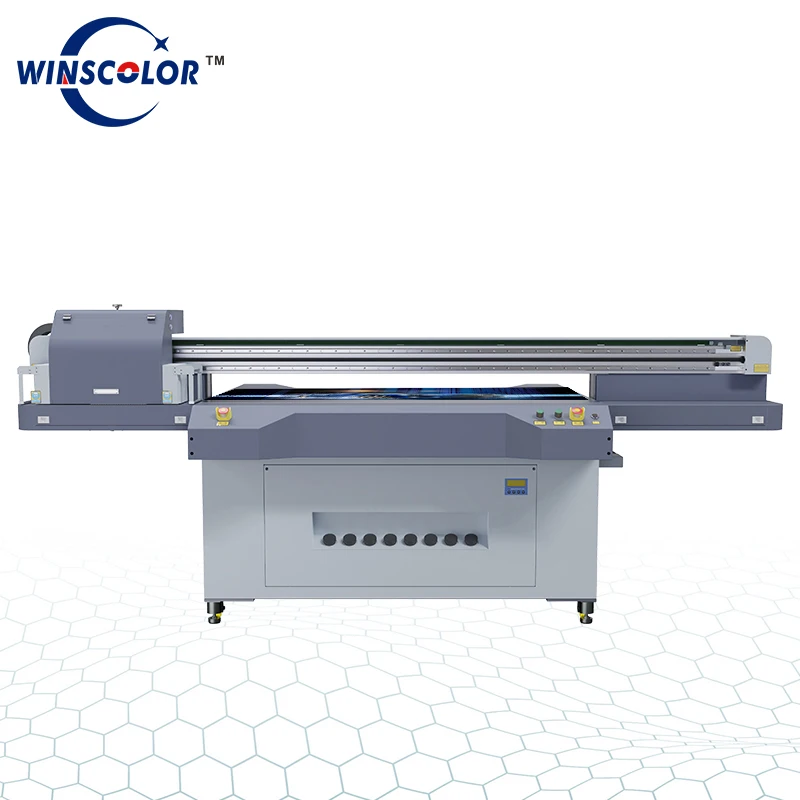

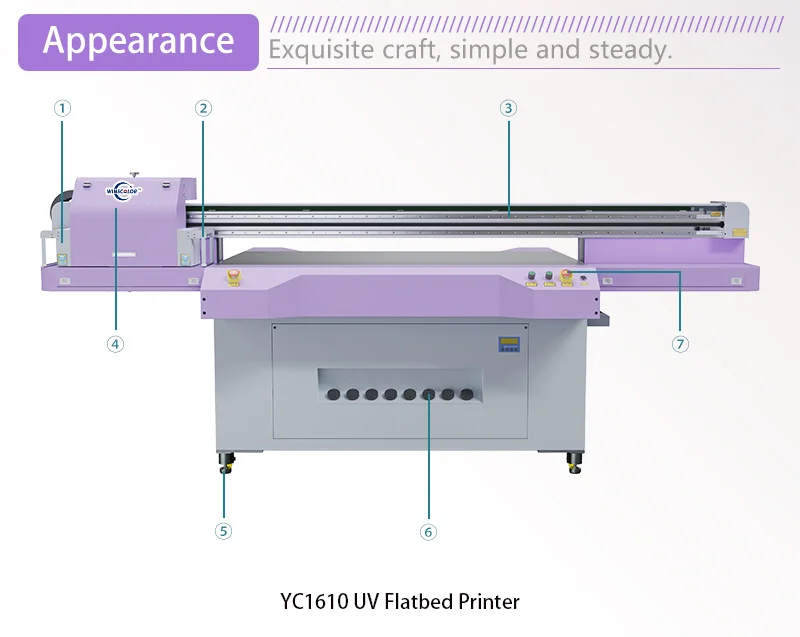

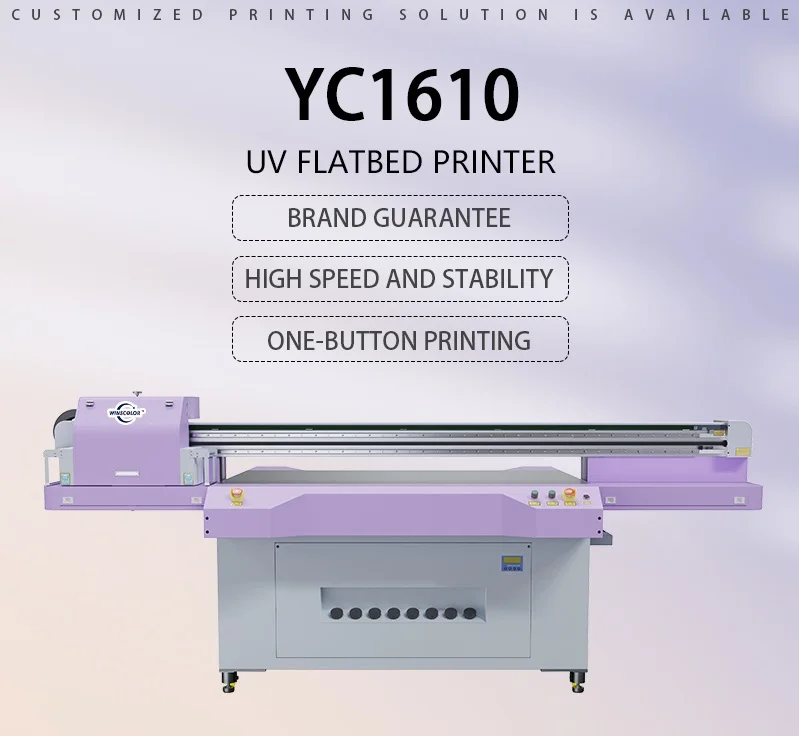

YC1610 UV Flatbed Printer
①UV LED Lamp ② Anti-static system ③ TAIWAN HIWIN Guide Rail
④Print head carriage ⑤ Universal Wheel ⑥Ink Tank ⑦Switch Area
Specification | ||||||||
Product Model | YC1610 | |||||||
Printhead Type | DX7/DX5/I3200/XP600/TX800/RICOH GEN5i/GEN5 Optional | |||||||
Printhead Number | 2-4heads | |||||||
Ink Characteristics | UV Curing Ink (VOC Free) | |||||||
Ink reservoirs | Refillable on the fly while printing/2500ml per color | |||||||
LED UV Lamp | More than 30000-hours life made in Korea | |||||||
Printhead arrangement | CMYK LC LM W V Optional | |||||||
Printhead Cleaning System | Automatic Cleaning System | |||||||
Guide Rail | TAIWAN HIWIN | |||||||
Working Table | Hard anodized vacuuming platform | |||||||
Printing Size | 1600mm*1000mm | |||||||
Print Interface | USB2.0/USB3.0/Ethernet Interface | |||||||
Media Thickness | 0-100mm(Higher can be customized) | |||||||
Print Resolution& Speed | 720X720dpi | 4PASS | 4-16sqm/h | |||||
720X1080dpi | 6PASS | 3-11sqm/h | ||||||
720X1440dpi | 8PASS | 2-8sqm/h | ||||||
Life of printed image | 3 years(outdoor),10years(indoor) | |||||||
File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |||||||
RIP Software | PHOTOPRINT/RIP PRINT Optional | |||||||
Power Supply | 220V 50/60Hz(10%) | |||||||
Power | 2000W | |||||||
Operation Environment | Temperature 20 to 30 ℃,Humidity 40% to 60% | |||||||

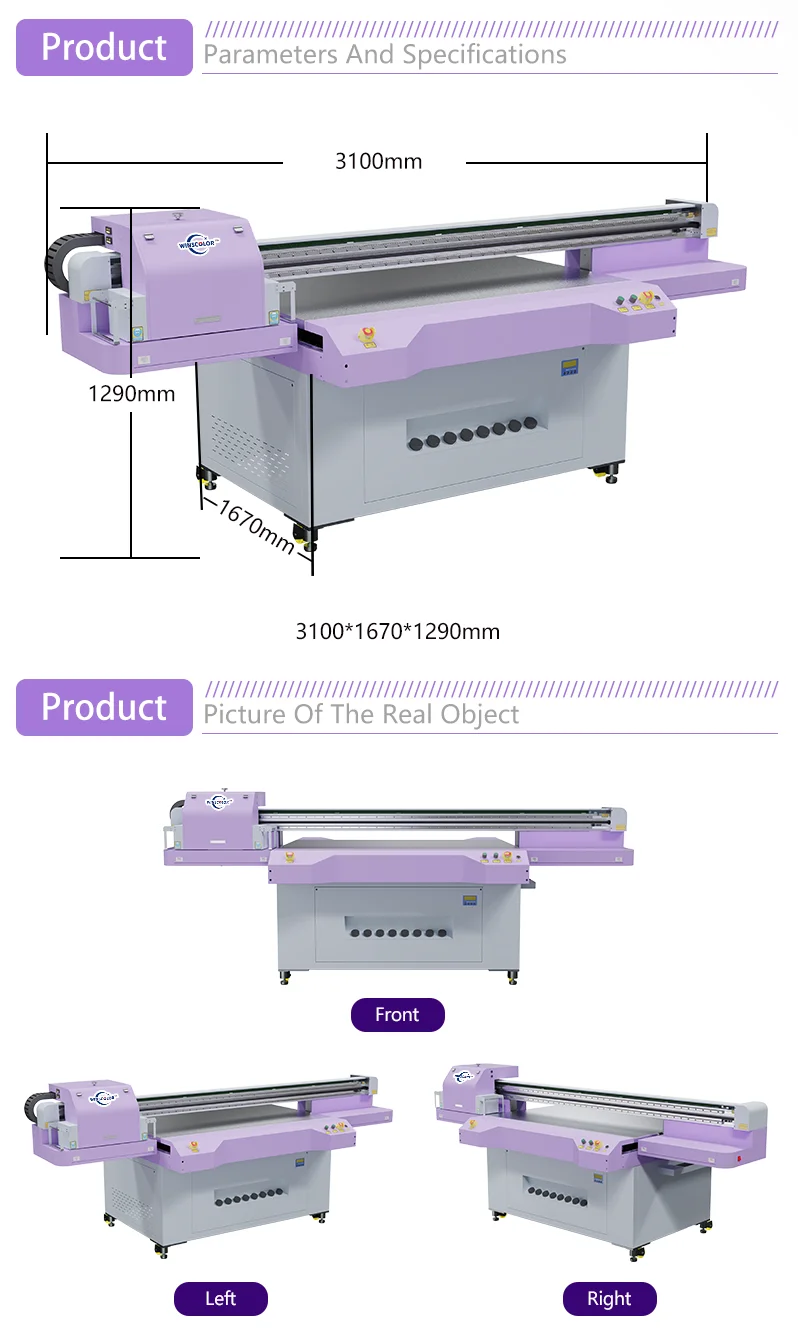

Machine Dimension | 3100mm*1670mm*1290mm | |||||||
Packing Dimension | 3290mm*1800mm*1690mm | |||||||
Weight | 800kg | |||||||
Warranty | 12 months exclude the consumables | |||||||
Above specification subject to change without notice beforehand | ||||||||
YC1610 UV Flatbed Printer advantages:
① Imported Double Taiwan HIWIN Linear guide rail and double leadscrew are used for a stable and precise movement.② The printhead carriage anti-collision device can stop automatically when it touches the medium to protect the printhead.\t
③ White ink stir system to avoid white ink precipitating.
④ Long-lasting UV LED lamp imported from Korea: are safe, energy efficient and generate
minimum heat,Strong practicability.
minimum heat,Strong practicability.
⑤ Our printhead carriage and cross beam is bigger, working platform thickness is thicker, which is more solid and stable.
Product Paramenters
Machine Details
1.JAPAN Printhead
YC1610 uv flatbed printer is equipped with Japan DX5/DX7/XP600/TX800/i3200 print head, 180 nozzles, 6 or 8 channels, providing high precision printing.2. High Mute Drag Chain
The German IGUS mute drag chain is very suitable for protecting cables and pipes under high-speed movement. It has the characteristics of high performance and low noise.
3. Vacuum Suction Platform
The vacuum suction platform is easy to operate, energy-saving, and suitable for personalized printing of various sizes.
4. TAIWAN HIWIN Guide Rail
Our 1610 uv flatbed printer use the high precision
mute Taiwan HIWIN guide rail, long service life,
high stability, immensely decrease noise while
printer is printing, within 40DB while printing.
mute Taiwan HIWIN guide rail, long service life,
high stability, immensely decrease noise while
printer is printing, within 40DB while printing.
5. Taiwan HIWIN Lead Screw
UV Flatbed printer adopt Double Taiwan HIWIN lead screw to improve the printing accuracy and the stability of the machine.
6. High Precision Aluminum Beam
Our uv printer is equipped with self-developed high-strength aluminum beams, using super-strength aluminum to ensure The printing accuracy is stable and the perfect output is guaranteed.
Large capacity ink tank and ink shortage alarm system
Leadshine Servo Motor
Secondary Cartridge
Water Cooling Chiller
Printhead Anti-Collision System
Anti-static System
Adjustable Universal Wheel
Automatic Height Measurement
Korea UV LED LAMP
Printing Samples
Adopt EPSON piezoelectric Printhead
Our digital Printing Machine adopt Epson piezoelectric nozzle, the accuracy can reach 2160 dpi, the new variable ink drop technology, provide 3/2.5pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

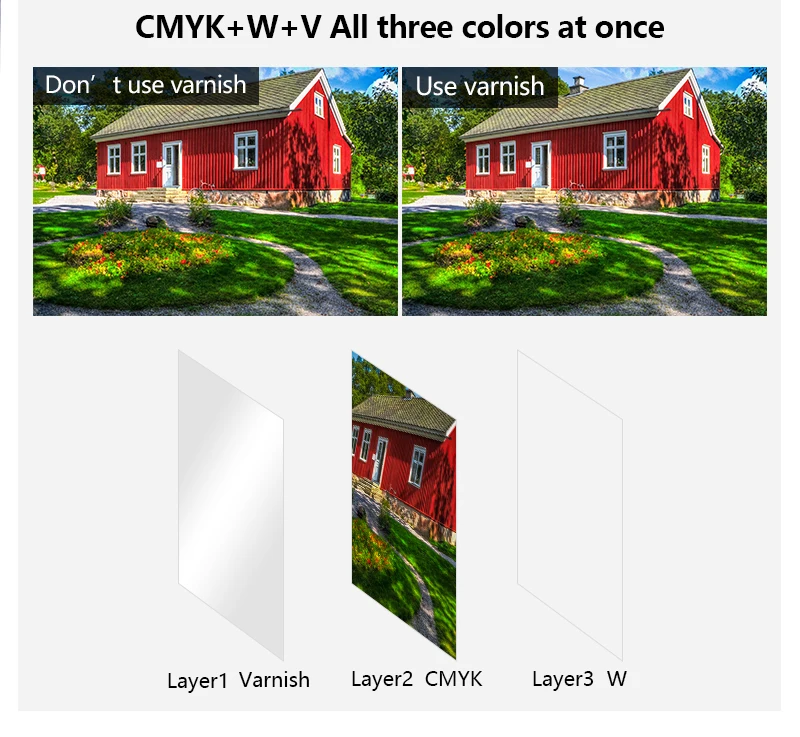

CMYK+W+V All three colors at once
The use of varnish makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect printing product, make the product more durable.
Pen
Wood
Phone Case
Glass Bottle
Ceramic Tile
PVC
Acrylic
Metal sheet
Advertising Sign

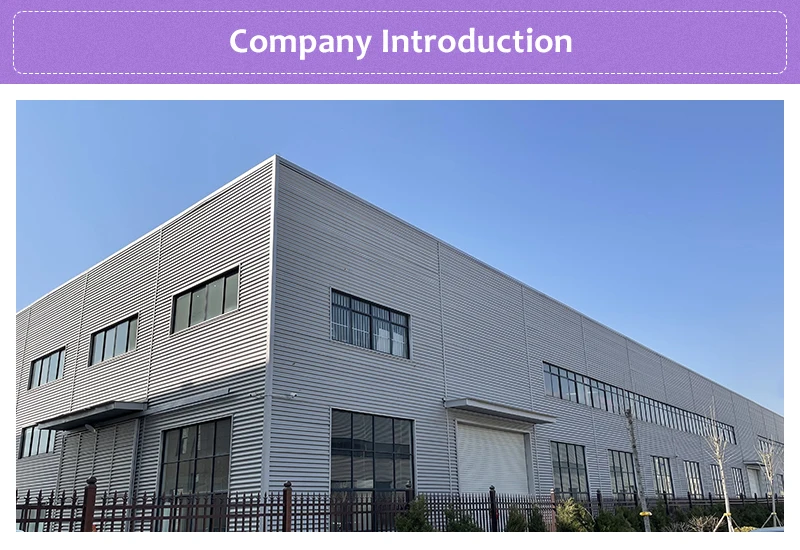

Factory
Jinan Yingcai Digital Technology Co.,Ltd
Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Linyi City, Shandong province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume. Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc. We strengthen technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions according to different demands in various industries. Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry, We are looking for agents from all over the world, OEM Service is available, Welcome to join us！
Ｏne Year Warranty
Important parts, warranty for one year.
Timely after-sales
24 hours online after sales
Free Replacement
Within the warranty period, free replacement of damaged parts caused by quality problems.
Packing&Delivery
YC1610 UV Flatbed Printer Packing size:3.29m*1.8m*1.69m
Packing Details: Inner packing with stretch plastic film, and outside packing with export plywood case.
Customer Photos
Winscolor Customers Are All Over The World
We are looking for agents all over the world, OEM Service is available, Welcome to join us.
FAQ
1. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1USD for one square meter for ink cost.
2. How about the Maintenance and after-sales service?
After you get the machine, firstly we will send you operate manual and installation videos, our engineer will teach you how to install machine by online ways, such as whatsapp/wechat/Dingtalk, whenever you have questions for machine, you can freely contact engineer. In addition, Remote guide service also be supported.
3. How long is the warranty for your machines?
UV printer warranty is 12 months(except printhead and ink system, which belong to consumables) and We will provide Lifetime service for you.
4. What kinds of materials need add coating before printing?
Before printing Glass, ceramic, metal, acrylic, need to add coating to add Adhesion.
5. How about the quality of your products?
We are professional UV printer manufacturer for 12 years, all machines self-developed and produced, in addition,We have quality inspection process. All machines are inspected before delivery to ensure the performance and stability of the machine. So machine quality is guaranteed.
6. Can I buy ink from our local company instead of your company?
Yes, but our ink have been tested many times by our printers, the ink fluency, flavor and colors have been turned out to be most suitable to our printers.
7. How soon can you deliver your machines?
Usually 5-7 working days. After factory receive your deposit,will arrange to produce for you in time.
Normally it is around 0.5-1USD for one square meter for ink cost.
2. How about the Maintenance and after-sales service?
After you get the machine, firstly we will send you operate manual and installation videos, our engineer will teach you how to install machine by online ways, such as whatsapp/wechat/Dingtalk, whenever you have questions for machine, you can freely contact engineer. In addition, Remote guide service also be supported.
3. How long is the warranty for your machines?
UV printer warranty is 12 months(except printhead and ink system, which belong to consumables) and We will provide Lifetime service for you.
4. What kinds of materials need add coating before printing?
Before printing Glass, ceramic, metal, acrylic, need to add coating to add Adhesion.
5. How about the quality of your products?
We are professional UV printer manufacturer for 12 years, all machines self-developed and produced, in addition,We have quality inspection process. All machines are inspected before delivery to ensure the performance and stability of the machine. So machine quality is guaranteed.
6. Can I buy ink from our local company instead of your company?
Yes, but our ink have been tested many times by our printers, the ink fluency, flavor and colors have been turned out to be most suitable to our printers.
7. How soon can you deliver your machines?
Usually 5-7 working days. After factory receive your deposit,will arrange to produce for you in time.
