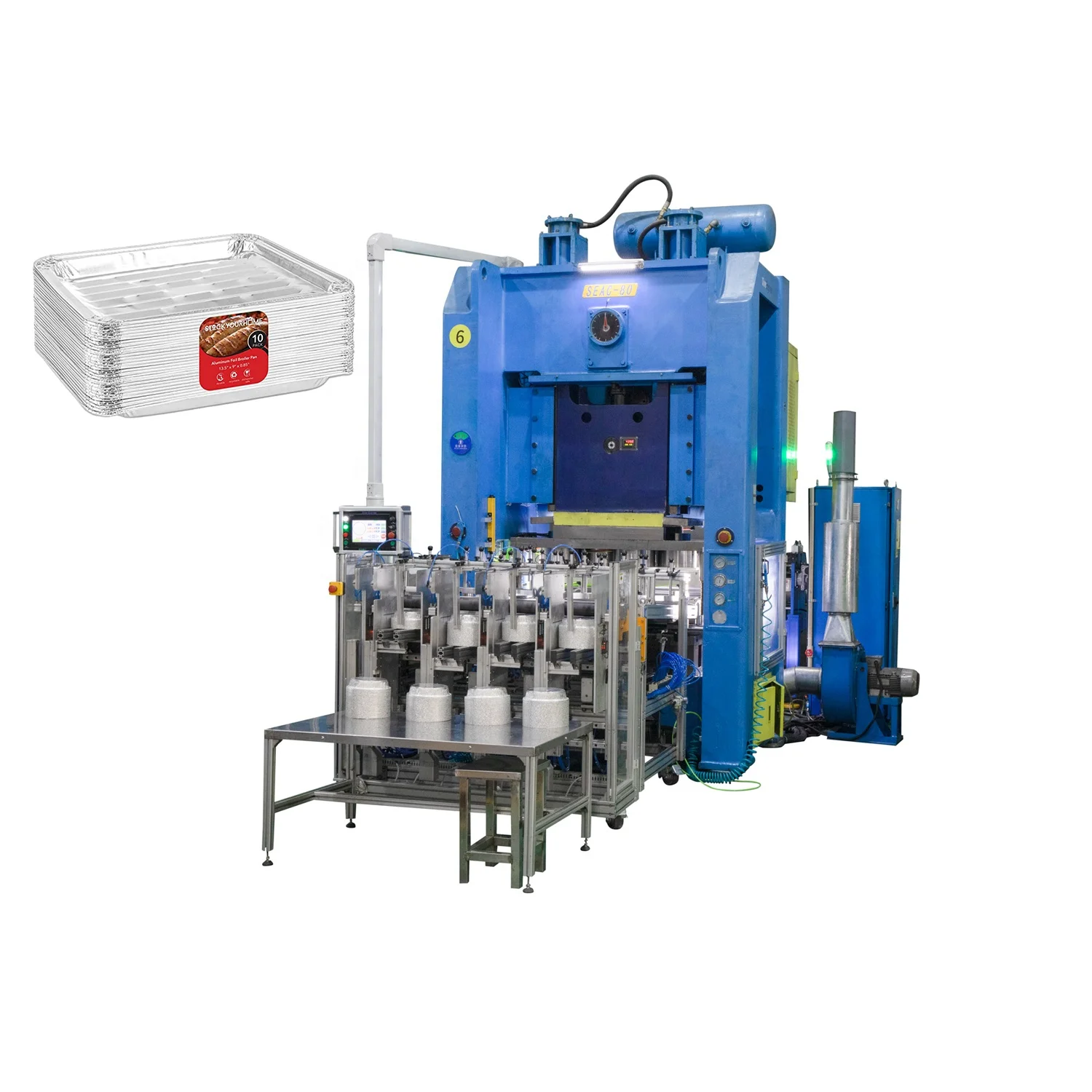

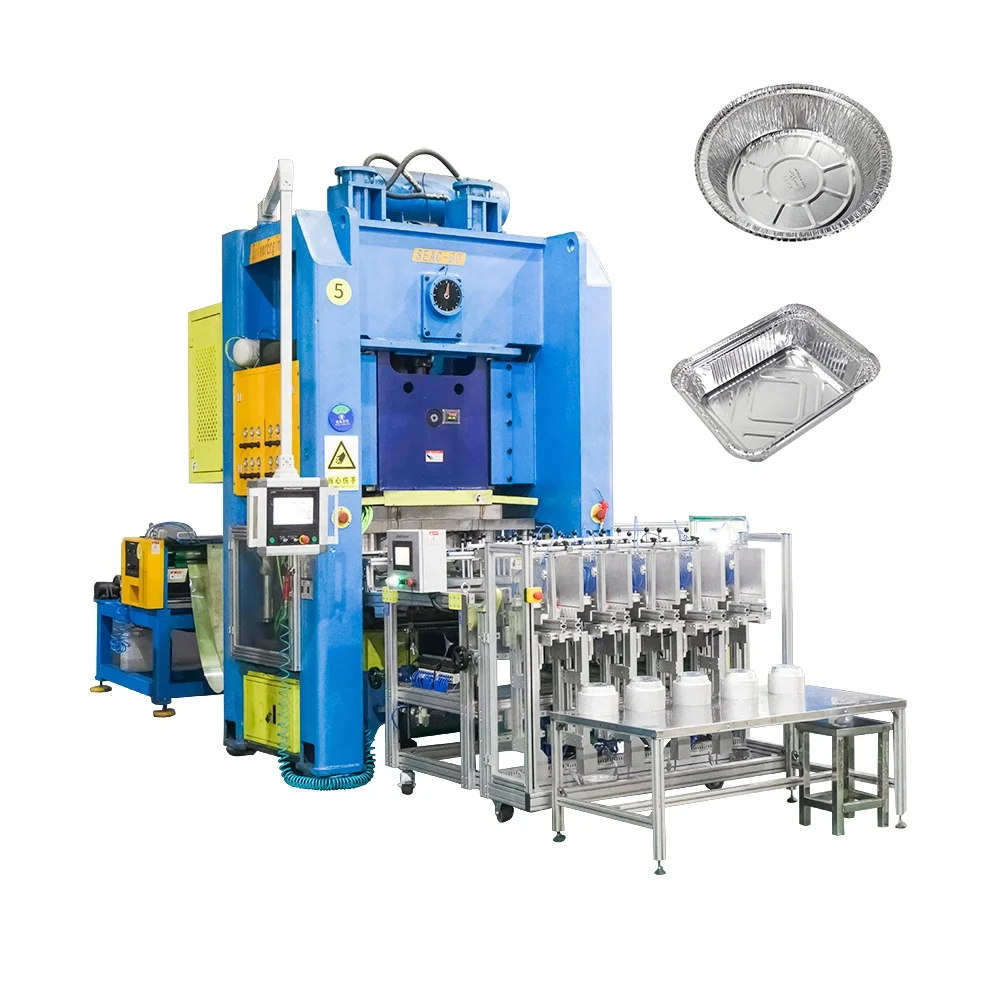

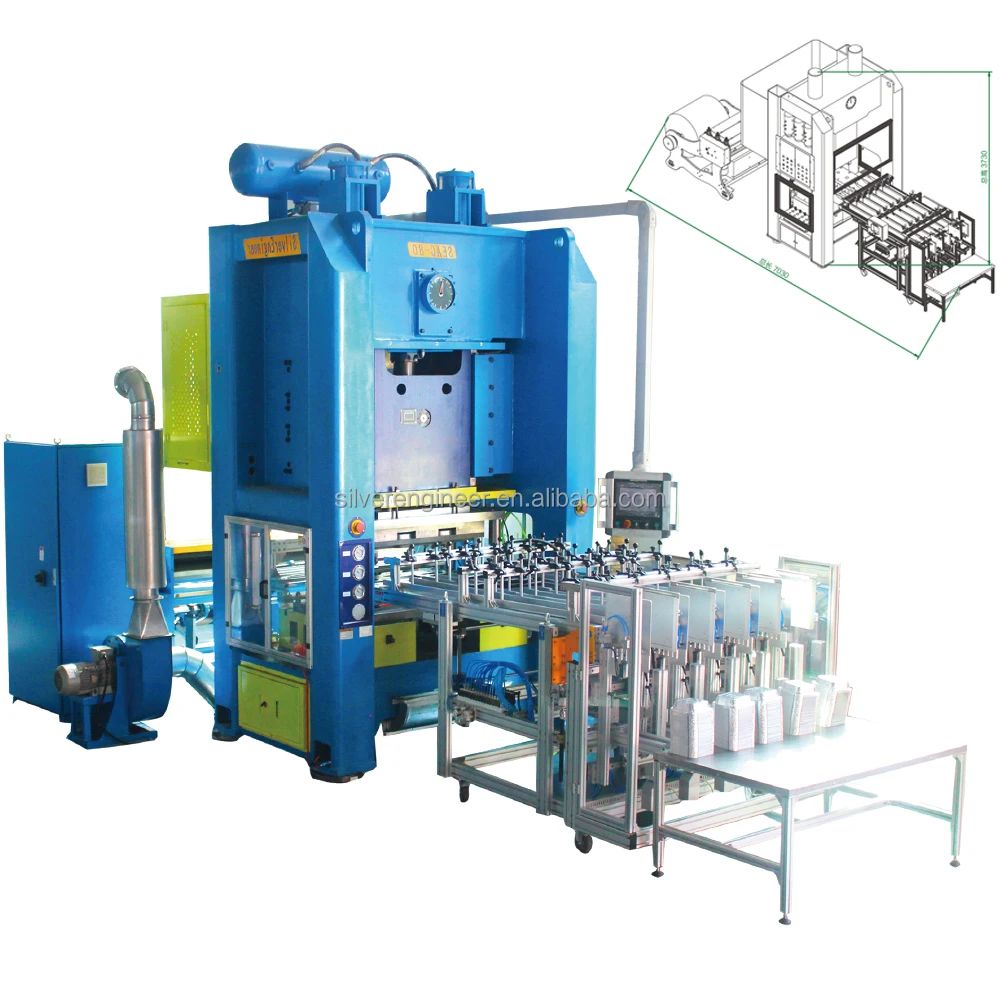

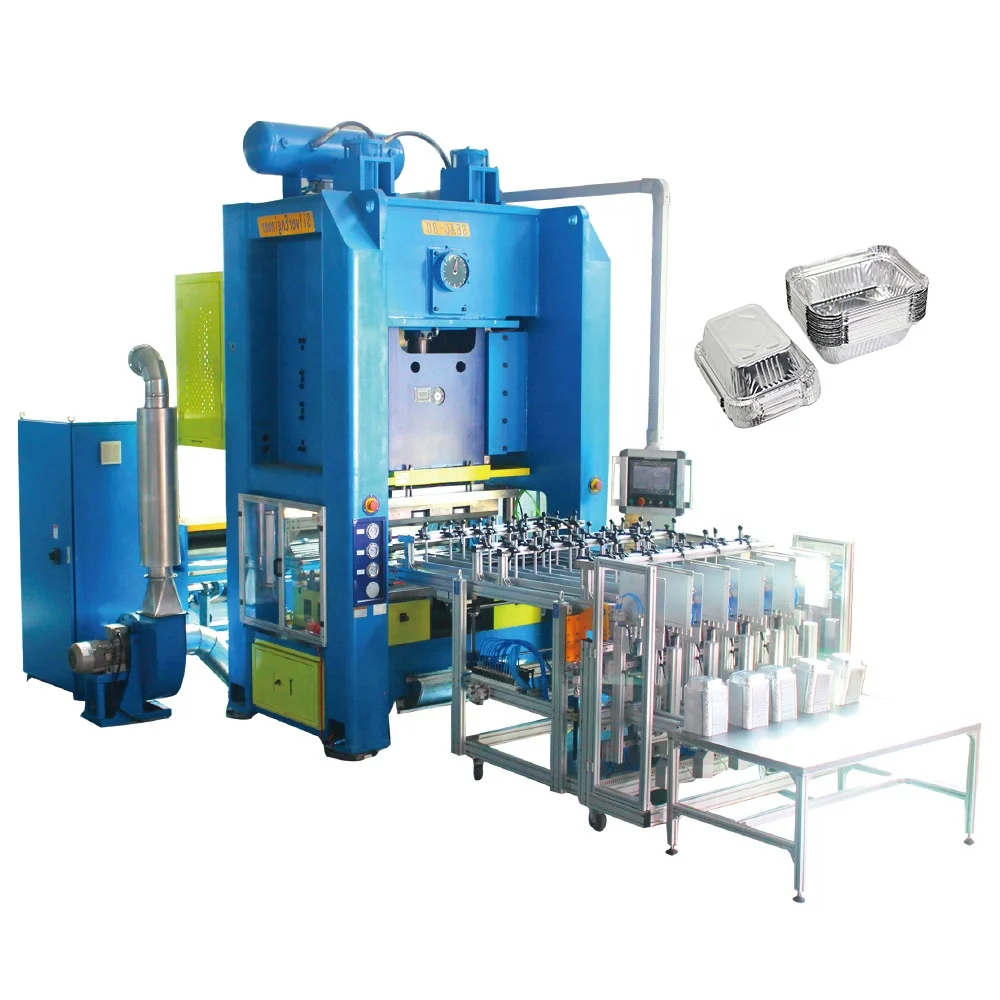

80 tons aluminum foil pneumatic stamping machine high speed aluminum foil container lunch box machine with operation training
- Category: >>>
- Supplier: Shanghai Silver Engineer Industry Co. Ltd.
Share on (1600929791887):
Product Overview
Description

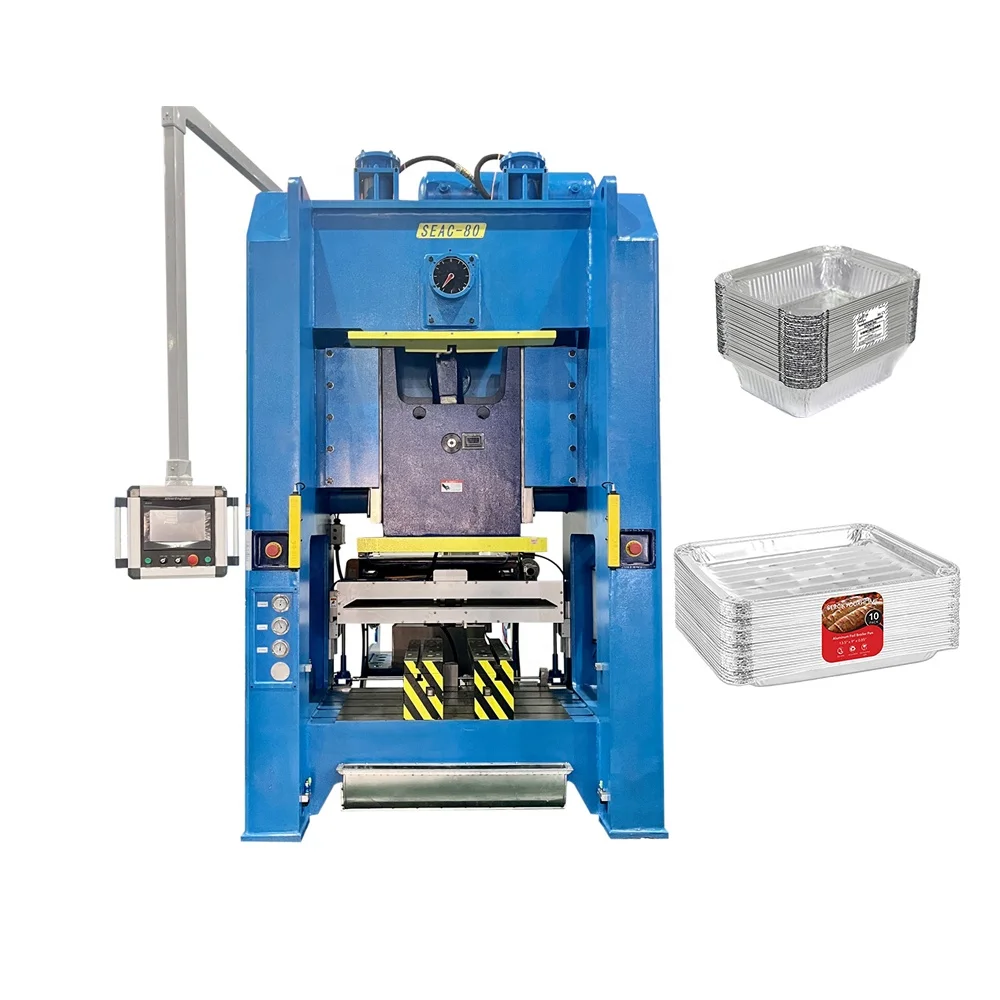

SEAC-80A adopts higher precision customized H-Type Eight-Face Guide Rail Mechanical Press. Mainly use for Wrinkle Wall Container production. The software and hardware of the whole production line adopt Mechatronics design, which is beautiful and generous. The whole automatic production line is mainly composed of Feeder, Press, Stacker and Scrap System unites. The electrical control system of the whole production line is divided into two parts: the integrated electrical control cabinet of three units of Feeder, Press and Scrap System adopts independent system design, which is safe and anti-interference. The touch screen is hung on the left side of the Press, which is convenient for operation and does not occupy space; The electrical cabinet of the Stacker is installed on one side of the Stacker to independently control all parameter settings and operation. The PLC program logic of the whole production line is perfectly matched, which greatly
improves the Production Efficiency of the whole machine and the Rationality of Program Control logic, and is more smart humanized.
improves the Production Efficiency of the whole machine and the Rationality of Program Control logic, and is more smart humanized.
Model | SEAC-80A (3-6Cavities) |
Nominal Force | 800KN |
Main Motor | 15KW, SIEMENS |
Stroke Range | 150-260mm |
Adjustable Speed | 30-80times/min. |
Electromagnetic pressure regulating valve | 12sets (2*6cacities) |
Bed Plate Dimension | L1480xW900mm,2sets movable plate |
Max.Mould Dimension | L1450xW850xH500mm |
Number of Air Tank | 6units |
Press Lubricant Solution | Liquid Hydraulic Oil, Automatic Cycle |
Max. Width of Foil Passage | 1220mm |
Feeder Tension Control | Automatic by Ultrasonic Sensor |
Max.Diameter of Foil Roll | 600-1500mm |
Feeder Precision Control | ±0.1mm, Mitsubishi Servo System |
Stacker Belt Size | L2000xW1300mm |
Min.Size Stack Available | 100x100mm |
Products Stacking Size | Three lane: L600xW350xH350mm Four lane: L600xW250xH350mm Five lane: L600xW210xH350mm Six lane: L600xW170xH350mm |
Lifting System | SMC Servo Cylinder |
Main Electric Brand | Mitsubishi,SMC,Schneider,OMRON,SIEMENS |
Production Line Dimension | 8000x2500x3650mm |
Production Line Weight | 15,000KGS |
Feeding control system
Aluminum Foil Feeding adopts Servo System: Perfect performance for aluminum foil materials with different thickness and big width to complete feeding quickly and higher accurately. The curve output torque makes the aluminum foil stable without shaking.
Press lubricating oil control system
Press Adopted Automatic Circulation Lubrication System: the progressive lubricating oil distributor is equipped with Lubrication Fault Detection Switch to ensure sufficient and uniform lubrication , avoid damage the guide rail during oil-free operation.
Inlet solenoid valve
The Highly Sensitive and Reliable Italian OMPI Dry Clutch and Japanese TACO Double Solenoid Valve are adopted to ensure the accuracy and safety of timely stop of the sliding block of the Press.

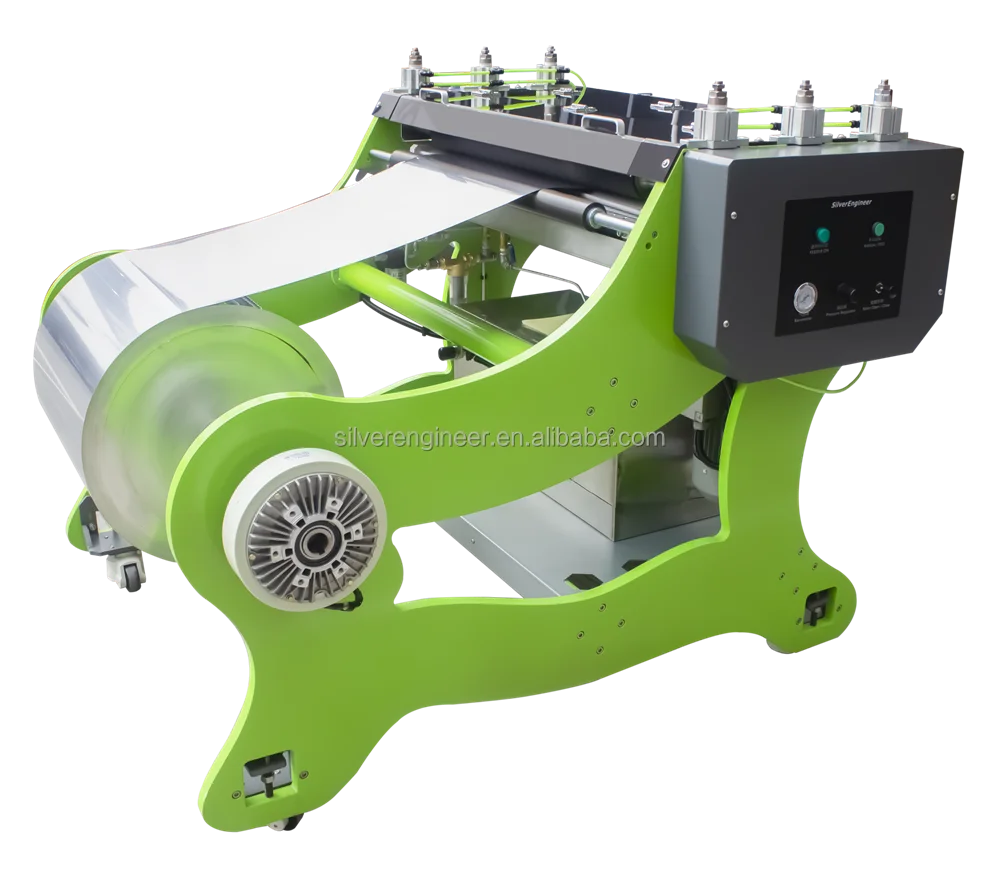

Aluminum Foil Feeder
There are four models of Aluminum Foil Feeder: Common Version C, Common Embossing Version E, Smooth Wall Version S and Flexo Flagship Version P. SEAC production line is equipped with Common Version Feeder, SEAE production line is equipped with Common Embossing Version Feeder, SEAS production line is equipped with Smooth Wall Version Feeder, and SEAP production line is equipped with Flexo Flagship Version Feeder.

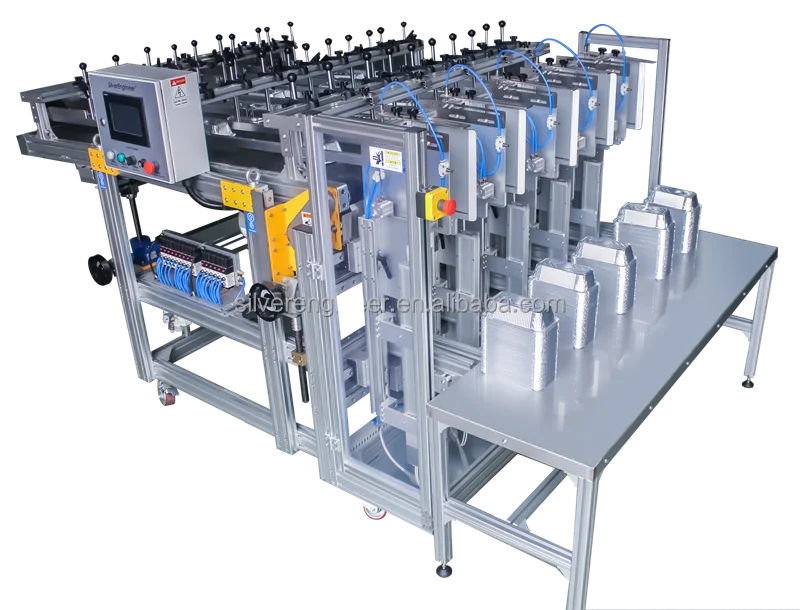

Aluminum Foil Container Stacker
Auto Stacker is a necessary part for the production of aluminum foil containers to achieve full automation. As aluminum foil
containers are widely used in the field of wash free food packaging, manual collection of each product is bound to pollute the product twice, which can not ensure food safety. In addition, the aluminum foil container is very easy to deform in the process of manual collection, counting and packaging, resulting in many deformation traces on the product surface and unsightly. Auto Stacker can be customized according to different product
shapes. The switching and adjustment between different molds is simple and fast, which can greatly reduce the Labor Intensity and Labor Cost of workers, improve efficiency and improve the profit space of products.
containers are widely used in the field of wash free food packaging, manual collection of each product is bound to pollute the product twice, which can not ensure food safety. In addition, the aluminum foil container is very easy to deform in the process of manual collection, counting and packaging, resulting in many deformation traces on the product surface and unsightly. Auto Stacker can be customized according to different product
shapes. The switching and adjustment between different molds is simple and fast, which can greatly reduce the Labor Intensity and Labor Cost of workers, improve efficiency and improve the profit space of products.

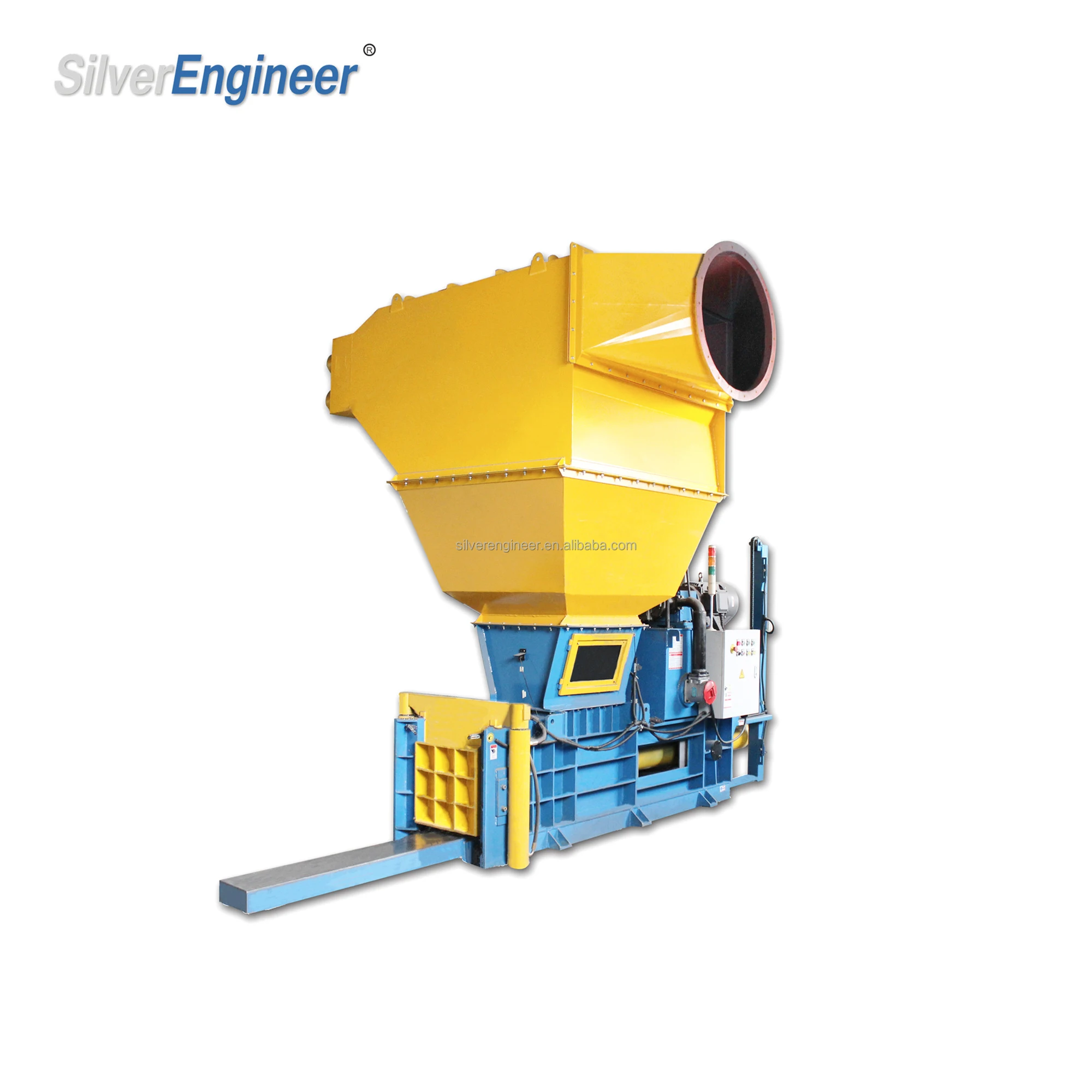

Automatic Foil Scrap Hydraulic Baler
The Automatic Aluminum Foil Scrap Hydraulic Baler System is an indispensable part of the Automatic Aluminum Foil Container
Production Line. Without the Scrap system, the production line will not be able to produce fully automatically, the speed of feeding
production will be greatly reduced, and there will be messy scrap foil garbage around the equipment, which will seriously affect the safety and environment of production management. At the same time, the purchase price of uncompacted scrap foil is far lower than that of neatly compacted scrap foil.
Production Line. Without the Scrap system, the production line will not be able to produce fully automatically, the speed of feeding
production will be greatly reduced, and there will be messy scrap foil garbage around the equipment, which will seriously affect the safety and environment of production management. At the same time, the purchase price of uncompacted scrap foil is far lower than that of neatly compacted scrap foil.
1: Warranty for machines and moulds?
A: We gurantee a period of 24 months from the date of machine & mould installation and setting to work.
2.Q: What about leadtime ?
A: Normally the leadtime is 60days after we receive the deposit and confirm the details. All the press machines we use is the best quality in China Yangli brand. The press machine leadtime from Yangli is 50days, the best leadtime we can give is 60days.
3.Q: What's the lead time for moulds?
A: Normally the mould leadtime is 45 days after we confirm all the details with customer. Our professional mechanical enginners from Austria will design the mould according to the samples from customer, or by the specifications offered by customers.
4.Q:What kinds of mould you can make? and what is your strong point for the moulds?
A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 and 4 compartment conatiner moulds as long as you offer us sample or specifications.
5: How to purchase raw material or lubricating oil?
A: SE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
6:How to install machine and train our staff on our factory?
A: Yes, we do. We'll send our engineers to your factory to install, test machines and give your workers training guidance.
A: We gurantee a period of 24 months from the date of machine & mould installation and setting to work.
2.Q: What about leadtime ?
A: Normally the leadtime is 60days after we receive the deposit and confirm the details. All the press machines we use is the best quality in China Yangli brand. The press machine leadtime from Yangli is 50days, the best leadtime we can give is 60days.
3.Q: What's the lead time for moulds?
A: Normally the mould leadtime is 45 days after we confirm all the details with customer. Our professional mechanical enginners from Austria will design the mould according to the samples from customer, or by the specifications offered by customers.
4.Q:What kinds of mould you can make? and what is your strong point for the moulds?
A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 and 4 compartment conatiner moulds as long as you offer us sample or specifications.
5: How to purchase raw material or lubricating oil?
A: SE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
6:How to install machine and train our staff on our factory?
A: Yes, we do. We'll send our engineers to your factory to install, test machines and give your workers training guidance.
If you have any questions, please do not hesitate to contact us.
