IR 30 60 90 120 degree beam angle 1W 3W 900nm 910nm 920nm 940nm 960nm 970nm 980nm 985nm 3535 smd leds
- Category: >>>
- Supplier: Guangdong Juhong Optoelectronics Co. Ltd.
Share on (1600929793267):
Product Overview
Description
Product Description
IR 30 60 90 120 degree beam angle 1W 3W 900nm 910nm 920nm 940nm 960nm 970nm 980nm 985nm 3535 smd leds
Feature
• Small size, high power
• Well-known chip material
• Multi-wavelength can be customized for production
• Well-known chip material
• Multi-wavelength can be customized for production
•Multiple angles available
• Factory direct sales, quality assurance

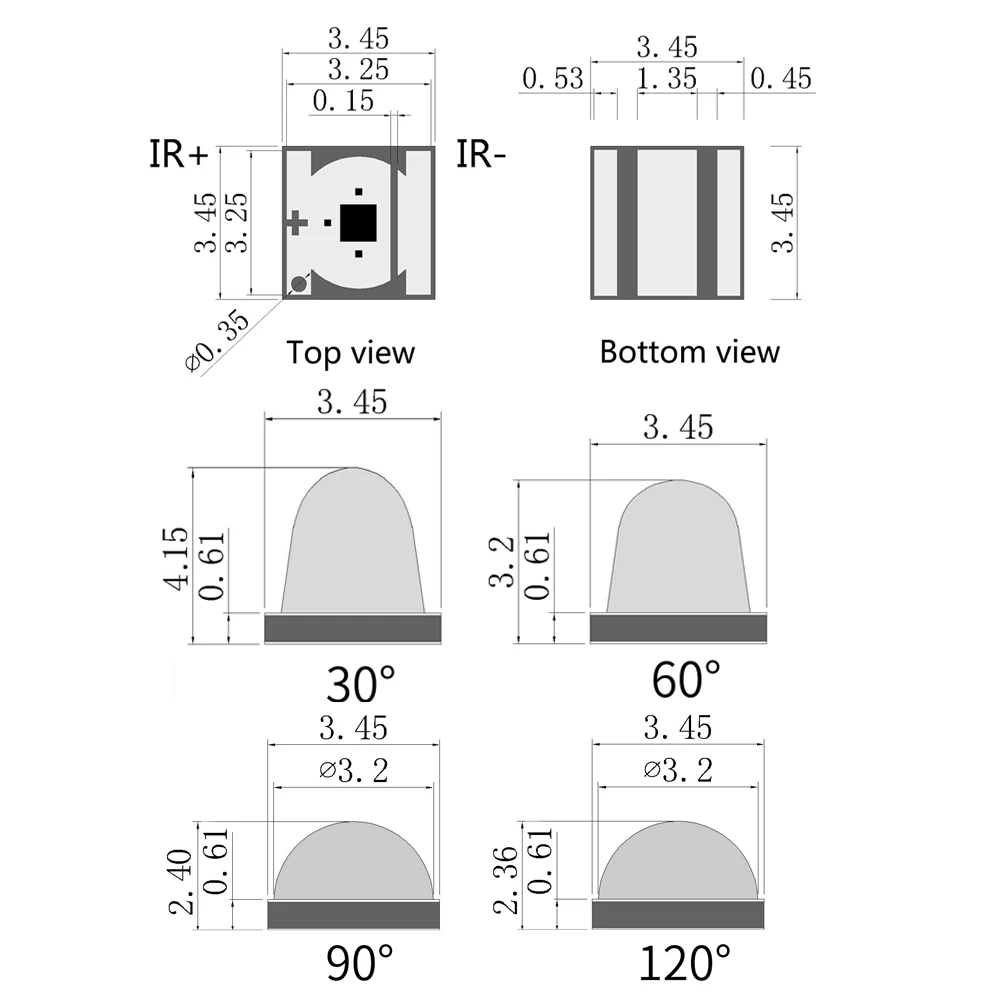

Dimension
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
Products Description
Part No. | Colour | WLD/CCT | Power | Voltage | Current | Light power | ||||||
JH-3535IR(3/6/9/12)G42-T8A-910 | IR | 900-910nm | 3W | 1.6-2.0V | 700mA | 300-500mW | ||||||
JH-3535IR(3/6/9/12)G42-T8A-925 | IR | 920-925nm | 3W | 1.4-1.8V | 700mA | 300-500mW | ||||||
JH-3535IR(3/6/9/12)G42-T8A-940 | IR | 935-940nm | 3W | 1.4-1.8V | 700mA | 300-500mW | ||||||
JH-3535IR(3/6/9/12)G42-T8A-970 | IR | 960-970nm | 3W | 1.2-1.6V | 700mA | 300-500mW | ||||||
JH-3535IR(3/6/9/12)G42-T8A-980 | IR | 970-980nm | 3W | 1.2-1.6V | 700mA | 300-500mW | ||||||
JH-3535IR(3/6/9/12)G42-T8A-985 | IR | 980-985nm | 3W | 1.2-1.6V | 700mA | 300-500mW | ||||||
There are also a variety of wavelengths that can be customized 365-1600nm | ||||||||||||

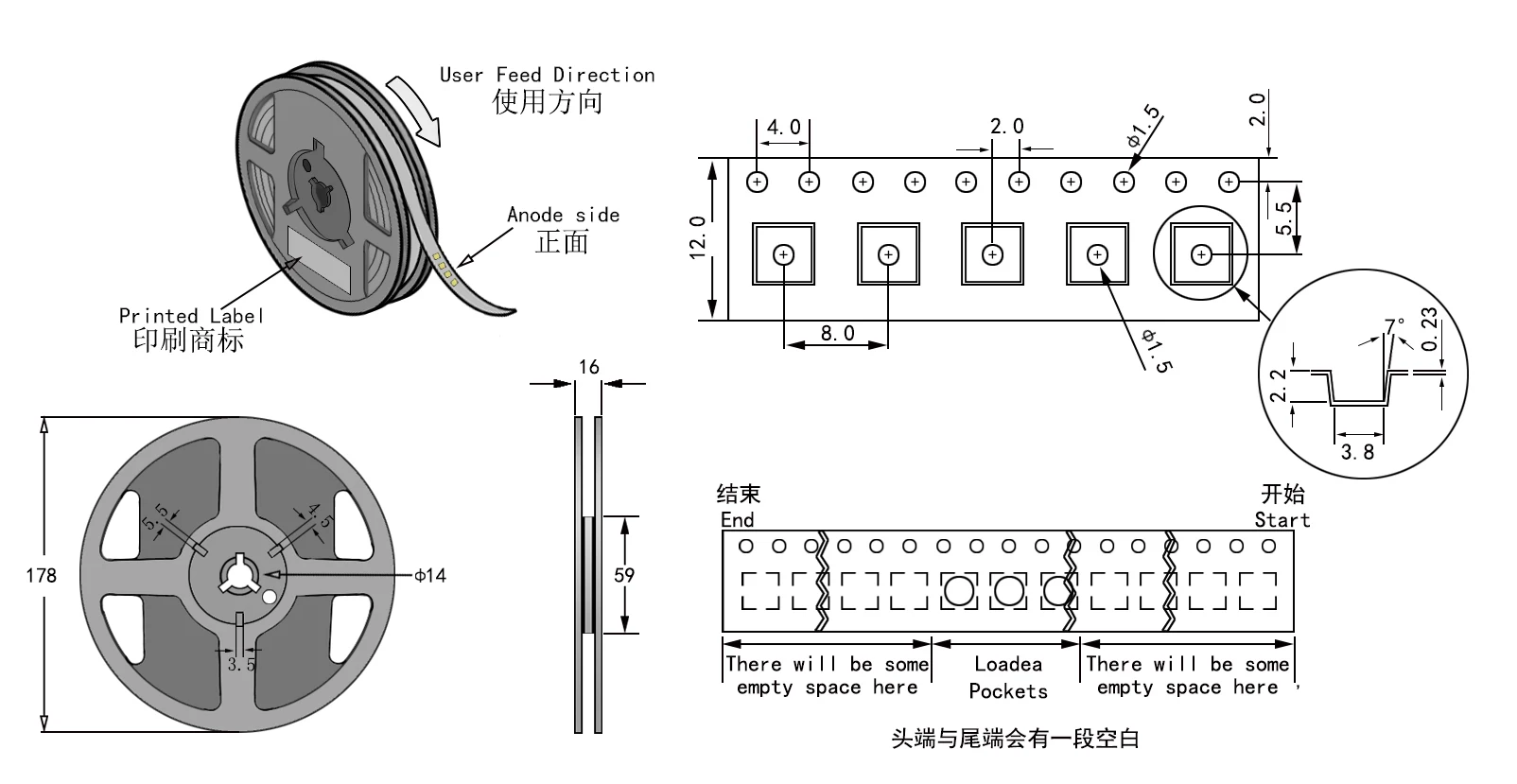

Packing
Product application
Product application
AI,AR, infrared cameras, monitors, drones, scanners, medical beauty, etc

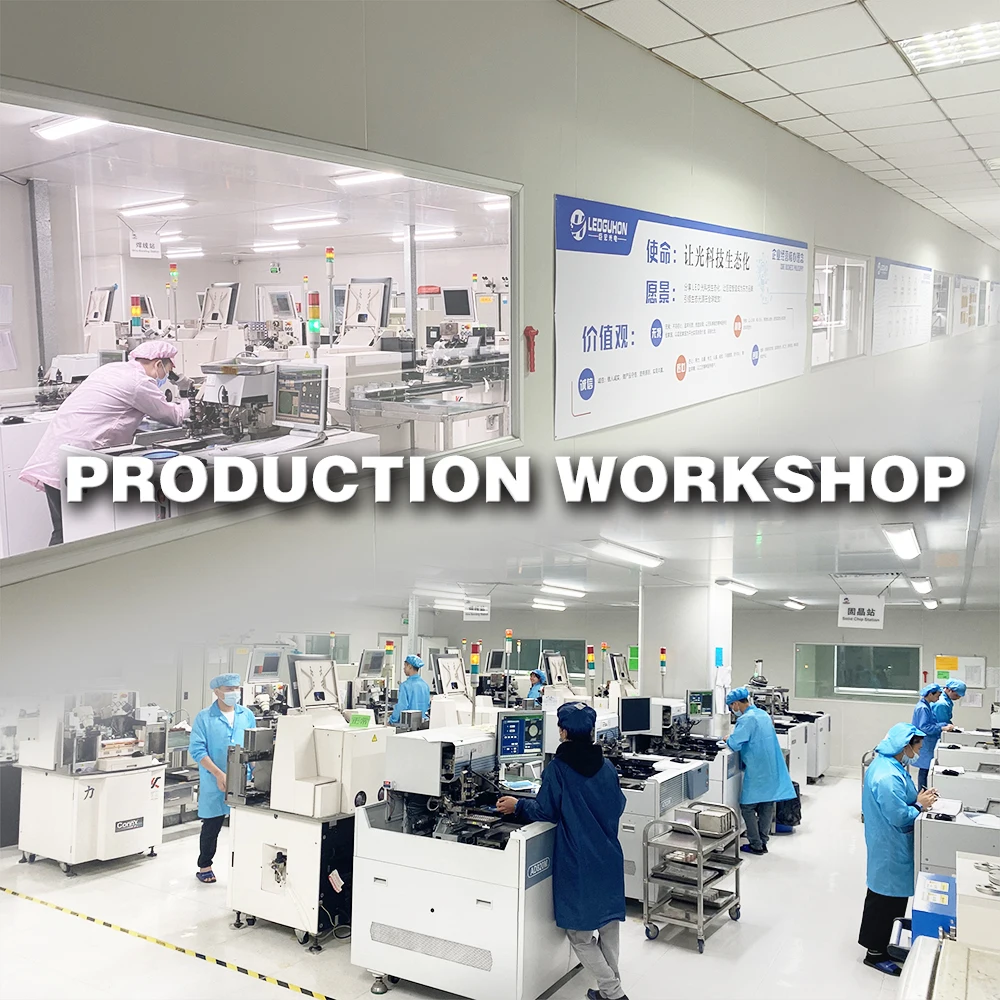

Company Introduction
Guangzhou Juhong Optoelectronics Co., Ltd. is located in the United States in the flower city of Guangzhou, is a research and
development, production, sales, service as one of the high-tech enterprises.
Founded in 2009, the company mainly produces Lamp LED,High power LED,COB LED,SMD LED.
development, production, sales, service as one of the high-tech enterprises.
Founded in 2009, the company mainly produces Lamp LED,High power LED,COB LED,SMD LED.
Many years of production and research experience,
Certified products,
Multiple invention and innovation certificates
Certified products,
Multiple invention and innovation certificates
FAQ
1. Is there any discount for bulk order?
Yes, if you need bulk order or you want customized products, we can provide wholesale price.
2. How to place an order?
If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply
you within 24hours(working day).
3. What payment terms are available?
T/T,PayPal, Western Union and Secure Payment are preferred.
4. Do you support drop shipping and how much is the shippping cost?
Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods
according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
5. All the pictures are real photo?
Yes, the pictures of all products on this page are 100% real shoot by us.
6. How about the quality of the leds?
Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide
since the year 2009.
7. Is there any custom duty and import tax?
Due to different policy in different countries, there might be some custom duty and import tax, but it is not considered in the
price and should be paid by yourself. We are not responsible for any custom duty and import tax.
If you need more type of other LEDs, Please find it on our website:
//ledguhon.en.alibaba.com/productlist.html
Yes, if you need bulk order or you want customized products, we can provide wholesale price.
2. How to place an order?
If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply
you within 24hours(working day).
3. What payment terms are available?
T/T,PayPal, Western Union and Secure Payment are preferred.
4. Do you support drop shipping and how much is the shippping cost?
Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods
according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
5. All the pictures are real photo?
Yes, the pictures of all products on this page are 100% real shoot by us.
6. How about the quality of the leds?
Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide
since the year 2009.
7. Is there any custom duty and import tax?
Due to different policy in different countries, there might be some custom duty and import tax, but it is not considered in the
price and should be paid by yourself. We are not responsible for any custom duty and import tax.
If you need more type of other LEDs, Please find it on our website:
//ledguhon.en.alibaba.com/productlist.html
