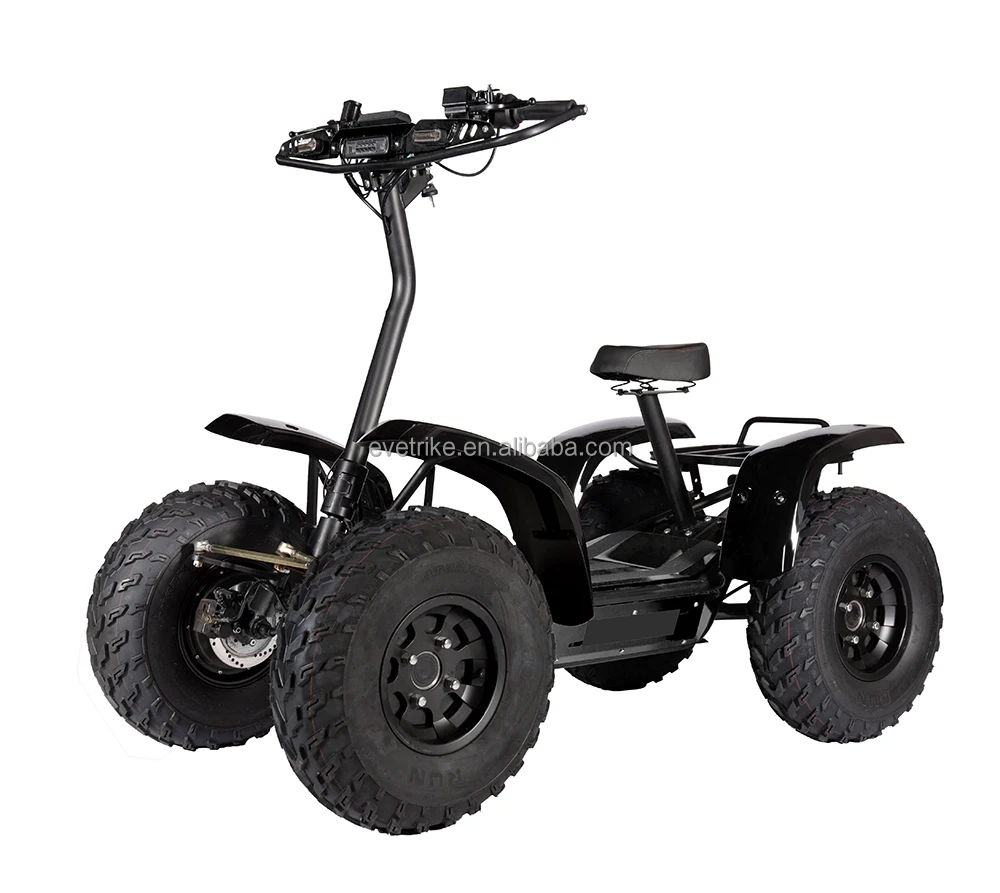

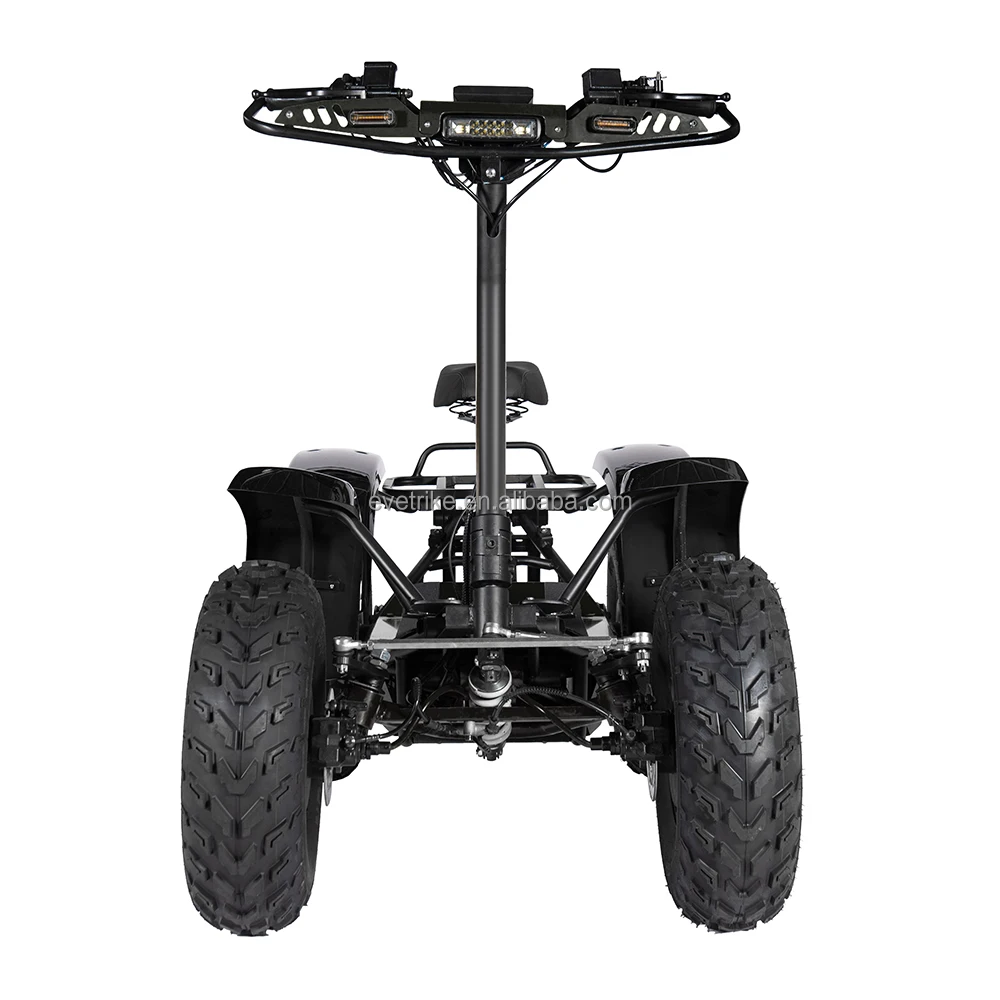

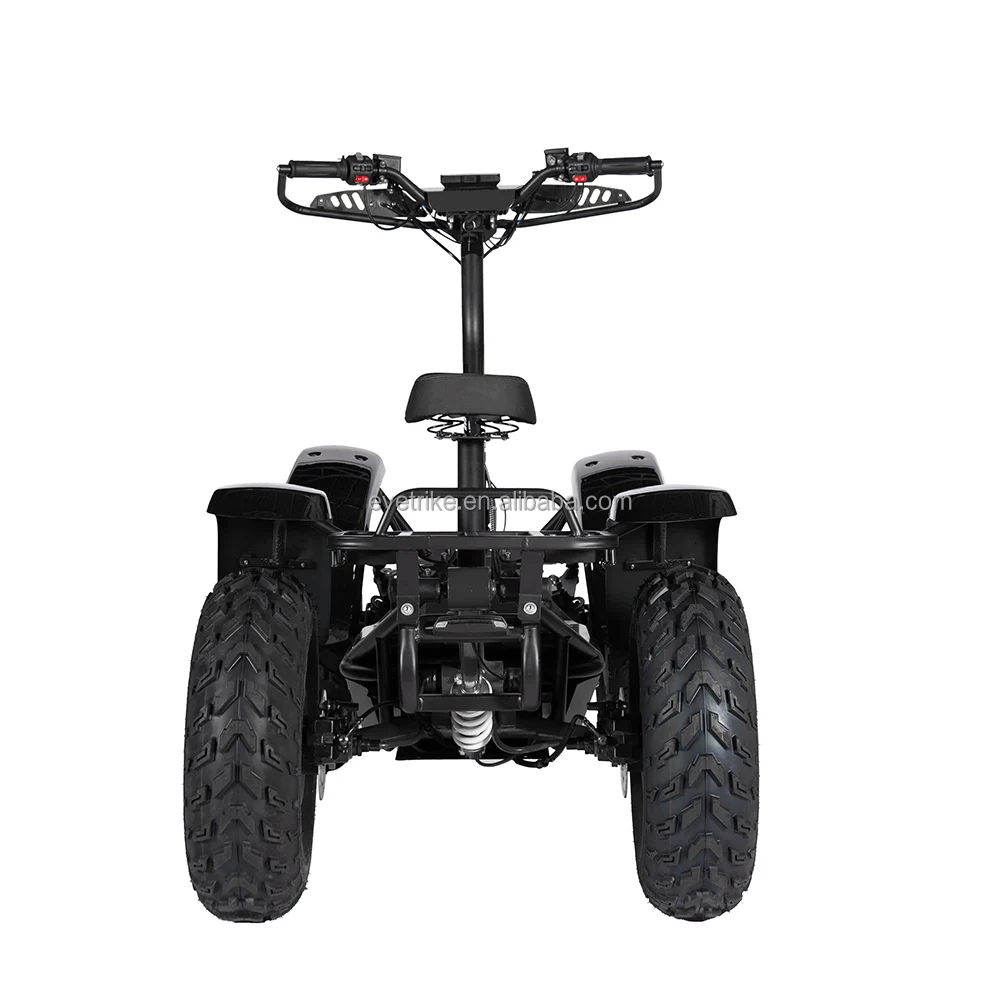

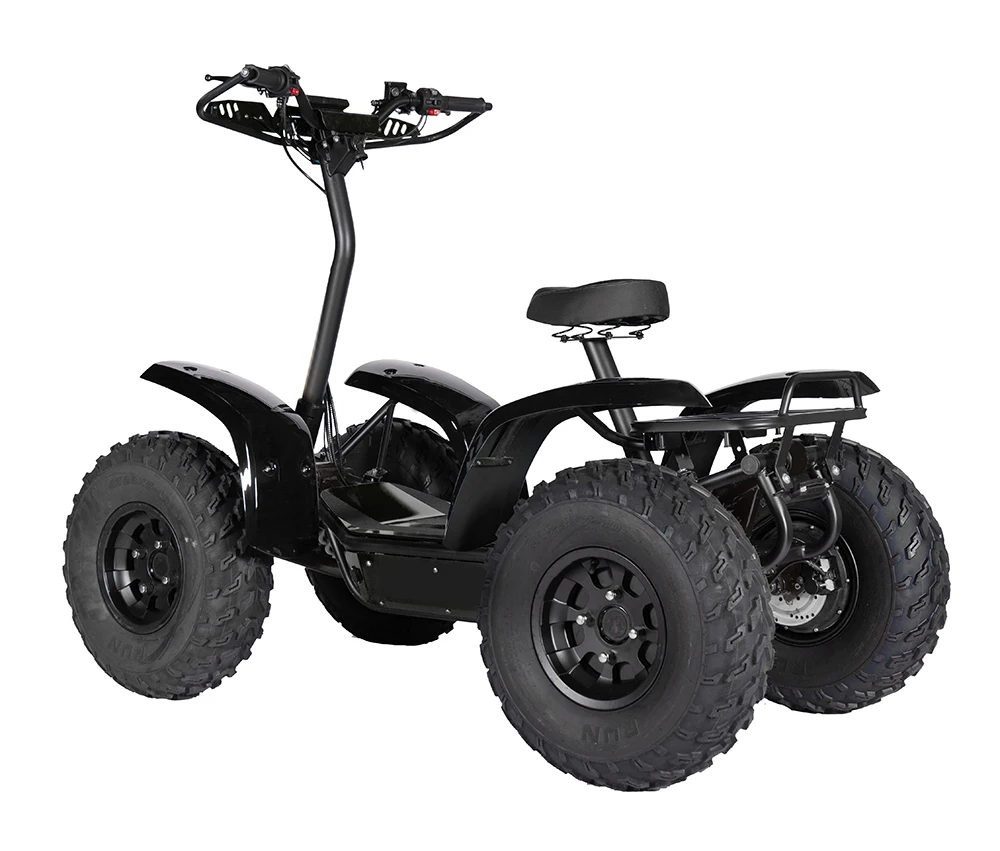

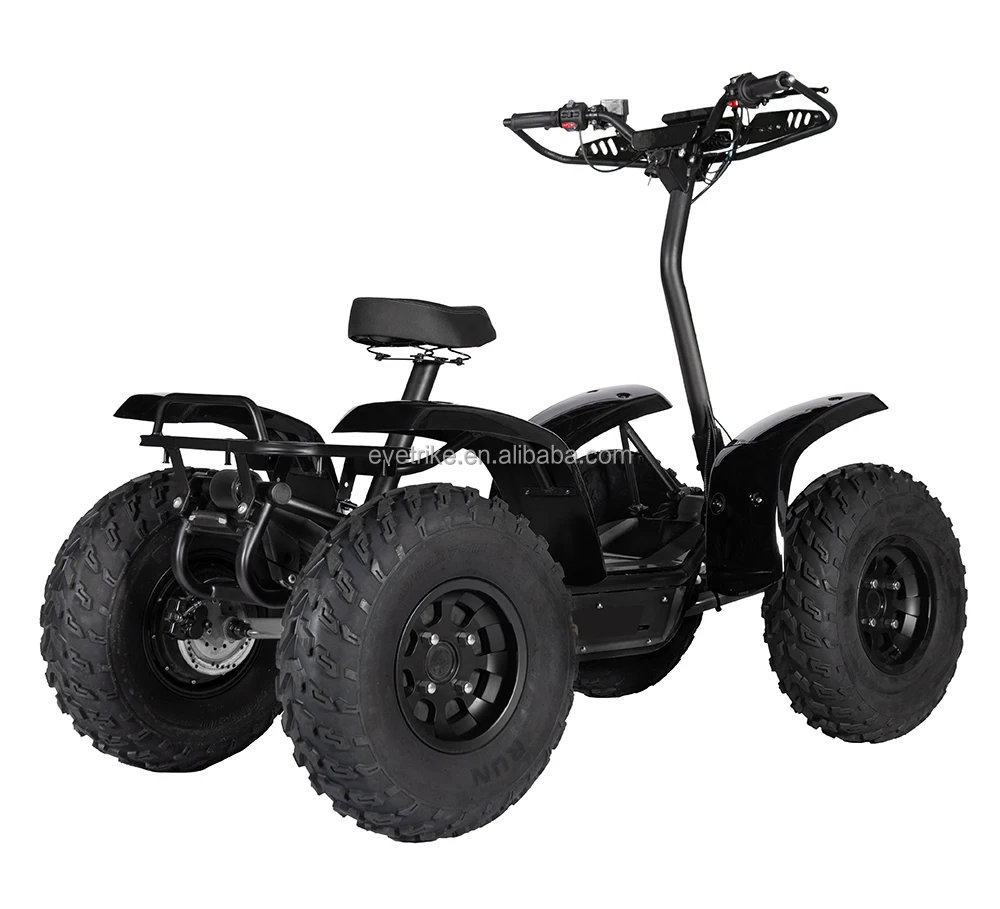

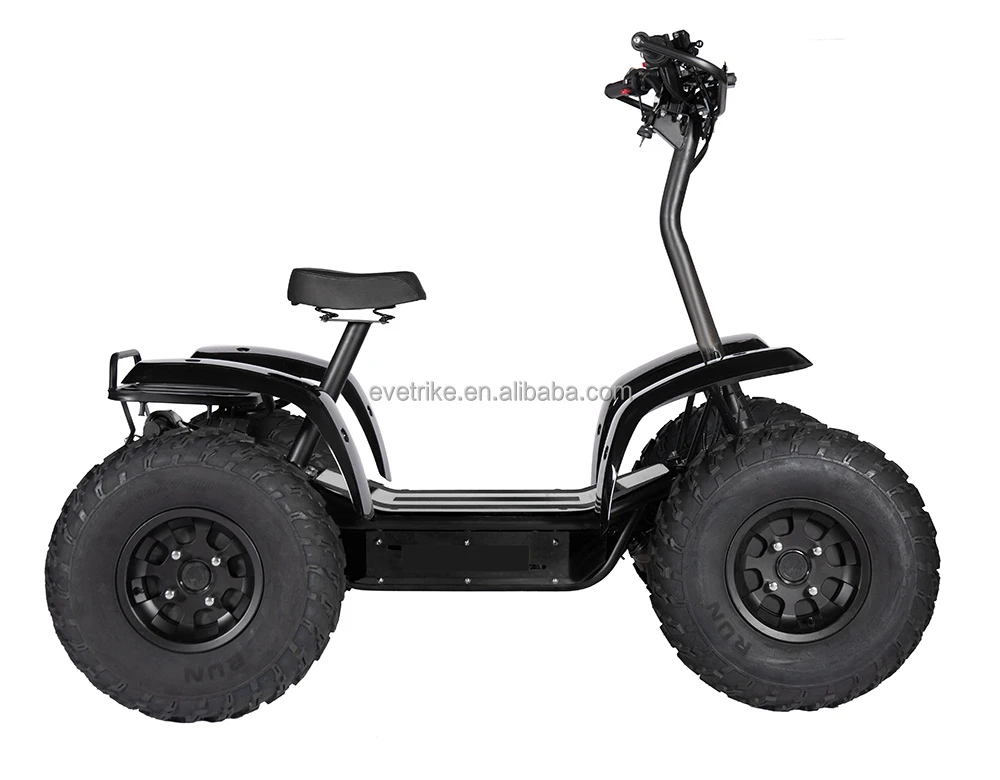

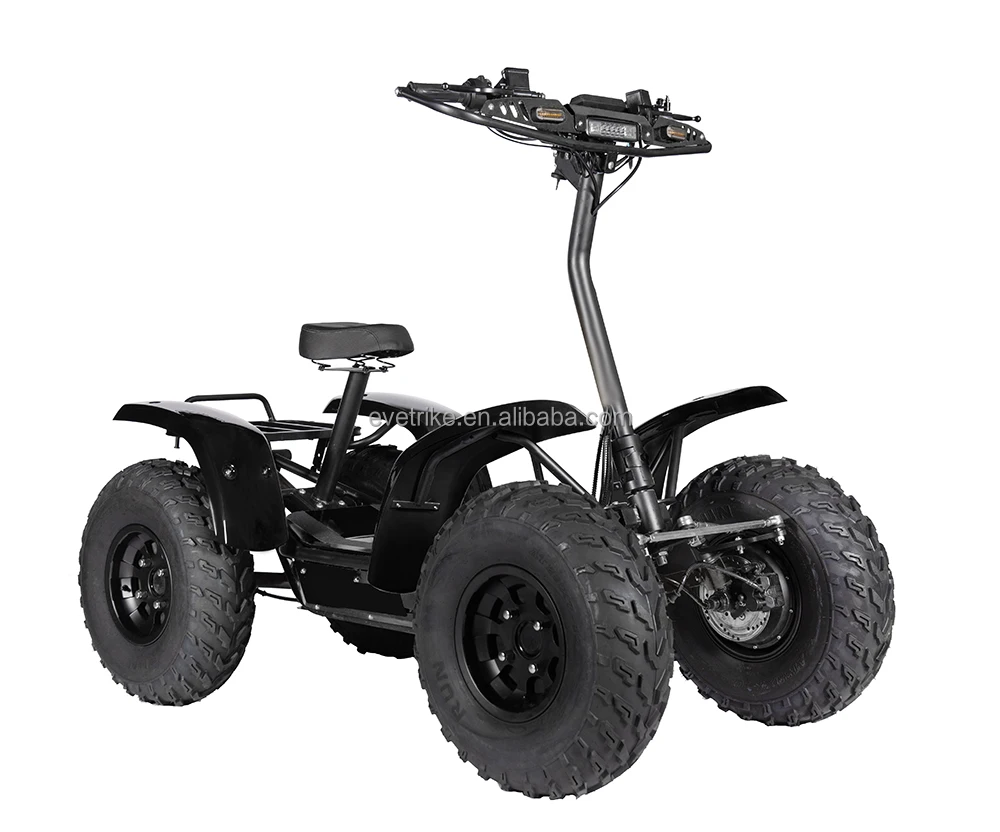

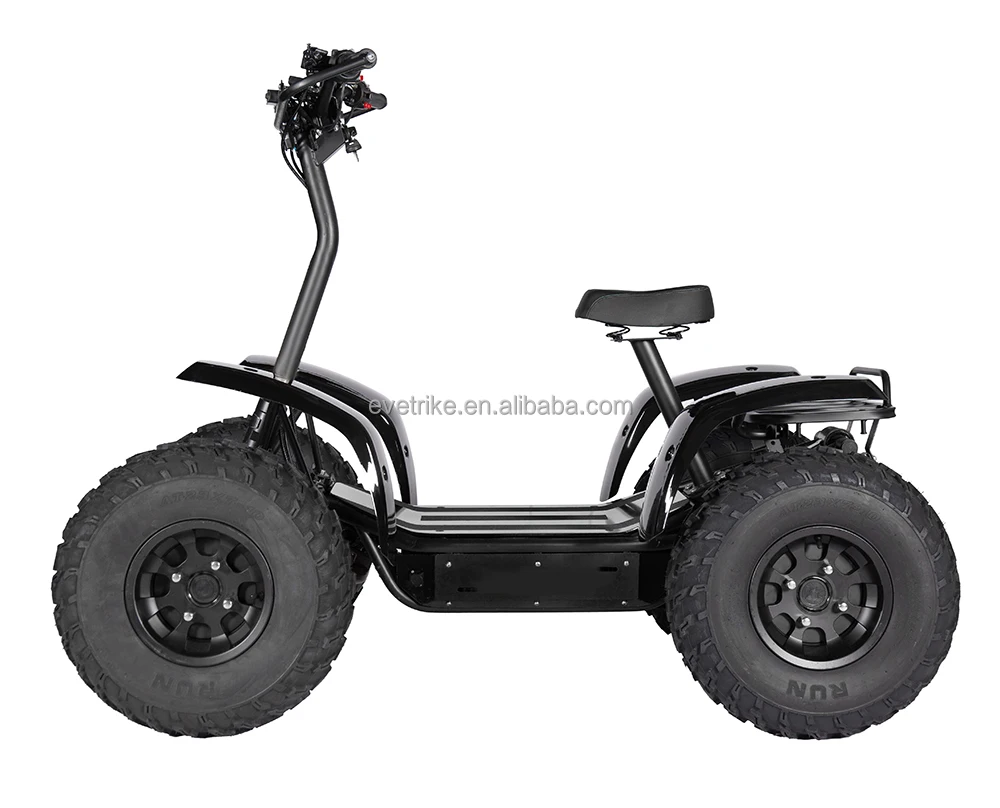

All Terrain Electric Scooter 4X4 6000W Original Engineering Design Wagon ATV Lithium Battery EZ Raider New UTV Muggy Motorcycle

Product Overview

Description

All Terrain Electric Scooter 4X4 6000W Original Engineering Design Wagon ATV Lithium Battery EZ-Raider New UTV Muggy Motorcycle







Motor: PMSM (Permanent Magnet
Synchronous Motor) 60V/6kW (4pcs x1500W)

Max Power: 6000W

Max Torque: 64.2N.m

Controller: PMSMmotor
controller, 4pcs x60V/100A

Battery: Lithium 60V/50Ah, Ternary
Polymer Lithium Battery NMC(Li(NiCoMn)O2)

ChargerInput/Output: 110V-220V/6A,
CE/UL

Charging Time: 6-8hours/1pcs charger, 3-4 hours/2pcs
chargers

Passenger: 1 person

Dimension LxWxH: 1,750x860x1,370mm

Range: 60-80km

Max.Speed: 75km/hfor
sports 4x4, 45km/h for eco 4x2

Brake Distance: 5.6m/50km/h

NetWeight: 160 kg

Wheelbase: 1,162mm

Min. Ground Clearance: 215mm

Max Climbing: 35 degree

Max.Load: 150 kg



Driving System: Four Wheel Hub
Motor Driving, 4x2 and 4x4 drive Switchable

Braking System: F/R Four wheel Disc
Brakes

Suspensions: F/R Swing arm

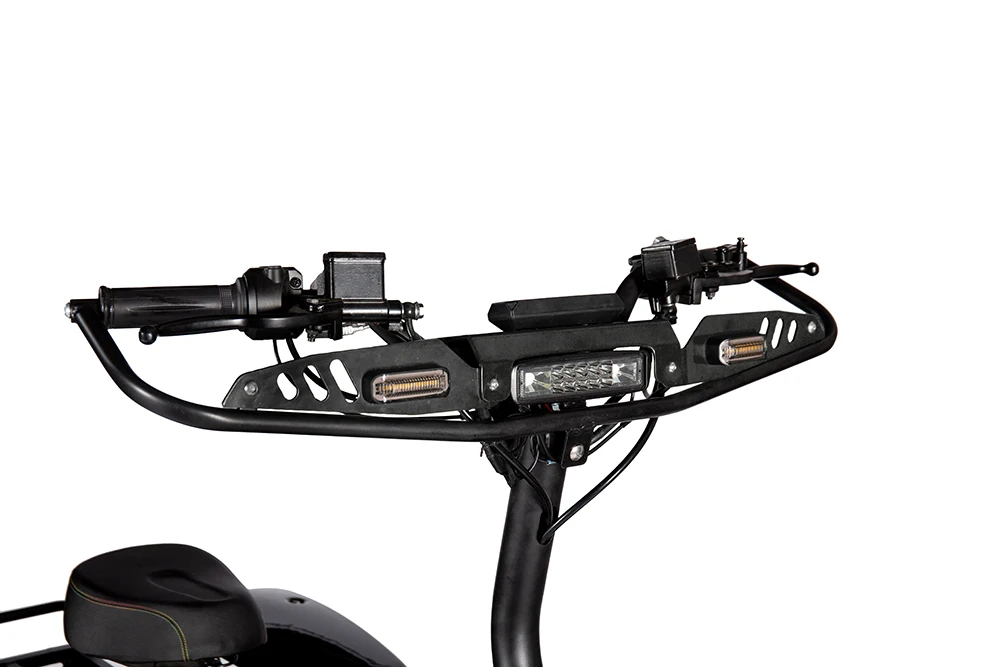

Handlebar: Aluminium Alloy, foldable

Seats: High density sponge and
thickening leather, removable

Chassis: High strength steel
tube welded structure

Lights: Front and rear lights,
Turning lights, Brake lights, electrical horn

Display: LCD

TyreF/R: Off-Road, Tubeless 23x7-10

Wheel Rim: 10 inch, Aluminum Alloy

Package: Steel rack with strong
carton 2240x800x530mm

Container Qty: 25pcs/1x20'FT;  60pcs/1x40'HQ



OFF-ROAD STANDING ATV - (All Terrain
Vehicle)

The ATVcan
be used in various applications, such as military, paramilitary, HLS and
rescue, hunting, agriculture, extreme, fun, etc…
