LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
Hot sale double girder overhead crane 20 ton to 80 ton price
- Category: >>>
- Supplier: Henan Yuantai Crane Machinery Import & Export Co. Ltd.
Share on (1600929914197):
Product Overview
Description
Hot sale double girder overhead crane 20 ton to 80 ton price
Double Girder Overhed Crane | Yuantai Crane Machinery |
Technical characteristics:
the limiting size is the lowest between the top of crab and the track of trolley, that is to say, it reduces 20%-30% compared with traditional products, which can reduce the capacity of workshop 20% efficiency. It has hard-tooth reducer, imported wire-rope, and trinity drive. It is equipped with such protecting devices as alarm device to overloading, obliquely hanging second protecting equipment preventing hook clashing the top, protecting the current lacking of any phrase etc. The operating board (handle) adopts 12v safe voltage to fulfill multi-function of protection to gantry hoist. The electric controlling can be used more than 2 million times when the voltage is 380v+5~-10%.
Points to attention:
1. Users should lock the crane in time, when the crane stops operating on operating spot.
2. There is no electric wire above the total switch of the crane. Strictly forbid to use in such dangerous operating as easily combustible, explosive, corrosive, overloading, dust, etc.

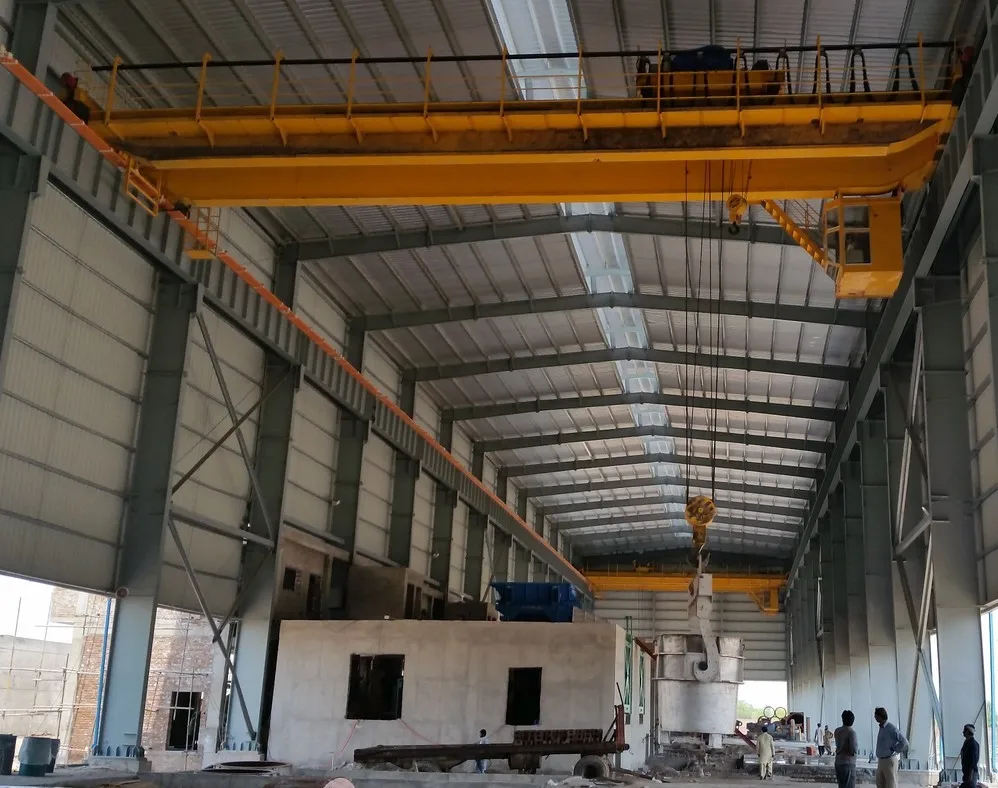

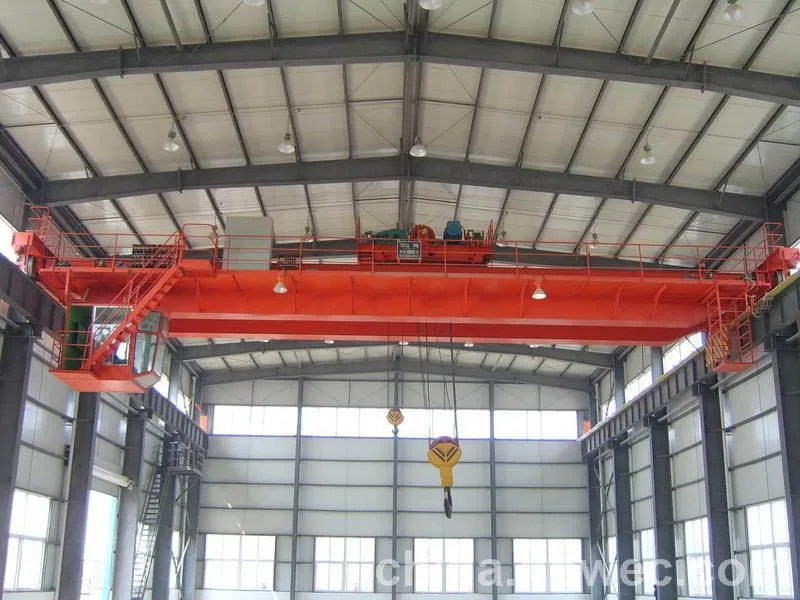

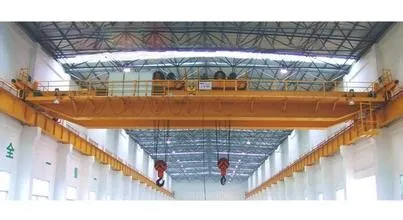

Double Girder Overhed Crane In General | Yuantai Crane Machinery |
Heavy loading, wide span, the whole crane stable and variety.
The machine with novel structure, attractive appearance, advanced technology.
Flexible operation, safe and reliable.
The spare parts are standardization, generalization and serialization.
| Capacity(t) | Lifting Height(m) | Speed (m/min) | Total Power (kw) | Recomend Rail (kg/m) | ||||
| Main hook | Aux hook | Main hook | Main Hook | Aux. hook | Trolley | Crane | ||
| 16/3.2 | 12 | 15 | 2.5~9 | 9 | 20~38 | 30~70 | 19.4~49.5 | 52.8 |
| 20/5 | 27.5~62.5 | |||||||
| 25/5 | 28.1~72.9 | |||||||
| 32/5 | 15 | 17 | 30~80 | 29.7~110 | 63.69 | |||
| 40/5 | 2~9 | 30~70 | 30.5~111.5 | |||||
| 50/10 | 2~7 | 9 | 46.4~130 | |||||
| 63/10 | 21 | 23 | 1.5~7 | 9 | 46.4~157 | |||
| 75/20 | 26 | 28 | 1.7~7 | 7 | 18~30 | 81~184 | 88.96 | |

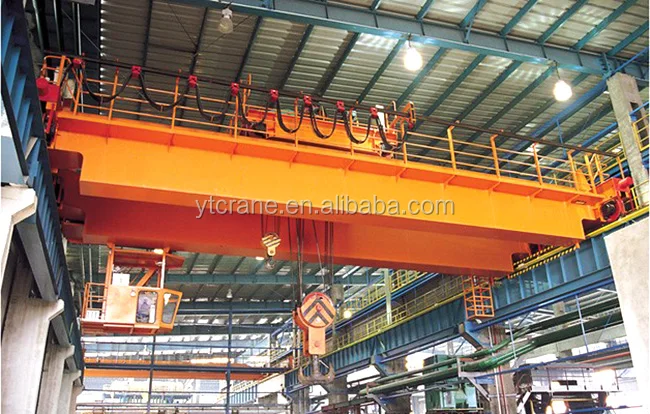

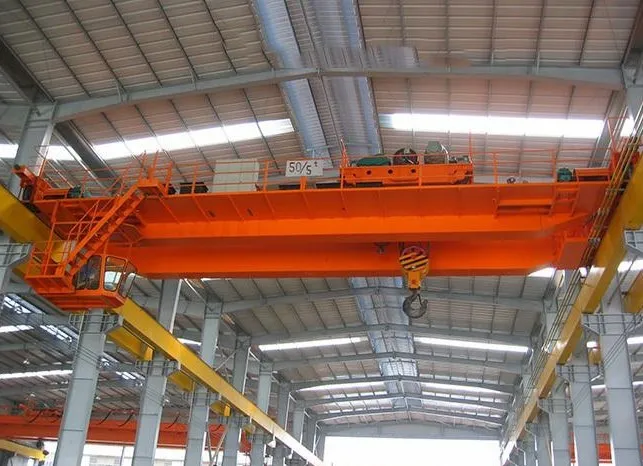

Double Girder Overhed Crane Main Body | Yuantai Crane Machinery |
Double girder, welded box beams, the camber line is according to national standard.
High safety, high steel degree
Adopts high quality carbon steel, Q235B or Q345B.
The main weld is by submerged arc welding automatic welding, nondestructive flaw detection
The end truck adopts 10.9 high strength bolt connection.
The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable.
End beam equipped with buffer block, orbital cleaning device.

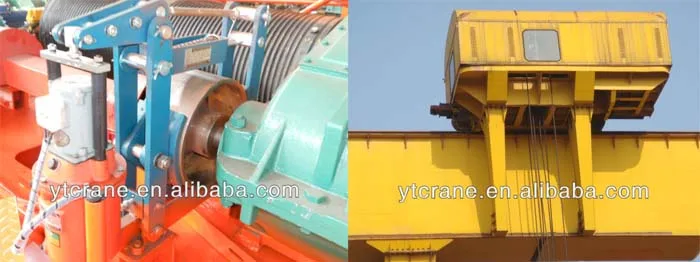

Double Girder Overhed Crane Trolley Part | Yuantai Crane Machinery |
It includes motor, speed reducer, brake, coupling, wheels, coiling blocks.
No asbestos brake pad and brake block insert use card outfit, safe and reliable;
The speed reducer use hard-toothed surface reducer, compact structure, durable;
Trolley travelling use seperate drive;
Have high loading ability, long service life moving stable;
Equipped with the derailment prevention board;
Used for Angle round box, equipped with buffer device;
Modular design, meet customer needs.

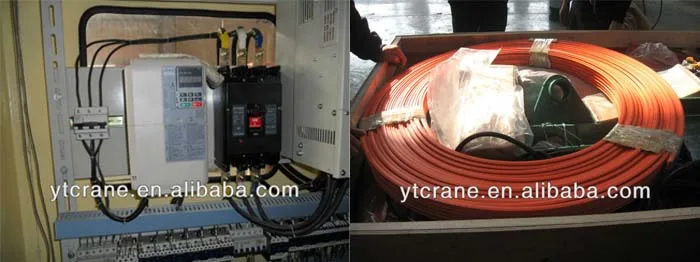

Double Girder Overhed Crane Electric System | Yuantai Crane Machinery |
Module control speed, micro-speed and double speed;
Traveling and lifting smoothly;
The power for trolley moving adopts flat cable, sliding smoothly;
Control box layout is reasonable, easy to repair;
Protection class IP55;
Optional main power source ;
All external cable line number with mark;
Safety smooth touch line, high conductivity, small pressure drop;
Light weight, installation convenience;
Set electric taxi speed is high, ensure continuing power supply;
Optional speed control module, and can realize the micro speed and double speed.

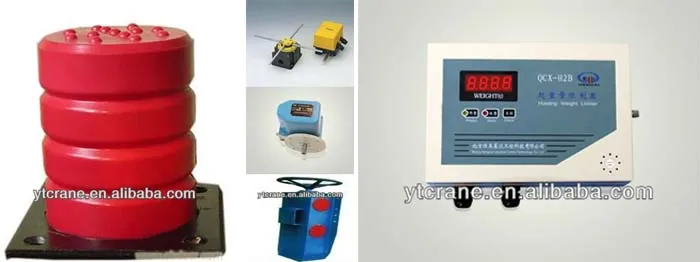

Double Girder Overhed Crane Protection Devices | Yuantai Crane Machinery |
Preventing hook clashing the top, set shields and barriers
Circuit self-test protection device,Running the travel limit
Protecting the current lacking of any phase.
Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
Anti-collision, sound and light alarm devices.
Equipped with rail clamp.
Lifting weight limitation, height limitating, rail clamping device
Speeding protection, zero pressure protection, the lightning protection
Double Girder Overhed Crane Operation Device | Yuantai Crane Machinery |

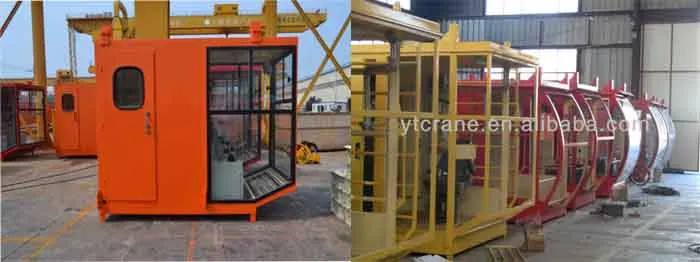

Capsule driver room, eye shot is open,Linkage machine control, easy to operate
Double block button or lever type lever,Smooth operation and accurate
Remote control, no need of professional driver.
Following type or slide-independent, non-following suspension
Protection class IP65
Life of 500000 times; remote control, very easy;
With strong waterproof, fight broke performance

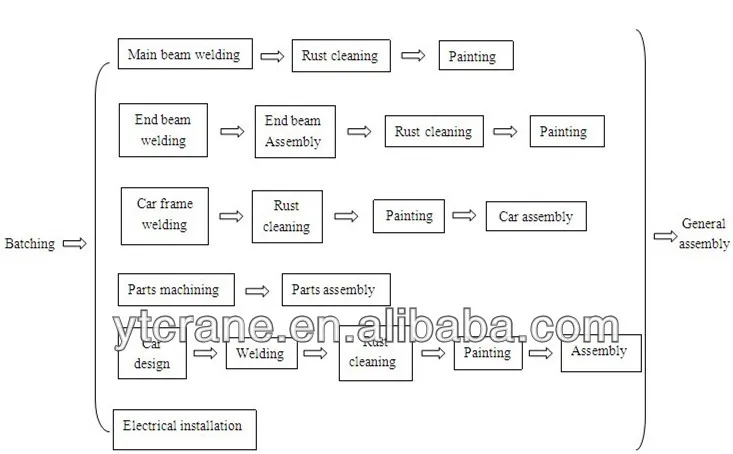

| The production process | Yuantai Crane Machinery |
| The packing and shipping | Yuantai Crane Machinery |
Packaging & Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
| Factory details | Yuantai Crane Machinery |
Company information
Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.
| Certificates | Yuantai Crane Machinery |
Certifications
We have past CE, ISO, SGS, GOST and so on
FAQ
1.Is your products cuztomized?
Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.
3.How many operation methods for my selction?
Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.
4.The space of my workshop is limited, can the crane ok for me?
Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.
5.Do your side can provide lifting tools?
Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...
