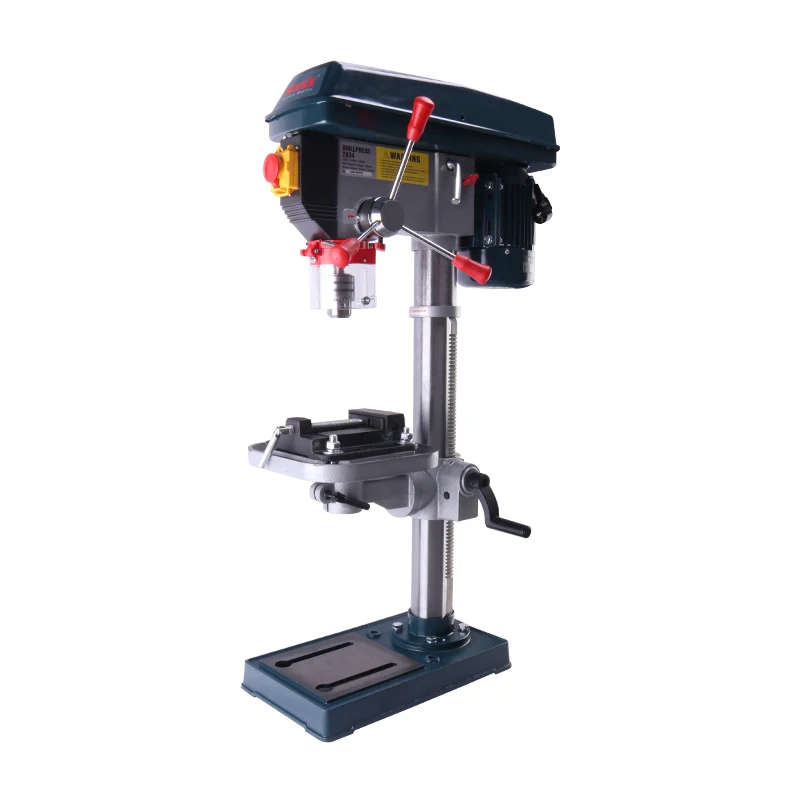

Ronix Model 2604 Top Quality Powerful Drilling Deep Hole Rocker Arm Drilling Machine 13mm Electric Dril Press
- Category: >>>
- Supplier: Suzhou Zhongyide Import And Export Co. Ltd.
Share on (1600929944694):
Product Overview
Description
Products Description
Features：

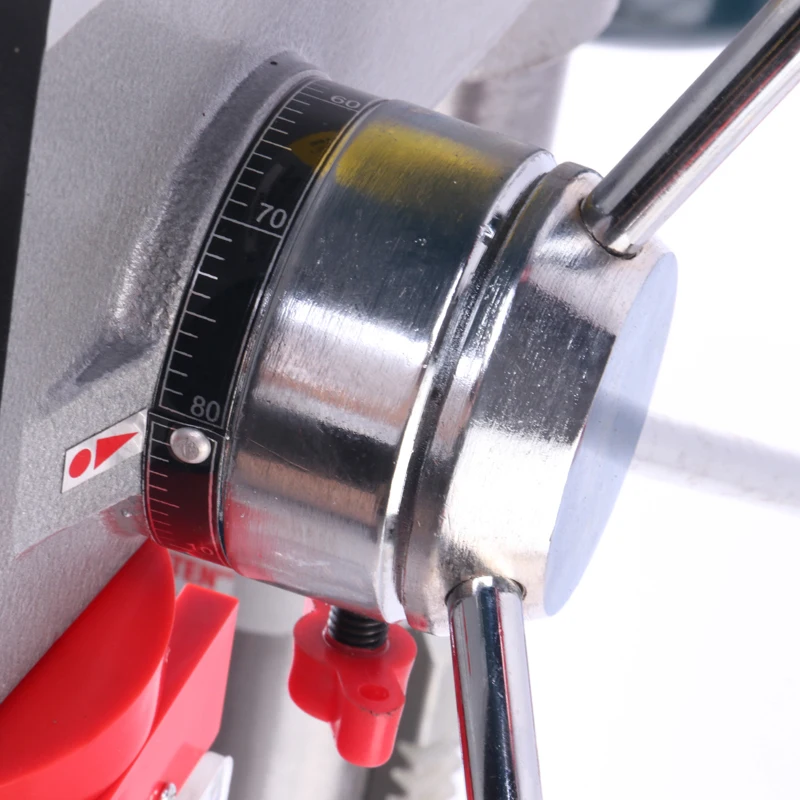

- Large, heavy-duty feed handles for increased leverage and maximum control

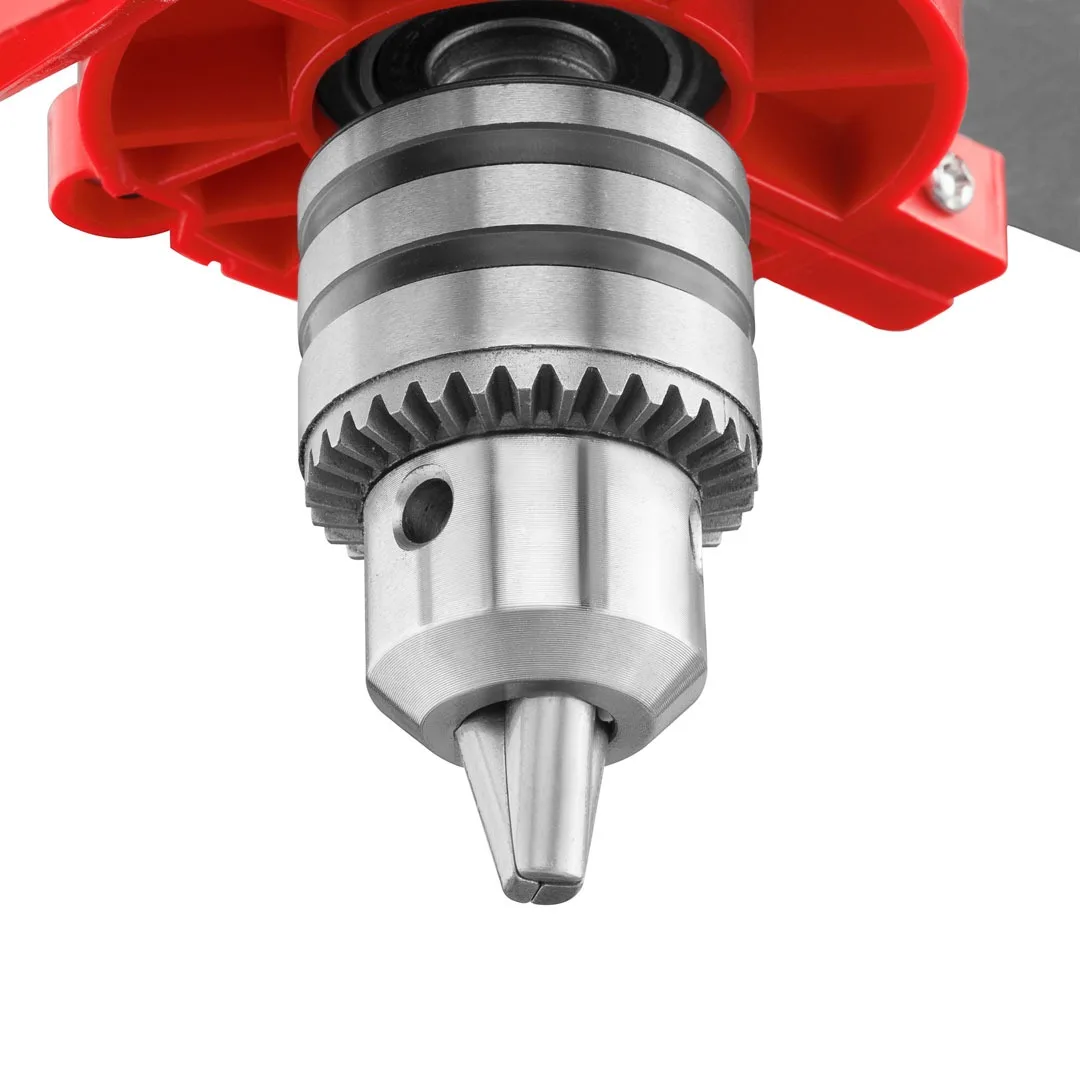

- 1.5 – 13mm adjustable keyed chuck for greater bit capacity
- Adjustable table for easy and accurate height adjustment includes with 0-45o (L&R) tilt ability for angled drilling
-Cast Aluminum belt Pulley
-Cast iron working tableAnd base

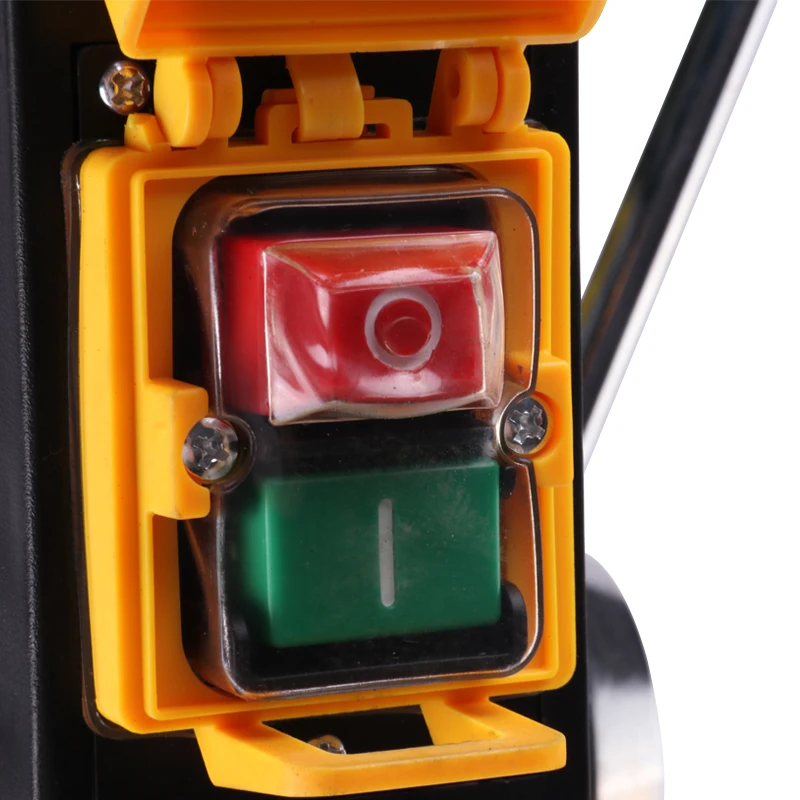

-Front Emergency Switch

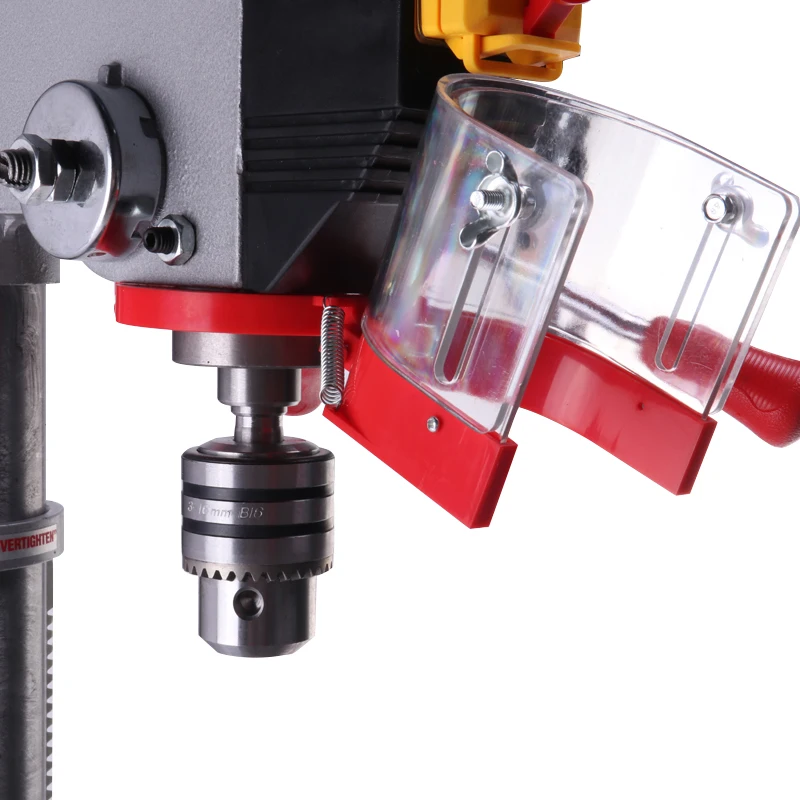

-CHUCK GUARD

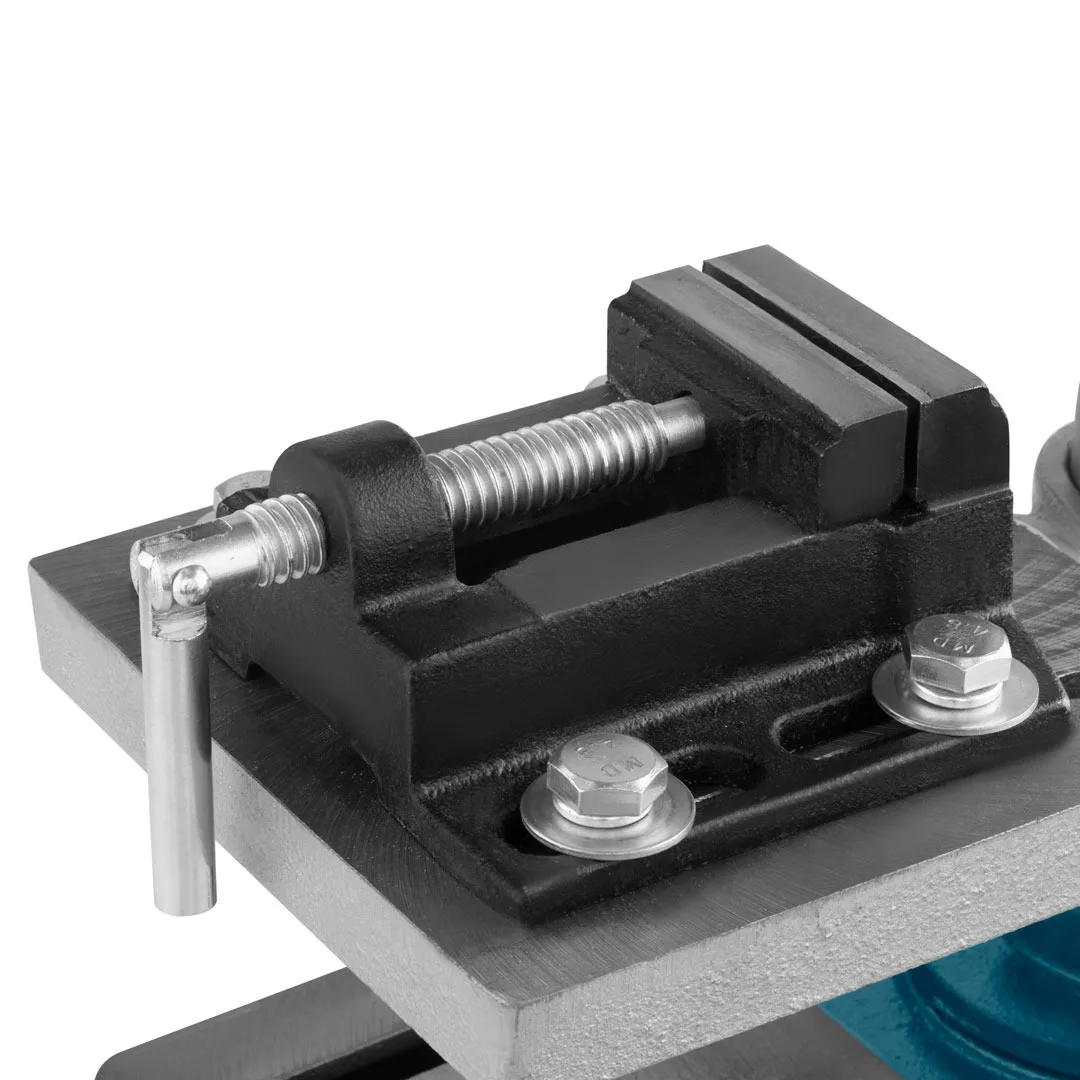

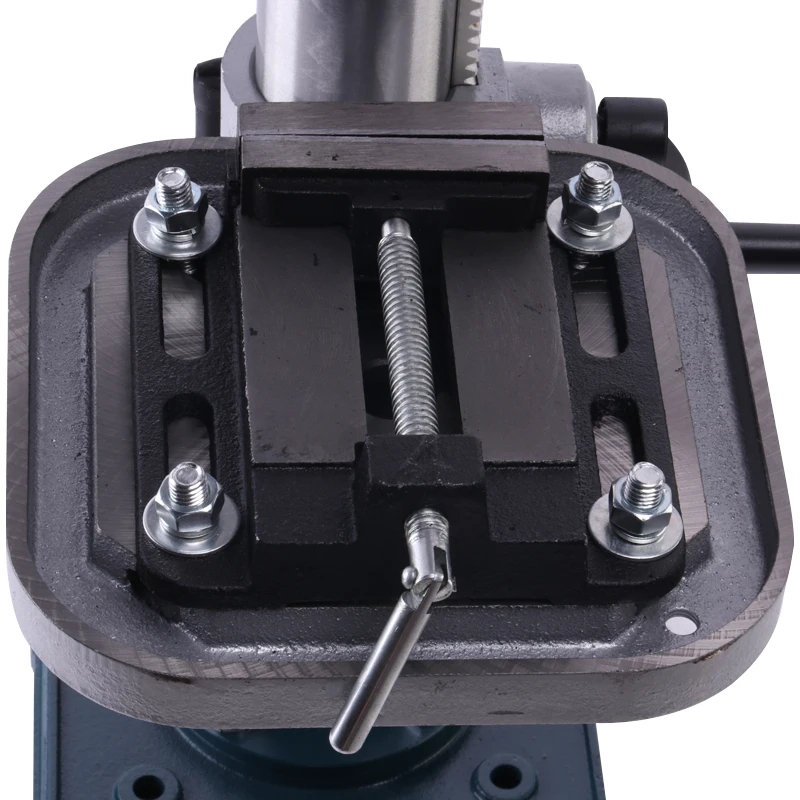

-2.5' Bench vise
-5 pulley speeds for drilling in to wood or metal
- Large, heavy-duty feed handles for increased leverage and maximum control
- 1.5 – 13mm adjustable keyed chuck for greater bit capacity
- Adjustable table for easy and accurate height adjustment includes with 0-45o (L&R) tilt ability for angled drilling
-Cast Aluminum belt Pulley
-Cast iron working tableAnd base
-Front Emergency Switch
-CHUCK GUARD
-2.5' Bench vise
Details Images

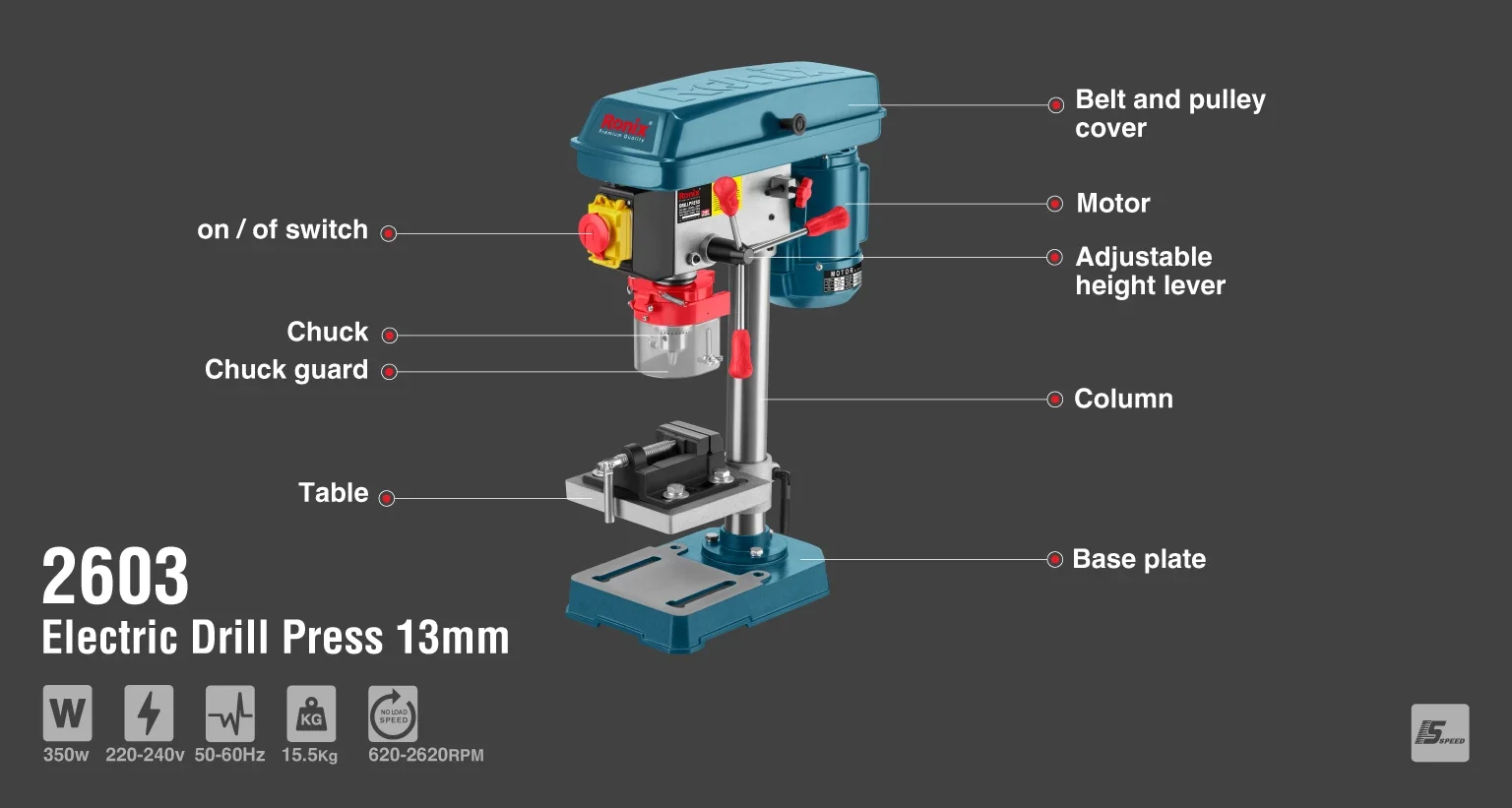

Model | 2603 |
Power | 350W |
Voltage | 220-240V |
Chuck Capacity | 1.5-13mm |
Frequency | 50-60Hz |
Drill Capacity wood | 20mm |
Drill Capacity steel | 13mm |
Drill Capacity Plastic | 16mm |
Spindle Travel | 50mm |
Class of Speed | 5 |
Speed | 620-2620RPM |
Spindle Taper | B16 |
Swing | 210mm |
Distance from Spindle End to the Surface of Table | 220mm |
Distance from Spindle End to the Surface of Base | 300mm |
Table Size | 160*160 |
Base Size | 190*290 |
Column Diameter | 46mm |
Height | 580mm |
Weight | 15.5Kg |
Includes | Base, Bench vice, Chuck and chuck key, Pulley cover tip and nut, Handle, Working table, Column, Chuck guard |
Packing and Shipping
Package | Color Box |
Quantity | 1pcs/carton |
Carton Size | 46*34*25.5cm |
NW | 15.5kg |
GW | 16.5kg |
