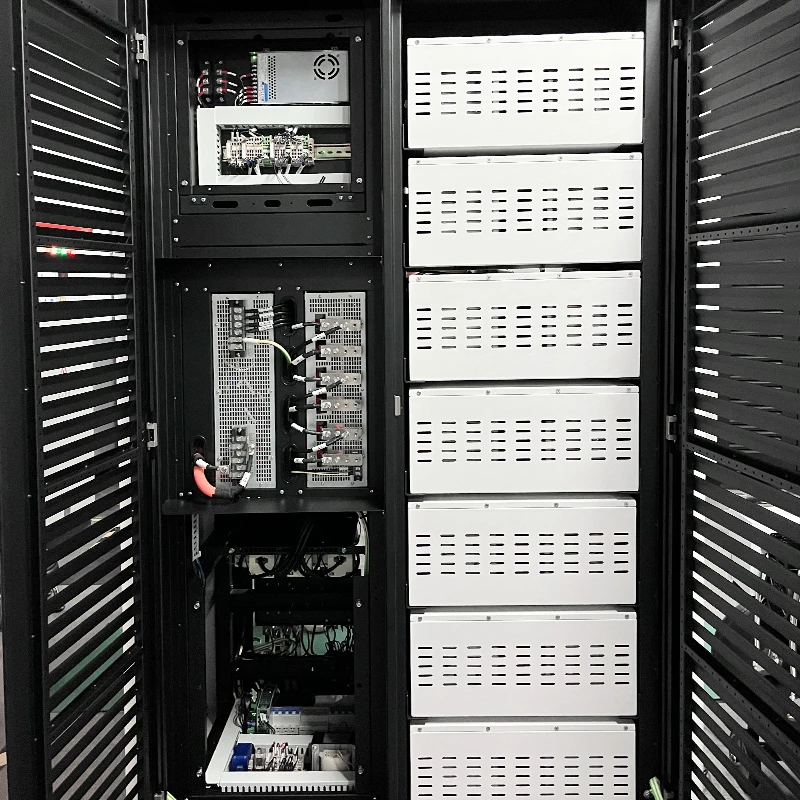

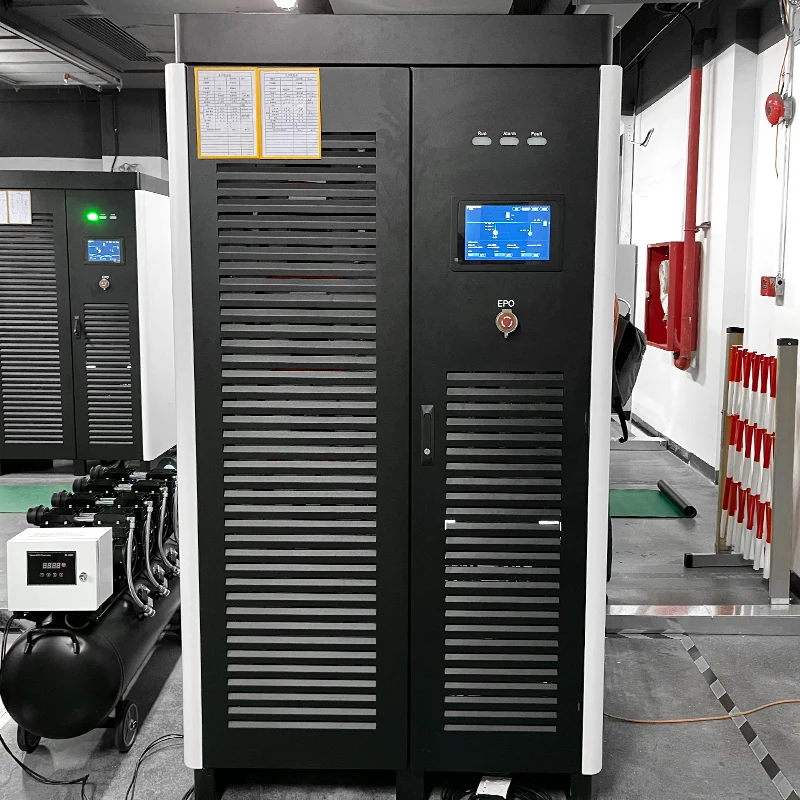

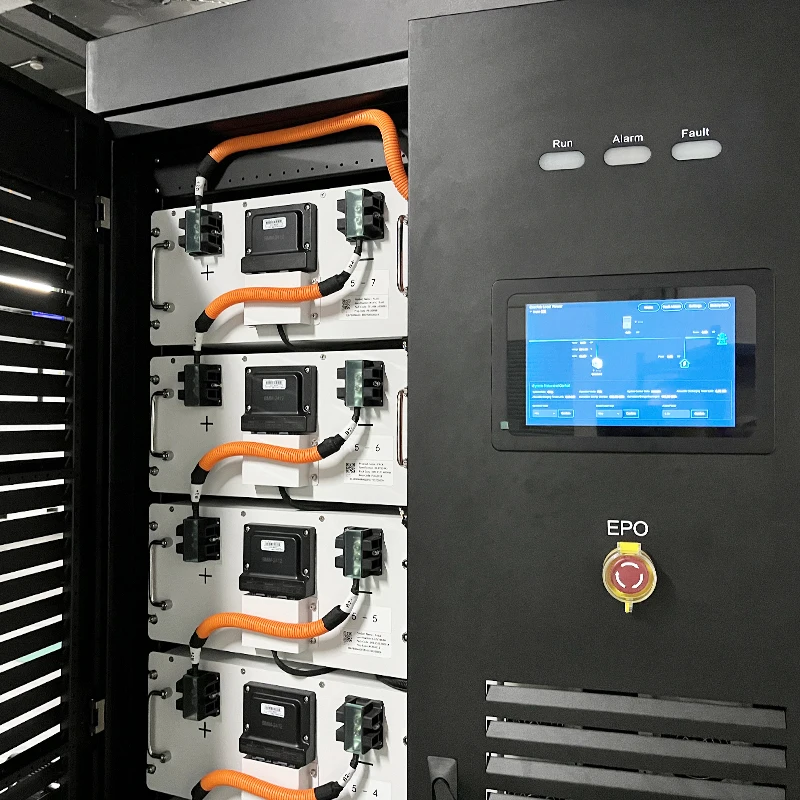

Commercial All in one cabinet ESS 65.8KWh Industrial Battery Energy Storage System Backup Power LiFePO4 Battery
- Category: >>>
- Supplier: Huizhou Liyuan Battery Co. Ltd.
Share on (1600930033409):
Product Overview
Description
Product Parameters
Category | Item | Technical parameter |
BES | Battery system rated energy | 65.8 kWh |
Battery voltage range | 275V-353V | |
Depth of Discharge(DOD) | 95% | |
Cell Type | LiFePO4-105Ah, EVE brand | |
Cycle life | > 3500@ 25°C 0.5C/0.5C | |
AC On-grid Parameters | Grid-connected cable control | STS |
Grid-connected cable system | 400VAC/3W+N+PE | |
Grid-tied Frenquency | 45Hz-55Hz | |
Factor | 0.9 | |
Output Harmonics | ＜3%（Rated Power） | |
Charge-discharge Conversion Time | ≤100ms | |
AC Off-grid Parameters | Rated Output Voltage | 400VAC |
Max AC Current | 43A | |
Voltage Accuracy | 1% | |
Frequency Progress | 45Hz-55Hz | |
Output Harmonics | ＜3%（Linear load） | |
Dynamic Response | 20ms | |
Unbalanced Load Capacity | 100% | |
Overload Capacity | 105~110%,-1min,120% -5S | |
Basic Parameters | Warranty time | 10 years |
Degree of Protection | IP20 | |
Noise | ≤70dB | |
Cooling Method | Battery Cabinet: liquid cooled, power distribution cabinet: air cooled | |
Communication protocol | Modbus TCP/RS485/RJ45 | |
EMS | Integration | |
Size | 800*1200*2100mm | |
Fire Protection System | Gas, smoke, temperature detection+Novec1230/FK-5112+frequency conversion exhaust | |
Optional | STS | |
Anti-corrosion Rating | C4 |
Product Usage
Company Profile
LIYUAN BATTERY is a factory that focus on Lithium Ion Battery And Energy Storage System,devoted to maintaining the level of R & D and manufacturing the world's advanced level.
1.What we provide:
Our Products include NMC & LFP chemistry.
Currently, we can support CANBUS/Bluetoot App/RS485/RS232 solution.Each battery module has BMS to control and monitor the battery working status.
Broadly used for EVs and Utility infrastructure, energy storage systems and other applications.
2.Product Quality
Certificated with UL,ROHS,CE,MSDS.
Every process is strictly controlled to ensure the quality.
3.Advantage
a. 1 hour to Shenzhen port.
b. 12 years' factory can supply cost-effective batteries.
c. Qualified technical team can meet the requirements of private customization.
d. Trustable supplier to various countries (United States, England, Australia, Europe).
Packaging and Delivery
Exhibition
Certifications
Why Choose Us
1. What we provide:
Our Products include NMC & LFP chemistry. Currently, we can support CANBUS/Bluetoot App/RS485/RS232 solution.Each battery module
has BMS to control and monitor the battery working status. Broadly used for EVs and Utility infrastructure, energy storage systems and other applications.
has BMS to control and monitor the battery working status. Broadly used for EVs and Utility infrastructure, energy storage systems and other applications.
2. Product Quality
Certificated with UL,ROHS,CE,MSDS. Every process is strictly controlled to ensure the quality.
3.Advantage
a. 1 hour to Shenzhen port.
b. 12 years' factory can supply cost-effective batteries.
c. Qualified technical team can meet the
requirements of private customization.
requirements of private customization.
d. Trustable supplier to various countries (United States, England, Australia, Europe).
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to North America(35.00%),South America(25.00%),Eastern Europe(20.00%),Northern Europe(10.00%),Western Europe(10.00%). There are total about 501-1000 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Prismatic Cell, EV Pack, EV Module,UPS Energy Storage,Home Energy Storage.
4. Why should you buy from us not from other suppliers?
1) Quality
Every process is controlled by dedicated persons.
2) Supply
Multiple production line ensures stable supply.
3) OEM
Back up with professional technical team to provide solutions.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union;
Language Spoken:English, Chinese, Spanish, German, French.
We are based in Guangdong, China, start from 2021,sell to North America(35.00%),South America(25.00%),Eastern Europe(20.00%),Northern Europe(10.00%),Western Europe(10.00%). There are total about 501-1000 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Prismatic Cell, EV Pack, EV Module,UPS Energy Storage,Home Energy Storage.
4. Why should you buy from us not from other suppliers?
1) Quality
Every process is controlled by dedicated persons.
2) Supply
Multiple production line ensures stable supply.
3) OEM
Back up with professional technical team to provide solutions.
4) Speed
One hour to Shenzhen port.
5) Service
Excellent technical team will support applicable solutions for you.
Business department will follow up your pre-sales, in-sales and after-sales.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union;
Language Spoken:English, Chinese, Spanish, German, French.
6. What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity and standard product, and about 30 days for custom design prototetype and
large quantity.
-Usually we can ship within 7-15 days for small quantity and standard product, and about 30 days for custom design prototetype and
large quantity.
7. What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Please confirm with us before placing orders.
8. How do you make our business long-term and good relationship?
-1) We keep good quality and competitive price to ensure our customers benefit ;
-2) We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come
from.
-2) We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come
from.
