HT Top ranking 5kw 6kw 8KW 10KW solare inverter wifi single phase 10kva with mppt solar inverter cheap price wholesale in stocks
- Category: >>>
- Supplier: Shenzhen Infinite Power Technology Co. Ltd
Share on (1600930161111):
Product Overview
Description
Products Description
Solar Inverter wholesale
HT Top ranking 5kw 6kw 8KW 10KW solare inverter wifi single phase 10kva with mppt solar inverter cheap price wholesale in stocks

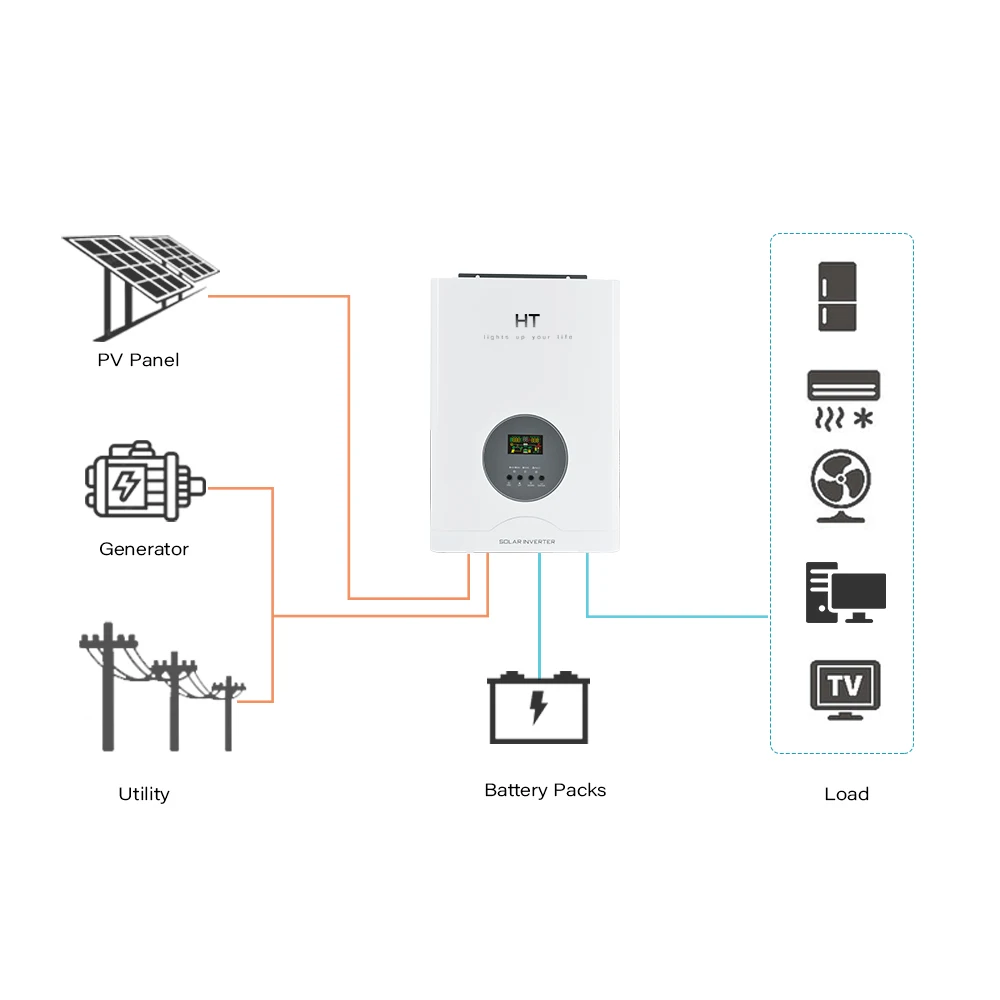

Application
Specification
MODEL | HT-800W | HT-1200W | HT-1600W | HT-2400W | HT-3200W | HT-4000W | HT-4800W | HT-6400W | HT-8000W | |||||||||
Battery voltage | 12V | 24/48V | 48V | |||||||||||||||
Battery type | Lithium/VRLA/GEL/GEL DEEP CYCLE | |||||||||||||||||
INVERTER OUTPUT | ||||||||||||||||||
Rated power | 1000VA/800w | 1500VA/1200W | 2000VA/1600W | 2400VA/2400W | 3200VA/3200W | 5000VA/4000W | 6000VA/4800W | 8000VA/6400W | 10000VA/8000W | |||||||||
Efficiency(peak) | 98% | |||||||||||||||||
Waveform | Pure sine wave | |||||||||||||||||
Transfer time | 10ms typical,20ms max | |||||||||||||||||
SOLAR CHARGER | ||||||||||||||||||
Maximum pv array power | 720W | 1400W-2800W | 3400W | |||||||||||||||
MPPT range | 18V-150V | 34V-150V/68-150V | 60V-150V | |||||||||||||||
PWM Maximum PV displayopen circuit voltage | 38V | 75V | ||||||||||||||||
Maximum pV arrayopen circuit voltage | 150VCD | |||||||||||||||||
Maximum solar charge current | 60A | 60A/100A/120A | ||||||||||||||||
AC CHARGER | ||||||||||||||||||
Charge Current | 20A | 30A | 20A/15A | 30A/15A | 40A/20A | 55A/28A | 30A | 45A | 55A | |||||||||
Low Level disconnect (Selectable) | 10V-11V | 40V-44V | 40V-42V | |||||||||||||||
Frequency | 50/60HZ | |||||||||||||||||
PHYSICAL | ||||||||||||||||||
Protection Degree | IP20 | |||||||||||||||||
Size L*W*H (mm) | 470mm*335mm*210mm | 720*335*210mm | ||||||||||||||||
Net Weight (kgs) | 12 | 18.5 | 18.5 | 20 | 22 | 22 | 23 | 30 | 33 | |||||||||
OPERATING ENVIRONMENT | ||||||||||||||||||
Humidity | -10℃~90℃ Non condensing | |||||||||||||||||
Temperature | 0°C - 60°C | |||||||||||||||||
Accoustic Noise (db) | >55dB | |||||||||||||||||
Altitude | <2000m | |||||||||||||||||
