Fuhuide brand SS Welding rod AWS A5.4 E316L 16 for welding
- Category: >>>
- Supplier: Hebei Fuhuide Wear-Resistant Material Co. Ltd.
Share on (1600930213187):
Product Overview
Description
Warranty | 3 years |
Customized support | OEM, ODM, OBM |
Place of Origin | Hebei, China |
Brand Name | Fuhuide |
Model Number | AWS E316L-16 GB A022 |
Material | Stainless steel |
Operating Current | DC AC |
Welding Current | 40-230A |
Application | It is suitable for welding of liquefied natural gas (LNG) storage tanks |
Keyword | Stainless Steel Wleding Rod E316L-16 |
Usages | Welding Stainless Steel structure |
Product Name | Specification of welding electrode |
Packing | 5kgs/inner Box |
discription:
AO22 is an ultra-low temperature (-196℃) ultra-low carbon stainless steel electrode of rutile coating type. The weld metal has good mechanical properties and resistance to intergranular corrosion, especially good impact toughness at -196℃. The electrode can be used for both AC and DC, and has good resistance to porosity.
b.It can weld the 316L class austenitic stainless steel pipe system under the ultra-low temperature of -196℃. It is suitable for welding of liquefied natural gas (LNG) storage tanks, pipelines and cryogenic equipment.
Chemical composition of deposited metal (%)
C | Mn | Si | P | S | Ni | Cr | Mo | Cu | |
Standard value | ≤0.04 | 0.5~2.5 | ≤1.00 | ≤0.04 | ≤0.03 | 11.0~14.0 | 17.0~20.0 | 2.0~3.0 | ≤0.75 |
Example value | 0.026 | 0.86 | 0.75 | 0.019 | 0.0084 | 12.60 | 18.90 | 2.17 | 0.037 |
Mechanical properties of molten metal
Rm(MPa) | A(%) | -196 ℃ impact energy KV2(J) | |
Standard value | ≥490 | ≥25 | ≥32 |
Example value | 570 | 41 | 35 |
Requirements for X-ray inspection of molten metal: Level I
Reference current: (DC+ or AC)
Welding rod diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | ||
Welding rod length(mm) | 300 | 300 | 350 | 350 | 350 | ||
CURRENT | Flat welding | 30~50 | 50~85 | 85~120 | 120~160 | 150~200 | |
Vertical and overhead welding | 30~50 | 50~70 | 70~100 | 90~135 | |||
Product packaging
Recommend Products

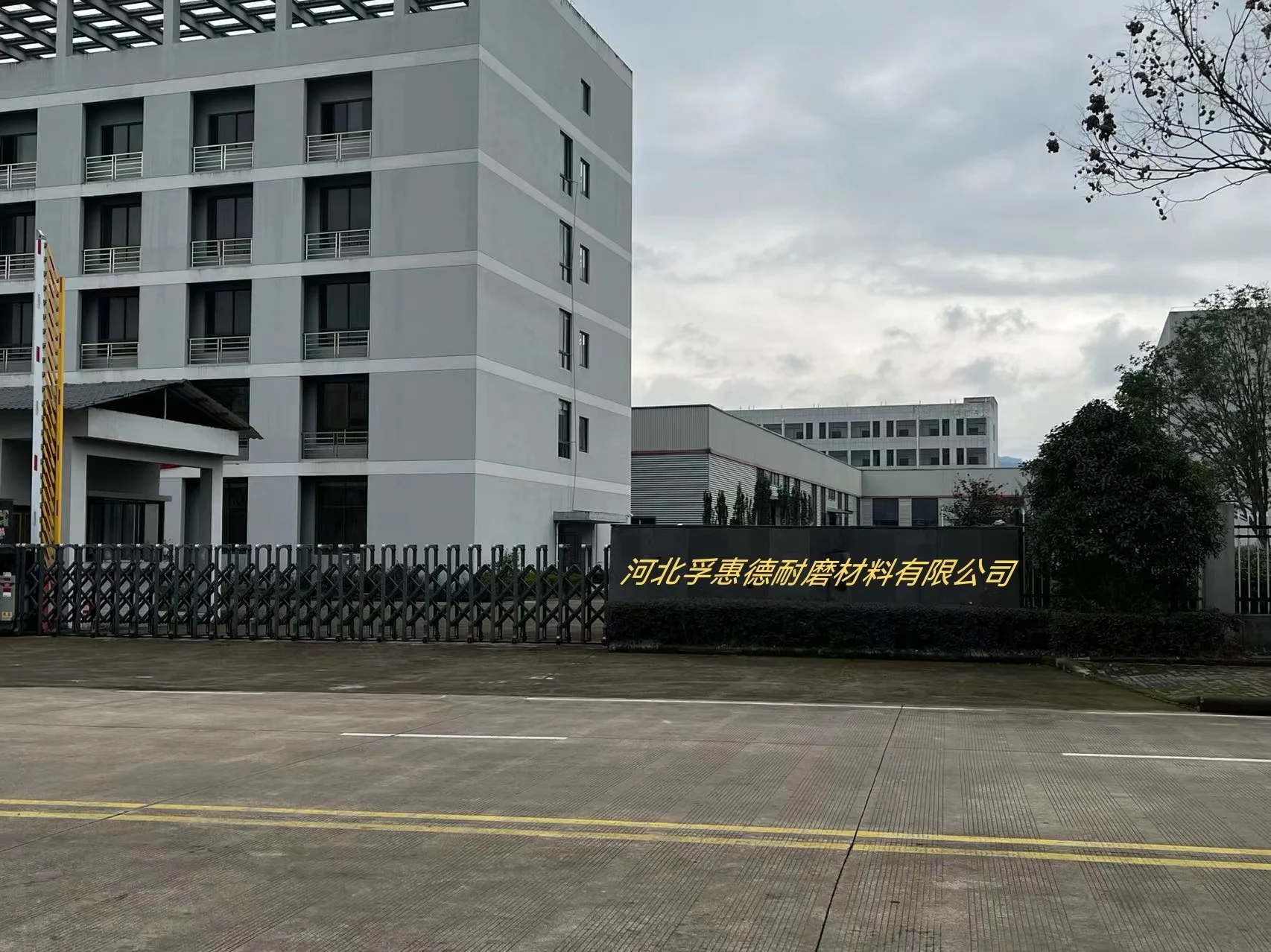

Company Profile
