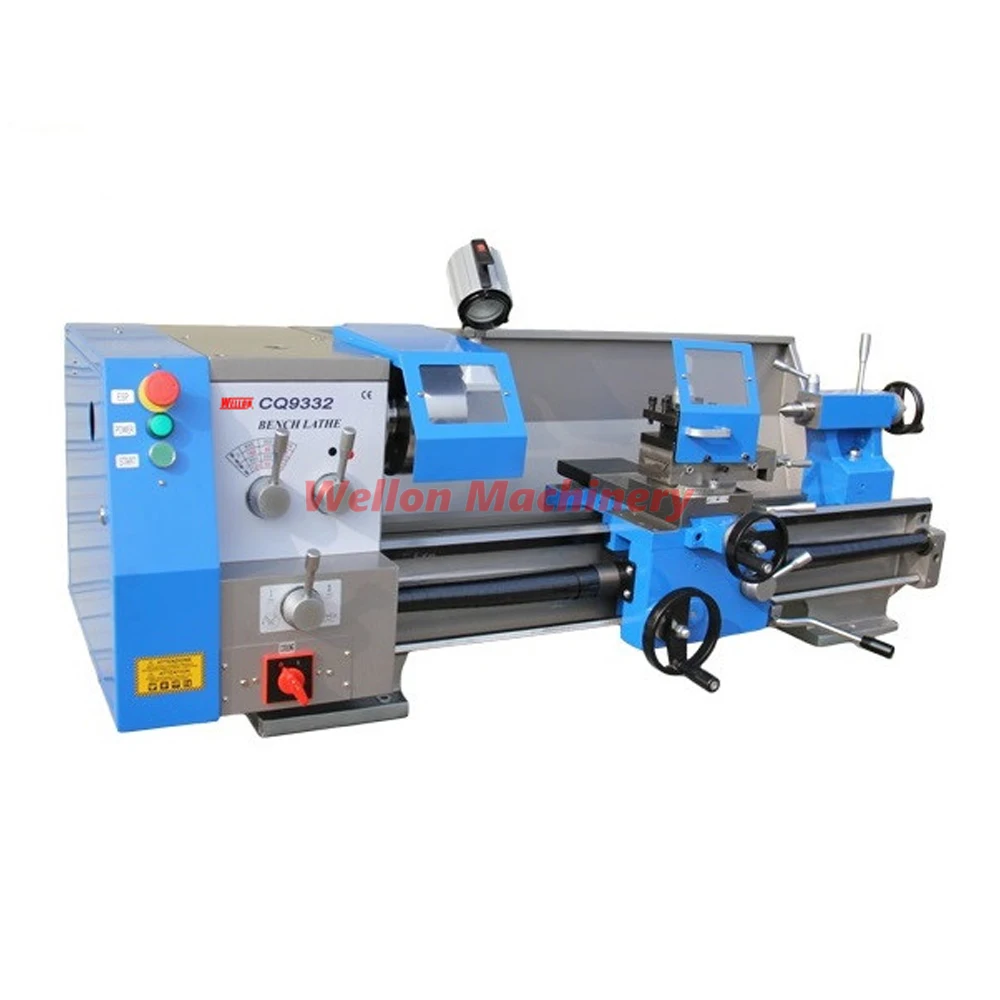

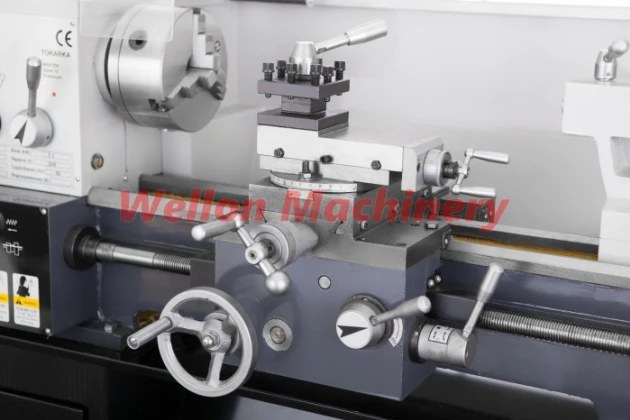

Precision Mini Lathe Machine CQ9332 CQ9332A Small Metal Bench Lathe Horizontal Manual lathes
- Category: >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (1600930278559):
Product Overview
Description
Product Description
FEATURES
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1600rpm.
6. Two different lengths of bed are available.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1600rpm.
6. Two different lengths of bed are available.
Specification
Model | CQ9332 | CQ9332A |
Swing over bed | 320mm | 320mm |
Swing over carriage | 210mm | 210mm |
Center distance | 600mm | 750mm |
Width of bed | 160mm | 160mm |
Spindle bore | 38mm | 38mm |
Spindle speed | 60-1050r/min | 60-1600r/min |
Spindle speed steps | 6 | 12 |
Spindle taper | NO.5 | NO.5 |
Top slide travel | 100mm | 100mm |
Cross slide travel | 160mm | 170mm |
Metric threads | 0.5-3.5(14 kinds) | 0.5-3.5(17 kinds) |
Inch threads | 9-40 TPI (18 kinds) | 9-40 TPI (20 kinds) |
Longitudinal feed range | 0.135-1.80mm/r | 0.135-1.80mm/r |
Cross feed range | 0.025-0.34 mm/r | 0.025-0.34 mm/r |
Tailstock taper | NO.3 | NO.3 |
Quill of tailstock travel | 70mm | 70mm |
Motor power | 1.5 kw | 1.5 kw |
Net weight | 240kg | 280kg |
Overall dimension | 137x70x66 | 158x76x76 |
Standard accessories:
3 Jaw chuck
Dead centers
Change gears
Spindle protection
Operate tools

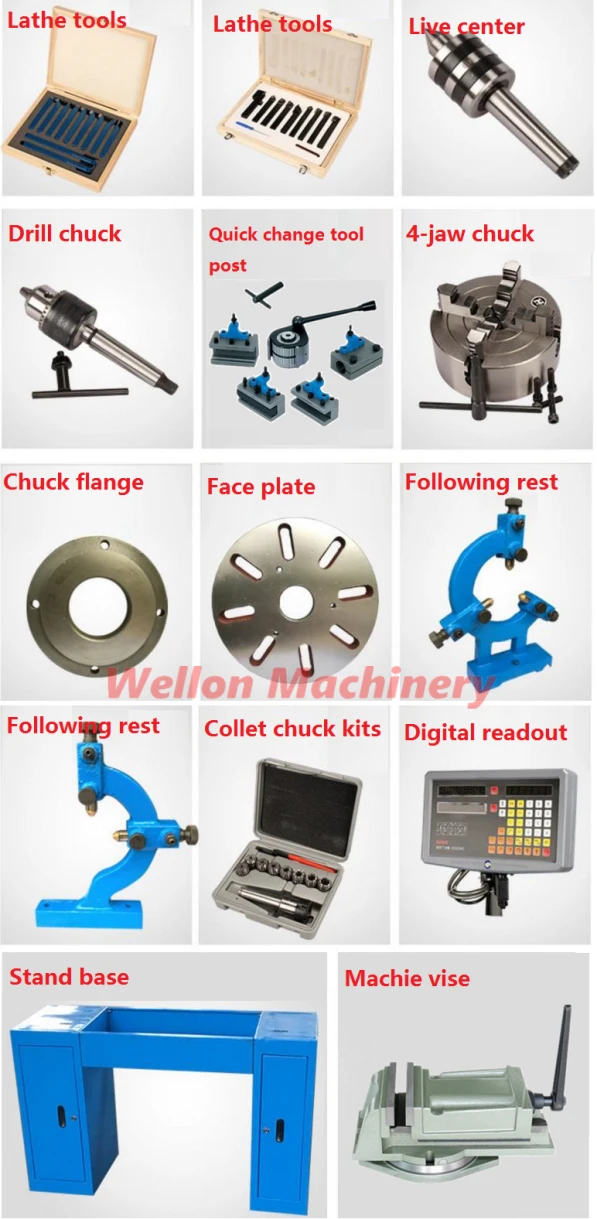

Optional accessories
Steady rest
Follow rest
Face plate
4 jaw chuck
Quick change tool post
Live center
Stand base
Lathe tools
Drill chuck
Thread chasing dial
Lead screw cover
Tool post cover
2 axis DRO
Coolant system
Follow rest
Face plate
4 jaw chuck
Quick change tool post
Live center
Stand base
Lathe tools
Drill chuck
Thread chasing dial
Lead screw cover
Tool post cover
2 axis DRO
Coolant system
Related Products
Packing & Delivery
To better ensure the safety of your goods,
professional, environmentally friendly, convenient and efficient packaging services will be provided.

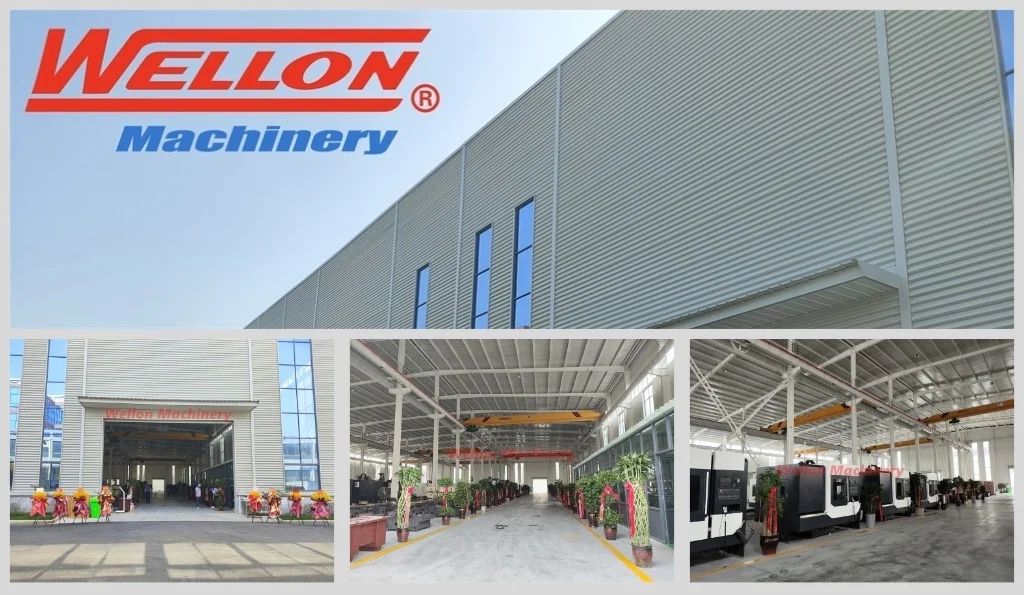

Company Information
Customer Visits

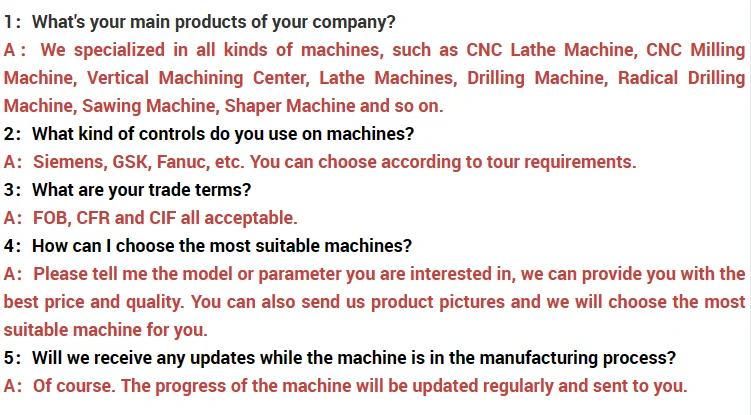

FAQ
