Taidacent 1V 3V 5V 10V 50V 100V 300V 500V 600V 1000V Mechanical Pointer DC Analog Voltmeter Panel DC Voltage Meter Volt Gauge
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (1600930291008):
Product Overview
Description

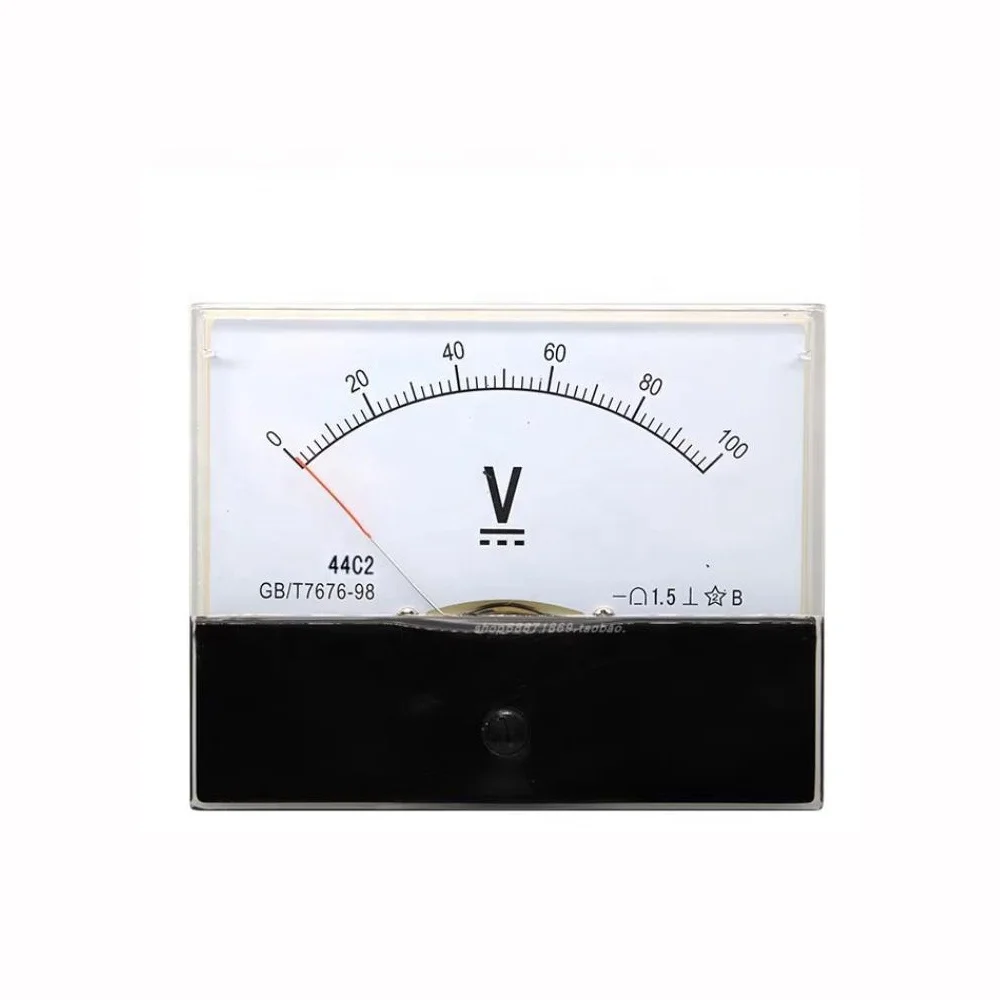

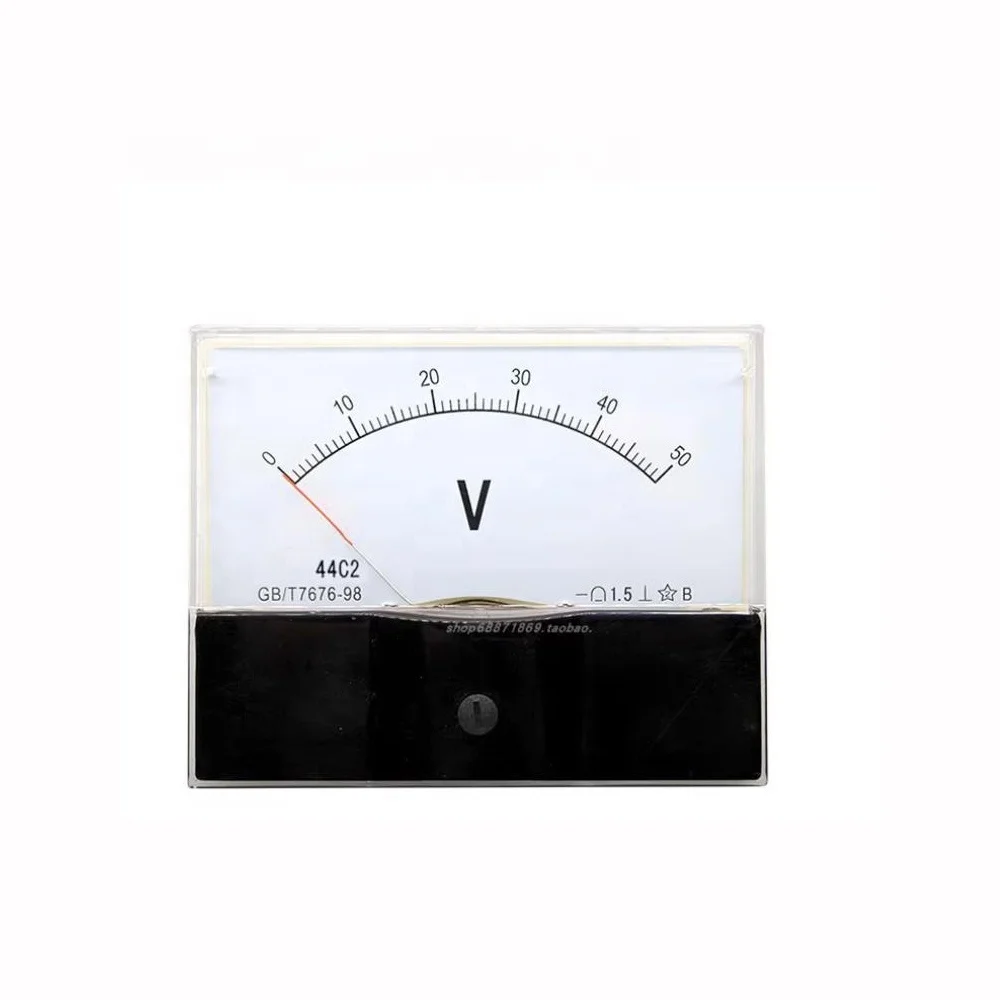

Taidacent 1V 3V 5V 10V 50V 100V 300V 500V 600V 1000V Mechanical Pointer DC Analog Voltmeter Panel DC Voltage Meter Volt Gauge
Product Description
1V/3v/5V/10V/15V/20V/30V/50V
100V/150V/250V/300V/450V/500V
600V/750V/1000V
100V/150V/250V/300V/450V/500V
600V/750V/1000V
Structural features
The basic action mechanism of this series of products is the internal magnetic structure of the magnetoelectric system, and the AC current voltmeter is formed by adding a transistor rectifier to the DC meter of the internal magnetic structure.
Specification
item | value |
Model Number | TDJL-44C2 |
Display Type | Analog Only |
Measuring Range | 1V to 1000V |
Accuracy Class | 1.5 |
Operating Temperature | -20C to 50C |
Dimensions | 100x80x64mm |
Hole size | 70*60mm |
Weight | 0.16KG |
Main technical parameters
Instrument accuracy level: 2.5, 1.5.
Conditions of use: -20°C~+50°C, relative temperature ≤85% (+5°C)
Resistance to mechanical force: It can withstand an acceleration of 30 m/s2, an impact frequency of 80-120 times per minute, and a 2-hour transport tremor.
Dielectric strength: AC voltage 50Hz, 2KV for 1 minute.
Anti-external magnetic field influence: In the 5 Oersted external magnetic field, the change of the indication value caused by it shall not exceed ±1%.
Working position: vertical and horizontal use.
The warranty period of this product is eighteen months.
Conditions of use: -20°C~+50°C, relative temperature ≤85% (+5°C)
Resistance to mechanical force: It can withstand an acceleration of 30 m/s2, an impact frequency of 80-120 times per minute, and a 2-hour transport tremor.
Dielectric strength: AC voltage 50Hz, 2KV for 1 minute.
Anti-external magnetic field influence: In the 5 Oersted external magnetic field, the change of the indication value caused by it shall not exceed ±1%.
Working position: vertical and horizontal use.
The warranty period of this product is eighteen months.
Application
This series of products is suitable for measuring current and voltage in AC and DC circuits.
