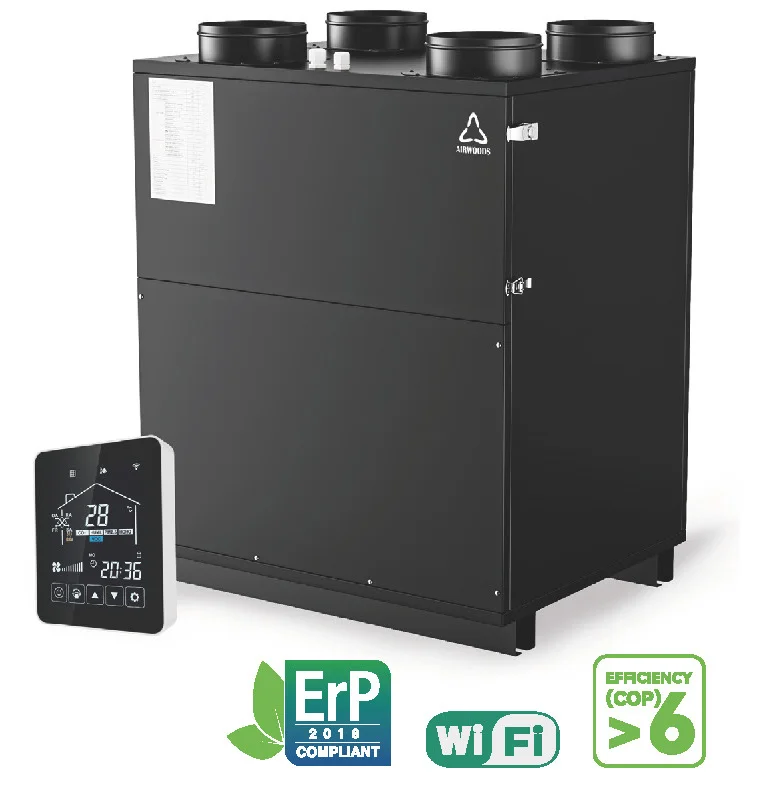

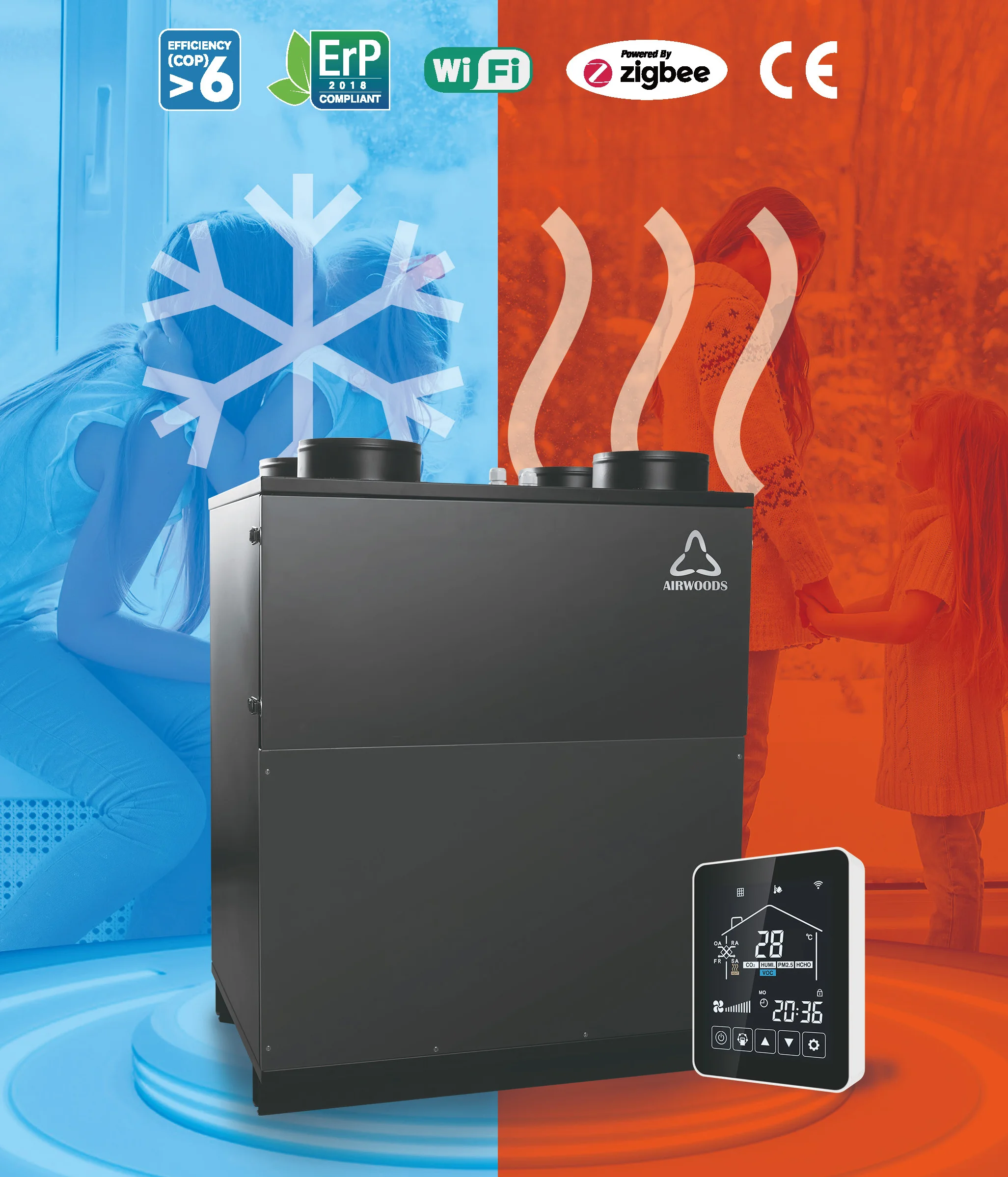

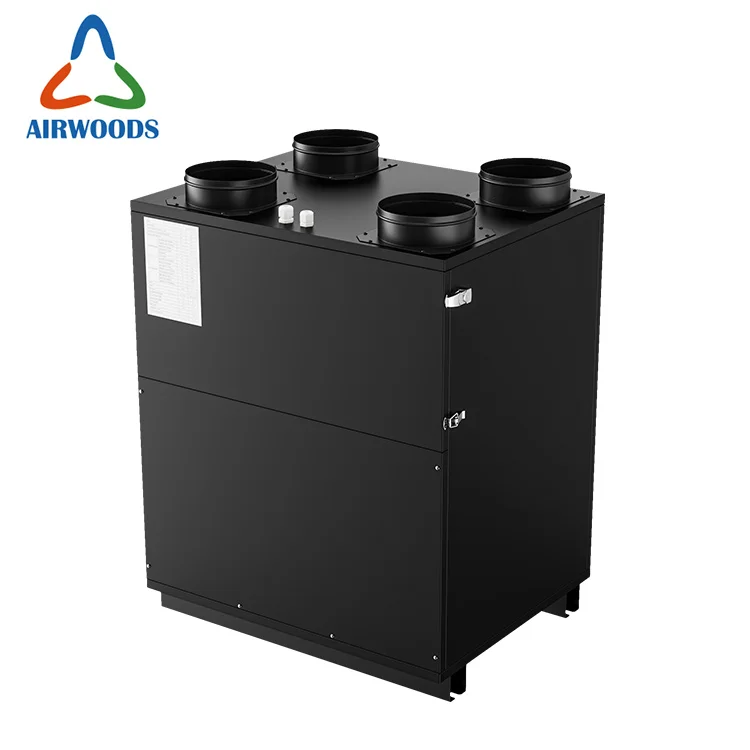

Heating/Cooling CO2 humidity sensor WIFI control floor standing heat recovery ventilation unit with thermal pump air recuperater
- Category: >>>
- Supplier: Guangzhou Airwoods Environment Technology Co. Ltd.
Share on (1600930404444):
Product Overview
Description
Product Description
PURIFICATION
Outdoor fresh air passes through the primary filter and F8 filter at OA side, to arrest the dust/ PM2.5/ other pollutants.
VENTILATION AND HEAT RECOVERY
Introduce outdoor fresh air into the room & extract the stale air out; It recovers the heating in winter and recover cooling in summer.
PRE-HEATING/ PRE-COOLING
After the first stage heat recovery, the air passes through the condensor for further heating/cooling.
DEHUMIDIFICATION
The two airstreams run through the heat exchanger and condensor, it can decrease the moisture of fresh air.
1.Double energy recovery, COP over 6.
2Fresh air preconditioning, save your electricity bill on heating system and AC system greatly.
3.Work as an independent air conditioner in suitable seasons and places.
4.Low noise level of 37/42 dB(A).
5.Equipped with EC fans & DC inver ter compressor to minimize energy consumption.
6.Wide working ambient conditions from -15˚C~ 50˚C.
7.Indoor air quality monitoring like CO2, humidity, TVOC and PM2.5.
Advantages Compared with Standard ERV | ||||||
SUMMER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 35˚C | 59.10% | |||
2 | Inside Temperature RA | 27˚C | 49.80% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 29.24˚C | 55.48% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 20.95˚C | 79.18% | |||
WINTER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 5˚C | 71.90% | |||
2 | Inside Temperature RA | 25˚C | 50.70% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 20.30˚C | 53.88% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 37.88˚C | 17.76% | |||

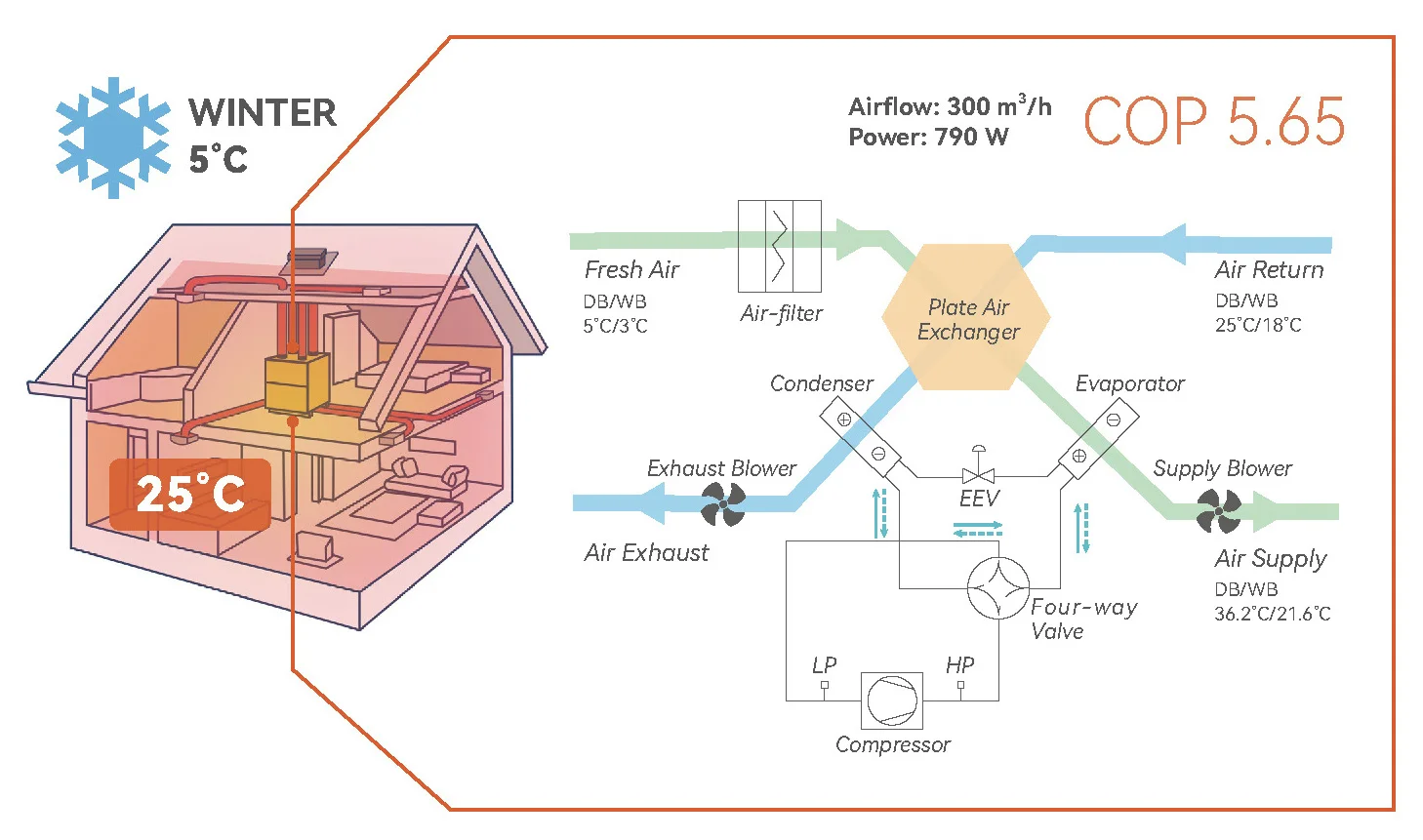

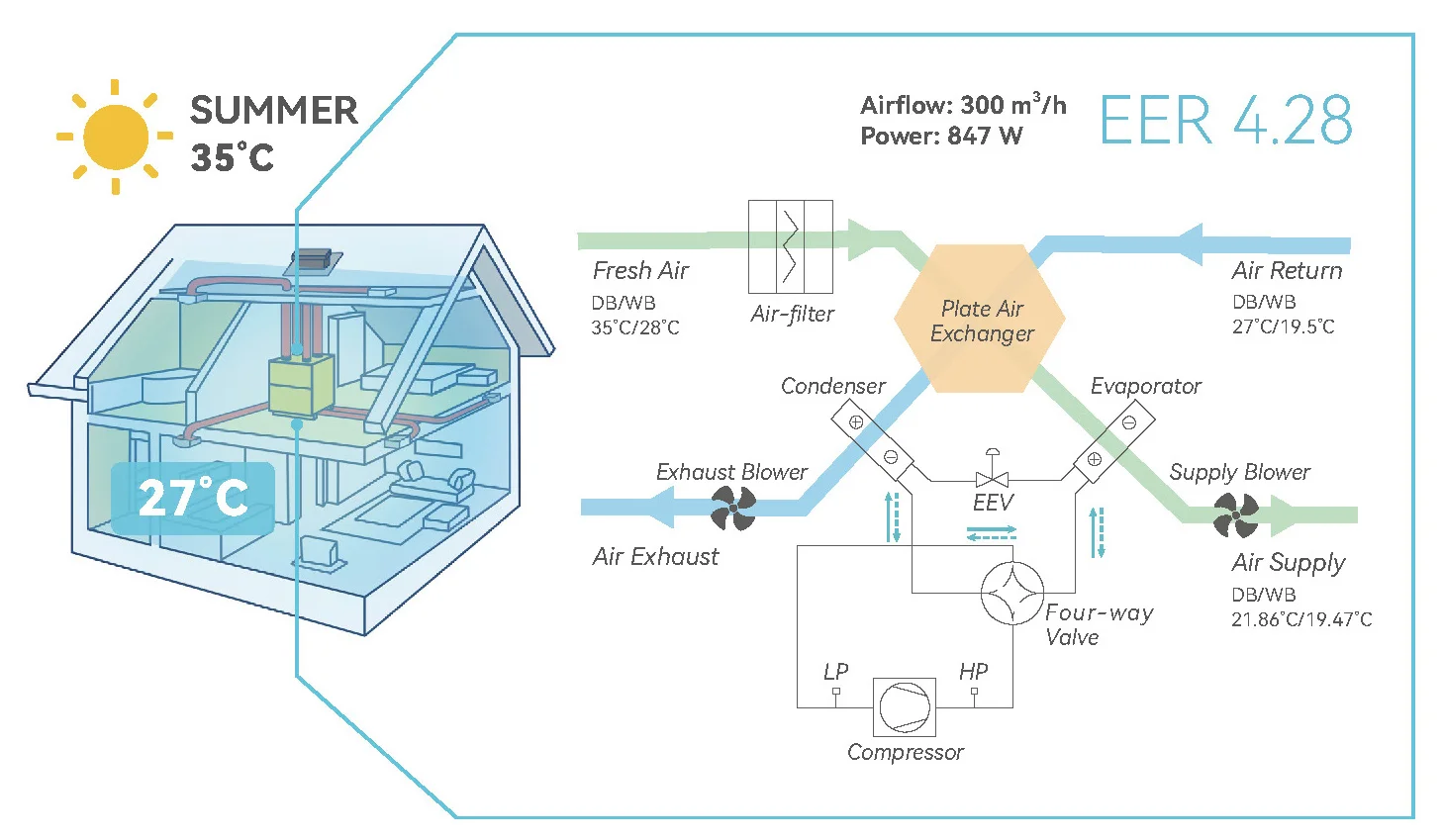

Working Principle

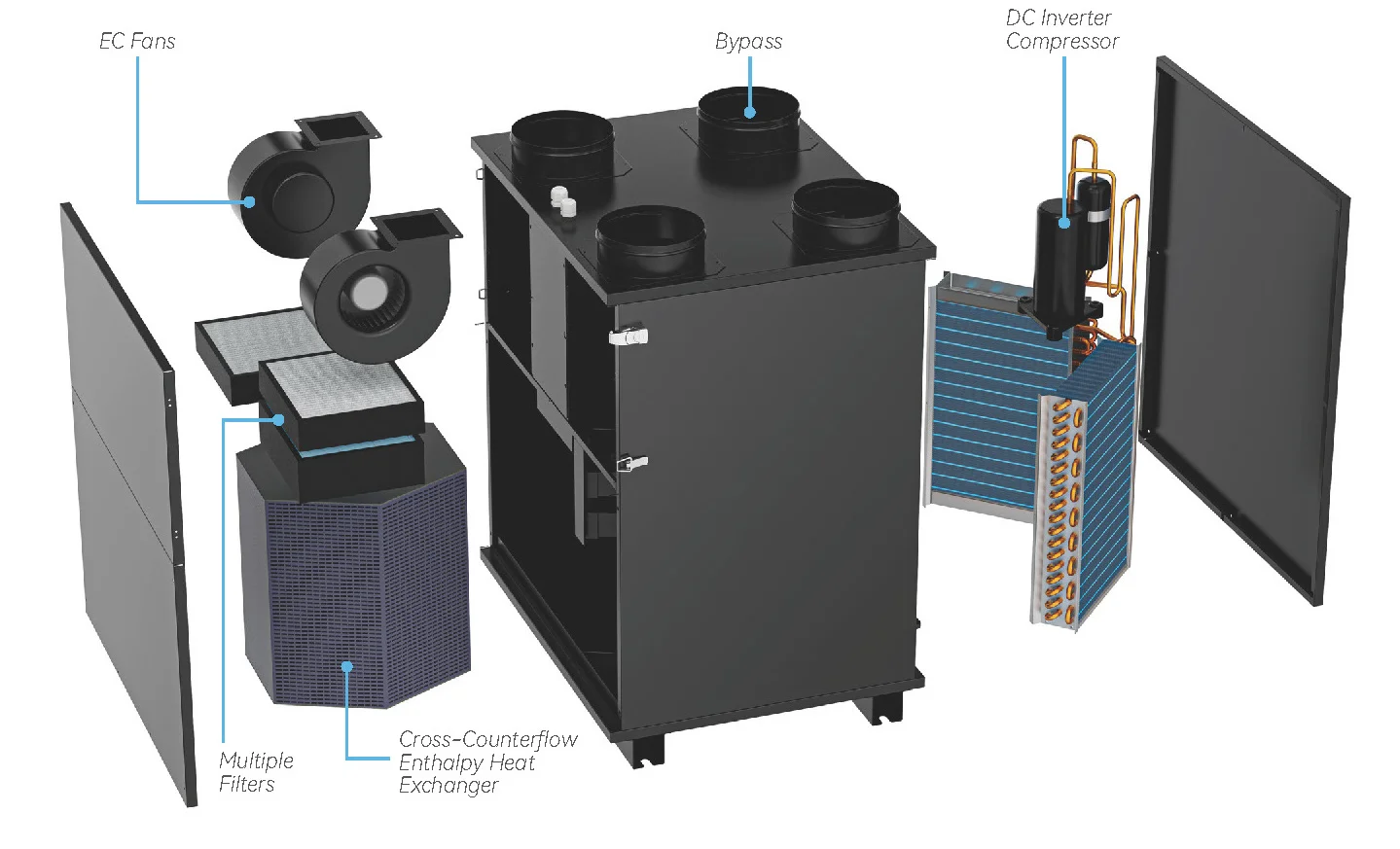

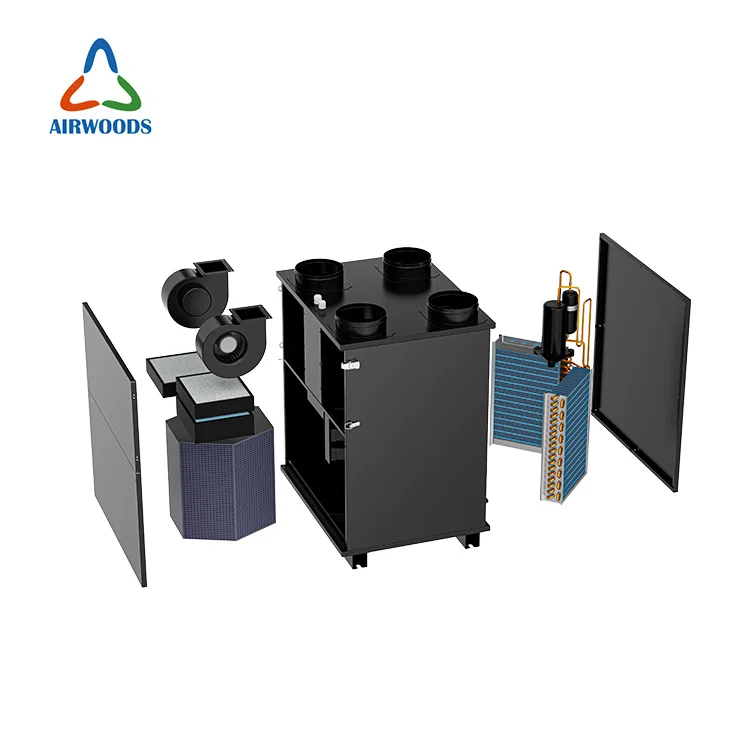

Product Design
EC Fans
To save energy and meet the ERP2018 standard, it’s built
with the forward EC motors with 0-10 Voltage control.
It has 10 speeds and is featured by small vibration, low
noise, energy-saving, and longer service life.
with the forward EC motors with 0-10 Voltage control.
It has 10 speeds and is featured by small vibration, low
noise, energy-saving, and longer service life.
Bypass
In summer, the 100% bypass contributes to improved
comfort and it is controlled automatically on the basis of
the measured outdoor temperatures.
comfort and it is controlled automatically on the basis of
the measured outdoor temperatures.

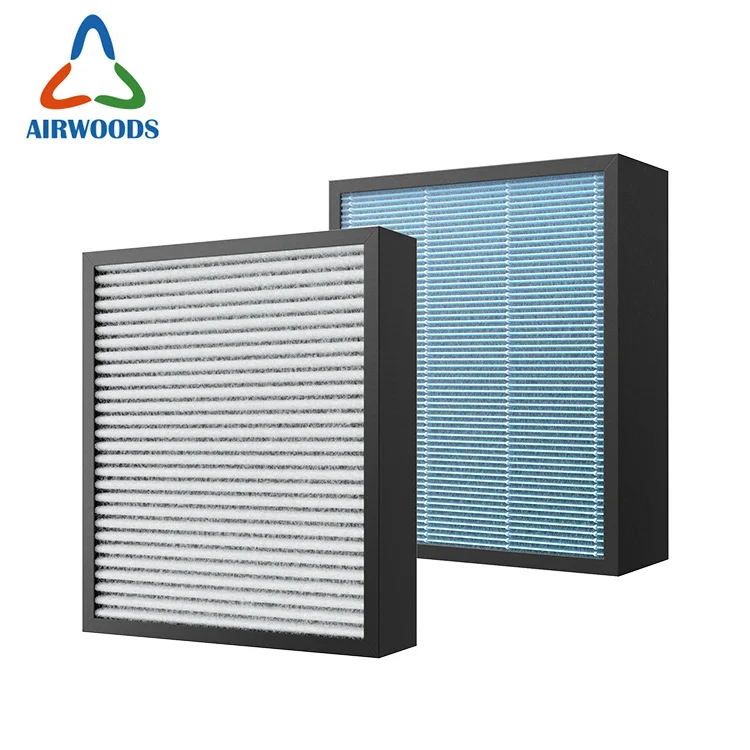

Multiple Filters
The standard filters are G4 and F8 grade filters.
The primary filter can remove dust, pollen
and other pollutants from the incoming fresh
air. They also protect the heat exchanger
from clogging or corrosion. And the F8 filter
can further purify the air. The PM2.5 particle
filtration efficiency is over 95%. An optional air
disinfection filter is available for higher filtration
efficiency.
The primary filter can remove dust, pollen
and other pollutants from the incoming fresh
air. They also protect the heat exchanger
from clogging or corrosion. And the F8 filter
can further purify the air. The PM2.5 particle
filtration efficiency is over 95%. An optional air
disinfection filter is available for higher filtration
efficiency.
DC Inverter Compressor
It comes from the well-known brand GMCC. It
compresses and expands refrigerant to transfer
heat between the outdoor and indoor air
streams. It is DC inverter type which can adjust
its speed and output according to the load
demand, ensuring energy saving performance
and low noise level. It can also operate in a wide
temperature range of -15˚C to 50˚C. Both R32
and R410a refrigerant available.
CROSS-COUNTERFLOW ENTHALPY HEAT EXCHANGER
The cross-counterflow enthalpy heat exchanger can transfer heat and moisture between the outdoor and indoor air streams without mixing them. It can recover up to 80% of the energy from the exhaust air, reducing the heating or cooling load on the compressor. It is washable and easy to maintain. It has a
lifetime of up to 15 years.
lifetime of up to 15 years.

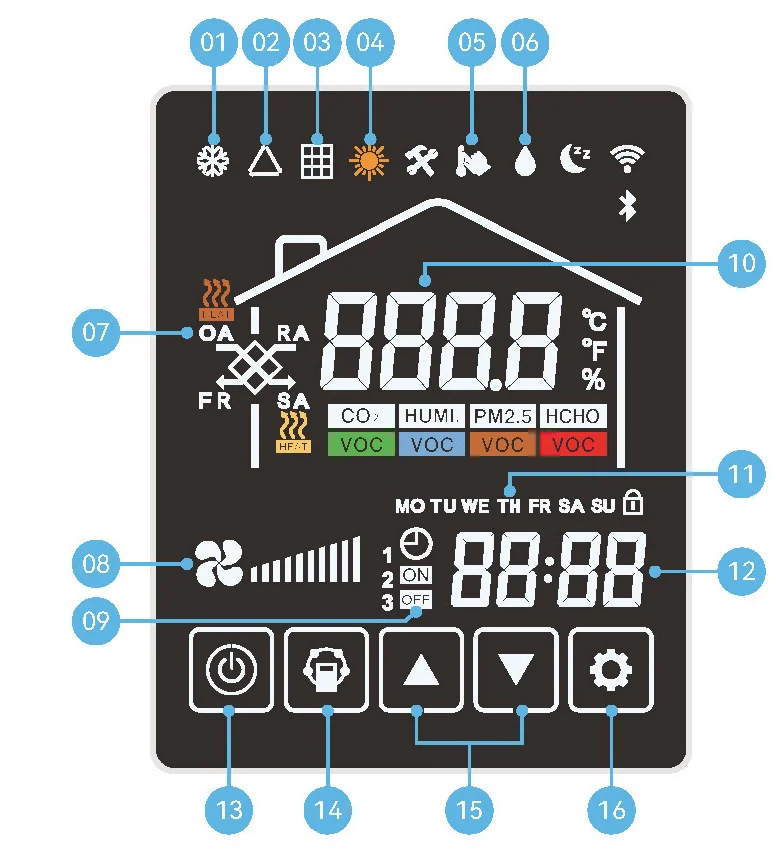

LCD Remote Control Panel
CONTROL & FUNCTIONS
01. Cooling mode
02. Ventilation mode
03. Filter alarm
04. Heating mode
05. SA setting
06. Dehumidification mode
07. Temperature type
08. Fan speed
02. Ventilation mode
03. Filter alarm
04. Heating mode
05. SA setting
06. Dehumidification mode
07. Temperature type
08. Fan speed
09. Weekly timer on/off
10. Temperature display
11. Week day
12. Clock
13. ON/OFF button
14. Mode button
15. Up/Down button
16. Set button
10. Temperature display
11. Week day
12. Clock
13. ON/OFF button
14. Mode button
15. Up/Down button
16. Set button
Optional C-POLAR Disinfection Filter
Company Profile
Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.
Certifications
FAQ
1. How to select the suitable model ?
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
