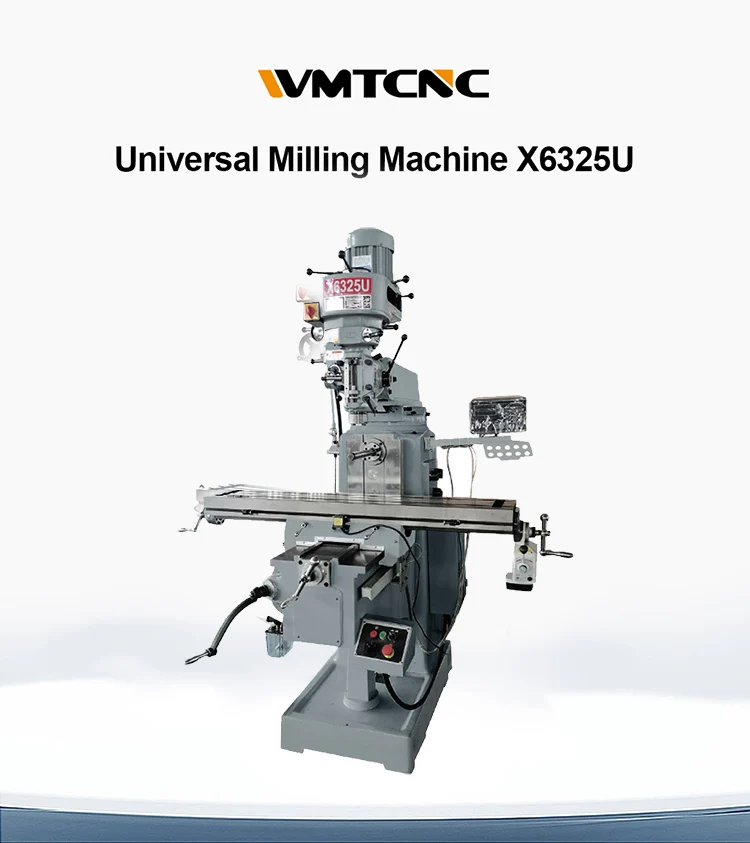

China high quality X6325U manual universal vertical horizontal milling machine with low price
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600930431512):
Product Overview
Description
Product Description
Main Features:
1. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
2. DRO is optional.
3. The guideway on saddle is lined with TF wearable material.
4. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
2. DRO is optional.
3. The guideway on saddle is lined with TF wearable material.
4. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
Specificaiton | X6325U |
Table size(L×W) | 1270×254mm |
T-slotes (N/W/D) | 3/16/65mm |
Table travel (X/Y/Z) | 800×400×450mm |
Spindle taper:vertical/horizontal | R8/NT30(V),NT40(H) |
Distance between horizontal nose and table surface | 0-400mm |
Distance between spindle axis and ram surface | 230mm |
Vertical spindle variable speed | 80-4200rpm(variable) |
Vertical spindle step speed | 66-4540rpm(16 steps) |
Horizontal spindle step speed | 40-1300rpm(12 steps) |
Ram travel | 400mm |
Main motor power(V/H) | 2.25kw,optional3.75(vertical) |
3kw(horizontal) | |
Overall size (L×W×H) | 1650×1680×2450mm |
N.w | 1400kg |

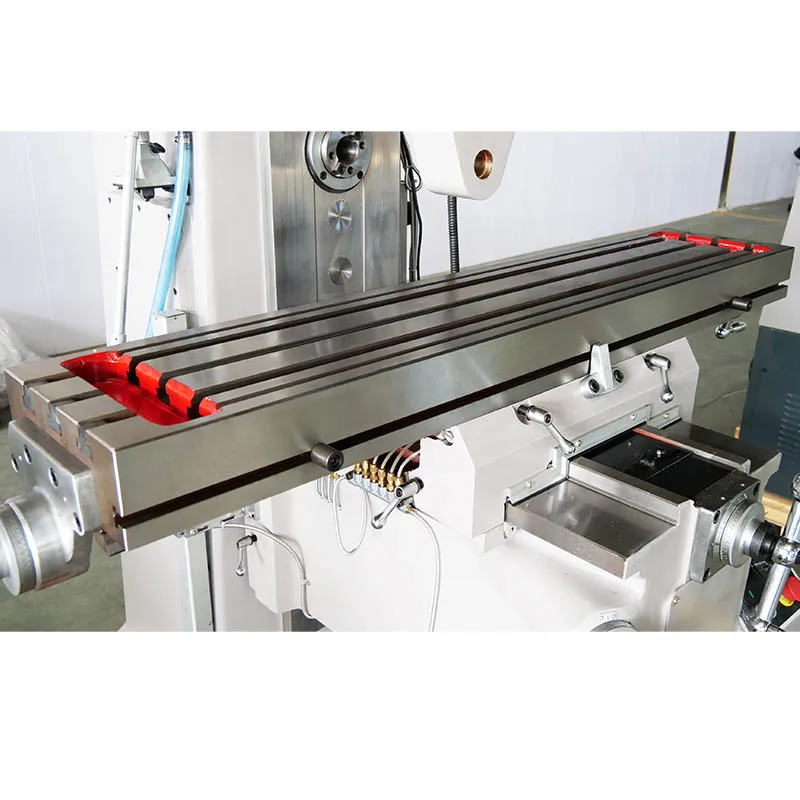

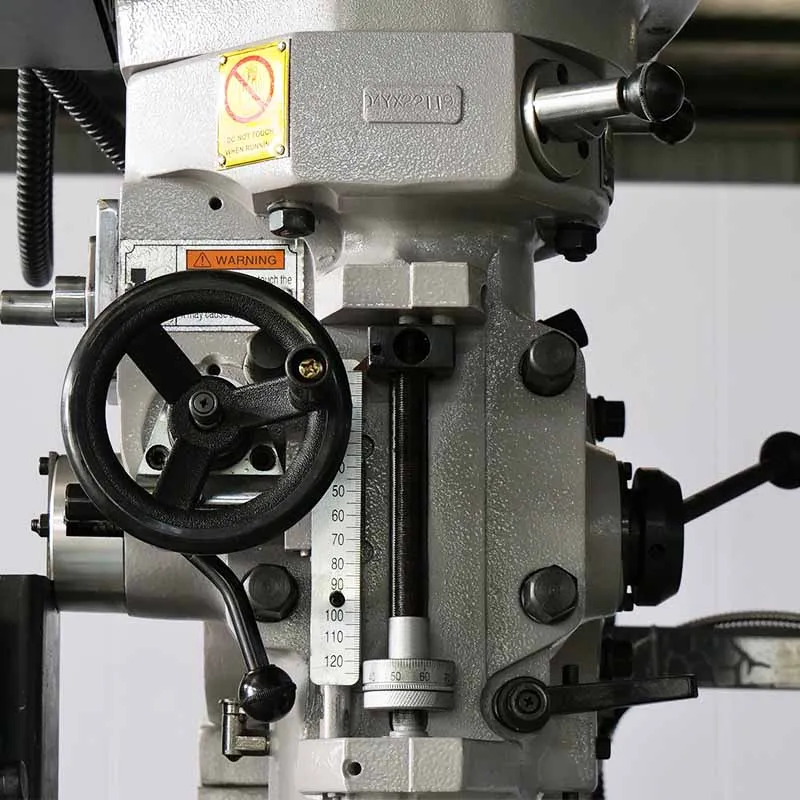

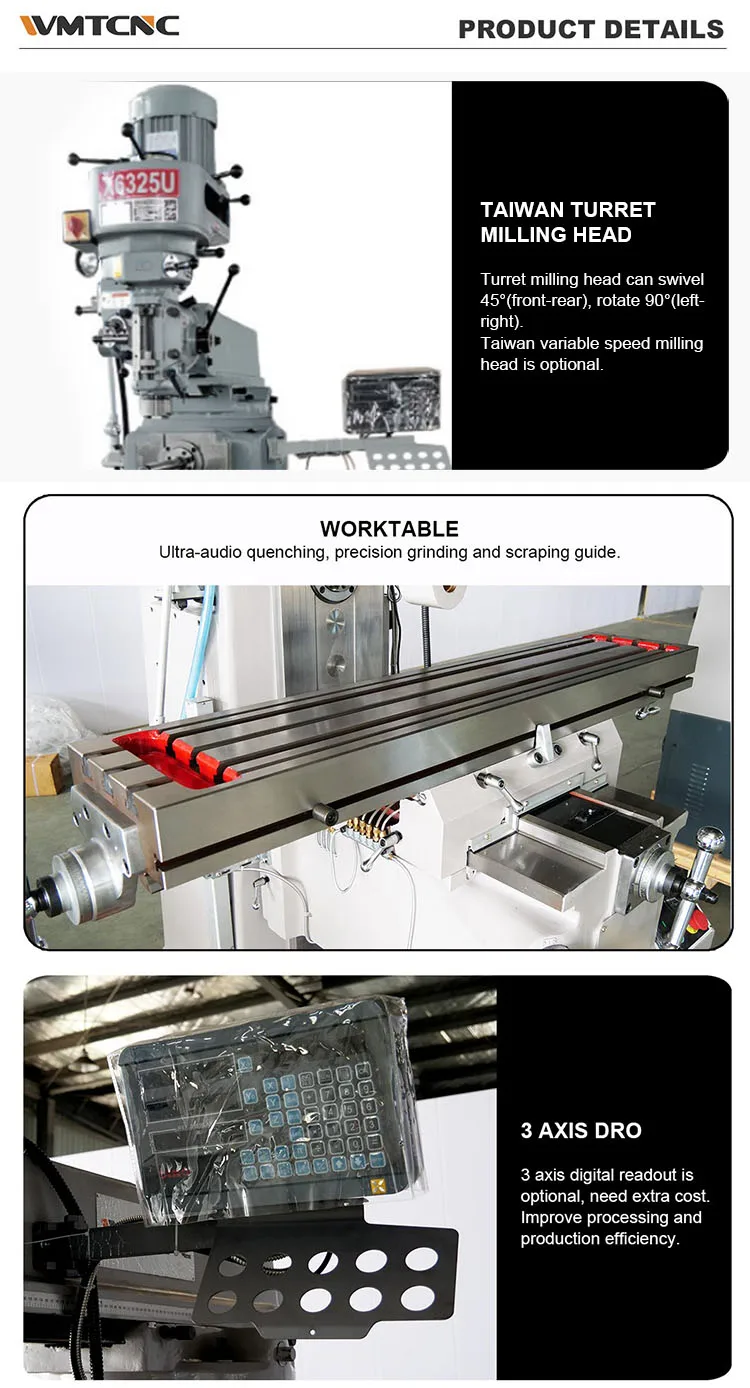

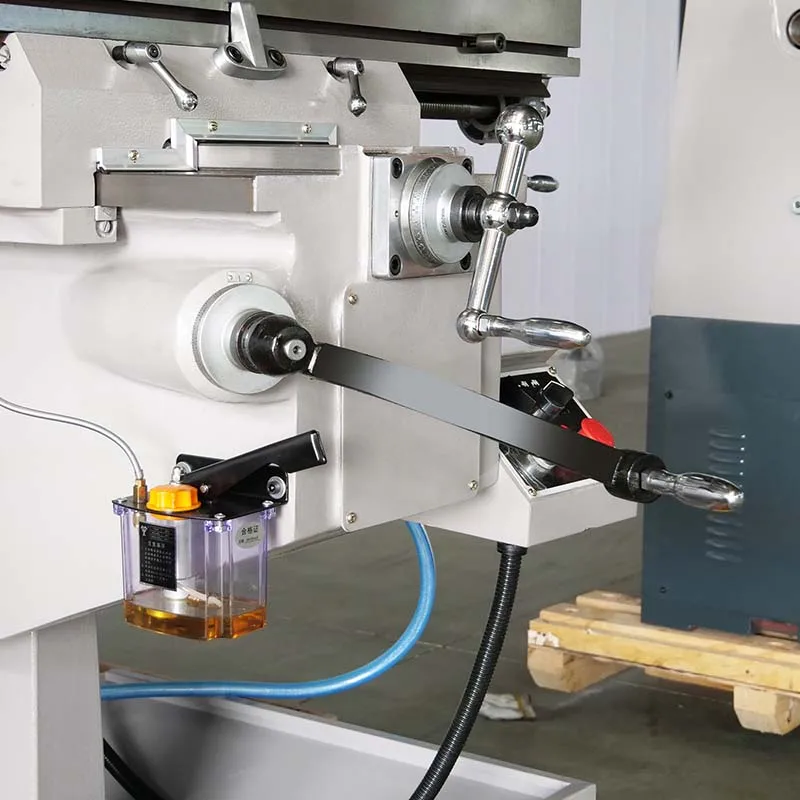

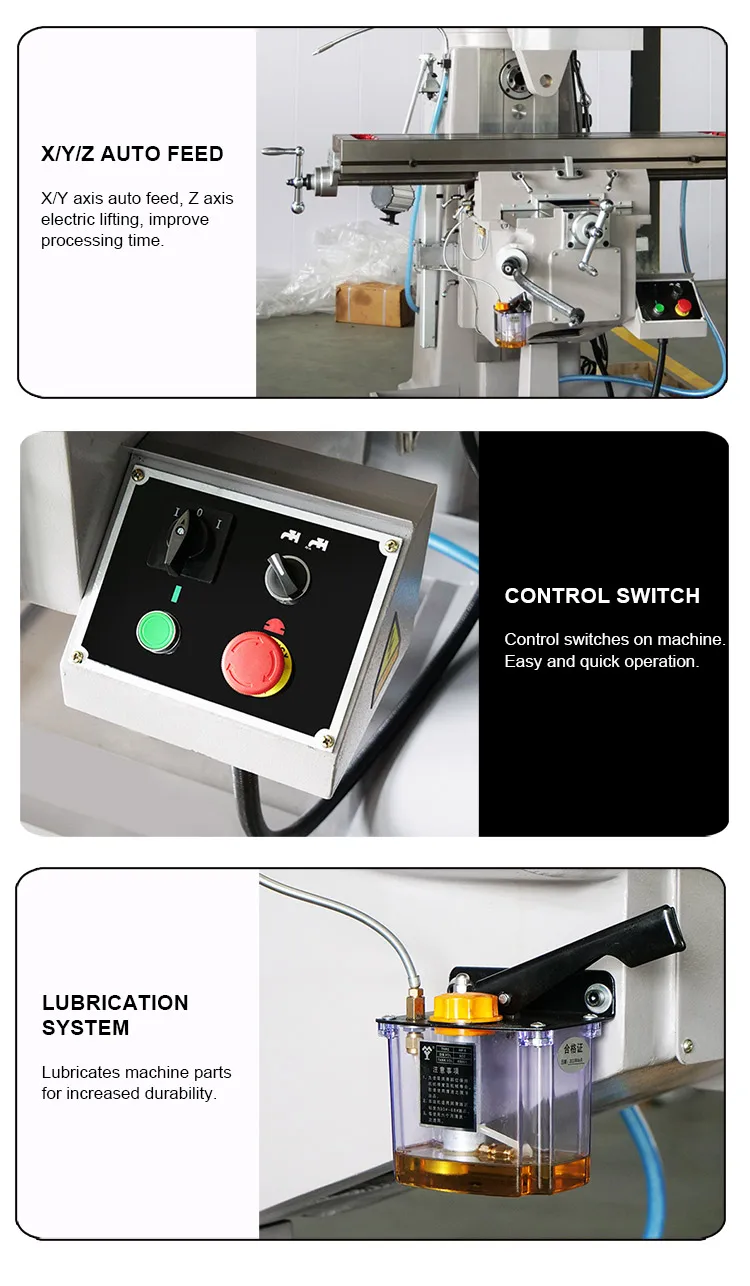

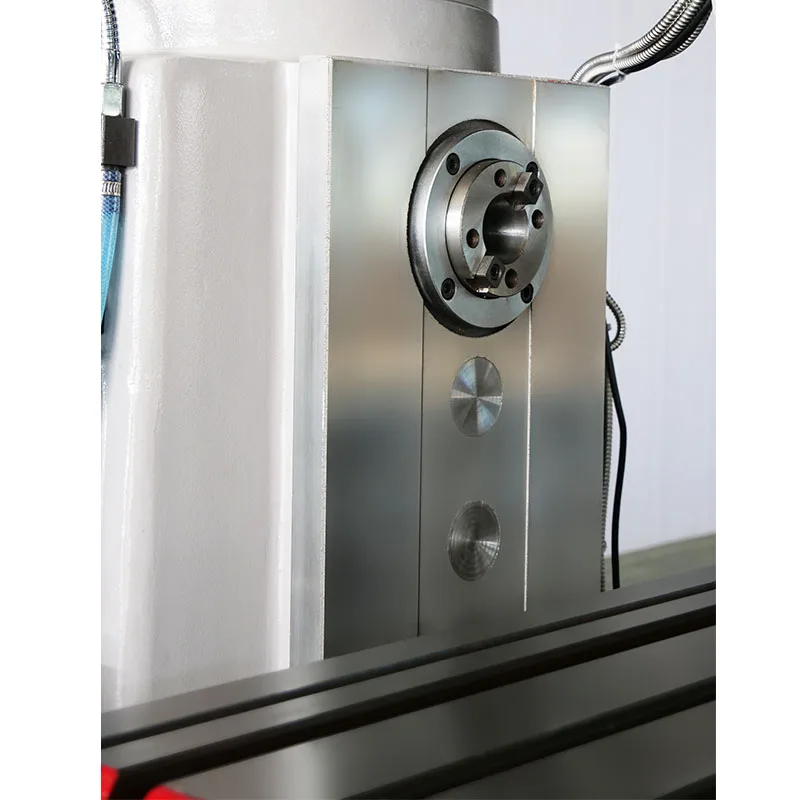

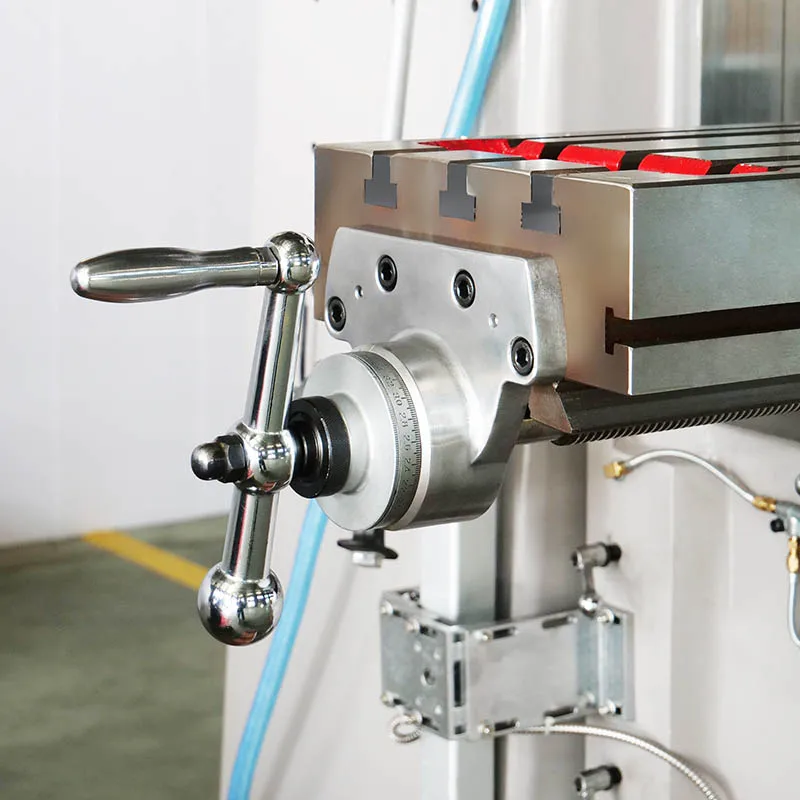

Detailed Images
Company Profile
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
