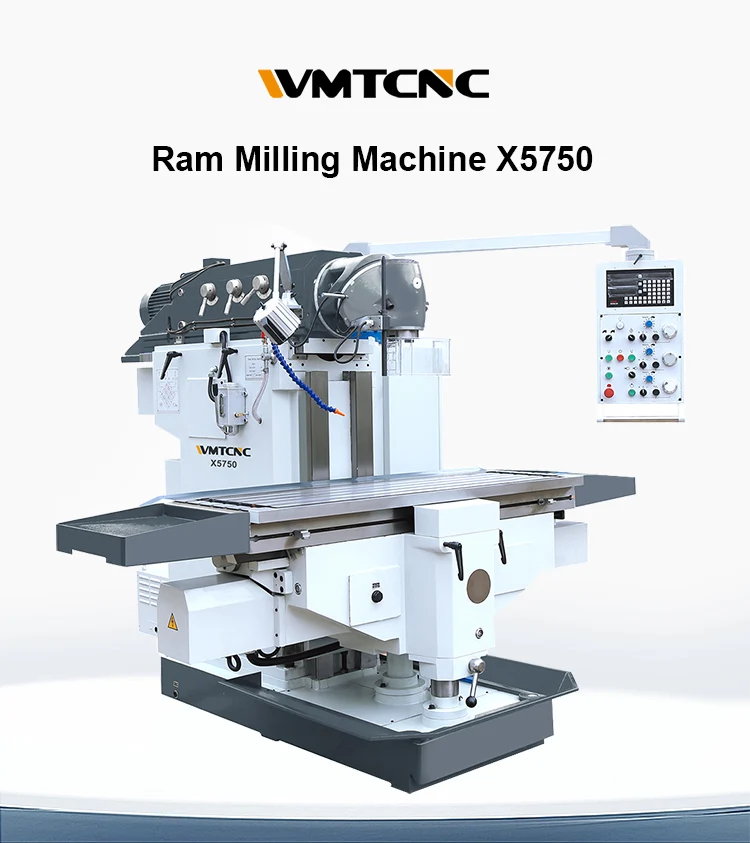

Low price X5750 swivel head ram type universal turret metal working milling machine for sale
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600930433448):
Product Overview
Description
Product Description

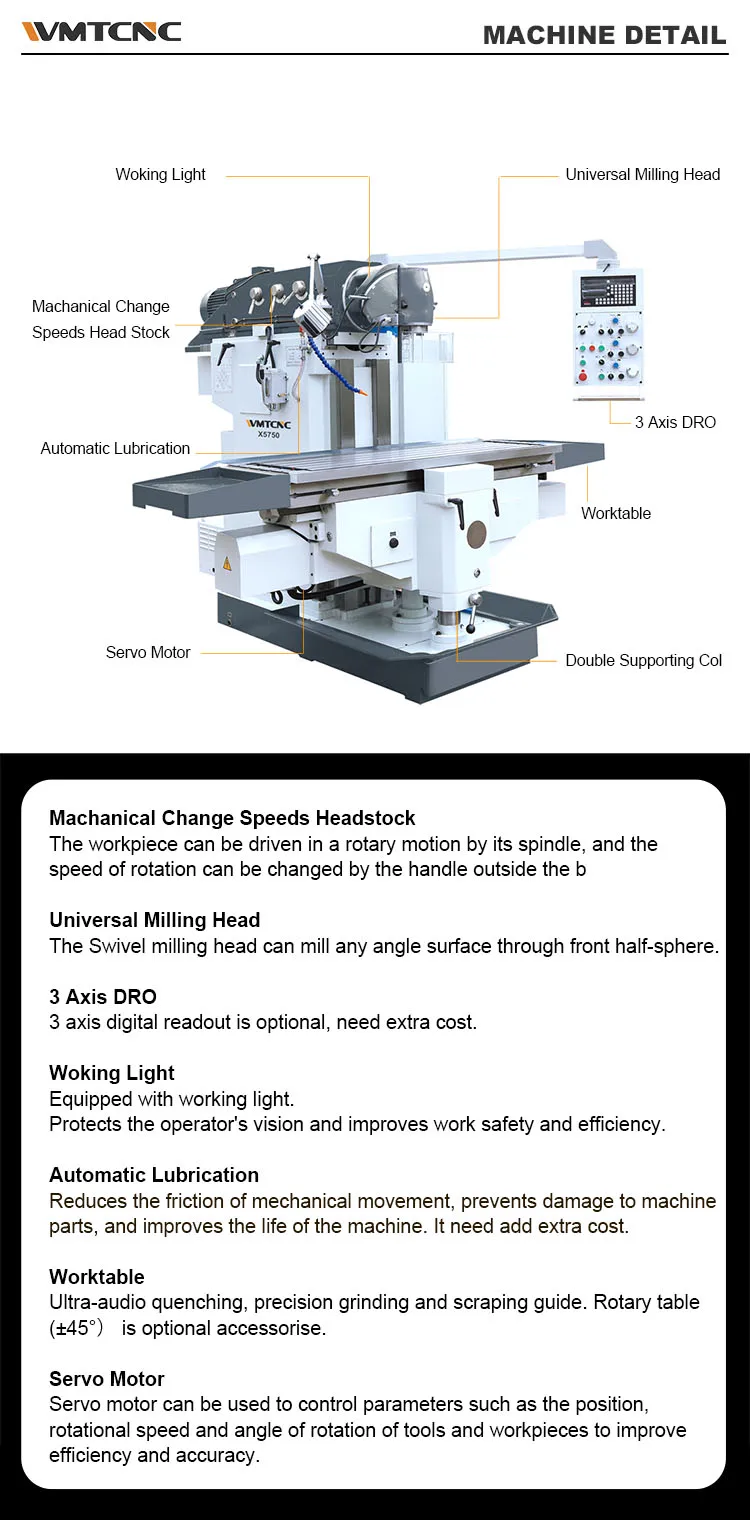

Main Features:
1. Table 3 axes with ball screws, high precision.

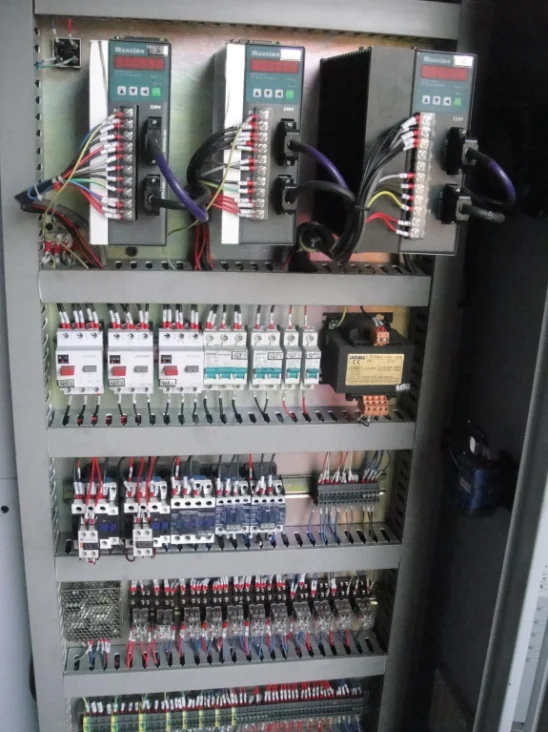

2. Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate.
3. Mechanical change speeds in head stock, powerful milling.
4. Table with an extra supporting column, big load, high accuracy.
5. It can mill any angle surface through front half-sphere by swivelling milling head.
1. Table 3 axes with ball screws, high precision.
2. Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate.
3. Mechanical change speeds in head stock, powerful milling.
4. Table with an extra supporting column, big load, high accuracy.
5. It can mill any angle surface through front half-sphere by swivelling milling head.
Specification | X5750 |
Table size | 500x1600mm |
Table travel (X/Y/Z) | 1200x700x500mm |
Table feed(X/Y/Z) | 10-1000/10-1000/5-500mm/min |
Spindle taper | ISO50 |
Distance between spindle nose and table surface | 50-550mm |
Swivel Table | 360° |
Distance between spindle and arm | 45-745mm |
Spindle speed range | (27steps) 30-2050rpm |
T-slotes (NxWxD) | 5-18x80mm |
Table rapid speed | 2200/2200/1100mm/min |
Feeding motor toque（X/Y/Z） | AC servo motor:18/18/27Nm |
Max loading capacity | 1500kg |
Main motor power | 7.5kw |
Overall size | 2625x2460x2080mm |
N.w | 4500kg |
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
