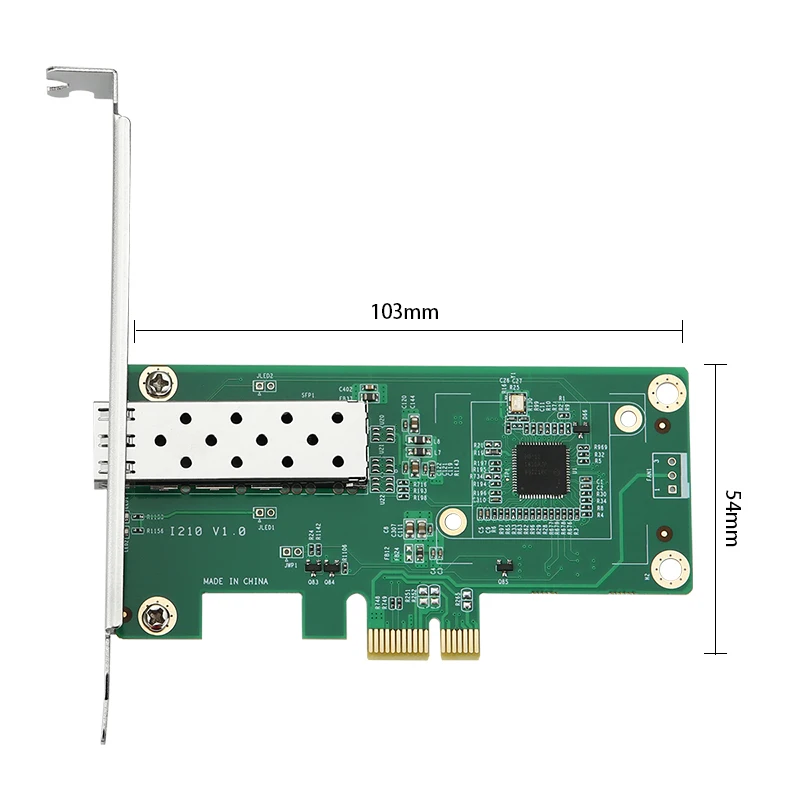

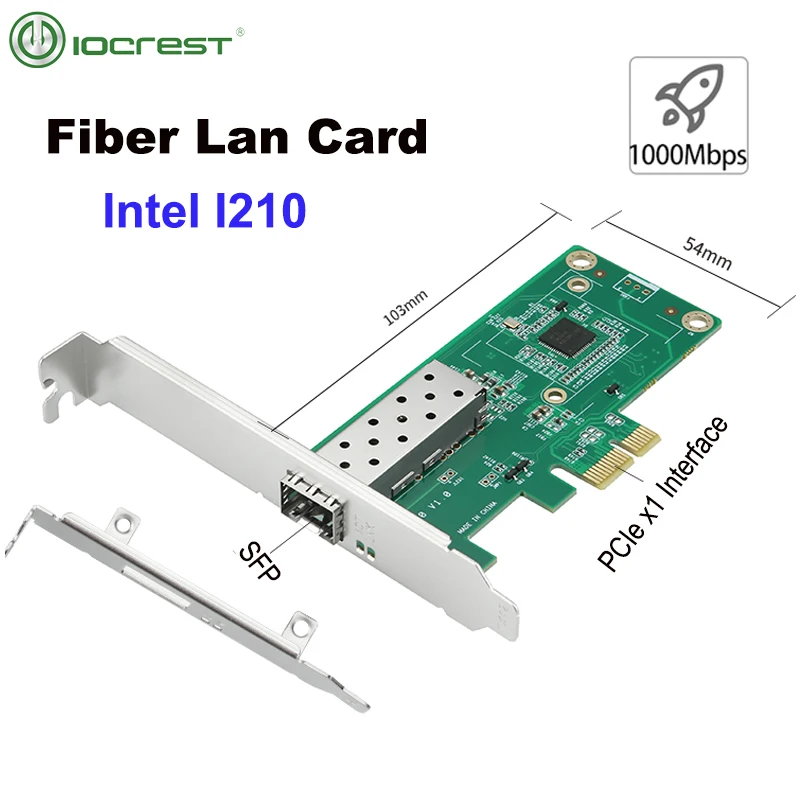

IOCREST Intel 210 PCIex1 Fiber 1000Mbps Lan Card Gaming Adapter PCI Express 1G Single Port Gigabit Network NIC

10/100/1000mbps Fiber lan Card gaming adaptive Gigabit network adapter Game PCIE Card Gigabit Network Card for Desktop

Features

• Integrated Non-Volatile Memory (iNVM)

• Three single port SKUs: SerDes, Copper, Copper IT

• Value Part (Intel Ethernet Controller I211)

• Platform Power Efficiency

— IEEE 802.3az Energy Efficient Ethernet (EEE)

— Proxy: ECMA-393 and Windows* logo for proxy offload

• Advanced Features: — Audio-video bridging

• IEEE 1588/802.1AS precision time synchronization

• IEEE 802.1Qav traffic shaper (with software extensions)

— Jumbo frames4

— Interrupt moderation, VLAN support, IP checksum offload

— PCIe OBFF (Optimized Buffer Flush/Fill) for improved system power management

— Four transmit and four receive queues

— RSS and MSI-X to lower CPU utilization in multi-core systems

— Advanced cable diagnostics, auto MDI-X

— ECC – error correcting memory in packet buffers

— Four Software Definable Pins (SDPs)

• Manageability:

— NC-SI for greater bandwidth pass through

— SMBus low-speed serial bus to pass network traffic

— Flexible firmware architecture with secure Flash update

— MCTP over SMBus/PCIe

— OS2BMC/CEM (optionally enabled via external Flash)

— PXE and iSCSI boot

• IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x,IEEE 802.1q, IEEE802.3ab

Operating Temperature: 0 ℃-70 ℃

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0℃-80℃

Relative Humidity: 5%-90%(non-condensing)

System Requirements
• Windows10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
• Windows Server 2012, 2008 R2, 2003(32/64)
• Mac OS 10.x (Intel based, tested up to 10.9)
• Linux 2.4.x and later (Tested up to 3.5)

Package Contents
• 1 x PCIe 1x Fiber Lan Card

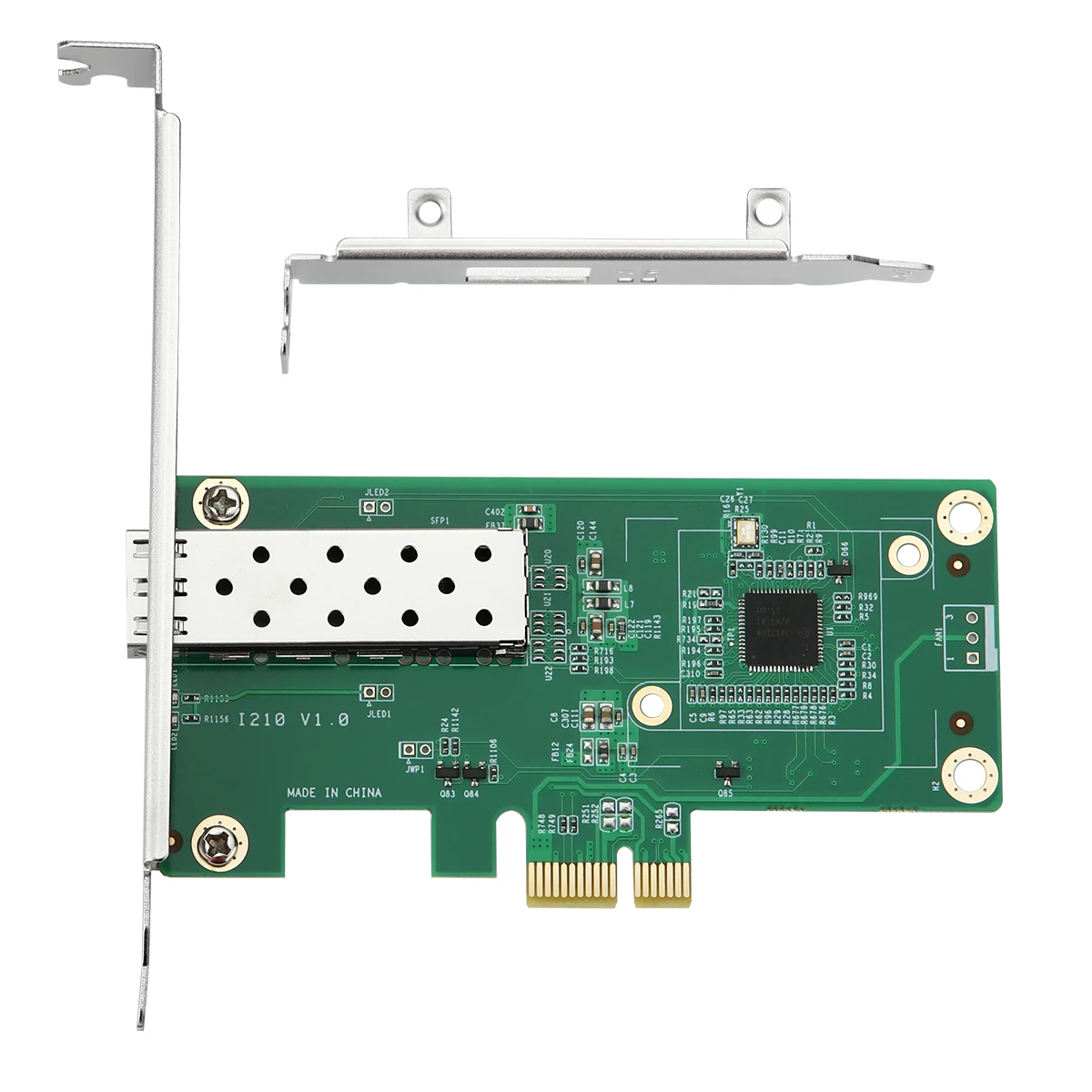

• 1 x Low profile bracket
• 1 x User manual
Note: Contents may vary depending on country/market
