Description

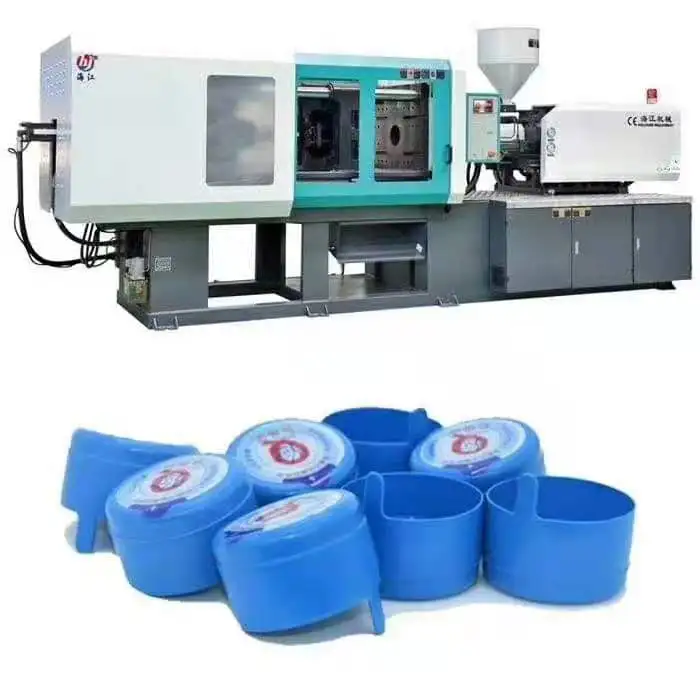

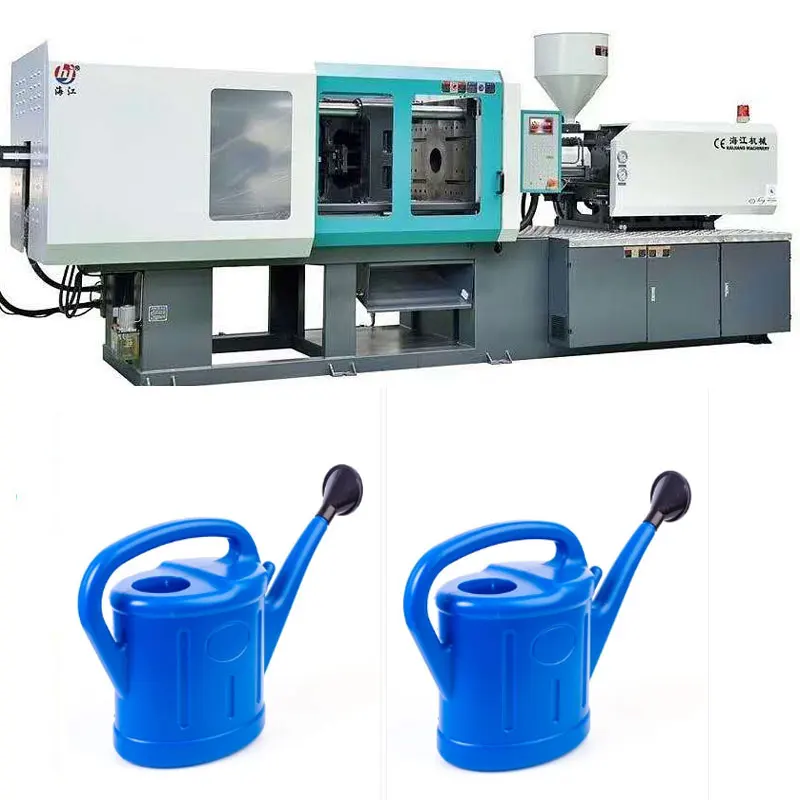

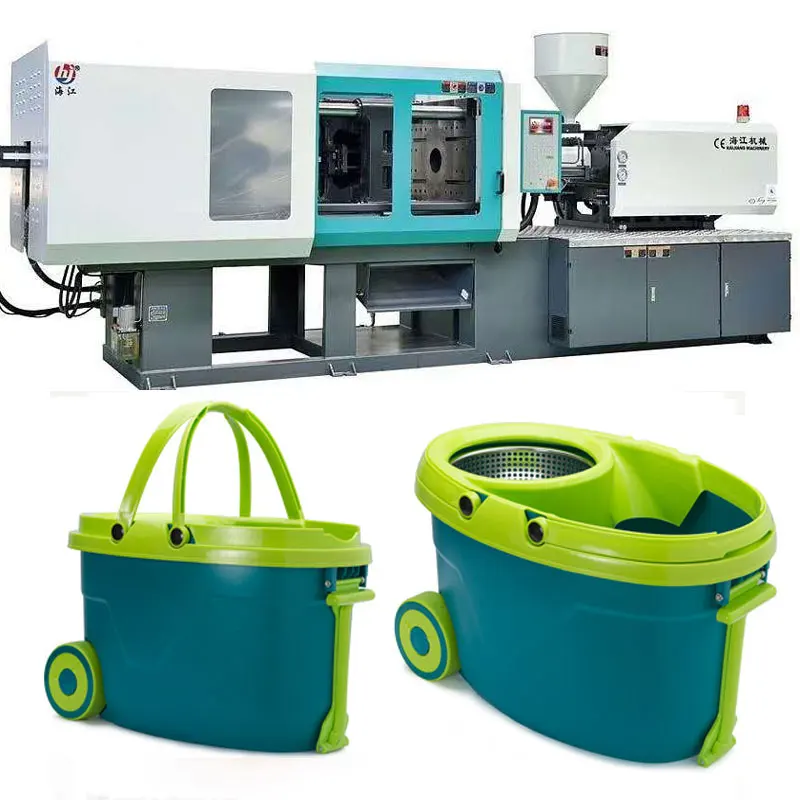

Plastic Pails Custom Mop Bucket 5 Gallon Ice Bucketcustom Seat Injection Mold Machine

HAIJIANG supply all kinds of injection molding machines from 50T to 3000T, including color chips making machine, energy saving injection molding machine, gears making machine, dual clear color injection molding machine, bakelite injection molding machine, PET preform injection molding machine, Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, screw barrel for injection molding machine etc.

1. HAIJIANG  for injection molding machine features:

→ bigger space between tie-bars

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

→ T-Slot Platen

→ abundant Spare Parts

→ better price

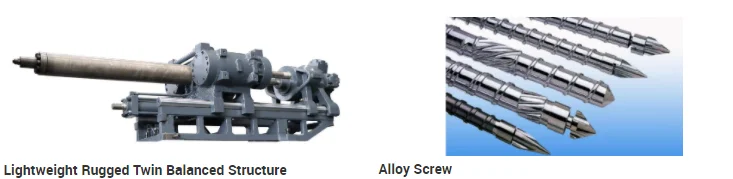

Injection Unit:

1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process

2.) High Speed & Pressure injection structure can improve the injection speed

3.) Twin nozzle cylinder ensures more even & stable structure

4.) Specilized screw barrel design for various appliance

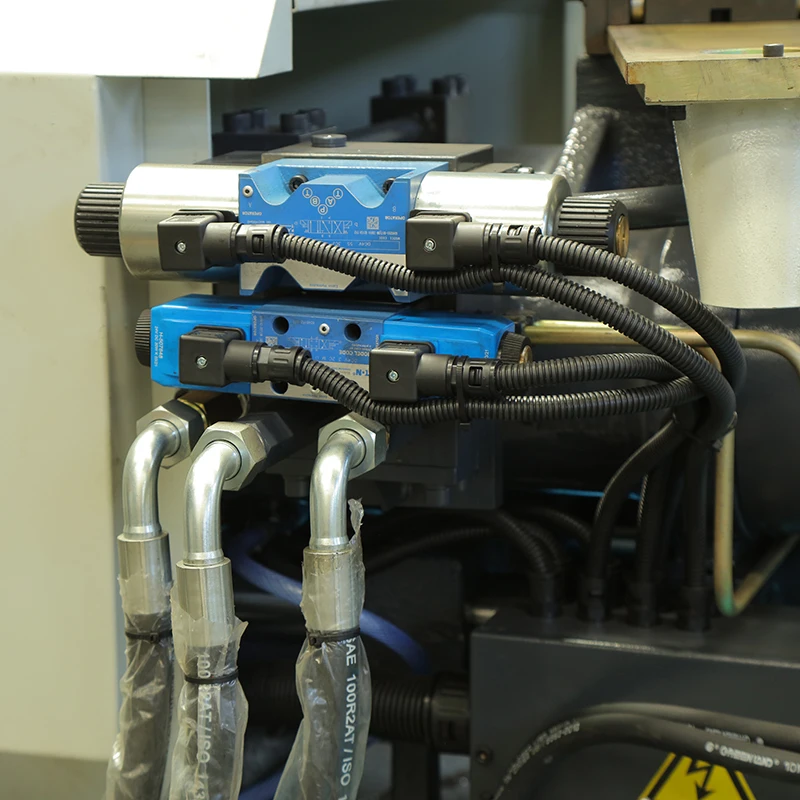

Hydraulic System:

1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable

2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance

3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving

4.) The precise feedback control of servo system to the pressure & flow, with higher sensitivity

5.) High performance hydraulic valve, less failure, fast switch, convenient maintenance

6.) Low pressure mold protect system, which is more suitable for the precise mould

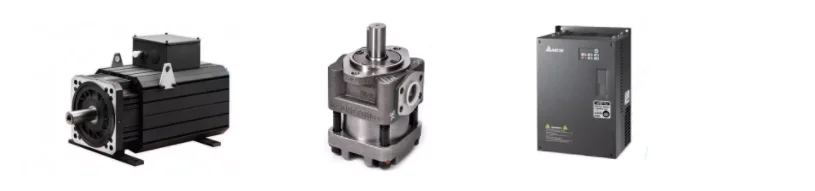

Servo Controller Part:

1.) High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of  accurate repeatability precision for the shot measurement is <0.3%

2.) High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJS series is more faster in speed with shorter cycle time and high efficient in production

3.) Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop

4.) Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency

5.) Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving

2.injection molding machine  paramater:

SPECIFICATION		HJF290
Screw Type		A	B	C
Screw Diameter	Mm	55	60	65
Screw L/D Ration	L/D	23.1	21	19.3
Shot Size(Theoretical)	cm3	712	847	994.9
Injection Weight(PS)	g	648	779.9	905
Injection Rate	g/s	210	240	270
Injection Pressure	MPa	205	168	143
Screw Speed	rpm	0~180
Clamping Force	KN	2900
Opening stroke	mm	585
Space Between Tie Bars	mm	600*600
Max.Mold Height	mm	600
Min.Mold Height	mm	220
Ejector Stroke	mm	150
Ejector Tonnage	KN	75
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	30
Heater power	KW	15
Machine Dimension(L*W*H)	M	6.0*1.6*2.1
Machine weight	T	8.5
Oil Tank Capacity	L	570

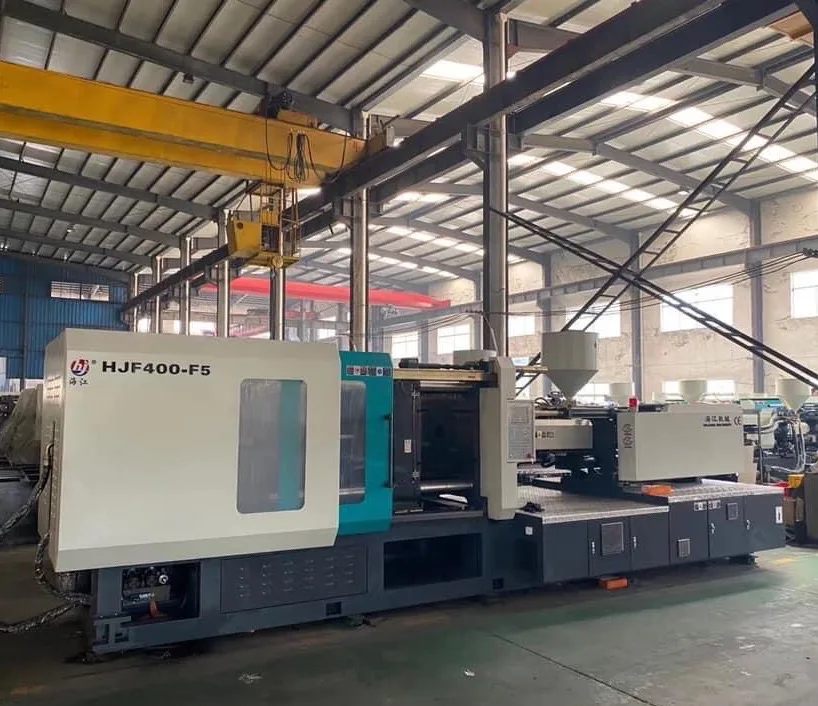

3.injection molding machine in workshop:

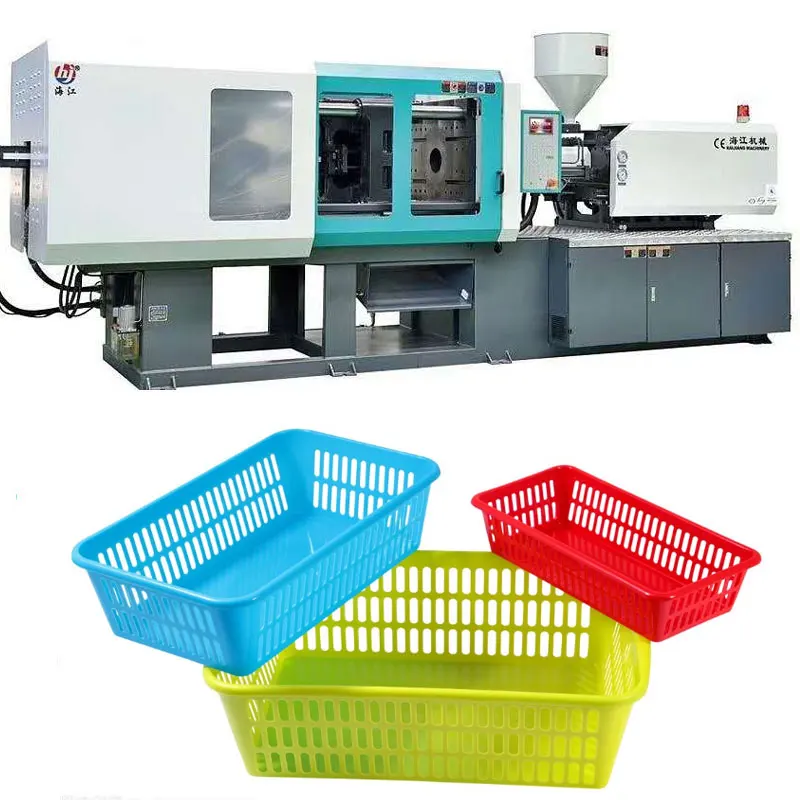

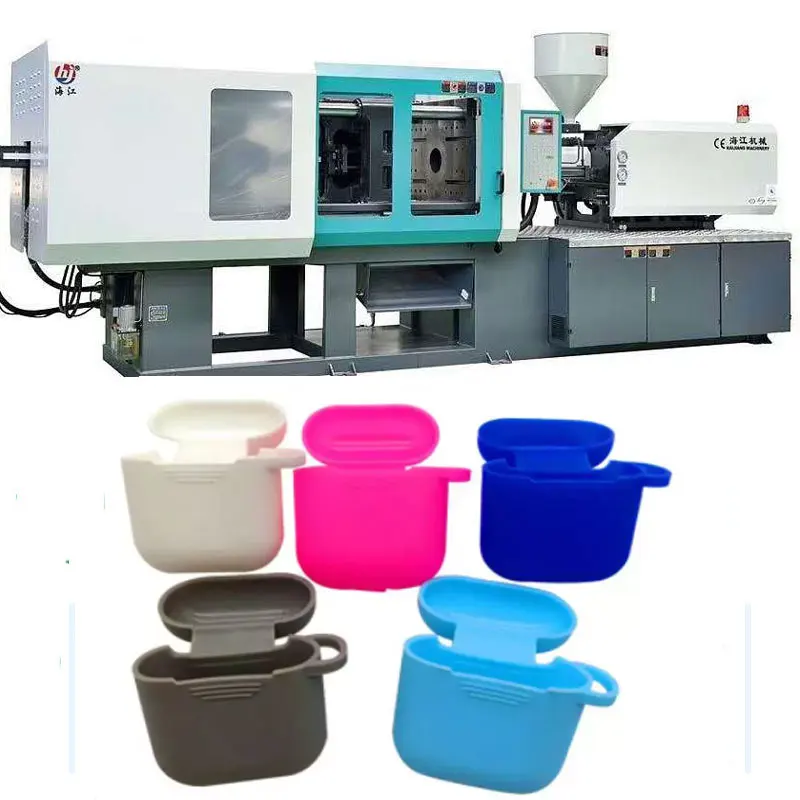

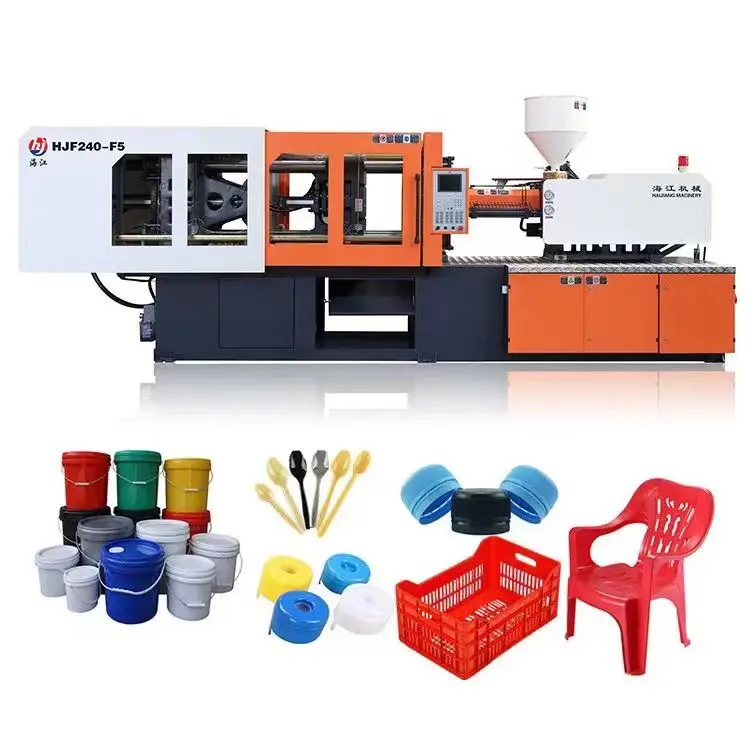

4.injection molding machine photos

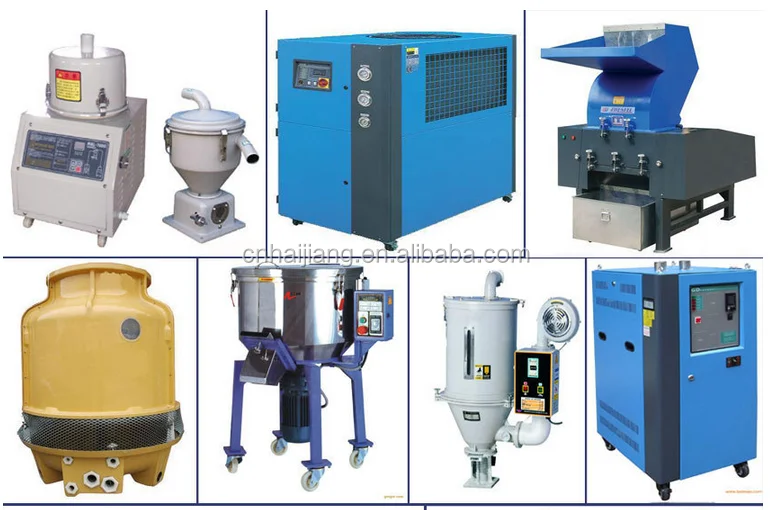

4.Auxiliary Equipment :

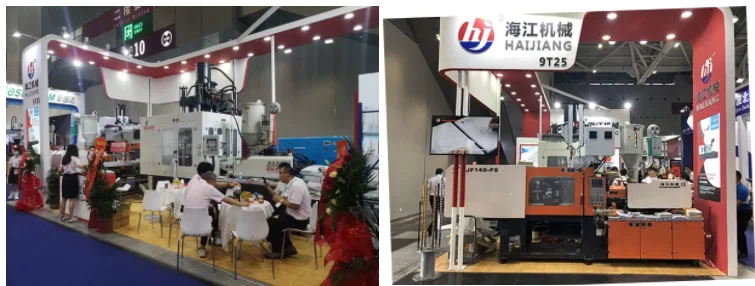

5.Haijiang injection molding machine exjhibition

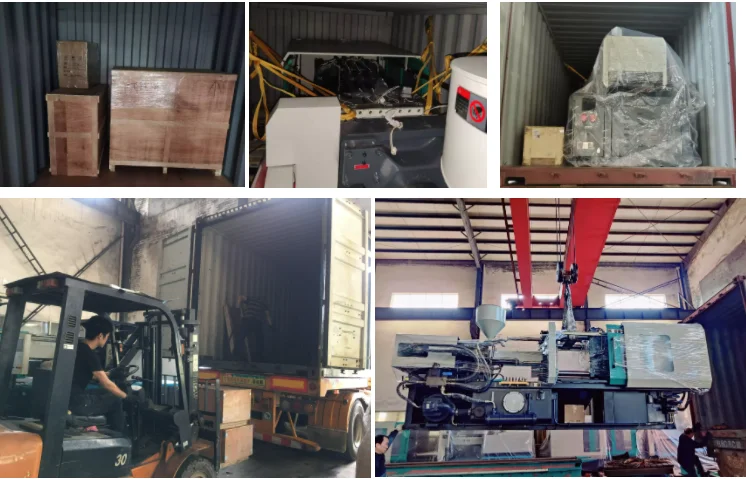

6.Haijiang injection molding machine package and shipment

7. injection molding machine certification

  FAQ

Q1. What is the warranty for the plastic injection molding machine

A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.

Q2:Can you sending engineer to oversea install machine and trainning customer's workers.

Q2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 150$ per day

Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual,Tool box,Lubricate Oil,Sealing,Filter etc.

Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.

Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.

Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you.
