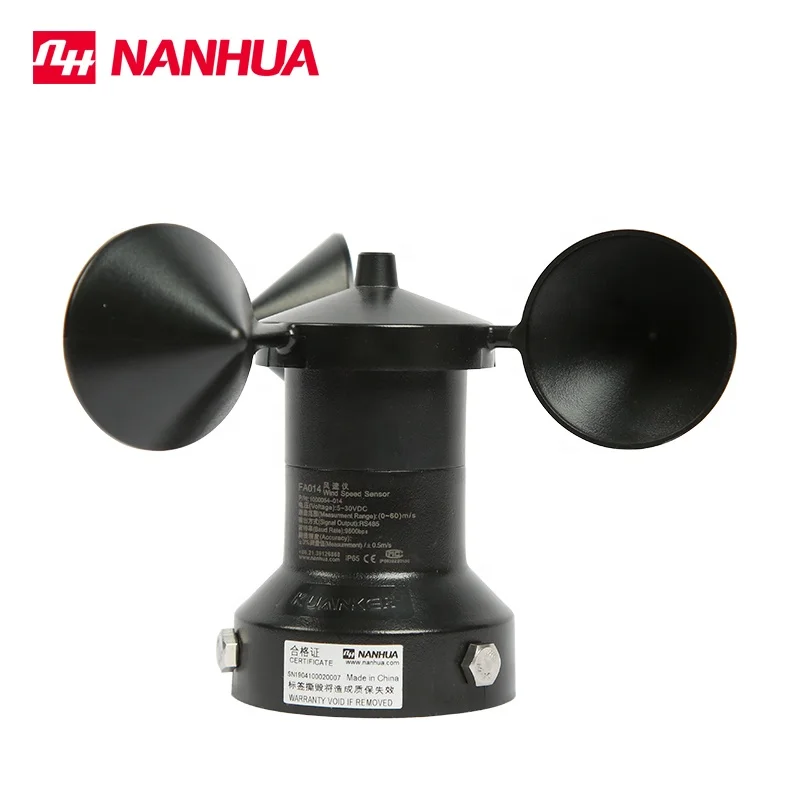

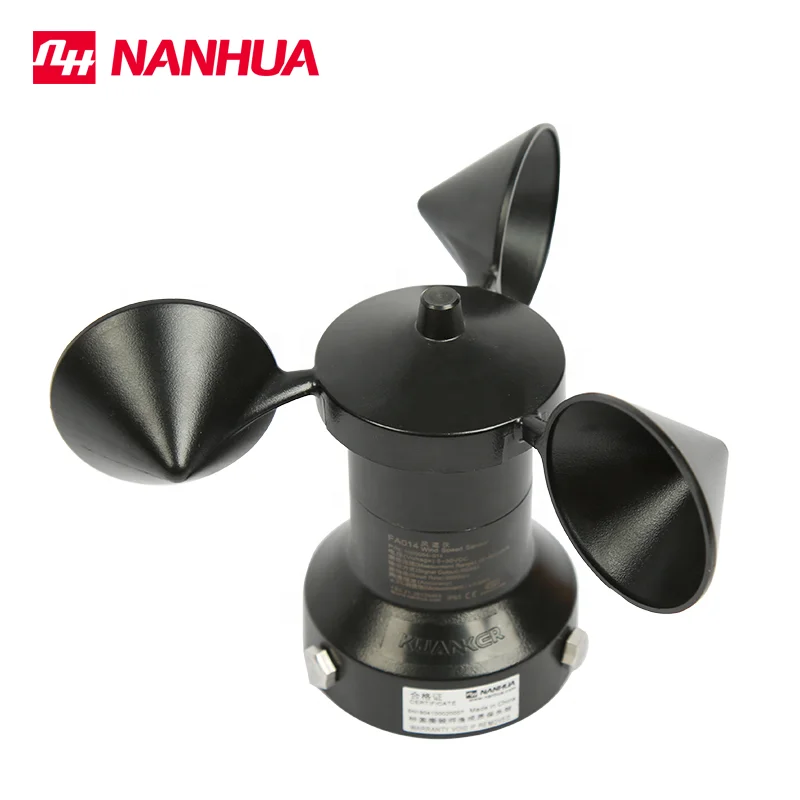

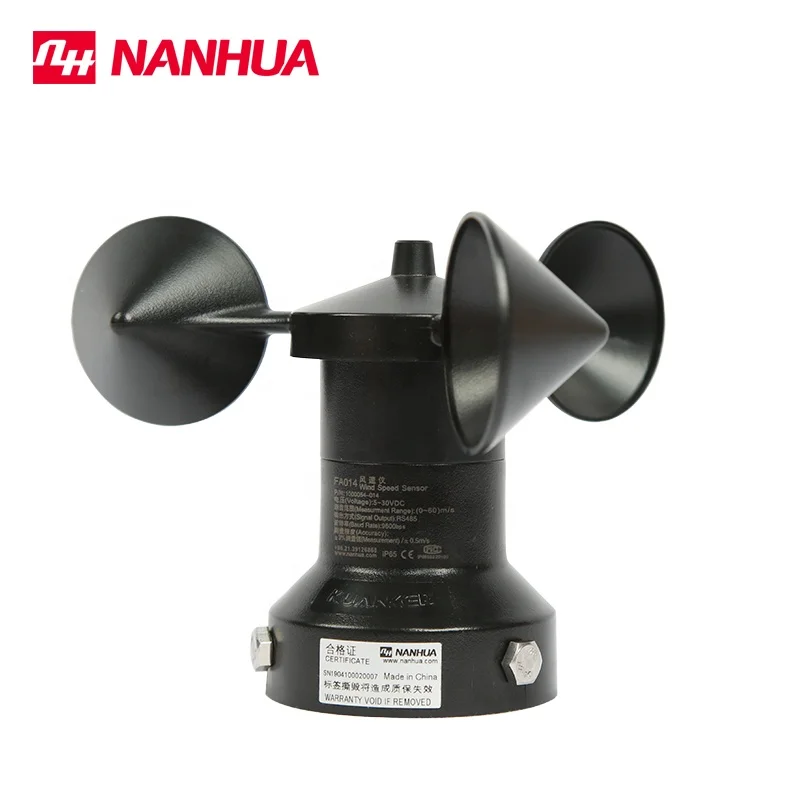

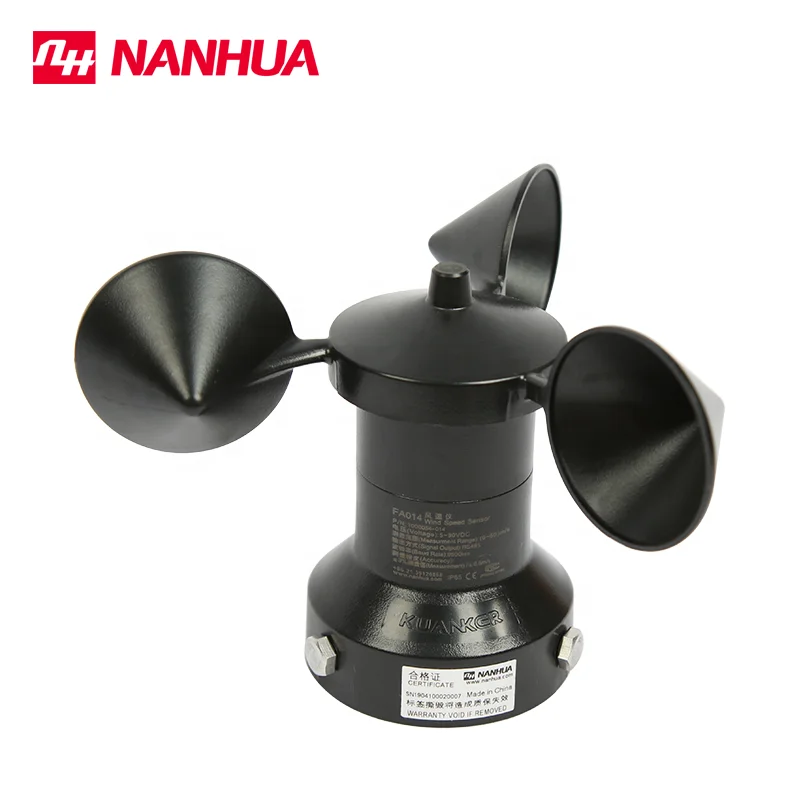

High accuracy mechanical anemometer wind speed sensor for solar tracker /cranes/ wind power/ etc

Features

• Adopt non-contact magnetic measuring technology.


• High accuracy, high reliability


• Wide wind measuring range, low starting threshold.

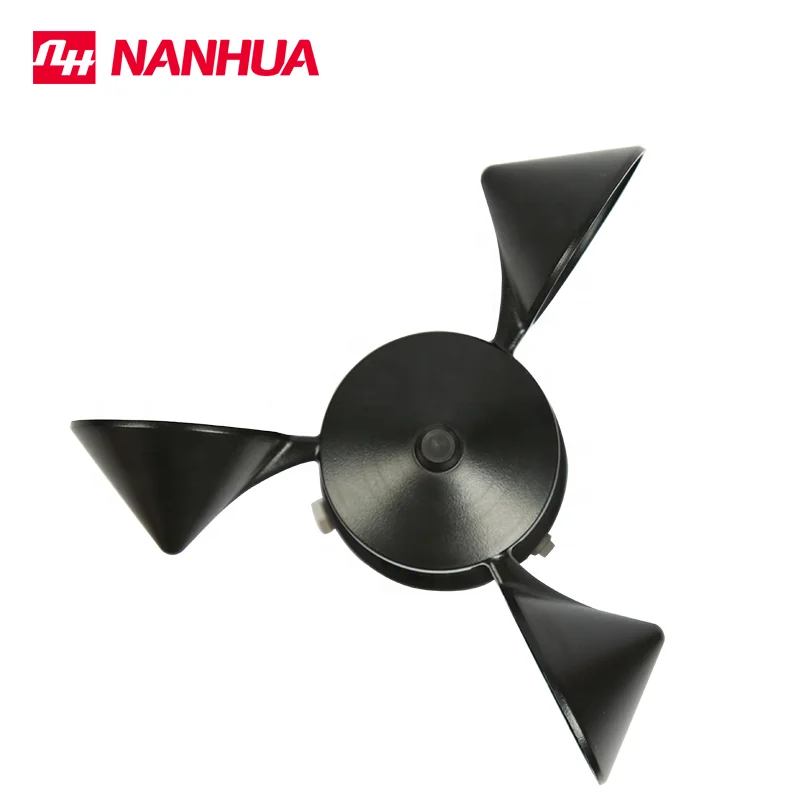

• Wind cup and housing adopts maze structure connection design.


• Modular design, ease to mount and maintain on site, suit to various


• industries and application.


• Fault tolerant design, product not damage in wrong wiring connection.


• Multistage lightning surge design.


• Wide voltage design.

Electrical

Mechanical

Rated voltage

DC5V~30V

Housing material

PC+ABS

Operating current

Max. 35mA

Wind cup

PC+ABS

Bearing

SS440C

Humidity

0%~100%RH

Operating temperature

Ta -40 °C ~ +70 °C

Lightning surge

IEC61000-4-5 4kV /2kA

IP rate

IEC60529 IP65

IEC61000-4-2 air discharge 16kV

Wiring

Aviation socket

IEC61000-4-2 contact discharge 8kV

Housing color

Black RAL9005

Weight

0.2 kg

Meteorological

Starting threshold

≤0.5m/s Vu=20 °C

Anti-wind level

>70m/s

Range

0~60m/s

Accuracy

±0.5m/s(V_L<5m/s)

±3% (V_L>5m/s)

Resolution

0.1m/s
