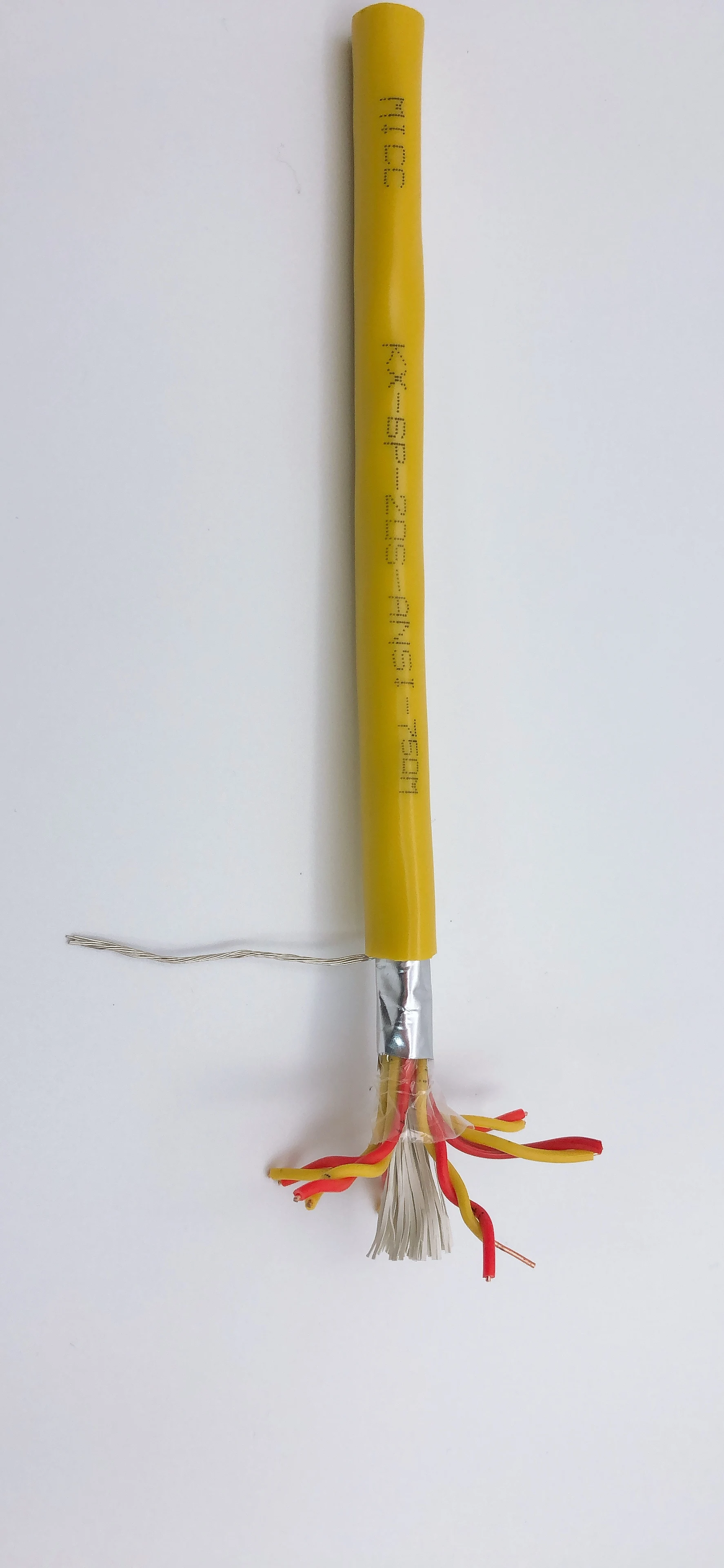

MICC Conductor: Solid Copper 20AWG(0.8mm=0.5mm2) or Stranded copper 20AWG(7/0.3mm=0.5mm2) KX 6P Muliti Pairs Instrument Cable

Product Overview

Description

MICC Conductor: Solid Copper 20AWG(0.8mm=0.5mm2) or Stranded copper 20AWG(7/0.3mm=0.5mm2) KX 6P Muliti Pairs Instrument Cable







• SUBJECT



PVC INSULATION MULTI PAIRS THERMOCOUPLE CABLE  Individual conductors are insulated with a flexible polyvinyl chloride.

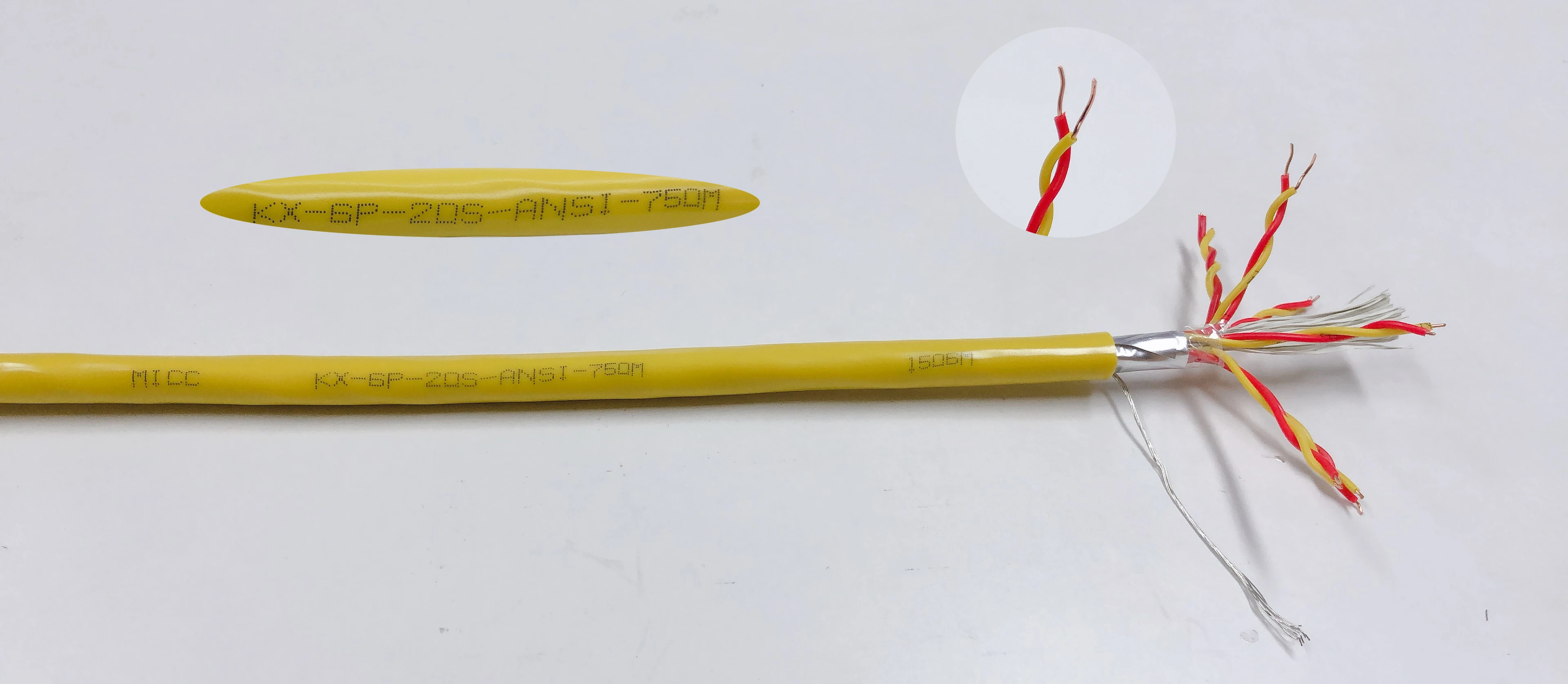

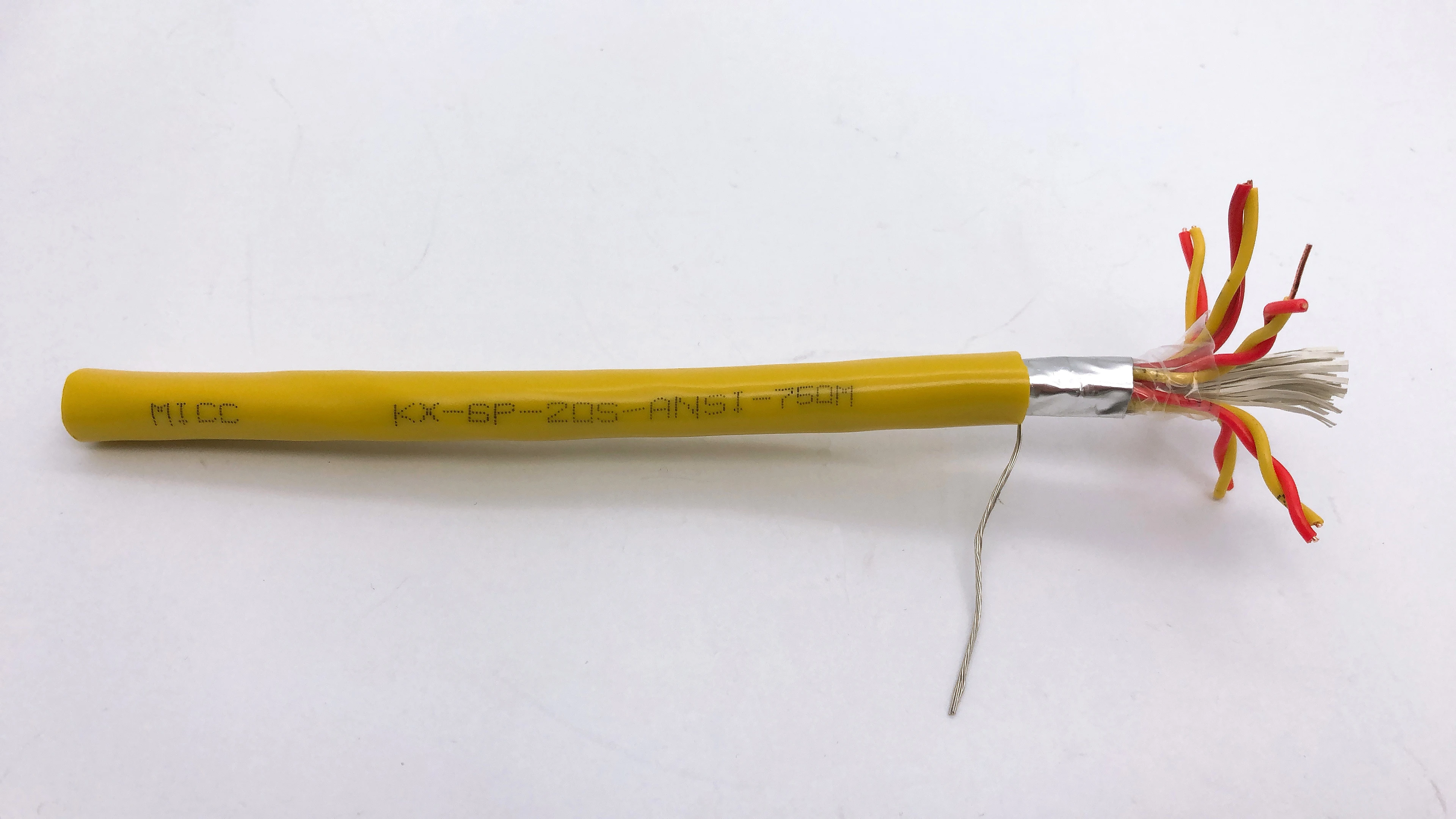

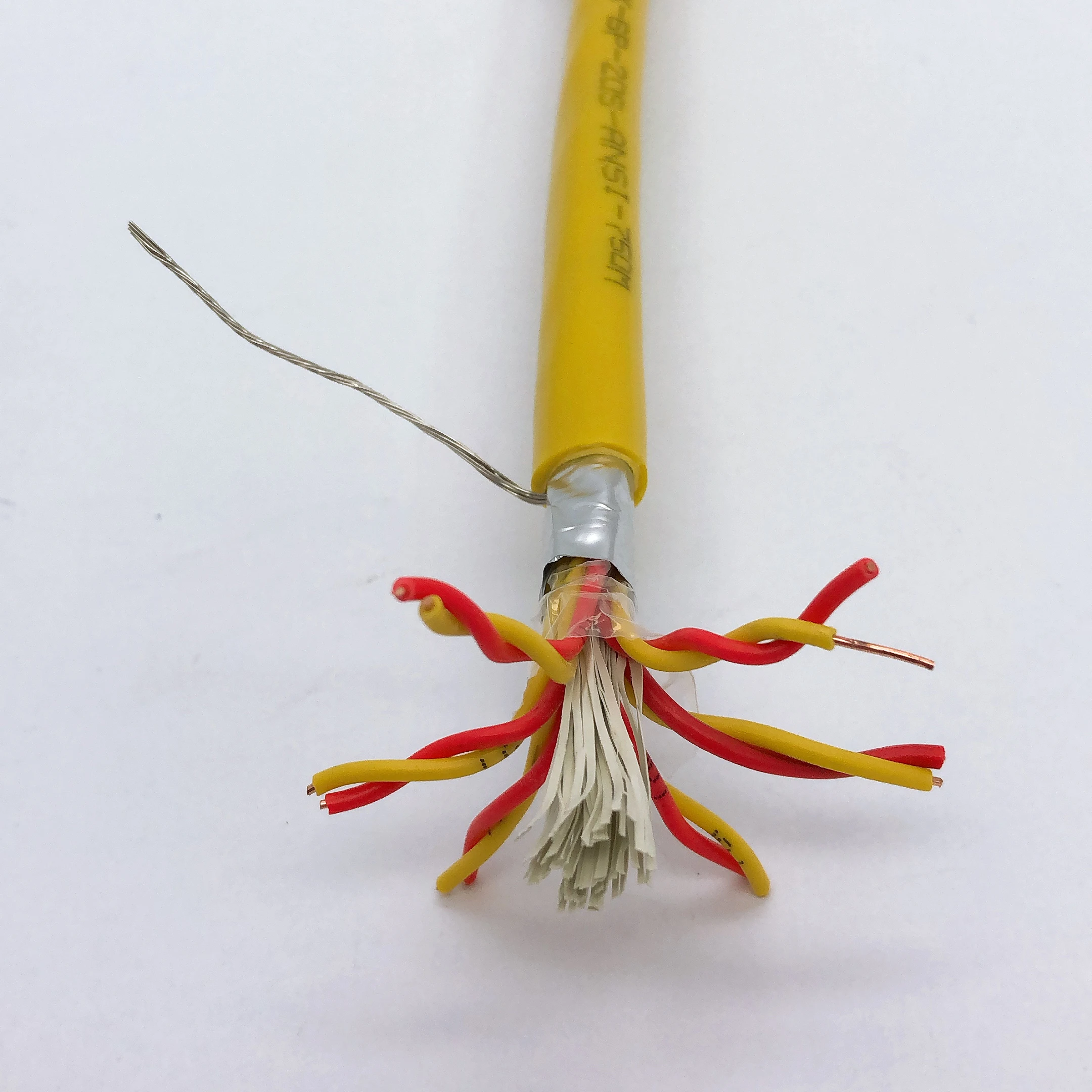

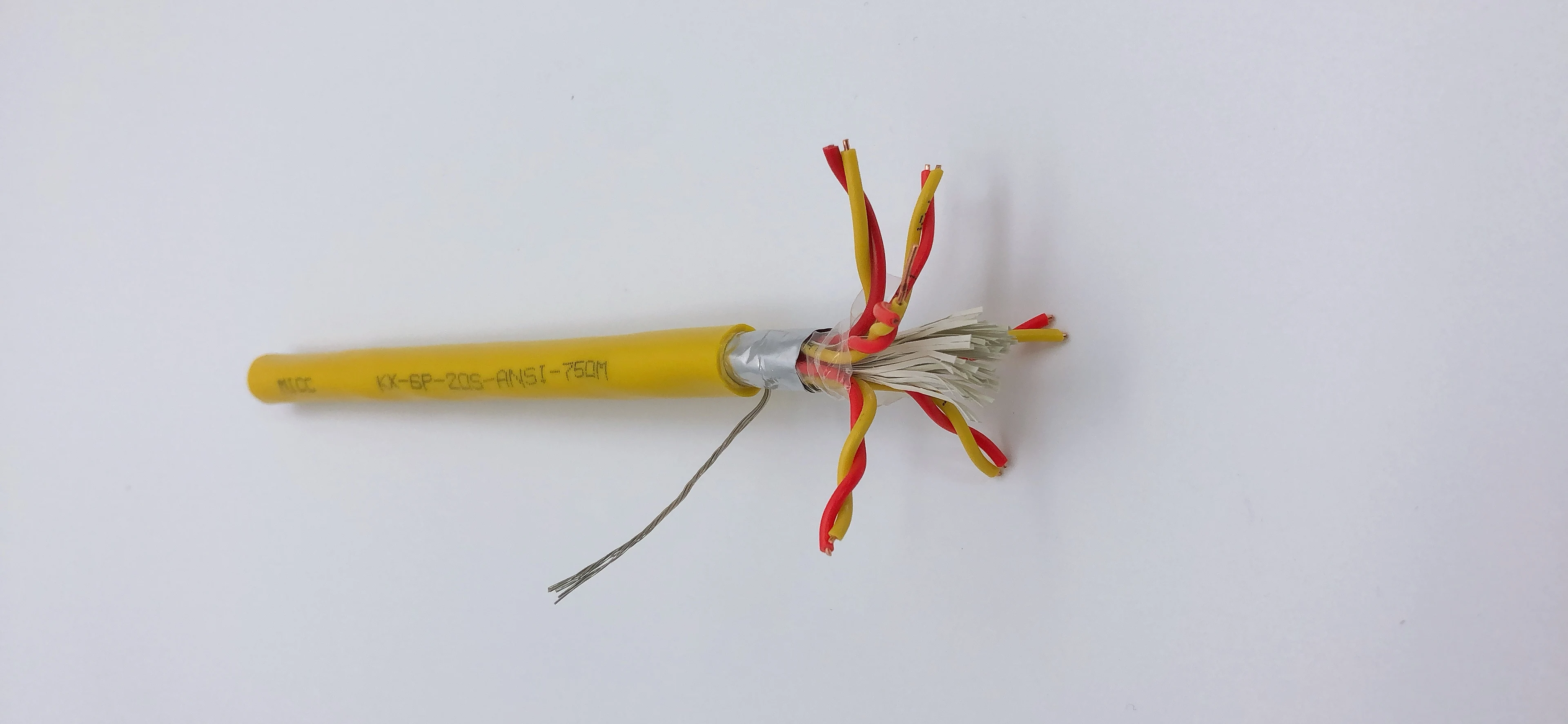

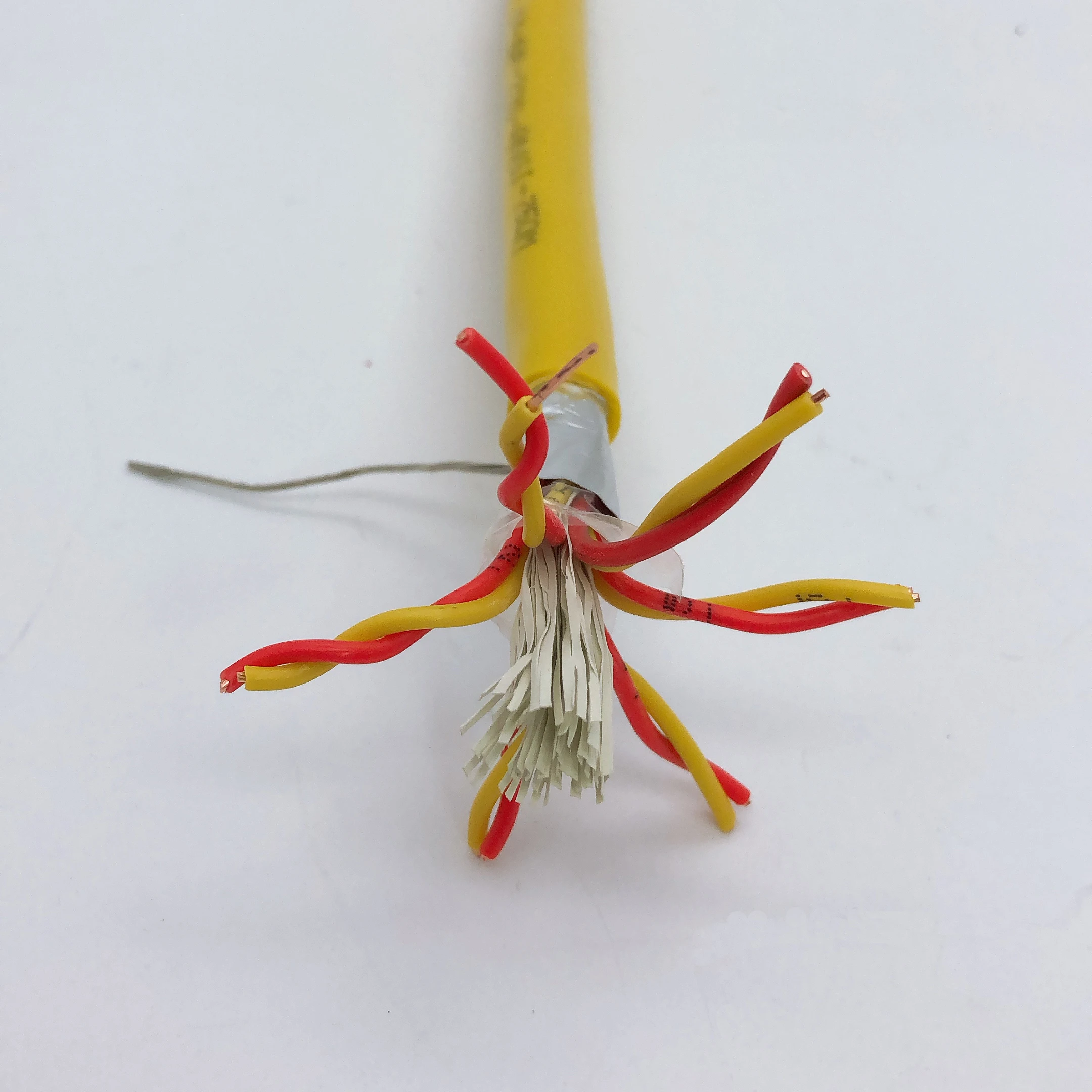

Conductors are twisted in pairs and numbered, a communications wire is added and pairs are cabled and a polyester backed aluminum tape shield applied with a bare stranded copper drain wire. A polyvinyl chloride jacket is extruded over the shielded pair which includes a ripcord for easy jacket removal.



• TECHNICAL FEATURES



1. Conductor: Solid Copper 20AWG(0.8mm=0.5mm2) or Stranded copper 20AWG(7/0.3mm=0.5mm2)

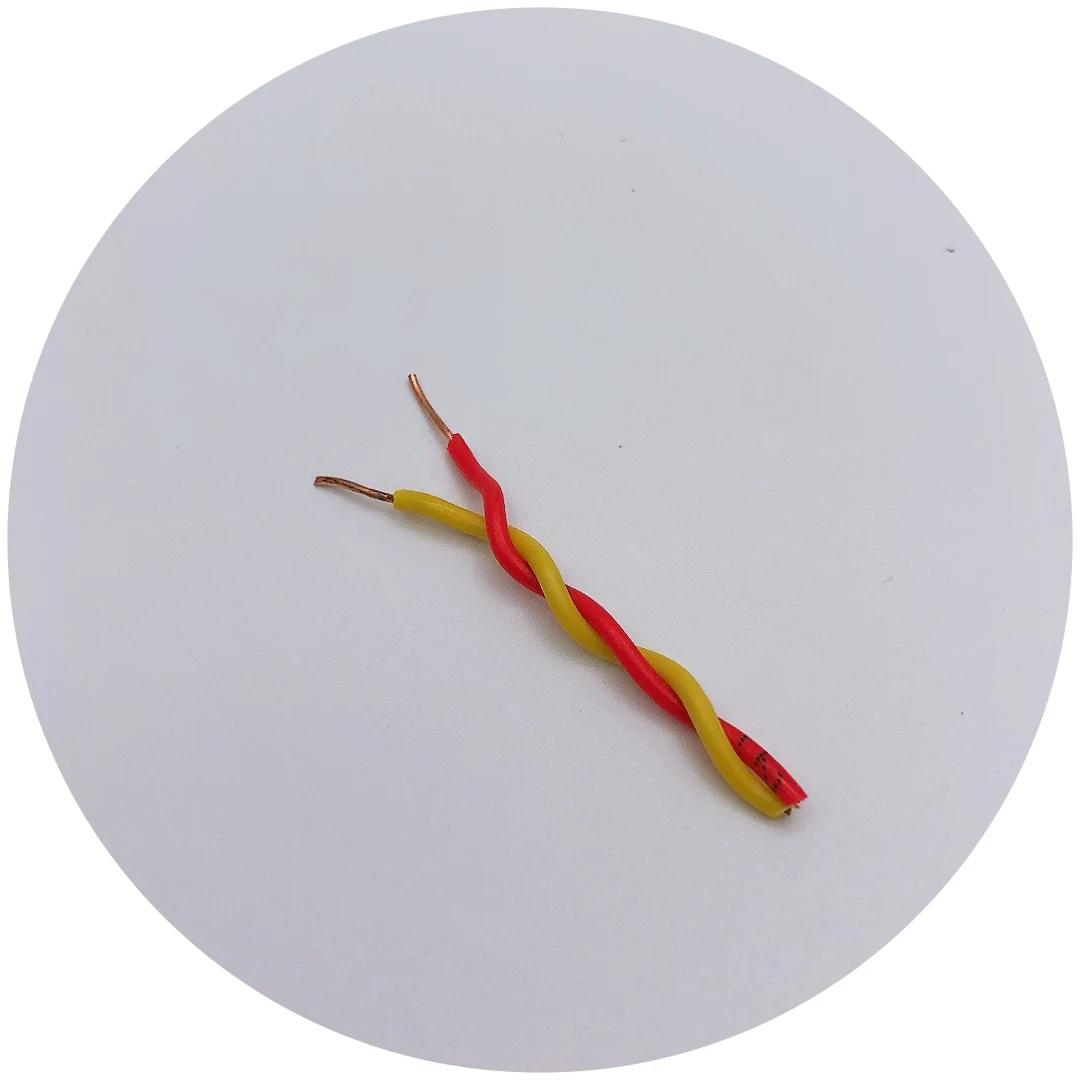

2. Single Insulation: 105°C PVC twisted Pairs, +Orange/-Red, Pairs numbered like #1, #2..#24

3. Wrapping: Plastic Film (Polyester Tape)

4. Shield: Aluminum Tape, 100% Coverage

5. Drain Wire: Stranded Uninsulated Tinned Copper(7/0.3mm)

6. Sheath: Jacket  90°C PVC Orange,

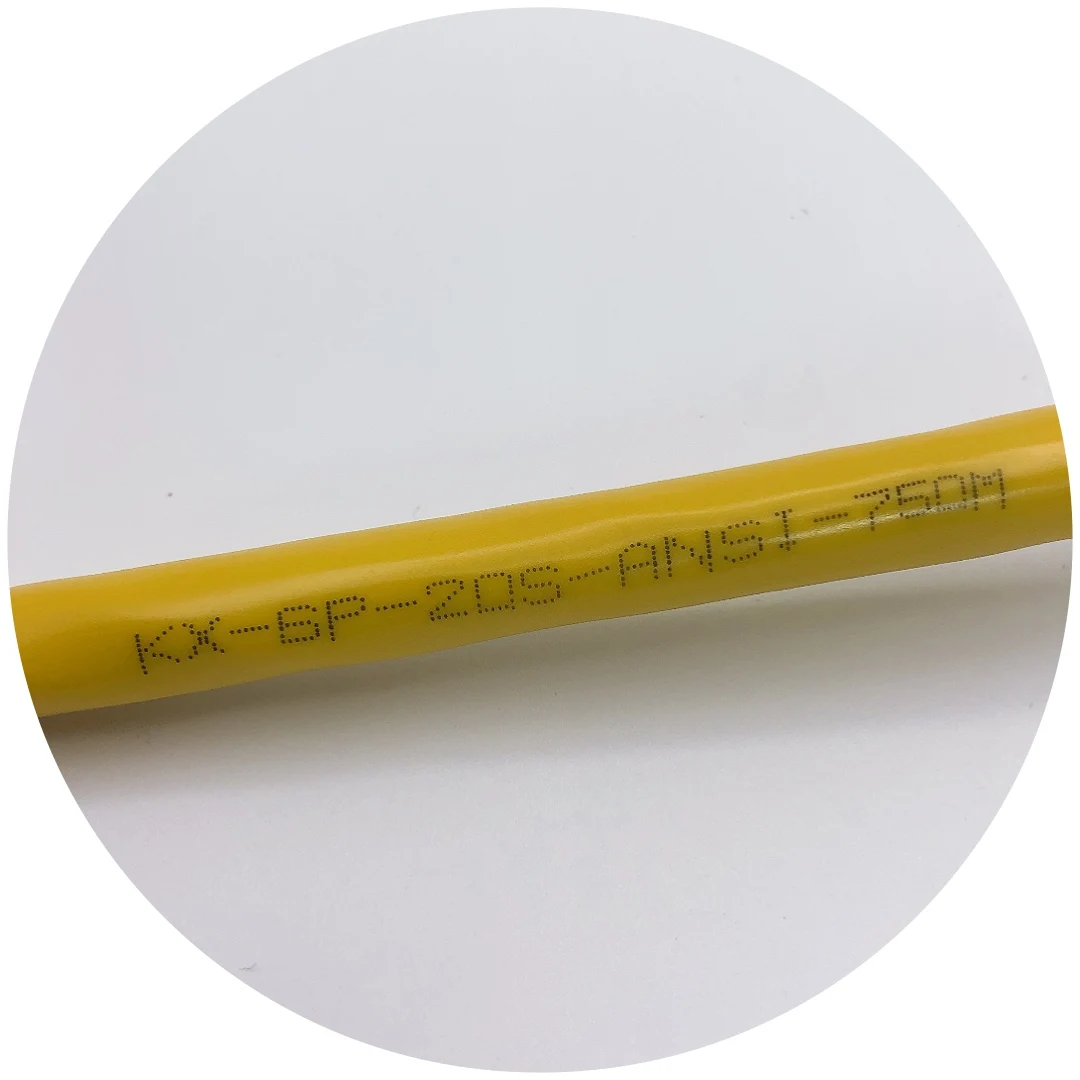

7. Marking:  ''MICC-KX-6P-20S-ANSI'' every meter

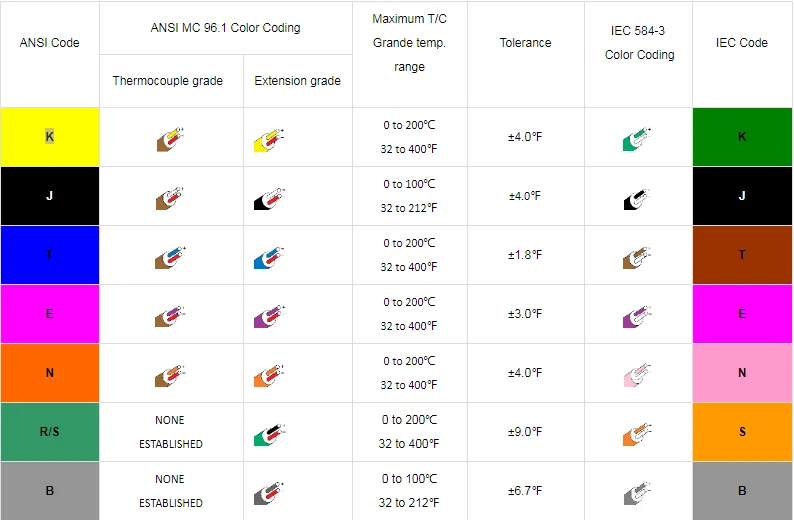

• COLOR CODE



• PACKING AND IDENTIFICATION

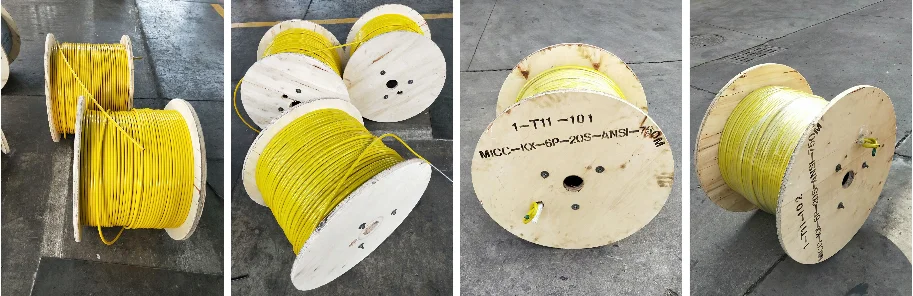

1. Coding on Wooden Spool :

‘’Customer Requested Code’’

‘’MICC-KX-6P-20S-ANSI-750M ‘’

2.  Package items carefully to avoid damage during shipment like below:
