Two post car parking lift underground hydraulic double bridge for car parking lift
- Category: >>>
- Supplier: Qingdao Syrison Industrial Equipment Co. Ltd.
Share on (1600930565333):
Product Overview
Description
Two post car parking lift underground hydraulic double bridge for car parking lift
Products Description

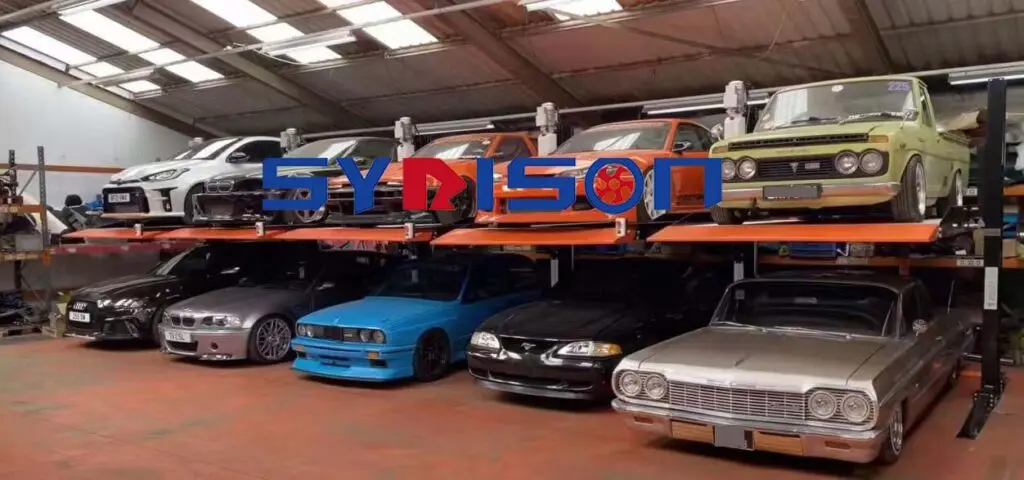

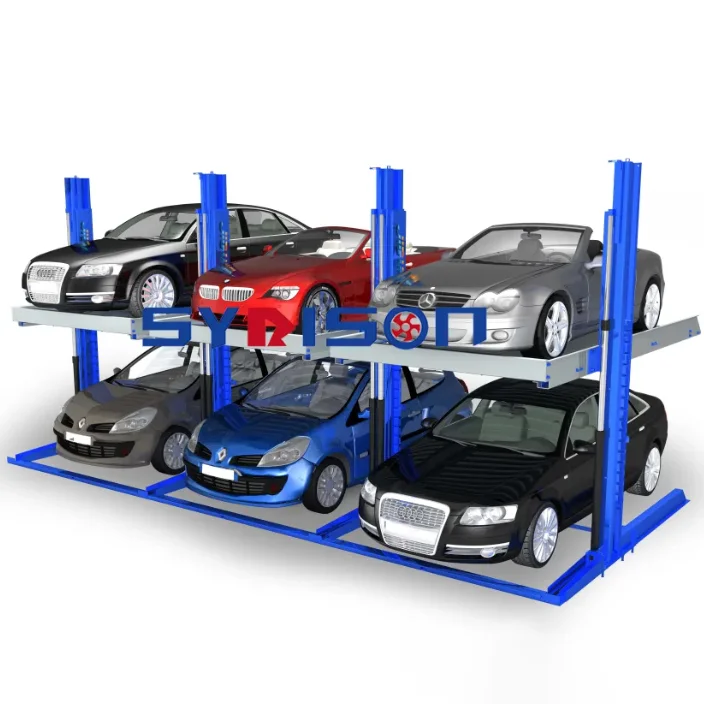

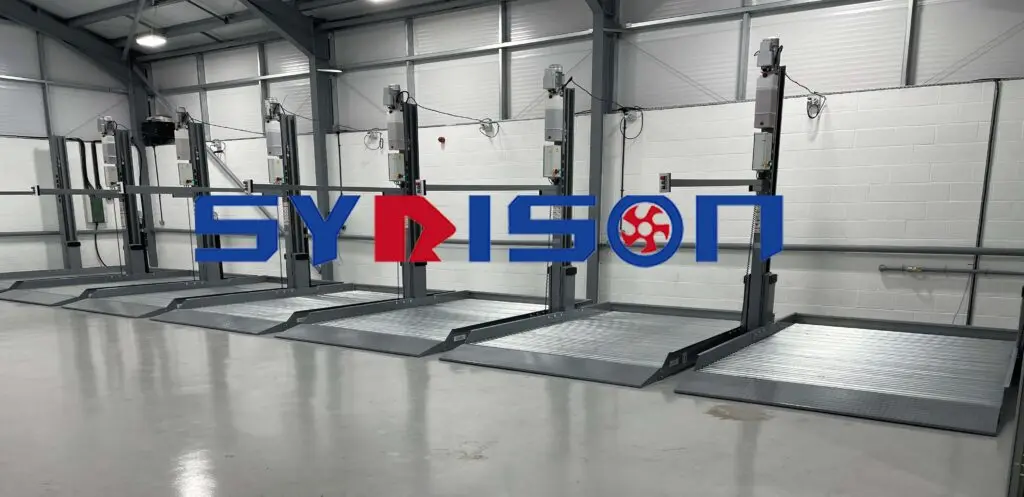

1.Use of broad-scope, specialize in enterprises and institutions, office buildings, resi dential propertieshotels, household and various places of parking.The column can be used in the form of N+1save the land area, make full use of space.
2.Convenient access to vehicle thanks to no column beam ahead of the entranceHydraulic driveand chain balance device to ensure the balance of rise and fall.Short lifting time, low noise,power saving,low carbon.

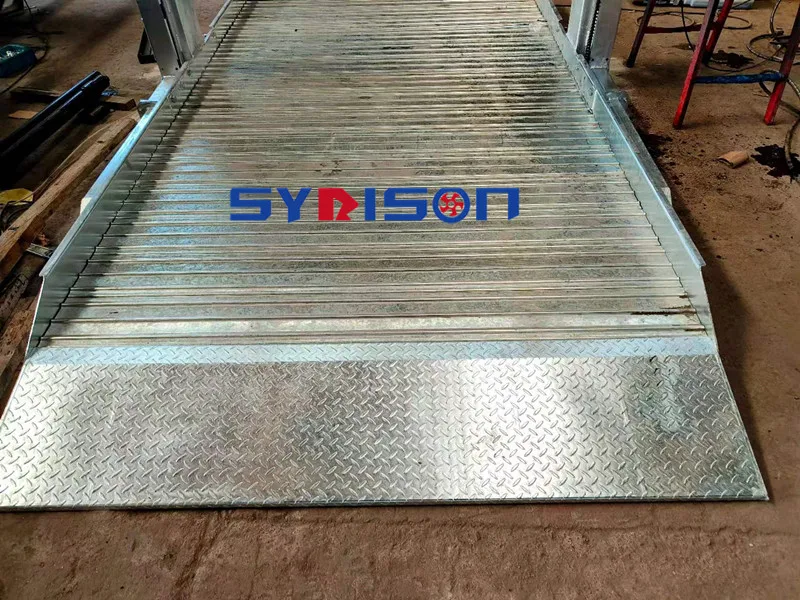

3.Pallet sealing design to avoid the water pollution,also avoid muddy water dropping to the car bellowin the rain and snow weather.
4.Colorful powder coating surface with green lead-free materials. Strong corrosion resistantability and durable. Polymer materials are adopted for sliding parts,self-lubricating.long service life. Water-proof electrical parts and drive section.
2.Convenient access to vehicle thanks to no column beam ahead of the entranceHydraulic driveand chain balance device to ensure the balance of rise and fall.Short lifting time, low noise,power saving,low carbon.
3.Pallet sealing design to avoid the water pollution,also avoid muddy water dropping to the car bellowin the rain and snow weather.
4.Colorful powder coating surface with green lead-free materials. Strong corrosion resistantability and durable. Polymer materials are adopted for sliding parts,self-lubricating.long service life. Water-proof electrical parts and drive section.
5.The exquisite craft of hundred,simple structure,compact use.Easy moving and installation,
saving time,low requirements on civil engineering.
6.Quality assurance based on hundreds of thousands of experiment,deeply trusted andloved by the world customers.
saving time,low requirements on civil engineering.
6.Quality assurance based on hundreds of thousands of experiment,deeply trusted andloved by the world customers.
Product Paramenters
Model | TPP105 | TPP106 | TPP106 Max | ||||
Parking spaces | 2 | 2 | 2 | ||||
Load Capacity | 2300kg | 2700kg | 3200kg | ||||
Equipment Weight | 850kg | 950kg | 1050kg | ||||
Lifting Height | 2100mm | 2100mm | 2100mm | ||||
Standard Platform width | 2100mm | 2100mm | 2100mm | ||||
Safety Lock | Dynamic mechanical lock | Dynamic mechanical lock | Dynamic mechanica lock | ||||
Lock Release | Electrical auto release | Electrical auto release | Electrical auto release | ||||
Power Pack | 2.2kw | 2.2kW | 3KW | ||||
Power Supply | 100-450V,50/60H2,1P/3P | 100-450V 50/60H2, 1P/3P | 100-450V 50/60H2, 1P/3P | ||||
Operation Voltage | 24V | 24V | 24v | ||||
Run Time | 45s | 45s | 45s | ||||
Surface Treatment | Powder coating | Powder coating | Powder coating | ||||
Product Features

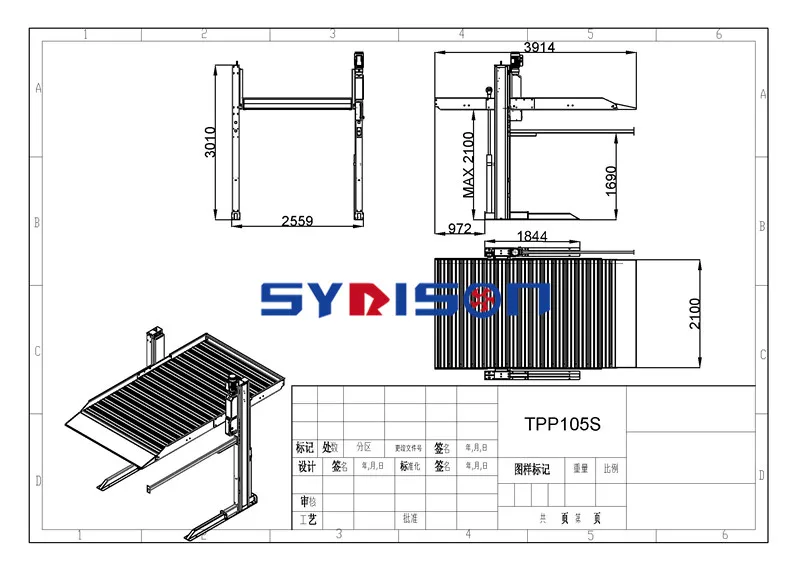

Size Drawing
Work Flow
Packaging & Shipping
Company Profile
Why Choose Us?
1.Quality: CE certification, after 120% and 150% of the dynamic load test static load test, exported around the world.
2.Price: As manufacturer in auto maintenance equipment.We always offer competitive distributor price,reliable quality and punctual delivery.
3.Payment terms: 30% prepaid, post-shipment inspection and pay the balance before qualifying.
4.Delivery: the factory adjacent to Qingdao Port, convenient transportation. Thousand units were produced per month to ensure regular orders on time delivery.
5.Service personnel: experienced engineers, able to handle customer issues in a timely manner, and to develop new products based on customer requirements. Visits abroad for many years, installation, equipment maintenance experience, so you worry-free purchase.
2.Price: As manufacturer in auto maintenance equipment.We always offer competitive distributor price,reliable quality and punctual delivery.
3.Payment terms: 30% prepaid, post-shipment inspection and pay the balance before qualifying.
4.Delivery: the factory adjacent to Qingdao Port, convenient transportation. Thousand units were produced per month to ensure regular orders on time delivery.
5.Service personnel: experienced engineers, able to handle customer issues in a timely manner, and to develop new products based on customer requirements. Visits abroad for many years, installation, equipment maintenance experience, so you worry-free purchase.
FAQ
Q1: Are you a trading company or manufacturer?
- We are the manufacturer with exporting License.
Q2. Can you do OEM for us ?
- OEM are welcome for us. Customers’ brand, logo, label can be customized for product and export standard package.
Q3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance
department for your final confirmation. All procedures will be informed and confirmed with you in advance.
Q4.Do I need a special floor or foundation to support my new lift?
A level floor is suggested for proper installation and level lifting. With proper shimming, small differences in floor slopes may be compensated for. If a floor is of questionable slope, consider a survey of the site and / or the possibility of pouring a new level concrete slab.
Q5.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems.
Q6.How do you ensure the customer benefit?
Alibaba can provide the trade assurance services,it can ensure the customer benefit.
Q7.Our service
Customized service;
Two years quality warrant service;
Professional team supply service for life long time;
We can supply the user manual of different type;
24-hour online feedback
- We are the manufacturer with exporting License.
Q2. Can you do OEM for us ?
- OEM are welcome for us. Customers’ brand, logo, label can be customized for product and export standard package.
Q3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance
department for your final confirmation. All procedures will be informed and confirmed with you in advance.
Q4.Do I need a special floor or foundation to support my new lift?
A level floor is suggested for proper installation and level lifting. With proper shimming, small differences in floor slopes may be compensated for. If a floor is of questionable slope, consider a survey of the site and / or the possibility of pouring a new level concrete slab.
Q5.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems.
Q6.How do you ensure the customer benefit?
Alibaba can provide the trade assurance services,it can ensure the customer benefit.
Q7.Our service
Customized service;
Two years quality warrant service;
Professional team supply service for life long time;
We can supply the user manual of different type;
24-hour online feedback
