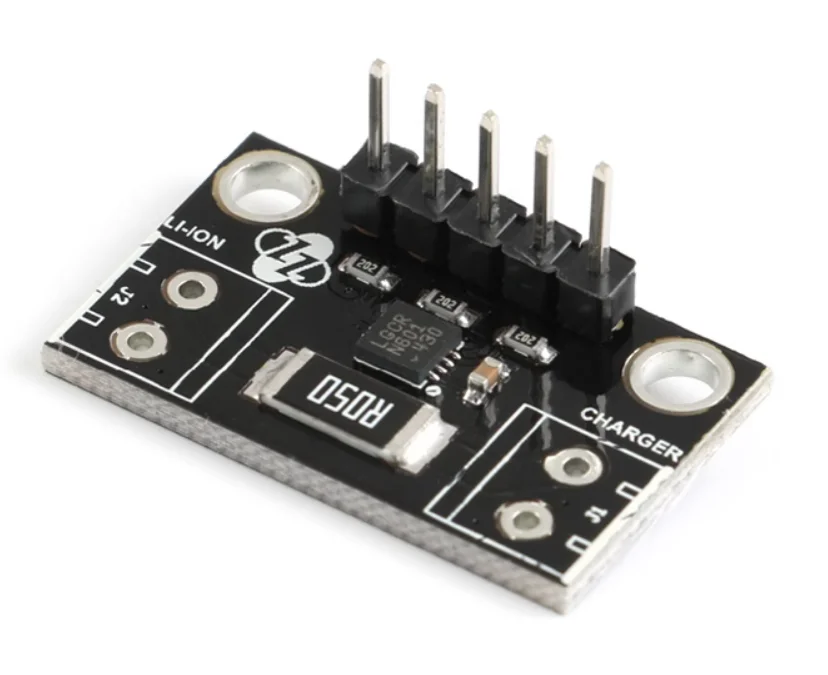

LTC2944 Measurement module CJMCU 294 Battery Power measurement Temperature Voltage Current measurement 60V
- Category: >>>
- Supplier: Shenzhen Hengxinyao Electronics Co. Ltd.
Share on (1600930565992):
Product Overview
Description
Accumulated battery charge and discharge can be measured
The 3.6V to 60V operating range is suitable for multiple battery applications
The 14-bit zero-delay ADC measures voltage, current (12-bit) and temperature (11-bit)
Temperature sensing range :236.85°
The maximum temperature and current conversion time is 8ms, and the maximum voltage conversion time is 48ms
1% voltage, current and charging accuracy
±50mV detection voltage range
High voltage side detection
12C/SMBus interface
Configurable alarm output/charge completion input
Static current <150μA
IIC communication frequency :400~900KHz
IIC hardware address: 1100100x (x is the read/write direction control bit)
VCC: The common end of the pull-up resistance of the three on-board communication ports shall be connected to the VCC of the external controller:
ALCC: Alarm output or charge completion input, default alarm mode:
S+:SENSE+ chip power supply and inductive current positive input
S-: the negative input end of the inductive current and the positive end of the battery power supply under test;
SDA: IIC Data Signal Cable:
SCL:IIC clock signal line;
The 3.6V to 60V operating range is suitable for multiple battery applications
The 14-bit zero-delay ADC measures voltage, current (12-bit) and temperature (11-bit)
Temperature sensing range :236.85°
The maximum temperature and current conversion time is 8ms, and the maximum voltage conversion time is 48ms
1% voltage, current and charging accuracy
±50mV detection voltage range
High voltage side detection
12C/SMBus interface
Configurable alarm output/charge completion input
Static current <150μA
IIC communication frequency :400~900KHz
IIC hardware address: 1100100x (x is the read/write direction control bit)
VCC: The common end of the pull-up resistance of the three on-board communication ports shall be connected to the VCC of the external controller:
ALCC: Alarm output or charge completion input, default alarm mode:
S+:SENSE+ chip power supply and inductive current positive input
S-: the negative input end of the inductive current and the positive end of the battery power supply under test;
SDA: IIC Data Signal Cable:
SCL:IIC clock signal line;
