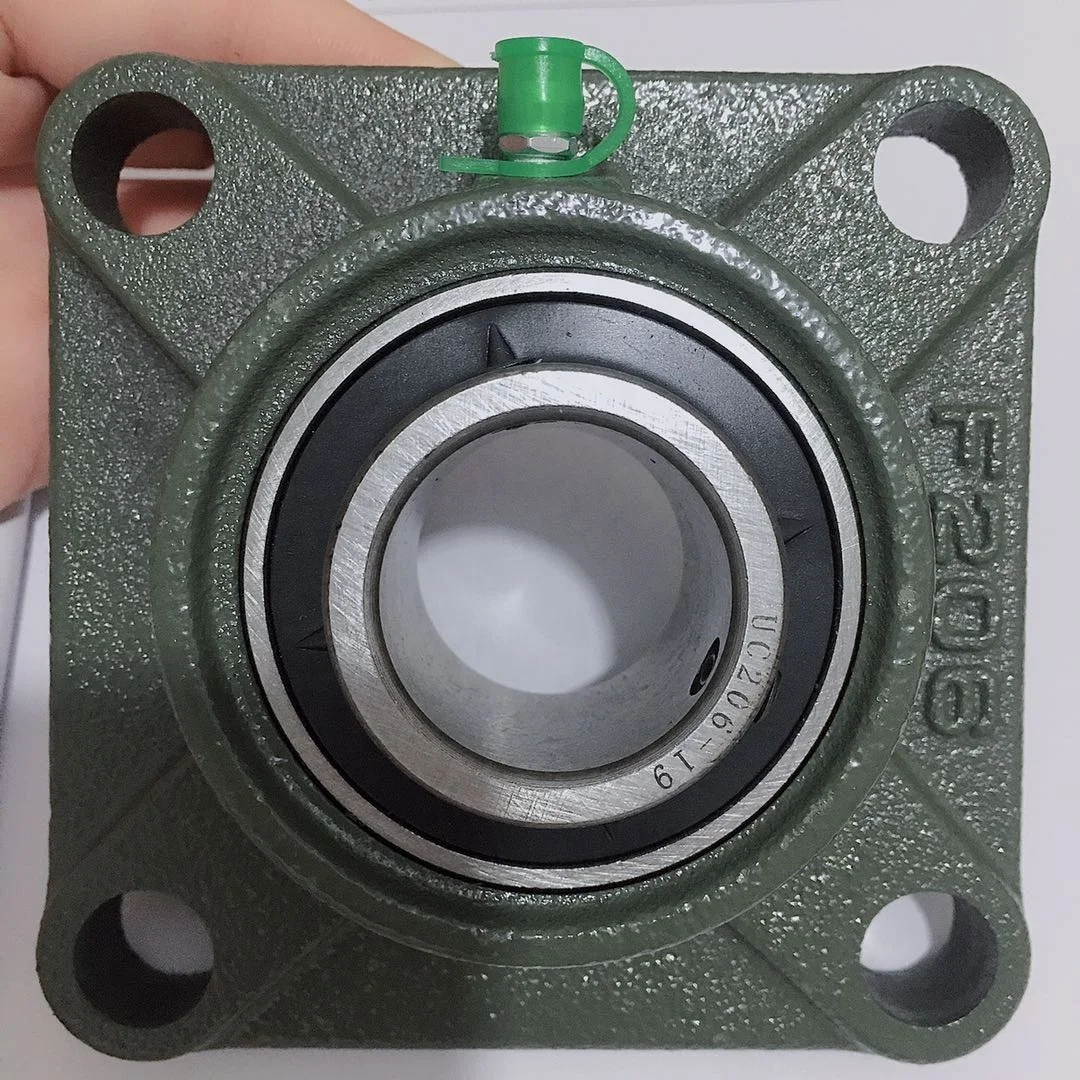

UCF206 UCP 214 pillow block bearing UCFC pillow block bearing hot sale uct pillow block bearing
- Category: >>>
- Supplier: Liaocheng Boyunda Bearing Co. Ltd.
Share on (1600930616539):
Product Overview
Description

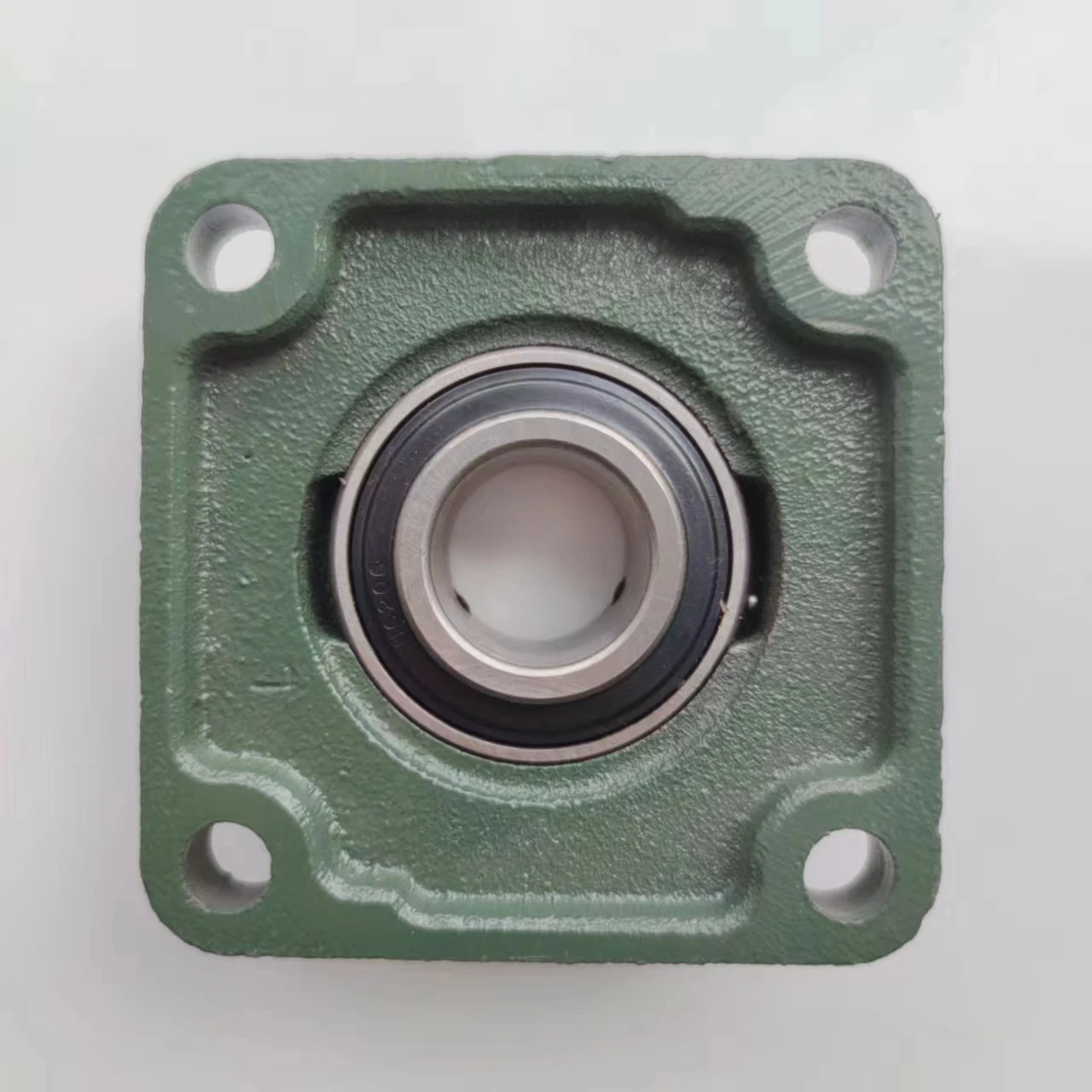

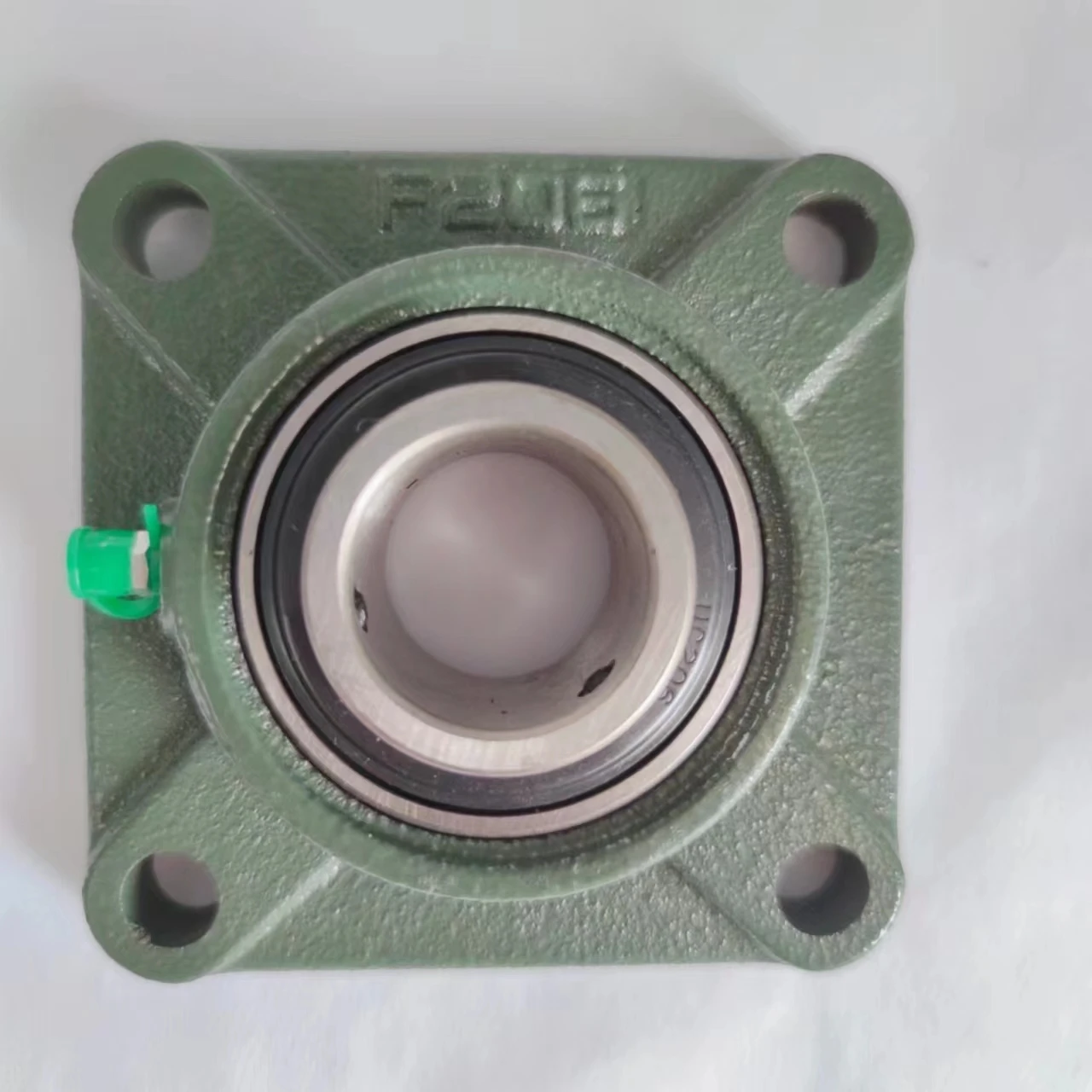

Product Show

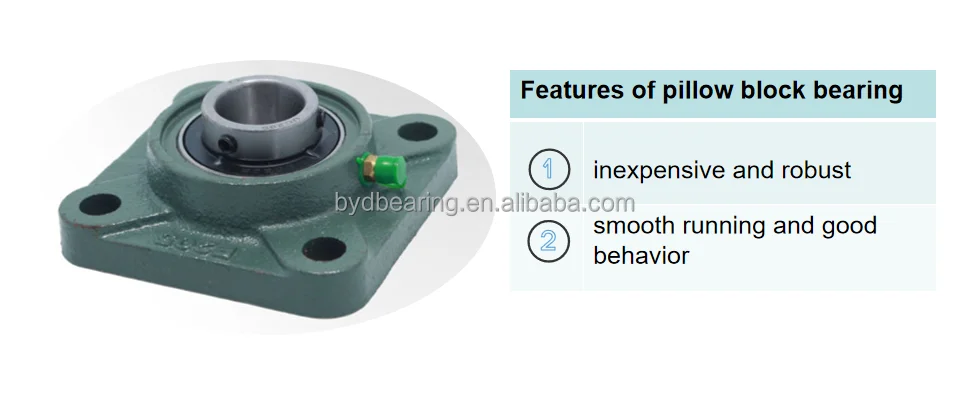

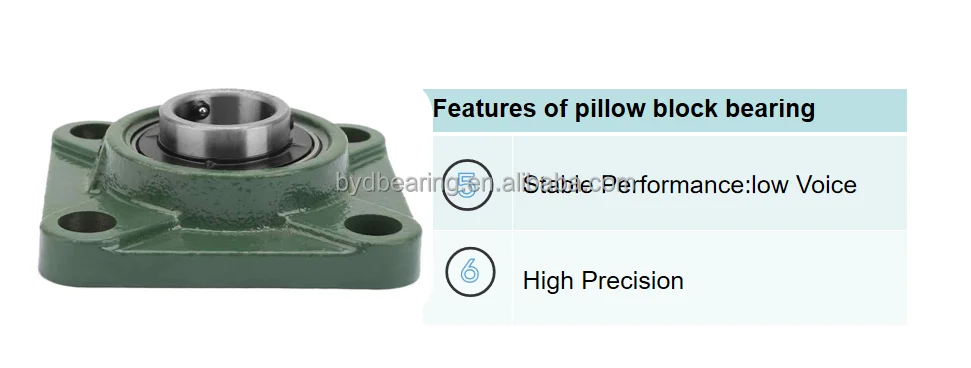

features of bearings | ||

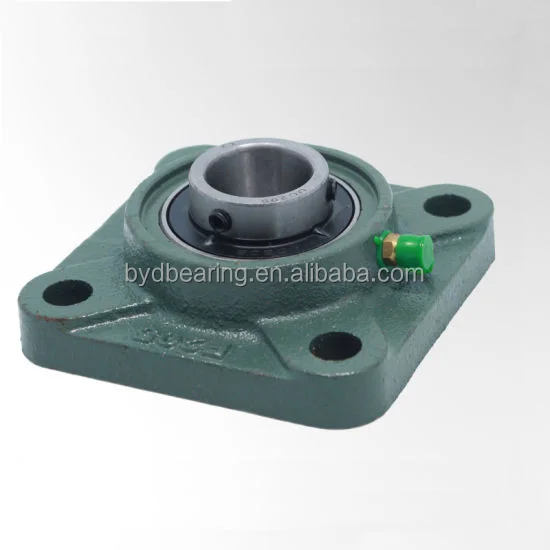

* *consisting of a ball bearing insert UC and a cast iron housing FC | ||
* 4-hole flange bearing design allows installation in a variety of applications and is suitable for very high radial loads | ||
* the housing is made of cast iron and therefore inexpensive and robust | ||

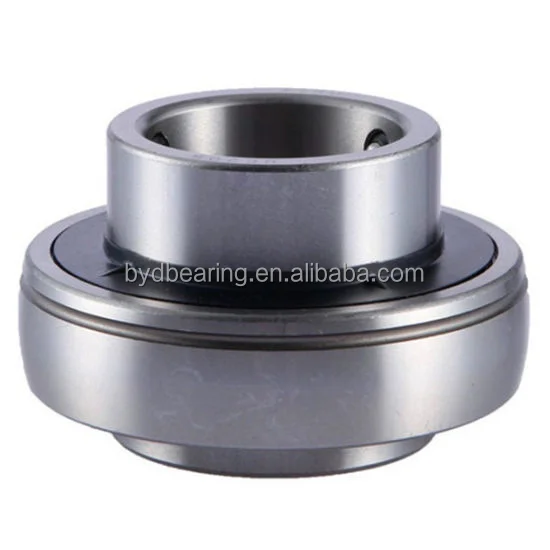

* the bearing insert has an extended inner ring with grub screws | ||
* The radial insert ball bearing housing unit is mounted on the shaft with two grub screws | ||
* smooth running and good behavior with tilting due to the extended inner ring | ||
* static misalignments can be compensated up to an angle of 2° | ||
* two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter | ||

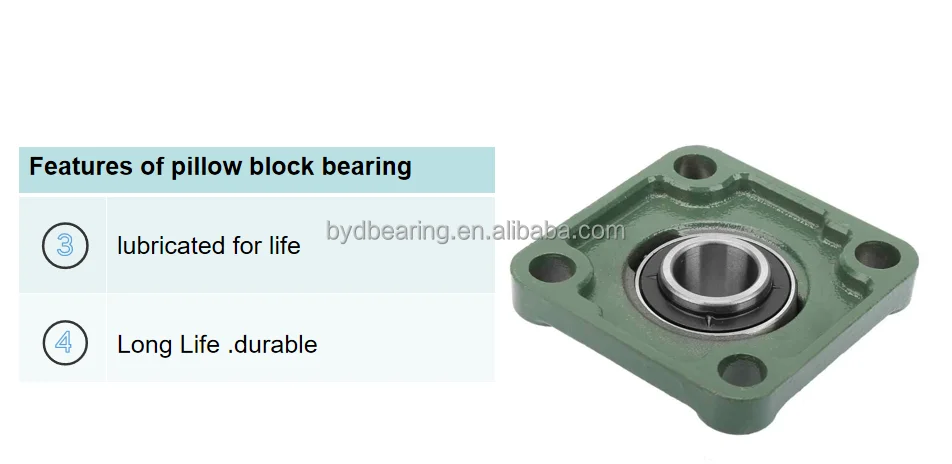

* lubricated for life; under normal operating conditions relubrication is not required | ||
* housing with integrated lubrication hole | ||
* to protect against corrosion, the housing is painted; the bearing insert and the mounting surface are treated with corrosion protection oil | ||
* In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request. | ||
Pillow block bearings applications:
The flange bearing UCF is suitable for very high radial loads and for installation in various applications. It is particularly
robust with its gray cast iron housing.
robust with its gray cast iron housing.
Hot sale products
spherical roller bearings
deep groove ball bearings
taper roller bearings
UCP pillow block bearing
UCT pillow block bearing
UCFC pillow block bearing

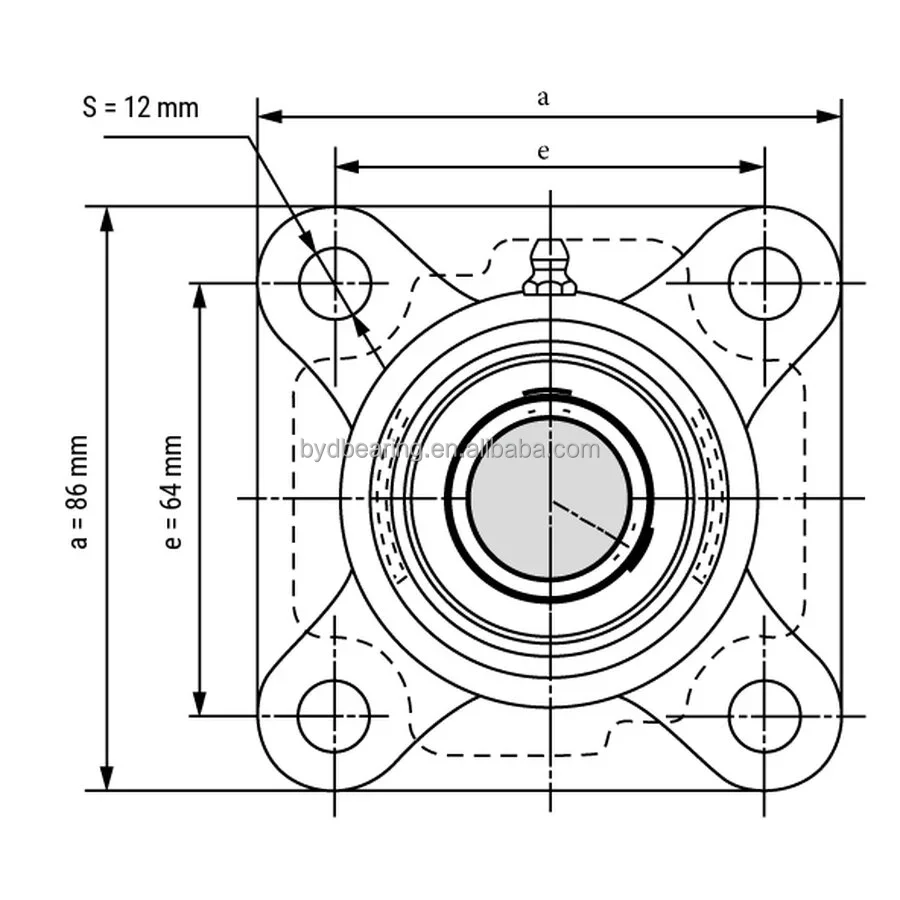

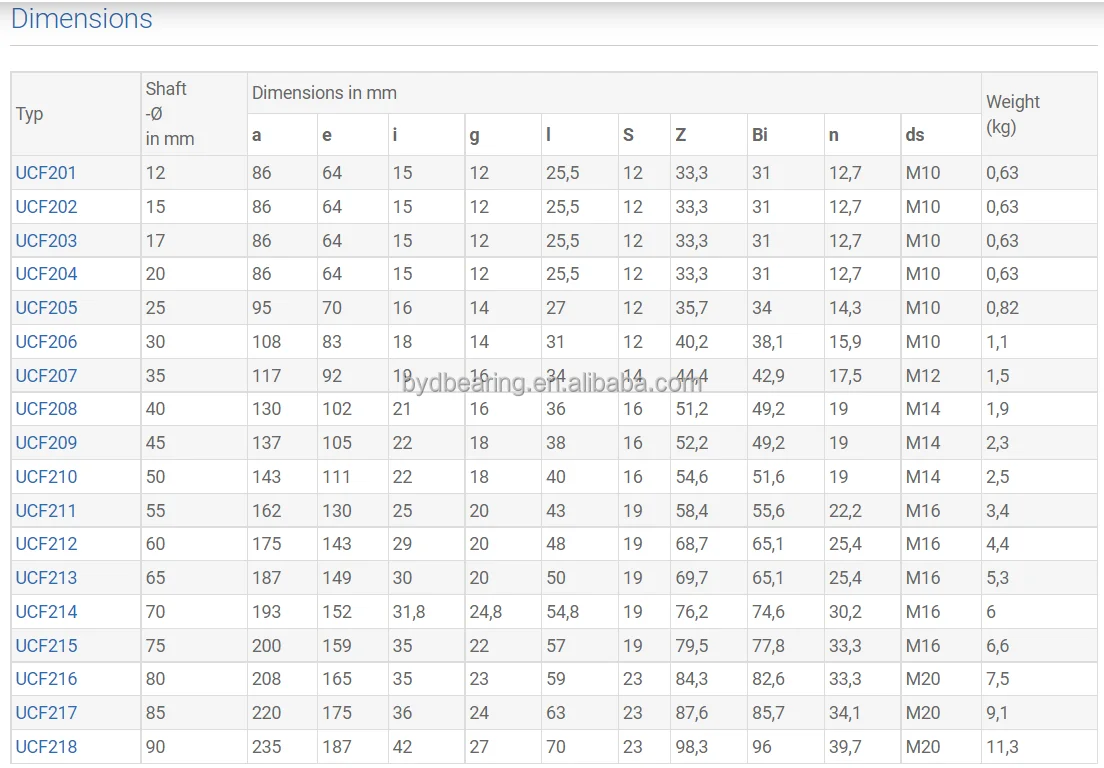

Product Paramenters
pillow block bearing ：UCFC | ||
Inside Ø (mm): | 30 | |
Tolerance for inside-Ø (mm): | ±1% | |
a (mm): | 89--215 | |
e (mm): | 76--190 | |
w (mm): | 94--275 | |
h (mm): | 61-170 | |
Shaft Fastening: | Grub Screws | |
Housing Type: | Plummer Block | |
Grub Screw: | M6 | |
Bearing No.: | UCT201--UCT 218 | |
Housing No.: | T201--T 218 | |
Ring Material: | Chrome Steel | |
Rolling Element Material: | Chrome Steel | |
Cage Material: | Sheet Steel | |
Housing Material: | Cast Iron | |
Number of Mounting Holes: | T/UCT | |
0.79Product weight: | 0.63-11.3KGS | |
Why Choose Us
We have aquired the SGS /CQC/ECM certificates and we support our customer to have a text about thw qulity of the bearings
Company Profile
Our factory is located in Shangdong China. It since from 2009,a modern company specialized in producing and exporting bearing and bearing components. The main products are :deep groove ball bearing, taper roller bearing,pillow block baring,thrust ball bearing,etc.There are more than 300 workers in our company,and we have our own work shop, we are looking forward to cooperate with you, welcome your inquiry.
Packing & Shipping
packing
1. Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets.
2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets.
3.According to customer’s requirements.
1.sample bearing:with 1-2 days shipped by air(EMS/DHL/NTN)
2.Large orders:within 15 days after we received the payment,shipped by sea.
Customer Feedback
FAQ
Q:Are you a manufacturer?
A:Yes, we are a manufacturer, we have our own factory. Our company specialized in bearings more than 15 years, we promise that we are exactly the supplier you have been looking for.
Q:Can you supply samples?
A:Sure, samples can be provided free of charge, and the buyer pay the postage of the sample.
Q:The terms of shipment:
A:Firstly:We will delivery the bearings on time. The bearings will be shipped within 7 days after receiving the balance payment.
Q:How to place the order:
A:Send your inquiry →we will quote you→confirm the order→send you PI → make the in advance payment→we will produce the order(we have larger stock)→make the balance payment→delivery the goods after receiving the balance payment.
Q:The terms of payment:
A:30% deposit and 70% balance.
Q:The terms of price:
A: EXW factory Liacocheng City
FOB Qingdao/Tianjin Port China
CIF any port of your orders
A:Yes, we are a manufacturer, we have our own factory. Our company specialized in bearings more than 15 years, we promise that we are exactly the supplier you have been looking for.
Q:Can you supply samples?
A:Sure, samples can be provided free of charge, and the buyer pay the postage of the sample.
Q:The terms of shipment:
A:Firstly:We will delivery the bearings on time. The bearings will be shipped within 7 days after receiving the balance payment.
Q:How to place the order:
A:Send your inquiry →we will quote you→confirm the order→send you PI → make the in advance payment→we will produce the order(we have larger stock)→make the balance payment→delivery the goods after receiving the balance payment.
Q:The terms of payment:
A:30% deposit and 70% balance.
Q:The terms of price:
A: EXW factory Liacocheng City
FOB Qingdao/Tianjin Port China
CIF any port of your orders
Q:If I want to mark my own brand on your bearing in small quantity does it work?
A: Yes, we can engrave your own brand on the bearing in small quantity.
If the future, when you have larger quantity, we can open the cover mold of your own brand name.
Q: MOQ
A: Once your bearing is standard size bearing, we accept the small quantity even in 1pc.
Q: If I don't see the type of bearing I need, what should I do?
A: We have too many bearing series number. Sometimes, we are unable to put them all on the Alibaba.
Just send the inquiry to us, and we’ll send you the detail of your bearing.
If the future, when you have larger quantity, we can open the cover mold of your own brand name.
Q: MOQ
A: Once your bearing is standard size bearing, we accept the small quantity even in 1pc.
Q: If I don't see the type of bearing I need, what should I do?
A: We have too many bearing series number. Sometimes, we are unable to put them all on the Alibaba.
Just send the inquiry to us, and we’ll send you the detail of your bearing.
