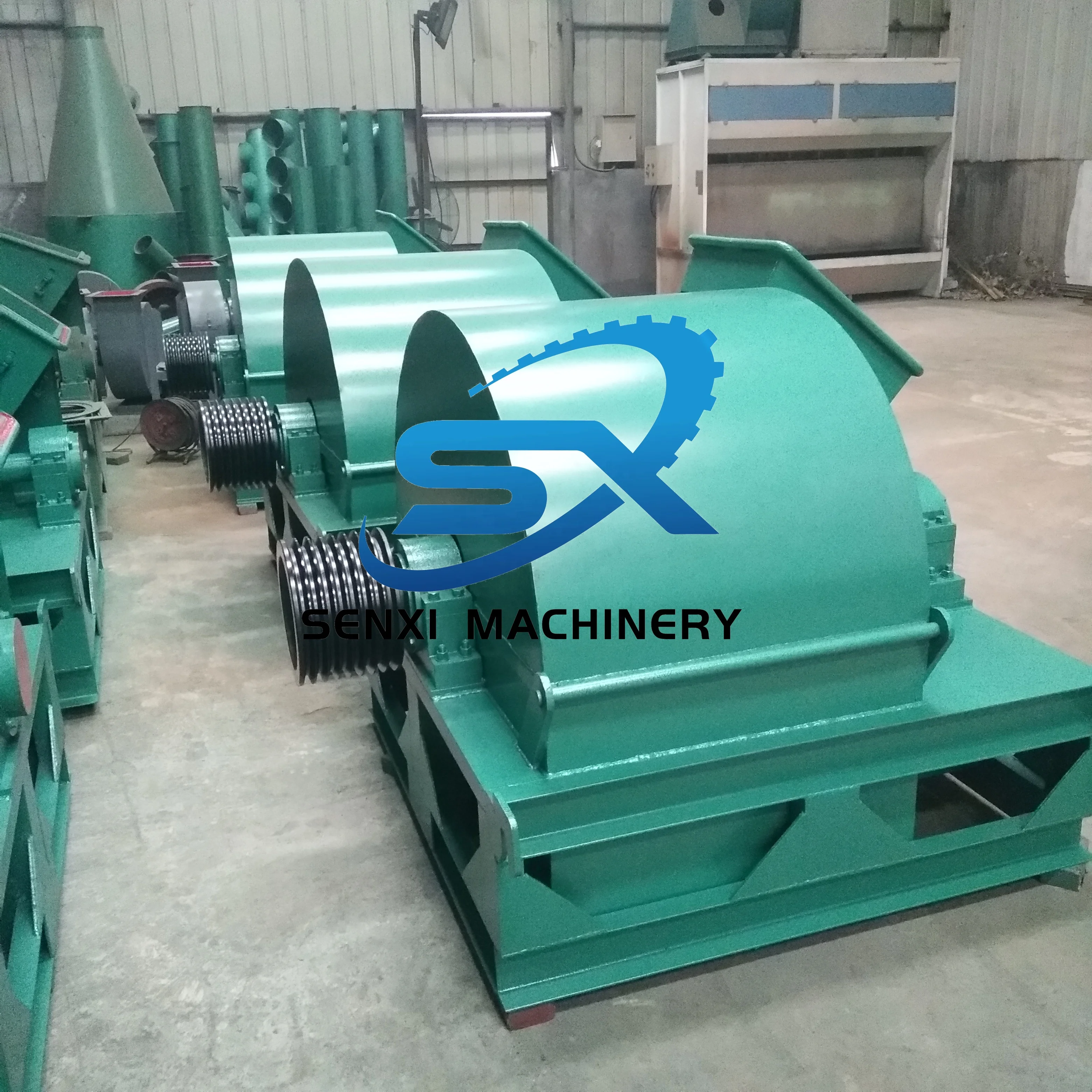

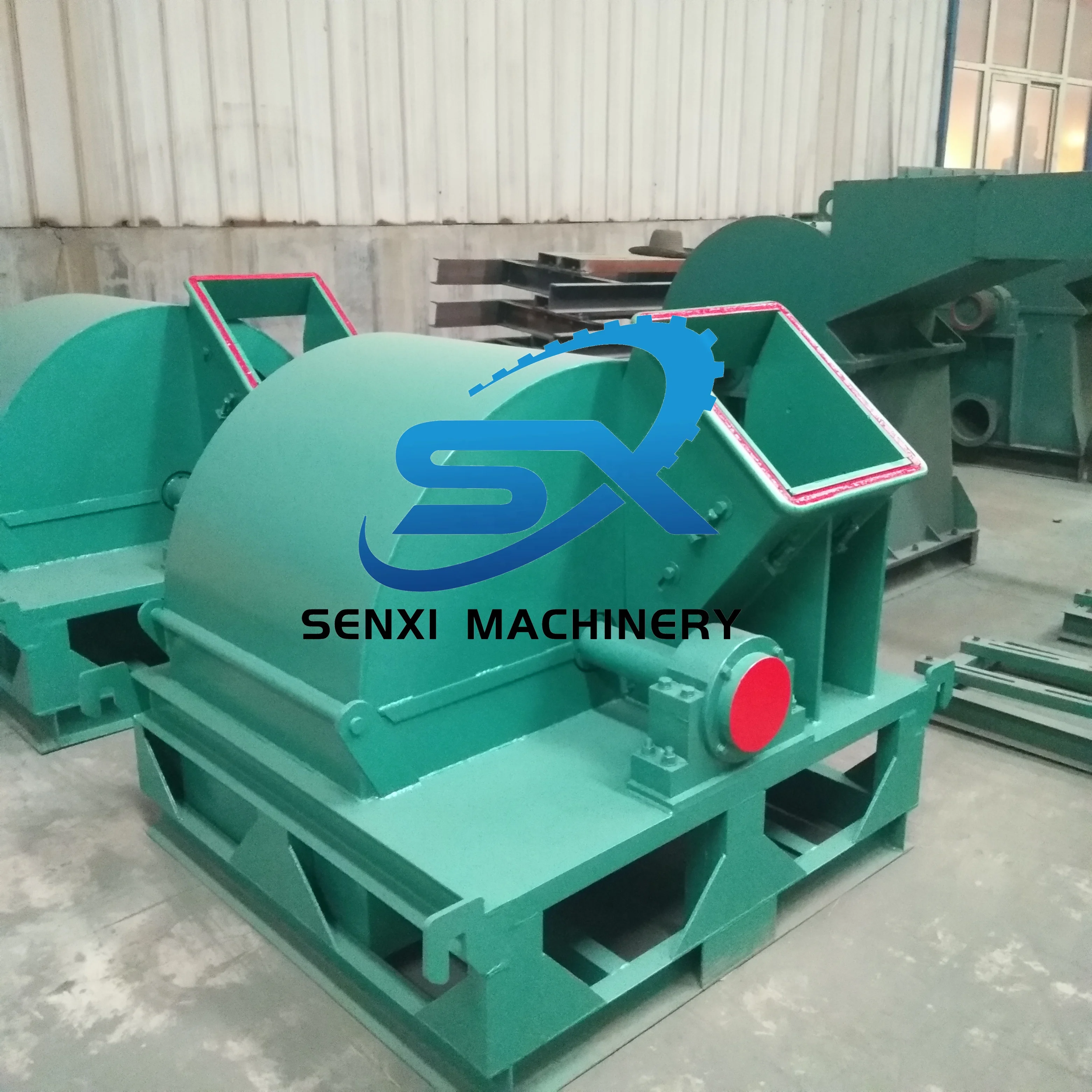

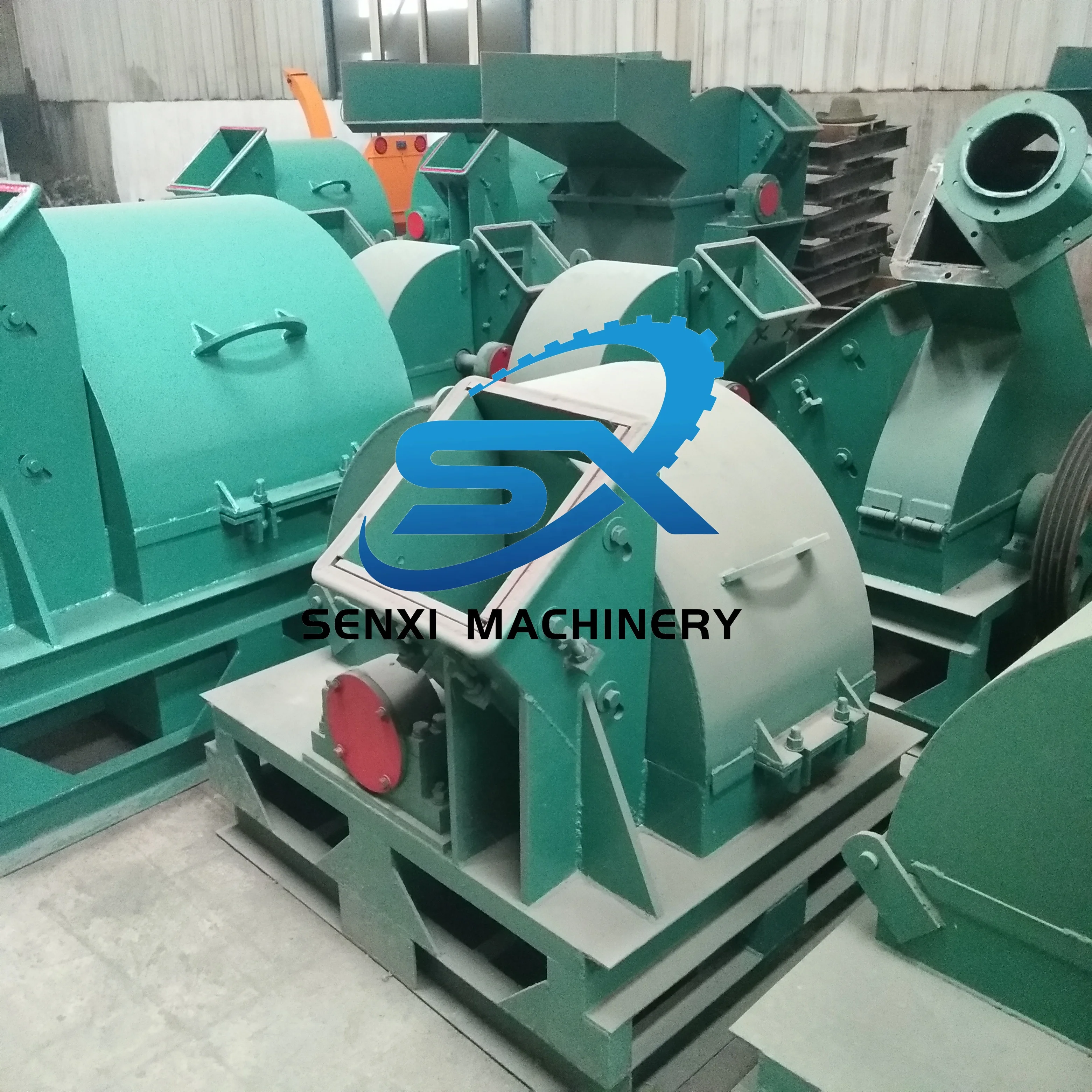

Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher
Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher
Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher
Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher
Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher
Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher
Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher

Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher

Share on (1600930674912):


Price:US$3,500.00 - US$3,600.00

Quantity:


Product Overview

Description



Electrical Branch Wood Chipper Crusher Horizontal Grinder Wood Crusher into Sawdust Wood Hammer Crusher


Product Overview


Product Name
Wood hammer crusher
Color
According to customer‘  needs

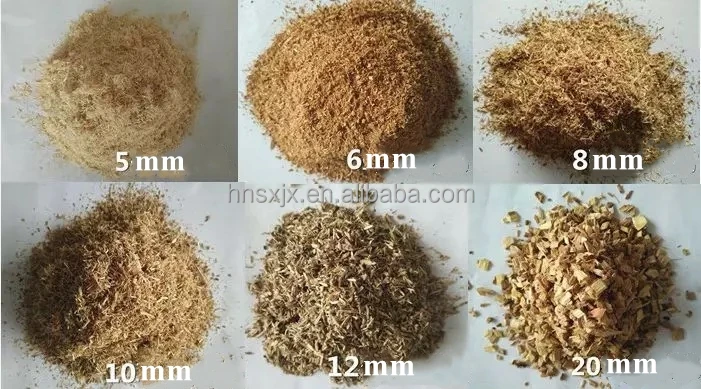

Final Product
Wood sawdust



Multi-functional Wood hammer crusher sawdust is designed according to a variety of grinder principle, to innovate,
developed this new crushing equipment.
The Wood hammer crusher sawdust adopts blade cutting and high-speed airflow impact, collision and double crushing
function in one, and can complete the micro-material sorting and processing process at the same time.
In the process of blade cutting and crushing, the rotor produces high-speed air flow, which rotates with the blade cutting direction, and the material accelerates in the air flow, and repeatedly shocks the material is double crushing at the same time, accelerating the crushing rate of the material.








Raw material Introduction


Specially used in Orchard garden , Botanical garden, Landscaping department;
1. wood, tree trunk, tree branch
2. wooden piece, small tree branch, leaf, tree bark, feed stuff and chemical material etc material;
3. Orchard garden , Botanical garden, Landscaping department;
( Trimmed branches, trunk, leaf can be crushed as fertilizer .)
4. Machine can installed on the cart or farm vehicle;
5. Engine can be motor,diesel engine,gasoline engine,both of them are ok for working;
6. Crushing type can be mobile and fixed-line( two-way for choice).






Working Principle


1. It is composed of three parts: body, middle body and lower body.

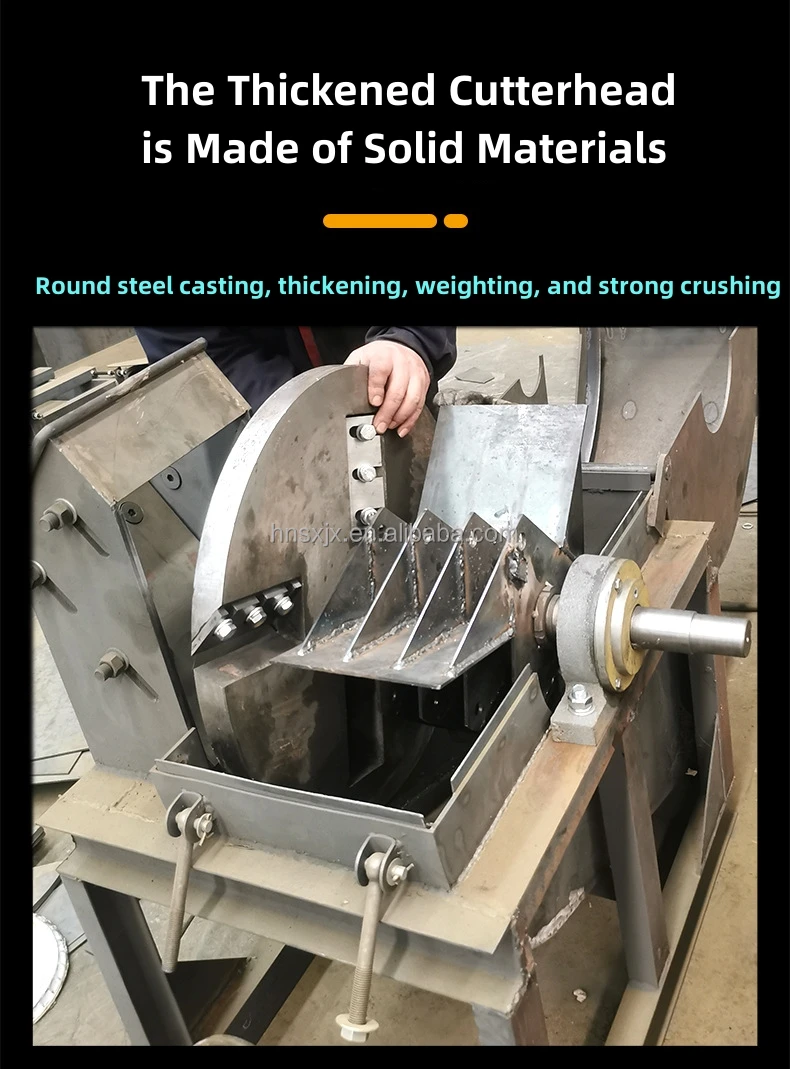

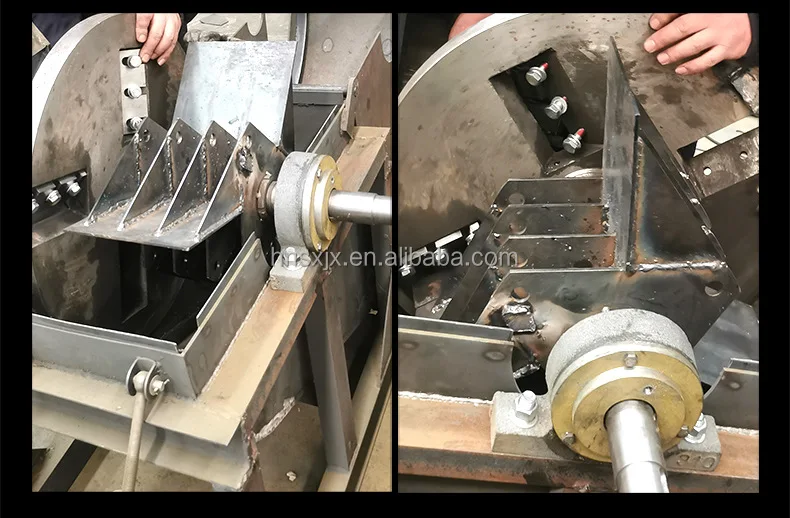

2. The rushing knife is composed of 7 knife, 1 knife and centrifugal knife.
3. The machine is composed of fan, powder collector and dust collector.

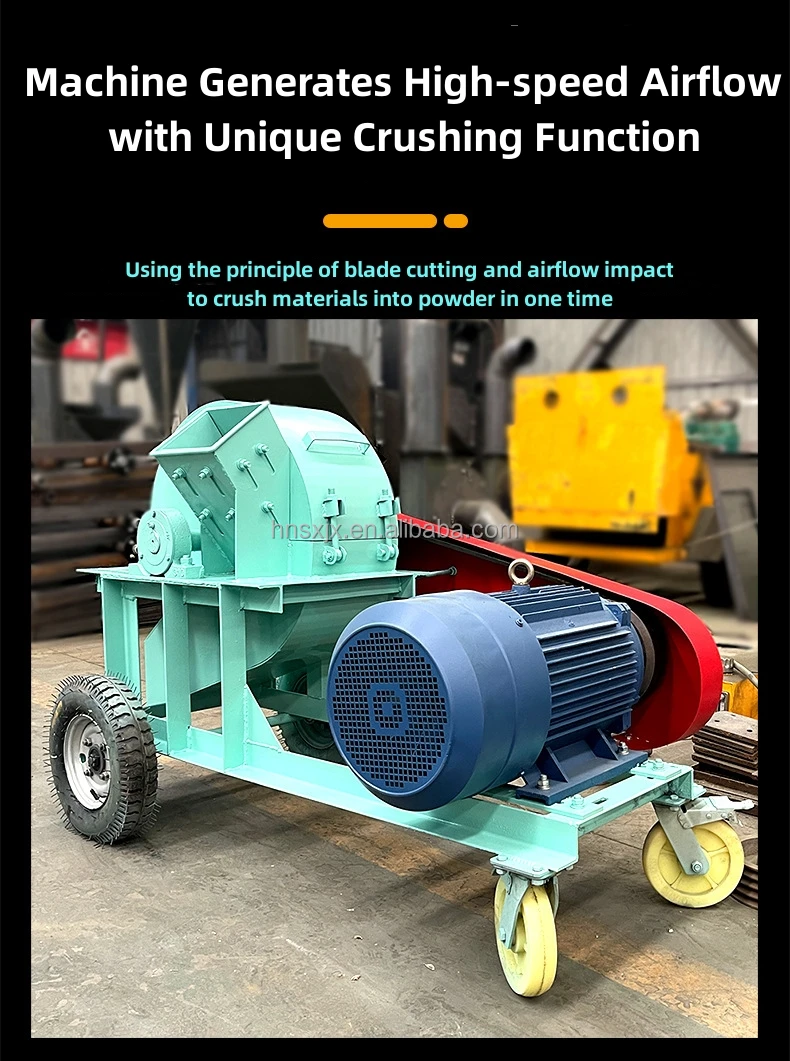

4. The crushing room of the main engine adopts type 7 knife, type 1 type knife and centrifugal knife, with coarse crushing, fine crushing and centrifugal crushing. The motor drives the crushing machine rotor to operate at high speed, so that the machinery produces high speed air flow to produce high strength impact force, compression force, cutting force and friction force on the crushing material, so as to achieve the unique crushing function.
5. In the process of three blade cutting and crushing, the rotor produce high speed airflow with the blade direction rotation, material in the airflow and repeated impact, cutting friction, also by the three tyoe crushing, crushed material with the airflow into the analyzer analysis, due to the analyzer rotor centrifugal force and the action of airflow centripetal force, so when the centrifugal force is greater than the centripetal force, fine particles with the airflow into the collector collection, coarse particles into the centrifugal crushing room to continue to crush until you satisfied fineness.

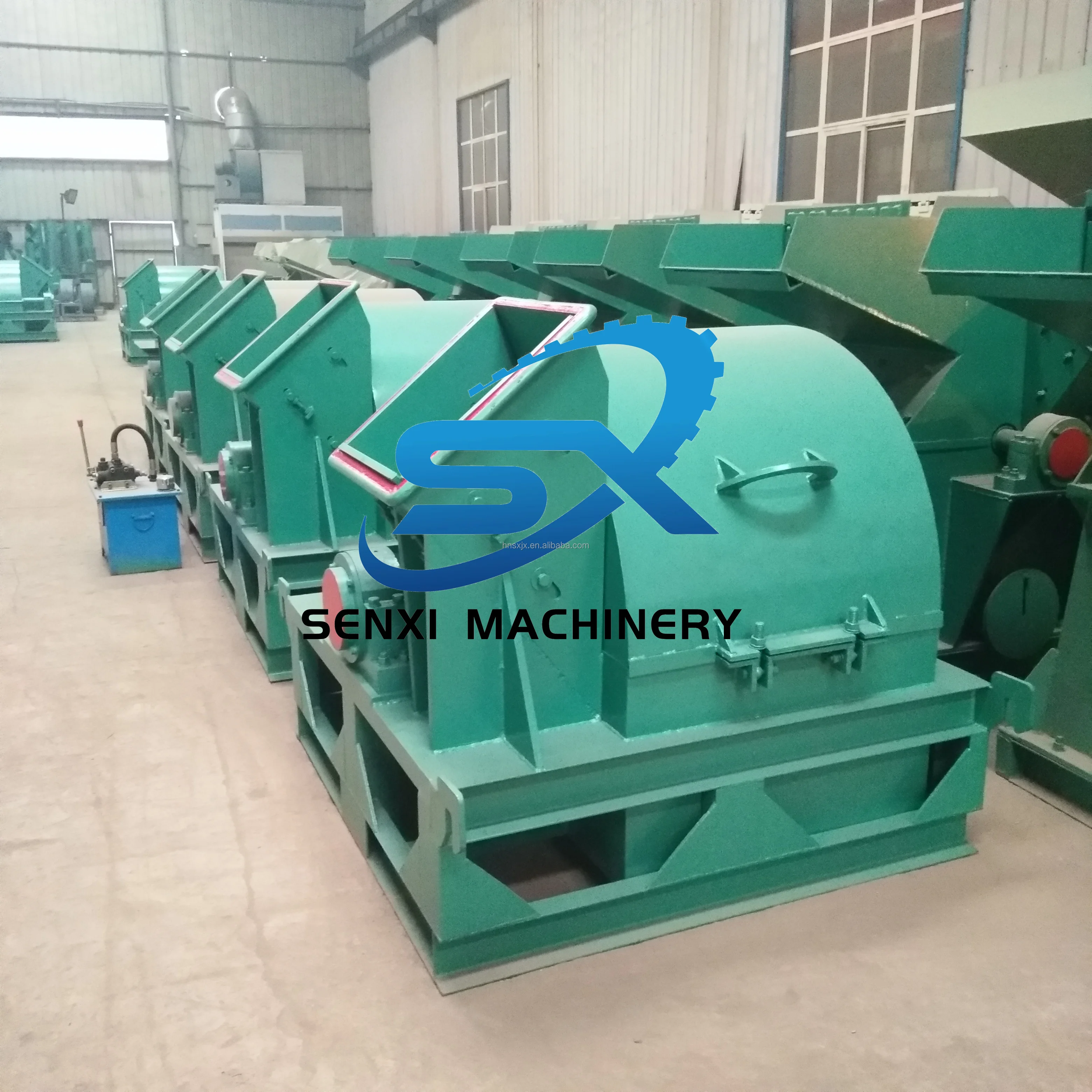

Product Structure








PRODUCT SPECIFICATIONS


Model
    420


          500
       600
     700
800
900
1000
Dia. Of Cutter Head
(mm)
400
450
600
650
750
850
950
Blade Qty.
(PCS)
4
4
4
6
6
4-6
4-6
Blade Length
(mm)
100
100
150
200
230
260
300
Main Shadt Rotating Speed
(Min/h)
2800
2600
2500
2600
2300
2000
2000
Power
(kw)
11
15
22
30
30
37
45
Capacity
(kg/h)
200
300
600
800
1500
3000
4000


Company Profile


Henan Senxi Machinery Equipment Co., Ltd. is located in the Central Plains region of China, is a professional supplier of shredder, dry powder mortar plant equipment, grinding mill, concrete mixer, hydrated lime machine,dryers, crushers,wood crusher equipment,pellet machine and other machines.
We have exported the equipment to more than 30 countries like Uzbekistan, Saudi Arabia,Philippines, Lithuania, Germany, Korea,Thailand etc.
We aim to provide customers with professional, stable, durable, and reliable equipment according to customer’ needs.
What we offer: (1) Good quality (2)Highly competitive prices (3) Smooth communication (4) Custom service (5)Technical support (6)Complete pre-sales, during sales, and after-sales service
Looking forward to collaborating with customers from all over the world!














FAQ


1. What is the minmium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foundation drawing, installation service, work training as well as other service according to the customer's requirements.
4.How long is the delivery time?
About 10 working days after we receive the payment.
5. What are the payment terms?
T/T is the best, it can be adjustable according to different situations.
--------------------------------------------------------------------------------------
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1).What is the raw material and raw material size?
2). Capacity ( t/h)?
3). Final product size needed?
Upon we got your message we shall give you our favorable offer in short time.
