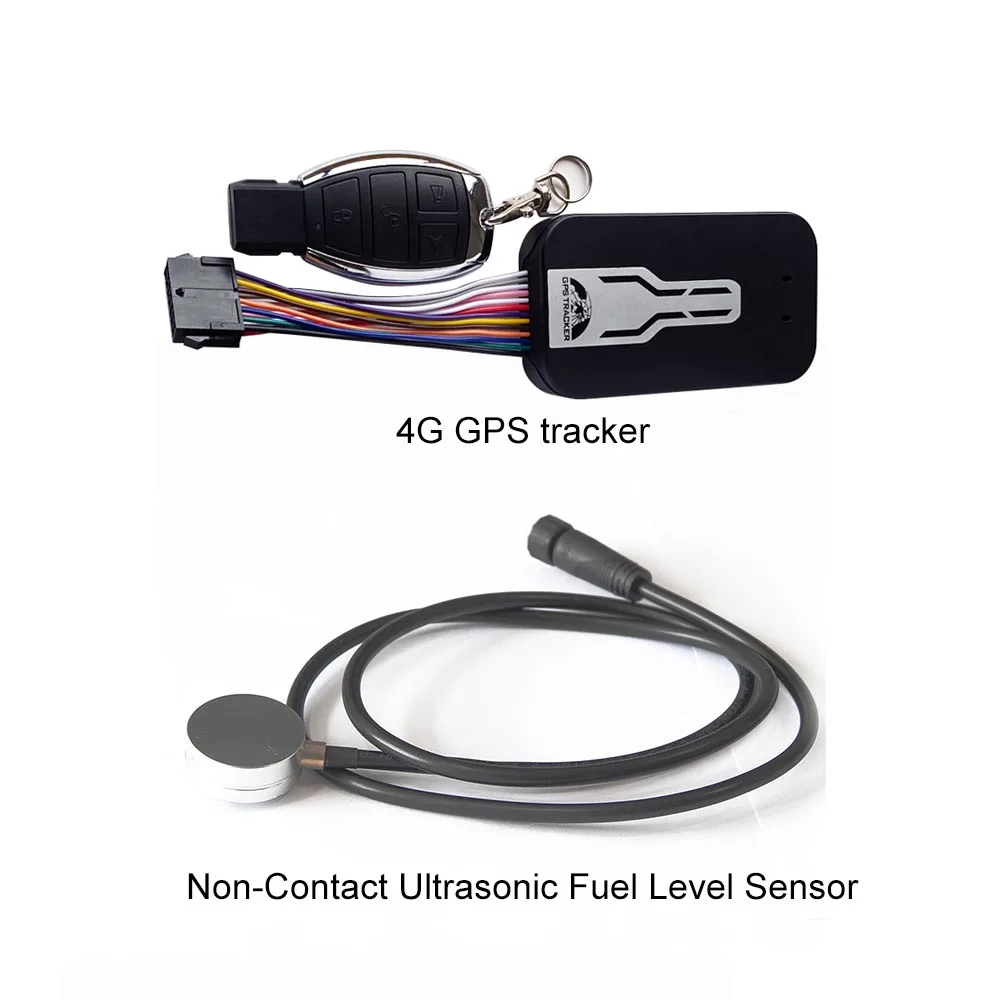

4G GPS tracker with 0 5V high accuracy ultrasonic level fuel sensor tank
- Category: >>>
- Supplier: Shenzhen Kopda Surveillance Electronic Ltd.
Share on (1600930760982):
Product Overview
Description
Product Description

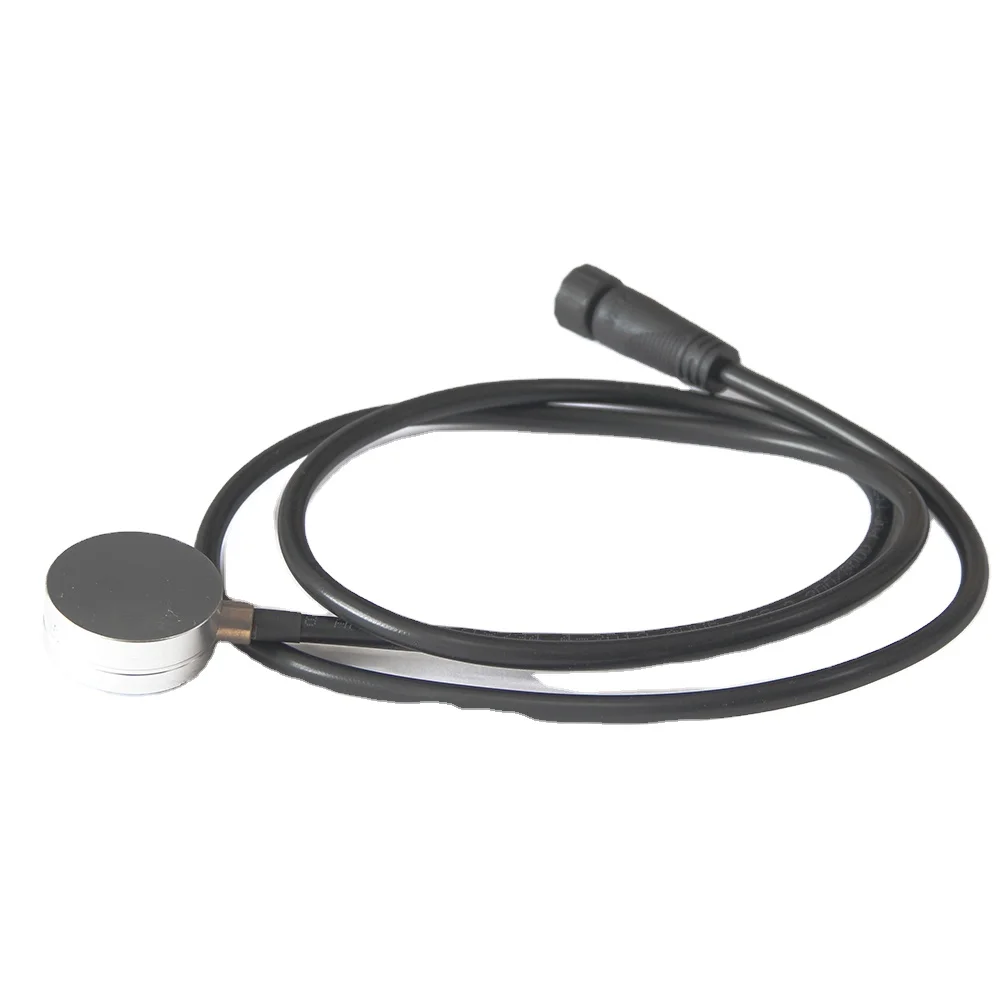

4G GPS tracker with 0-5V high accuracy ultrasonic level fuel sensor tank
Features & Benefits
• Easy installation & Easy to use
• High accuracy
• Cost effective
• Easy installation & Easy to use
• High accuracy
• Cost effective
Specifications
Power supply: 9~36VDC
Power consumption: Typical-0.45W / Sleep mode-0.04W
Operational temperature: -20℃ ~ +65℃
Measuring range:3-100mm
Accuracy: <0.5% FS
Resolution: 0.1mm
Protection: IP67
Serial port output: RS232\\RS485\\Analog
Baud rates: Default 9600 or Customized
Applications
• Mobile fuel tank level monitoring, suitable for most of commercial vehicles
• Stationary fuel tank level monitoring
Power supply: 9~36VDC
Power consumption: Typical-0.45W / Sleep mode-0.04W
Operational temperature: -20℃ ~ +65℃
Measuring range:3-100mm
Accuracy: <0.5% FS
Resolution: 0.1mm
Protection: IP67
Serial port output: RS232\\RS485\\Analog
Baud rates: Default 9600 or Customized
Applications
• Mobile fuel tank level monitoring, suitable for most of commercial vehicles
• Stationary fuel tank level monitoring
Power supply | 9~36VDC |
Power consumption | Typical-0.45W / Sleep mode-0.04W |
Operational temperature | -20℃ ~ +65℃ |
Measuring range | 0-100mm |
Accuracy | <0.5% FS |
Resolution | 0.1mm |
Protection | IP67 |
Serial port output | RS232\\0-5V\\Analog |
Baud rates | Default 9600 or Customized |

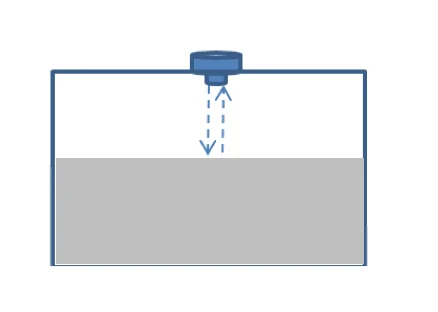

How it works
The device sends sound waves above 20 Hz and these waves bounce from the surface of the product,
creating an echo that goes back to the sensor.
Then the sensor calculates the time the echo took to return to find out the level and volume.
creating an echo that goes back to the sensor.
Then the sensor calculates the time the echo took to return to find out the level and volume.

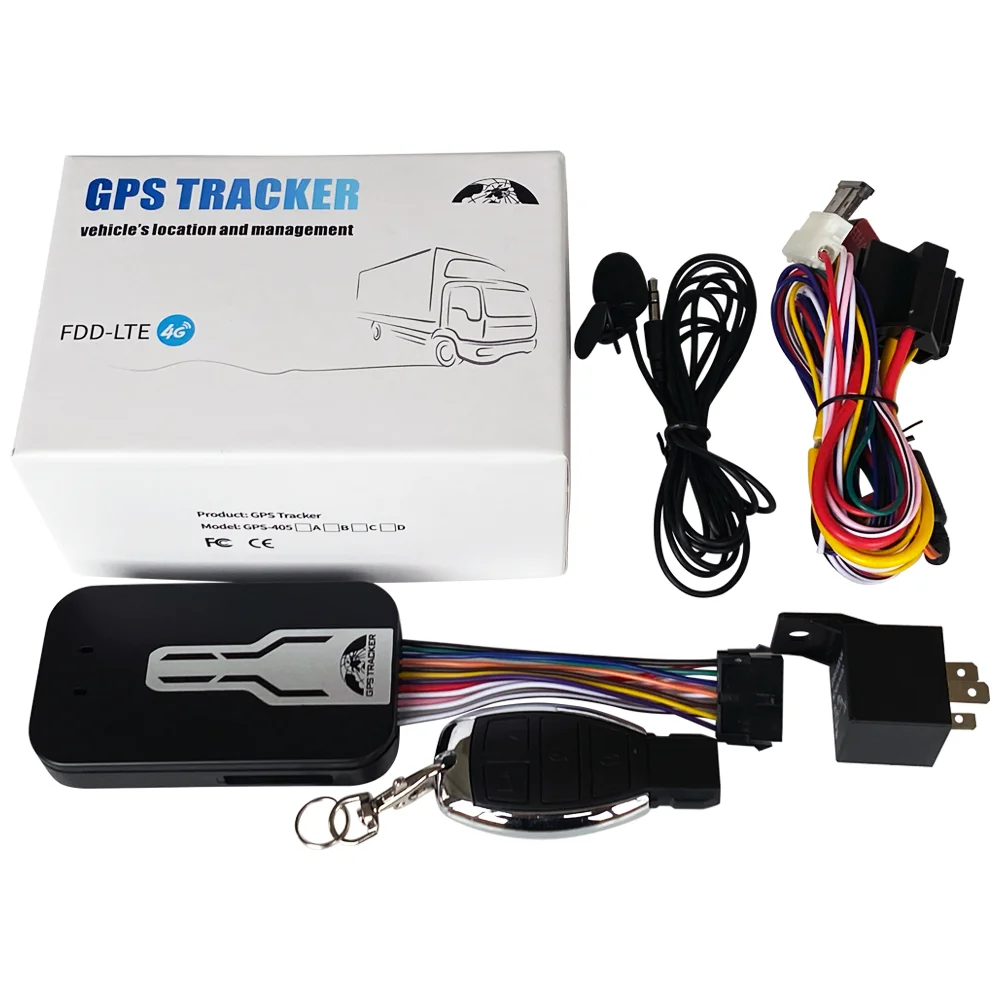

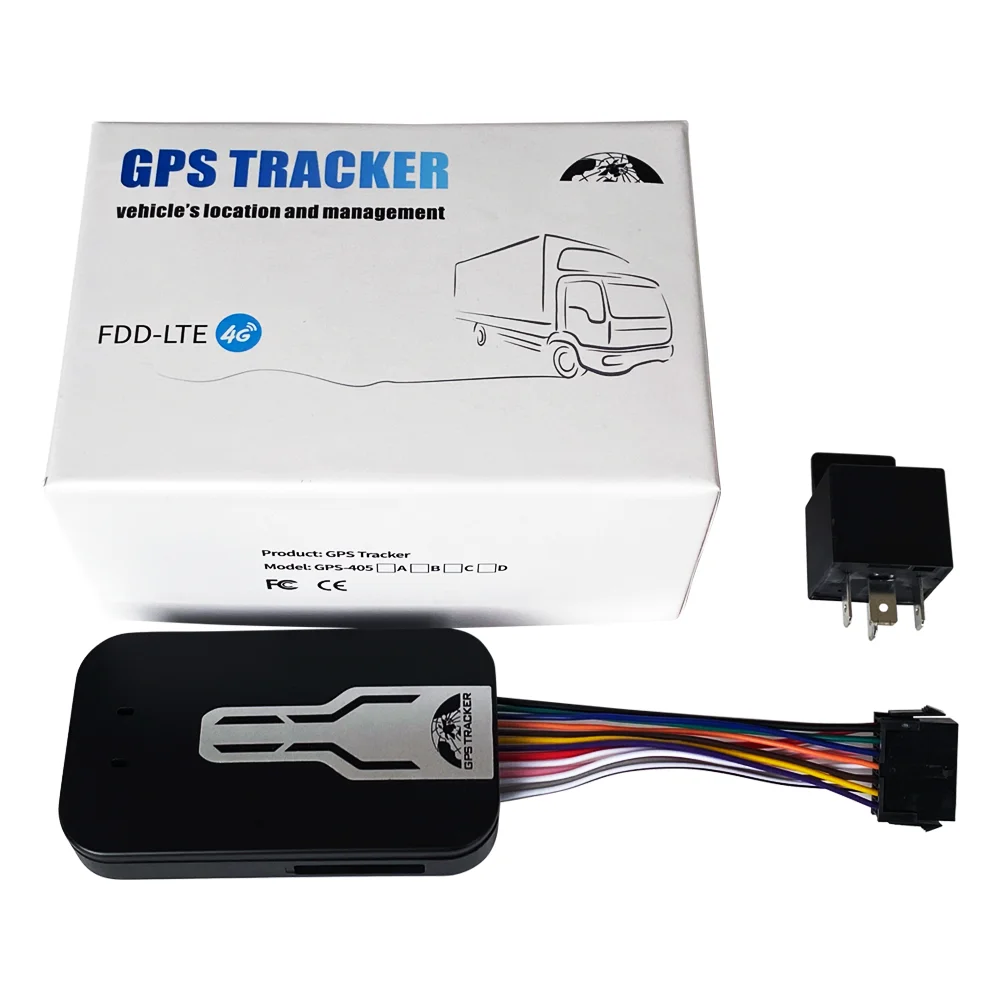

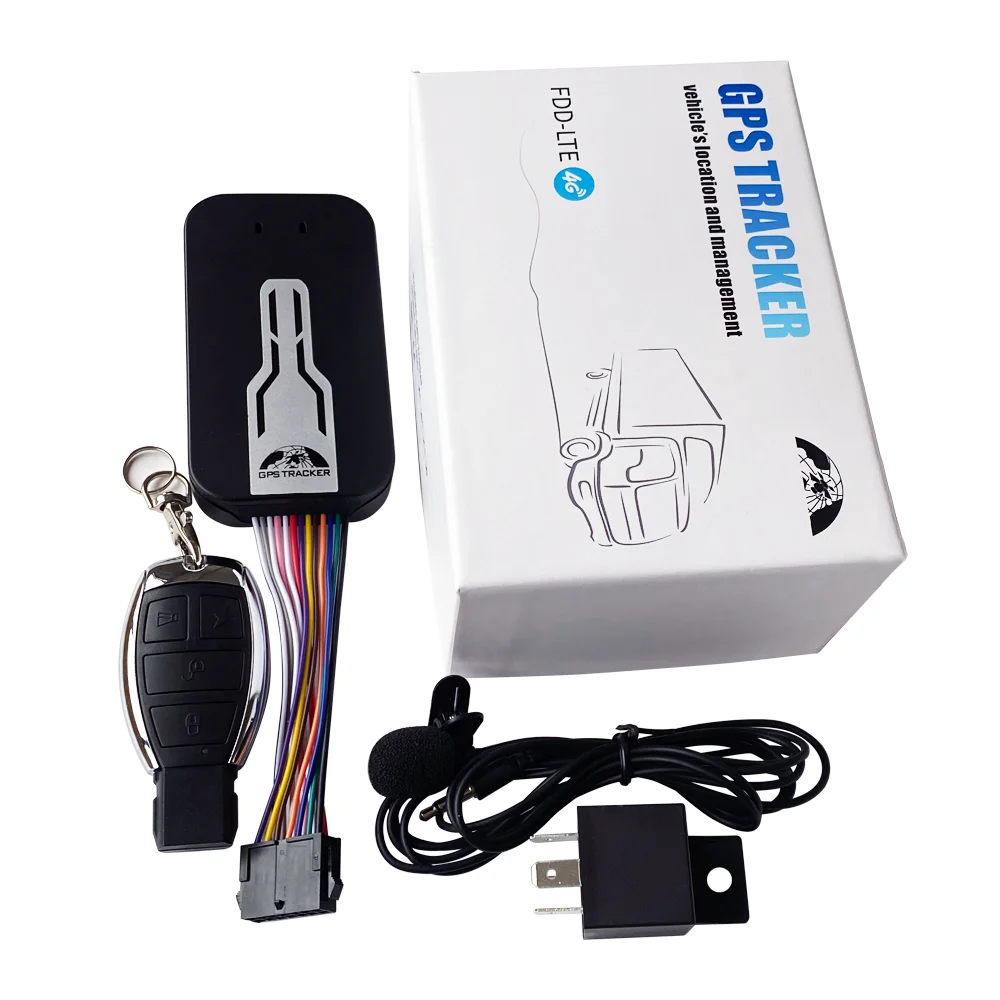

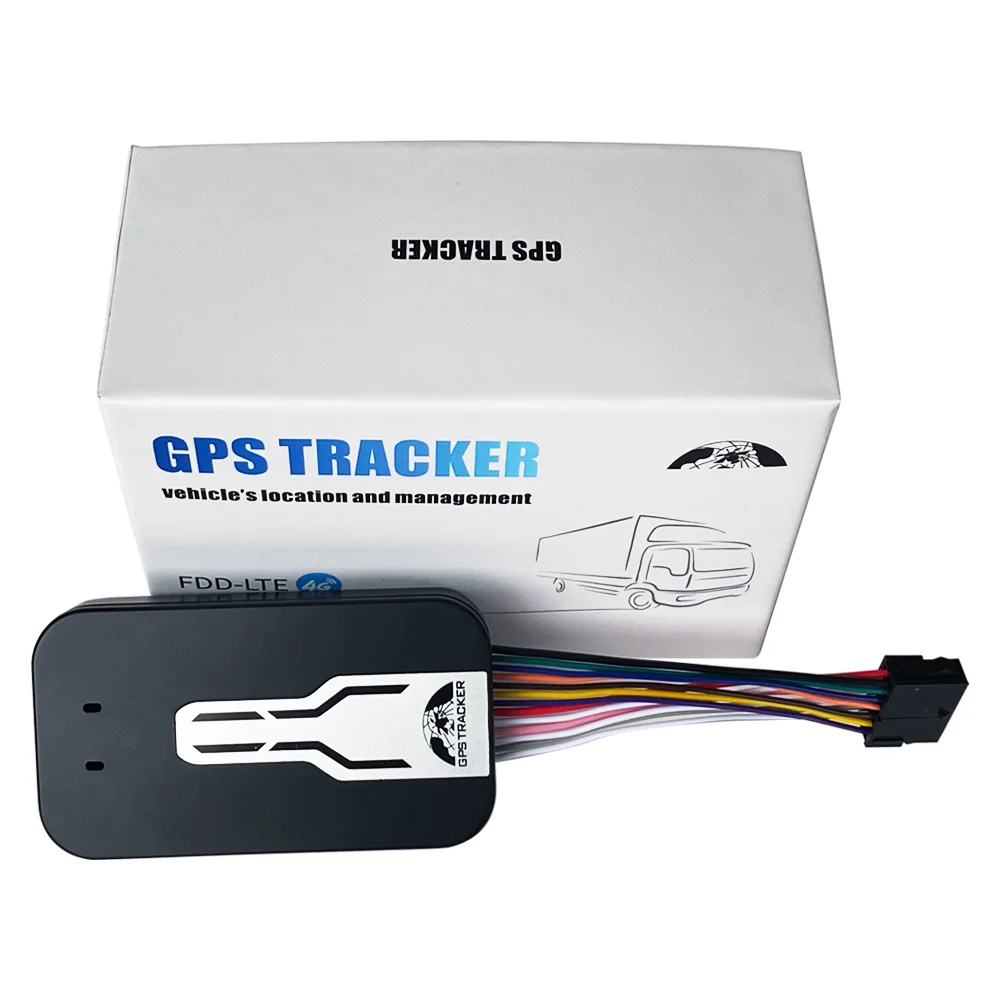

4G GPS tracker details
Product name | LTE wireless data terminal |
Model | 405 |
DIM. | 9.6×5.4×1.9cm |
Weight | 70g |
Network | GSM/GPRS/WCDMA/LTE |
Band | 4G (B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B40) 3G (B1/B2/B3/B5/B8) 2G (850/900/1800/1900Mhz) |
GPS sensitivity | -165dBm |
GPS accuracy | 5m |
Time To First Fix | Cold status 45s Warm status 35s Hot status 1s |
Applicable car power | 12V-24V |
Battery | Chargeable 3.7V 90mAh Li-ion battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +40°C |
Humidity | 5%--95% non-condensing |
