6V/12V Smart Battery Charger, 1.2A/1.5A, Trickle Charger, for Car, Motorcycle, Truck, RV, Boat, Car Charger
- Category: >>>
- Supplier: Hangzhou Tonny Electric & Tools Co. Ltd.
Share on (1600930769892):
Product Overview
Description
Tonny Electric & Tools Co., Ltd
Established in 1995
Experienced in OEM and ODM production, we have 14 assembly lines,dozens of injection machines and over 450 skilled employees.Our major esteemed customers are enjoying more popularity in the world, such as Wal-Mart, Autozone, Scotts Company, Advance Auto Parts, O2cool，Vornado and BIRGMA etc.
Specifications
Model | TE4-0250 |
Battery Type | 6V/12V STD, GEL, AGM |
Rated AC Input Voltage | AC100-240V, 50-60Hz |
Max Output Voltage | 7.2V±0.3V, 13.9V±0.3V |
Charging Current | 1.2 Amp |
Activated Voltage | 3V for 6V batteries, 7.5V for 12V batteries |
Protection | Overheat |
Short Circuit | |
Reverse Polarity | |
Overcharge | |
Housing Material | ABS |
Ingress Protection | IP65 Water Resistant |
Color | Customized |
Certificate | cETL /CE-EMC/CE-LVD/ROHS |
Weight | 350g |
Size | 159x54 x 37mm |
Plug Standard | EU/AU/UK/US |

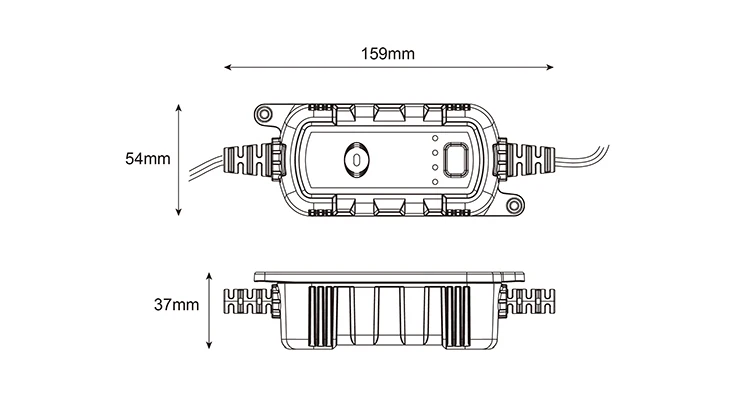

Dimension
Product Description

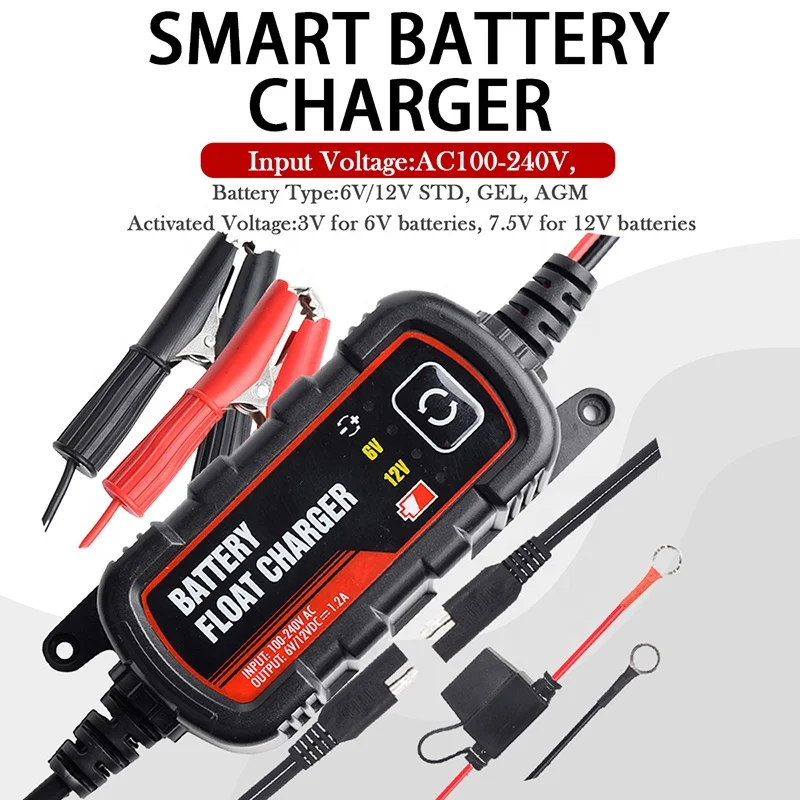

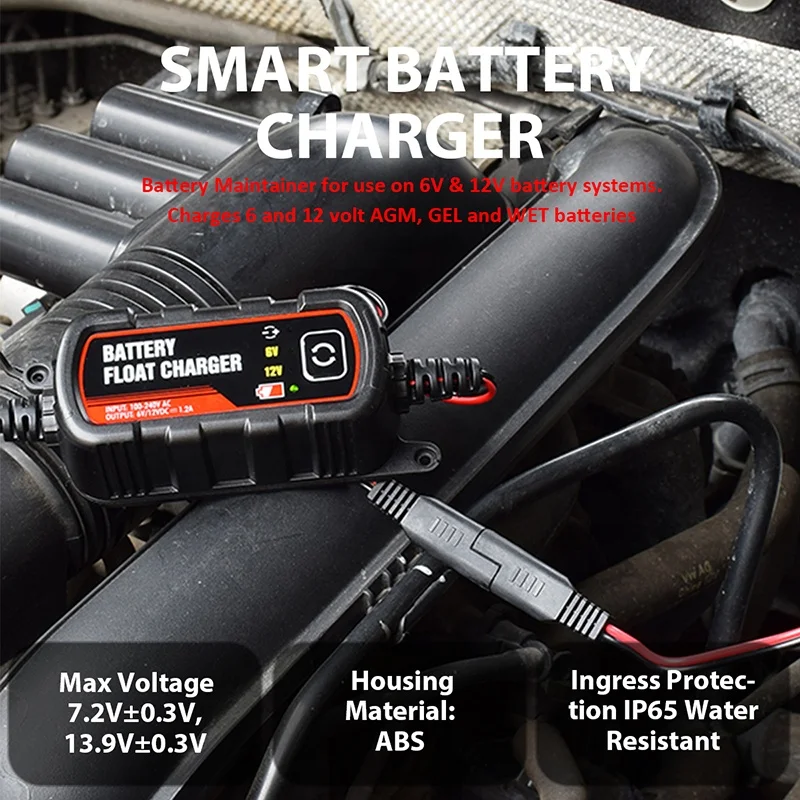

Portable 6V & 12V 1.2A smart car motorcycle battery charger
lead acid battery float charger
lead acid battery float charger
1. Cut off the supplied battery clips; ensure you leave sufficient cable to reach the battery terminals. (DO NOT extend the battery charger DC cables, as the added voltage drop will cause incorrect charging)
2. Fit a ring terminal to the BLACK Negative (-) wire
3. Connect the inline fuse to the RED Positive (+) wire.
4. Connect a ring terminal to the other end of the inline fuse
5.Connect the RED lead (with inline fused and ring terminal) to the Positive (+) battery post.
6. Connect the BLACK lead (with ring terminal) to the negative (-) battery post.
7. Fit the correctly rated fuse.
Input: 100-240V AC,50/60Hz
Output: DC 12V & DC 6V
Max charging current: 1.2A
Automatic charging voltage selection for 6V&12V batteries
LED charging status light
Reverse connection LED display

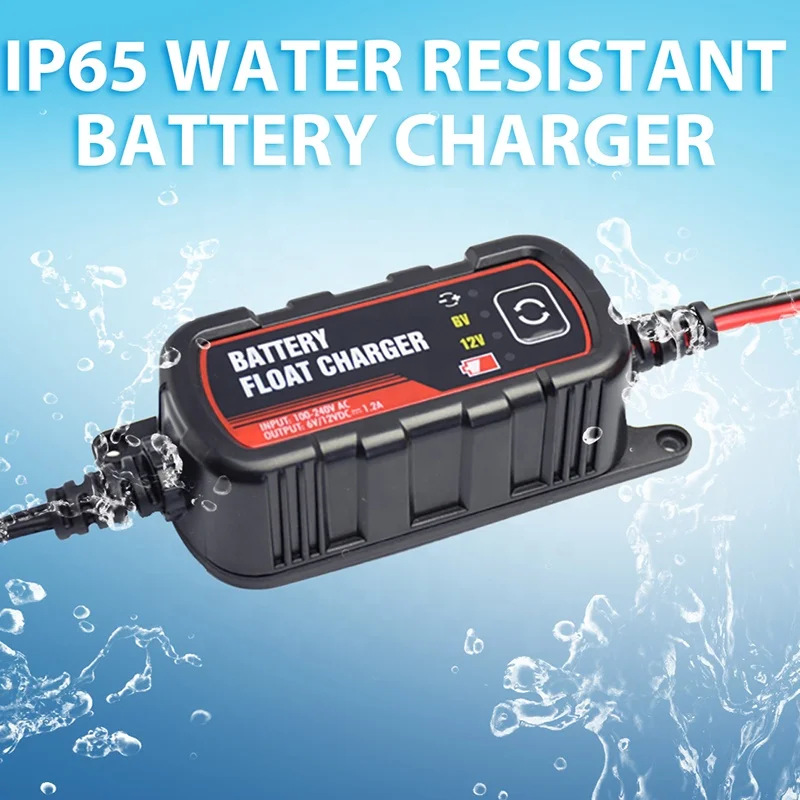

IP65 waterproof

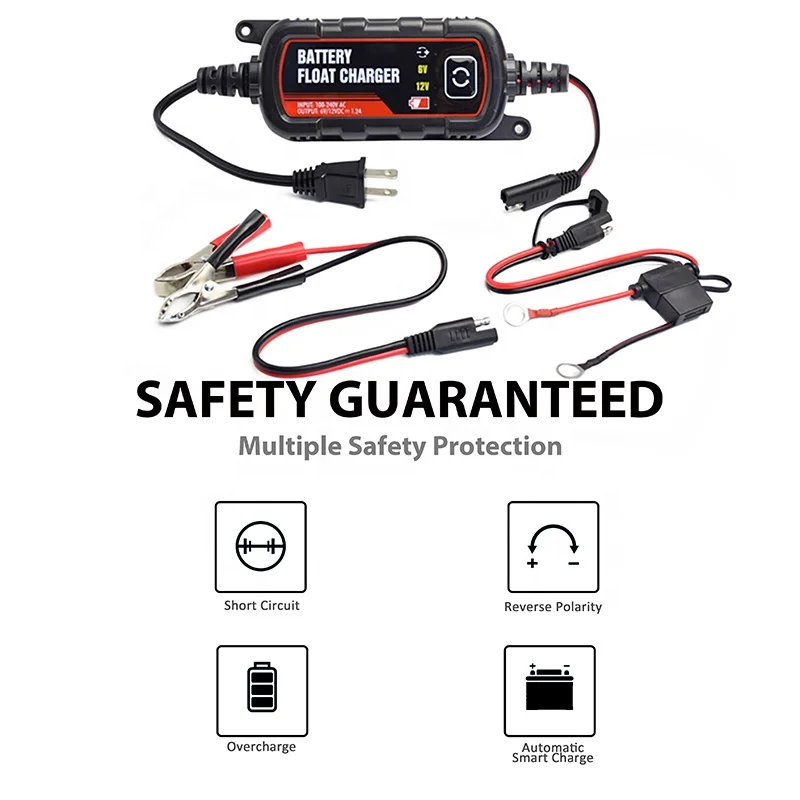

Overcharge and Short circuit protection;Overtemp protection;
Overcurrent and Overvoltage protection
The perfect device for batteries maintaining and charging

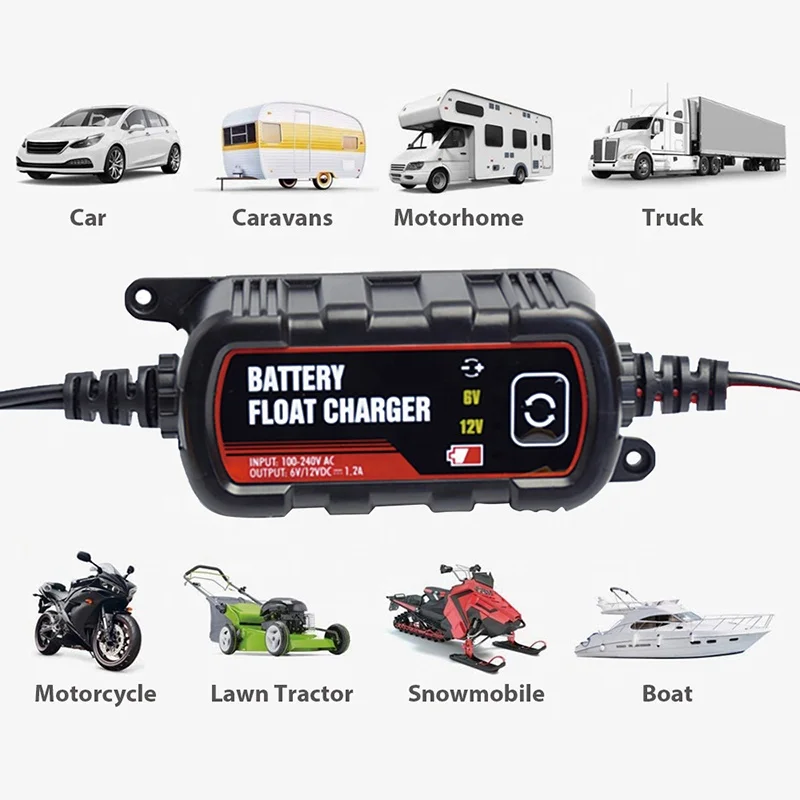

For cars, motorcycles, boats, farm machinery, RV's
It's very simple for use; hook it up, connect it and forget it
2. Fit a ring terminal to the BLACK Negative (-) wire
3. Connect the inline fuse to the RED Positive (+) wire.
4. Connect a ring terminal to the other end of the inline fuse
5.Connect the RED lead (with inline fused and ring terminal) to the Positive (+) battery post.
6. Connect the BLACK lead (with ring terminal) to the negative (-) battery post.
7. Fit the correctly rated fuse.
Input: 100-240V AC,50/60Hz
Output: DC 12V & DC 6V
Max charging current: 1.2A
Automatic charging voltage selection for 6V&12V batteries
LED charging status light
Reverse connection LED display
IP65 waterproof
Overcharge and Short circuit protection;Overtemp protection;
Overcurrent and Overvoltage protection
The perfect device for batteries maintaining and charging
For cars, motorcycles, boats, farm machinery, RV's
It's very simple for use; hook it up, connect it and forget it
